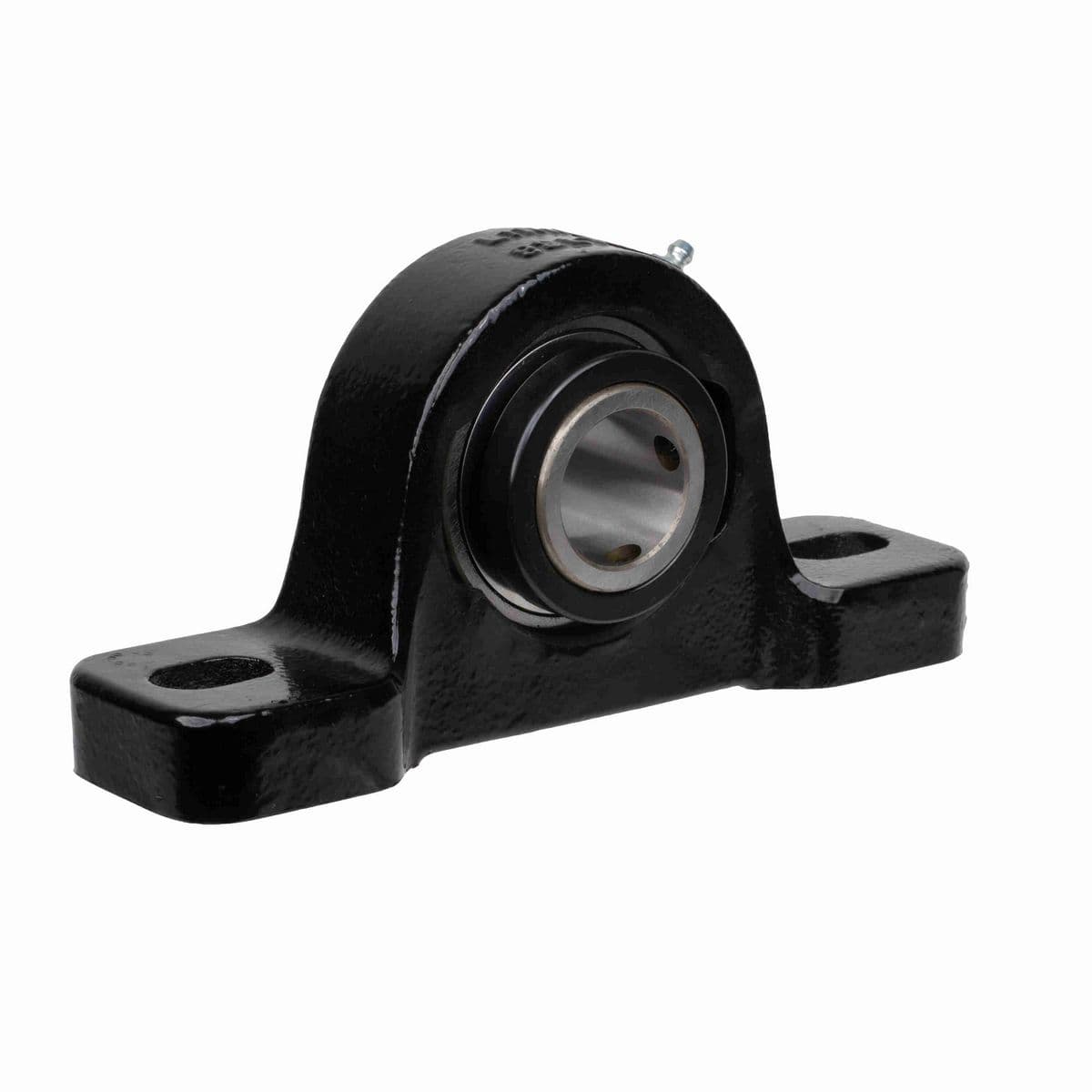

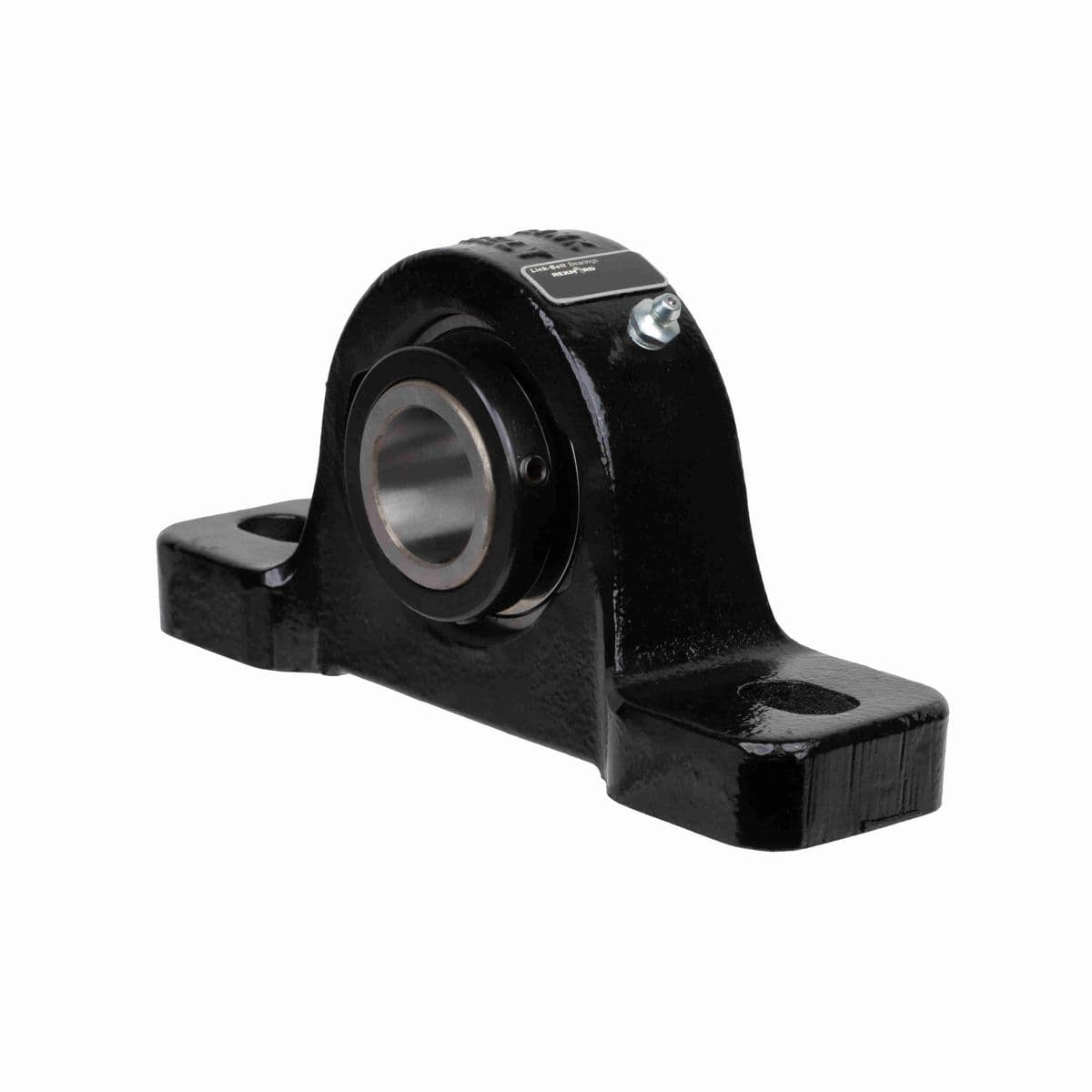

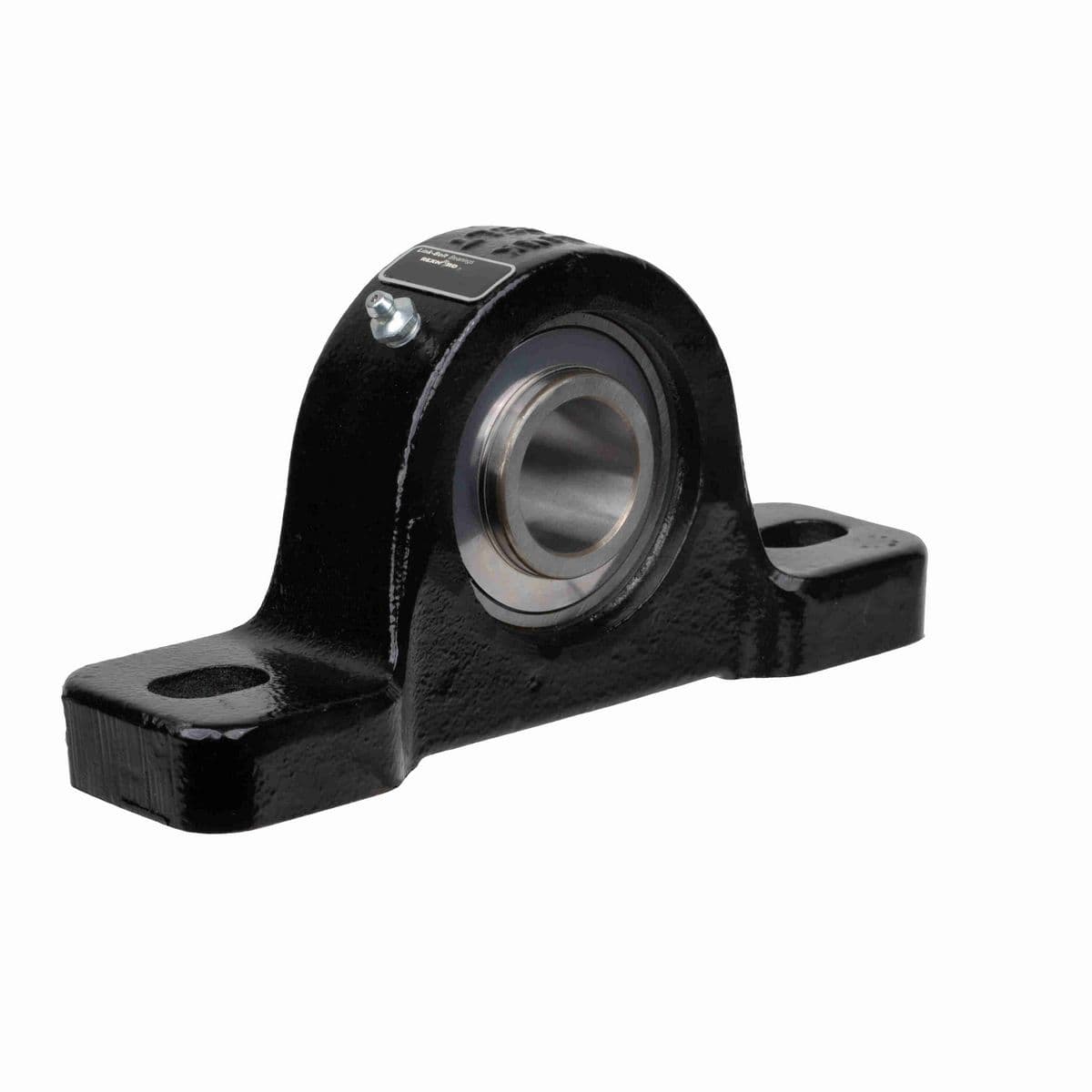

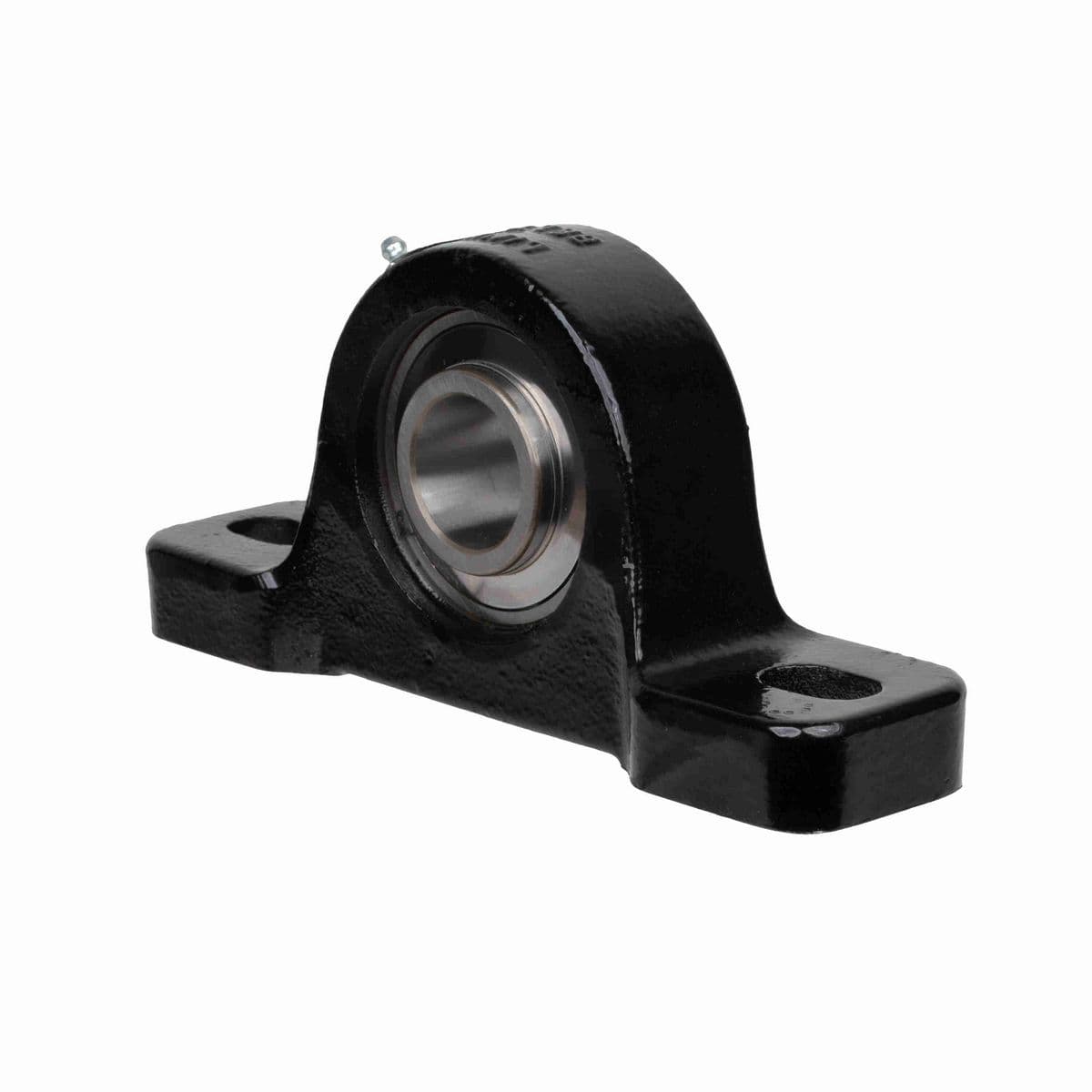

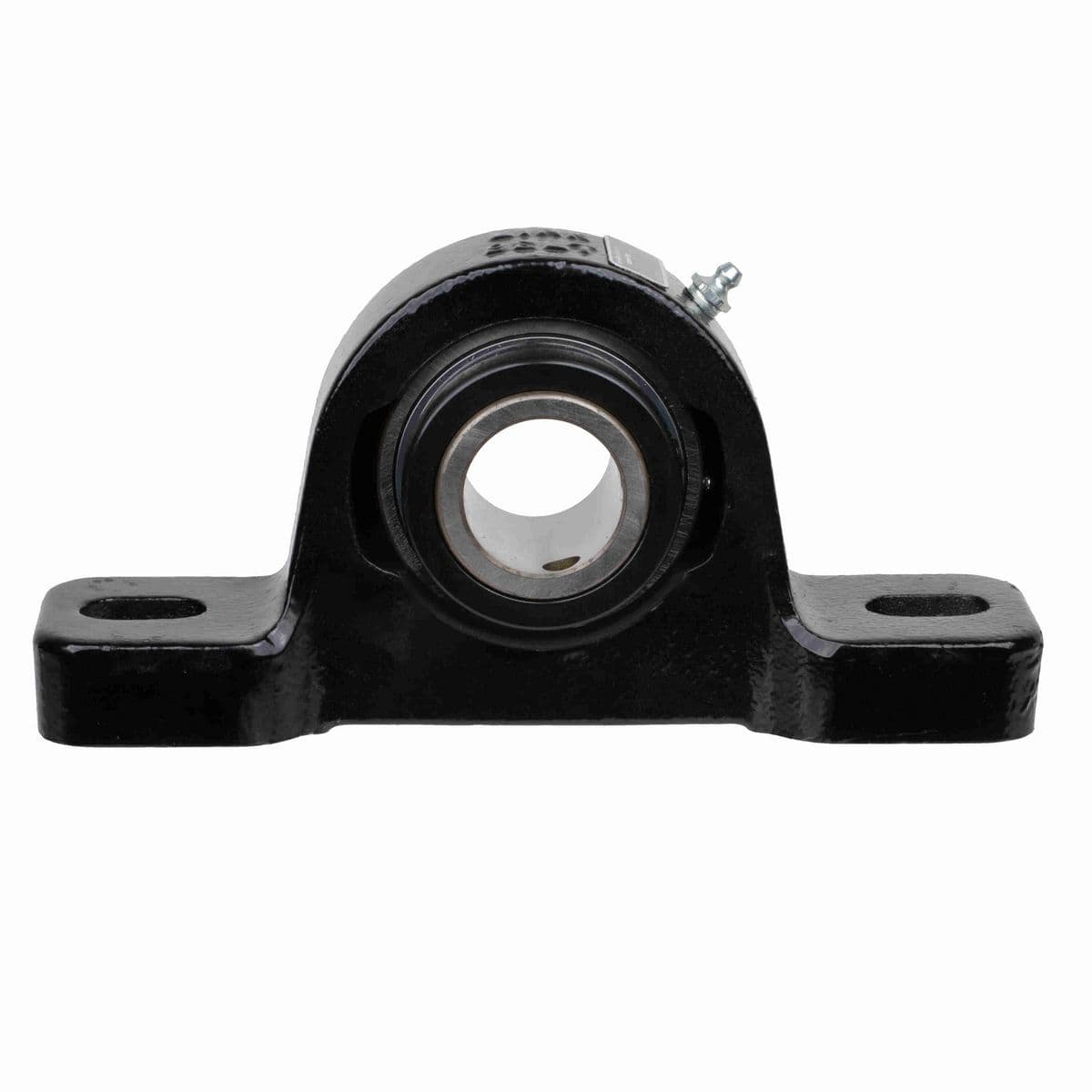

• 2 3/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt High Backing Height Pillow Block, Setscrew Locking, Clearance Seal

Dimensions

Bore Diameter (in)	2.1875 in
Overall Width (in)	3.38 in
Bolt Size (in)	3/4 in
Length Through Bore (in)	3.06 in
Base to Center Height (in)	3.75 in
Base Width (in)	3.38 in
Overall Length (in)	12.63 in
Foot Height (in)	1.44 in
Overall Height (in)	6.88 in
Centerline to Outermost Bearing Face (in)	1.84 in
Bolt Spacing (in)	10.25 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Type	Pillow Block, Two Bolt, High Base
Housing Color	Black
Housing Style	Pillow Block
Seal Type	Labryinth Seal
Outer Ring Land Profile	Standard
Housing Base	Semi-Solid
Slot Length (in)	1.38 in
Misalignment Type	Static Only
Housing Construction	One Piece
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.92 in
Setscrew Torque (in-lbs)	430-460 in/lbs
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	12.63 in
Insert	UG335L
Maximum Speed (RPM)	4950 rpm
Size Code	335
Vibration Frequency Outer Ring Defect	0.0510 cps
Vibration Frequency Inner Ring Defect	0.0823 cps
End Cap Available	Yes
Static Load Rating (lb)	10,000 lb
Shaft Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0333 cps
Cage Type	Ball Riding Retainer
Dynamic Load Rating (lb)	16,070 lb
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0063 cps
End Cap	U3356C
Inner Ring Outside Diameter (in)	2.959 in
Max Operating Temperature (C)	107 °C
Fixed vs. Expansion	Fixed
Lubricant	EXXON RONEX MP STD
Housing Material	Cast Iron
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Bearing Type	Heavy Duty
Grease Fitting Thread Size	1/8 NPT
Locking Device Kit	U3355S
Radial Clearance	C3 STANDARD
Max Operating Temperature (F)	225 °F

General Specifications

UPC	662327708528
Weight	23.40 LB
Packaged Length	8.00 IN
Packaged Width	4.38 IN
Packaged Height	13.00 IN
HTC	8483208040
Country of Origin	Mexico
