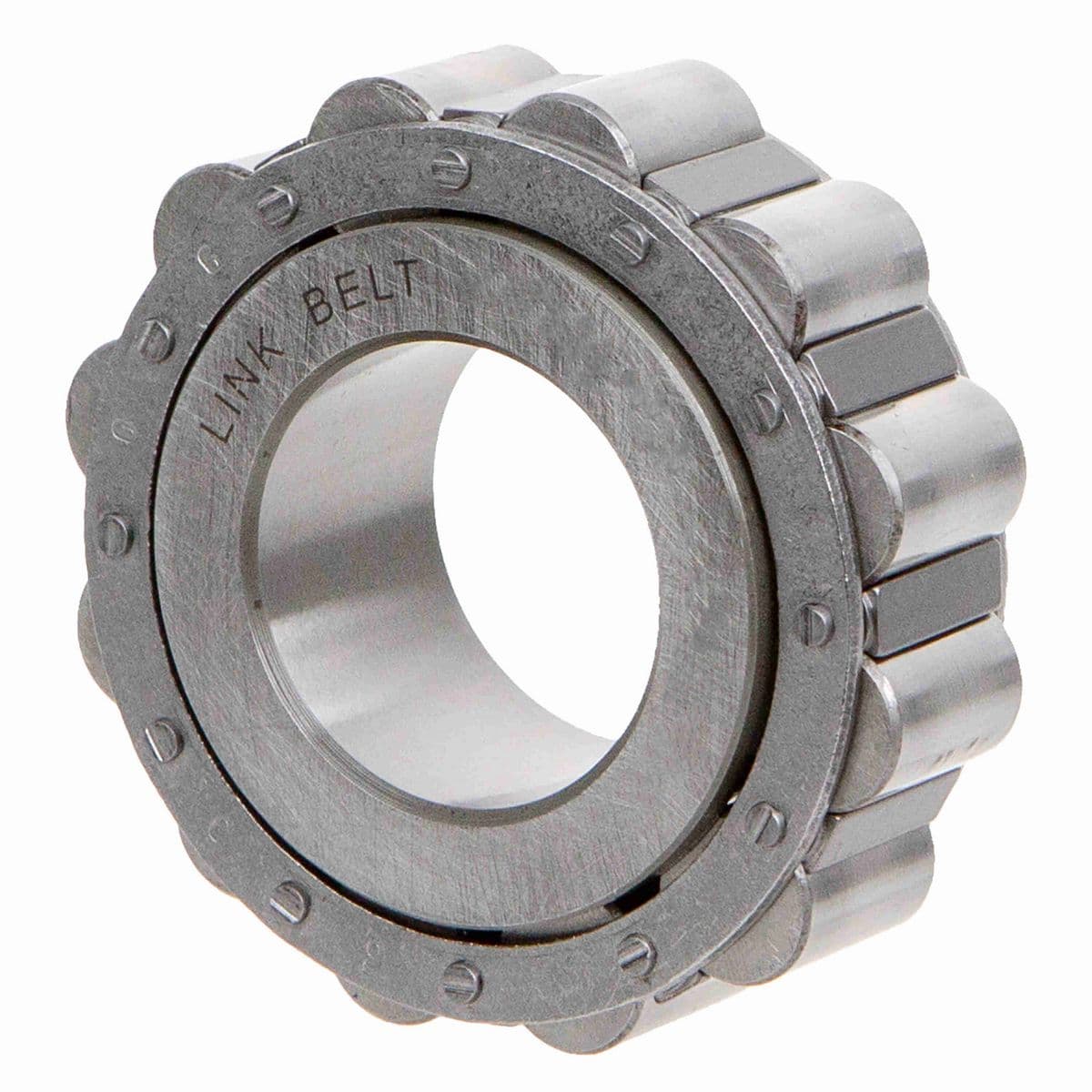

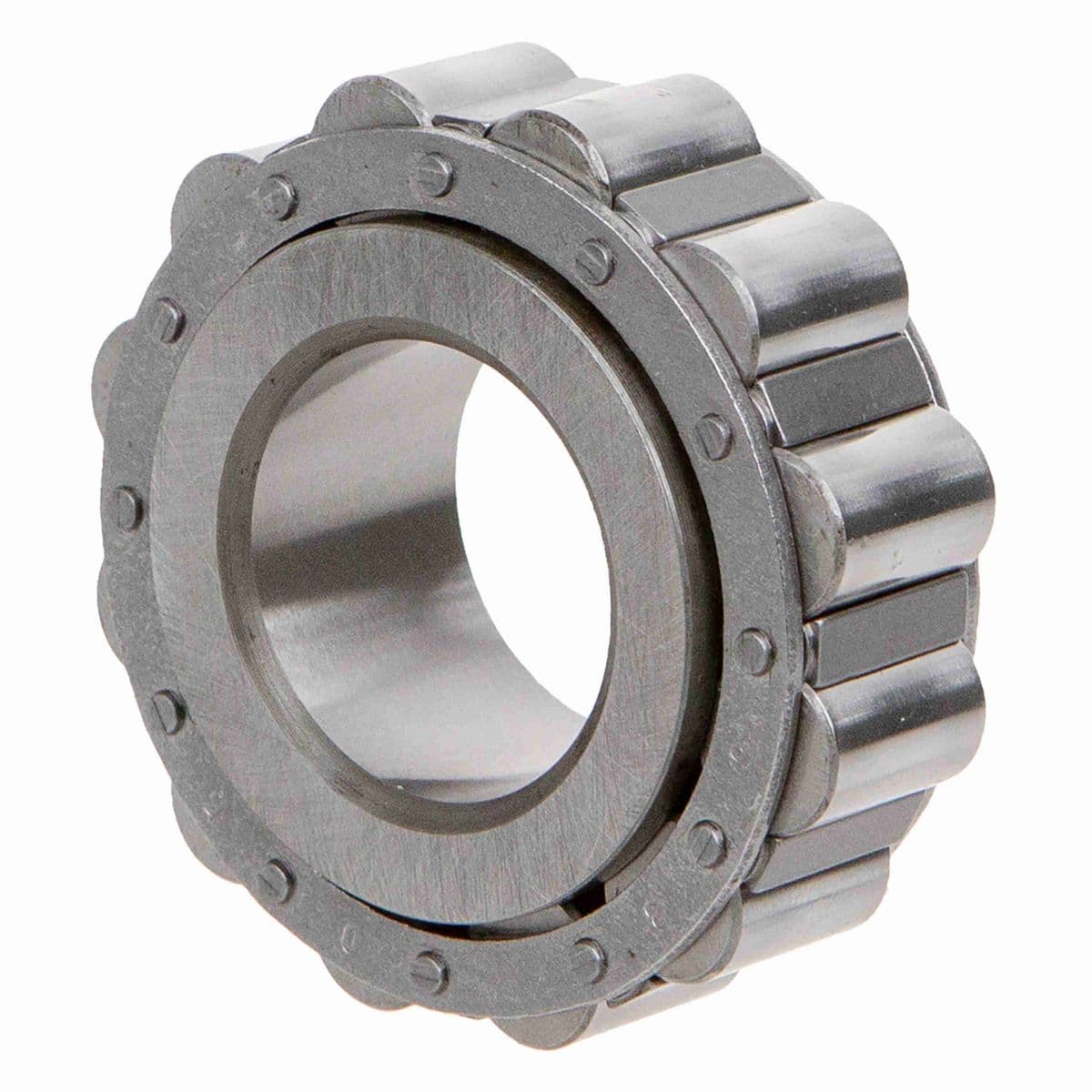

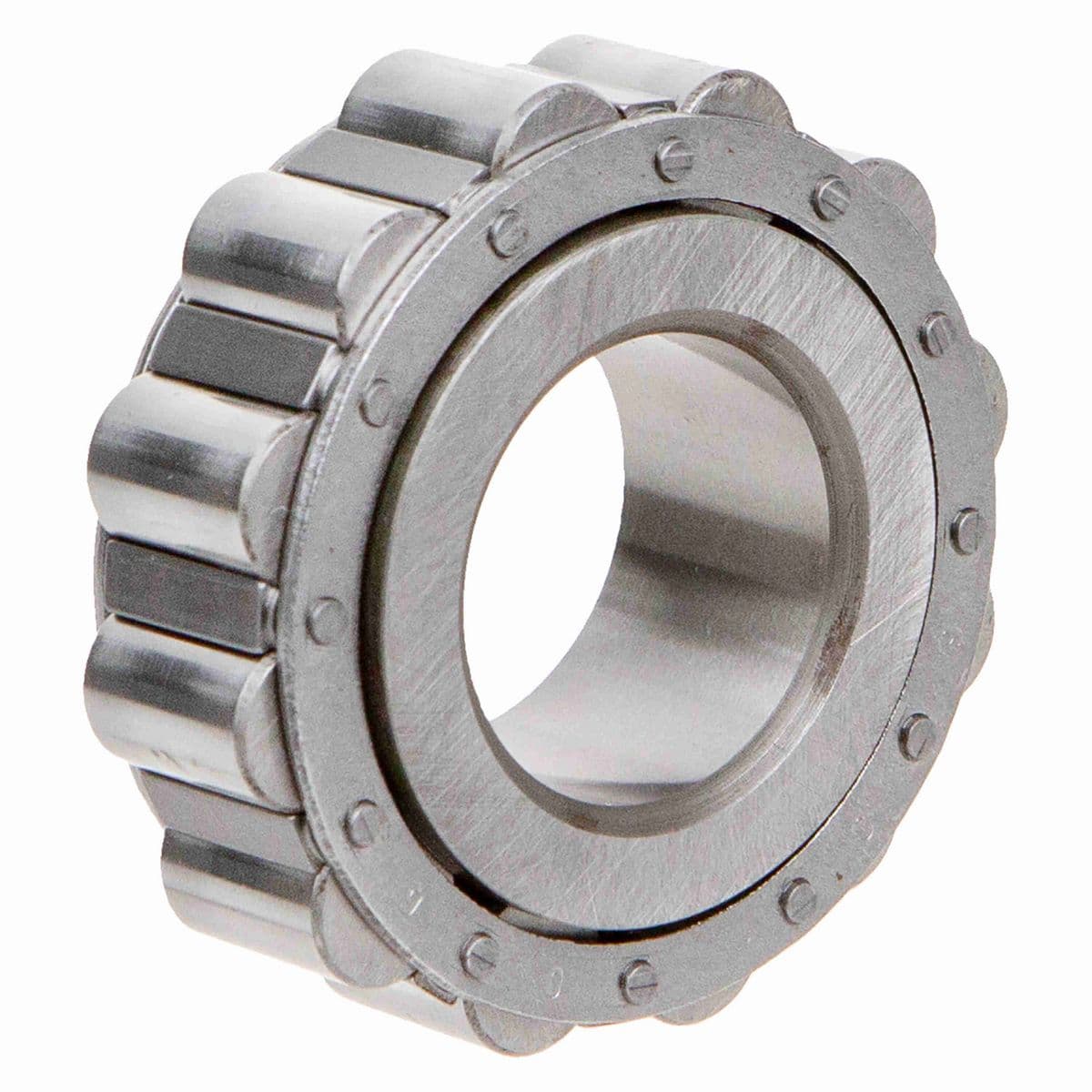

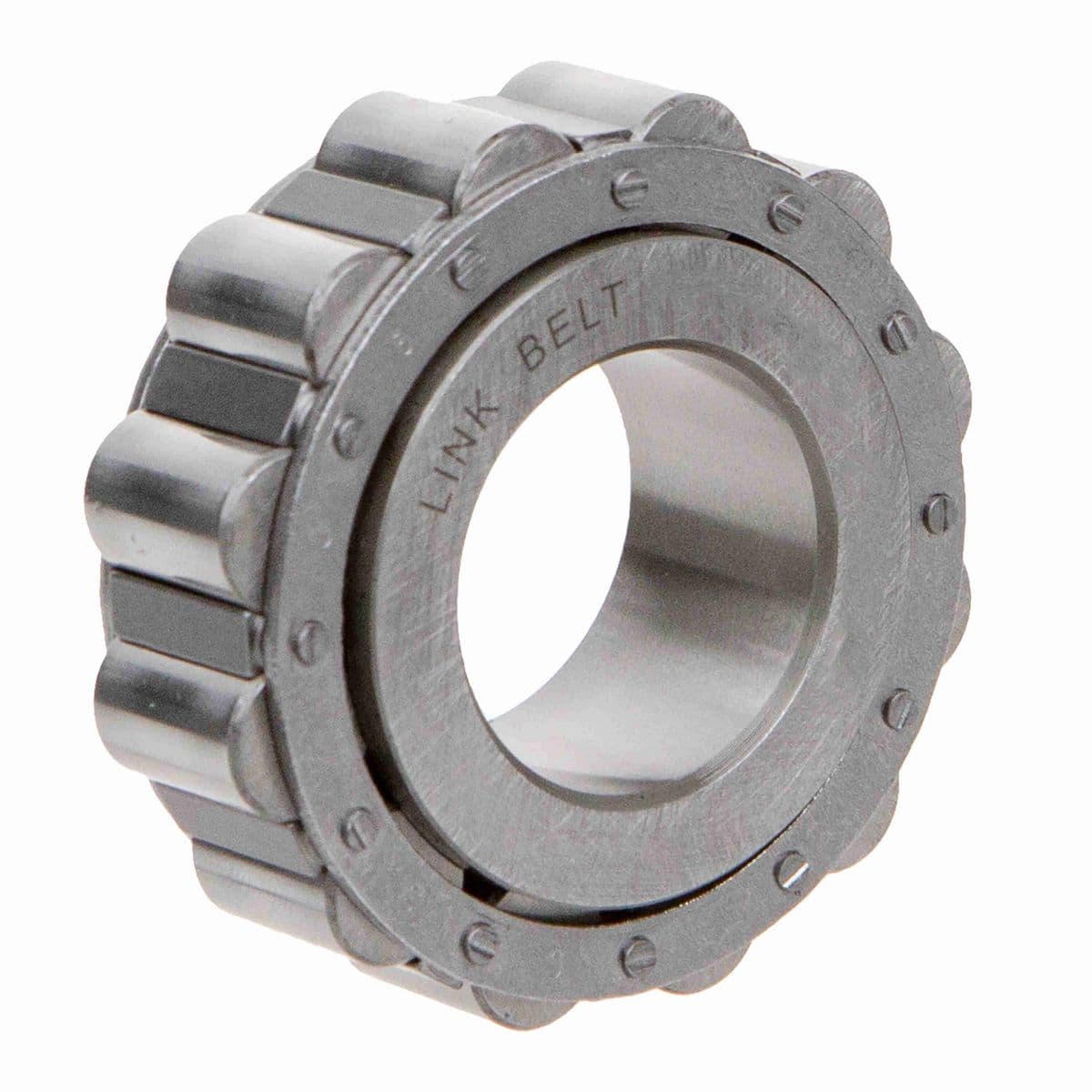

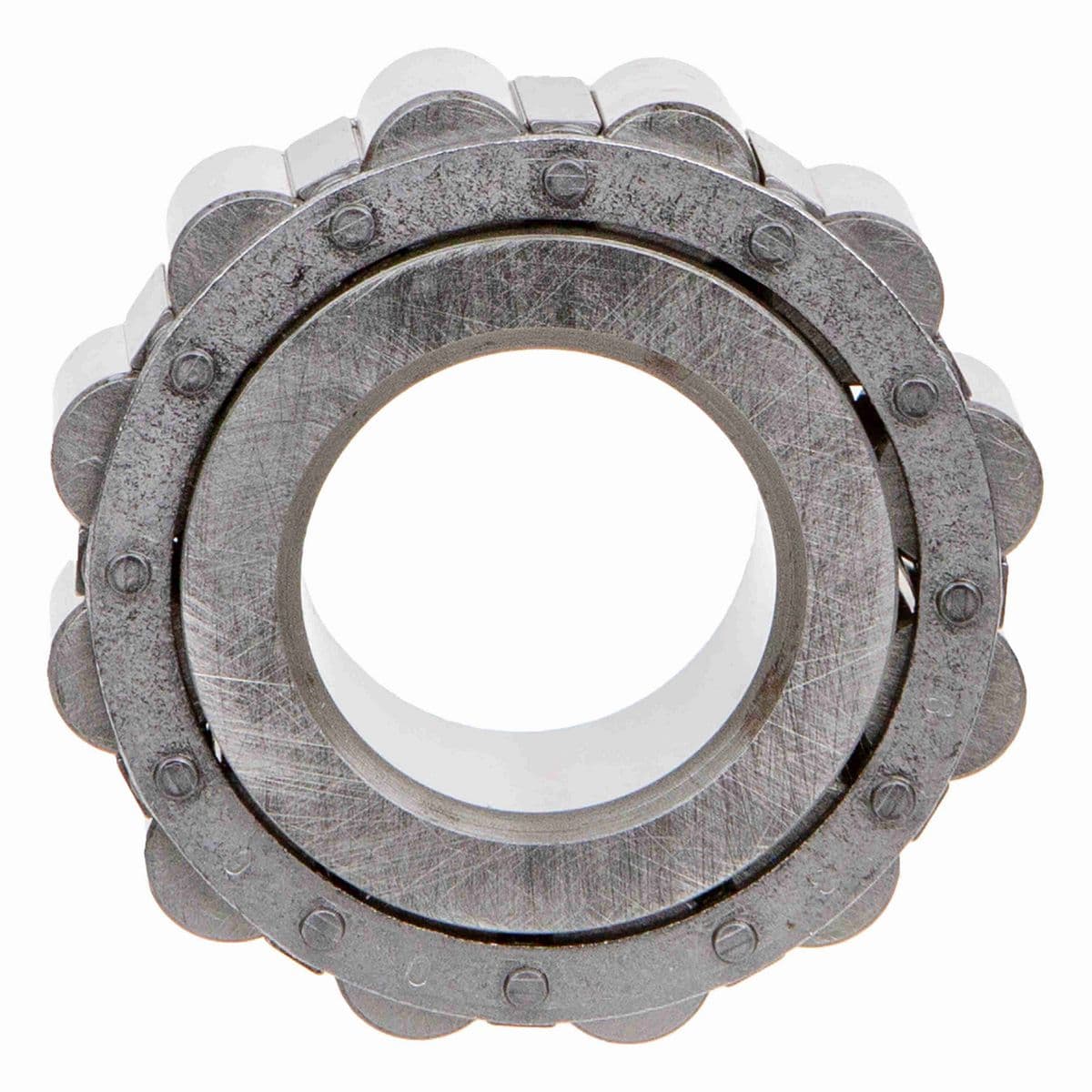

• Metric, Double rib inner ring, High capacity, Intermediate width, Light series, 100mm bore diameter, W982 special bearing feature

Dimensions

Bore Size (mm)

100 mm

Technical Specifications

Product	Series 7200 Inner Ring & Roller Assemblies High Capacity
Mounted Clearance	SEE DESCRIPTION
Inner Ring Rib Outside Diameter (mm)	124.84 mm
C Dynamic Load Rating	CALL ENG lb
Basic Bearing Number	7220
Retainer Type	SEE DESCRIPTION
Rolling Element	Cylindrical
Bore Type	Straight
Bearing Width (mm)	41 mm
Series Weight	Light (2)
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Co Static Load Rating	CALL ENG lb
Maximum Speed (RPM)	CALL ENG rpm
Series	Inner Ring & Roller Assemblies
Inner Ring and Roller Assembly Over Roller Diameter (mm)	163.952 mm
Inner Ring Type	Double Rib (U)
Inner Ring Bore Radius (mm)	4 mm
Ring Width Series	Intermediate (7)
Vibration Frequency Roller Spin	CALL ENG cps

General Specifications

UPC	662327059446
Weight	8.80 LB
HTC	8482500000
Country of Origin	Mexico
