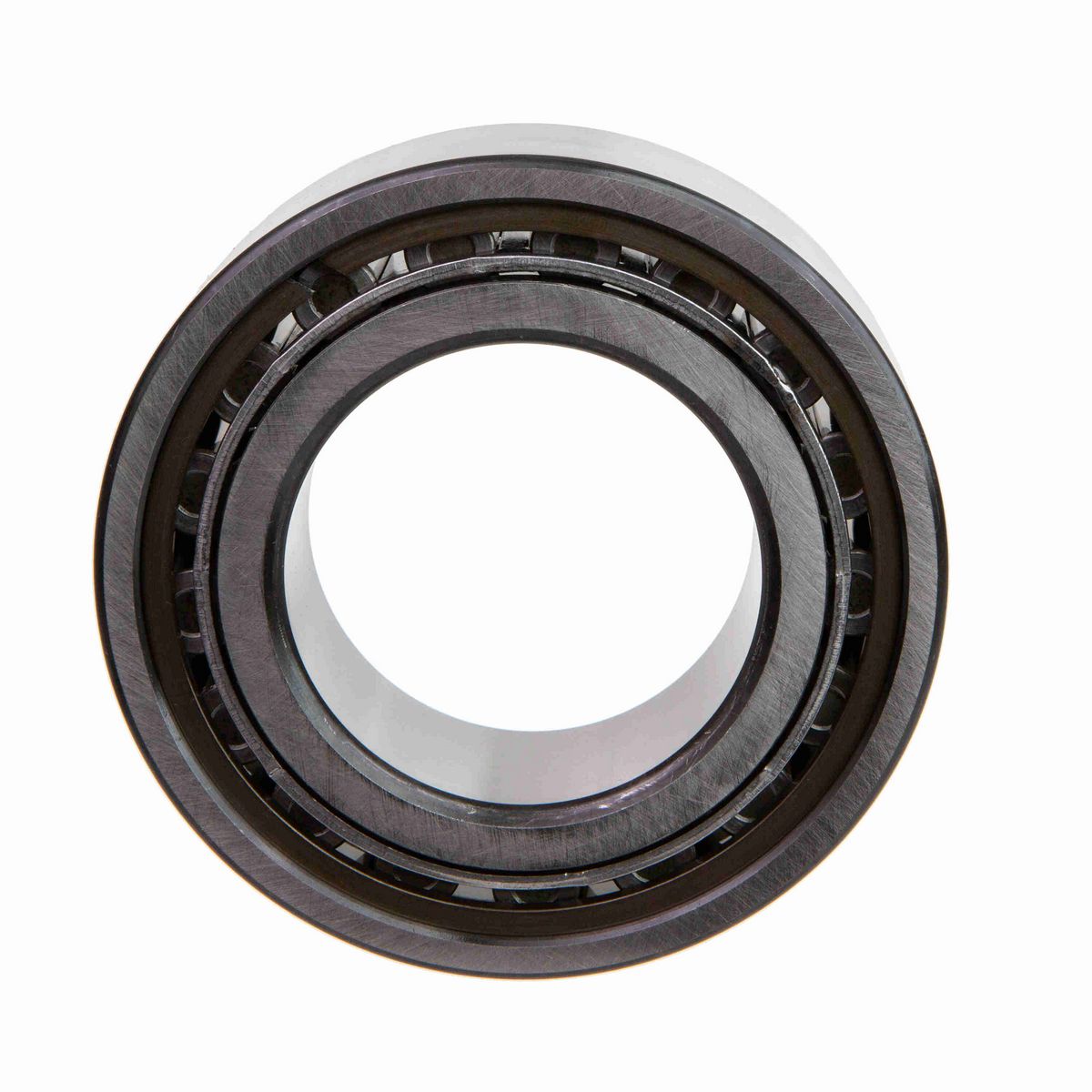

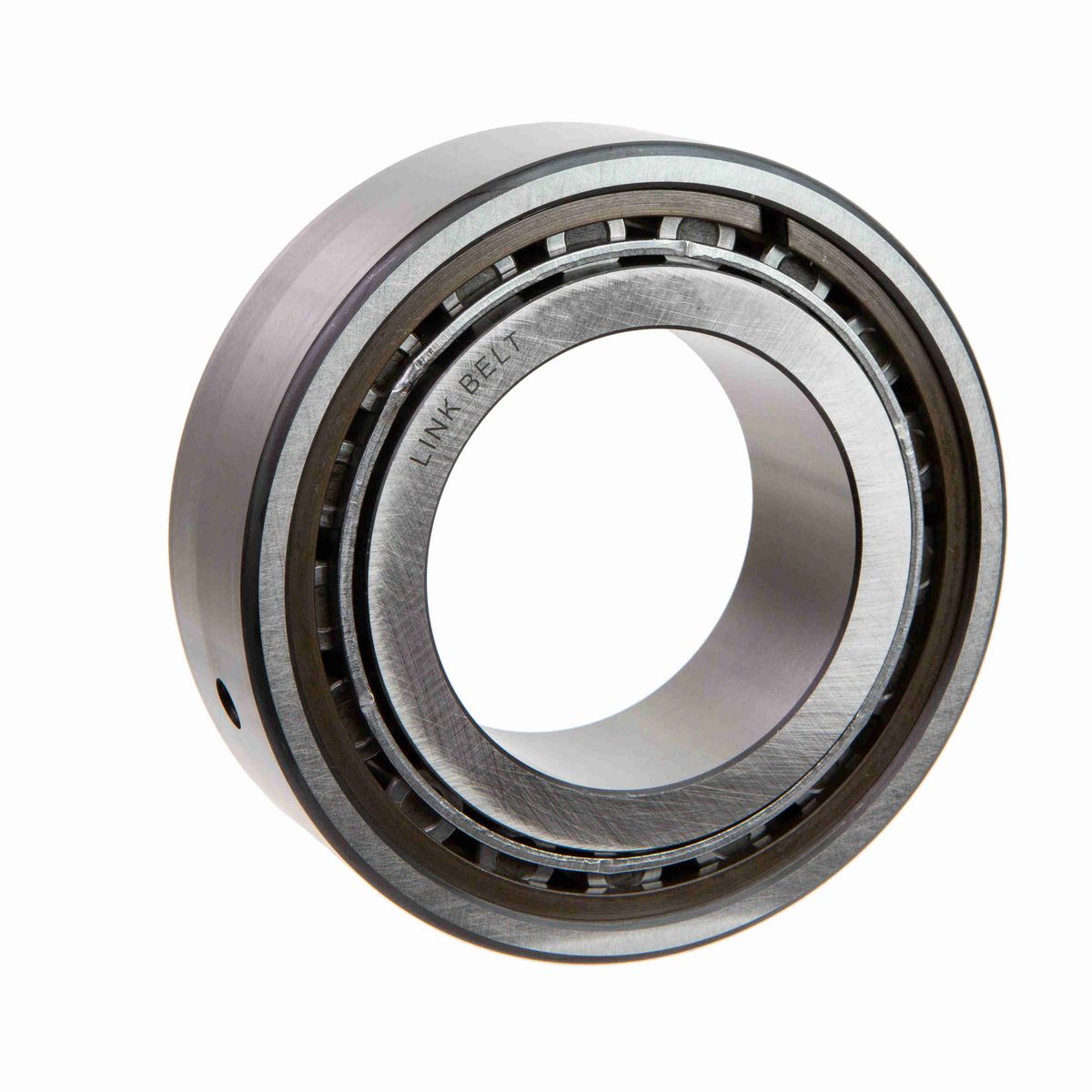

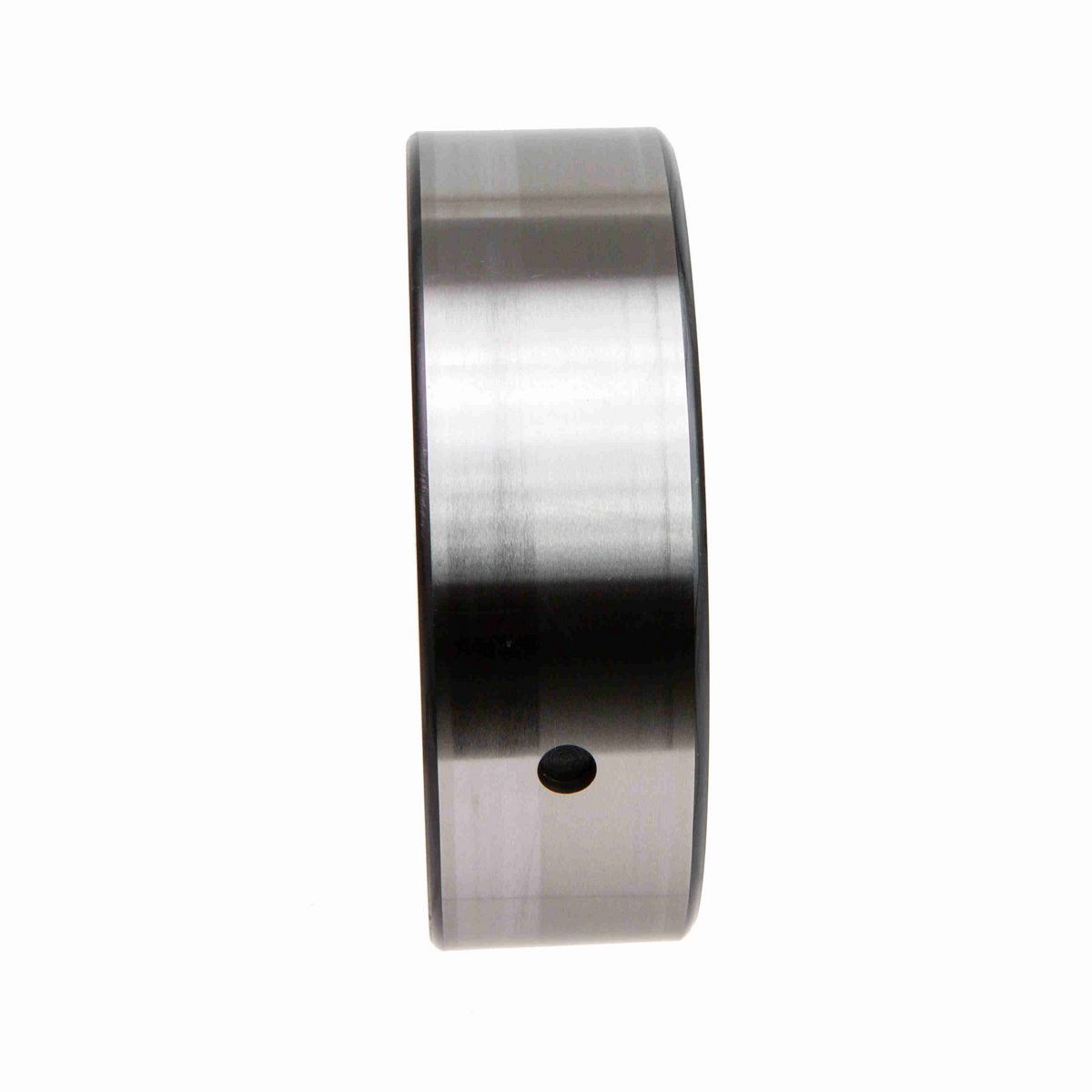

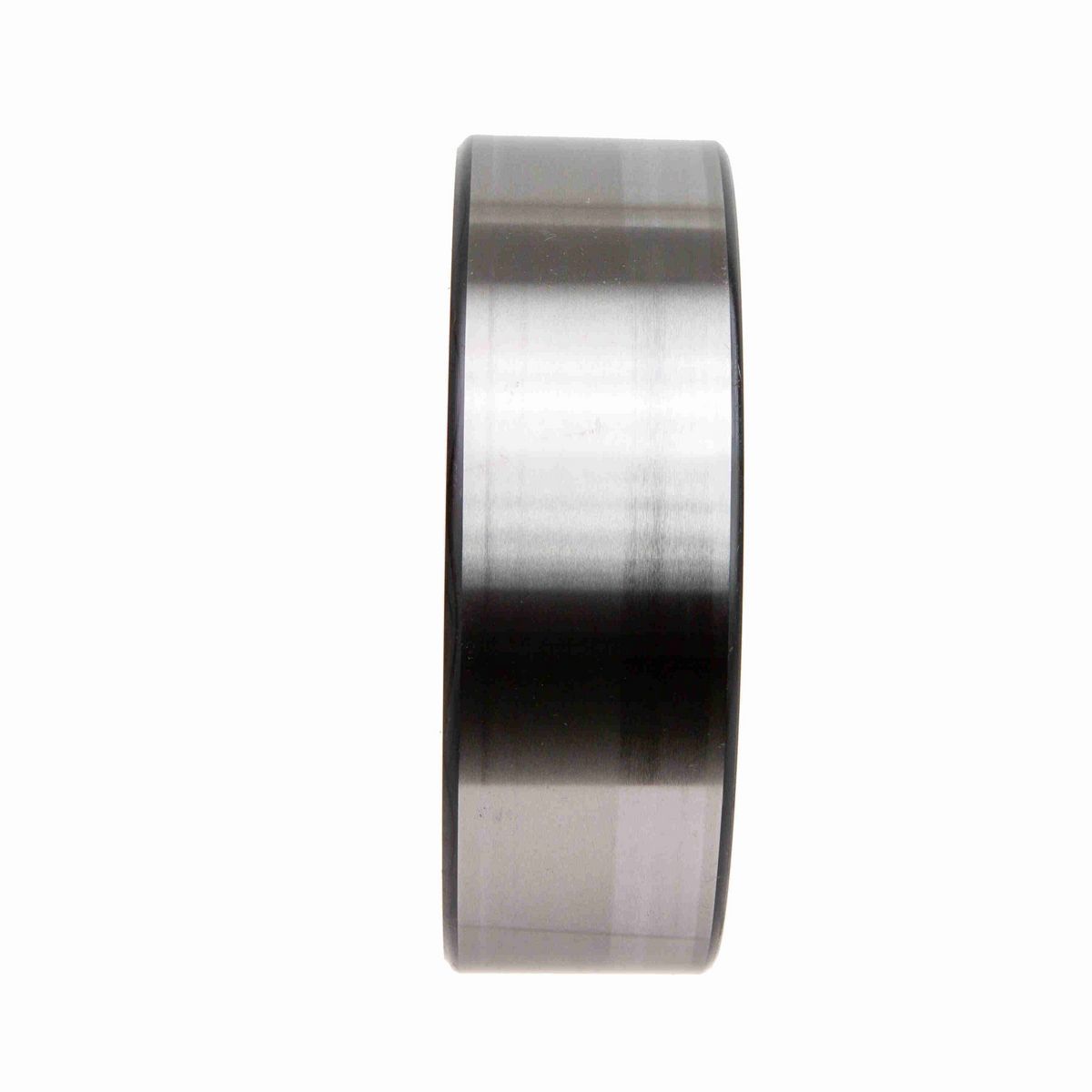

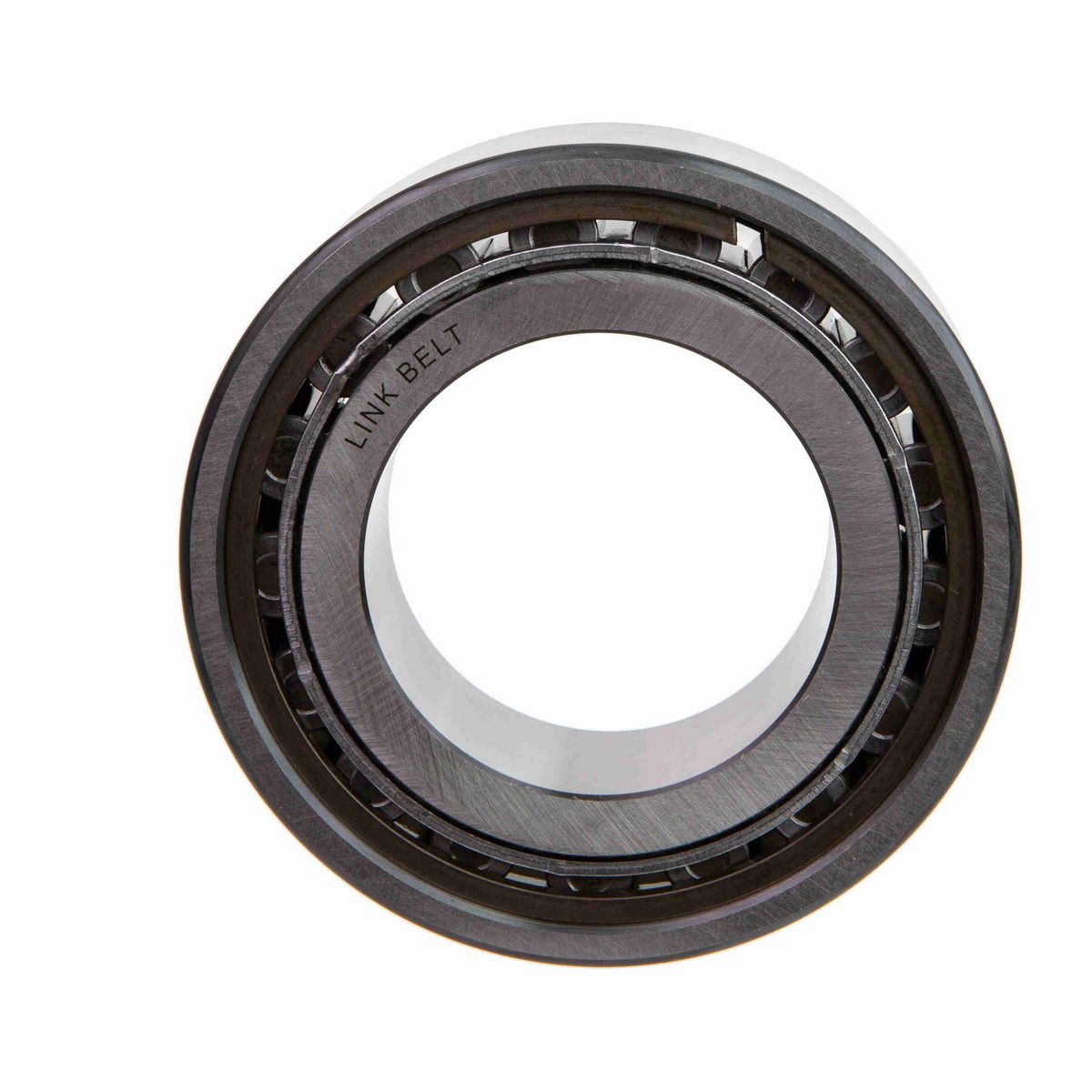

• 70 mm Cylindrical Roller Bearing with double rib inner ring, 2 retaining rings in outer ring and formed steel retainer, Blind dowel Hole in outer ring OD

Dimensions

Bore Size (mm)	70 mm
Outside Diameter (mm)	125 mm

Technical Specifications

Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	81.8 mm
Shaft Locking	DIRECT SHAFT MOUNT
Inner Ring Type	Double Rib (U)
Ring Width Series	Wide (5)
Retainer Type	SEE DESCRIPTION
C Dynamic Load Rating	CALL ENG lb
Series Weight	Light (2)
Bore Type	Straight
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	111.5 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	115.6 mm
Inner Ring Raceway Outside Diameter (mm)	84.77 mm
Outer Ring Raceway Inside Diameter (mm)	111.54 mm
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Co Static Load Rating	CALL ENG lb
Maximum Speed (RPM)	CALL ENG rpm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	107.01 mm
Series	Unmounted Bearings
Vibration Frequency Roller Spin	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Inner Ring Rib Outside Diameter (mm)	89.61 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	84.6 mm
Product	Series 5200 Unmounted Bearings
Inner Ring Bore Radius (mm)	2.54 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Mounted Clearance	SEE DESCRIPTION
Inner Ring and Roller Assembly Over Roller Diameter (mm)	111.47 mm
Bearing Width (mm)	39.69 mm
Basic Bearing Number	5214
Rolling Element	Cylindrical
Outer Ring and Roller Assembly Under Roller Diameter (mm)	84.84 mm

General Specifications

UPC	662327733582
Weight	4.47 LB
HTC	8482500000
Country of Origin	Mexico
