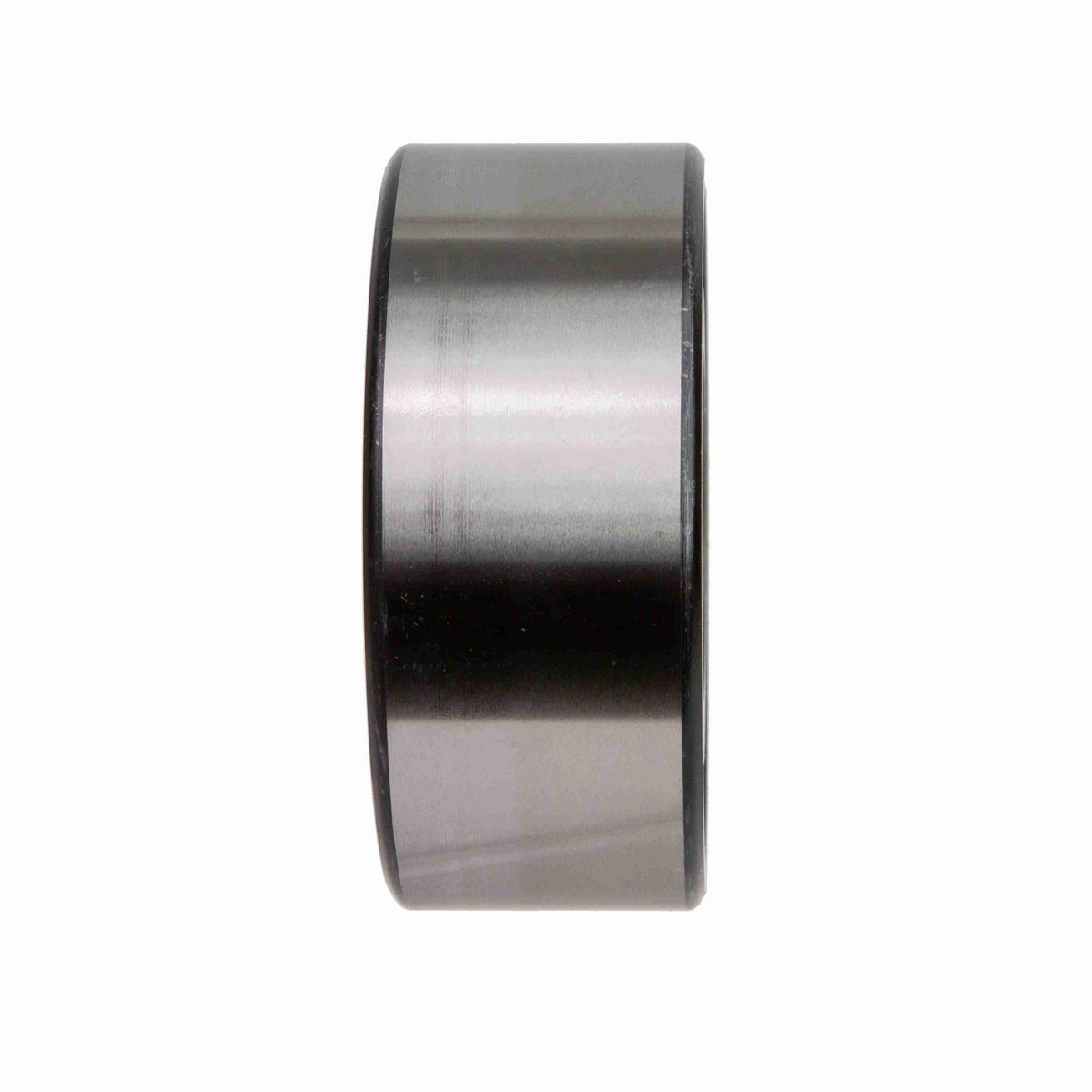

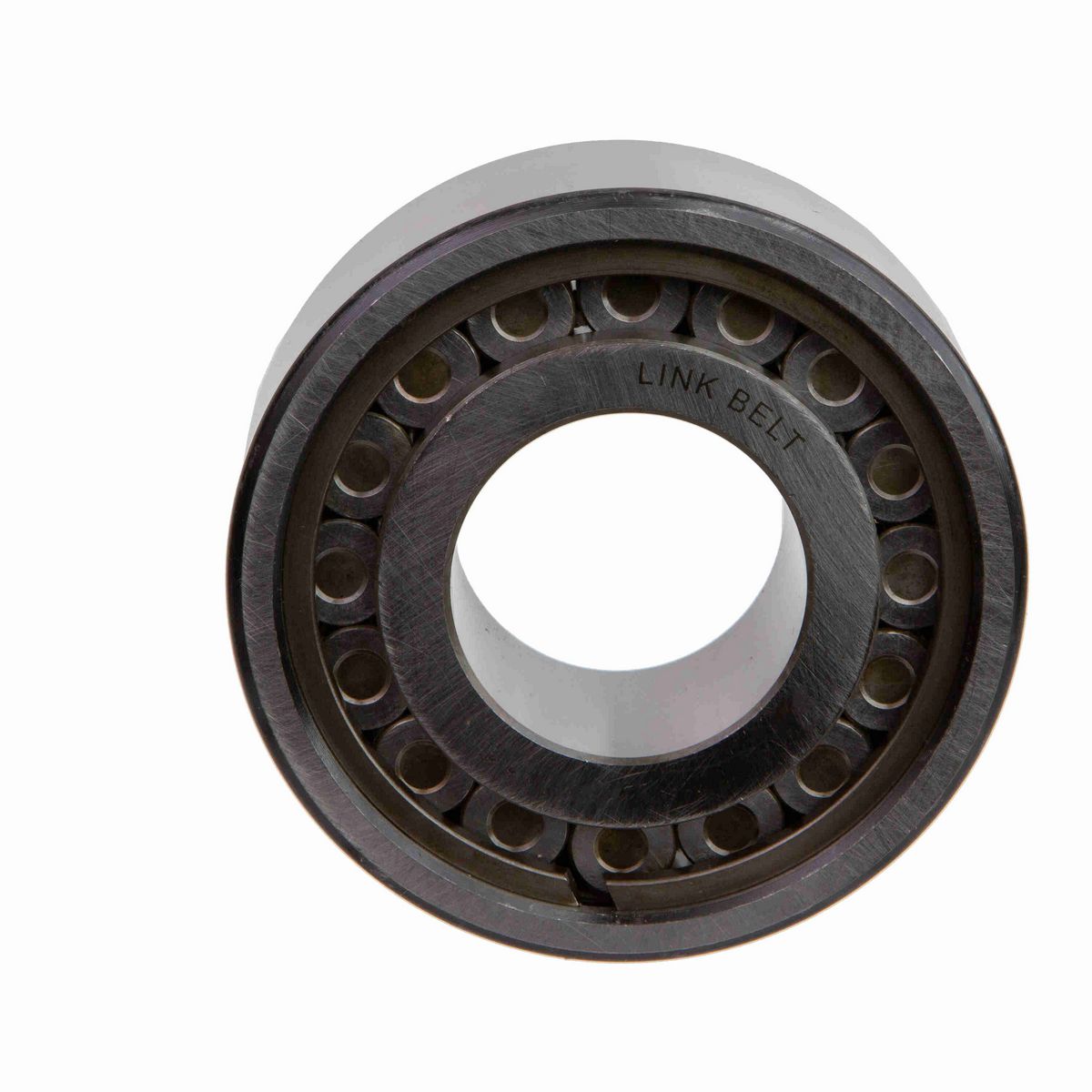

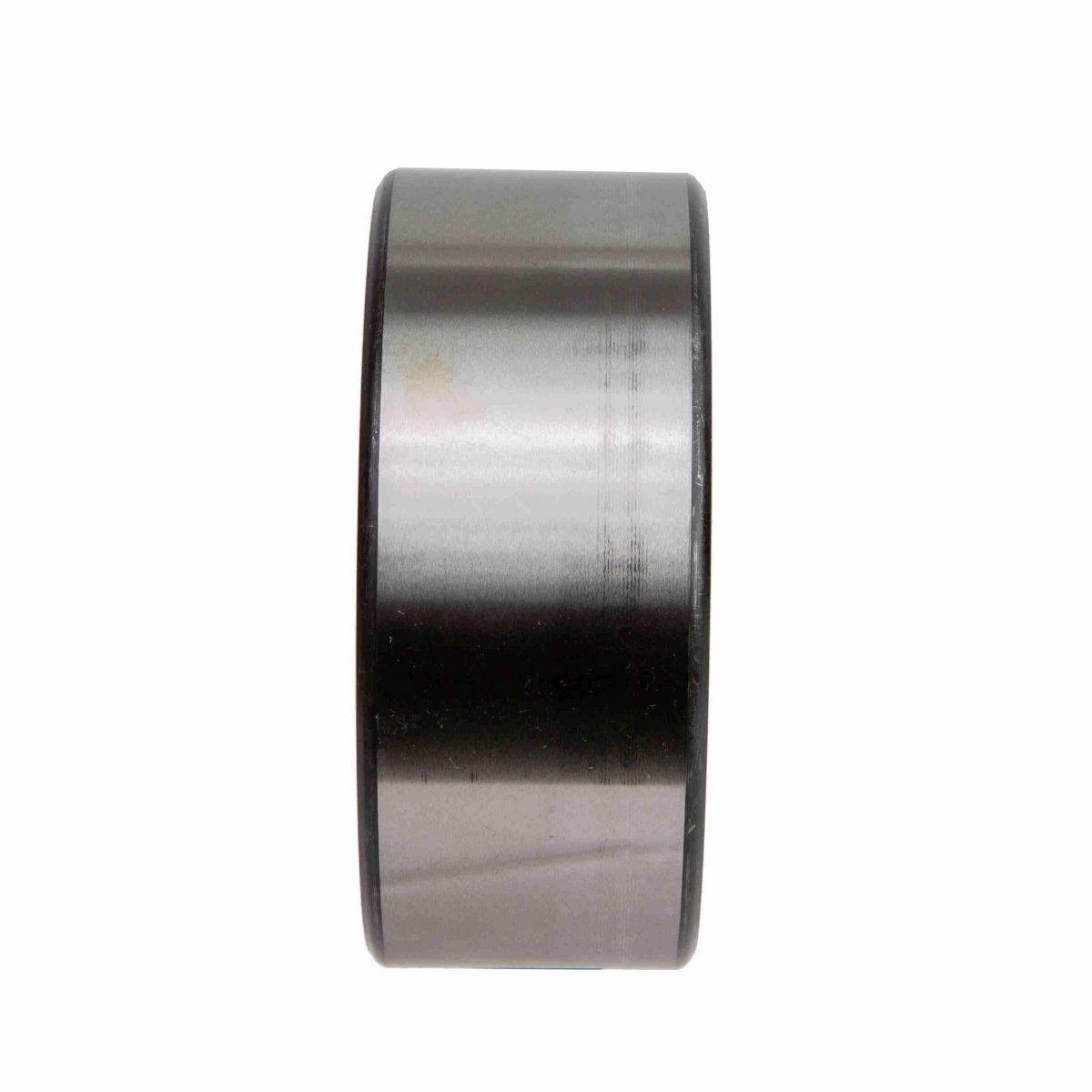

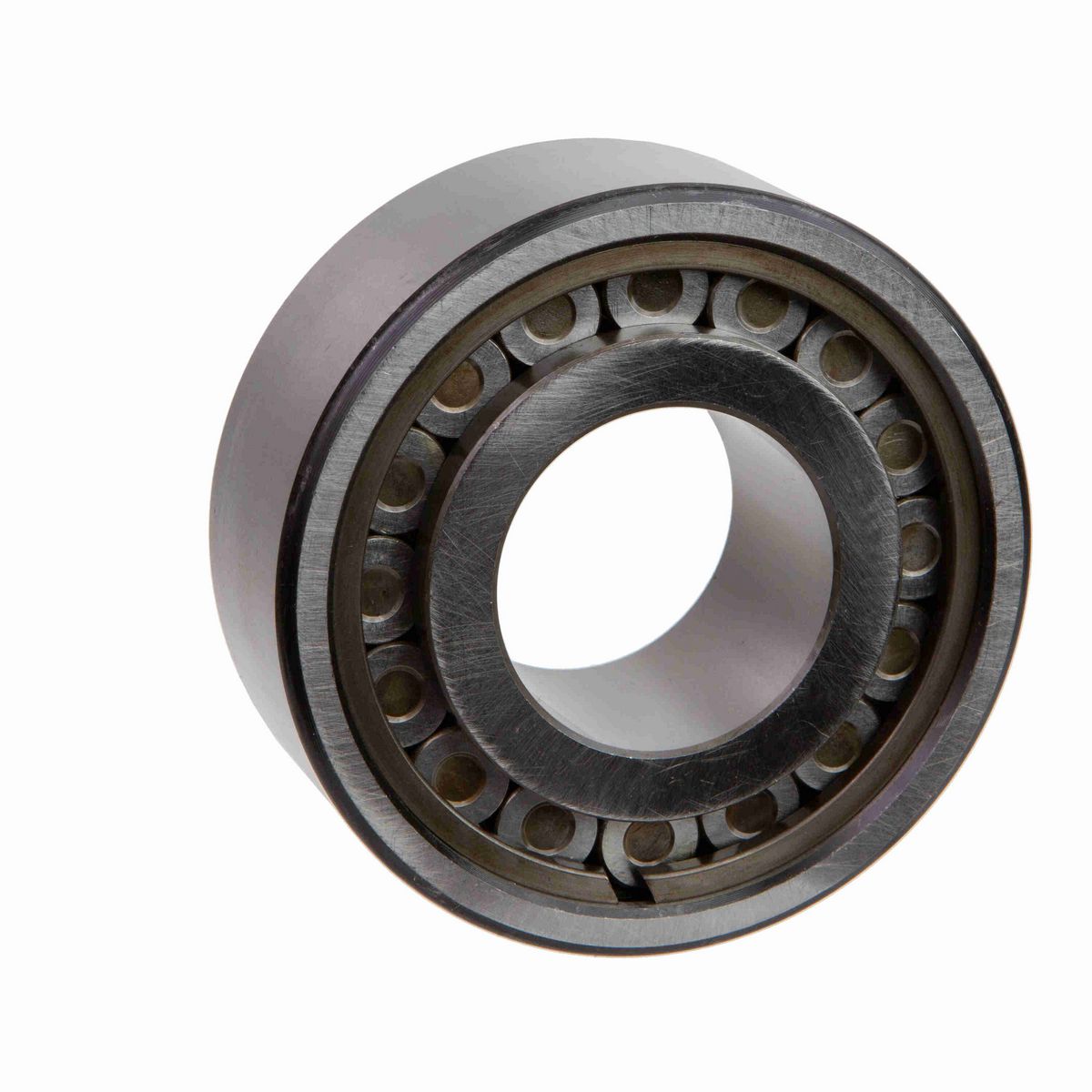

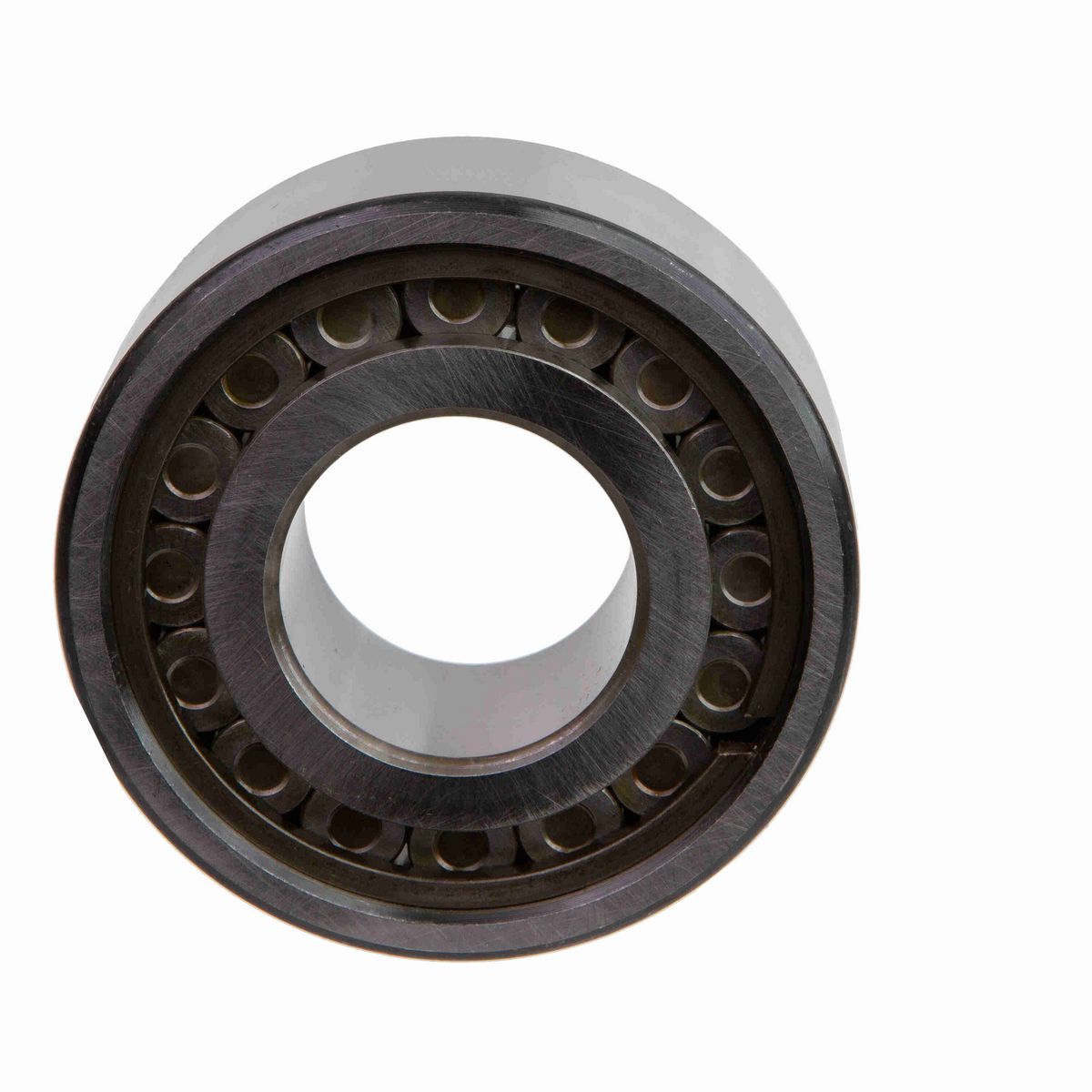

• 25 mm Cylindrical Roller Bearing with double rib inner ring, 2 retaining rings in outer ring and no retainer - full complement

Dimensions

Bore Size (mm)	25 mm
Outside Diameter (mm)	52 mm

Technical Specifications

Retainer Type	SEE DESCRIPTION
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Roller Spin	CALL ENG cps
Inner Ring and Roller Assembly Over Roller Diameter (mm)	44.82 mm
Outer Ring Rib Inside Diameter (mm)	42.95 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	47 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Rolling Element	Cylindrical
Inner Ring Type	Double Rib (U)
Series	Unmounted Bearings
Product	Series 5200 Unmounted Bearings
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	44.7 mm
Inner Ring Rib Outside Diameter (mm)	34.32 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	32 mm
Inner Ring Raceway Outside Diameter (mm)	32.17 mm
Series Weight	Light (2)
Basic Bearing Number	5205
Bearing Width (mm)	20.64 mm
Outer Ring Raceway Inside Diameter (mm)	44.85 mm
Inner Ring Bore Radius (mm)	1.02 mm
Co Static Load Rating	CALL ENG lb
Ring Width Series	Wide (5)
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	30.5 mm
Maximum Speed (RPM)	CALL ENG rpm
Mounted Clearance	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	32.2 mm
Shaft Locking	DIRECT SHAFT MOUNT
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)

General Specifications

UPC	662327058814
Weight	0.48 LB
HTC	8482500000
Country of Origin	Mexico
