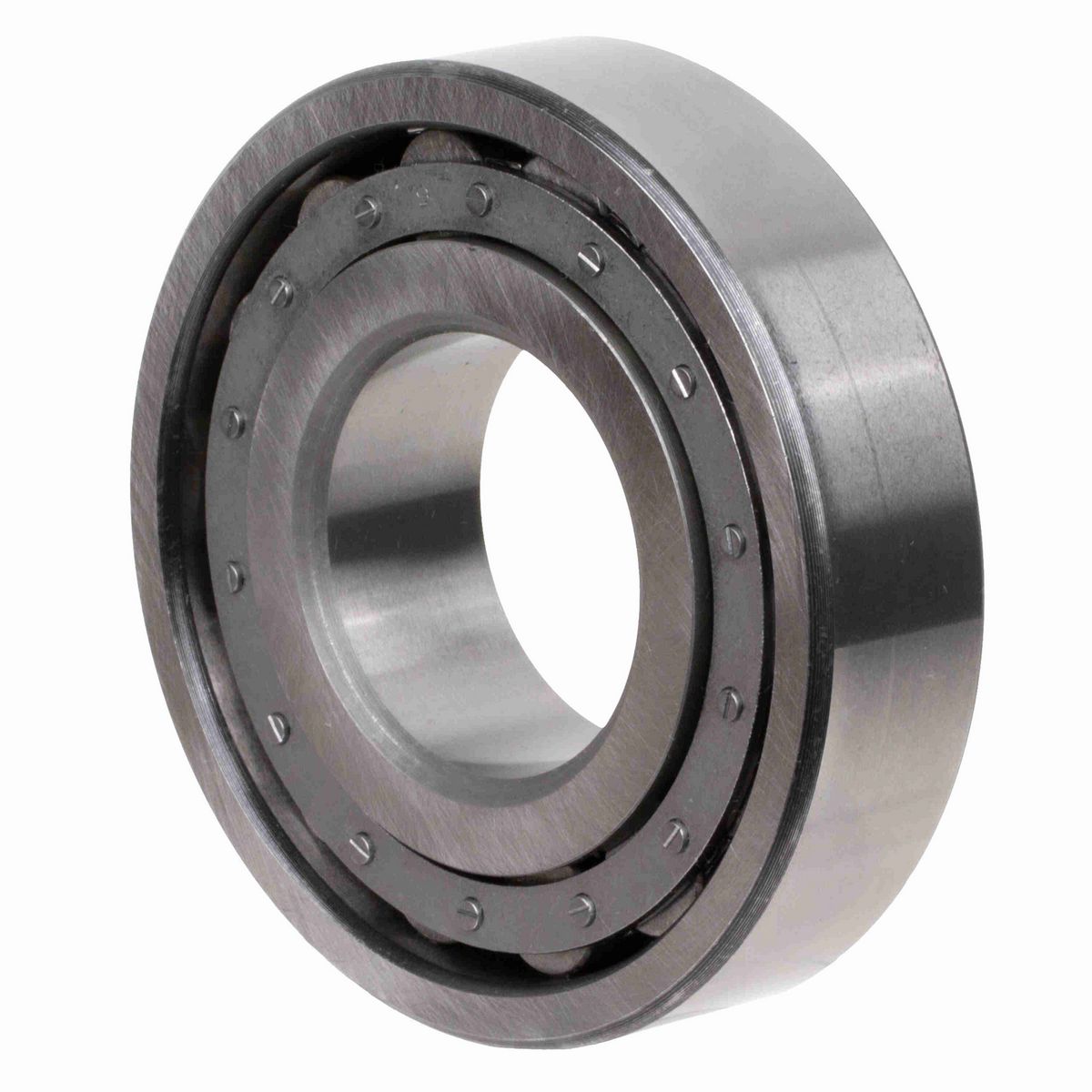

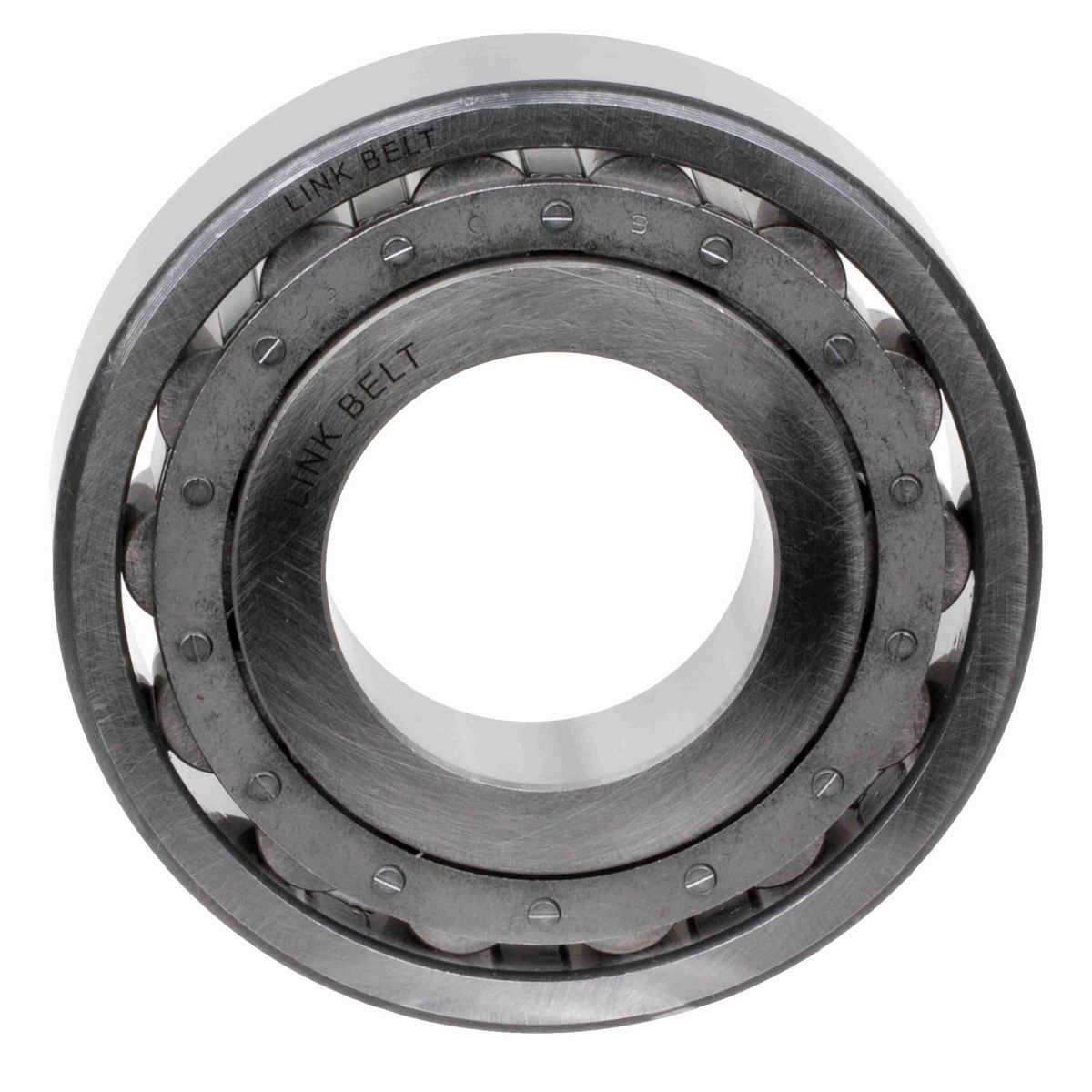

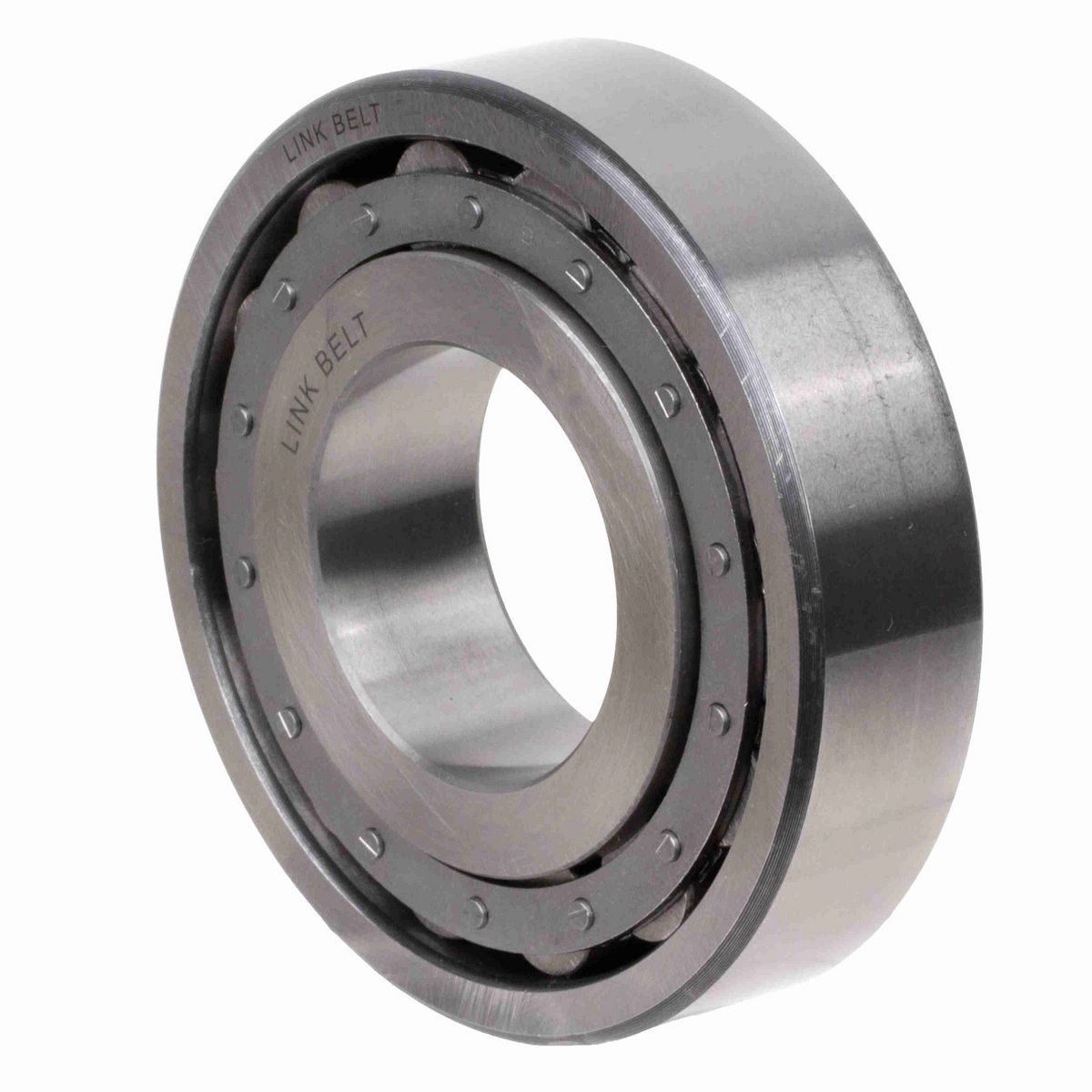

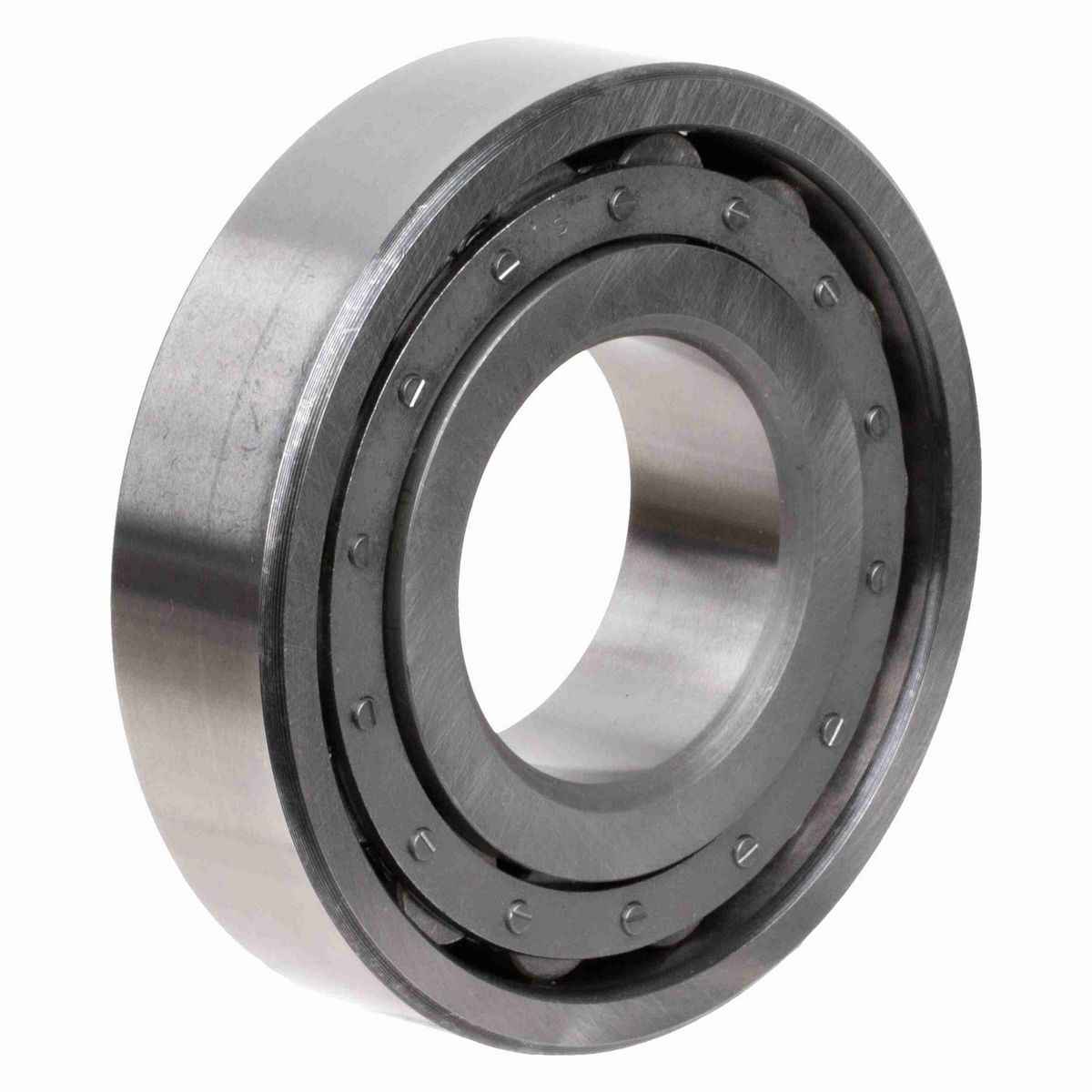

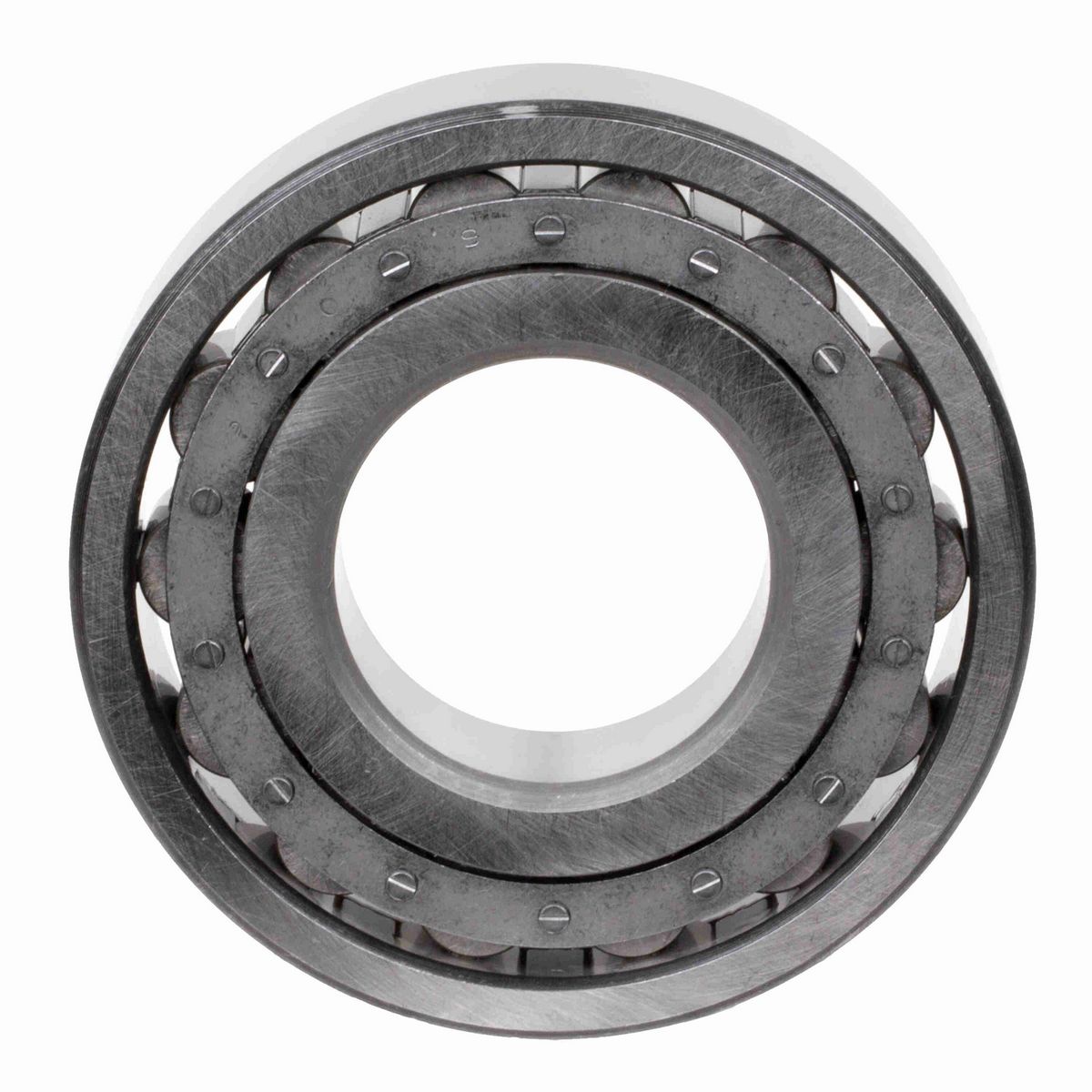

• 45 mm Cylindrical Roller Bearing with double rib inner ring, plain outer ring and segmented retainer, Snap ring groove in outer ring OD

Dimensions

Bore Size (mm)	50 mm
Outside Diameter (mm)	110 mm

Technical Specifications

Series	Unmounted Bearings
Inner Ring Rib Outside Diameter (mm)	70.64 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Inner Ring and Roller Assembly Over Roller Diameter (mm)	94.44 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	61 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
C Dynamic Load Rating	CALL ENG lb
Rolling Element	Cylindrical
Retainer Type	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	65.19 mm
Bearing Width (mm)	27 mm
Co Static Load Rating	CALL ENG lb
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	99.1 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Shaft Locking	DIRECT SHAFT MOUNT
Mounted Clearance	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Type	Plain Cylindrical Outer Ring (C)
Maximum Speed (RPM)	CALL ENG rpm
Outer Ring Rib Inside Diameter (mm)	89.36 mm
Product	Series 1300 Unmounted Bearings
Ring Width Series	Narrow (1)
Inner Ring Raceway Outside Diameter (mm)	65.15 mm
Outer Ring Raceway Inside Diameter (mm)	94.49 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	65 mm
Inner Ring Type	Double Rib (U)
Basic Bearing Number	1310
Series Weight	Medium (3)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	94.5 mm
Inner Ring Bore Radius (mm)	2.03 mm

General Specifications

UPC	662327750053
Weight	2.82 LB
HTC	8482500000
Country of Origin	Mexico
