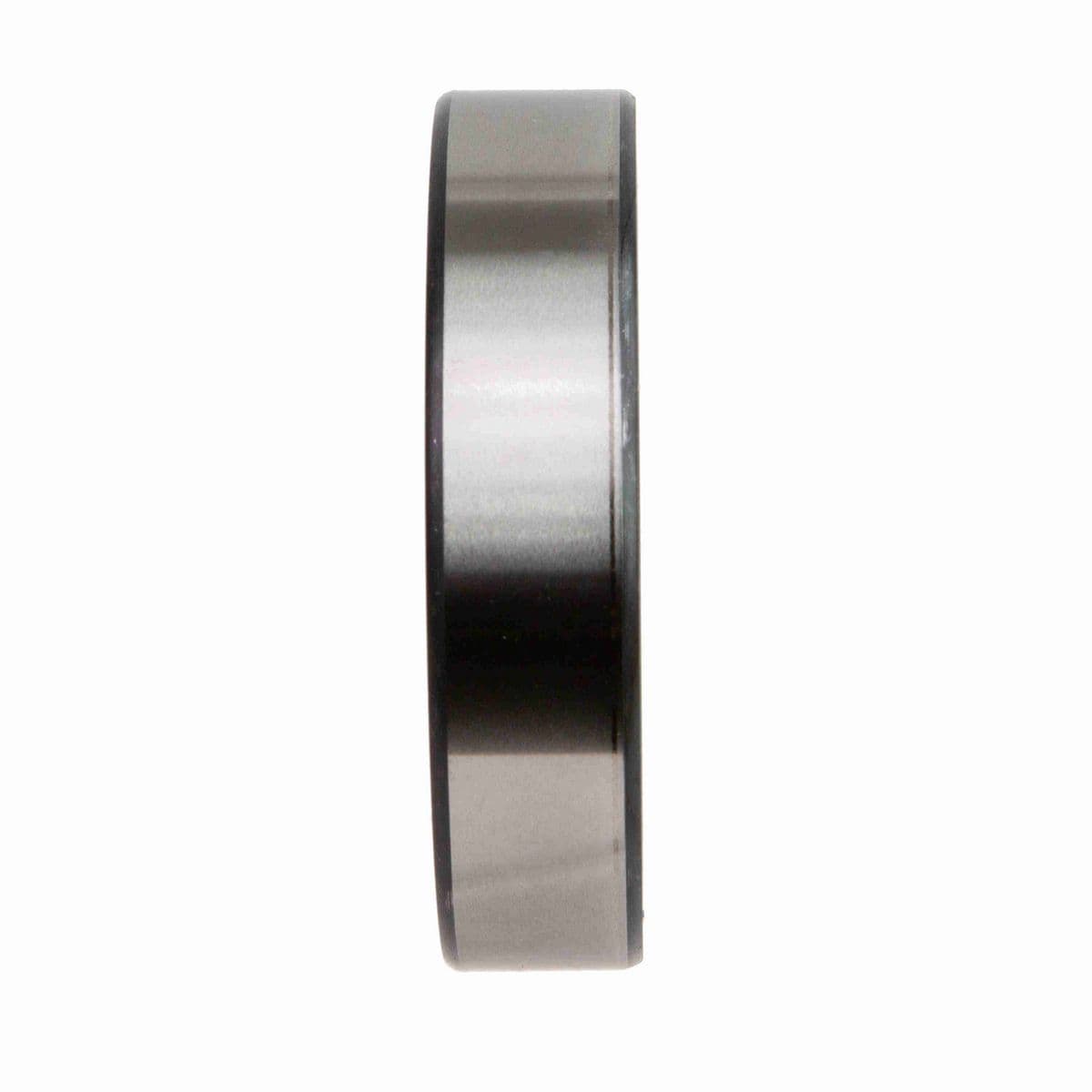

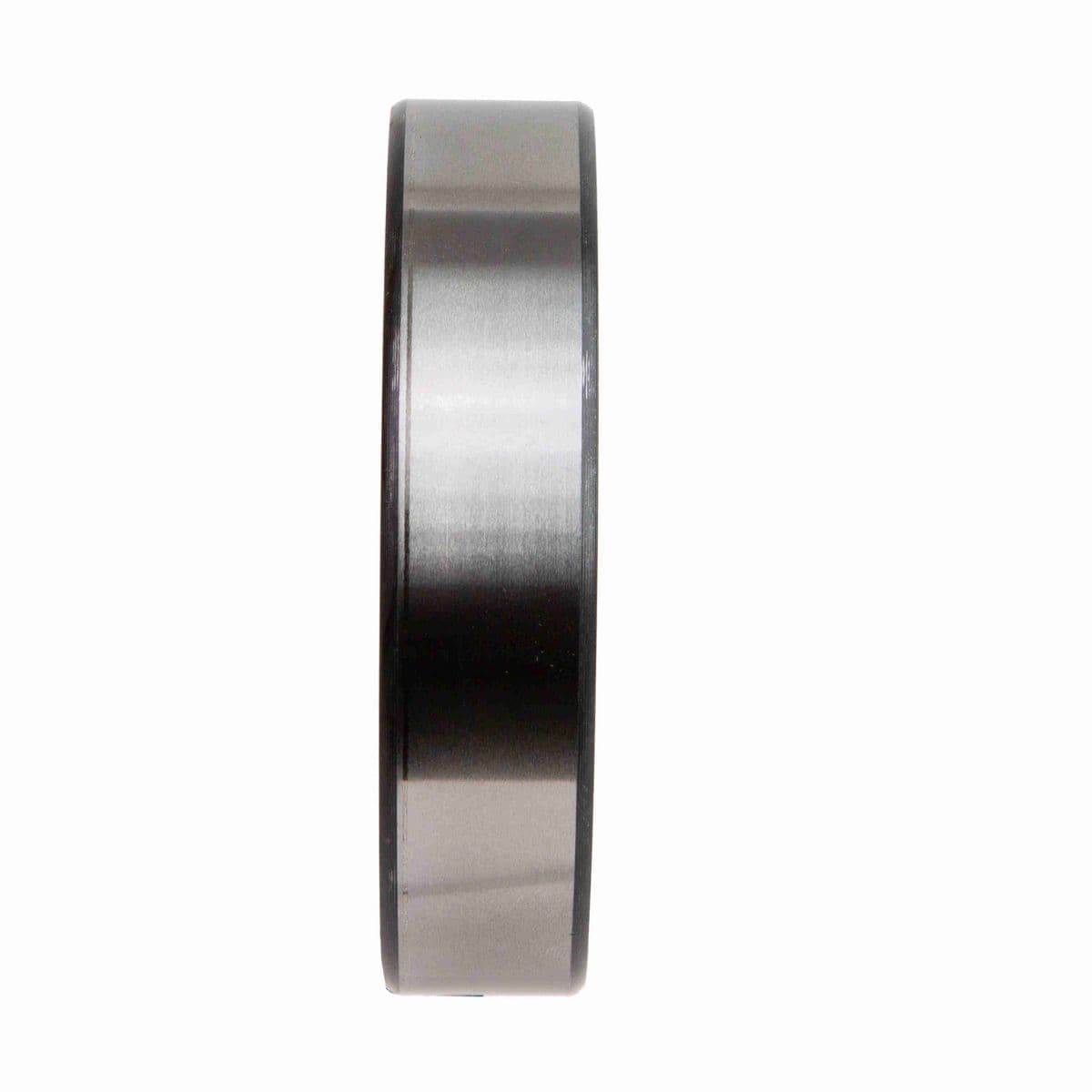

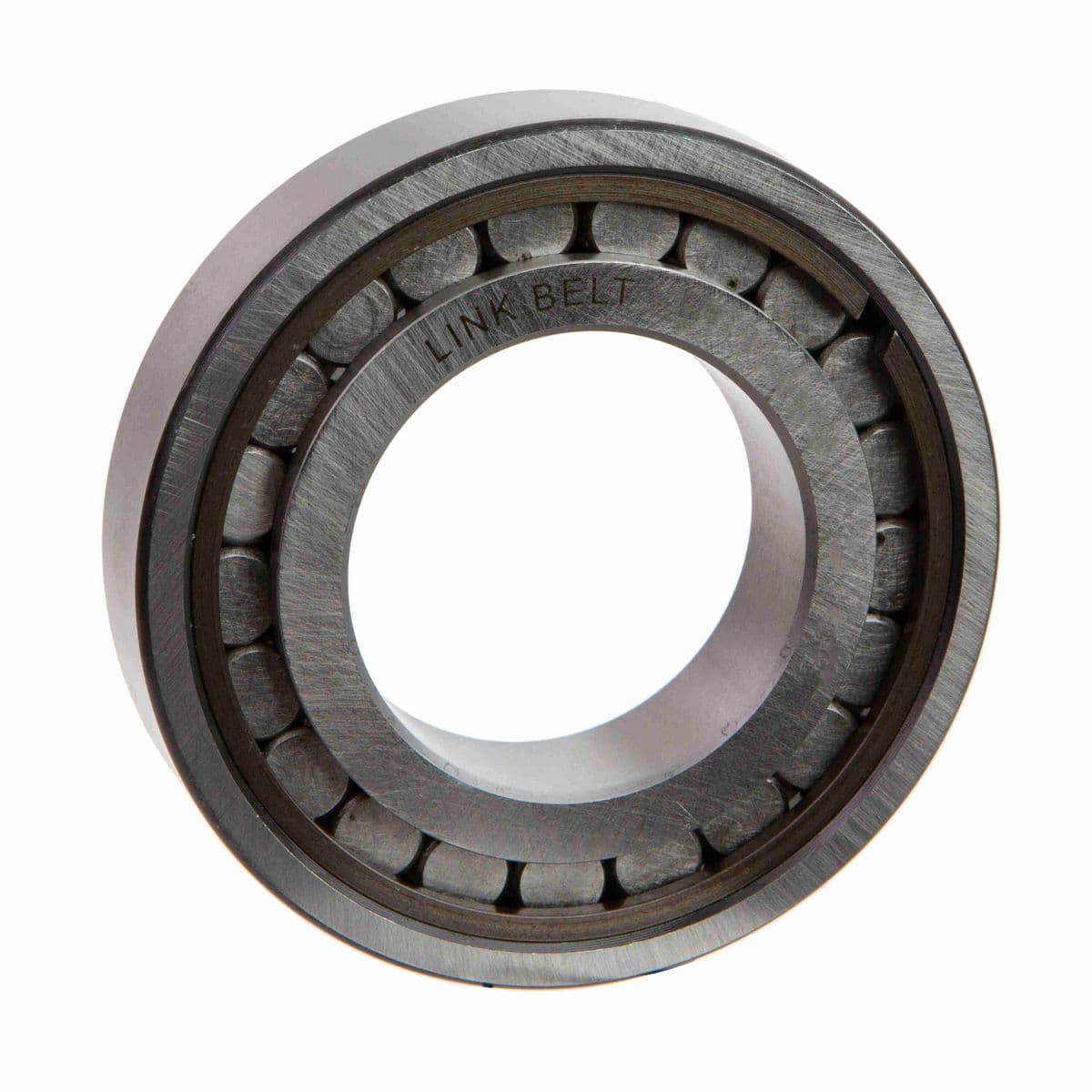

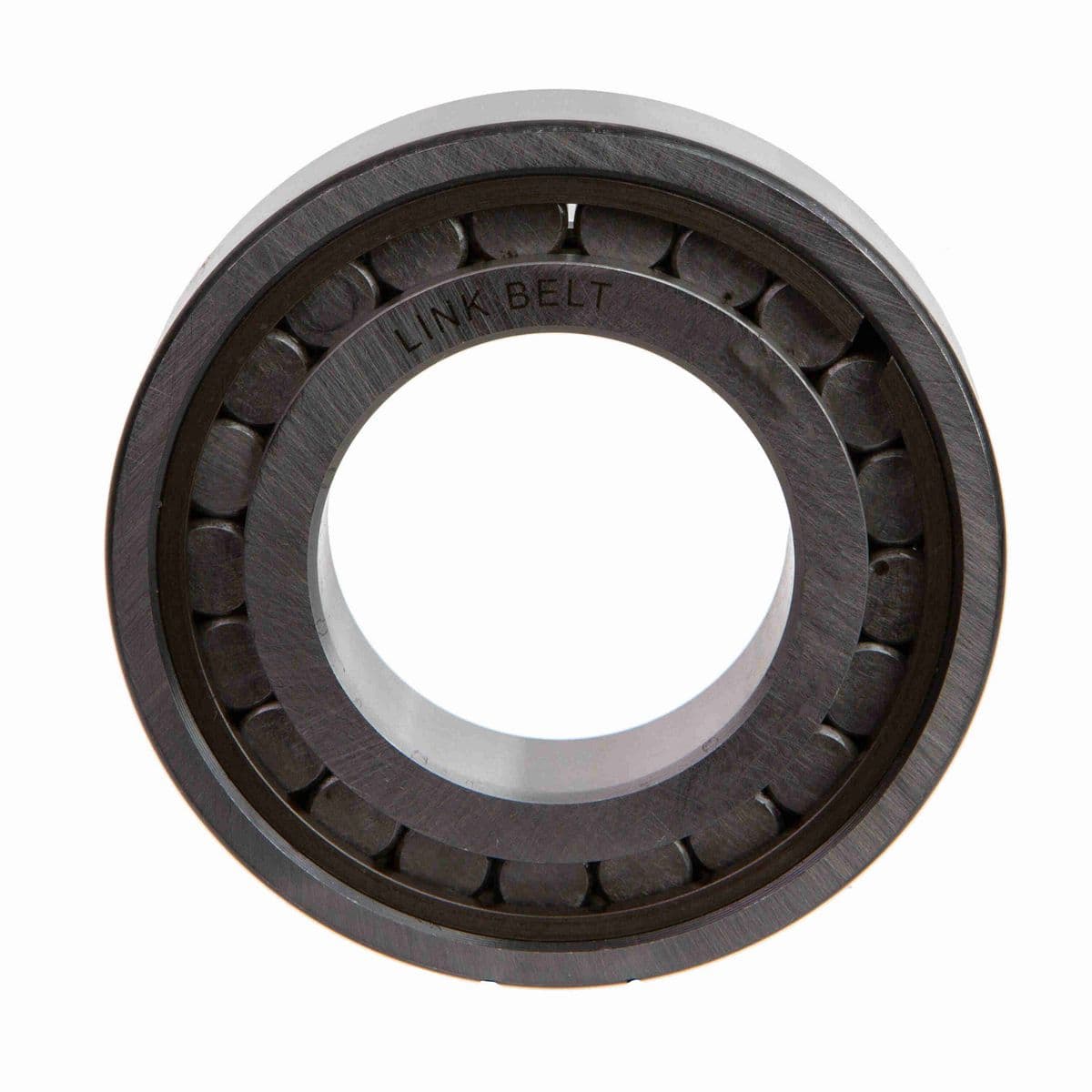

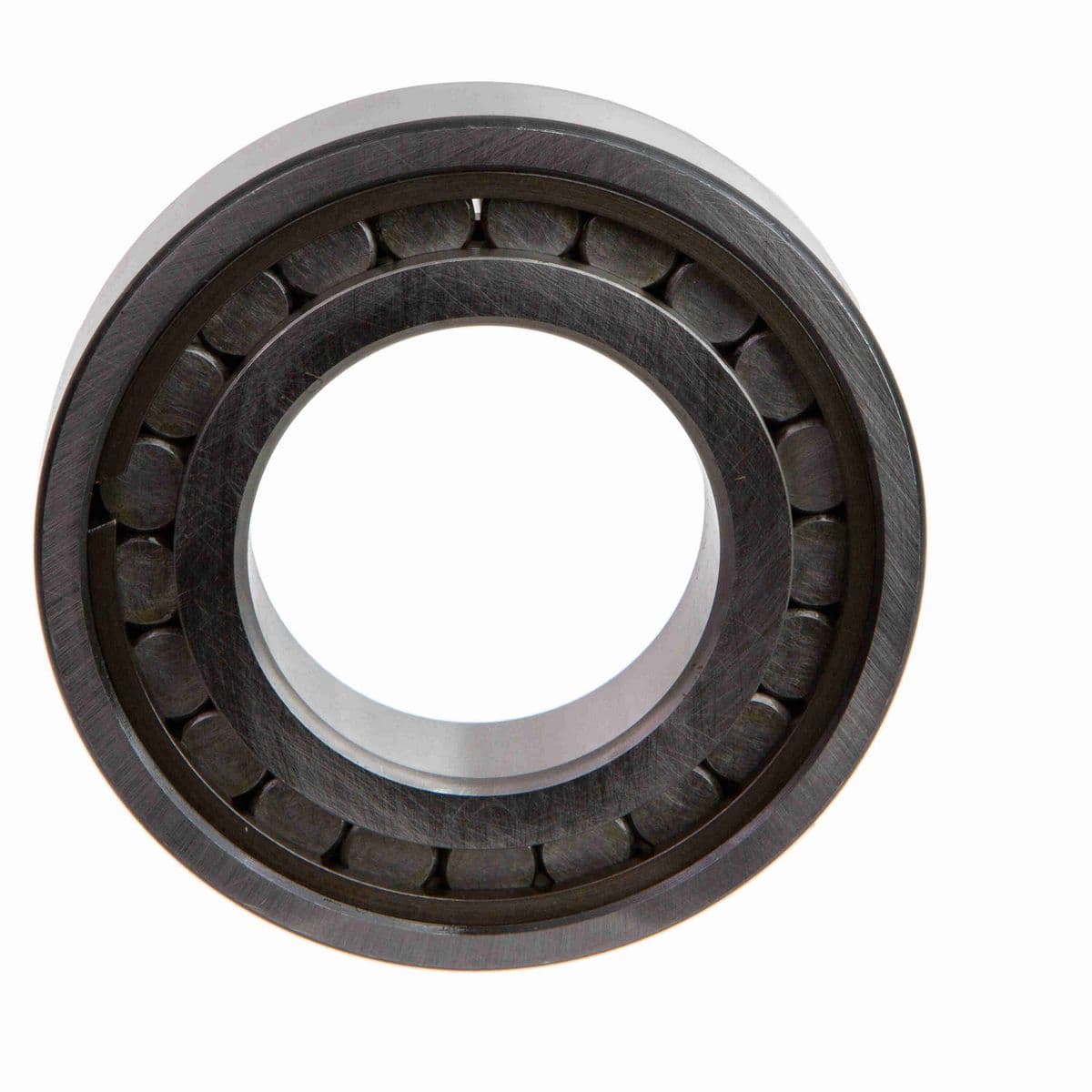

• 25 mm Cylindrical Roller Bearing with double rib inner ring, 2 retaining rings in outer ring and no retainer - full complement, Outer ring Width 2.00 mm (0.0787") and inner ring bore radius to clear 1.52 mm (0.060")

Dimensions

Bore Size (mm)	25 mm
Outside Diameter (mm)	62 mm

Technical Specifications

Inner Ring Rib Outside Diameter (mm)	37.49 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	53.39 mm
Bearing Width (mm)	17 mm
Mounted Clearance	SEE DESCRIPTION
Inner Ring Type	Double Rib (U)
Inner Ring Raceway Outside Diameter (mm)	33.97 mm
Basic Bearing Number	1305
Shaft Locking	DIRECT SHAFT MOUNT
Co Static Load Rating	CALL ENG lb
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	33.8 mm
Rolling Element	Cylindrical
Series Weight	Medium (3)
Product	Series 1300 Unmounted Bearings
Retainer Type	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	53.3 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	53.43 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	55.9 mm
Outer Ring Rib Inside Diameter (mm)	50.14 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Ring Width Series	Narrow (1)
C Dynamic Load Rating	CALL ENG lb
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	31.5 mm
Maximum Speed (RPM)	CALL ENG rpm
Series	Unmounted Bearings
Outer Ring and Roller Assembly Under Roller Diameter (mm)	34.01 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Inner Ring Bore Radius (mm)	1.02 mm

General Specifications

UPC	662327057619
Weight	0.62 LB
HTC	8482500000
Country of Origin	Mexico
