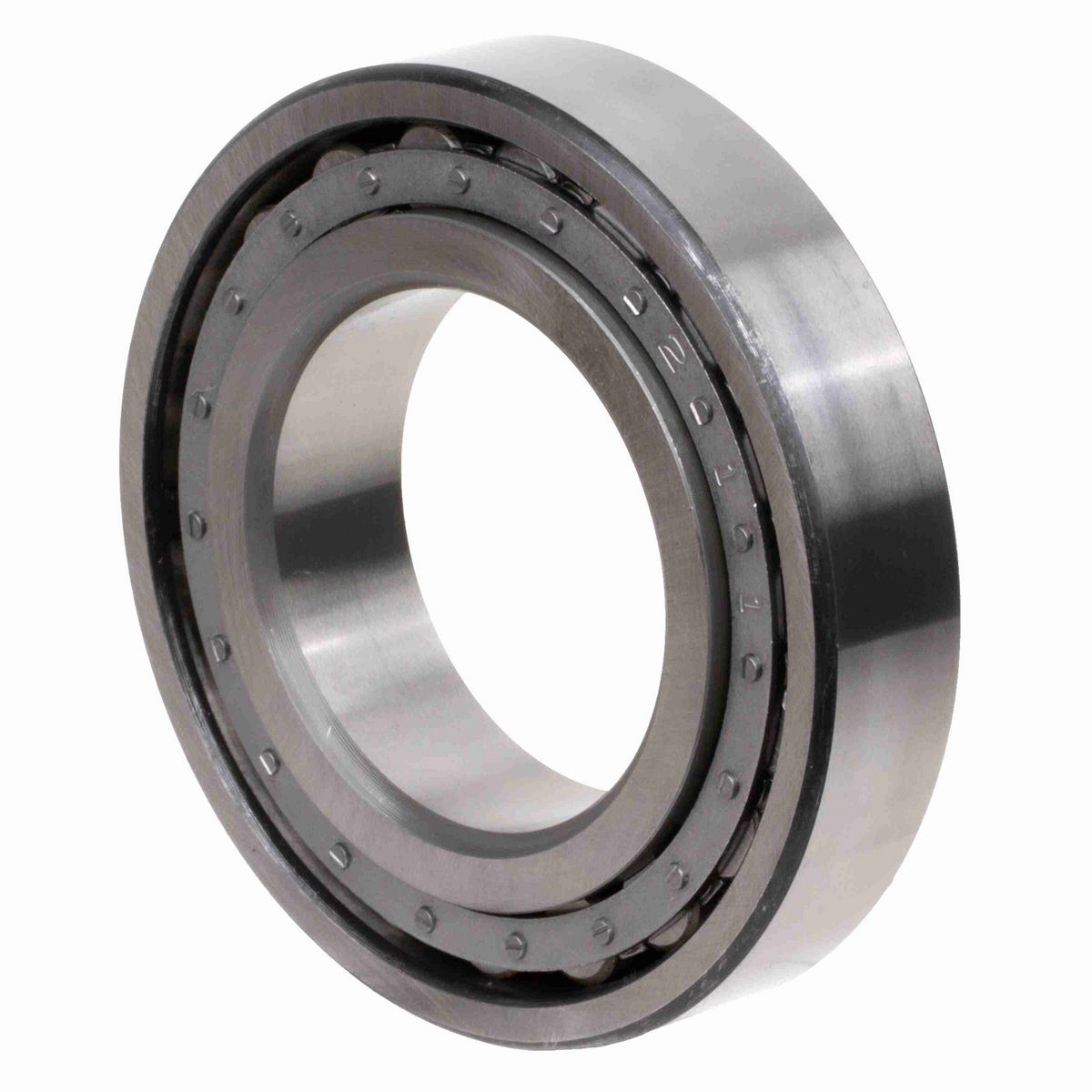

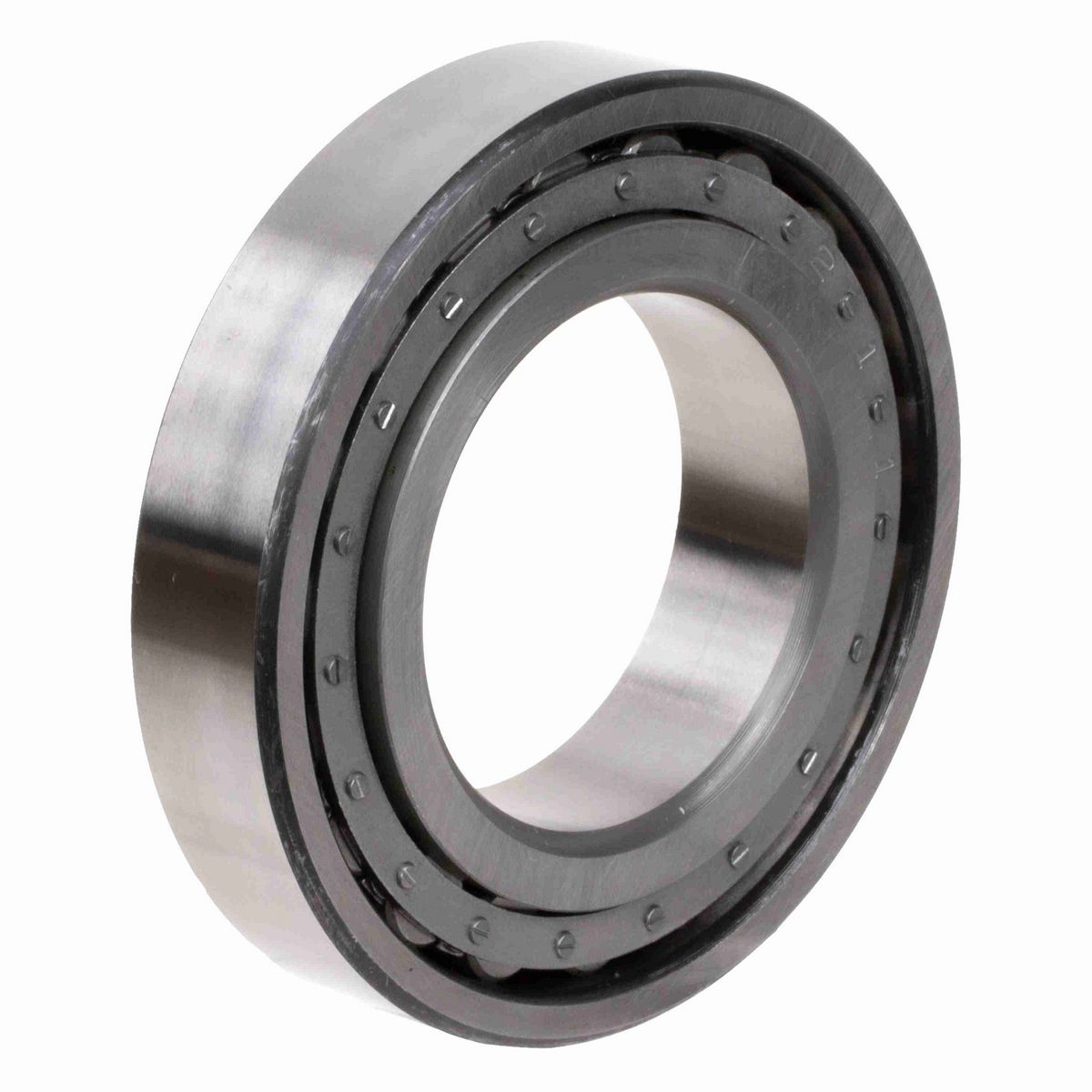

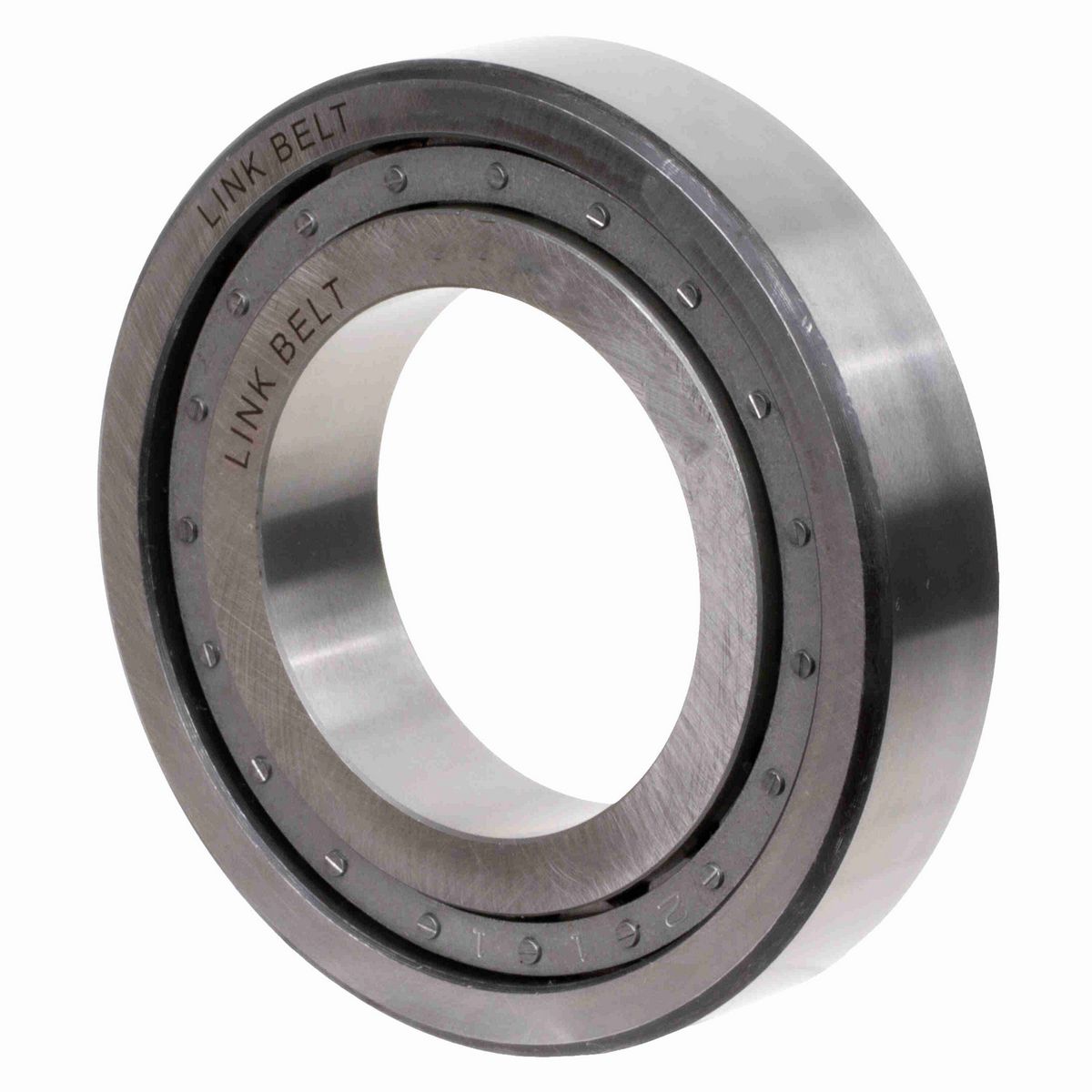

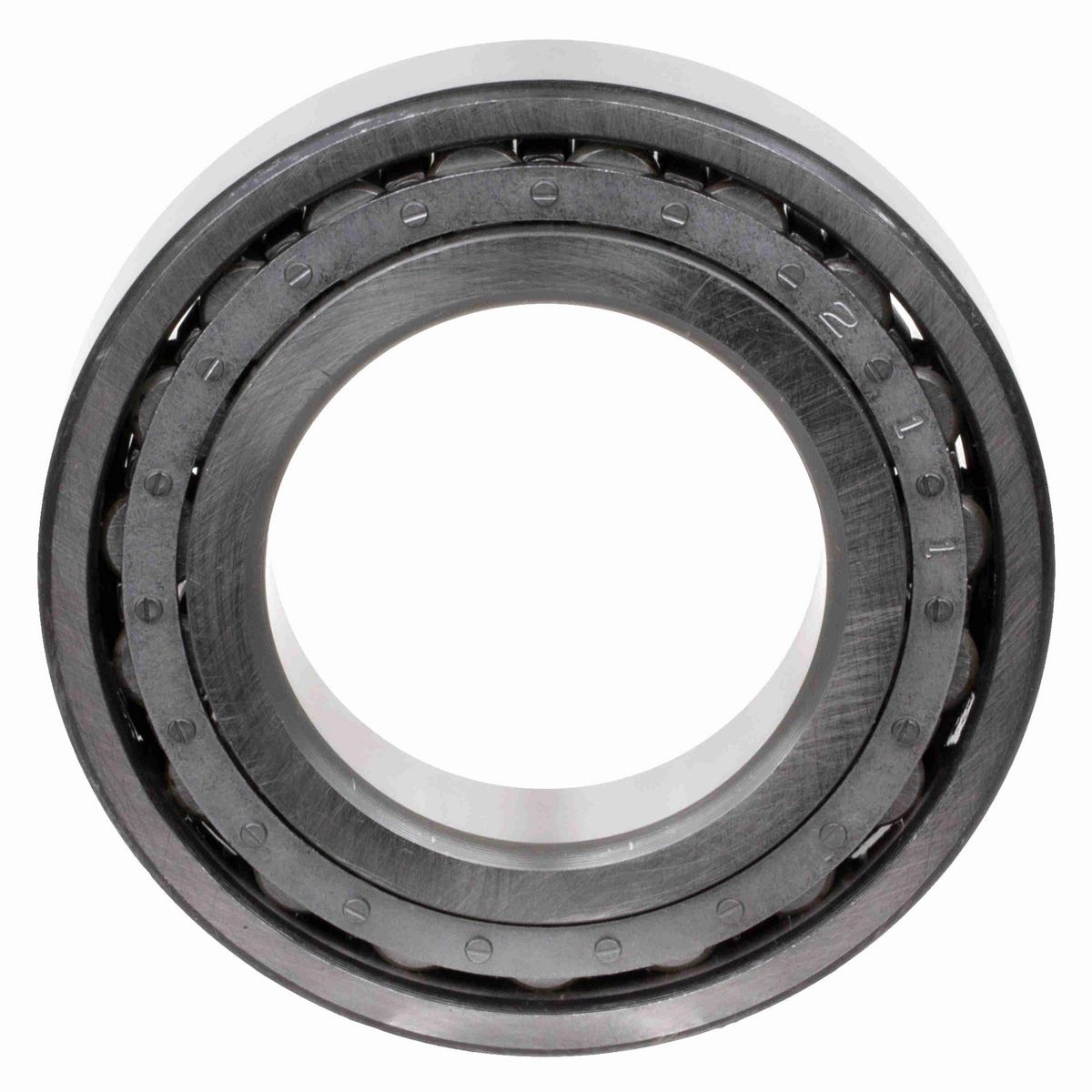

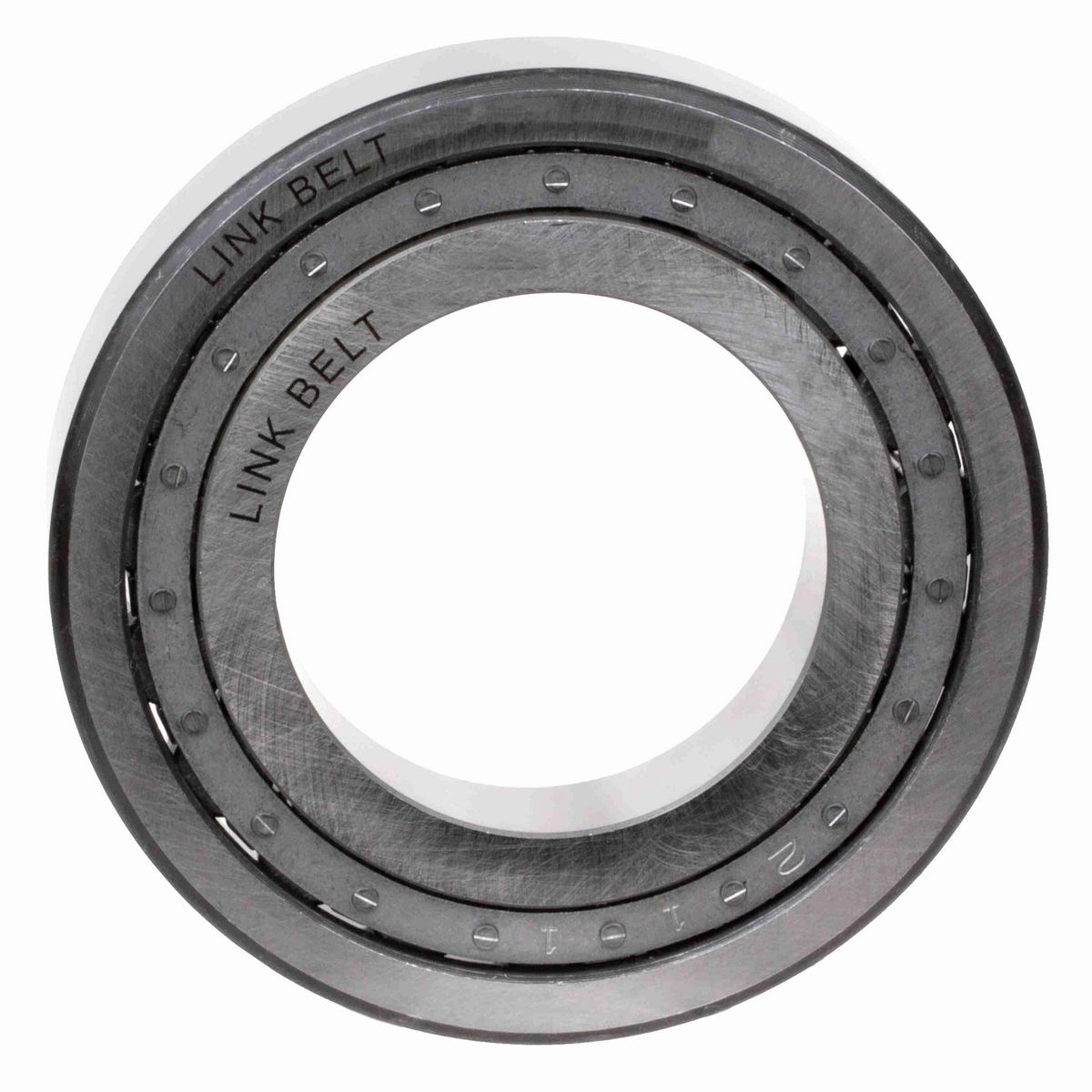

• 105 mm Cylindrical Roller Bearing with double rib inner ring, single rib outer ring and segmented retainer, Special internal clearance of .0036" to .0057"

Dimensions

Bore Size (mm)	105 mm
Outside Diameter (mm)	190 mm

Technical Specifications

Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	168.4 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	126.5 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Product	Series 1200 Unmounted Bearings
Vibration Frequency Outer Ring Defect	CALL ENG cps
Co Static Load Rating	CALL ENG lb
Rolling Element	Cylindrical
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	175.3 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	121.4 mm
Inner Ring Type	Double Rib (U)
Series Weight	Light (2)
Basic Bearing Number	1221
Vibration Frequency Roller Spin	CALL ENG cps
C Dynamic Load Rating	CALL ENG lb
Inner Ring Raceway Outside Diameter (mm)	126.52 mm
Inner Ring Bore Radius (mm)	3.96 mm
Inner Ring Rib Outside Diameter (mm)	134.87 mm
Retainer Type	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	126.61 mm
Outer Ring Type	Single Rib Outer Ring (D)
Outer Ring Rib Inside Diameter (mm)	161.01 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	168.47 mm
Series	Unmounted Bearings
Outer Ring Raceway Inside Diameter (mm)	168.56 mm
Mounted Clearance	SEE DESCRIPTION
Shaft Locking	DIRECT SHAFT MOUNT
Bearing Width (mm)	36 mm
Maximum Speed (RPM)	CALL ENG rpm
Ring Width Series	Narrow (1)
Vibration Frequency Inner Ring Defect	CALL ENG cps

General Specifications

UPC	662327687311
Weight	9.92 LB
HTC	8482500000
Country of Origin	Mexico
