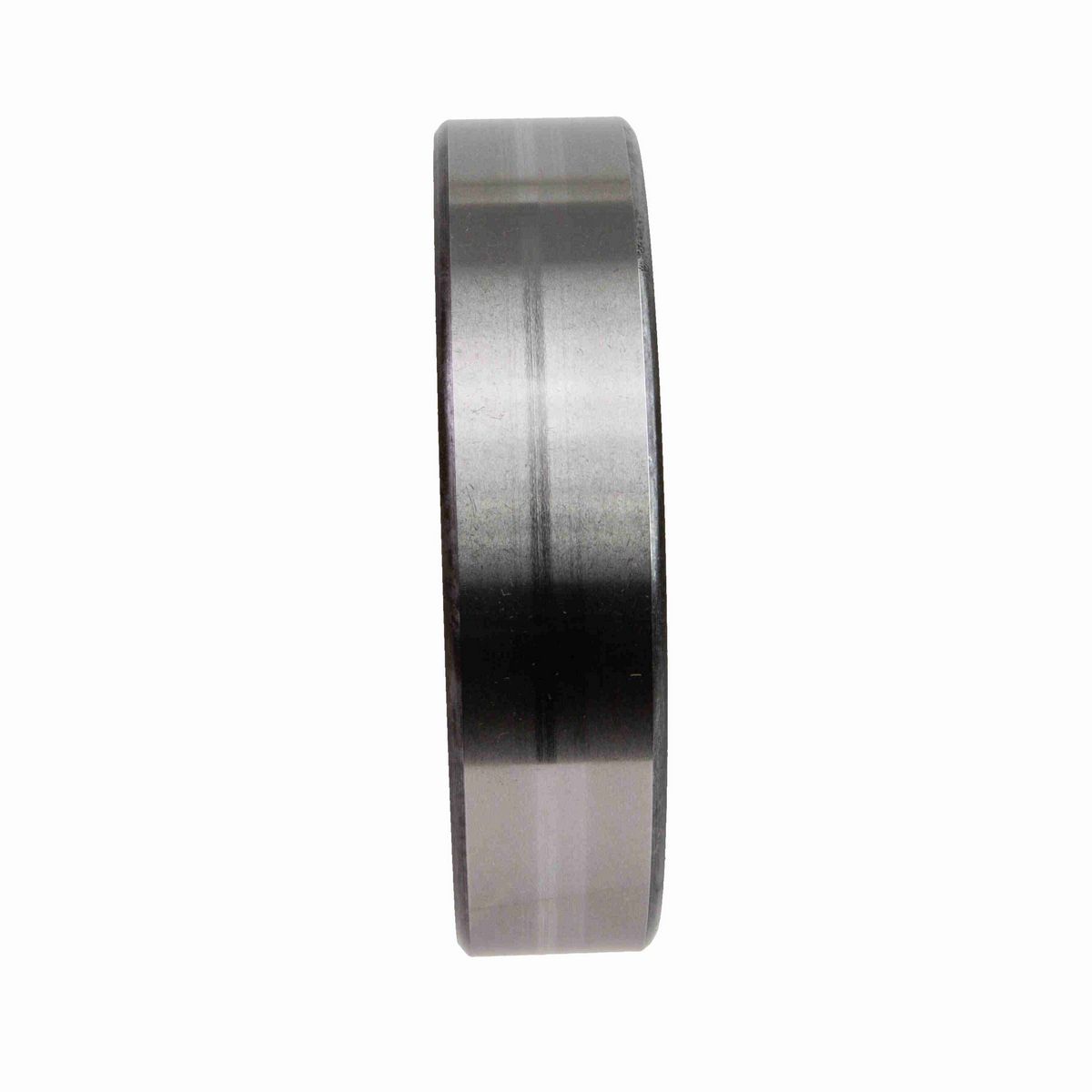

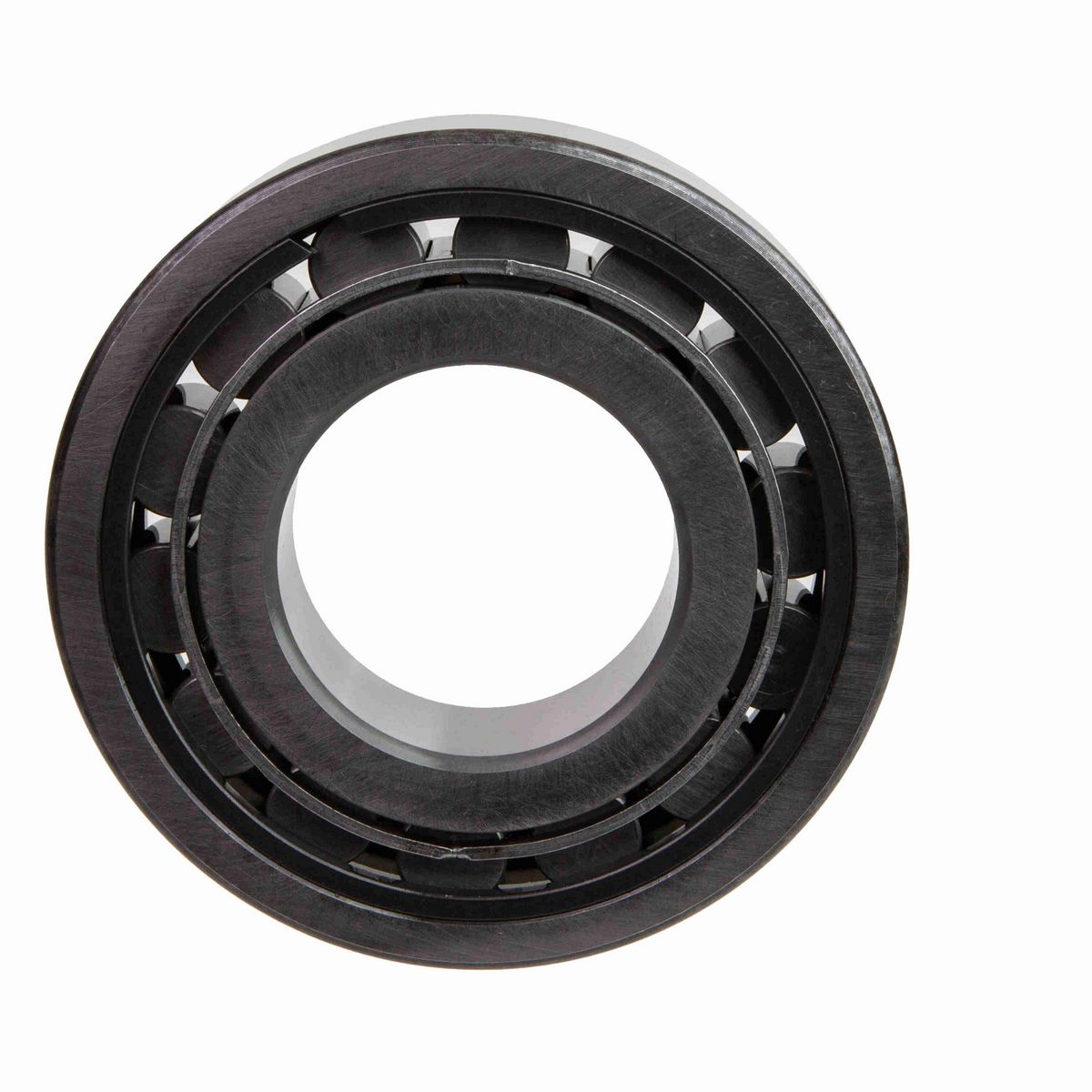

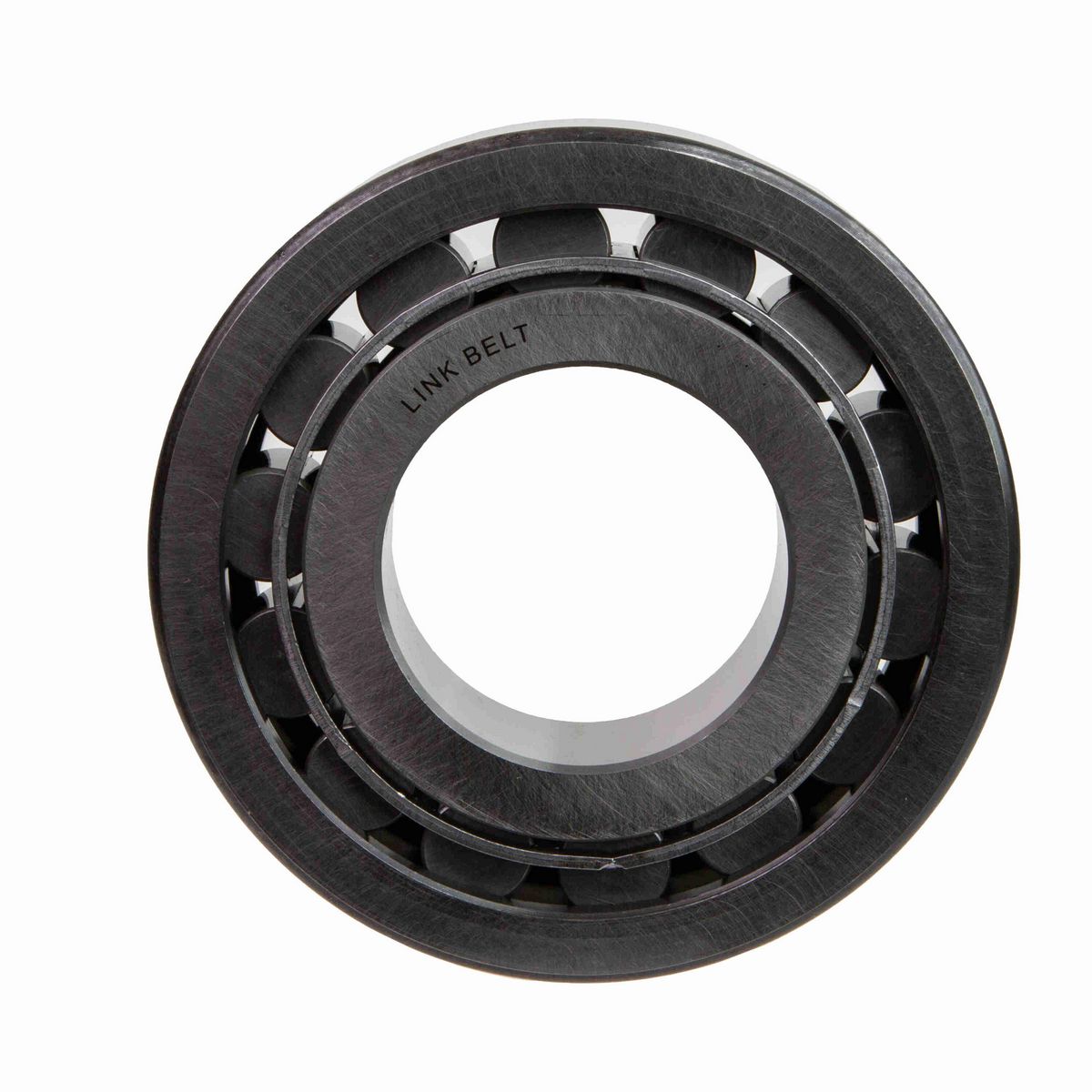

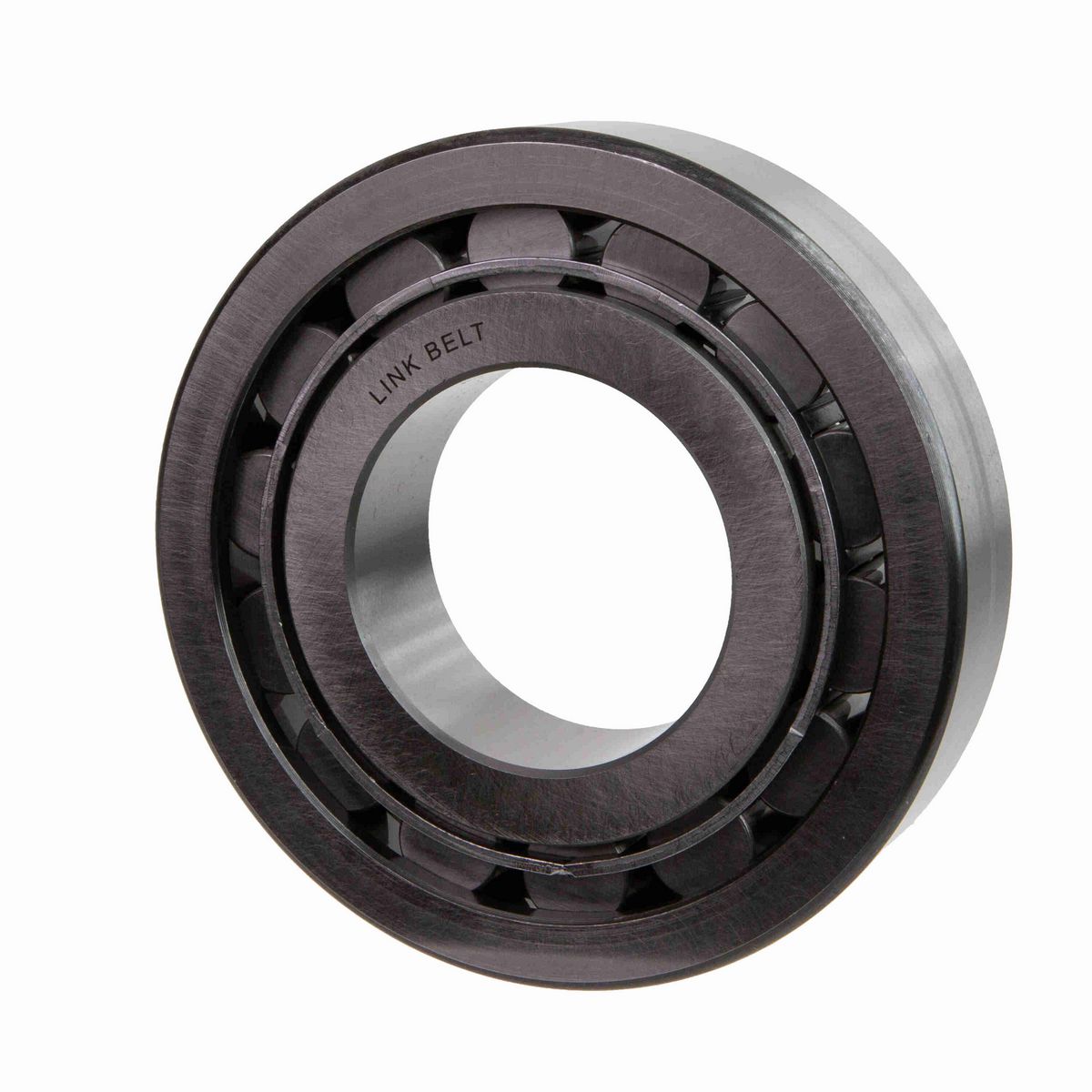

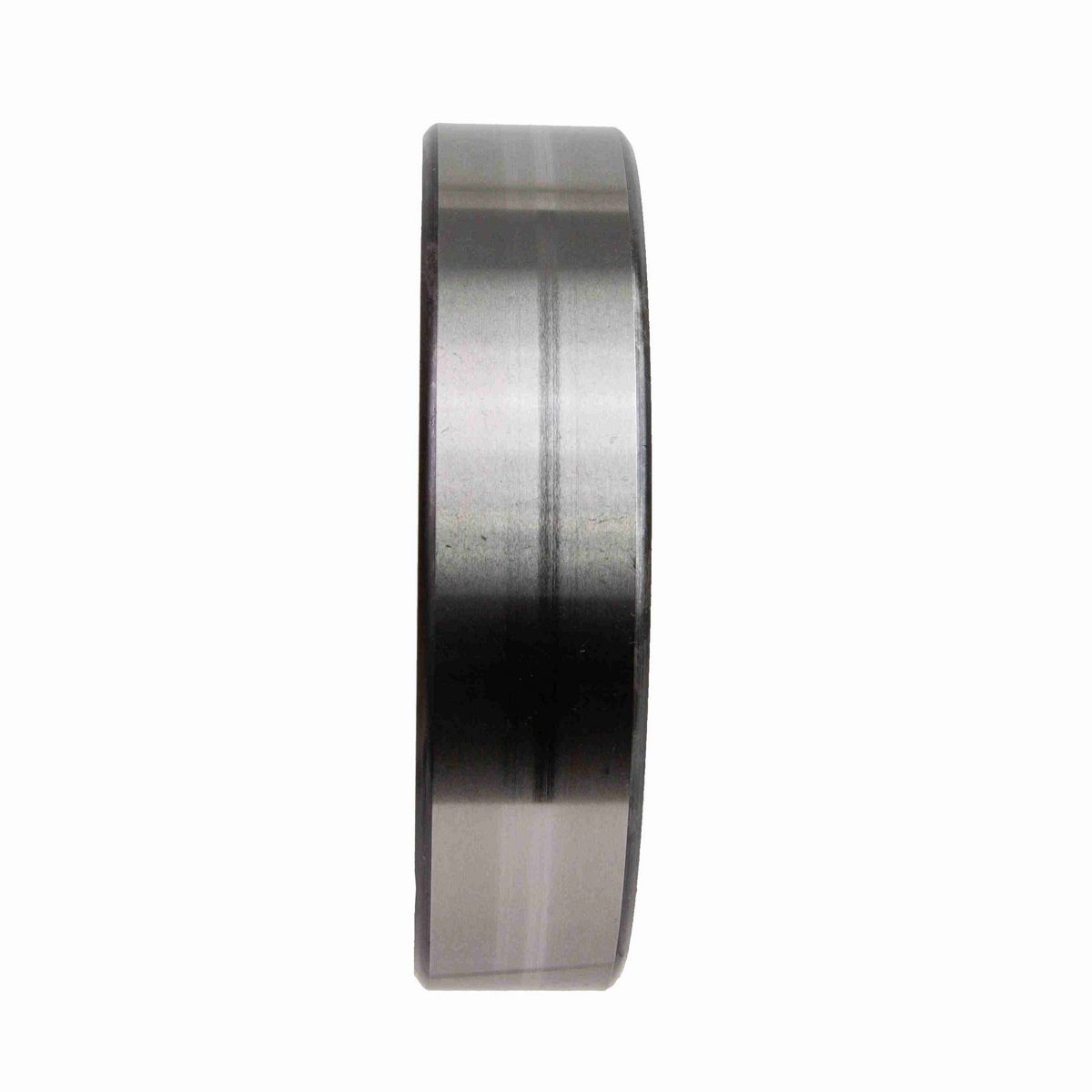

• 50 mm Cylindrical Roller Bearing with double rib inner ring, single rib and 1 retaining ring in outer ring and formed steel retainer

Dimensions

Outside Diameter (mm)	90 mm
Bore Size (mm)	10 - 50 mm

Technical Specifications

Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	79.5 mm
Co Static Load Rating	CALL ENG lb
Retainer Type	SEE DESCRIPTION
Rolling Element	Cylindrical
Series Weight	Light (2)
Product	Series 1200 Unmounted Bearings
Basic Bearing Number	1210
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring Rib Outside Diameter (mm)	63.96 mm
Vibration Frequency Roller Spin	CALL ENG cps
Ring Width Series	Narrow (1)
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	60.4 mm
Shaft Locking	DIRECT SHAFT MOUNT
Series	Unmounted Bearings
Vibration Frequency Inner Ring Defect	CALL ENG cps
Bearing Width (mm)	20 mm
Inner Ring Raceway Outside Diameter (mm)	60.46 mm
Vibration Frequency Fundamental Train	CALL ENG cps
C Dynamic Load Rating	CALL ENG lb
Inner Ring Type	Double Rib (U)
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	82.8 mm
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Outer Ring Rib Inside Diameter (mm)	76.66 mm
Mounted Clearance	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	60.51 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	79.49 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	57.6 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	79.55 mm
Inner Ring Bore Radius (mm)	1.02 mm

General Specifications

UPC	662327057077
Weight	1.17 LB
HTC	8482500000
Country of Origin	Mexico
