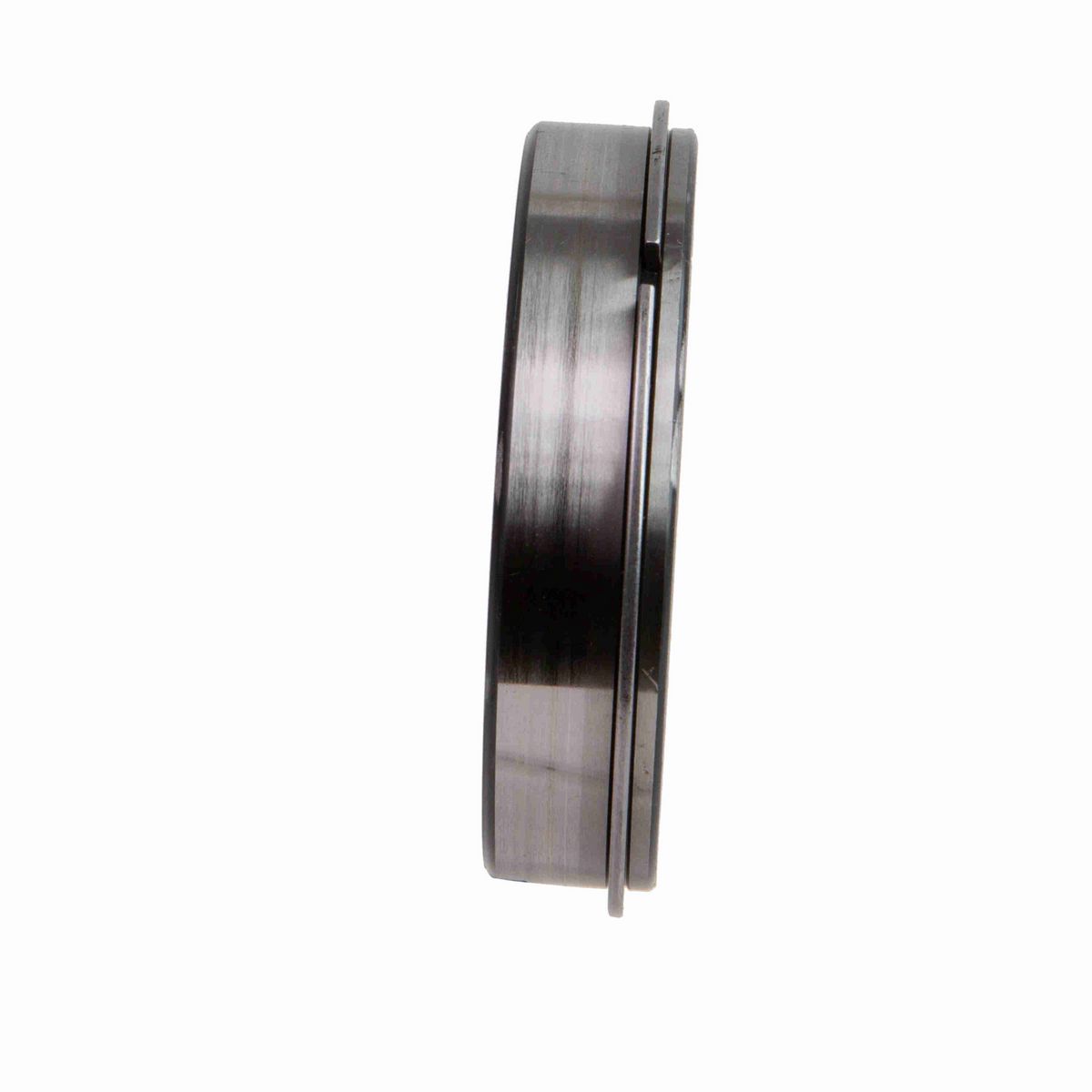

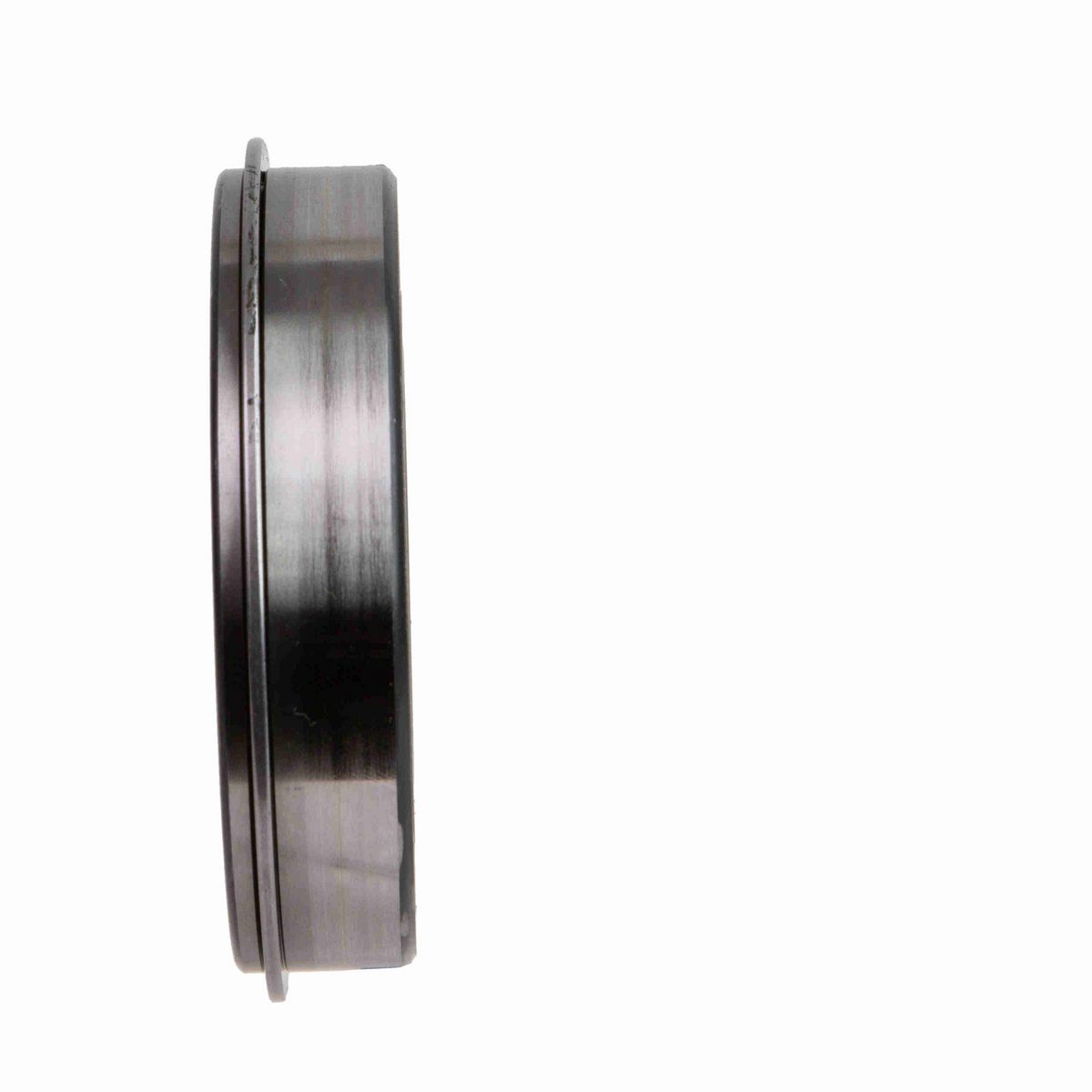

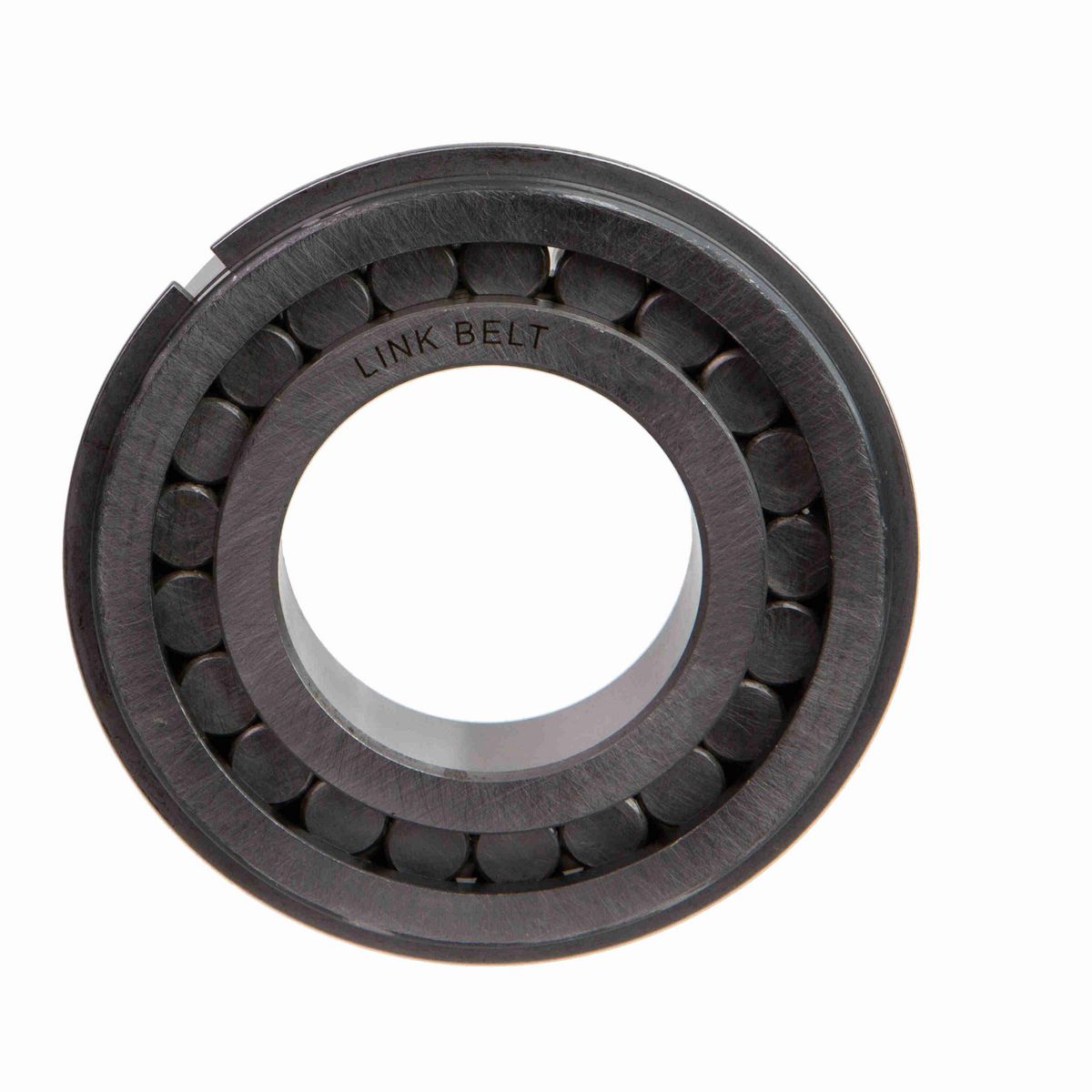

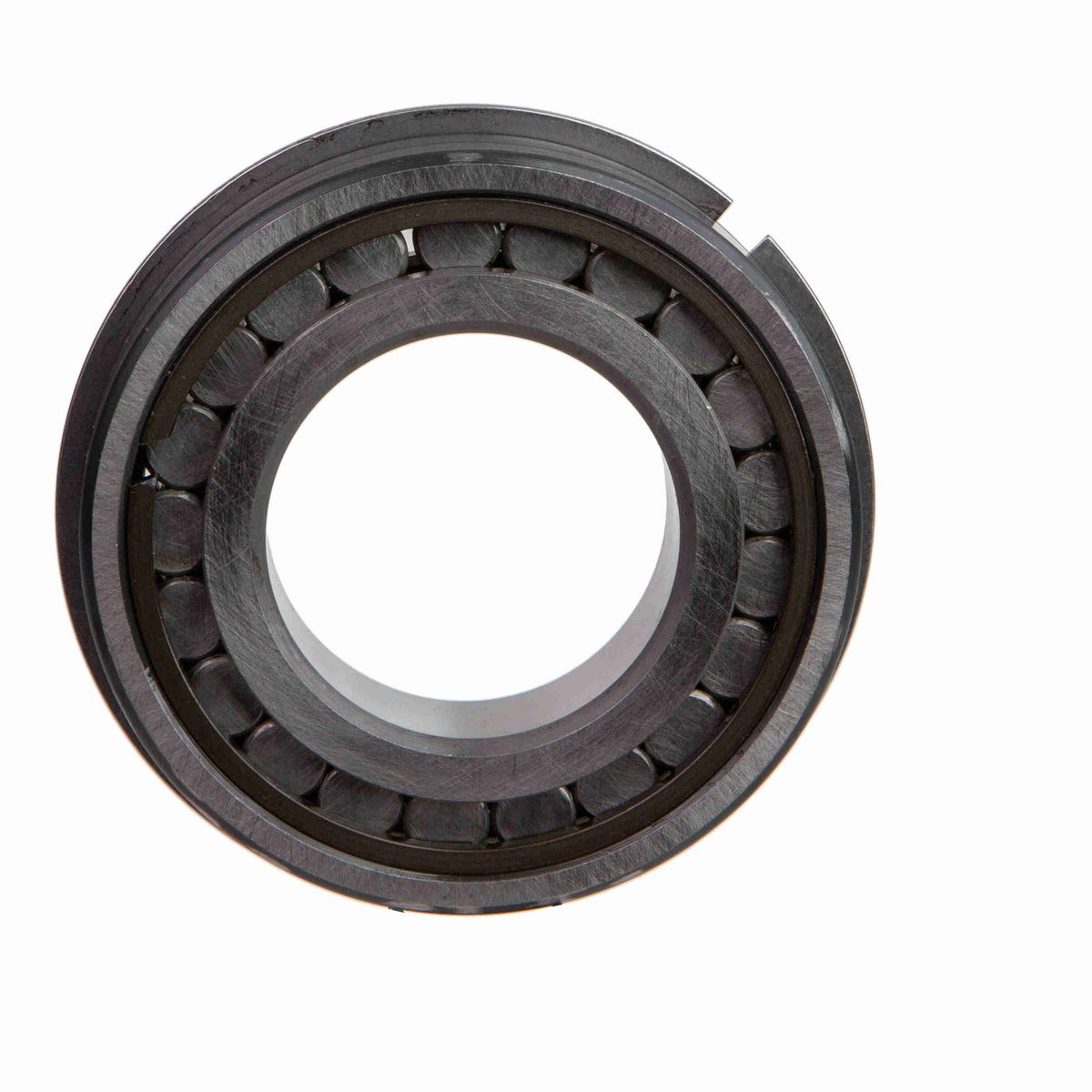

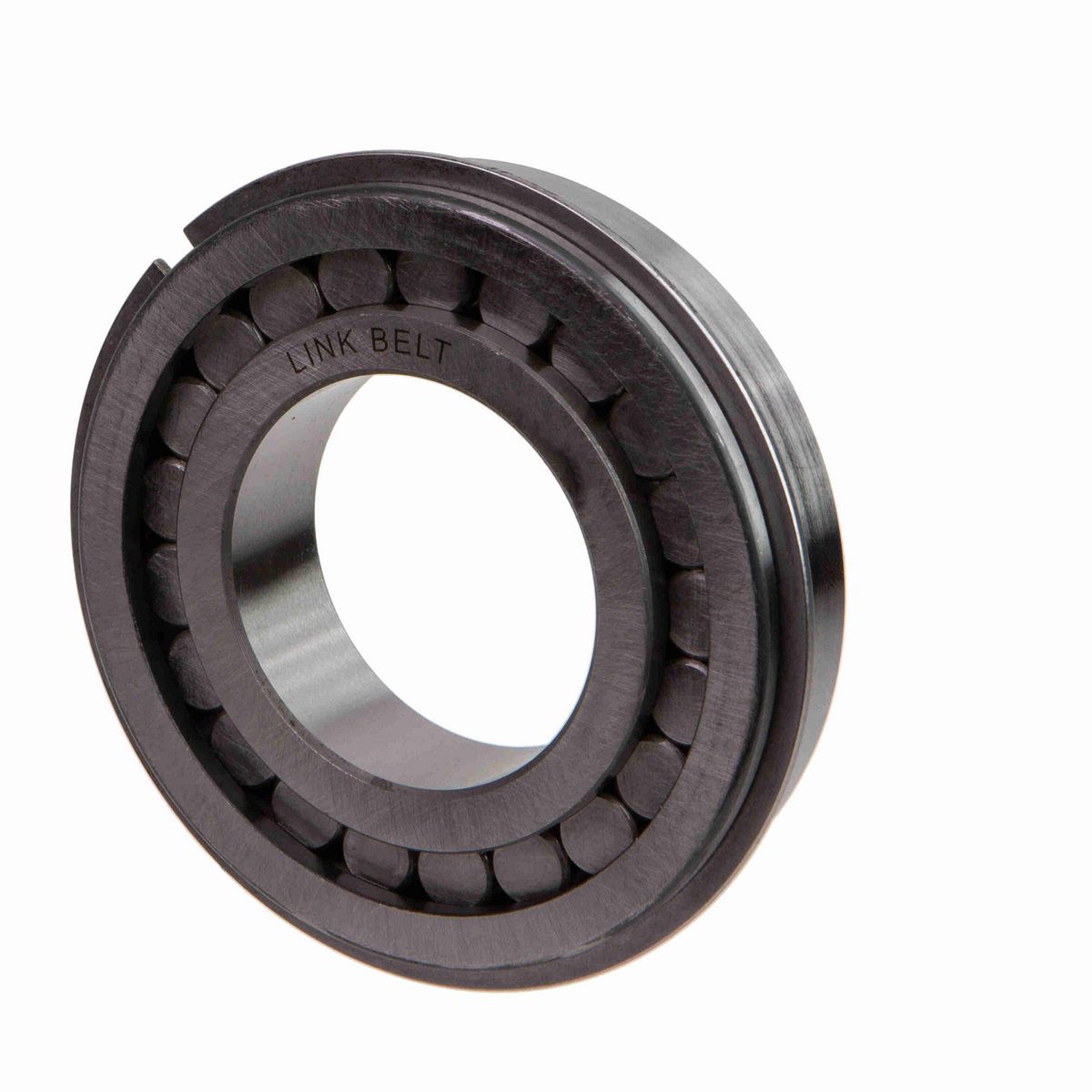

• 45 mm Cylindrical Roller Bearing with double rib inner ring, single rib and 1 retaining ring in outer ring and no retainer - full complement, Snap ring groove in outer ring OD, Snap ring included

Dimensions

Bore Size (mm)	45 mm
Outside Diameter (mm)	85 mm

Technical Specifications

Series Weight	Light (2)
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Series	Unmounted Bearings
Shaft Locking	DIRECT SHAFT MOUNT
Vibration Frequency Outer Ring Defect	CALL ENG cps
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	74.94 mm
Product	Series 1200 Unmounted Bearings
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	55.4 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	74.9 mm
Co Static Load Rating	CALL ENG lb
Inner Ring Type	Double Rib (U)
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	78.2 mm
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Inner Ring Defect	CALL ENG cps
Mounted Clearance	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Basic Bearing Number	1209
Bearing Width (mm)	19 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Retainer Type	SEE DESCRIPTION
Outer Ring Raceway Inside Diameter (mm)	74.99 mm
Outer Ring Rib Inside Diameter (mm)	71.8 mm
Inner Ring Raceway Outside Diameter (mm)	55.52 mm
Inner Ring Bore Radius (mm)	1.52 mm
Inner Ring Rib Outside Diameter (mm)	59.03 mm
Rolling Element	Cylindrical
Ring Width Series	Narrow (1)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	55.57 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	52.8 mm

General Specifications

UPC	662327056971
Weight	1.08 LB
HTC	8482500000
Country of Origin	Mexico
