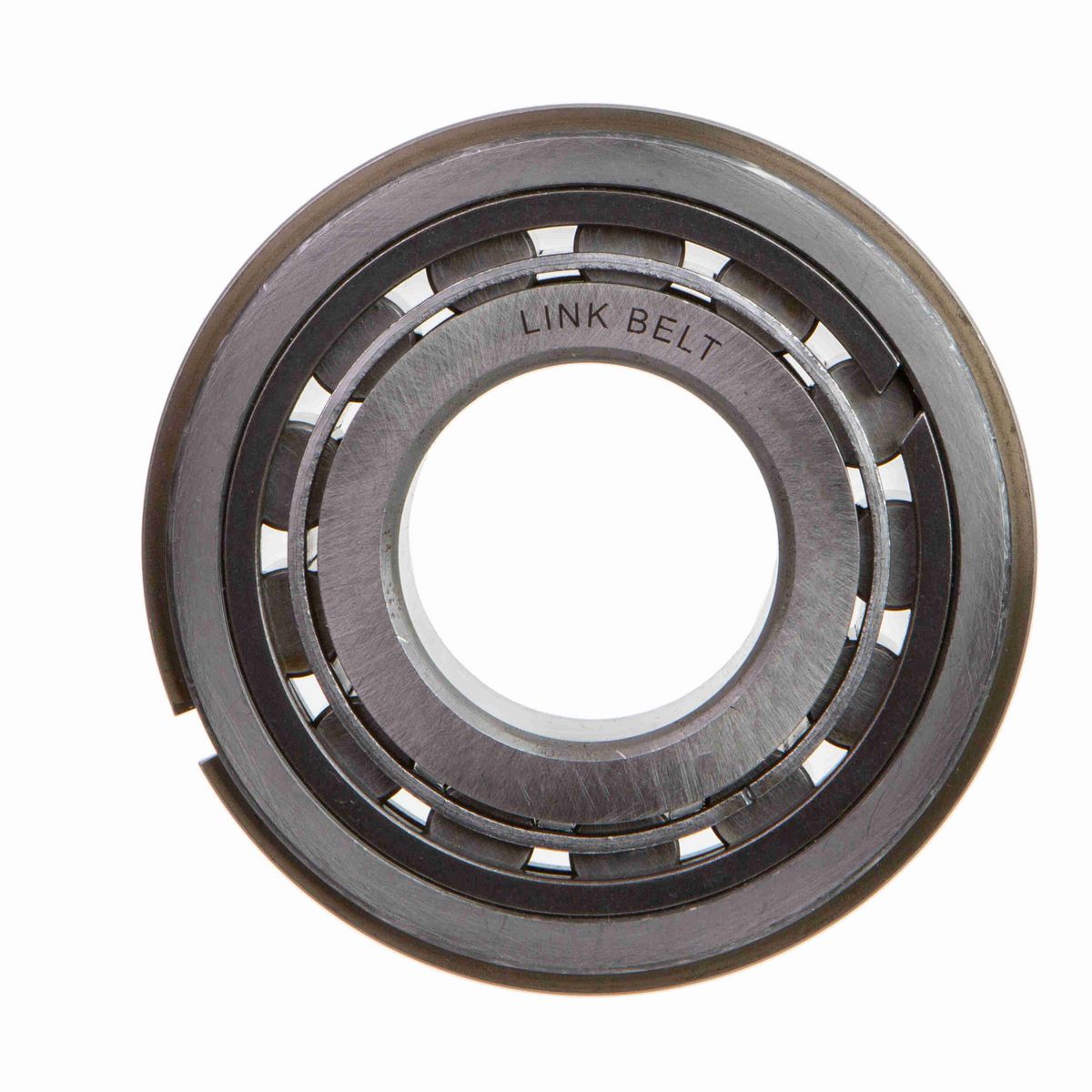

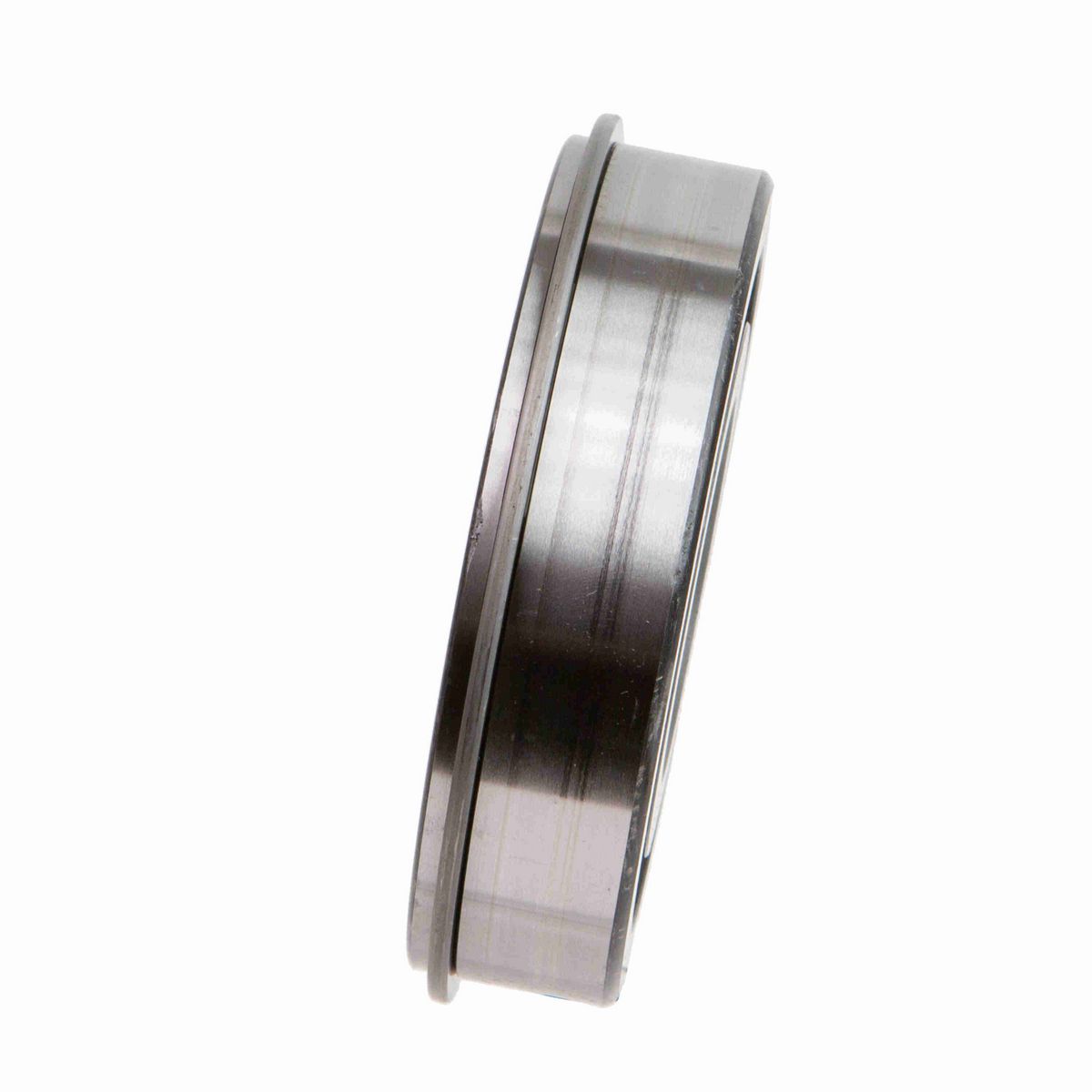

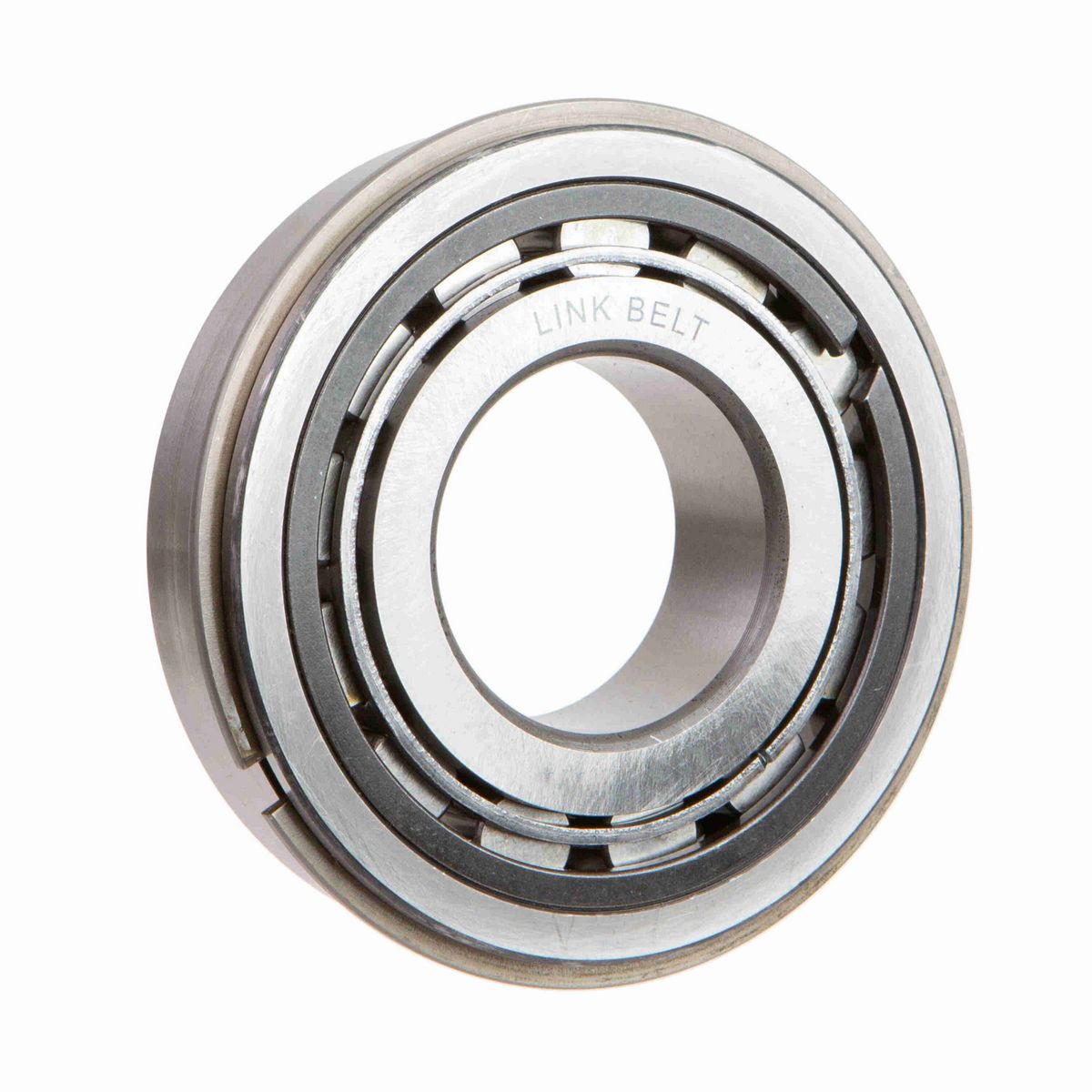

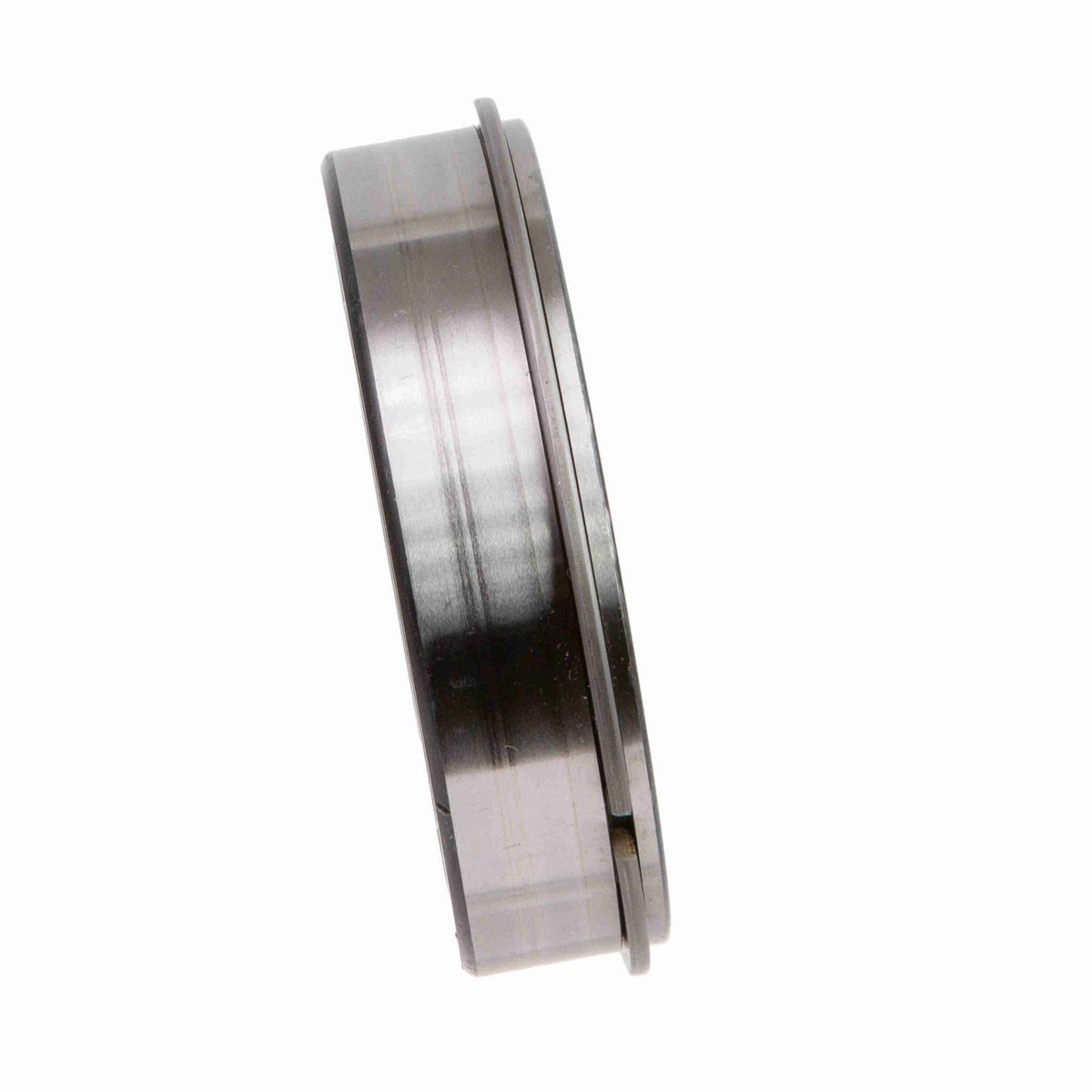

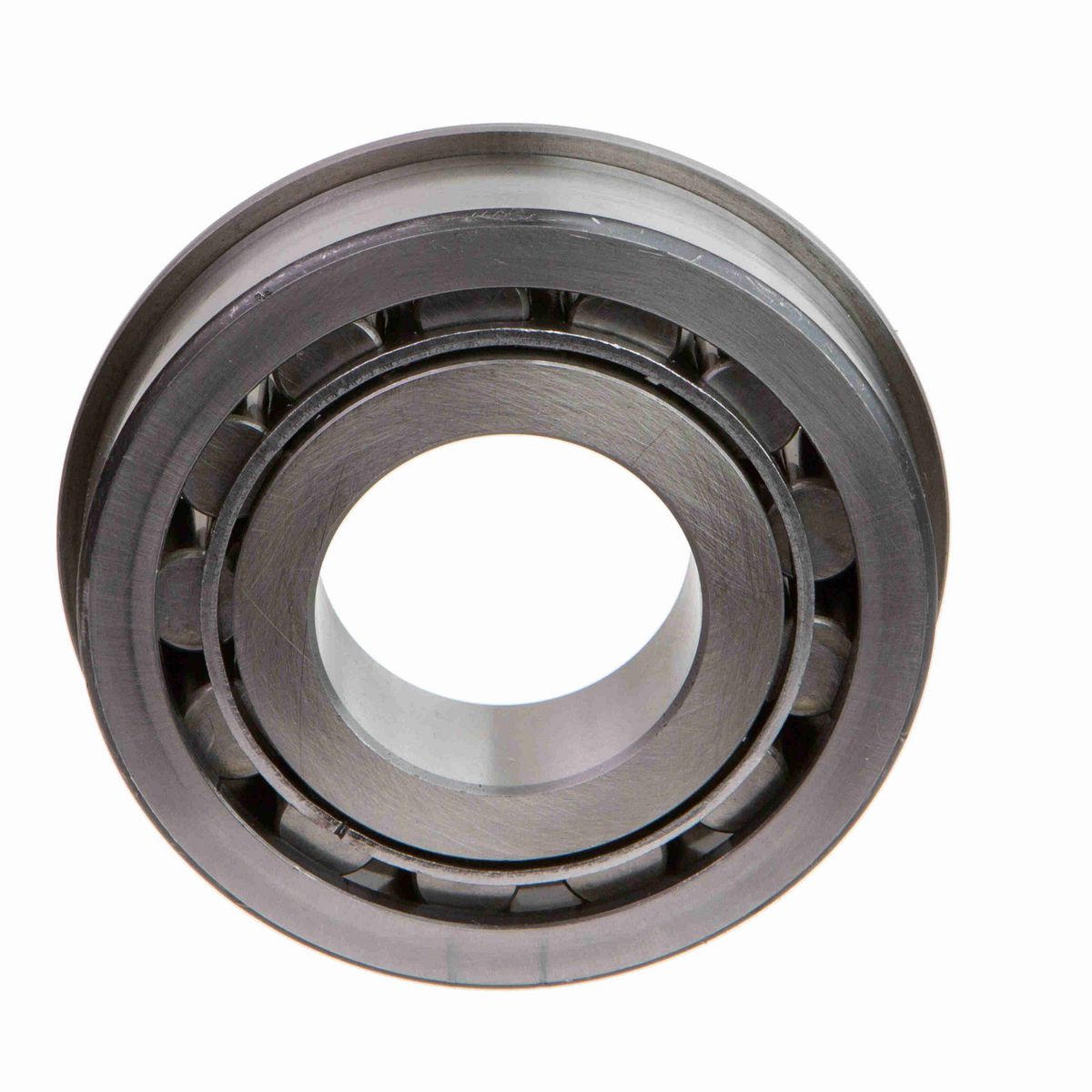

• 55 mm Cylindrical Roller Bearing with single rib and inner ring side plate, double rib outer ring and segmented retainer, Snap ring groove in outer ring OD, Snap ring included

Dimensions

Bore Size (mm)	55 mm
Outside Diameter (mm)	100 mm

Technical Specifications

Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	87.9 mm
Series	Unmounted Bearings
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	66.8 mm
Inner Ring Type	Short - Single Rib With Inner Ring Side Plate (SN)
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	64 mm
Outer Ring Raceway Inside Diameter (mm)	88.02 mm
Mounted Clearance	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring and Roller Assembly Under Roller Diameter (mm)	66.96 mm
Bearing Width (mm)	21 mm
Ring Width Series	Narrow (1)
Rolling Element	Cylindrical
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Basic Bearing Number	1211
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	91.4 mm
Series Weight	Light (2)
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring Rib Outside Diameter (mm)	70.74 mm
C Dynamic Load Rating	CALL ENG lb
Inner Ring Raceway Outside Diameter (mm)	66.9 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	87.96 mm
Outer Ring Type	Double Rib Outer Ring (E)
Product	Series 1200 Unmounted Bearings
Co Static Load Rating	CALL ENG lb
Retainer Type	SEE DESCRIPTION
Outer Ring Rib Inside Diameter (mm)	84.53 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Inner Ring Bore Radius (mm)	2.03 mm
Shaft Locking	DIRECT SHAFT MOUNT

General Specifications

UPC	662327056353
Weight	1.69 LB
HTC	8482500000
Country of Origin	Mexico
