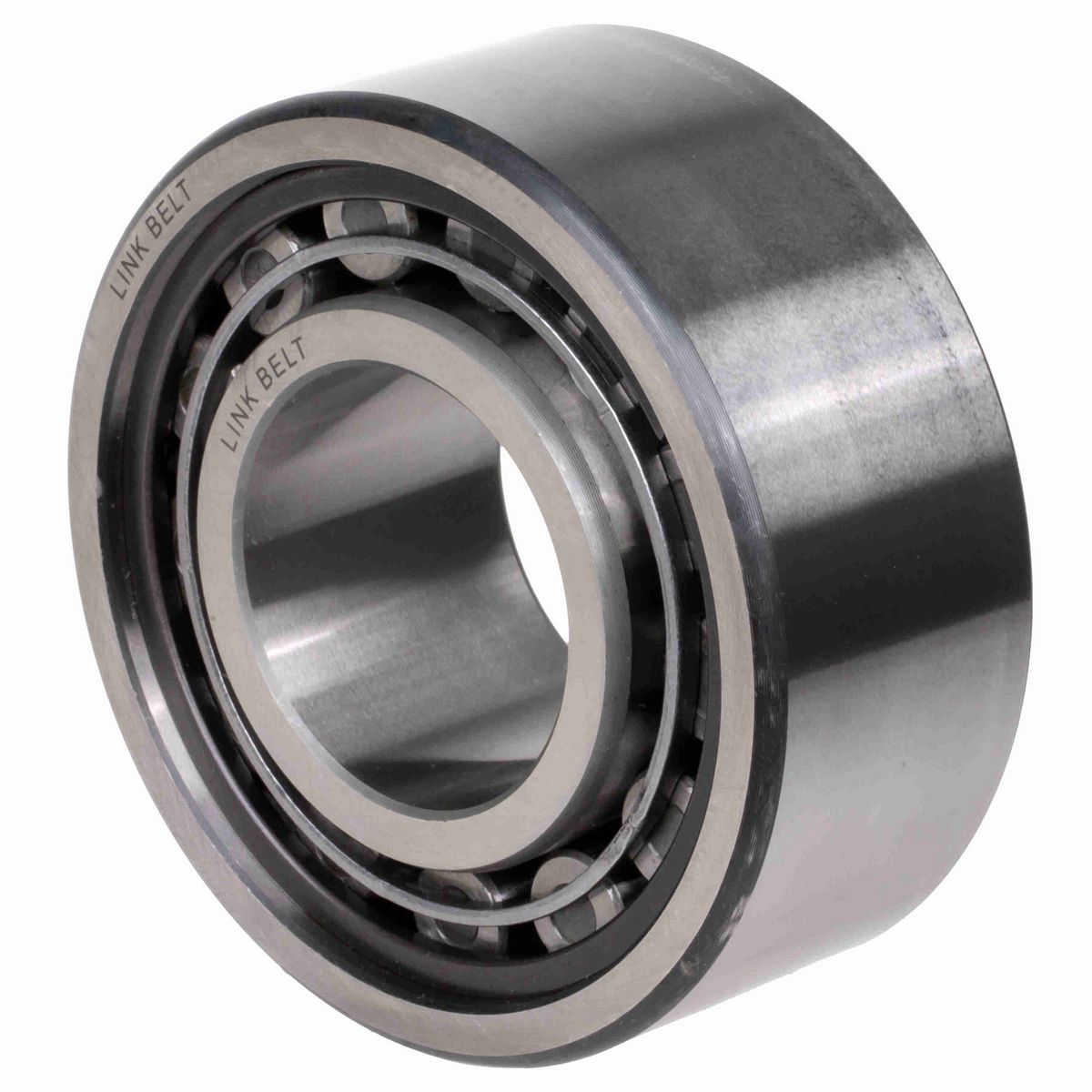

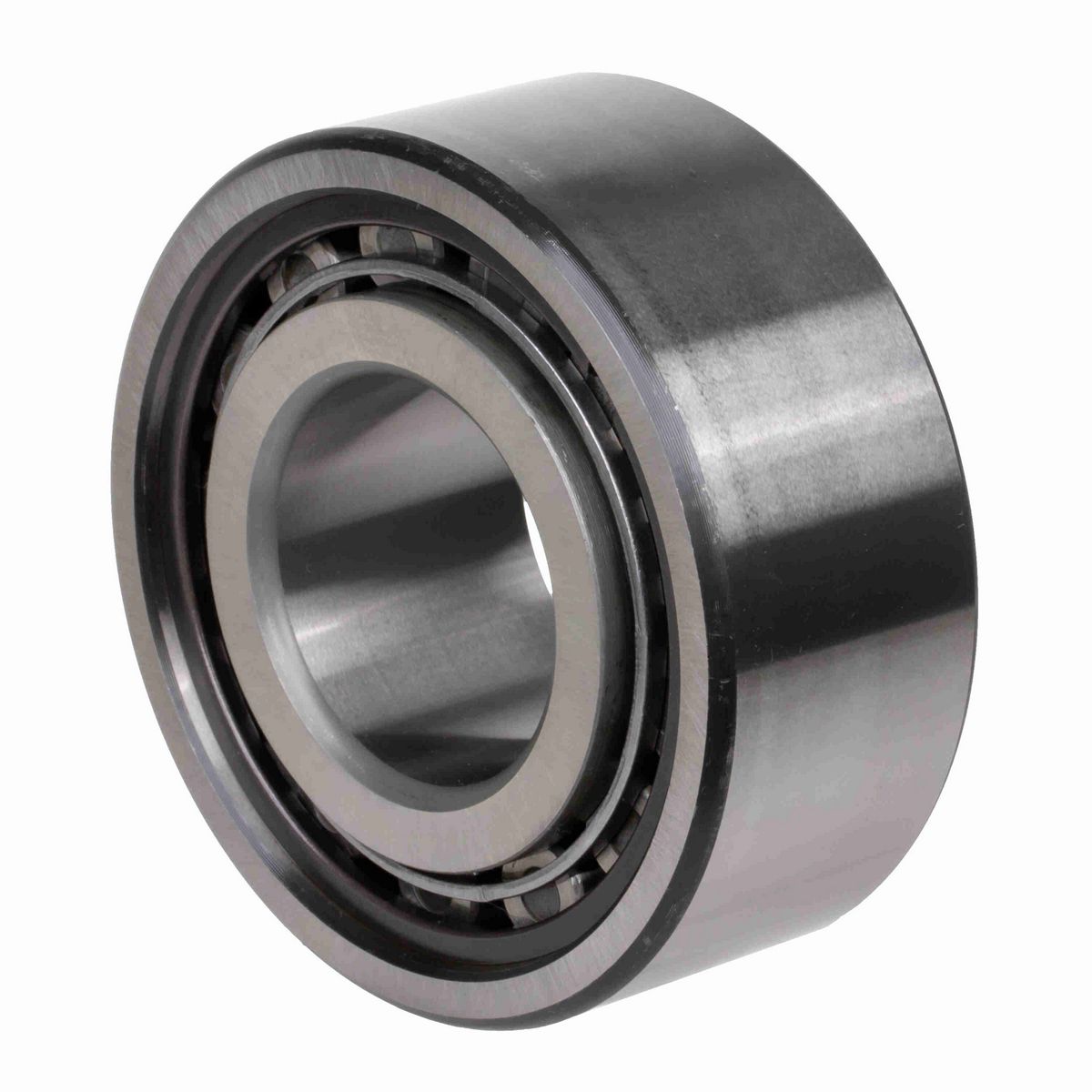

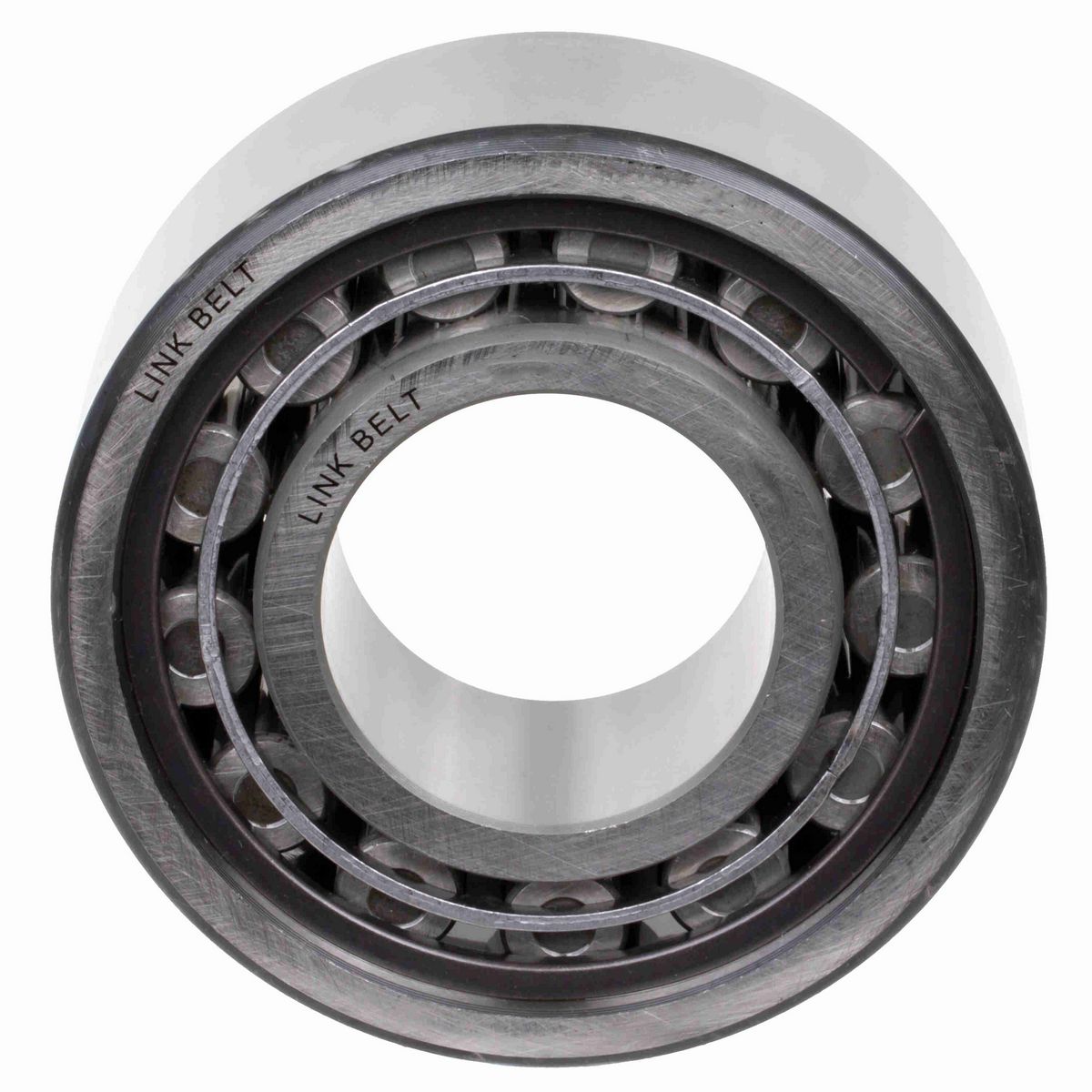

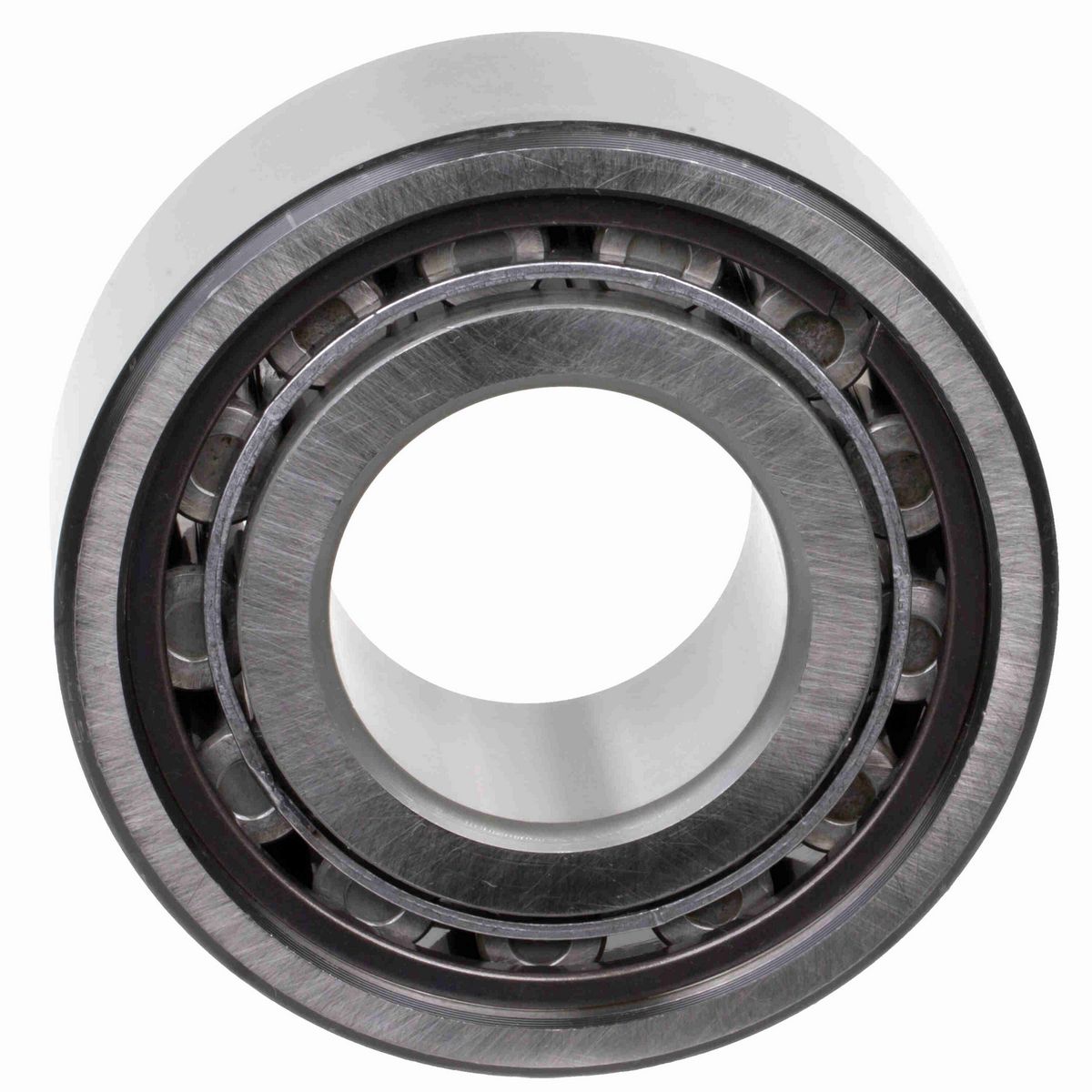

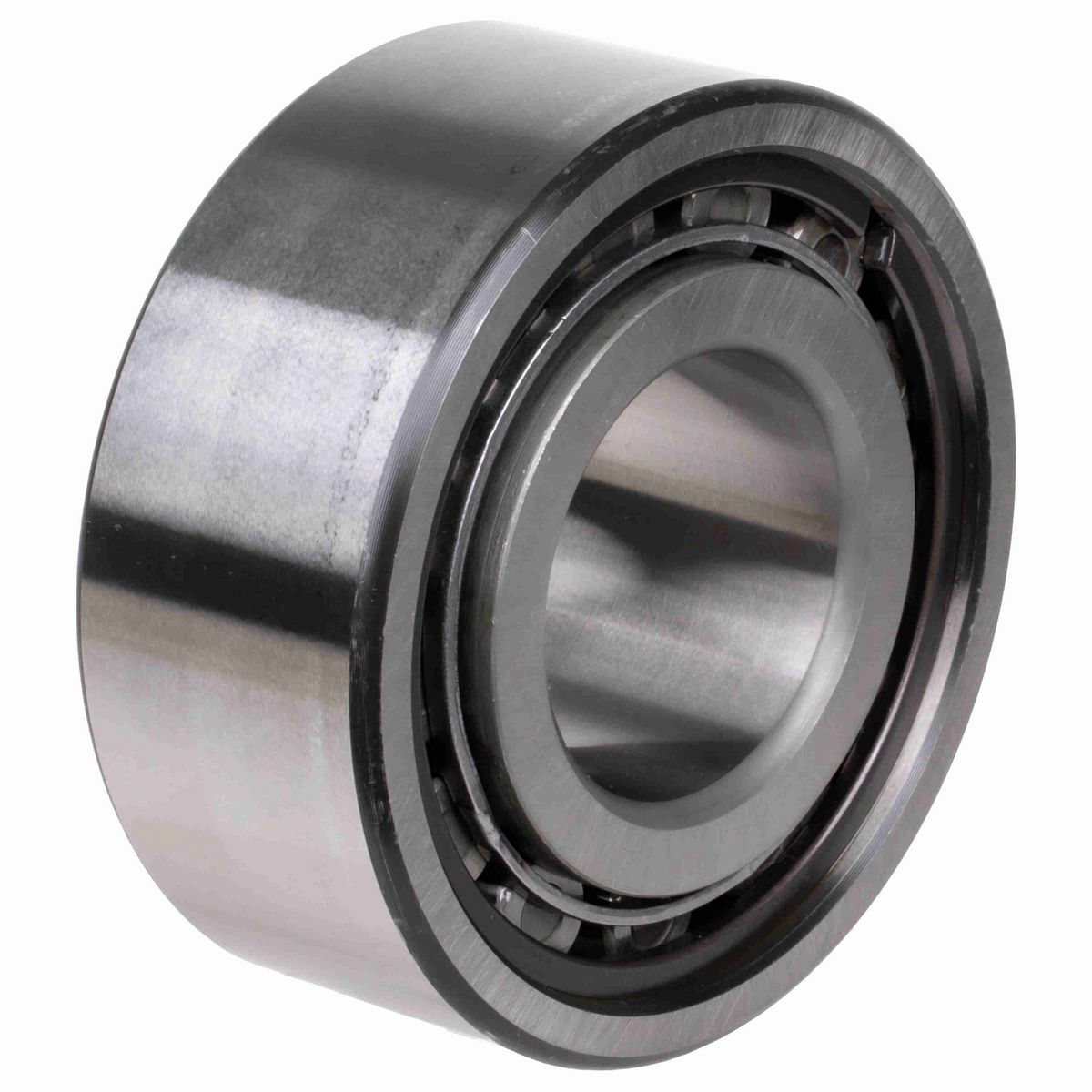

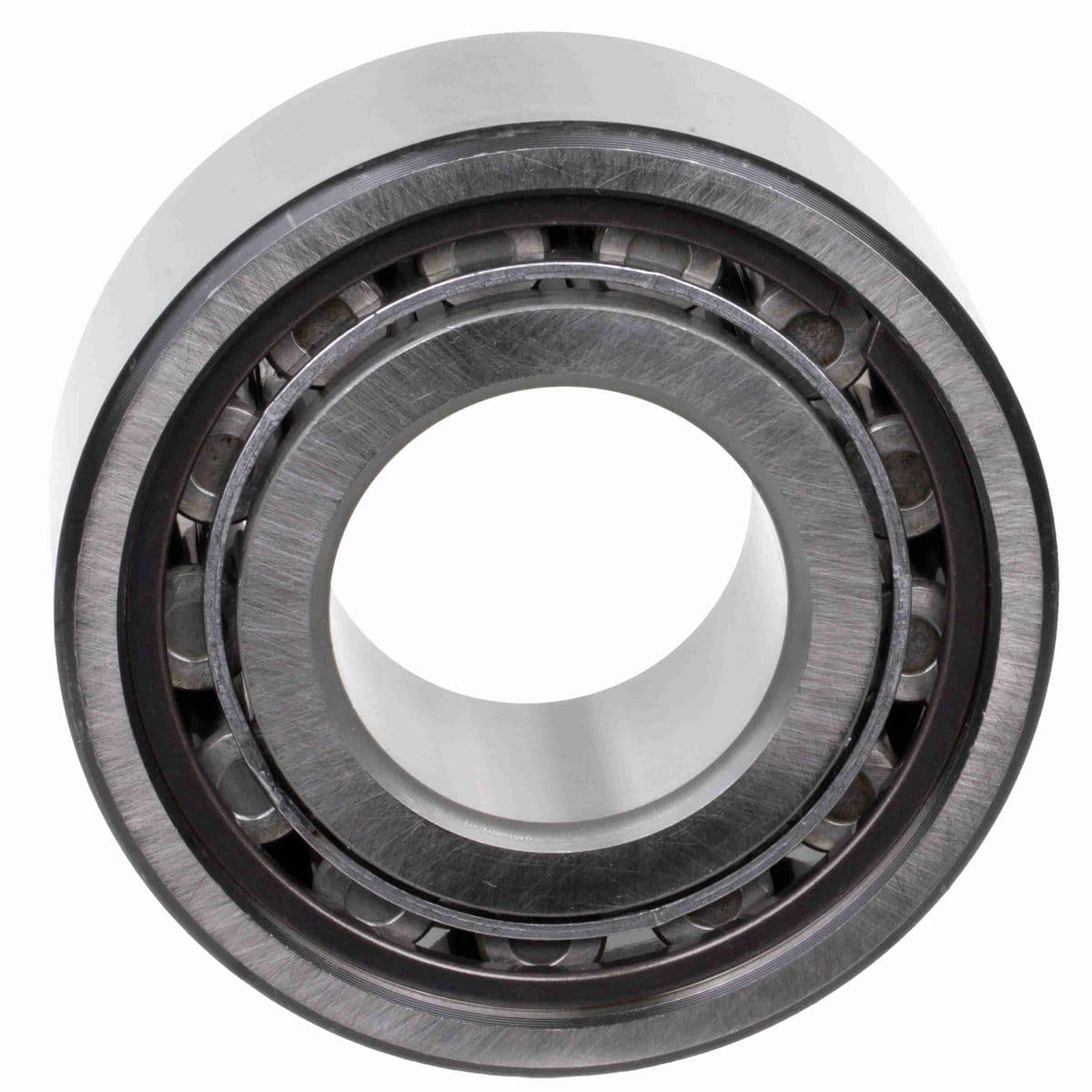

• 50 mm Cylindrical Roller Bearing with single rib inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	50 mm
Outside Diameter (mm)	110 mm

Technical Specifications

Outer Ring Raceway Inside Diameter (mm)	94.49 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	99.1 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	65 mm
Bore Type	Straight
Vibration Frequency Inner Ring Defect	CALL ENG cps
Inner Ring Bore Radius (mm)	2.03 mm
C Dynamic Load Rating	CALL ENG lb
Maximum Speed (RPM)	CALL ENG rpm
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Rolling Element	Cylindrical
Vibration Frequency Fundamental Train	CALL ENG cps
Inner Ring Rib Outside Diameter (mm)	70.64 mm
Inner Ring Type	Single Rib (R)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	94.5 mm
Outer Ring and Roller Assembly Under Roller Diameter (mm)	65.19 mm
Inner Ring Raceway Outside Diameter (mm)	65.15 mm
Bearing Width (mm)	44.45 mm
Ring Width Series	Wide (5)
Basic Bearing Number	5310
Inner Ring and Roller Assembly Over Roller Diameter (mm)	94.44 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Shaft Locking	DIRECT SHAFT MOUNT
Product	Series 5300 Unmounted Bearings
Series	Unmounted Bearings
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	61 mm
Retainer Type	SEE DESCRIPTION
Mounted Clearance	SEE DESCRIPTION
Outer Ring Rib Inside Diameter (mm)	89.36 mm
Series Weight	Medium (3)
Co Static Load Rating	CALL ENG lb

General Specifications

UPC	662327056070
Weight	4.35 LB
HTC	8482500000
Country of Origin	Mexico
