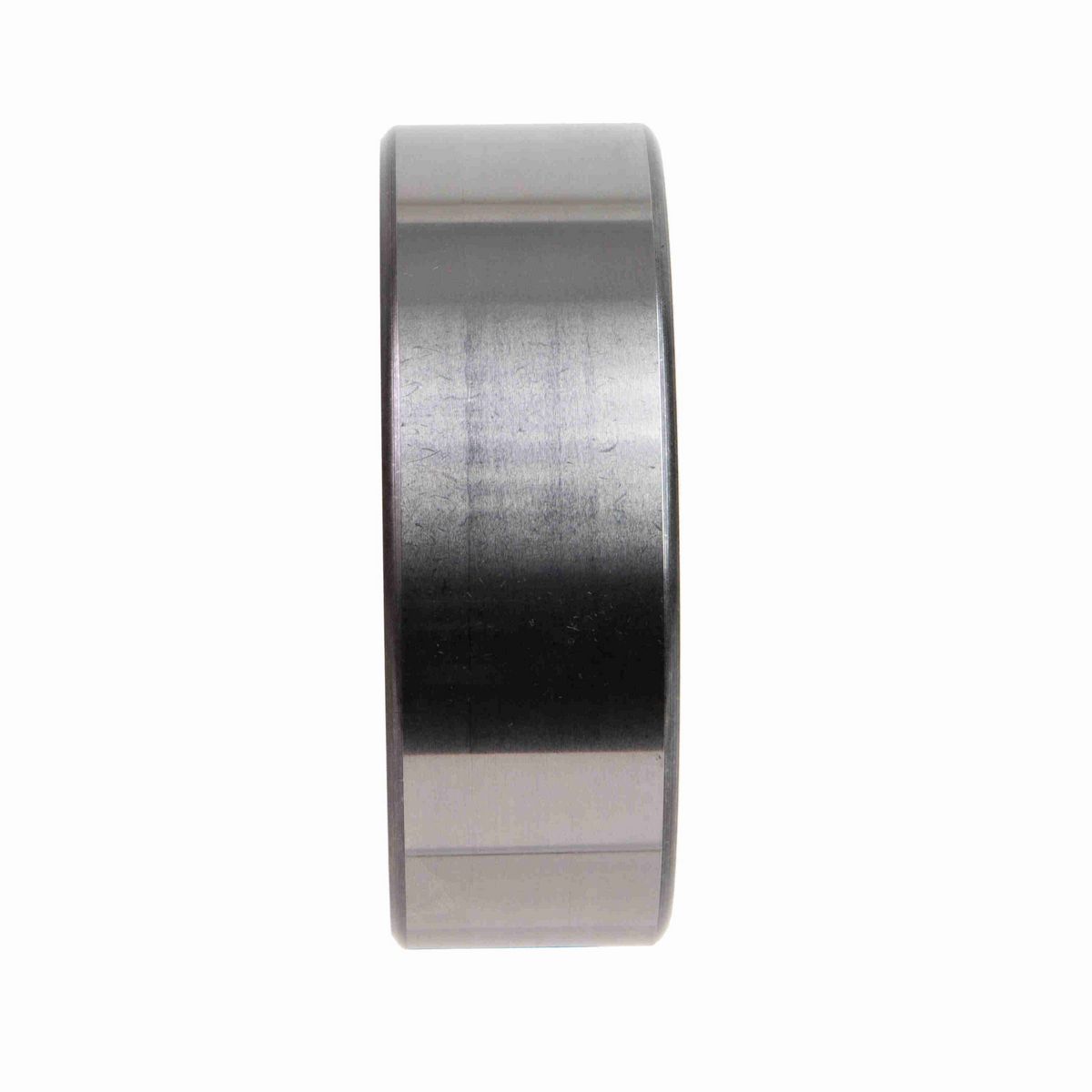

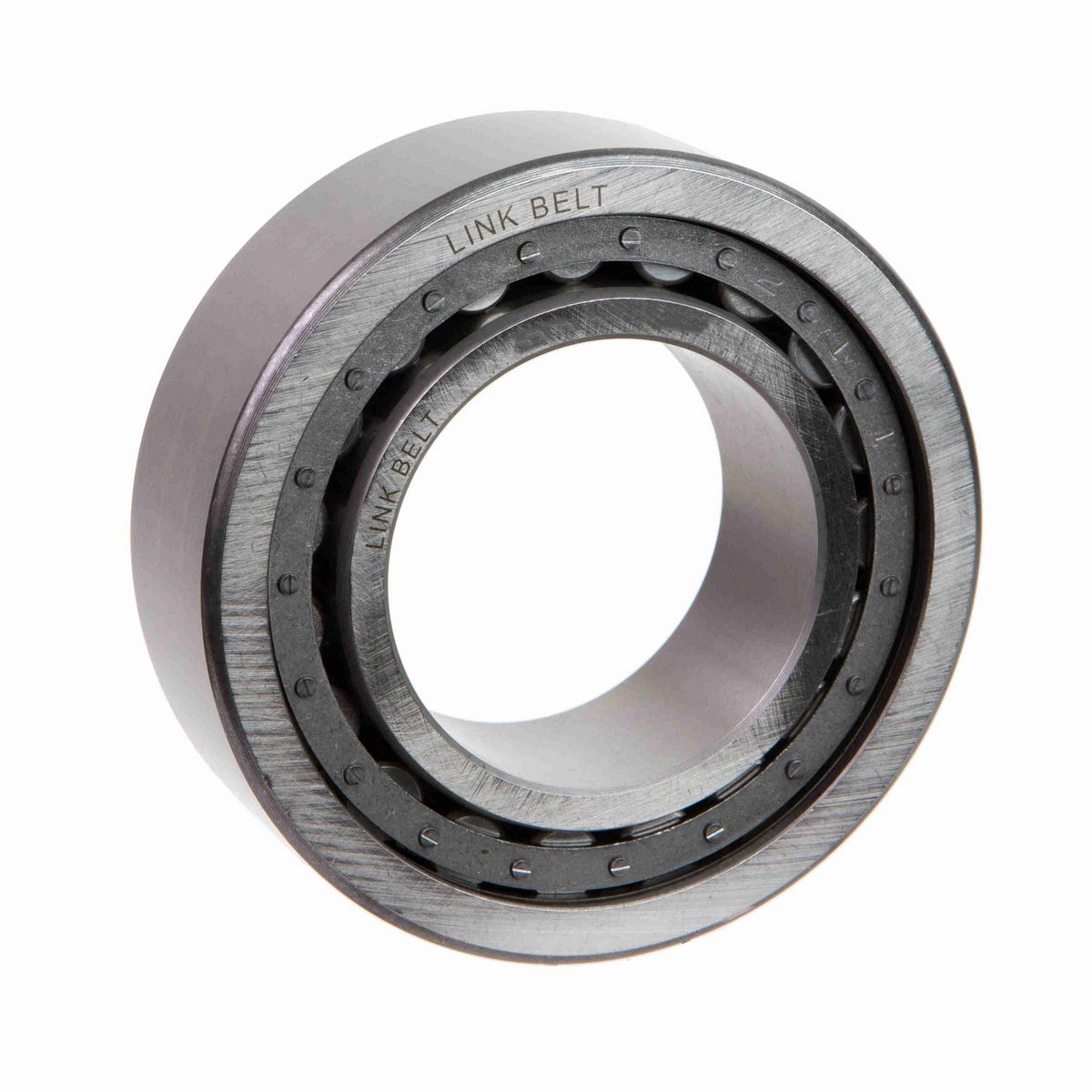

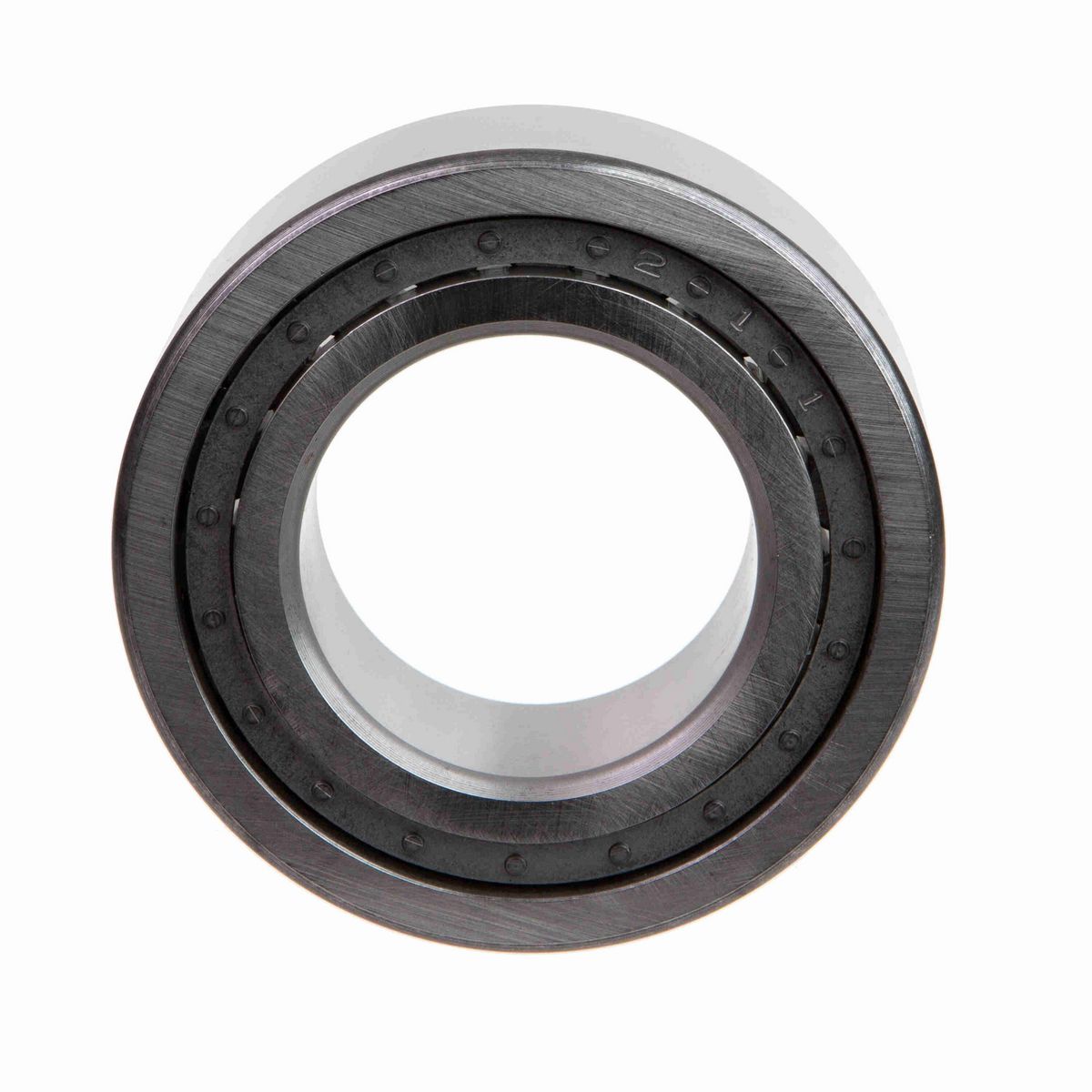

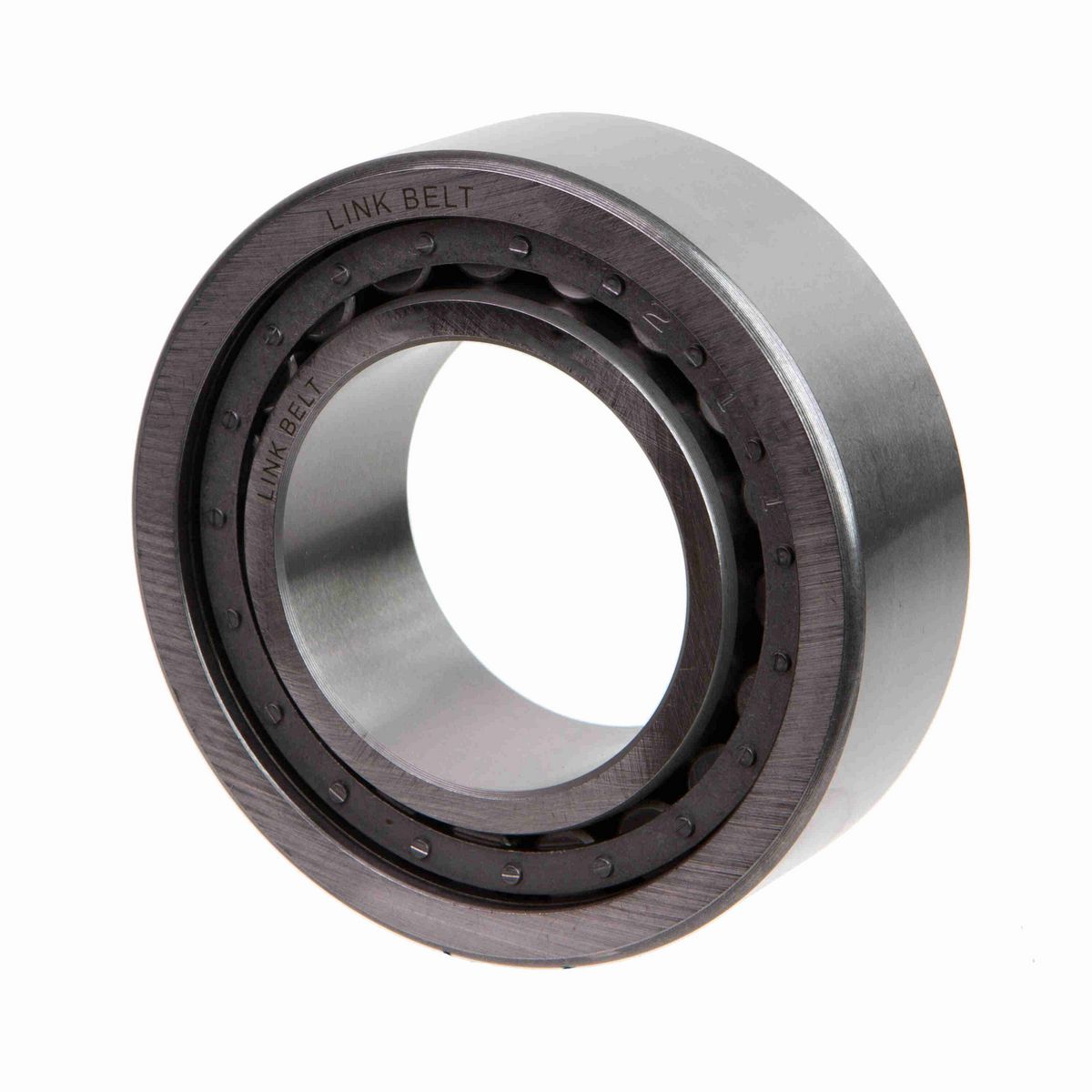

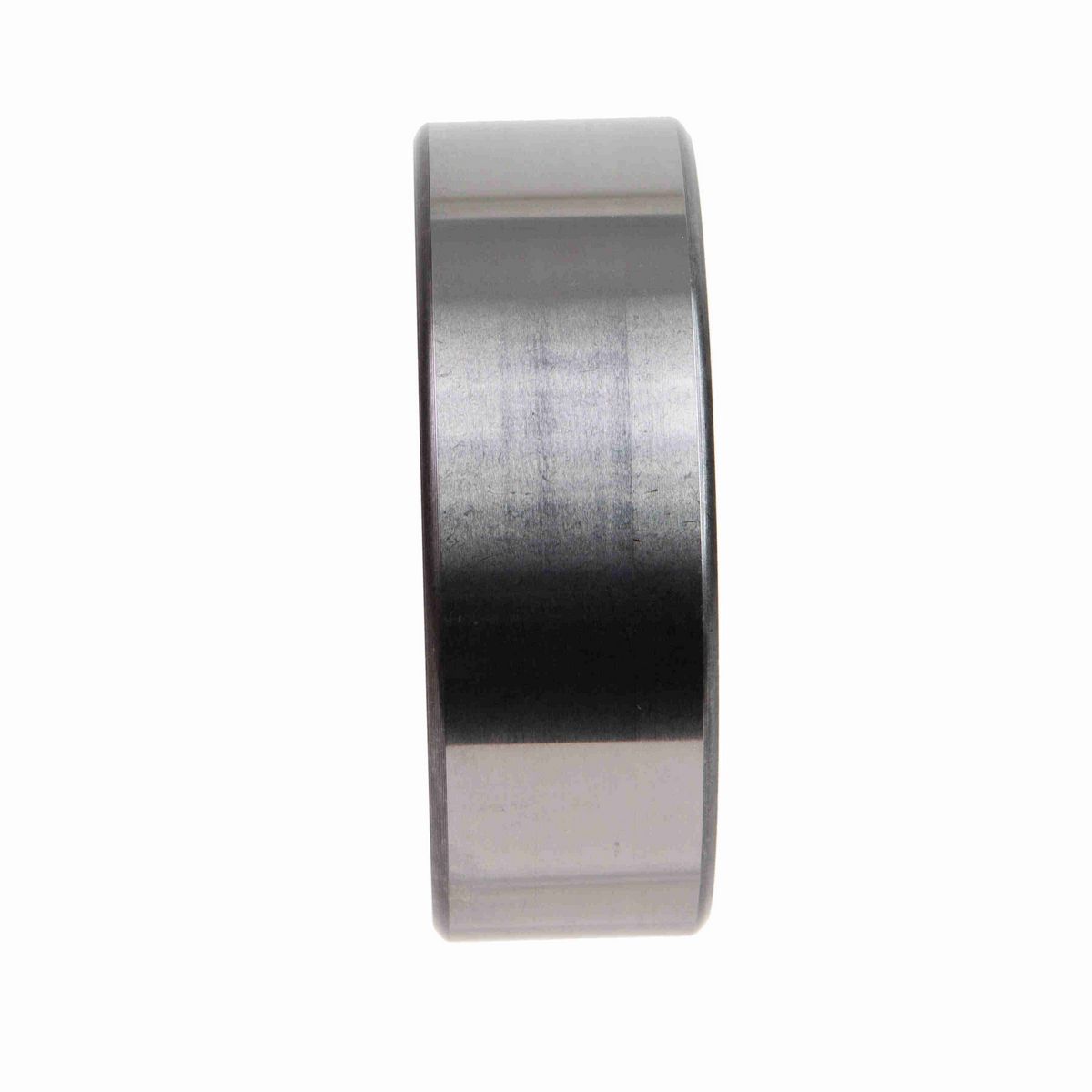

• 95 mm Cylindrical Roller Bearing with single rib inner ring, double rib outer ring and segmented retainer, Special internal clearance of .0045" to .0065"

Dimensions

Bore Size (mm)	95 mm
Outside Diameter (mm)	170 mm

Technical Specifications

Product	Series 1200 Unmounted Bearings
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring Type	Single Rib (R)
Basic Bearing Number	1219
Inner Ring Bore Radius (mm)	3.18 mm
Shaft Locking	DIRECT SHAFT MOUNT
Mounted Clearance	SEE DESCRIPTION
C Dynamic Load Rating	CALL ENG lb
Retainer Type	SEE DESCRIPTION
Rolling Element	Cylindrical
Co Static Load Rating	CALL ENG lb
Outer Ring Type	Double Rib Outer Ring (E)
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	157 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	144.48 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	113.3 mm
Series	Unmounted Bearings
Outer Ring and Roller Assembly Under Roller Diameter (mm)	113.6 mm
Series Weight	Light (2)
Bearing Width (mm)	32 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	151.1 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	151.16 mm
Outer Ring Raceway Inside Diameter (mm)	151.24 mm
Ring Width Series	Narrow (1)
Inner Ring Raceway Outside Diameter (mm)	113.52 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	109 mm
Inner Ring Rib Outside Diameter (mm)	121.03 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Vibration Frequency Roller Spin	CALL ENG cps

General Specifications

UPC	662327690151
Weight	7.05 LB
HTC	8482500000
Country of Origin	Mexico
