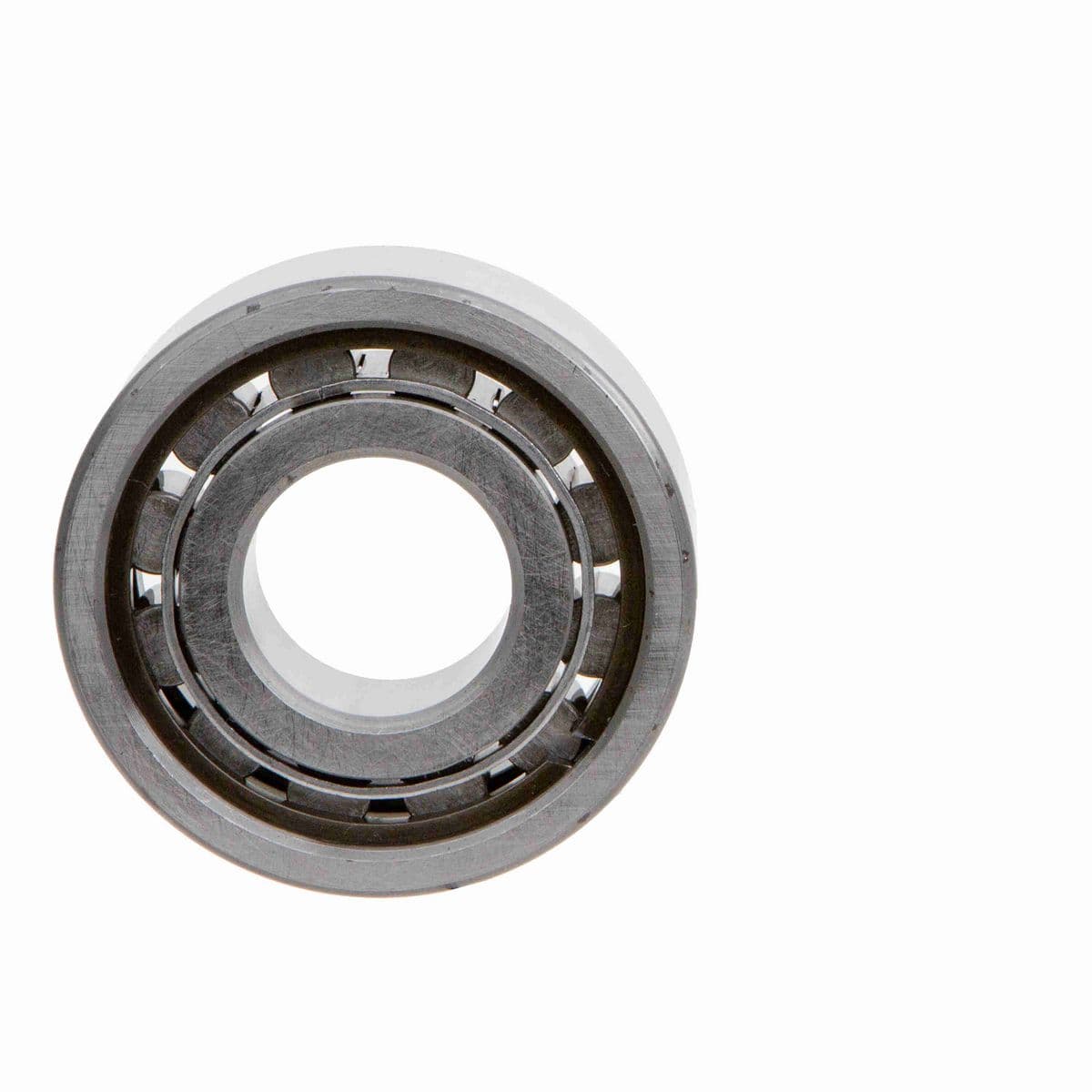

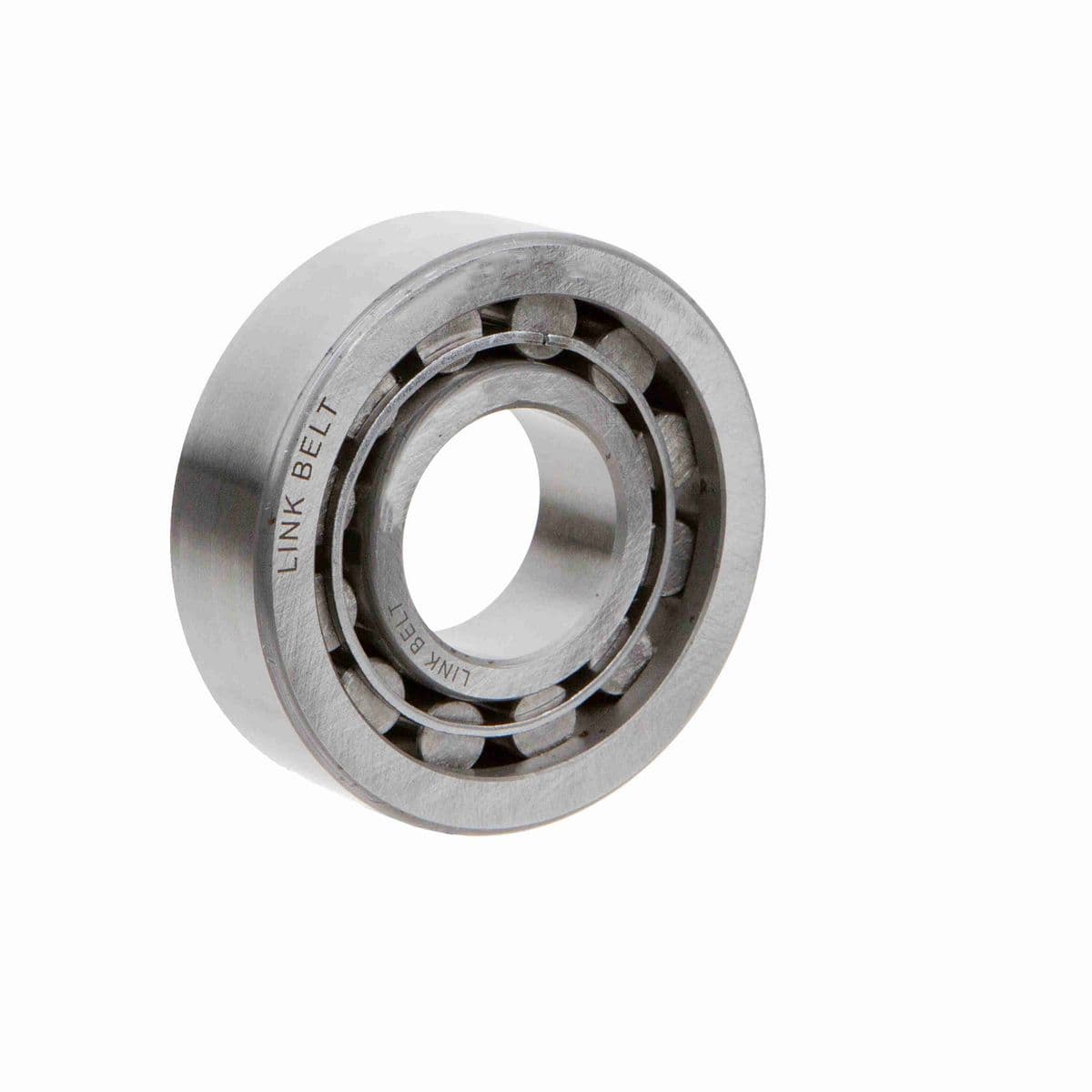

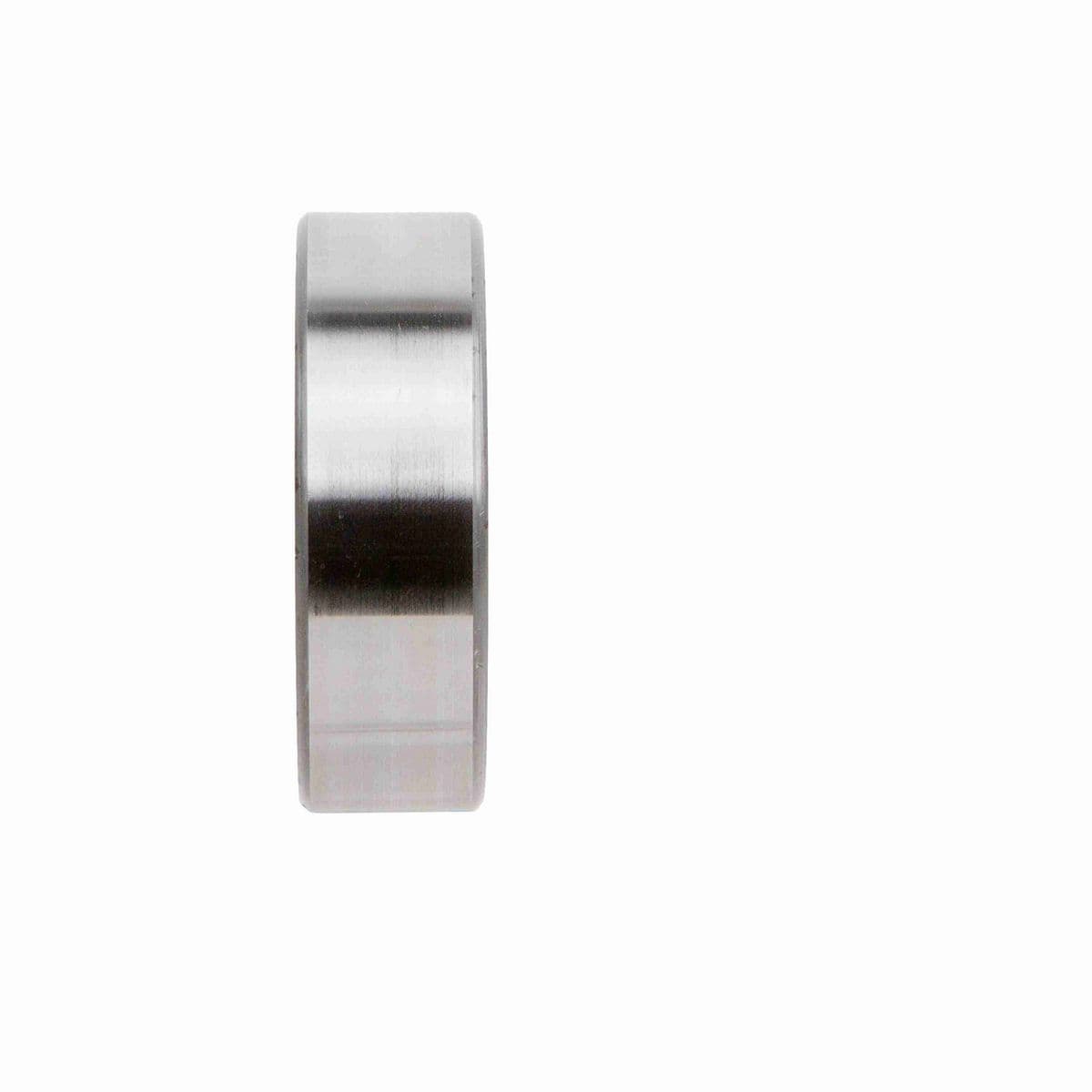

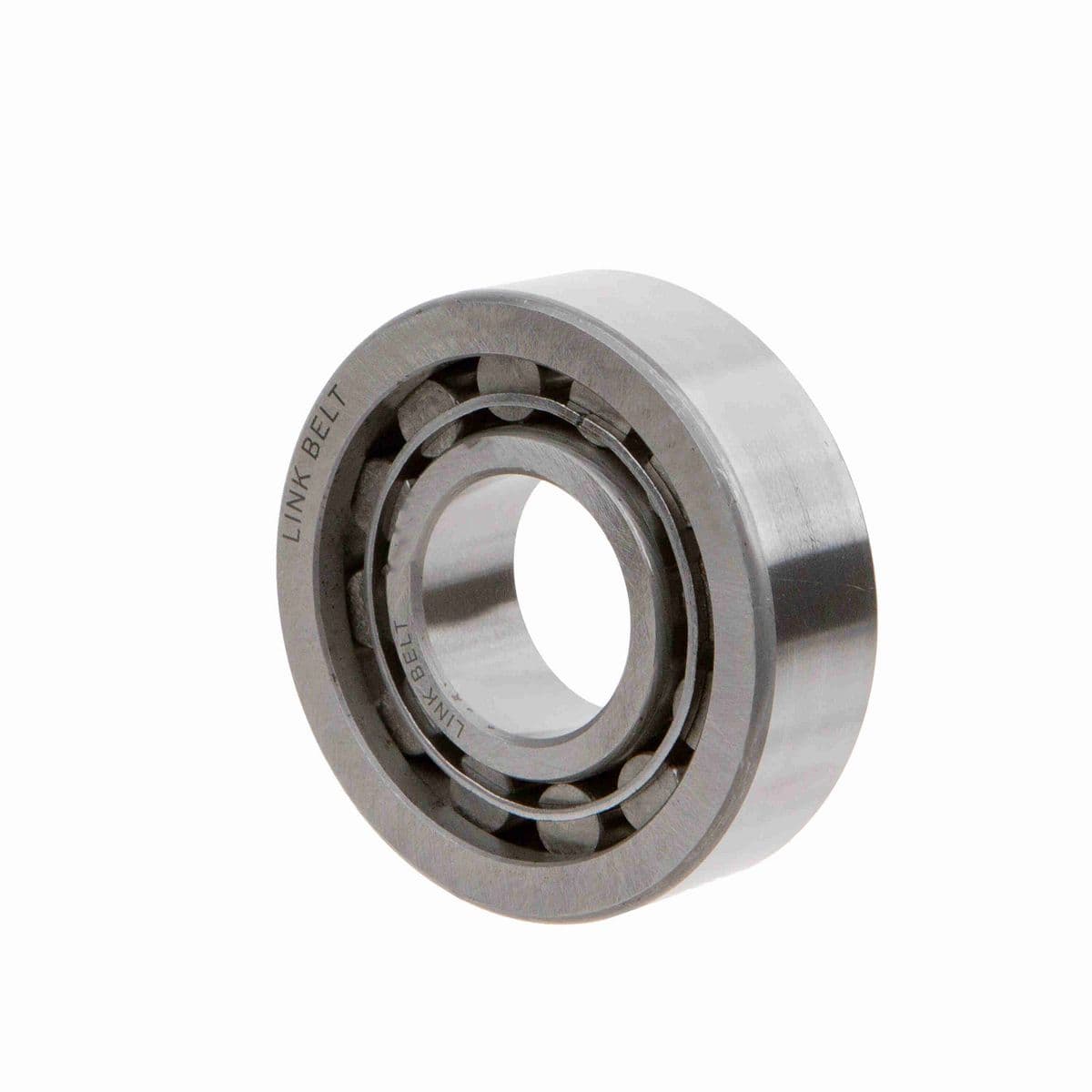

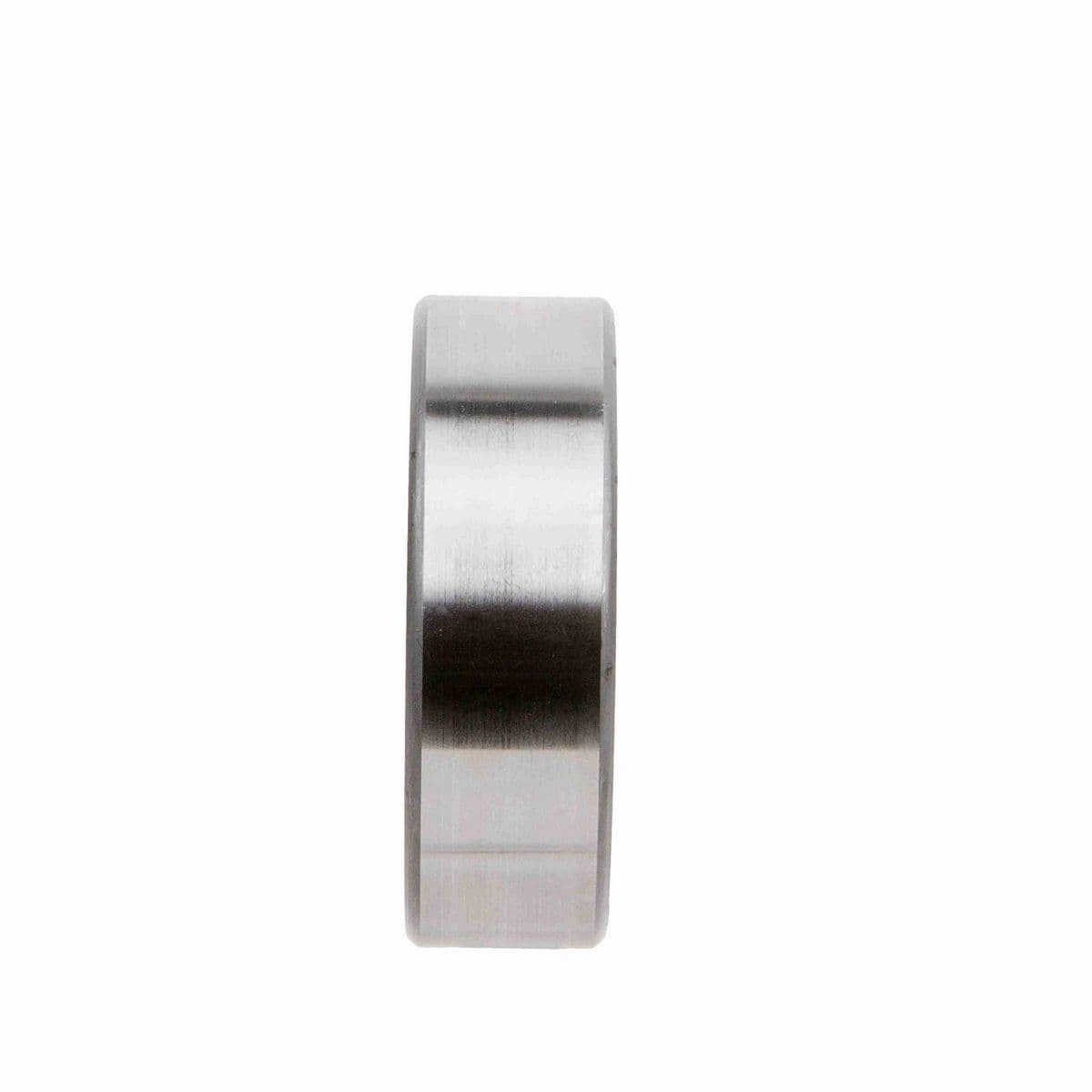

• 50 mm Cylindrical Roller Bearing with single rib inner ring, single rib and 1 retaining ring in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	10 - 50 mm
Outside Diameter (mm)	90 mm

Technical Specifications

Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	79.5 mm
Series	Unmounted Bearings
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	82.8 mm
Outer Ring Raceway Inside Diameter (mm)	79.55 mm
Shaft Locking	DIRECT SHAFT MOUNT
Co Static Load Rating	CALL ENG lb
Vibration Frequency Roller Spin	CALL ENG cps
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	60.4 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Inner Ring Raceway Outside Diameter (mm)	60.46 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Basic Bearing Number	1210
Vibration Frequency Fundamental Train	CALL ENG cps
Retainer Type	SEE DESCRIPTION
Product	Series 1200 Unmounted Bearings
Outer Ring Rib Inside Diameter (mm)	76.66 mm
Ring Width Series	Narrow (1)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	60.51 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	79.49 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	57.6 mm
Inner Ring Rib Outside Diameter (mm)	63.96 mm
Inner Ring Type	Single Rib (R)
Mounted Clearance	SEE DESCRIPTION
Inner Ring Bore Radius (mm)	1.02 mm
Rolling Element	Cylindrical
C Dynamic Load Rating	CALL ENG lb
Maximum Speed (RPM)	CALL ENG rpm
Bearing Width (mm)	20 mm
Series Weight	Light (2)

General Specifications

UPC	662327054403
Weight	1.14 LB
HTC	8482500000
Country of Origin	Mexico
