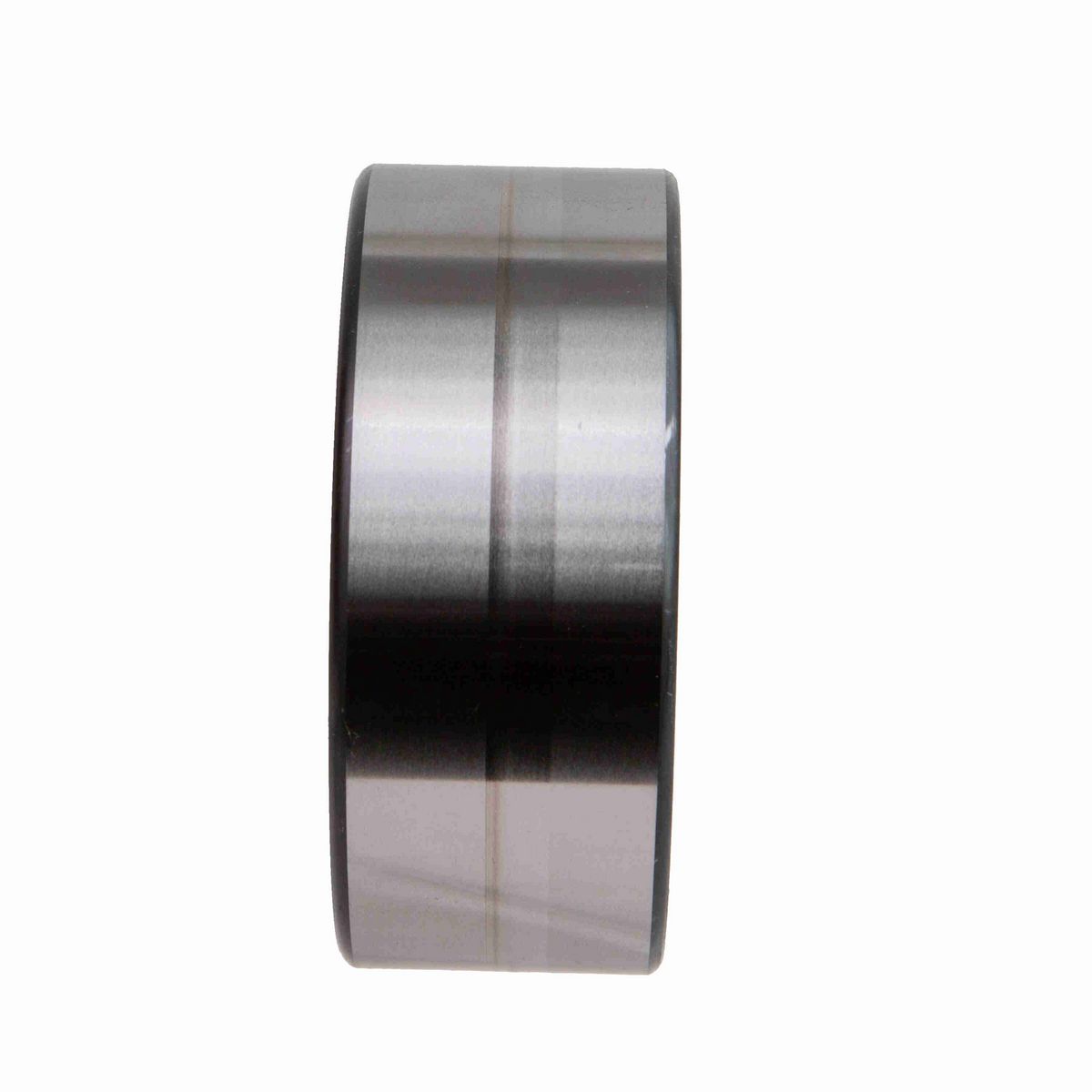

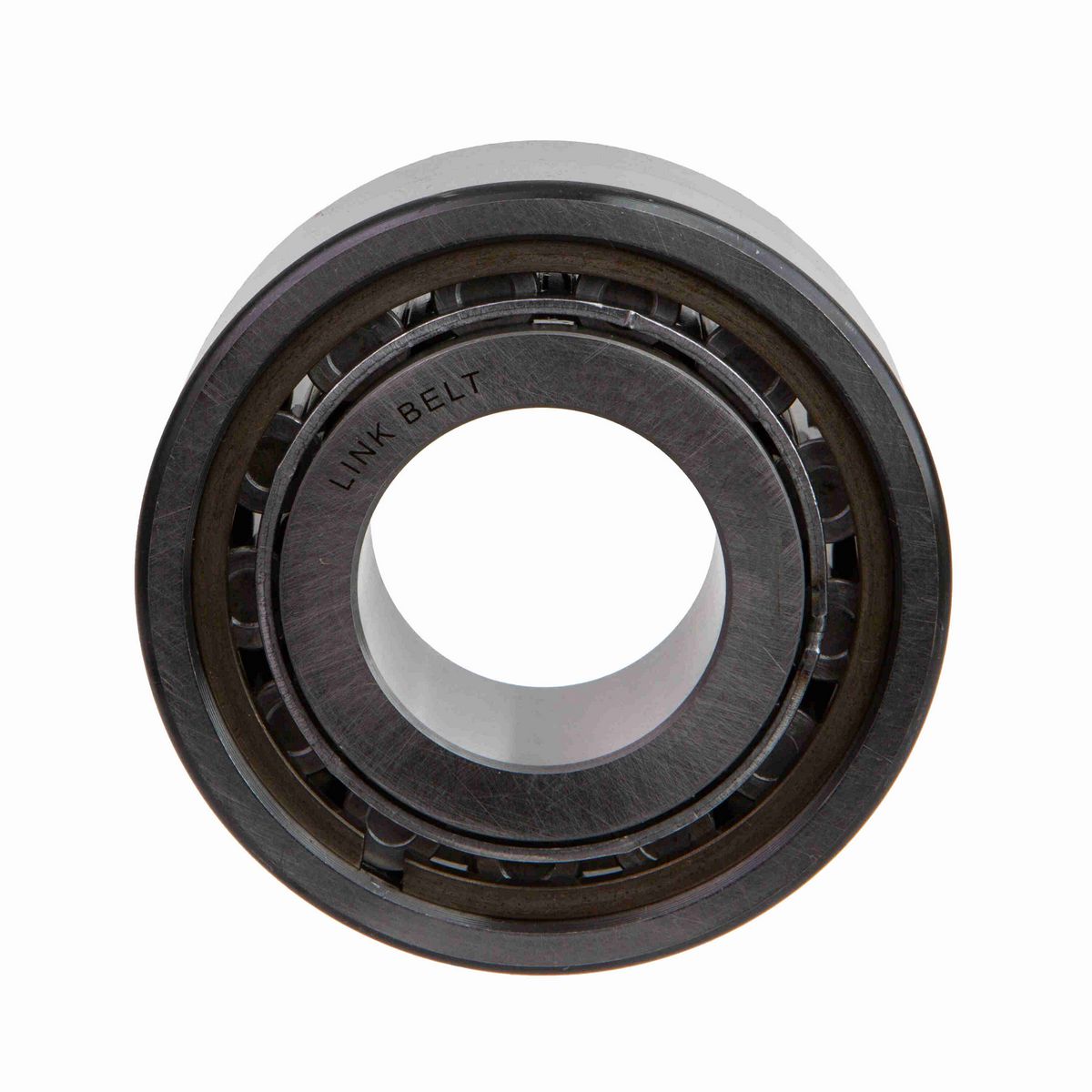

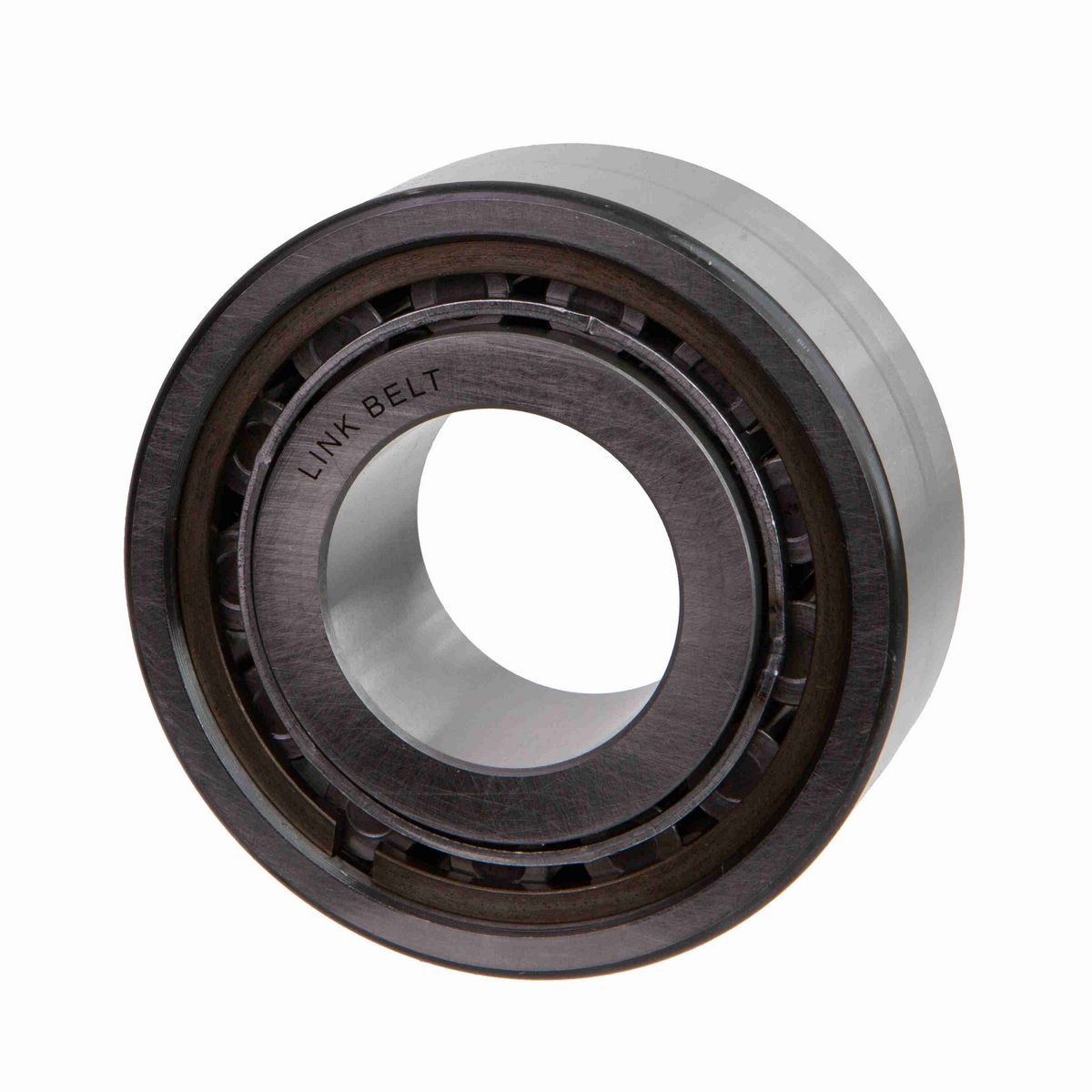

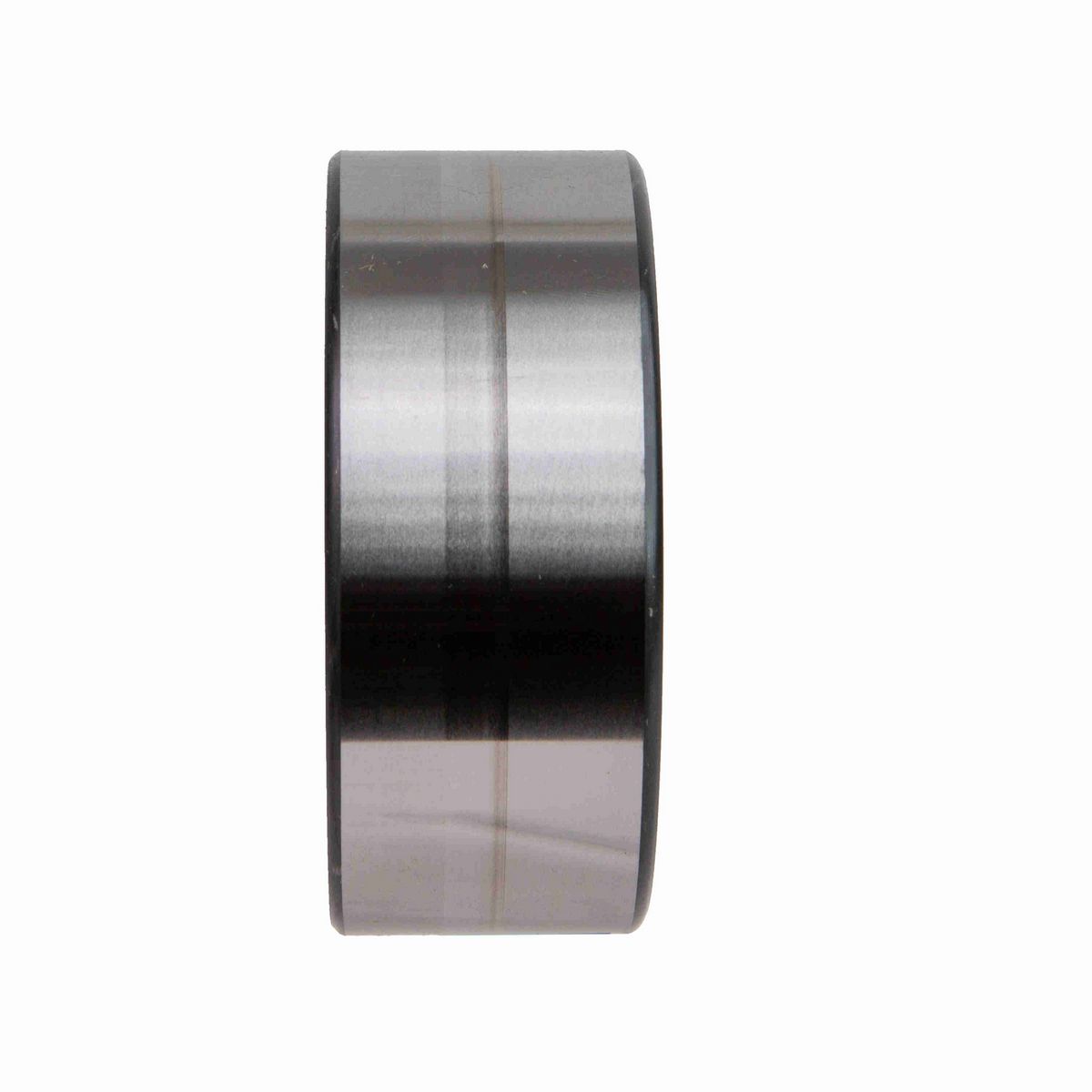

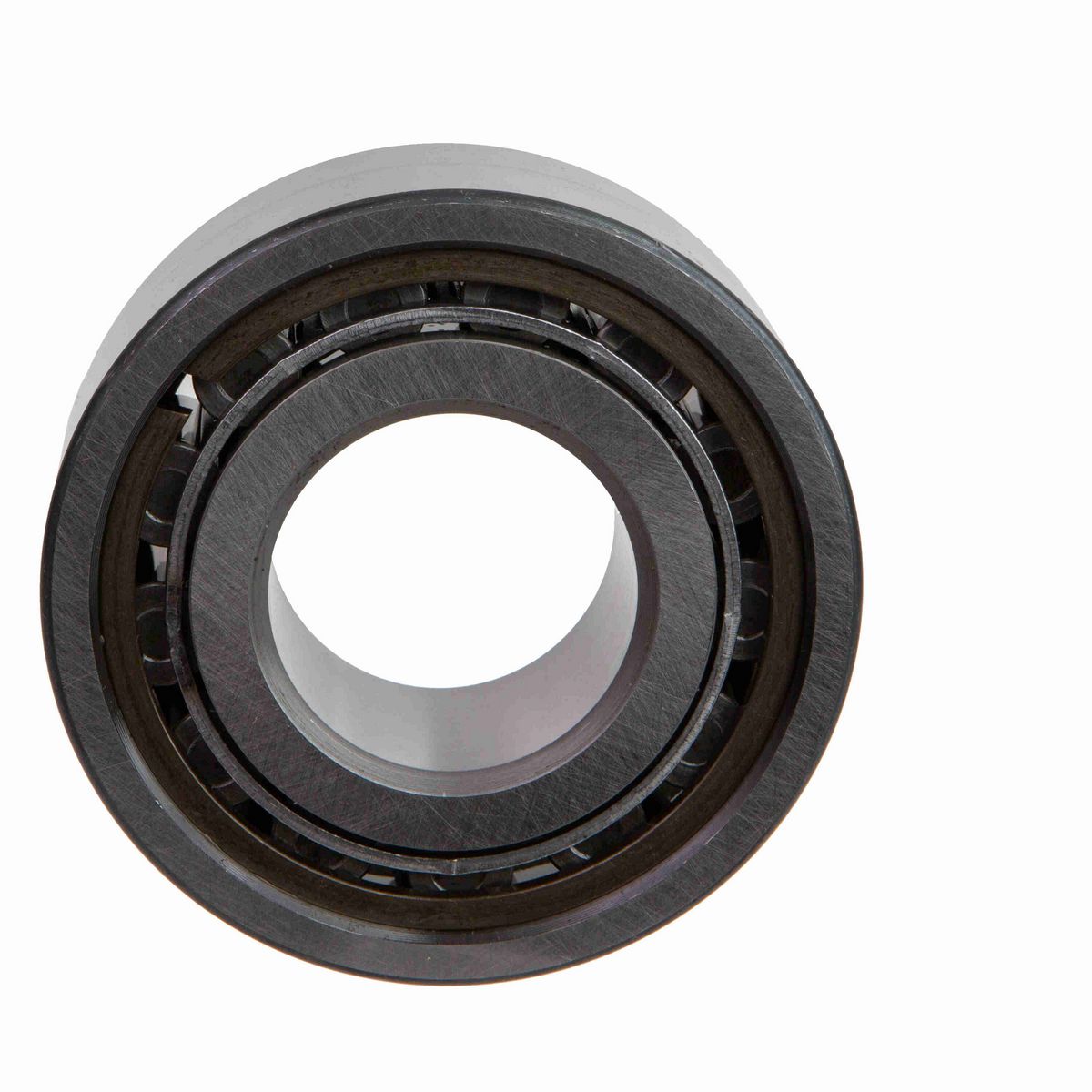

• 25 mm Cylindrical Roller Bearing with single rib inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	25 mm
Outside Diameter (mm)	52 mm

Technical Specifications

Outer Ring Raceway Inside Diameter (mm)	44.85 mm
Shaft Locking	DIRECT SHAFT MOUNT
Product	Series 1200 Unmounted Bearings
Ring Width Series	Narrow (1)
Vibration Frequency Fundamental Train	CALL ENG cps
Bearing Width (mm)	15 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Inner Ring Rib Outside Diameter (mm)	34.32 mm
Maximum Speed (RPM)	CALL ENG rpm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	47 mm
Inner Ring Raceway Outside Diameter (mm)	32.17 mm
Outer Ring Rib Inside Diameter (mm)	42.95 mm
Series Weight	Light (2)
Inner Ring Type	Single Rib (R)
Mounted Clearance	SEE DESCRIPTION
Co Static Load Rating	CALL ENG lb
Inner Ring Bore Radius (mm)	1.02 mm
Series	Unmounted Bearings
Vibration Frequency Outer Ring Defect	CALL ENG cps
Inner Ring and Roller Assembly Over Roller Diameter (mm)	44.82 mm
Vibration Frequency Roller Spin	CALL ENG cps
Basic Bearing Number	1205
Retainer Type	SEE DESCRIPTION
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	32.2 mm
C Dynamic Load Rating	CALL ENG lb
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	32 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	30.5 mm
Rolling Element	Cylindrical
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	44.7 mm

General Specifications

UPC	662327054182
Weight	0.34 LB
HTC	8482500000
Country of Origin	Mexico
