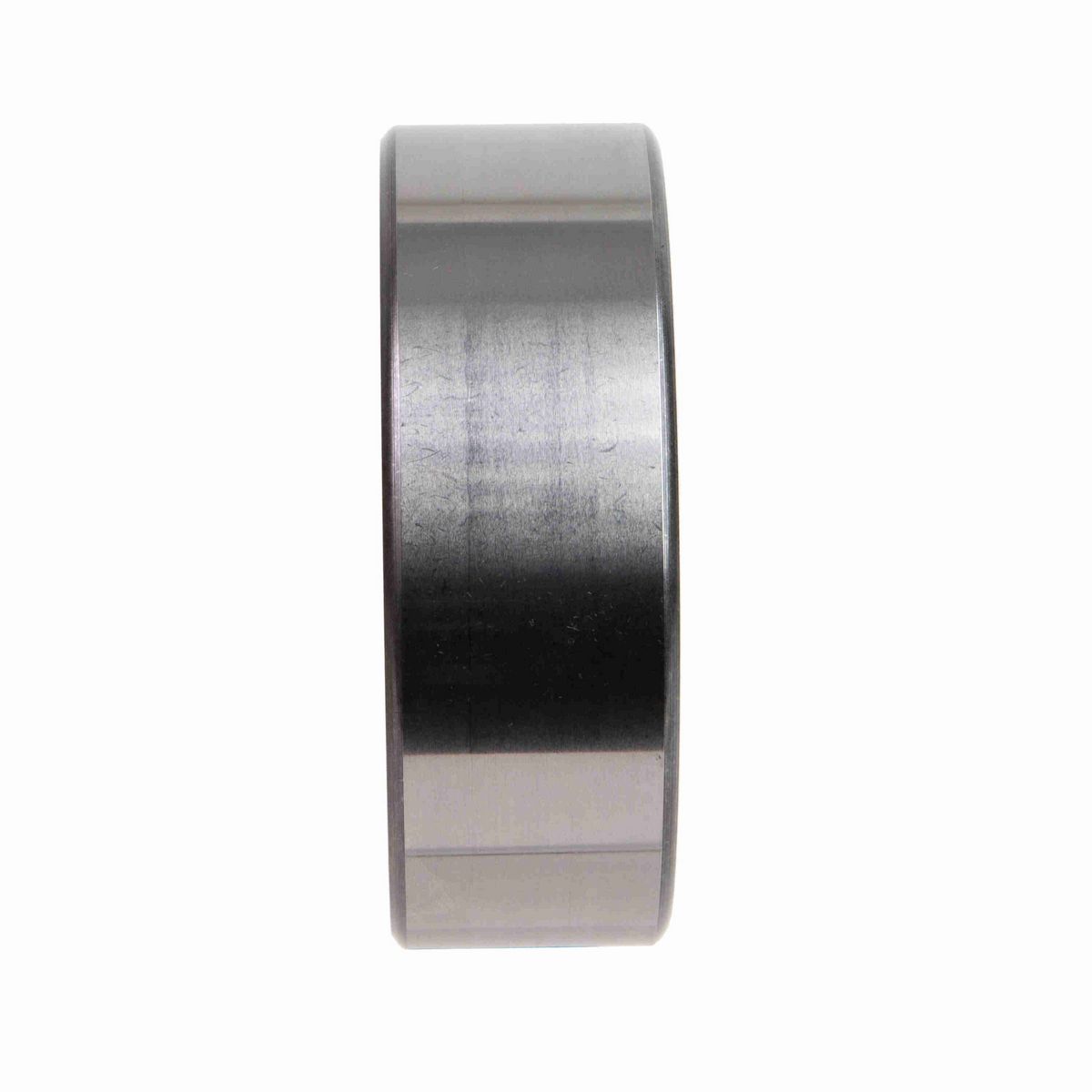

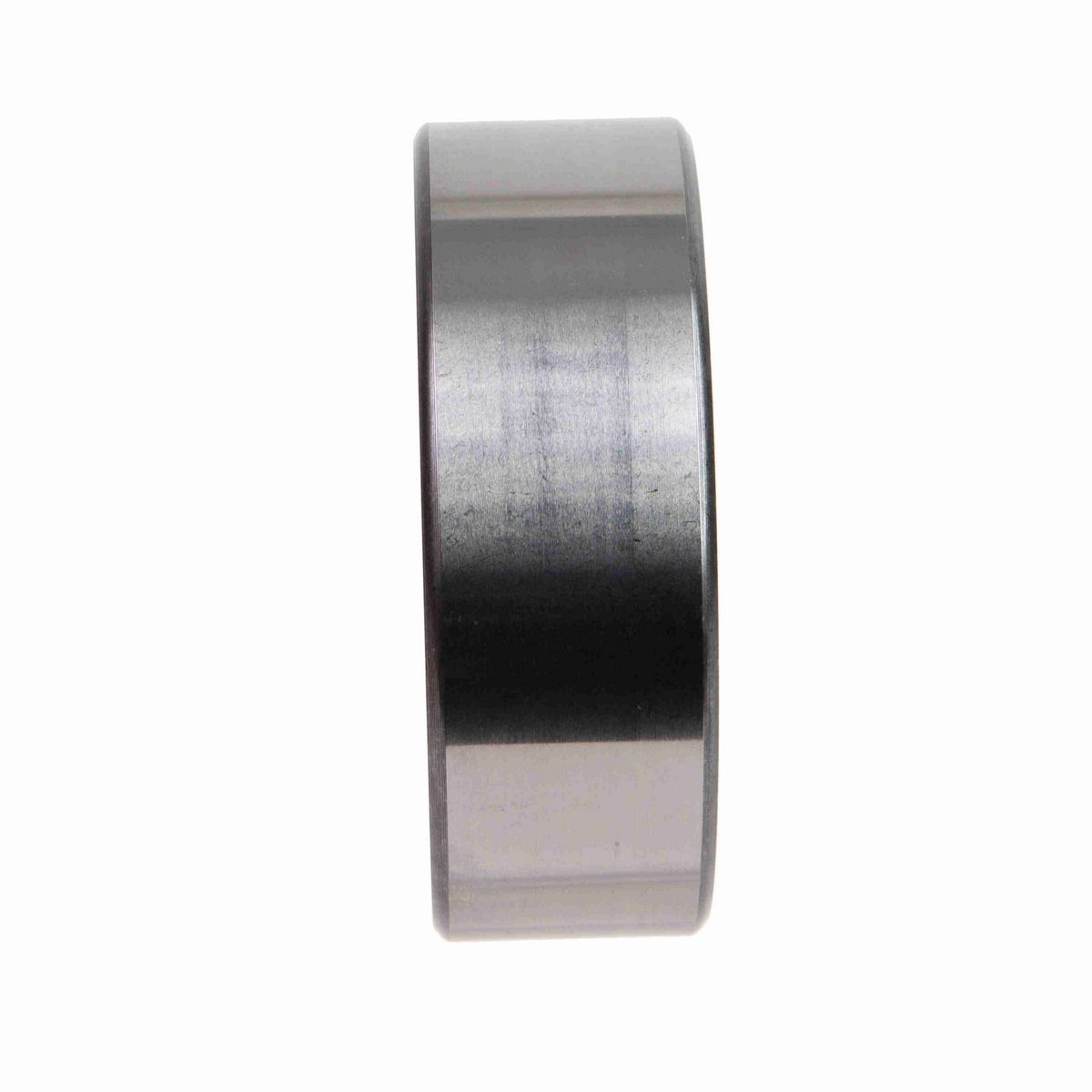

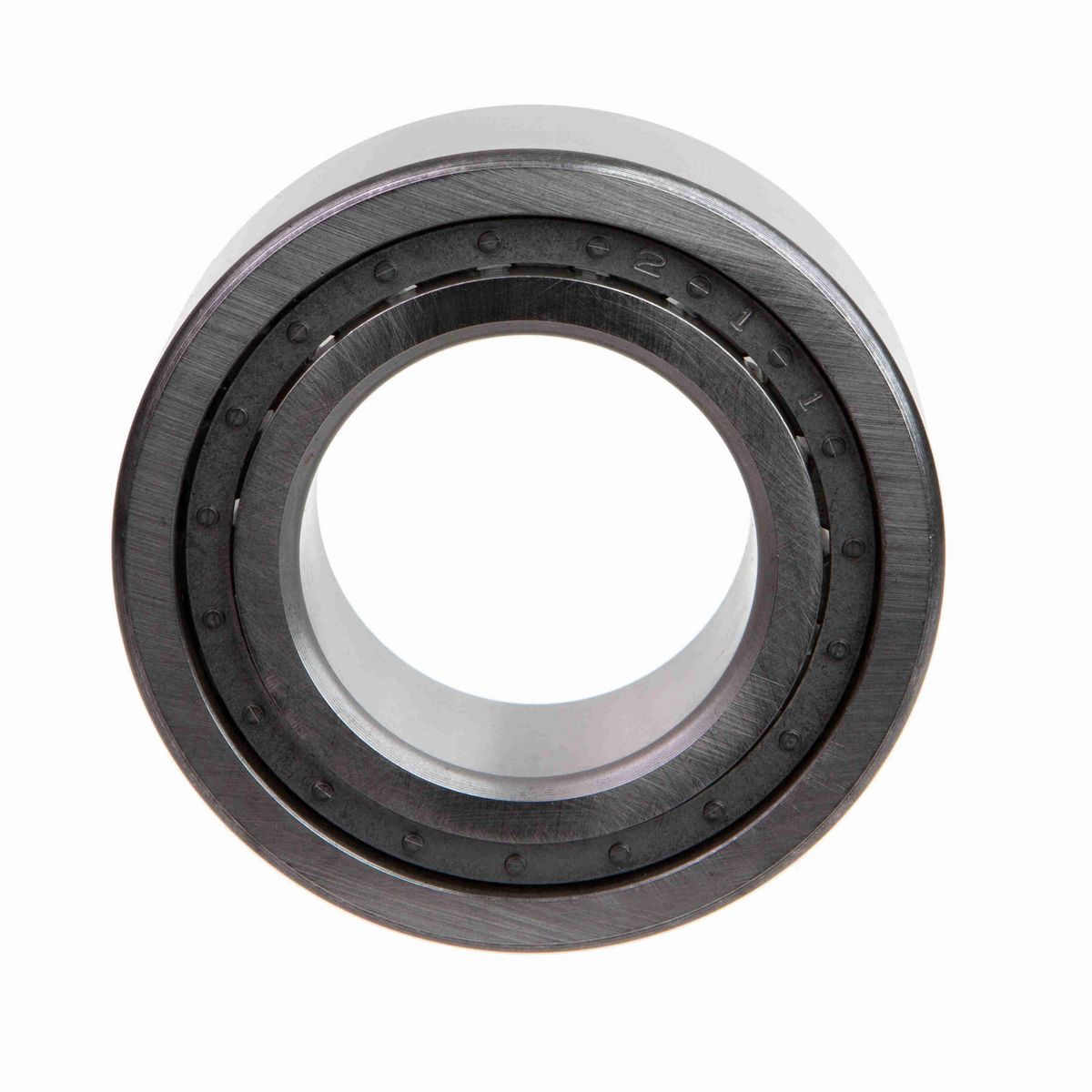

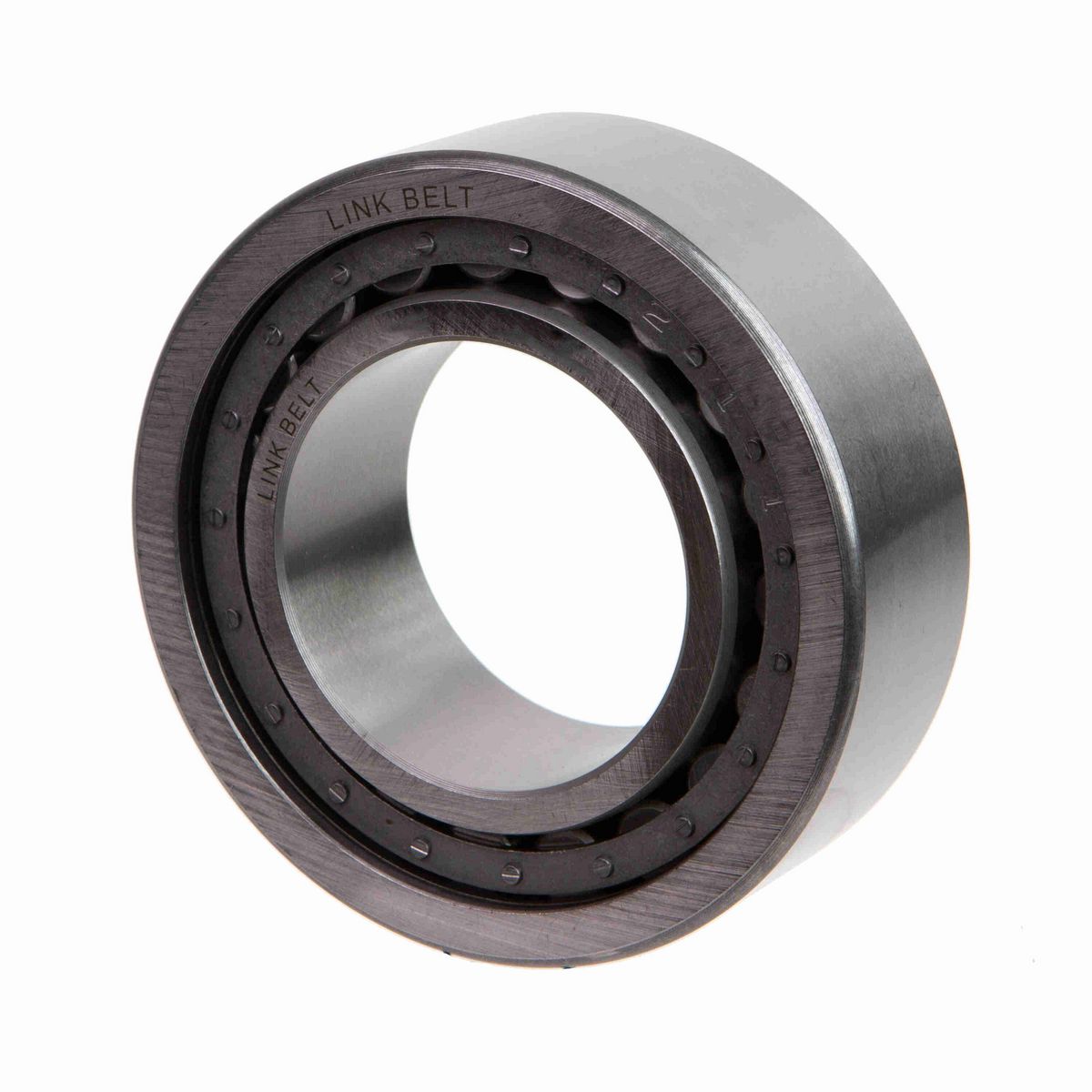

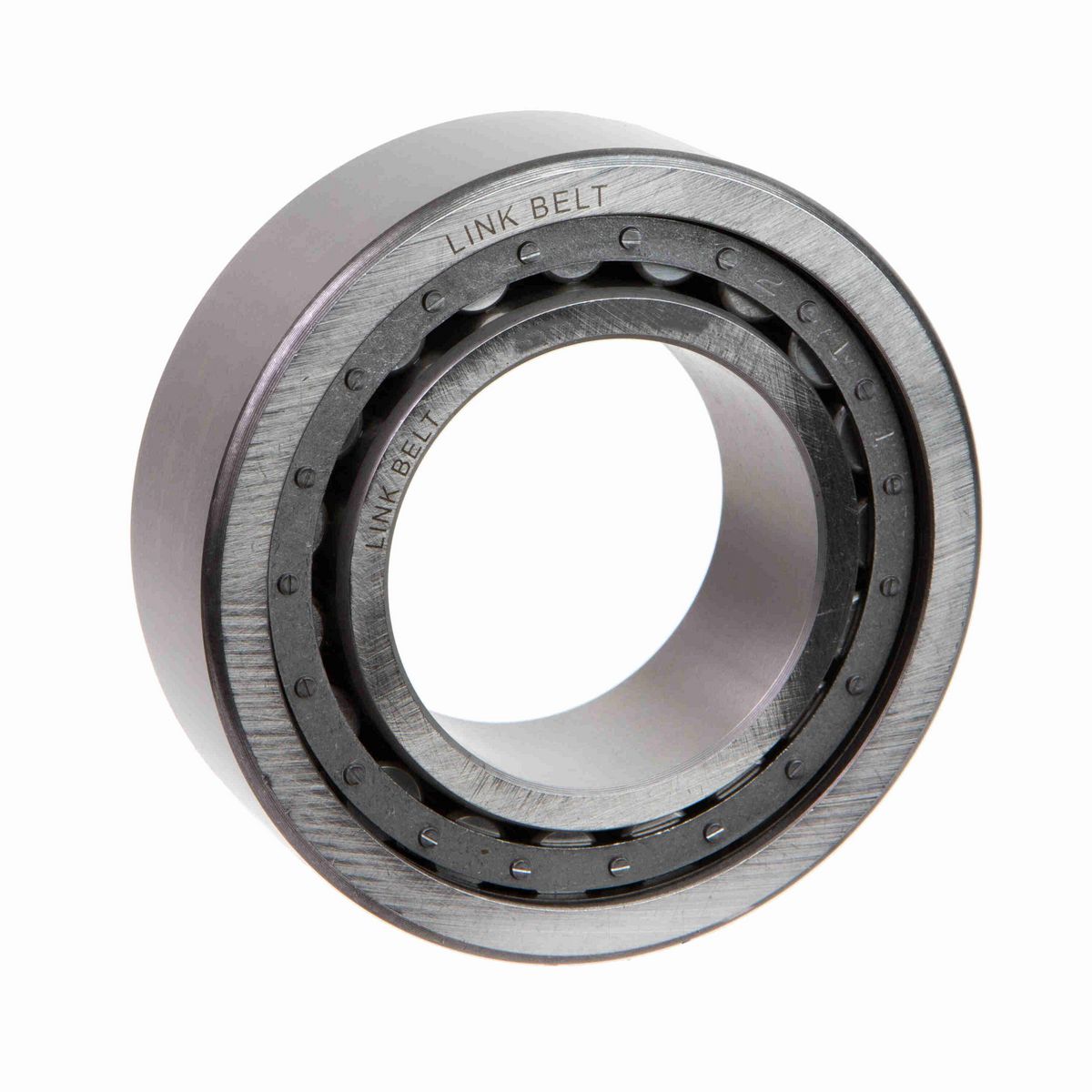

• 110 mm Cylindrical Roller Bearing with single rib inner ring, double rib outer ring and segmented retainer, Special internal clearance of .0056" to .0074"

Dimensions

Bore Size (mm)	110 mm
Outside Diameter (mm)	170 mm

Technical Specifications

Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	159.2 mm
Series	Unmounted Bearings
Outer Ring Type	Double Rib Outer Ring (E)
Maximum Speed (RPM)	CALL ENG rpm
Shaft Locking	DIRECT SHAFT MOUNT
Inner Ring Rib Outside Diameter (mm)	131.09 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Ring Width Series	Narrow (1)
Outer Ring Raceway Inside Diameter (mm)	154.74 mm
Outer Ring Rib Inside Diameter (mm)	149 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Mounted Clearance	SEE DESCRIPTION
Retainer Type	SEE DESCRIPTION
Product	Series 1000 Unmounted Bearings
Series Weight	Extra Light (0)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	154.7 mm
Inner Ring Bore Radius (mm)	2.54 mm
Vibration Frequency Roller Spin	CALL ENG cps
Co Static Load Rating	CALL ENG lb
C Dynamic Load Rating	CALL ENG lb
Basic Bearing Number	1022
Bearing Width (mm)	28 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Rolling Element	Cylindrical
Inner Ring Type	Single Rib (R)
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	121.9 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	125.2 mm
Inner Ring Raceway Outside Diameter (mm)	125.35 mm

General Specifications

UPC	793699037746
Weight	5.48 LB
HTC	8482500000
Country of Origin	Mexico
