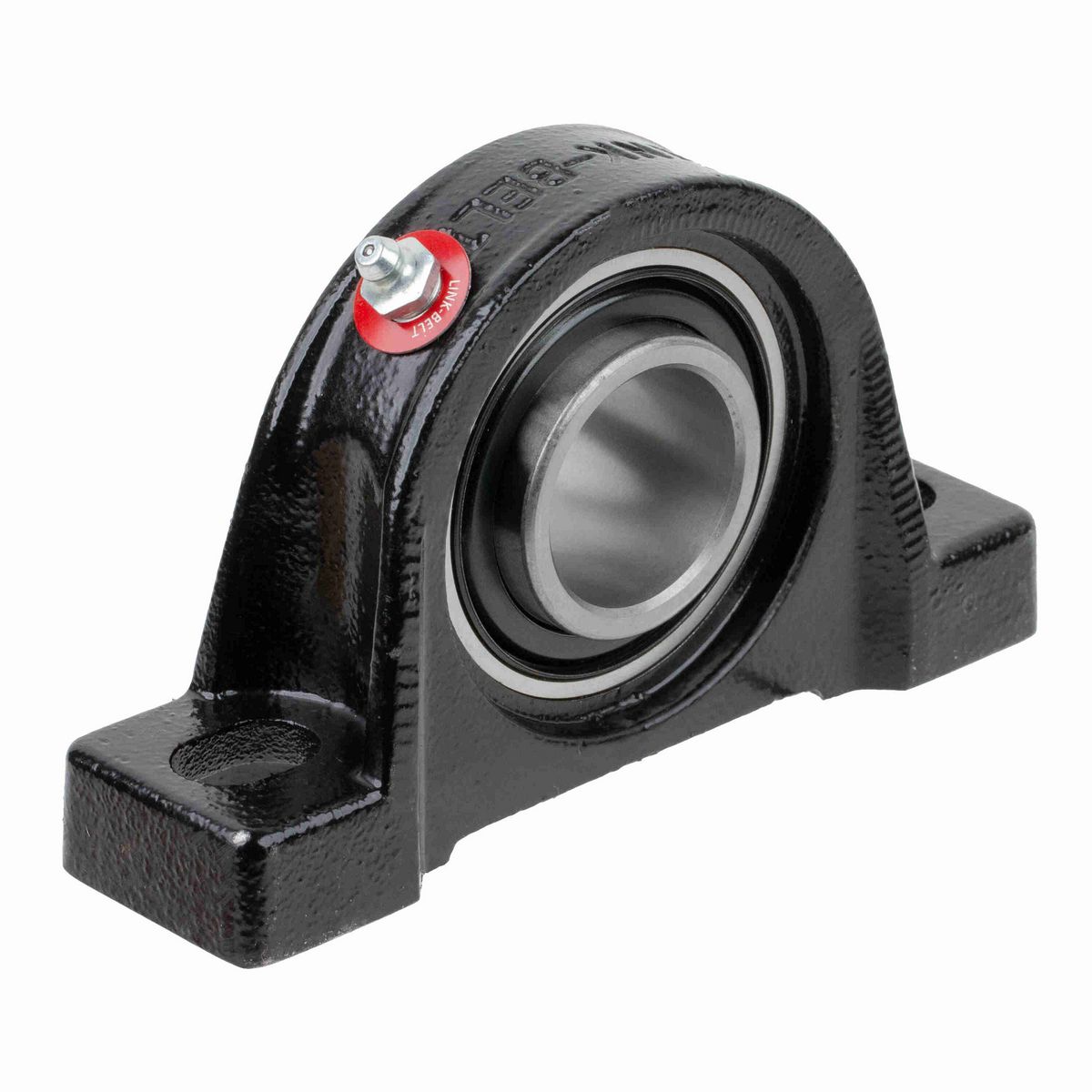

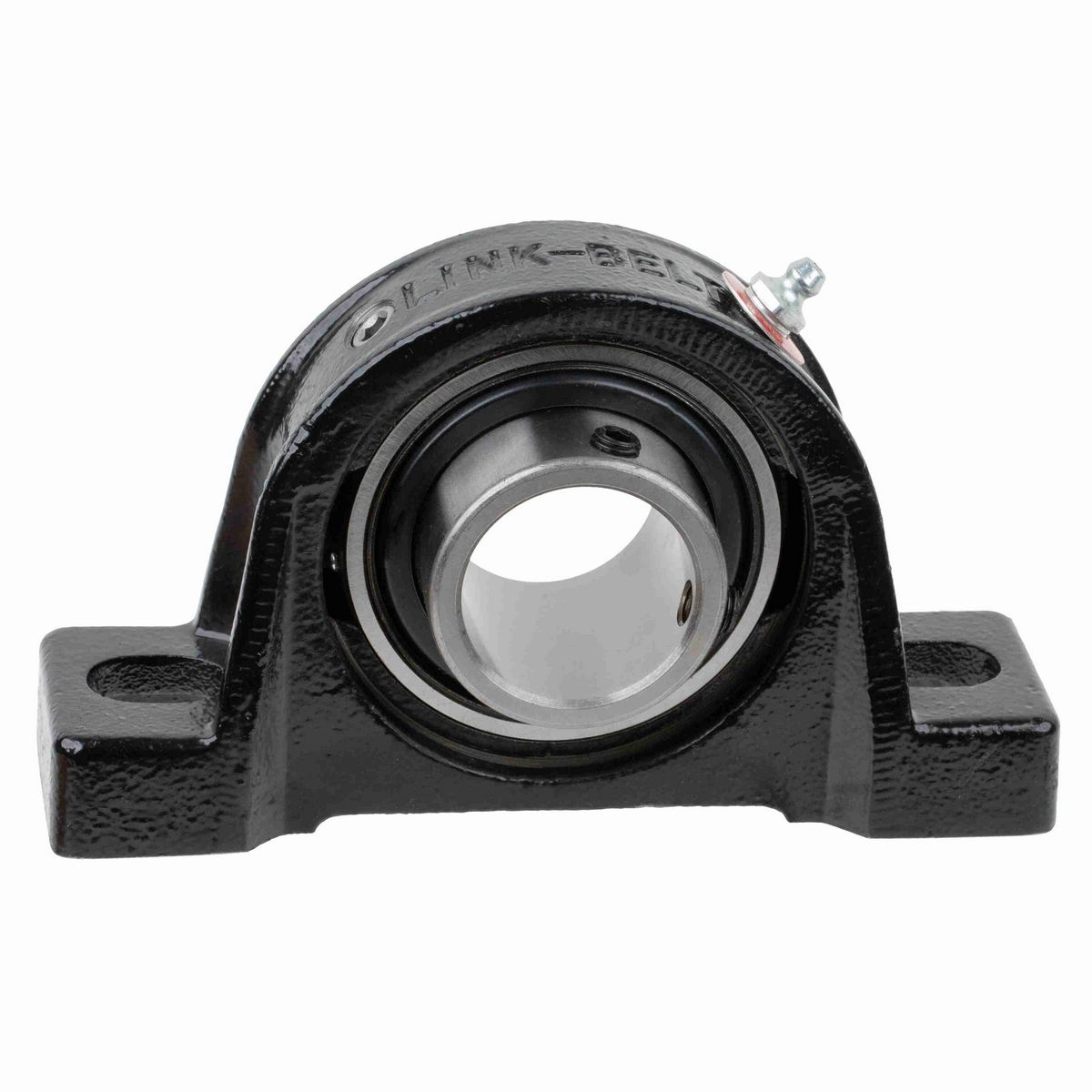

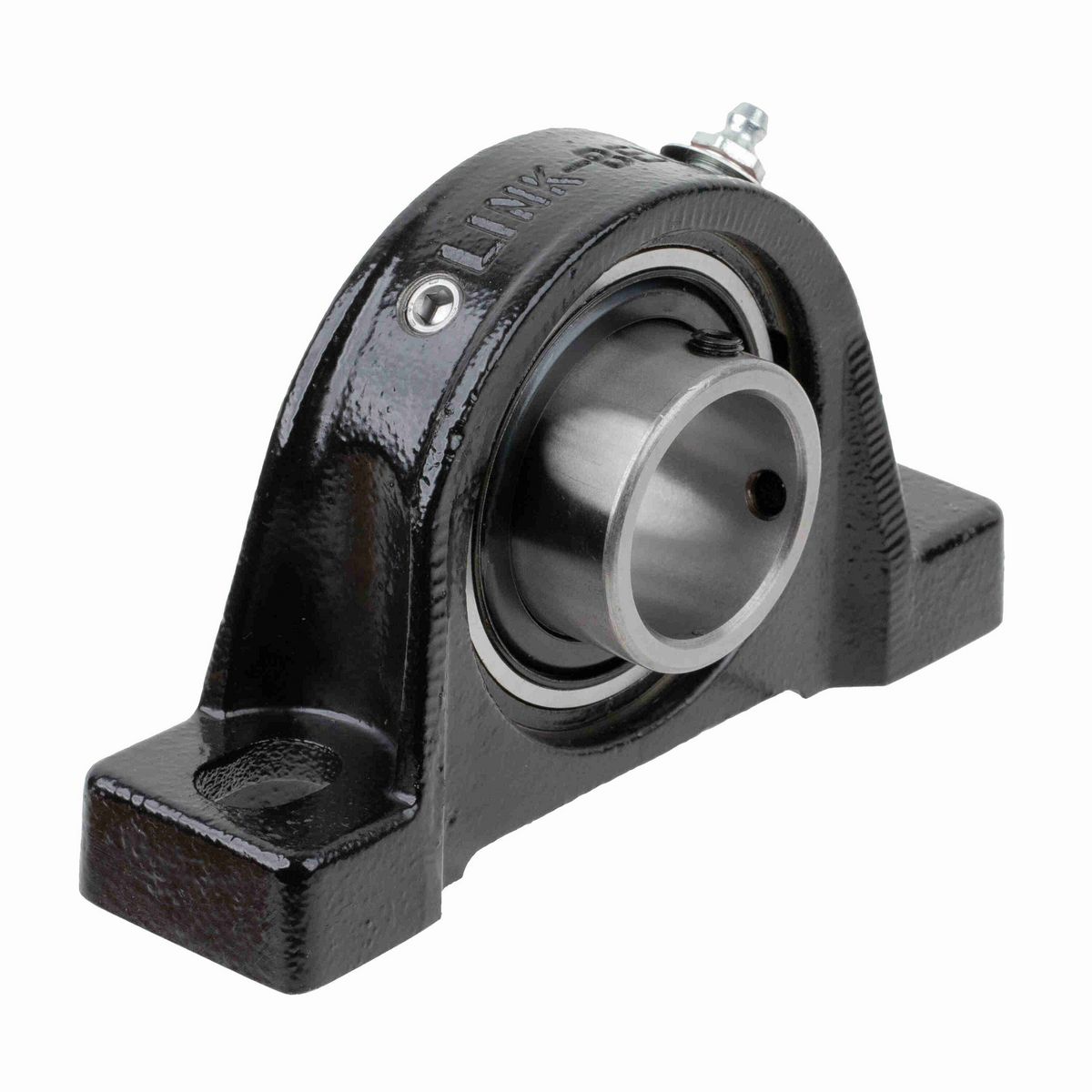

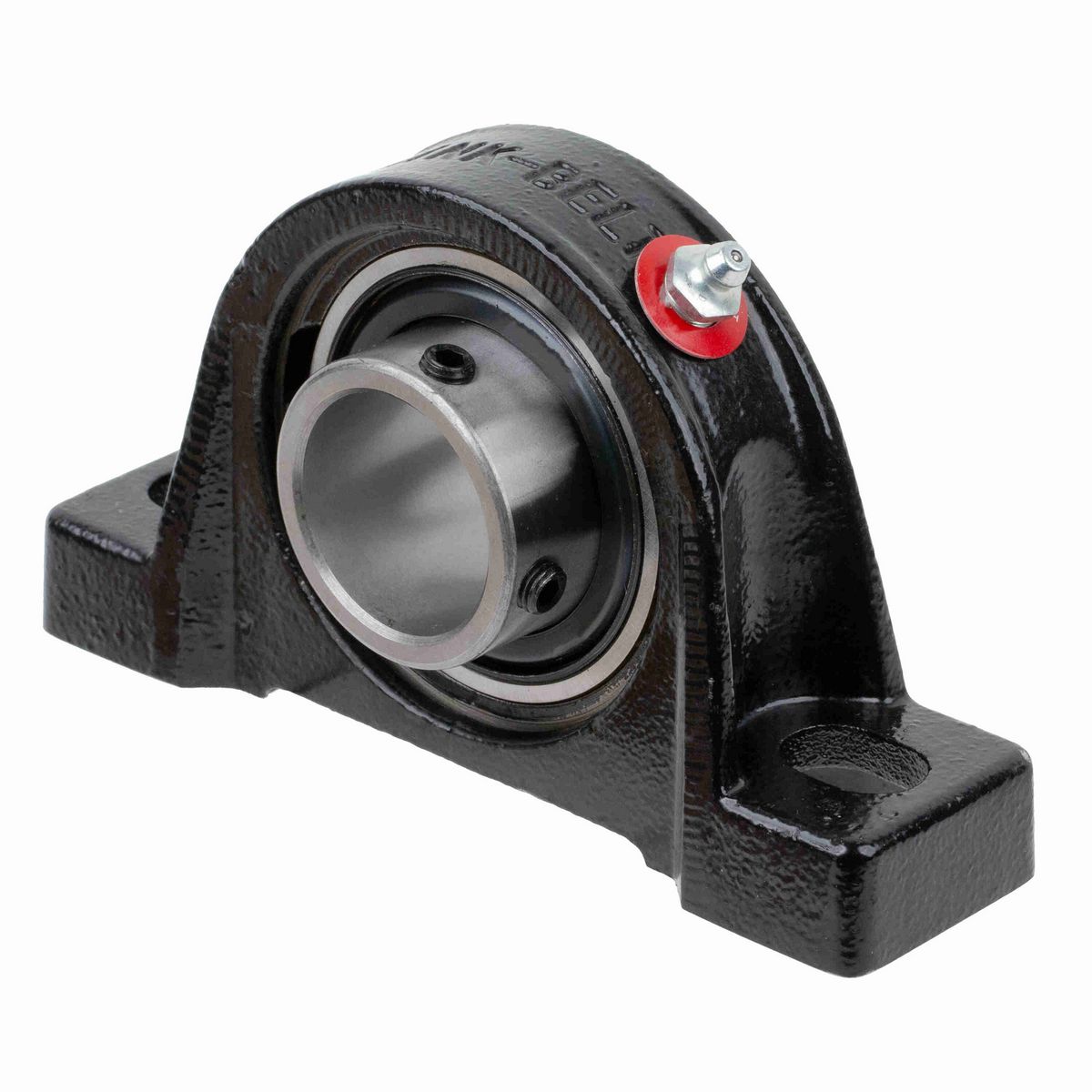

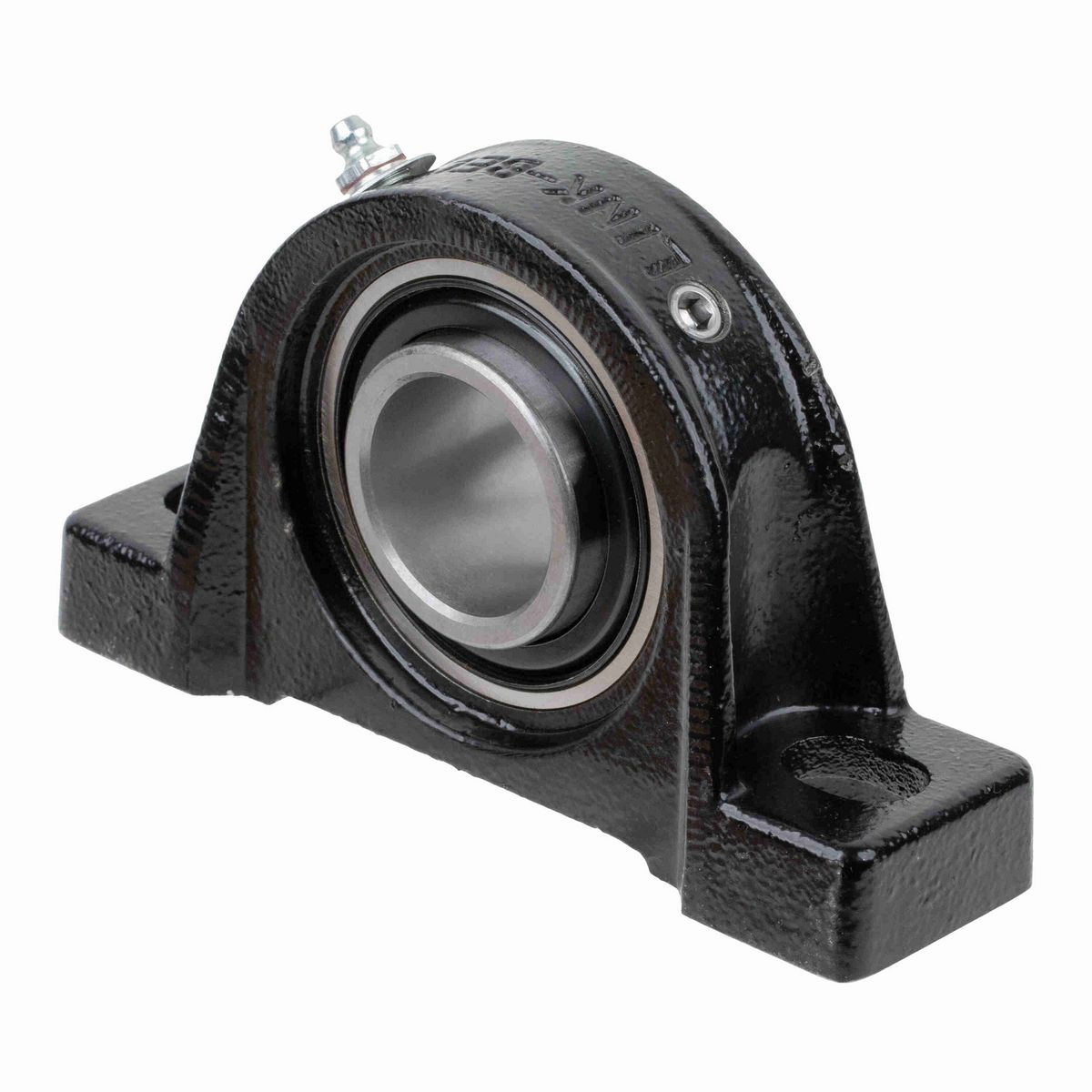

• 2 3/16" Mounted Ball Bearing, Medium Duty, Cast Iron 2-Bolt Pillow Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Bore Diameter (in)	2.1875 in
Base Width (in)	2.38 in
Overall Height (in)	5.44 in
Base to Center Height (in)	2.75 in
Overall Width (in)	2.38 in
Foot Height (in)	1.19 in
Length Through Bore (in)	1.89 in
Bolt Size (in)	5/8 in
Overall Length (in)	9.5 in
Bolt Spacing (in)	7.50 in
Centerline to Outermost Bearing Face (in)	1.31 in

Technical Specifications

Housing Style	Pillow Block
Slot Length (in)	1.13 in
Outer Ring Land Profile	Standard
Housing Type	Pillow Block, Two Bolt
Housing Construction	One Piece
Seal Type	Single Lip Contact Seal
Misalignment Type	Static Only
Housing Color	Black
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Base	Semi-Solid
Cage Material	Molded fiber glass reinforced nylon
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165 in/lbs
Base Length (in)	9.50 in
Vibration Frequency Fundamental Train	0.0068 cps
Inner Ring Outside Diameter (in)	3.012 in
Cage Type	Ball Riding Retainer
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Insert	MSG235NLPA
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Grease Fitting Thread Size	1/8 NPT
End Cap Available	No
Fixed vs. Expansion	Fixed
Size Code	212
Housing Material	Cast Iron
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Maximum Speed (RPM)	4000 rpm
Bearing Type	Medium Duty
Static Load Rating (lb)	8,080 lb
Vibration Frequency Outer Ring Defect	0.0678 cps
Vibration Frequency Roller Spin	0.0430 cps
Dynamic Load Rating (lb)	11,840 lb
Max Operating Temperature (C)	107 °C
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0988 cps
Bearing Brand	LINK-BELT MEDIUM DUTY BALL

General Specifications

UPC	662864805735
Weight	10.24 LB
Packaged Length	6.13 IN
Packaged Width	2.94 IN
Packaged Height	10.88 IN
HTC	8483208040
Country of Origin	Mexico
