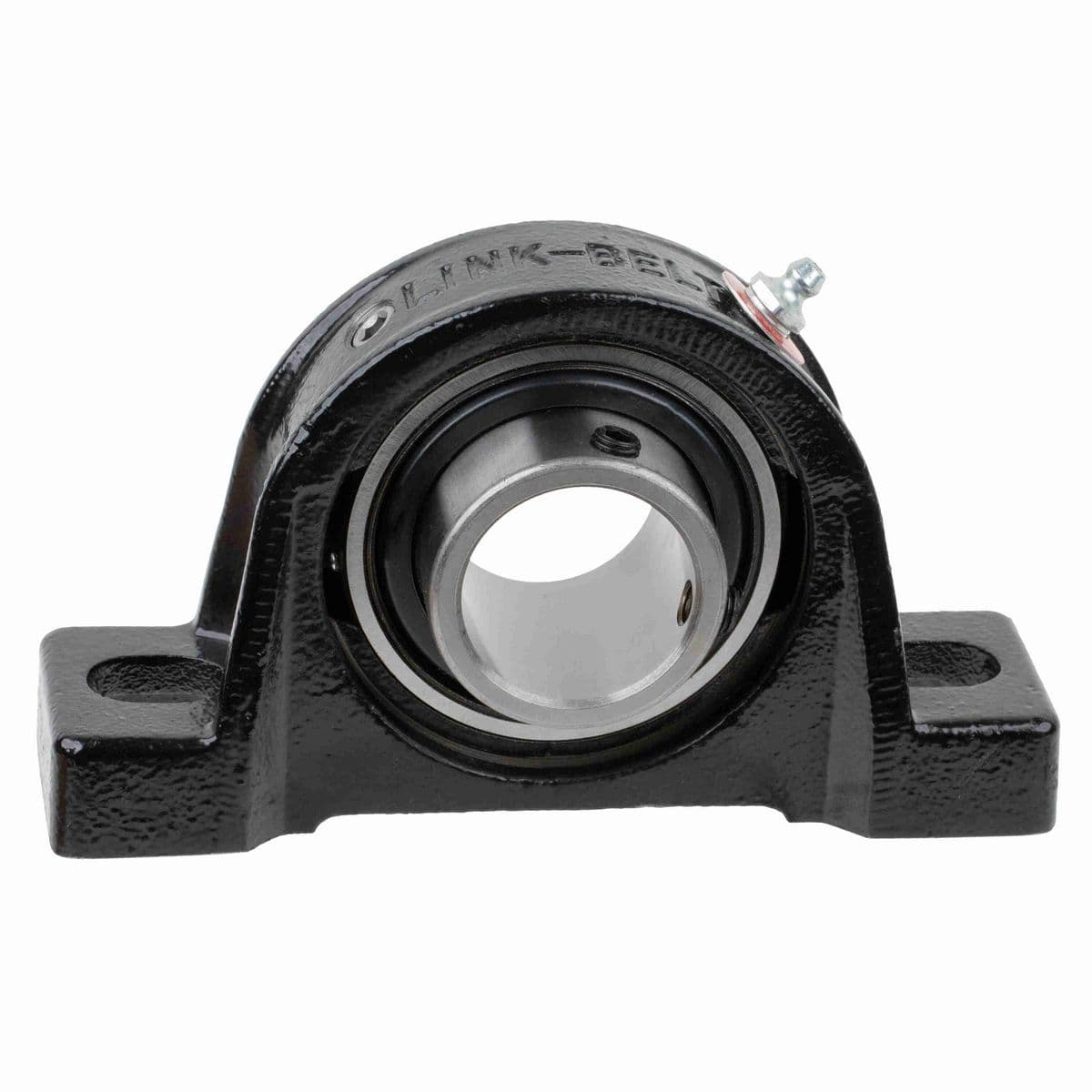

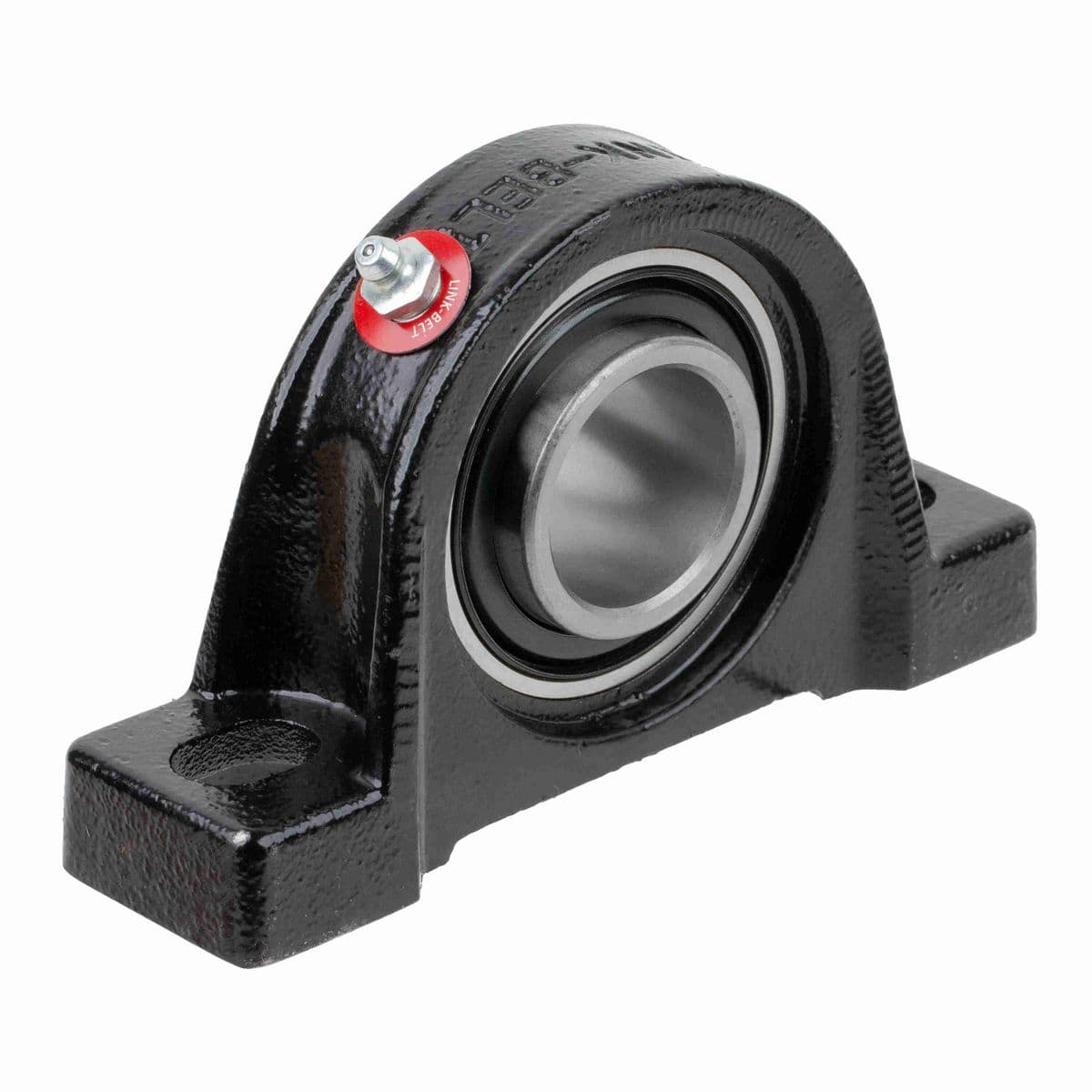

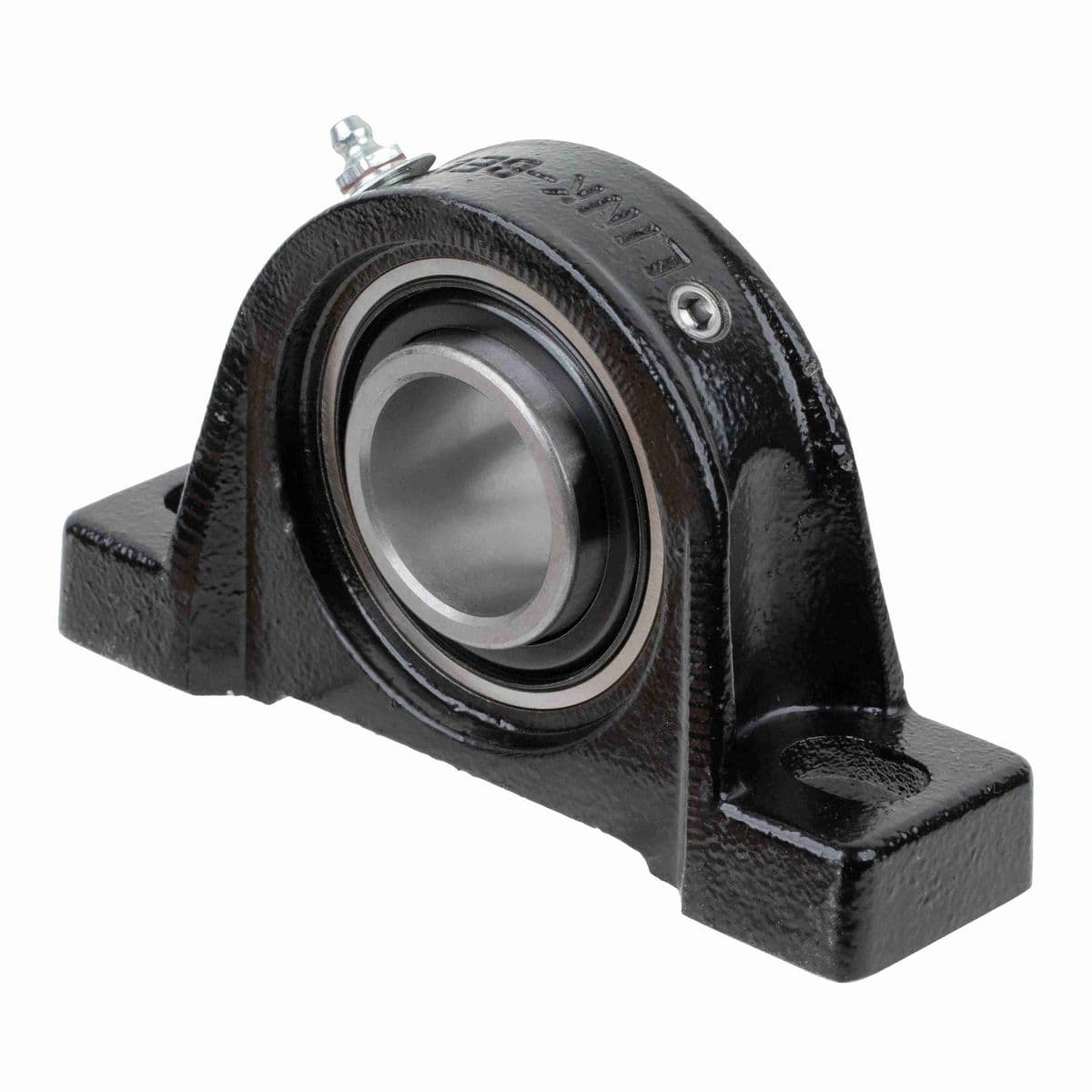

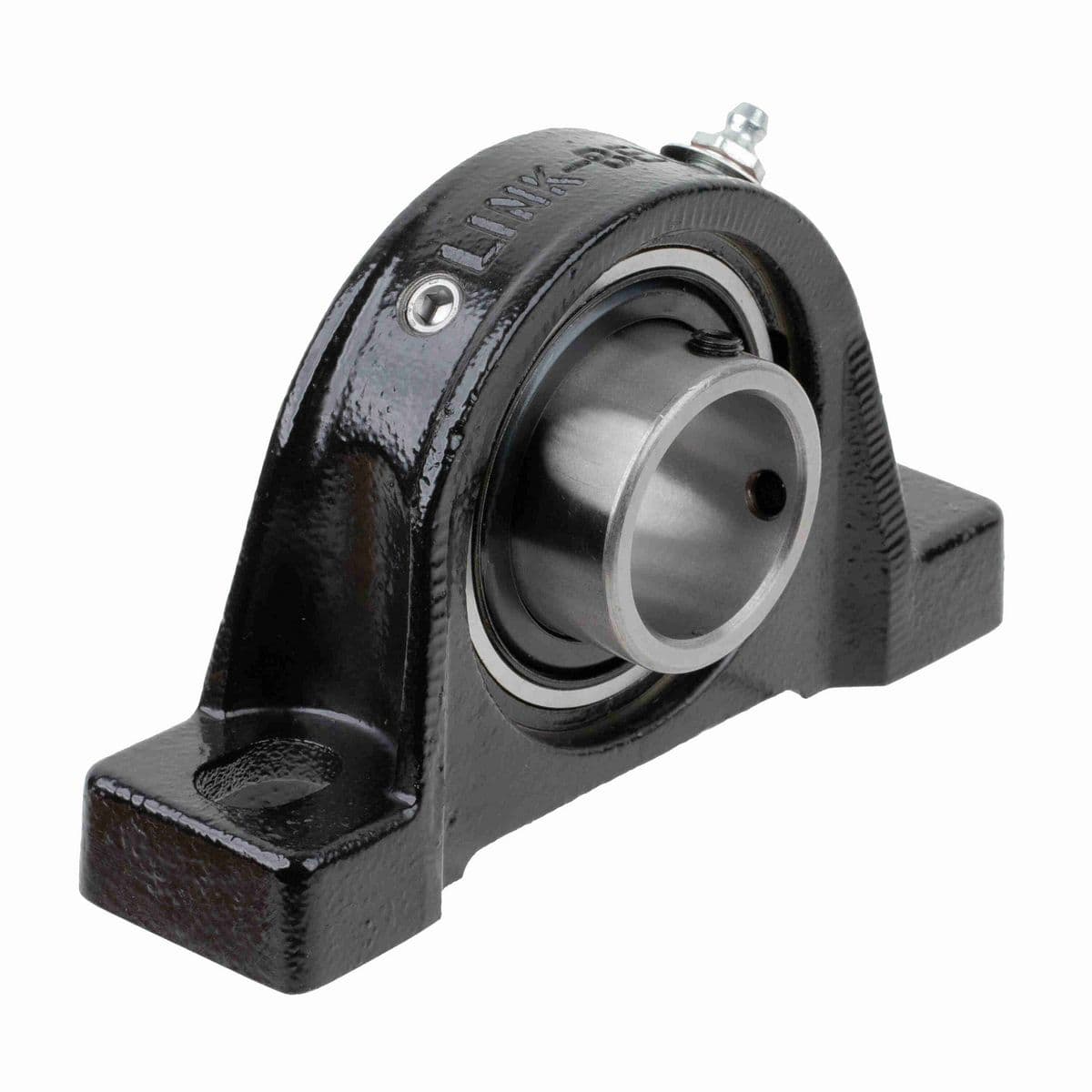

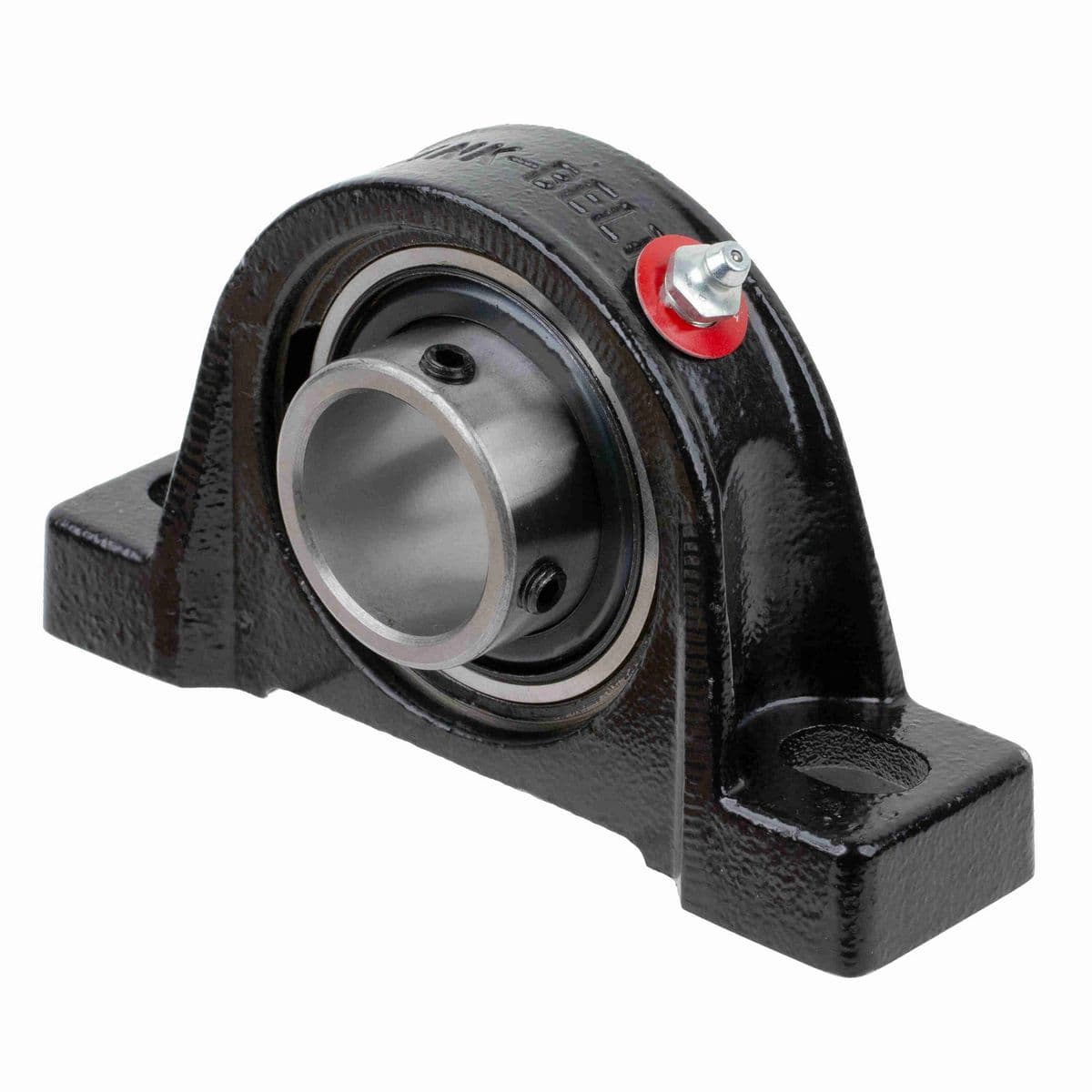

• 1 15/16" Mounted Ball Bearing, Medium Duty, Cast Iron 2-Bolt Pillow Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Foot Height (in)	1.00 in
Length Through Bore (in)	1.891 in
Base to Center Height (in)	2.5000 in
Bore Diameter (in)	1.9375 in
Overall Width (in)	2.94 in
Overall Height (in)	5.00 in
Base Width (in)	2.94 in
Overall Length (in)	8.88 in
Bolt Size (in)	5/8 in
Bolt Spacing (in)	6.91 in
Centerline to Outermost Bearing Face (in)	1.281 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Style	Pillow Block
Misalignment Type	Static Only
Housing Base	Semi-Solid
Seal Type	Single Lip Contact Seal
Bore Shape	Straight
Housing Type	Pillow Block, Two Bolt
Slot Length (in)	1.22 in
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Housing Color	Black
Setscrew Torque (in-lbs)	165 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	4360 rpm
Bearing Insert Material	52100 Bearing Steel
Cage Type	Ball Riding Retainer
Base Length (in)	8.88 in
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0680 cps
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0437 cps
Housing Material	Cast Iron
Insert	MSG231NLPA
Lubricant	EXXON RONEX MP STD
Size Code	211
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	2.749 in
Radial Clearance	C3 STANDARD
Max Operating Temperature (F)	225 °F
Bearing Type	Medium Duty
Dynamic Load Rating (lb)	9,800 lb
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Static Load Rating (lb)	6,570 lb
Max Operating Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0068 cps
Shaft Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0987 cps

General Specifications

UPC	662864805667
Weight	7.90 LB
Packaged Length	5.13 IN
Packaged Width	2.63 IN
Packaged Height	9.00 IN
HTC	8483208040
Country of Origin	Mexico
