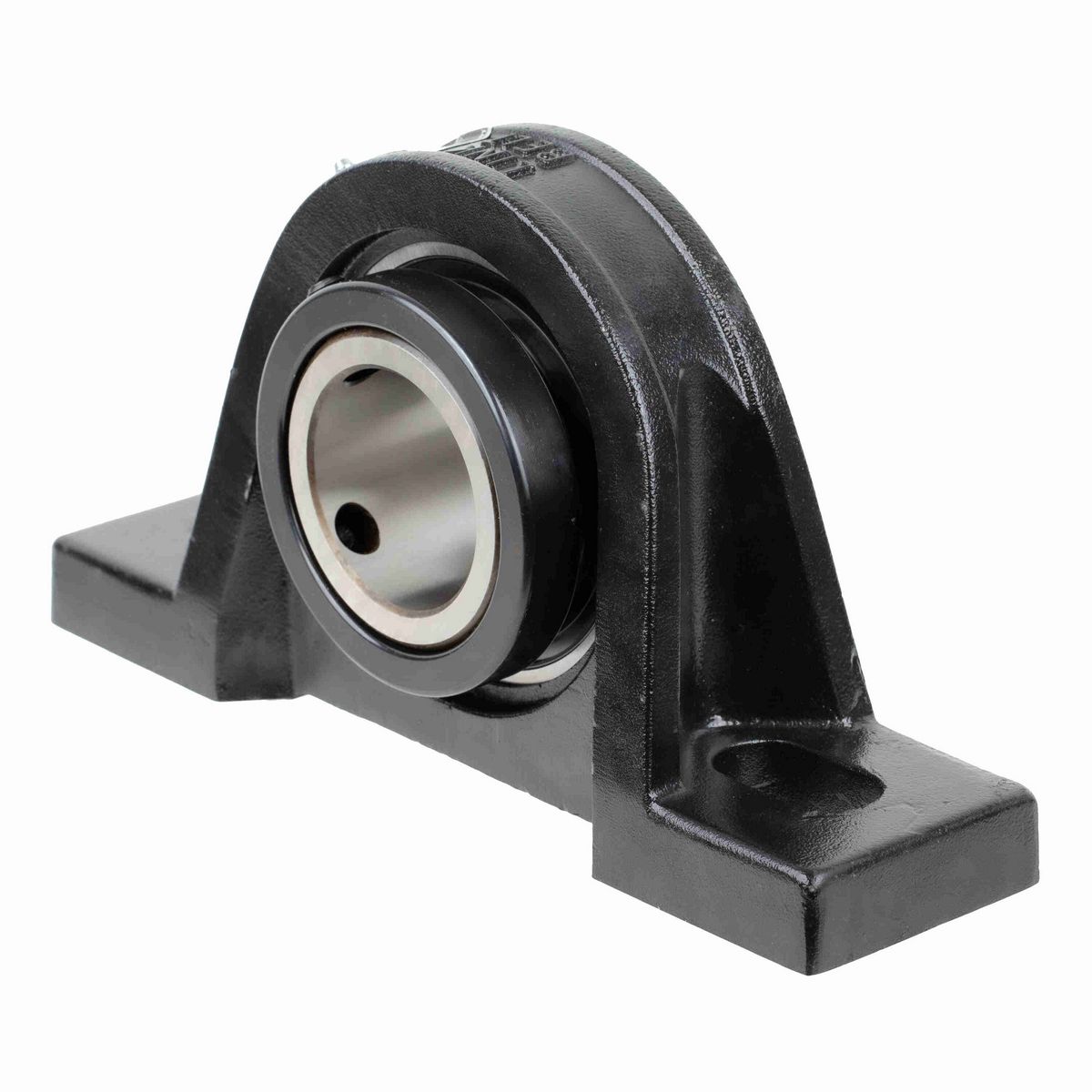

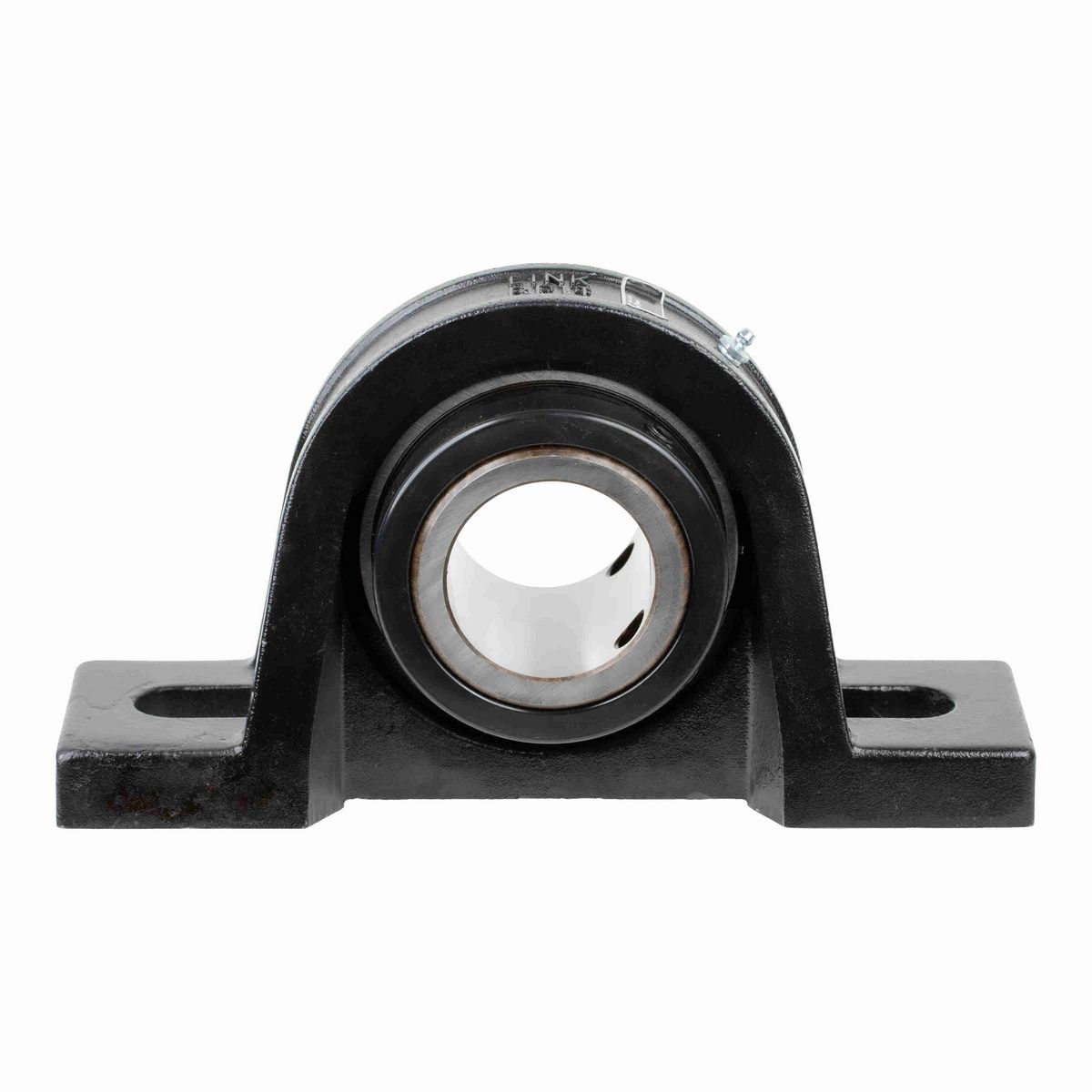

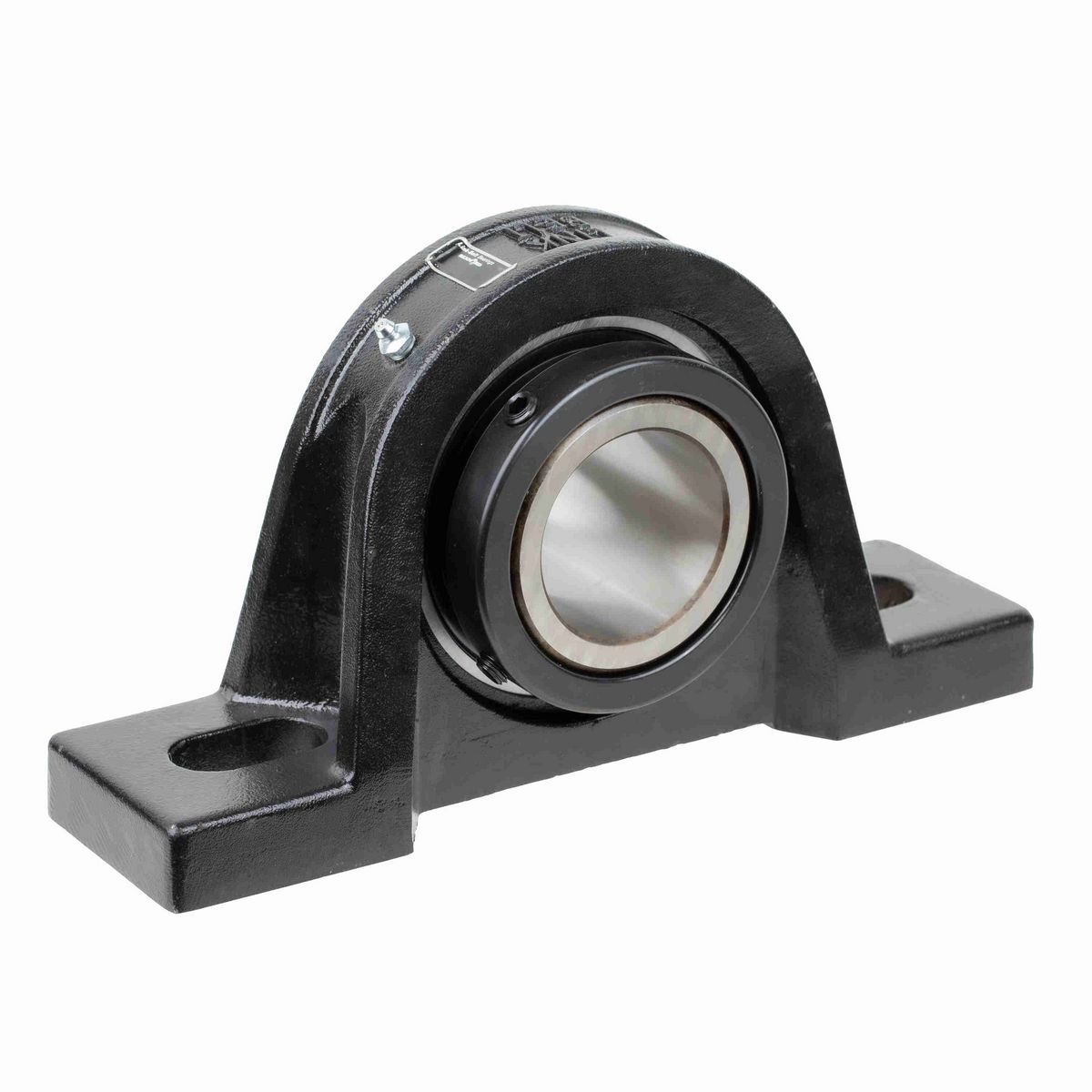

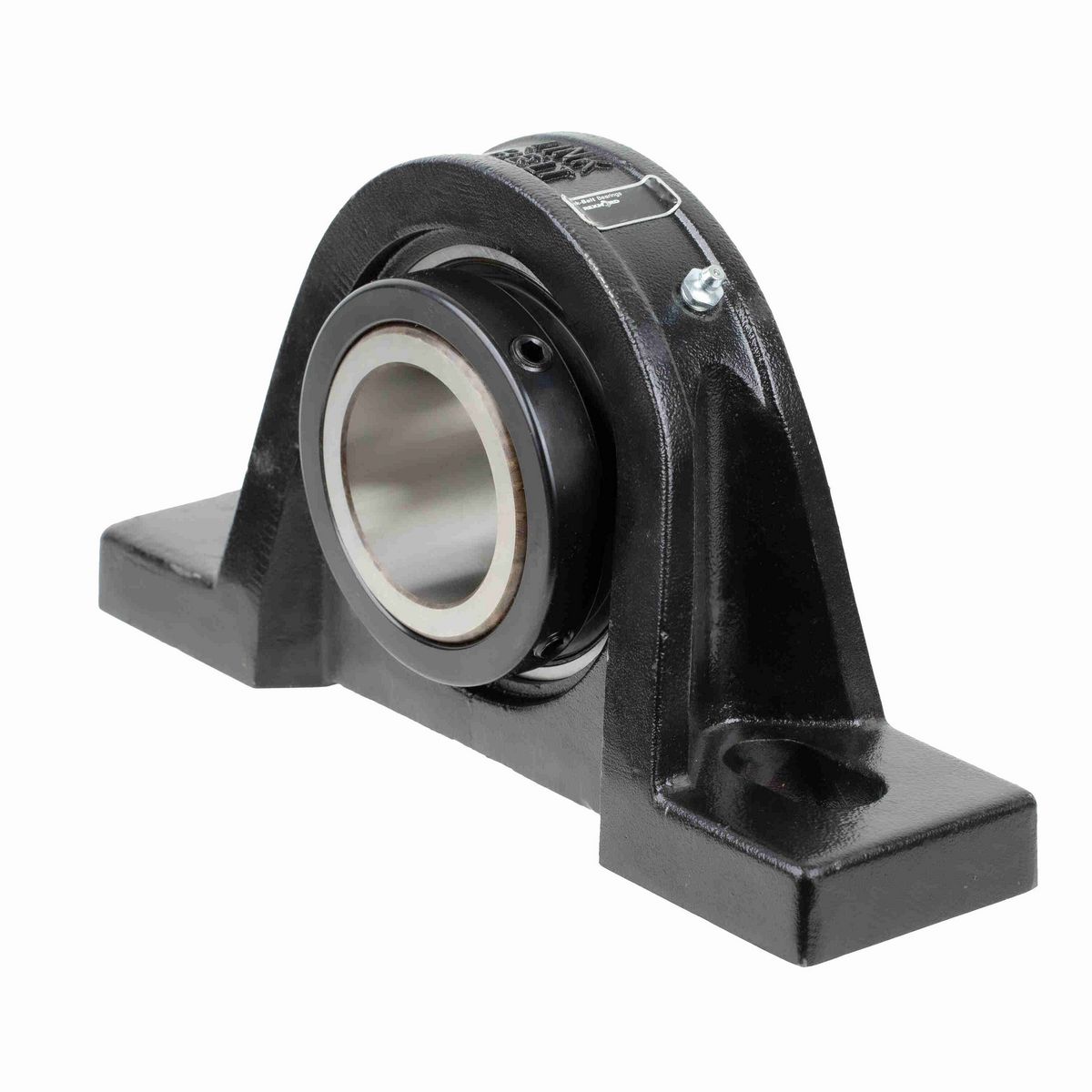

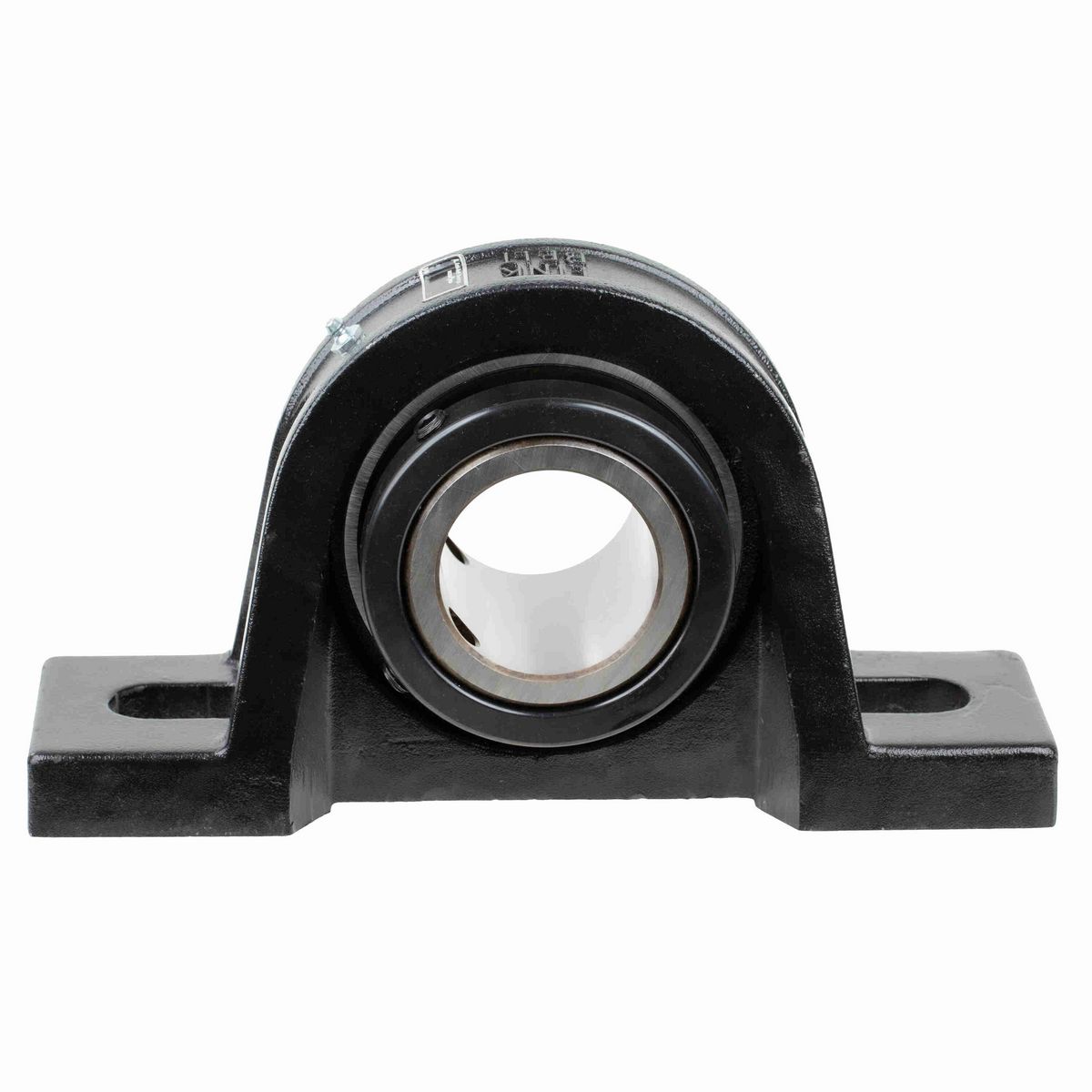

• 2 11/16" Mounted Ball Bearing, Medium Duty, Cast Iron 2-Bolt Pillow Block, Two Setscrew Locking Collars, Single Lip Contact Seal

Dimensions

Overall Width (in)	3.63 in
Length Through Bore (in)	3.625 in
Bore Diameter (in)	2.6875 in
Overall Height (in)	7.00 in
Base Width (in)	3.50 in
Base to Center Height (in)	3.5000 in
Foot Height (in)	1.12 in
Overall Length (in)	13 in
Bolt Size (in)	7/8 in
Centerline to Outermost Bearing Face (in)	1.812 in
Bolt Spacing (in)	9.00 in

Technical Specifications

Outer Ring Land Profile	Standard
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Rolling Element	Ball Bearing
Housing Type	Pillow Block, Two Bolt
Bore Shape	Straight
Housing Base	Semi-Solid
Housing Color	Black
Slot Length (in)	2.00 in
Misalignment Type	Static Only
Seal Type	Single Lip Contact Seal
Housing Style	Pillow Block
Setscrew Torque (in-lbs)	620-680 in/lbs
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	4.63 in
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.0760 cps
Cage Type	Ball Riding Retainer
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Lubricant	EXXON RONEX MP STD
Vibration Frequency Fundamental Train	0.0068 cps
Housing Coating	Powder Coated
Locking Device Kit	U2475S
Vibration Frequency Roller Spin	0.0475 cps
End Cap Available	No
Size Code	215
Fixed vs. Expansion	Fixed
Base Length (in)	13.00 in
Bearing Insert Material	52100 Bearing Steel
Insert	UDG2B43NL
Inner Ring Outside Diameter (in)	3.632 in
Radial Clearance	C3 STANDARD
Max Operating Temperature (C)	107 °C
Static Load Rating (lb)	11,100 lb
Shaft Locking Type	Double Set Screw
Dynamic Load Rating (lb)	15,080 lb
Bearing Type	Medium Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	3300 rpm
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.1073 cps

General Specifications

UPC	793699057584
Weight	26.45 LB
Packaged Length	8.00 IN
Packaged Width	4.38 IN
Packaged Height	13.00 IN
HTC	8483208040
Country of Origin	Mexico
