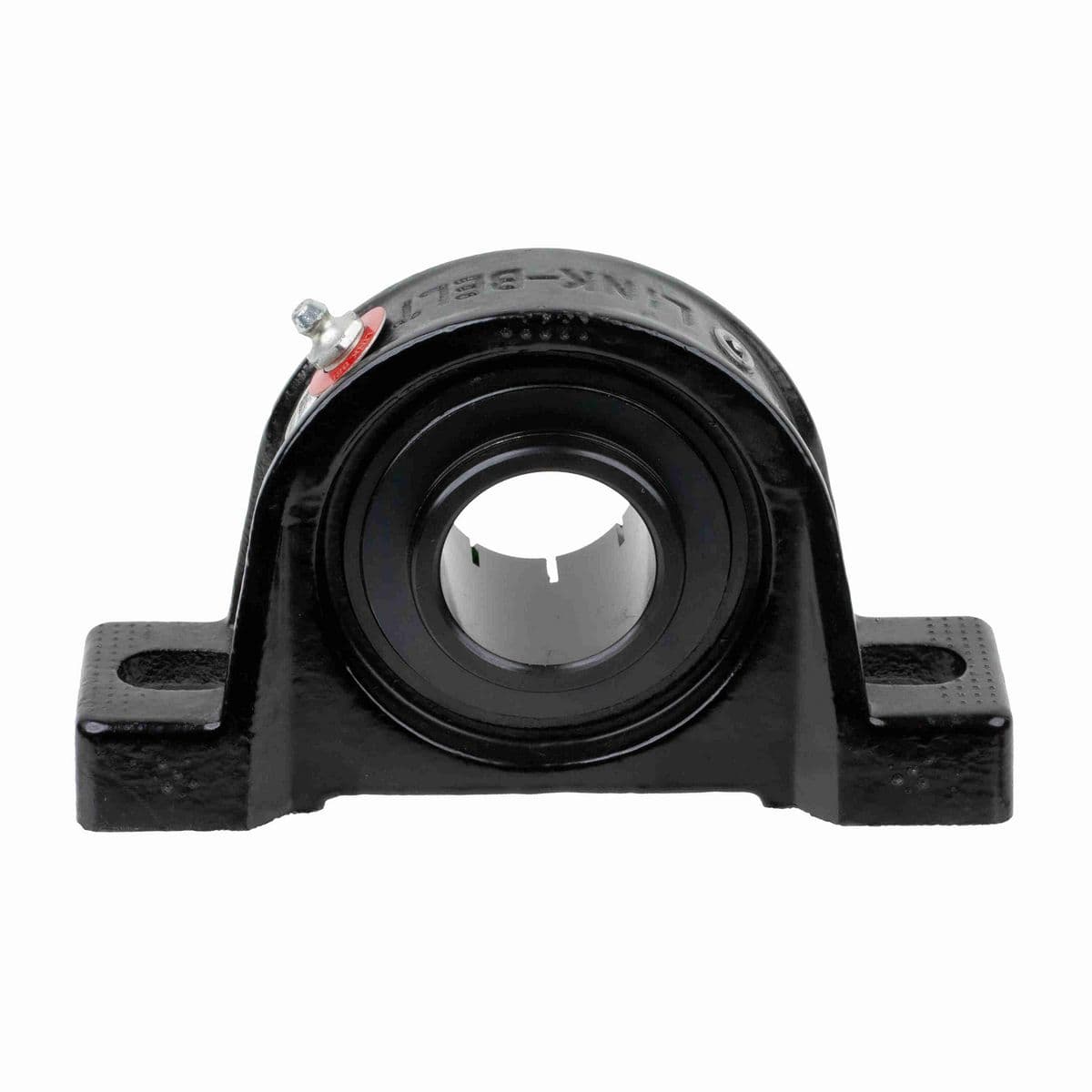

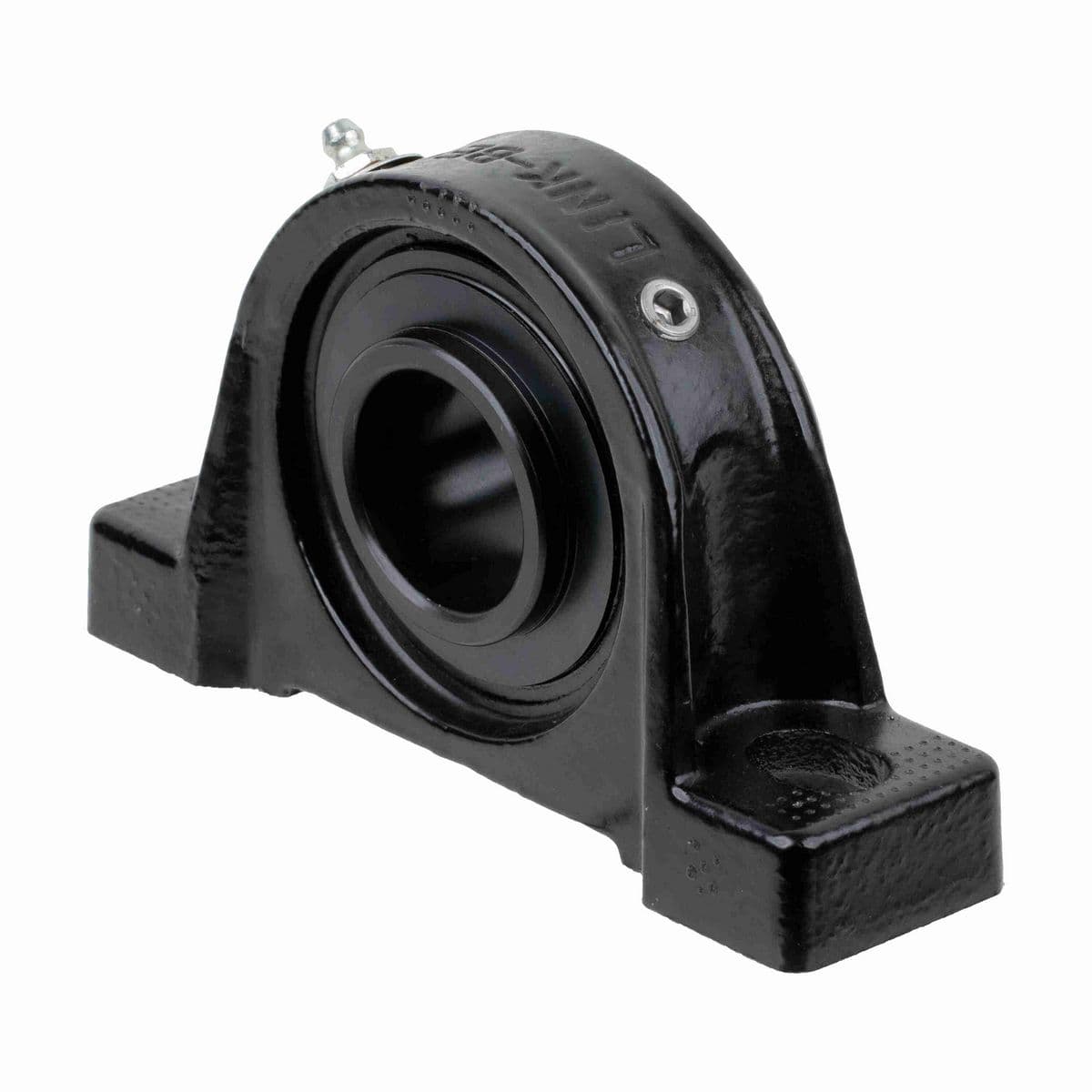

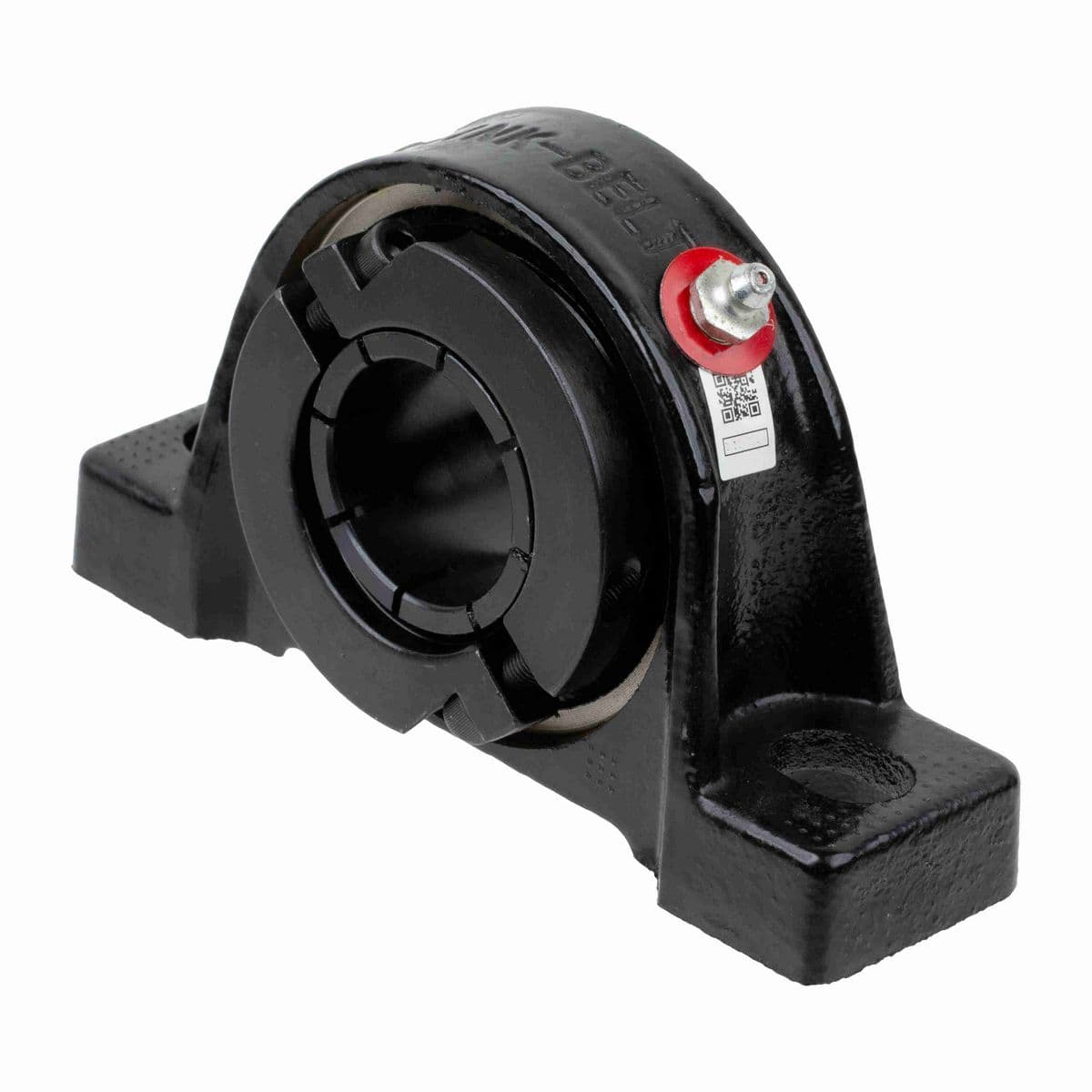

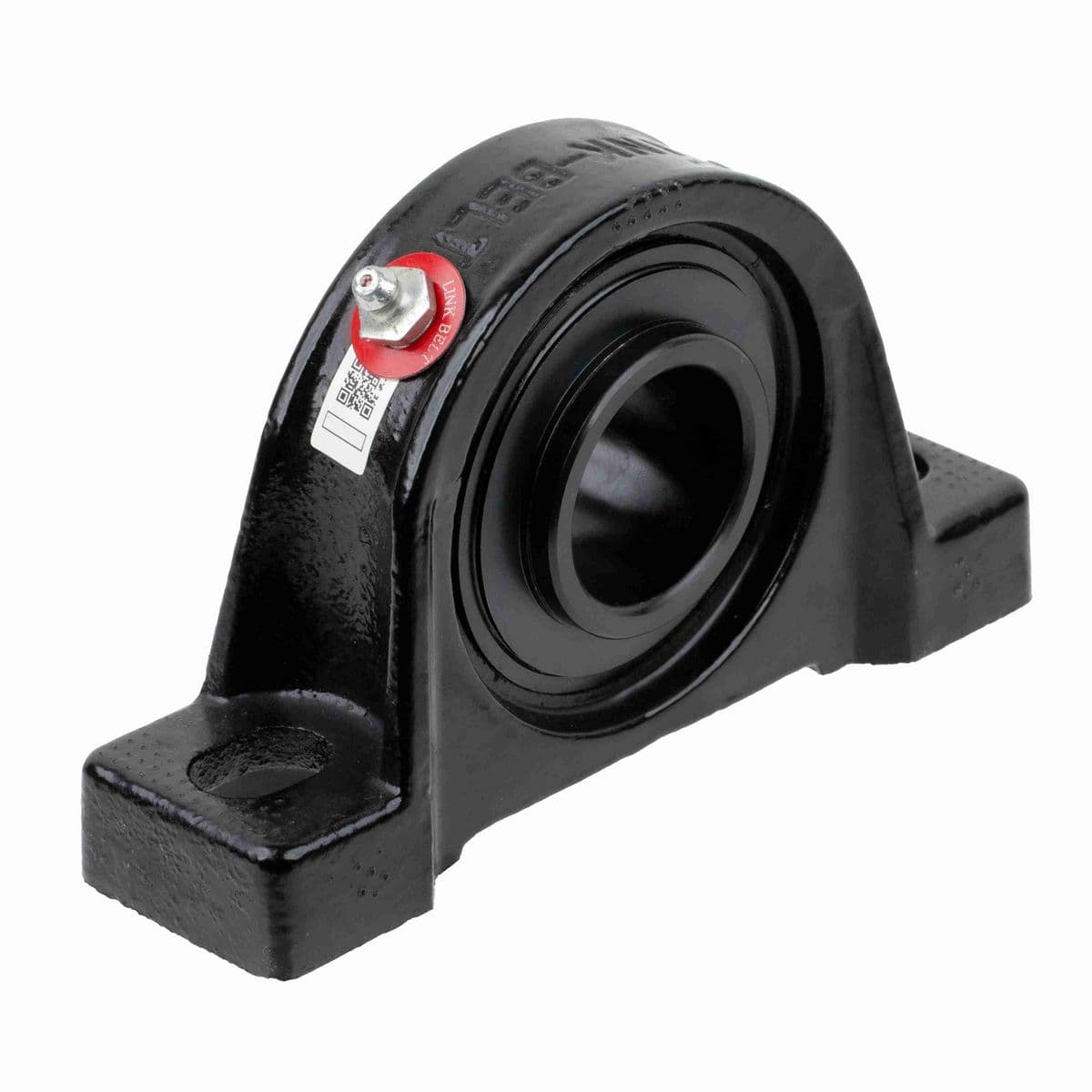

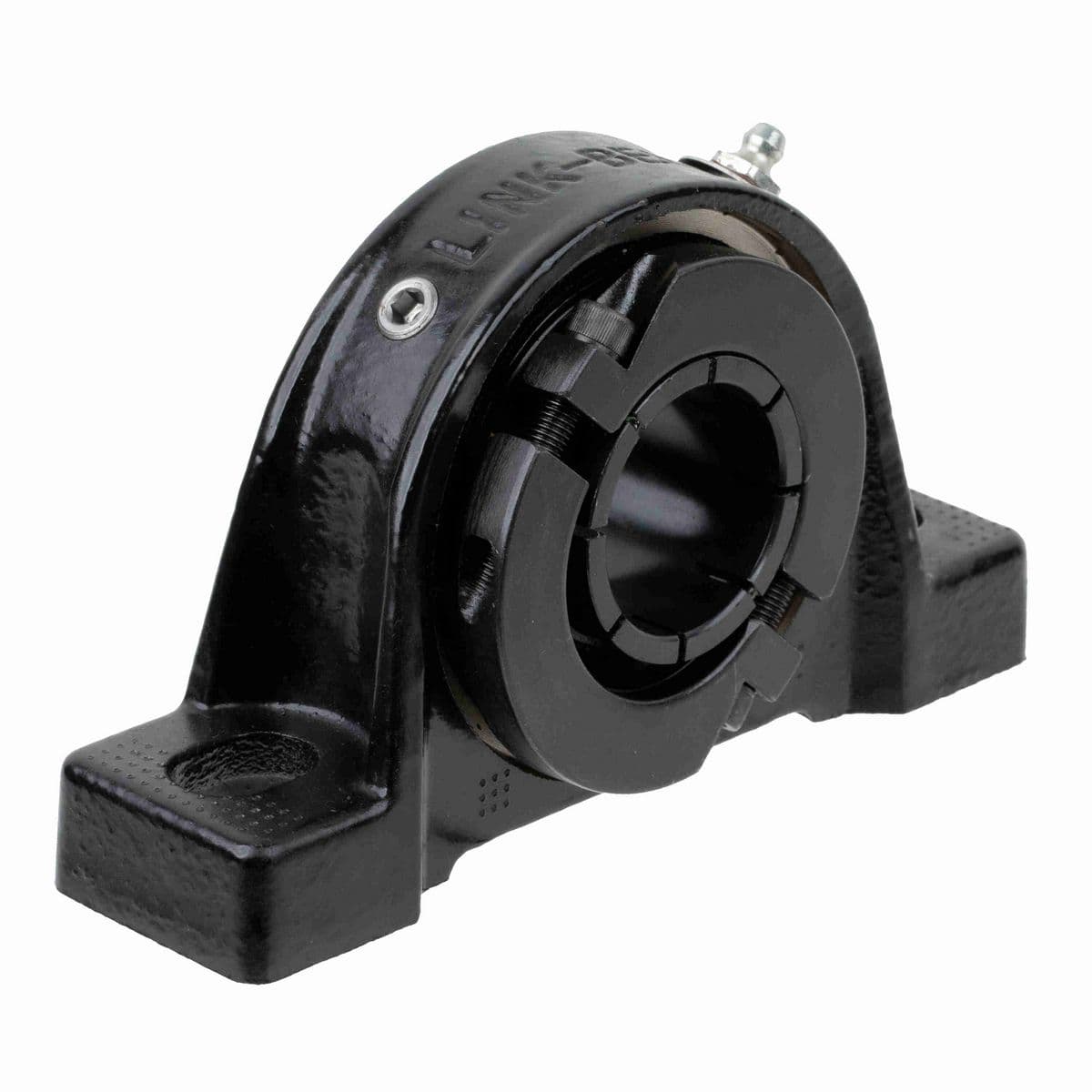

• 1 3/16" Mounted Ball Bearing, Medium Duty, Cast Iron 2-Bolt Pillow Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Bolt Size (in)	1/2 in
Foot Height (in)	0.75 in
Base to Center Height (in)	1.875 in
Overall Width (in)	1.81 in
Length Through Bore (in)	1.81 in
Overall Length (in)	6.69 in
Overall Height (in)	3.69 in
Bore Diameter (in)	1.1875 in
Base Width (in)	1.75 in
Bolt Spacing (in)	4.94 in
Centerline to Outermost Bearing Face (in)	1.12 in

Technical Specifications

Bore Shape	Straight
Housing Style	Pillow Block
Cage Material	Molded fiber glass reinforced nylon
Slot Length (in)	0.88 in
Housing Base	Semi-Solid
Outer Ring Land Profile	Standard
Housing Type	Pillow Block, Two Bolt
Seal Type	Single Lip Contact Seal
Misalignment Type	Static Only
Housing Color	Black
Housing Construction	One Piece
Rolling Element	Ball Bearing
Setscrew Torque (in-lbs)	151-168 in/lbs
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.5 in
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Cage Type	Ball Riding Retainer
Shaft Locking Type	Concentric
Vibration Frequency Roller Spin	0.0383 cps
Fixed vs. Expansion	Fixed
Locking Device Kit	CL2235S
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubricant	EXXON RONEX MP STD
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Size Code	207
Maximum Speed (RPM)	6850 rpm
Housing Coating	Powder Coated
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	6.69 in
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.847 in
Bearing Type	Medium Duty
Housing Material	Cast Iron
Dynamic Load Rating (lb)	5,810 lb
Insert	MCLG219NLPA
Static Load Rating (lb)	3,440 lb
Bearing Insert Finish	Black Oxide
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Inner Ring Defect	0.0905 cps

General Specifications

UPC	662864823258
Weight	3.68 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483208040
Country of Origin	Mexico
