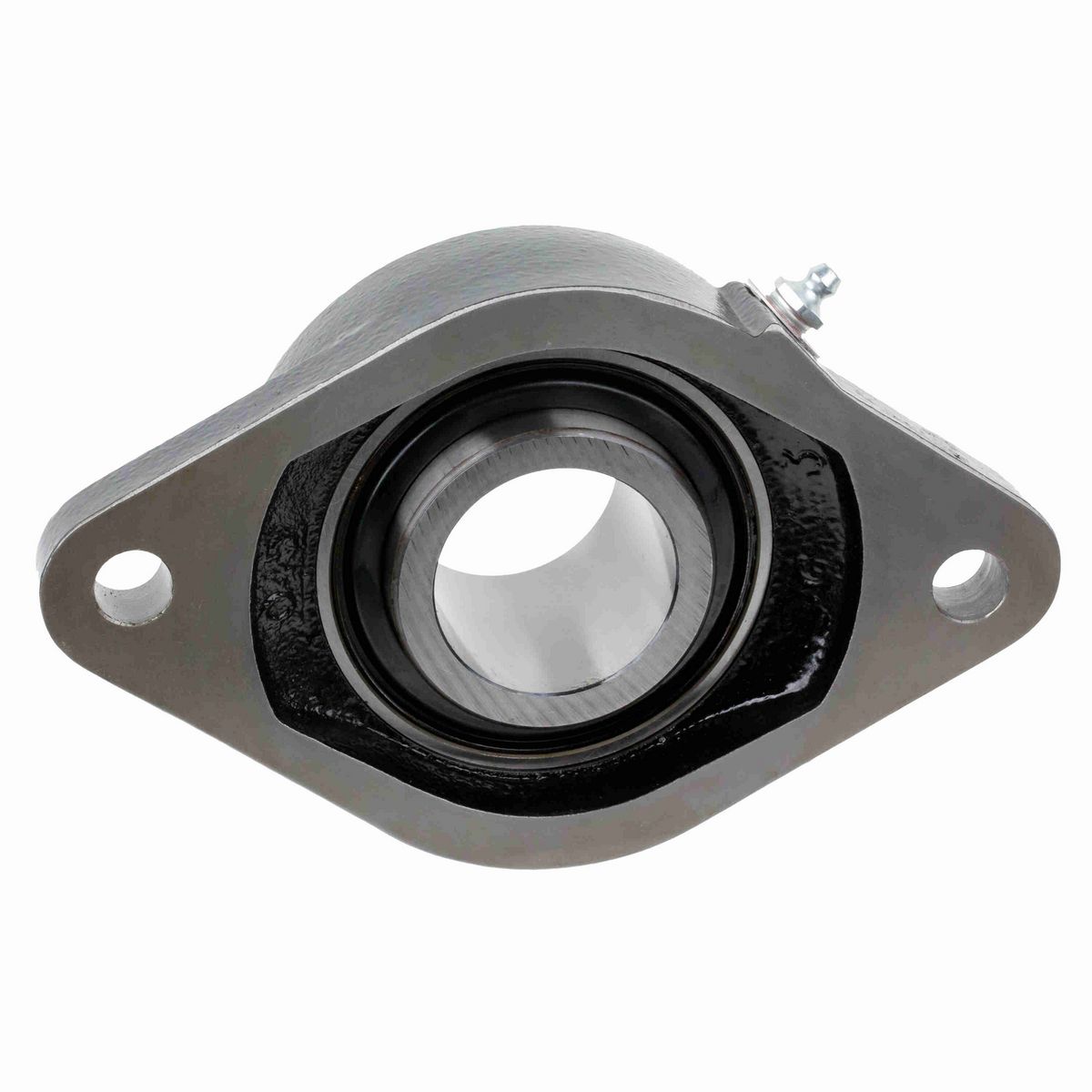

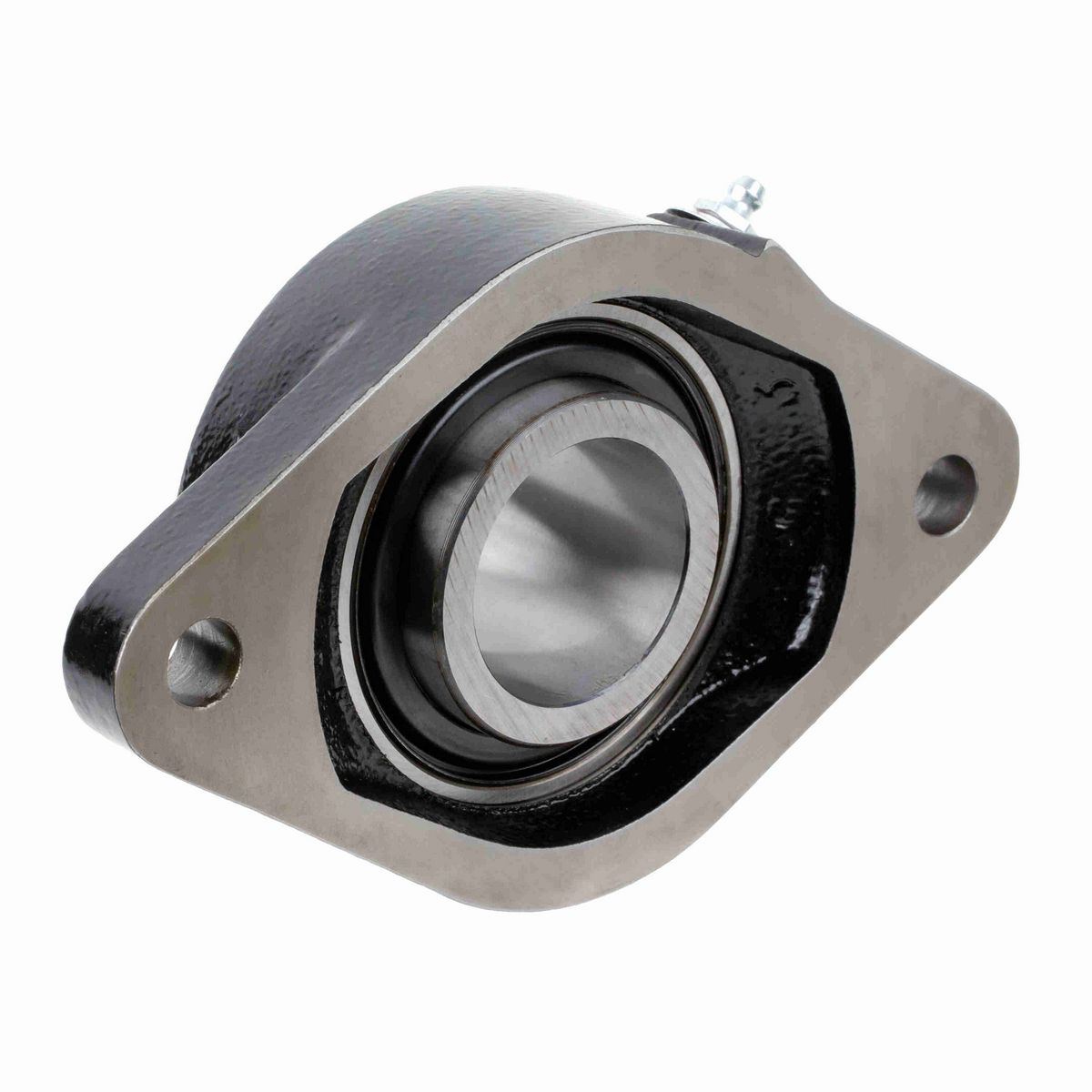

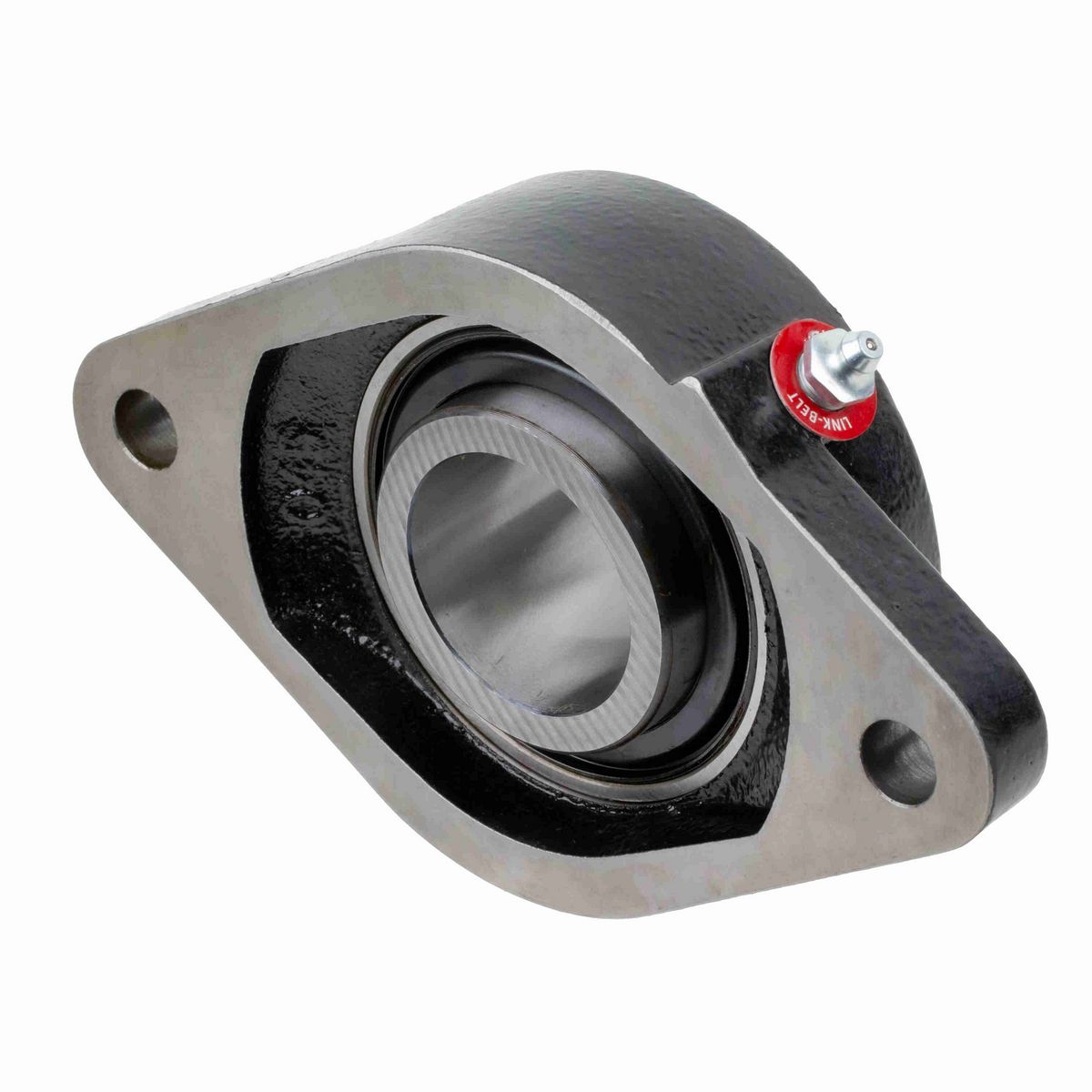

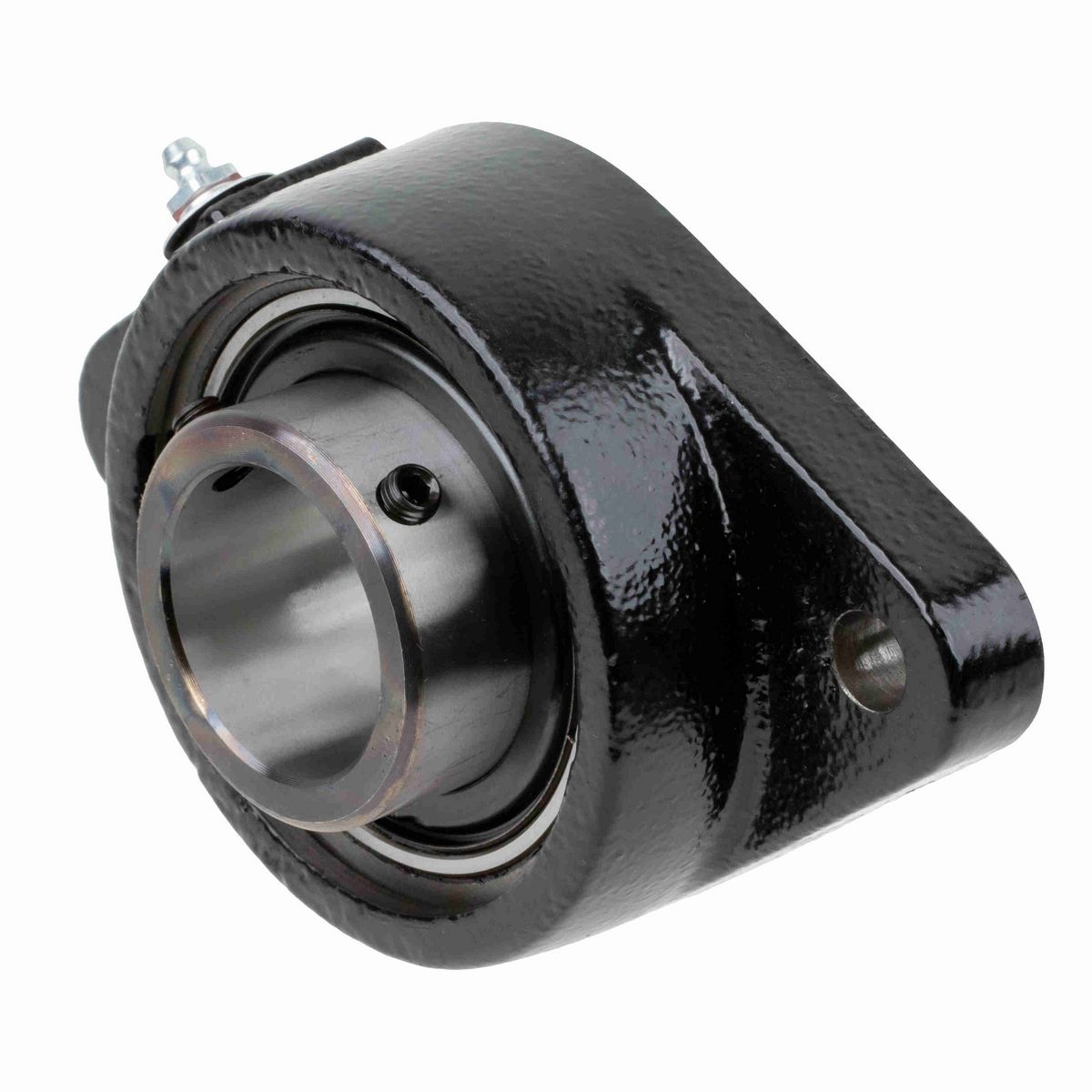

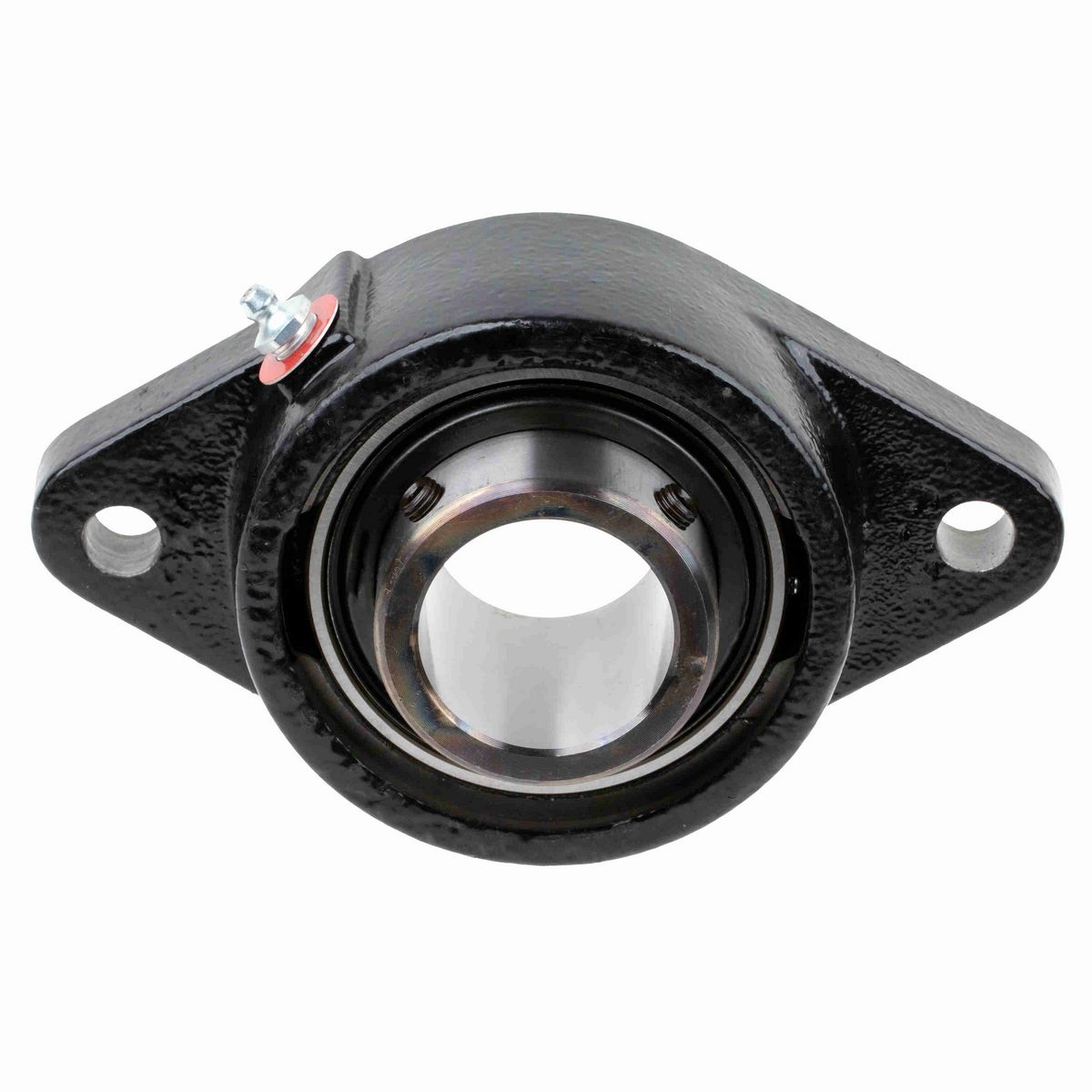

• 1 3/4" Mounted Ball Bearing, Medium Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Bore Diameter (in)	1.75 in
Length Through Bore (in)	2.183 in
Overall Length (in)	7.47 in
Overall Height (in)	1.906 in
Foot Height (in)	0.63 in
Bolt Size (in)	9/16 in
Overall Width (in)	4.56 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Rolling Element	Ball Bearing
Housing Style	Flange Block
Bore Shape	Straight
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Pilot Configuration	No Pilot
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Misalignment Capability	±1.5° Misalignment - Static Only
Insert	MSG228NLPA
Grease Fitting Thread Size	1/8 NPT
Static Load Rating (lb)	5,220 lb
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Cage Type	Ball Riding Retainer
Shaft Locking Type	Set Screw
End Cap Available	No
Maximum Speed (RPM)	4800 rpm
Inner Ring Outside Diameter (in)	2.475 in
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.0985 cps
Housing Material	Cast Iron
Bearing Type	Medium Duty
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Vibration Frequency Roller Spin	0.0445 cps
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	225 °F
Dynamic Load Rating (lb)	7,920 lb
Size Code	210
Lubricant	EXXON RONEX MP STD
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662864805452
Weight	3.15 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
HTC	8483204040
Country of Origin	Mexico
