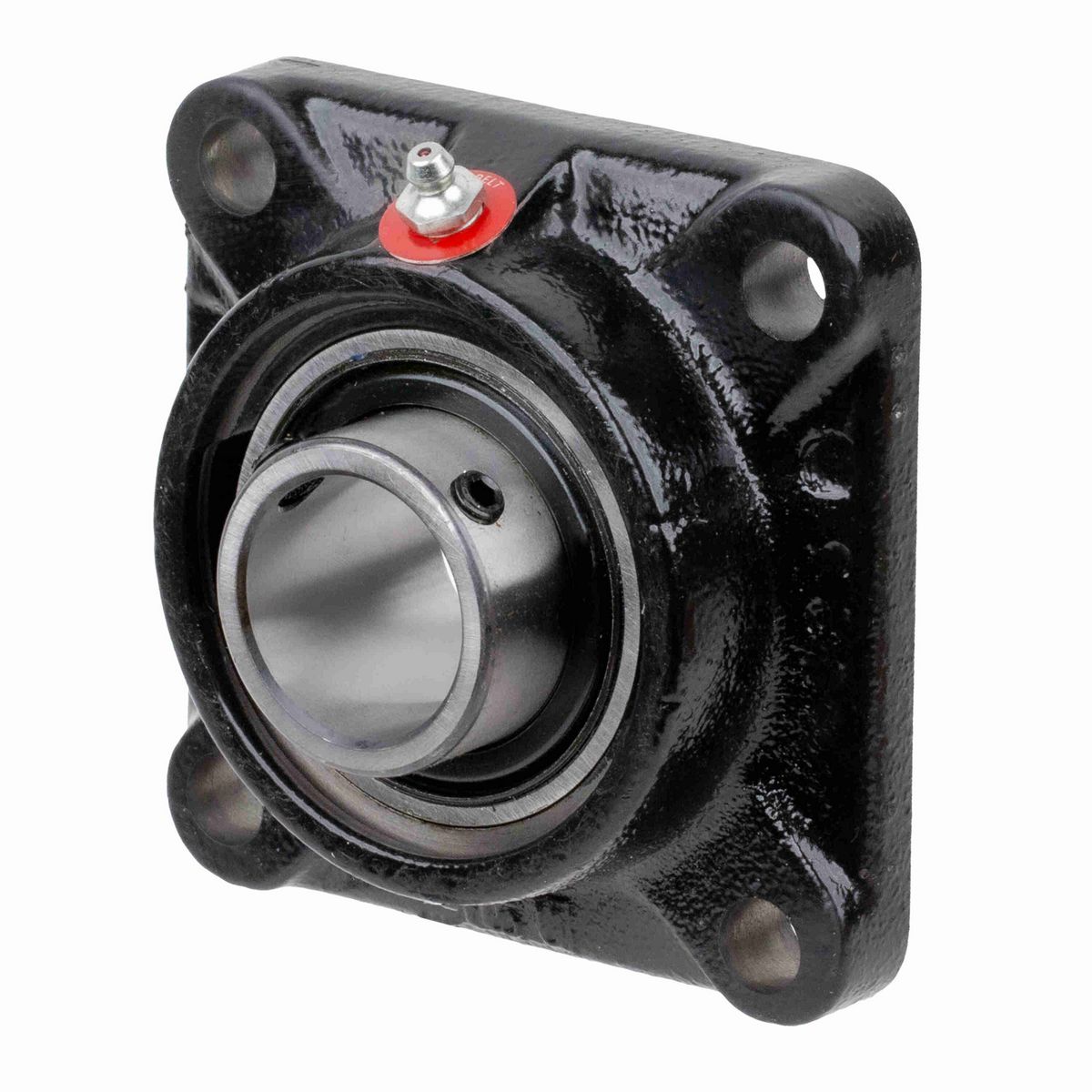

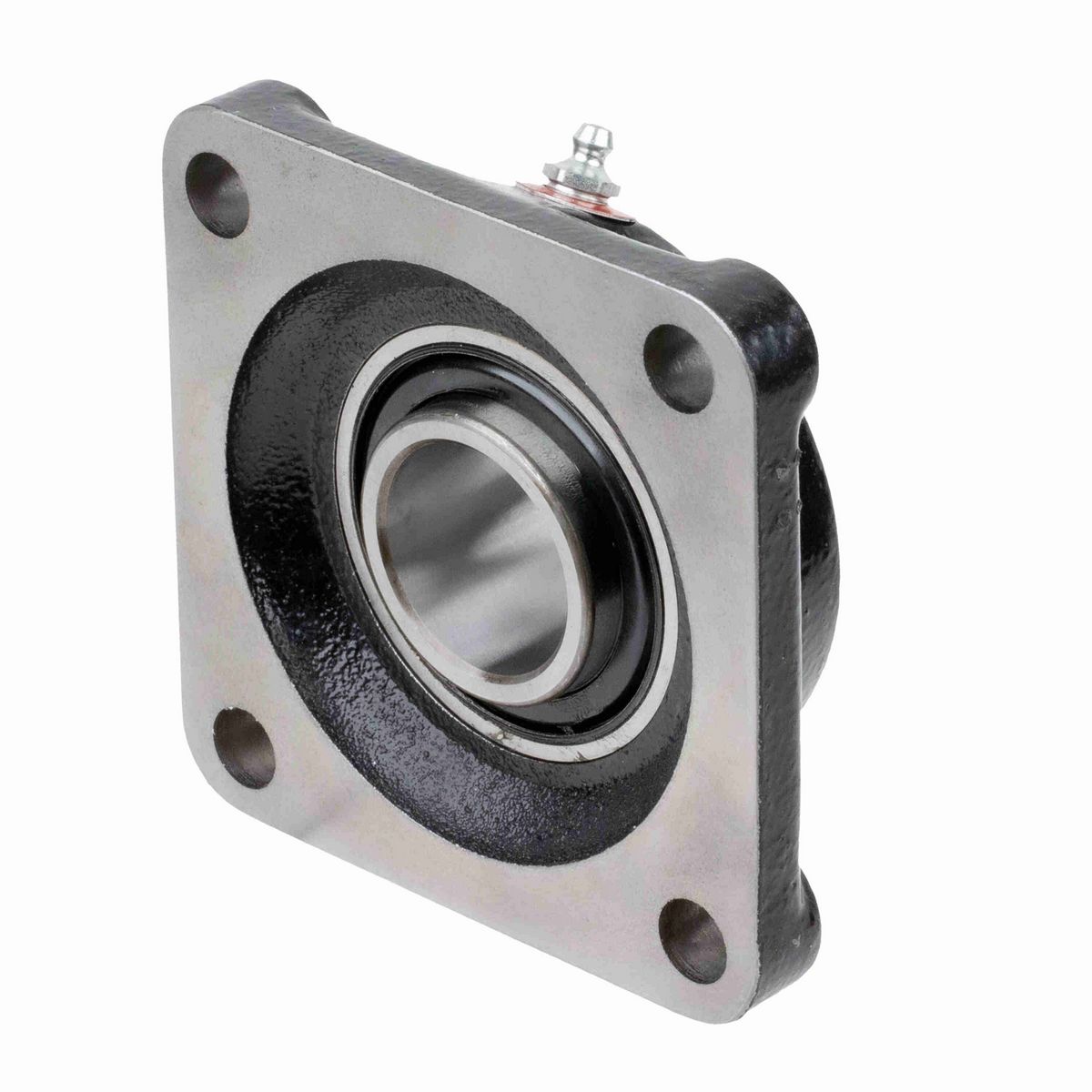

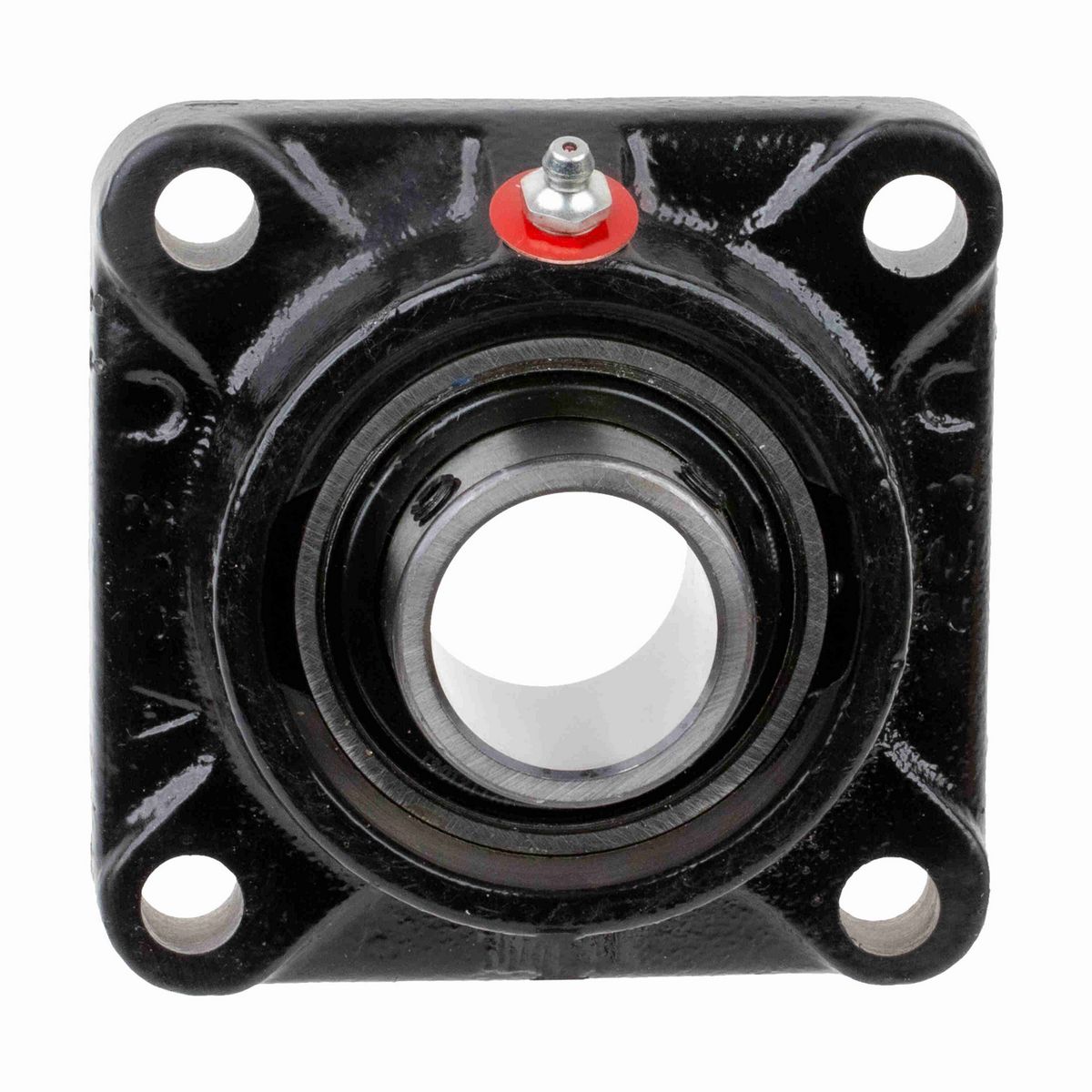

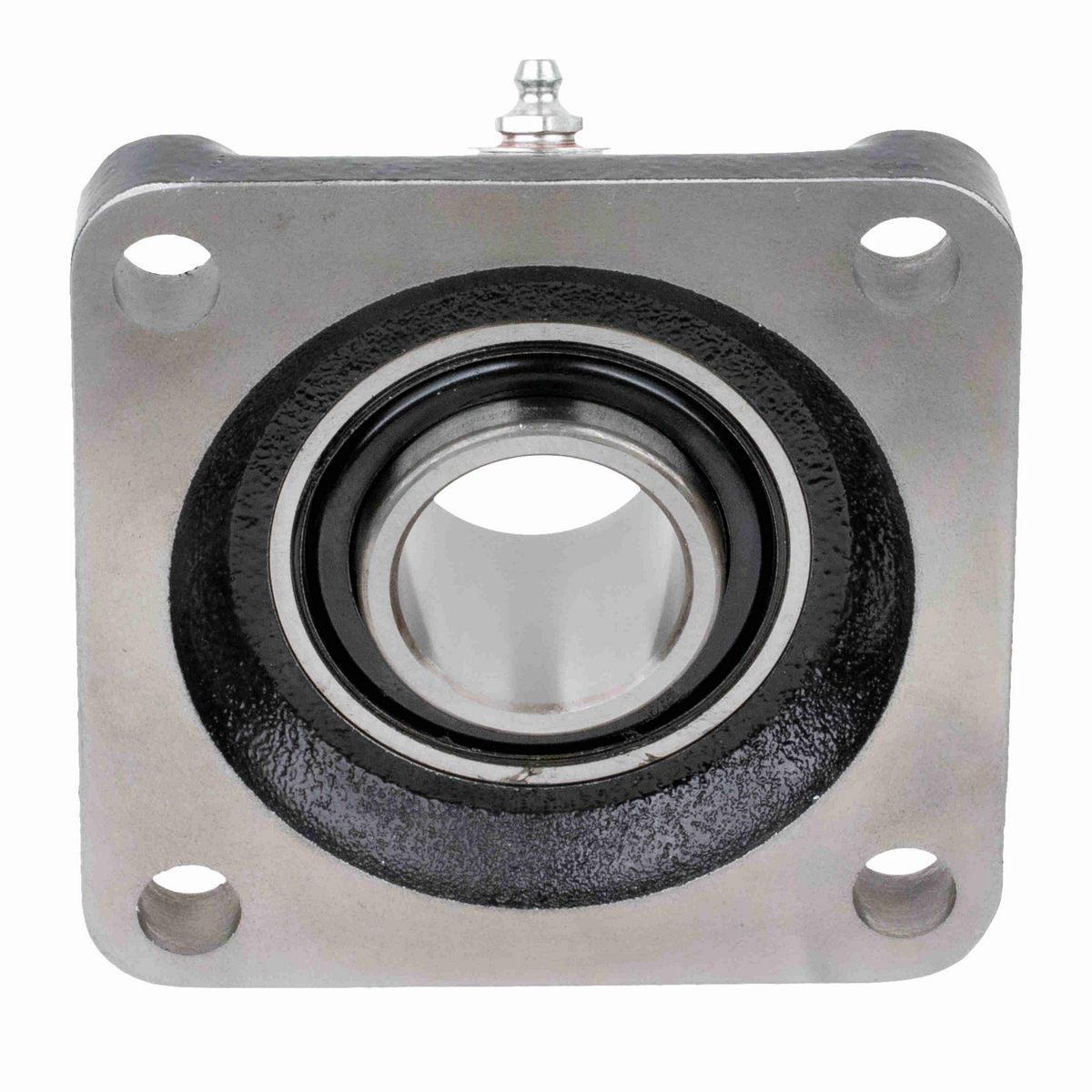

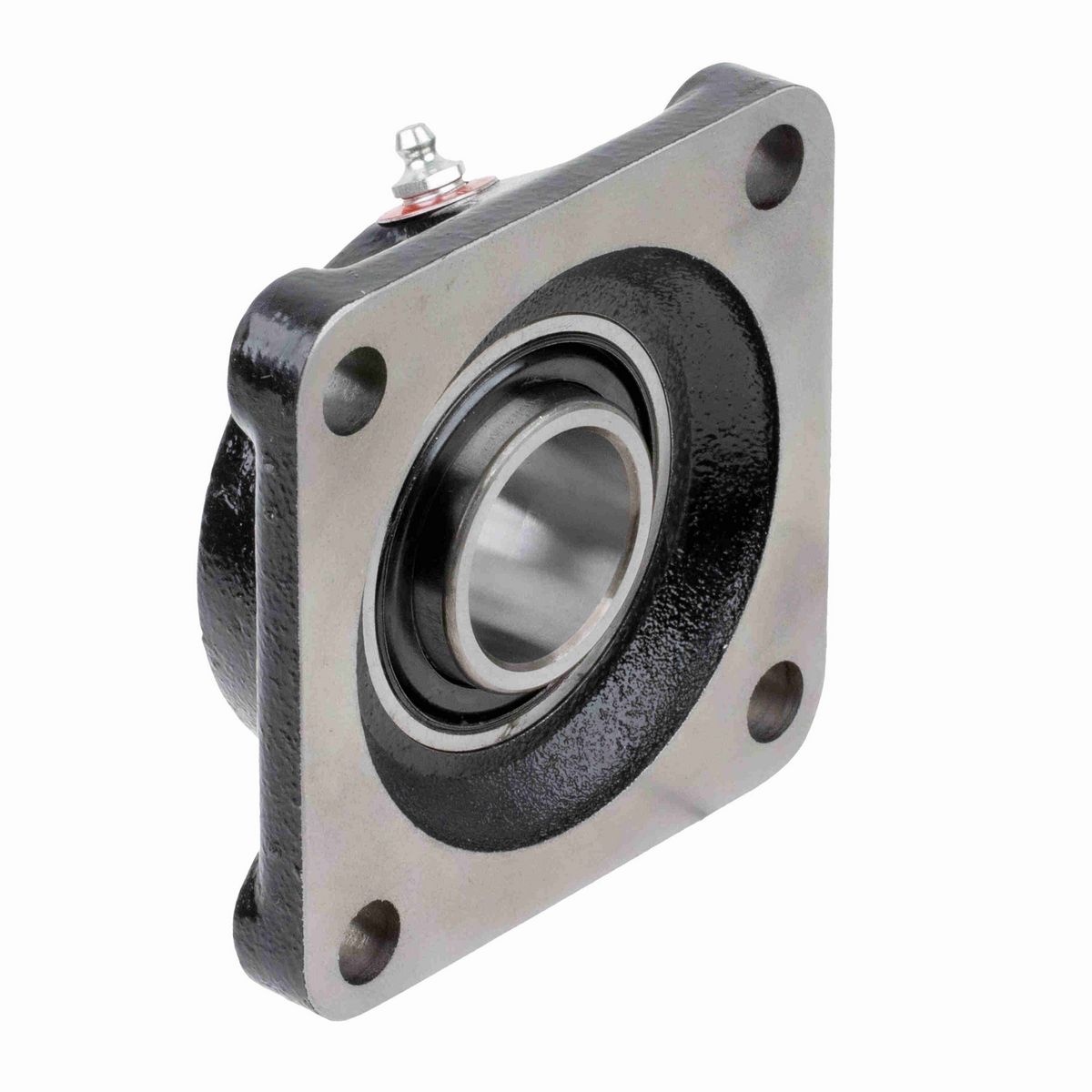

• 2 11/16" Mounted Ball Bearing, Medium Duty, Cast Iron 4-Bolt Square Flange Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Length (in)	7.75 in
Foot Height (in)	0.75 in
Bore Diameter (in)	2.6875 in
Bolt Size (in)	3/4 in
Overall Height (in)	2.406 in
Overall Width (in)	7.75 in
Length Through Bore (in)	2.272 in
Bolt Spacing (in)	6.0000 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Housing Style	Flange Block
Housing Color	Black
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Bore Shape	Straight
Pilot Configuration	No Pilot
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
End Cap Available	No
Max Operating Temperature (C)	107 °C
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±1.5° Misalignment - Static Only
Size Code	215
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0475 cps
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0068 cps
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	15,080 lb
Shaft Locking Type	Set Screw
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Vibration Frequency Inner Ring Defect	0.1073 cps
Max Operating Temperature (F)	225 °F
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Insert	MSG243NLPA
Vibration Frequency Outer Ring Defect	0.0760 cps
Bearing Type	Medium Duty
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	2900 rpm
Static Load Rating (lb)	11,100 lb
Inner Ring Outside Diameter (in)	3.624 in
Cage Type	Ball Riding Retainer

General Specifications

UPC	662864806992
Weight	13.86 LB
Packaged Length	7.63 IN
Packaged Width	2.69 IN
Packaged Height	7.63 IN
HTC	8483204040
Country of Origin	Mexico
