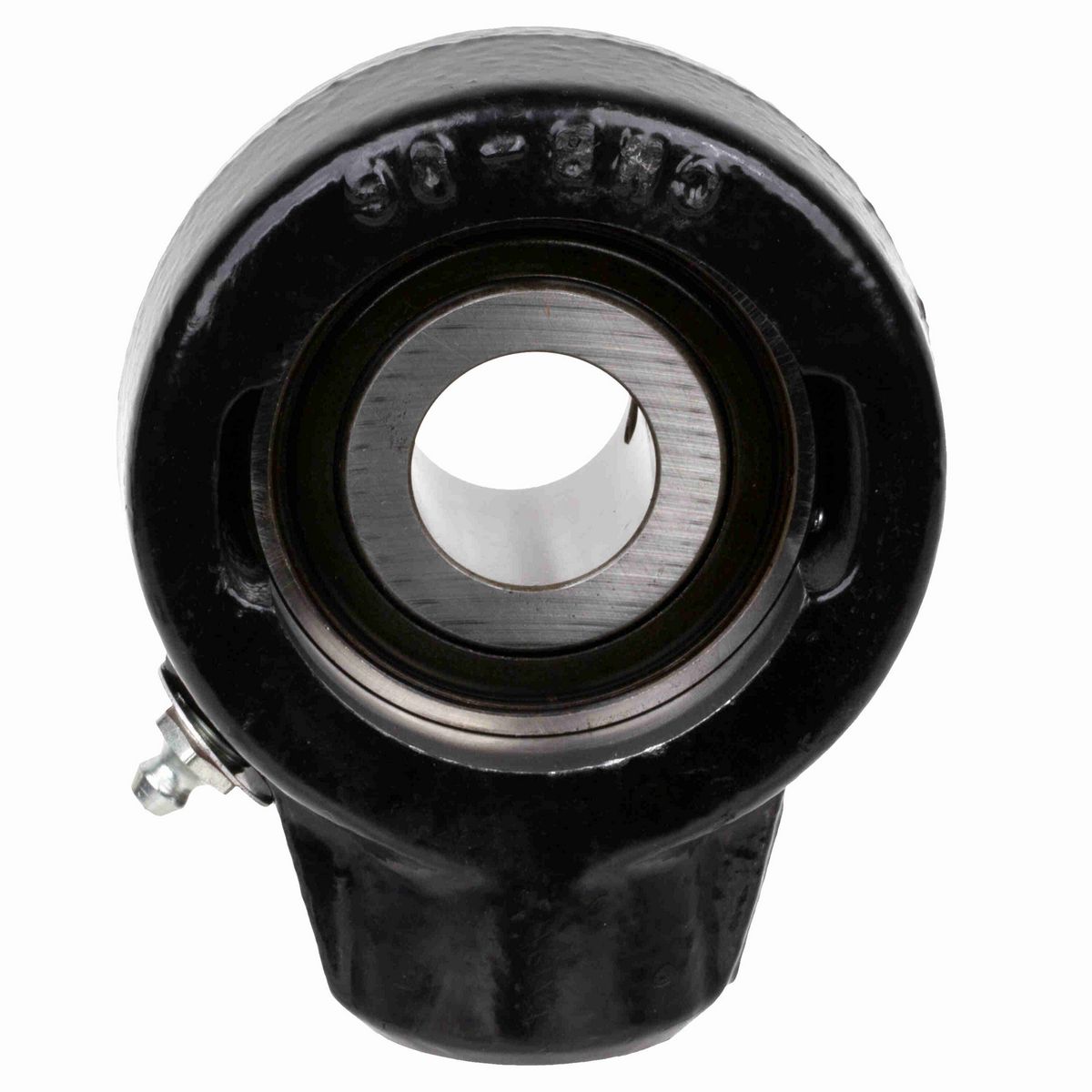

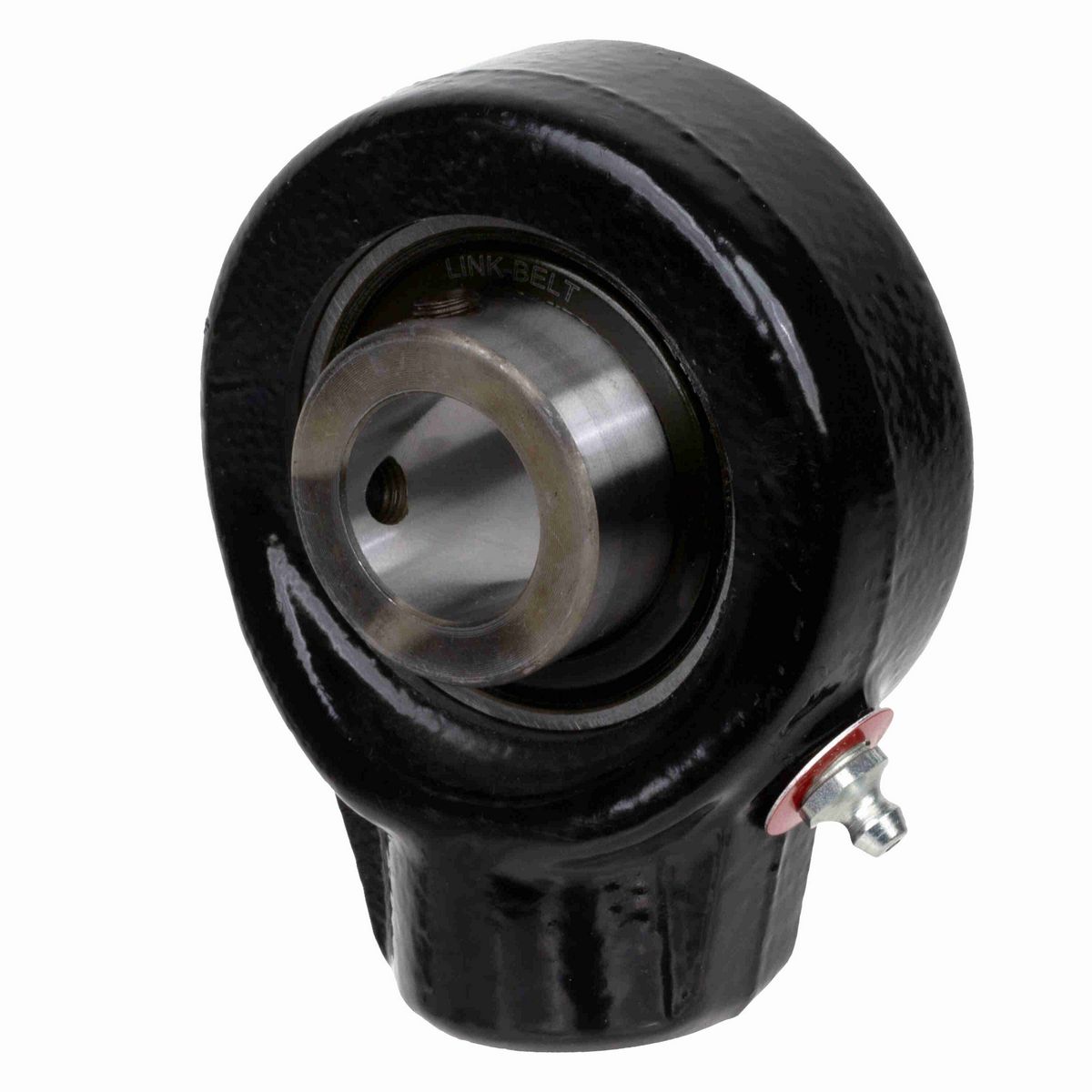

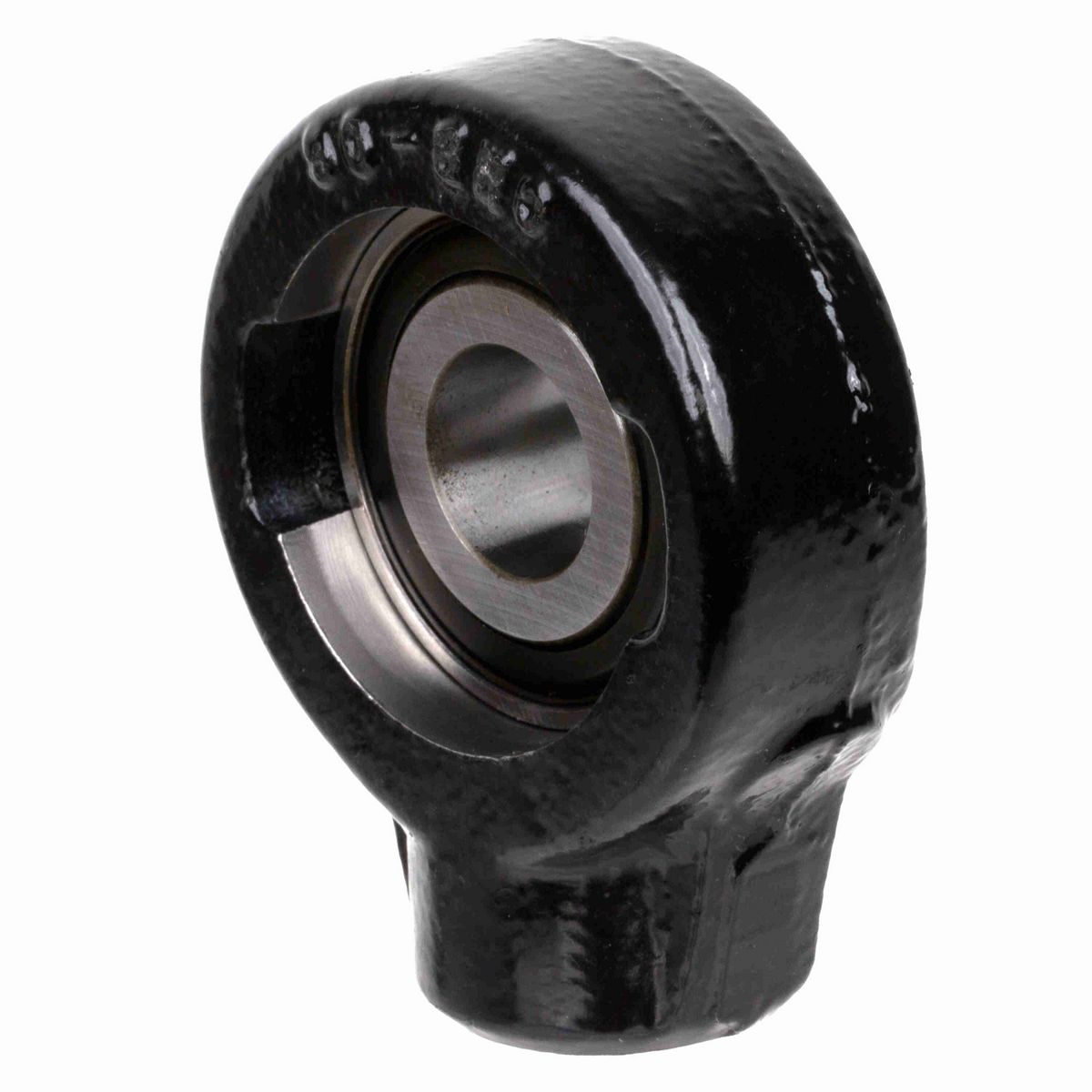

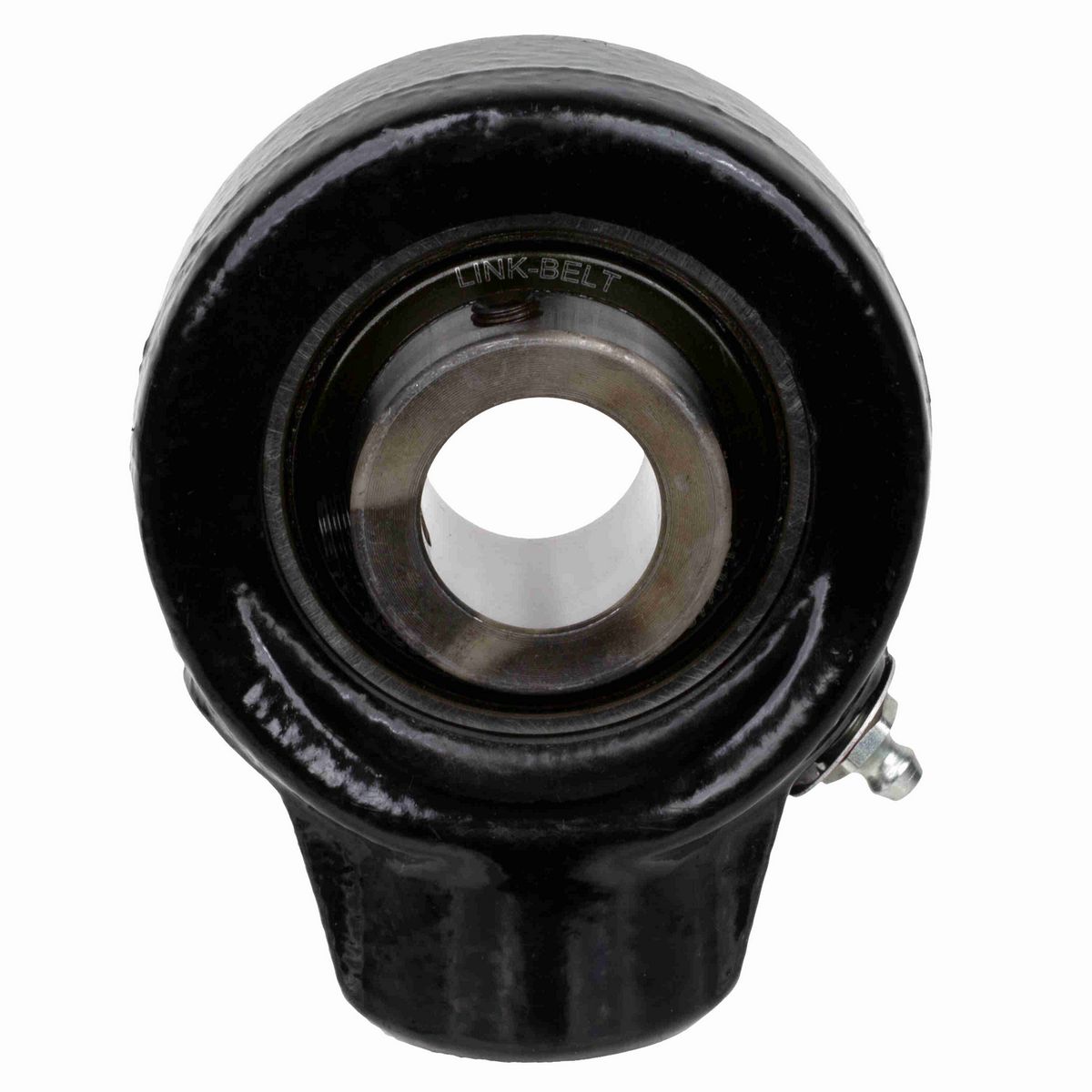

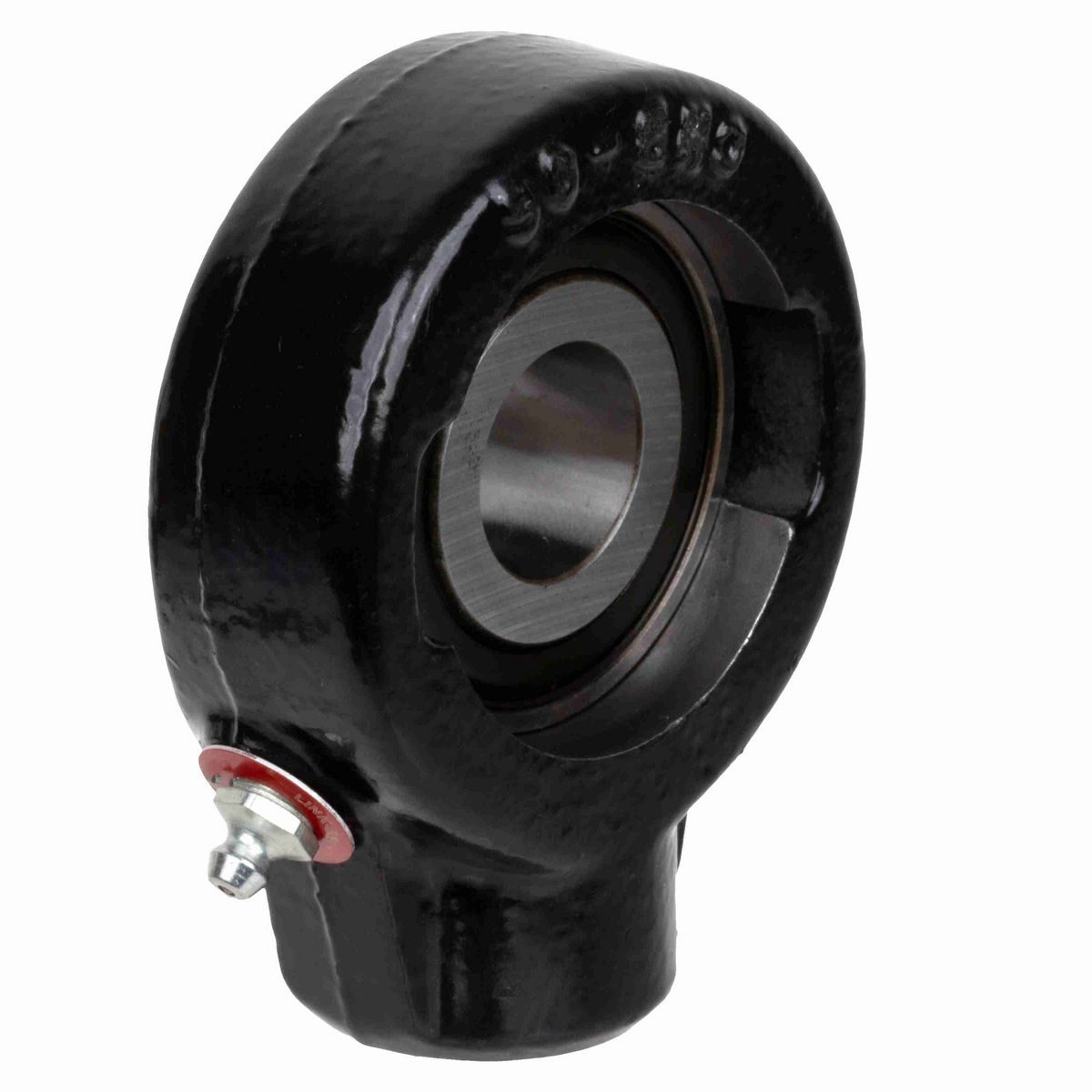

• 1" Mounted Ball Bearing, Standard Duty, Cast Iron Hanger Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Width (in)	1.66 in
Base to Center Height (in)	2.5 in
Thread Depth (in)	0.63 in
Overall Height (in)	4.19 in
Overall Length (in)	3.38 in
Bore Diameter (in)	1 in
Thread Size	3/4-14
Length Through Bore (in)	1.343 in
Base Width (in)	1.66 in
Centerline to Outermost Bearing Face (in)	0.95 in

Technical Specifications

Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Housing Type	Hanger Unit
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Style	Hanger Block
Misalignment Type	Static Only
Setscrew Torque (in-lbs)	165-185 in/lbs
Ability to Relubricate	Yes
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	225 °F
Static Load Rating (lb)	2,530 lb
Shaft Locking Type	Set Screw
Bearing Brand	LINK-BELT MEDIUM DUTY BALL
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Speed (RPM)	8000 rpm
Grease Fitting Thread Size	1/8 NPT
Dynamic Load Rating (lb)	4,390 lb
Radial Clearance	C3 STANDARD
Vibration Frequency Roller Spin	0.0385 cps
Cage Type	Ball Riding Retainer
Lubricant	EXXON RONEX MP STD
Size Code	206
Inner Ring Outside Diameter (in)	1.587 in
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	MSG216NLPA
Vibration Frequency Fundamental Train	0.0067 cps
Housing Coating	Powder Coated
End Cap Available	No
Max Operating Temperature (C)	107 °C
Bearing Type	Medium Duty
Housing Width (in)	1.22 in

General Specifications

UPC	662864874632
Weight	2.23 LB
Packaged Length	4.75 IN
Packaged Width	4.75 IN
Packaged Height	1.88 IN
HTC	8483204040
Country of Origin	Mexico
