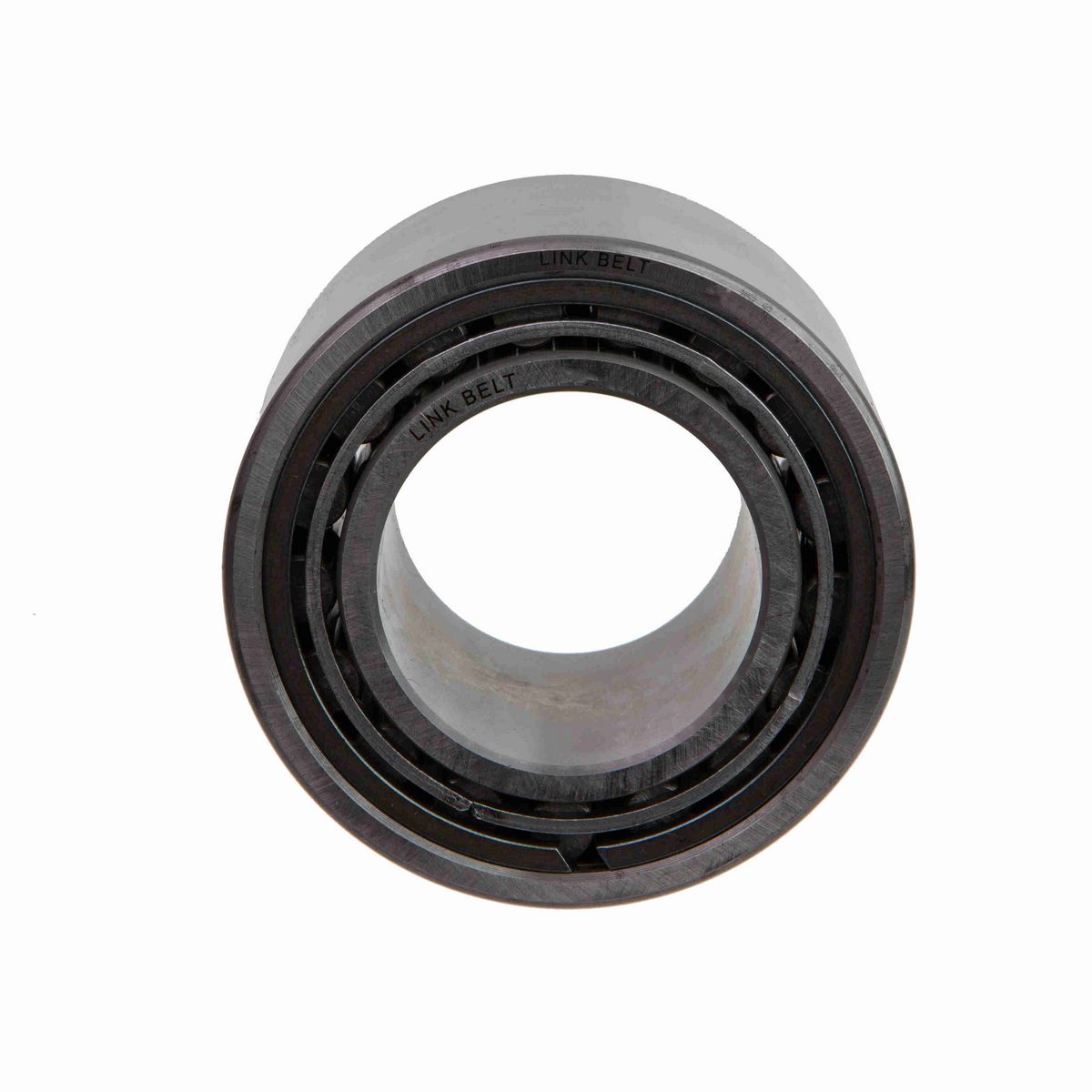

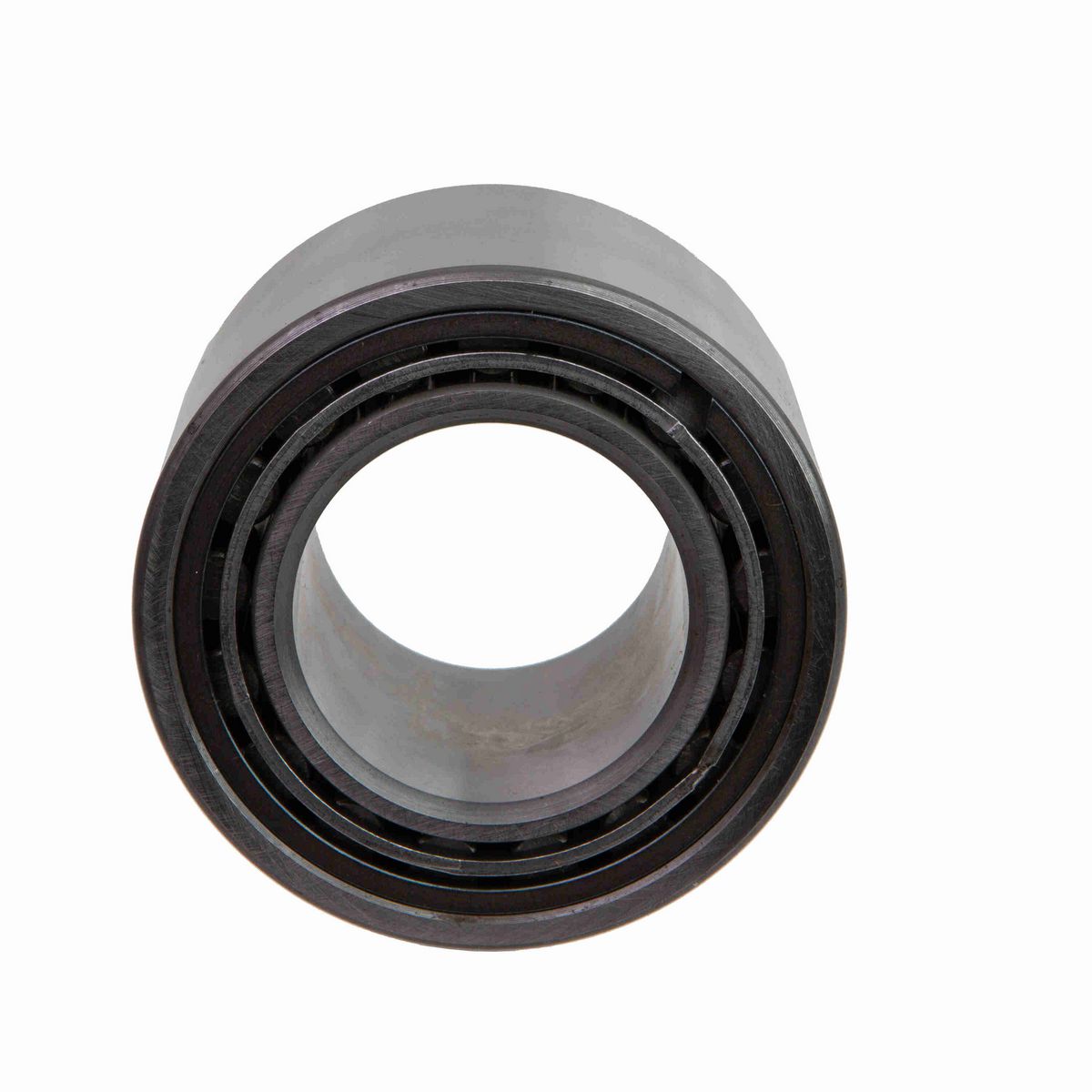

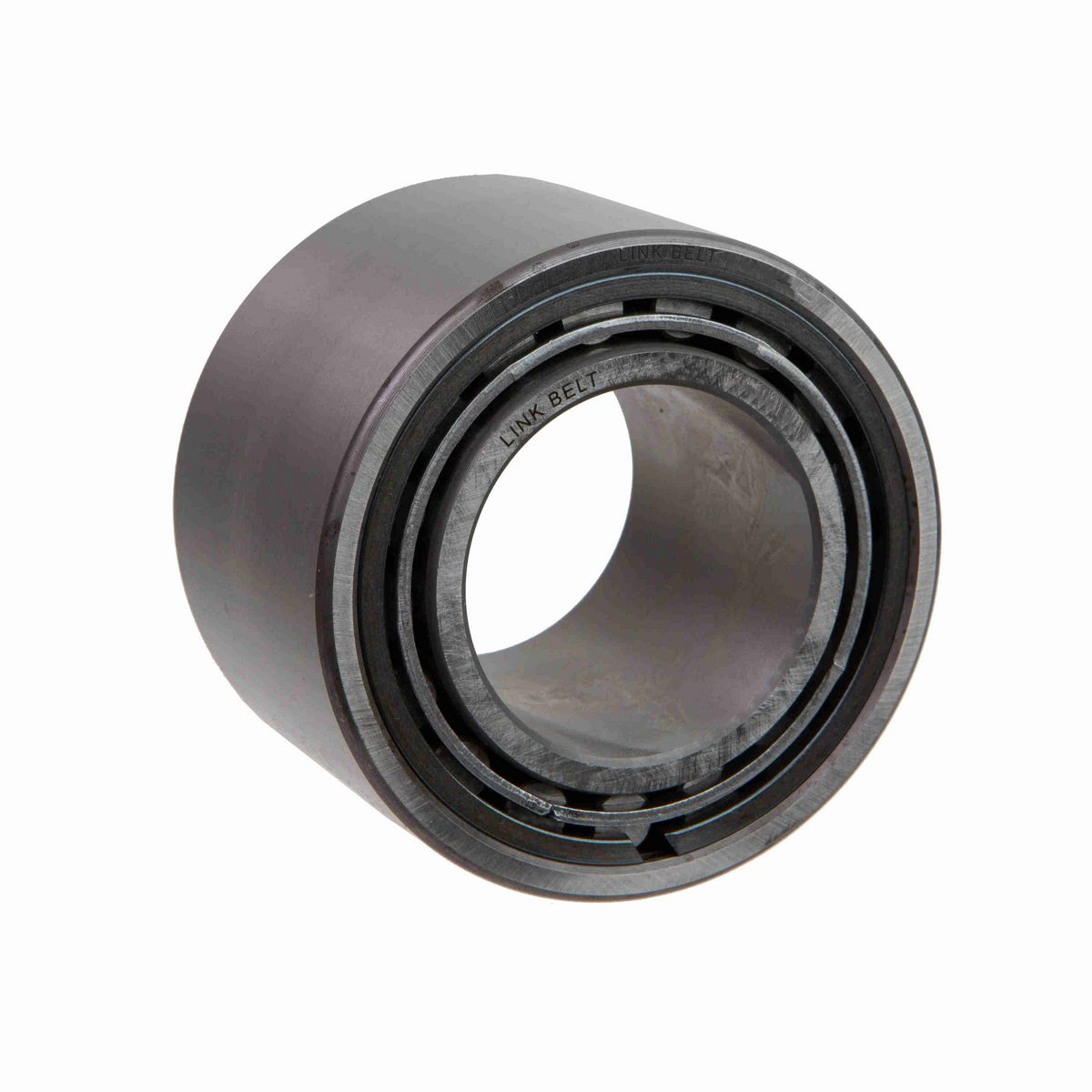

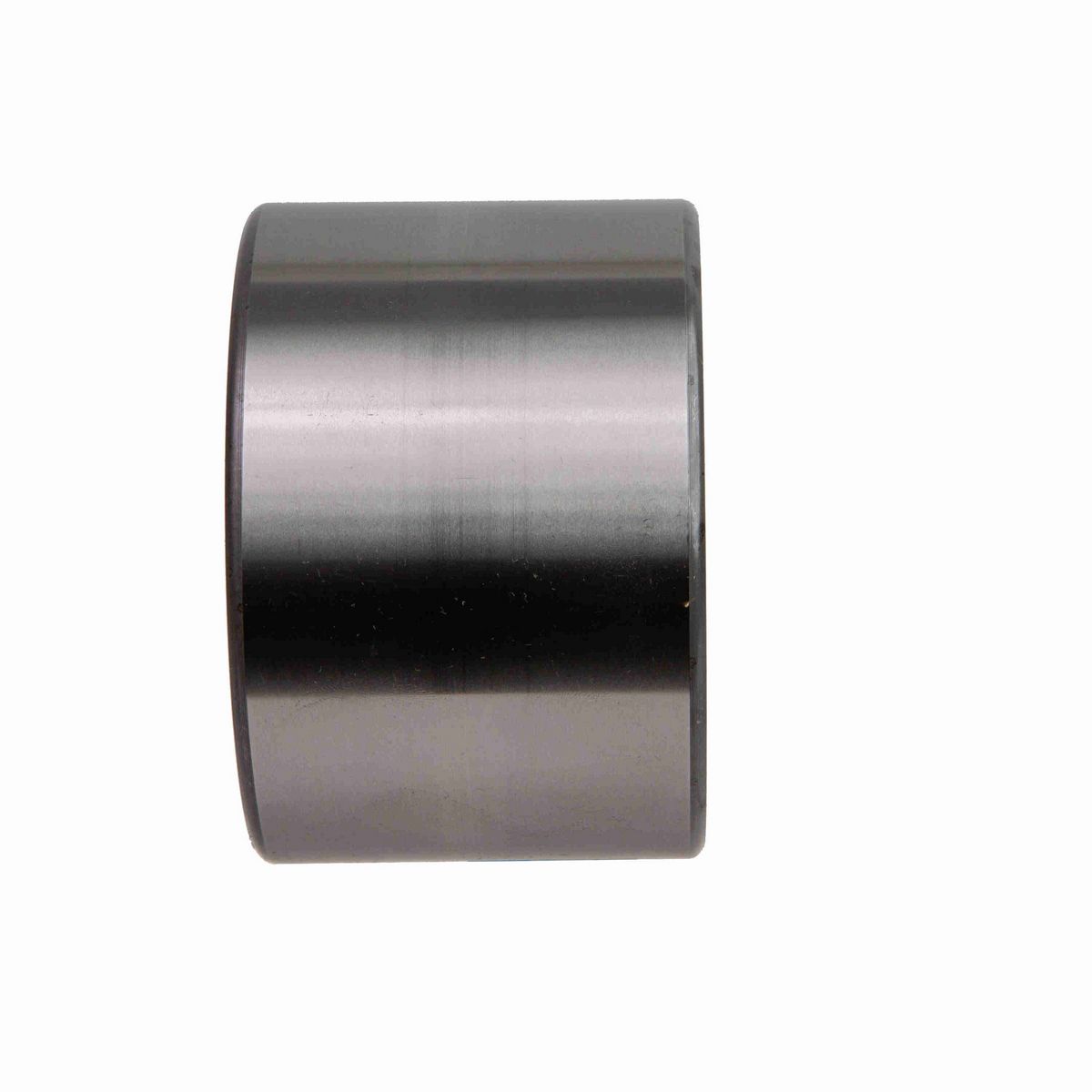

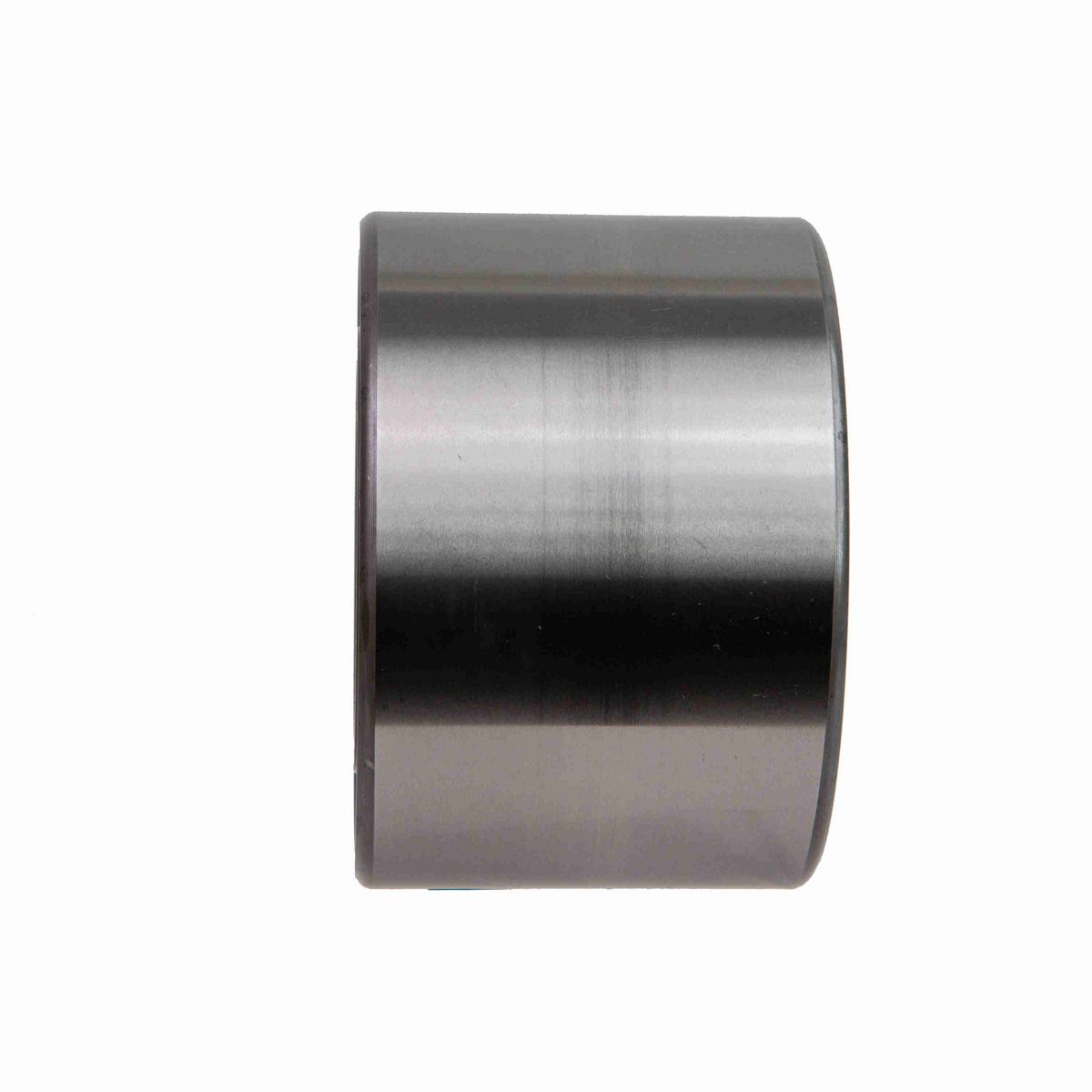

• 95 mm Cylindrical Roller Bearing with plain cylindrical inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	95 mm
Outside Diameter (mm)	170 mm

Technical Specifications

Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Rolling Element	Cylindrical
Mounted Clearance	SEE DESCRIPTION
Series	Unmounted Bearings
Housing Shoulder Diameter [Min] (mm)	157.00 mm mm
Vibration Frequency Fundamental Train	CALL ENG cps
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring Bore Radius (mm)	2.03 mm
Product	Series 6200 Unmounted Bearings High Capacity
Bearing Width (mm)	111.13 mm
Retainer Type	SEE DESCRIPTION
Bore Type	Straight
Series Weight	Light (2)
Co Static Load Rating	CALL ENG lb
Ring Width Series	Double Row (6)
Shaft Locking	DIRECT SHAFT MOUNT
Shaft Shoulder Diameter [Min] (mm)	109 mm
Inner Ring Raceway Outside Diameter (mm)	113.52 mm
Basic Bearing Number	6219
Vibration Frequency Roller Spin	CALL ENG cps
Inner Ring Type	Plain Cylindrical (A)
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Outer Ring Defect	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	151.24 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps

General Specifications

UPC	793699019070
Weight	24.85 LB
HTC	8482500000
Country of Origin	Mexico
