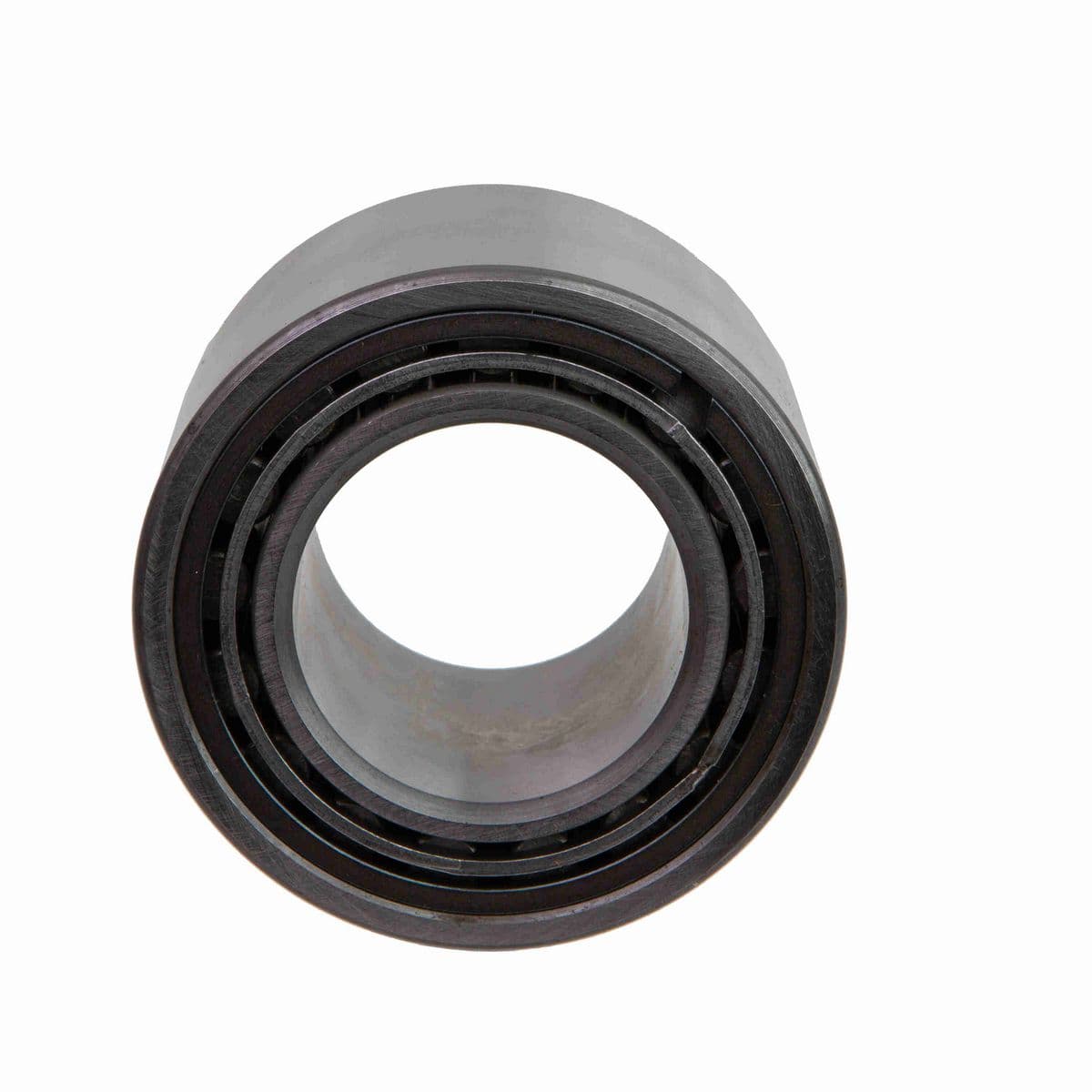

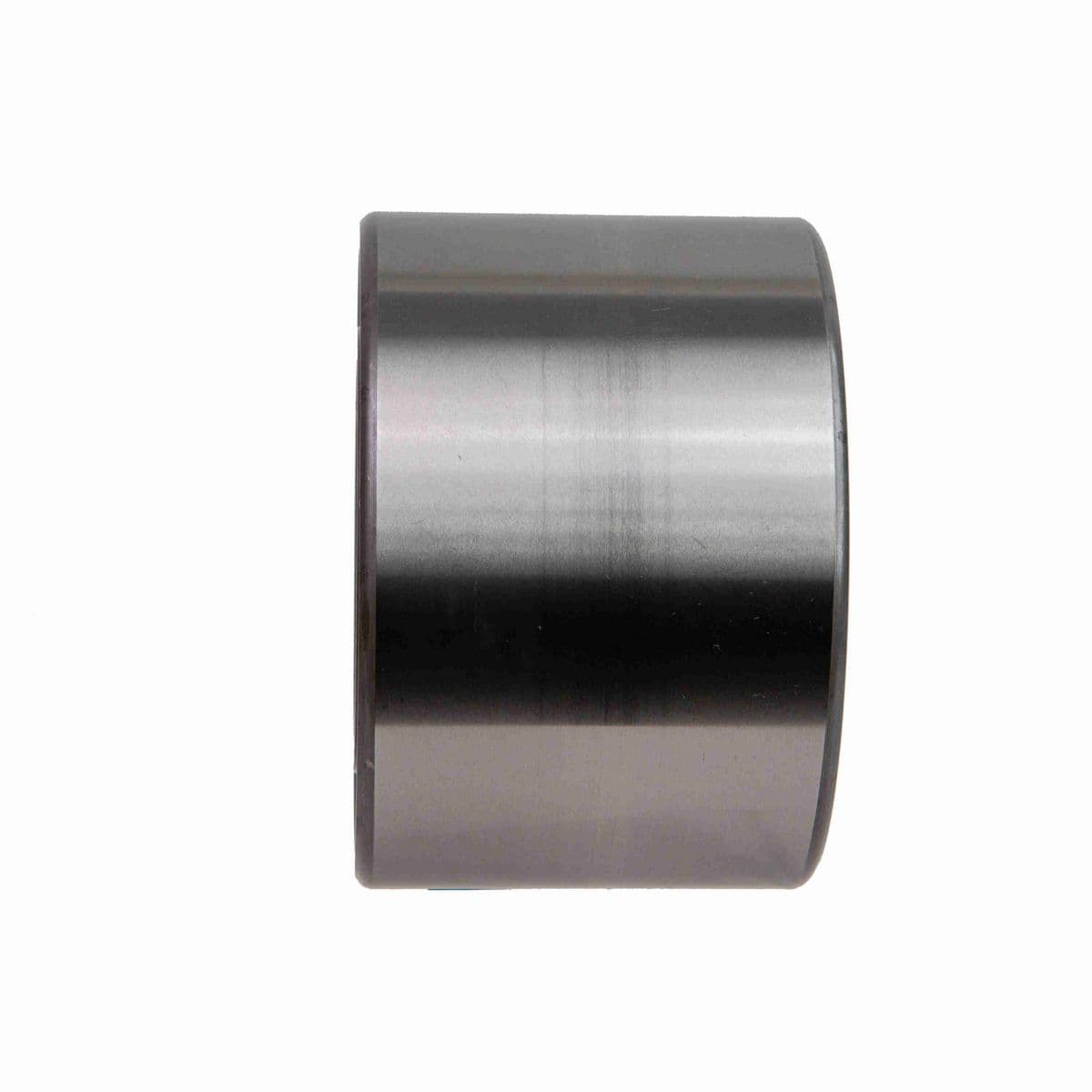

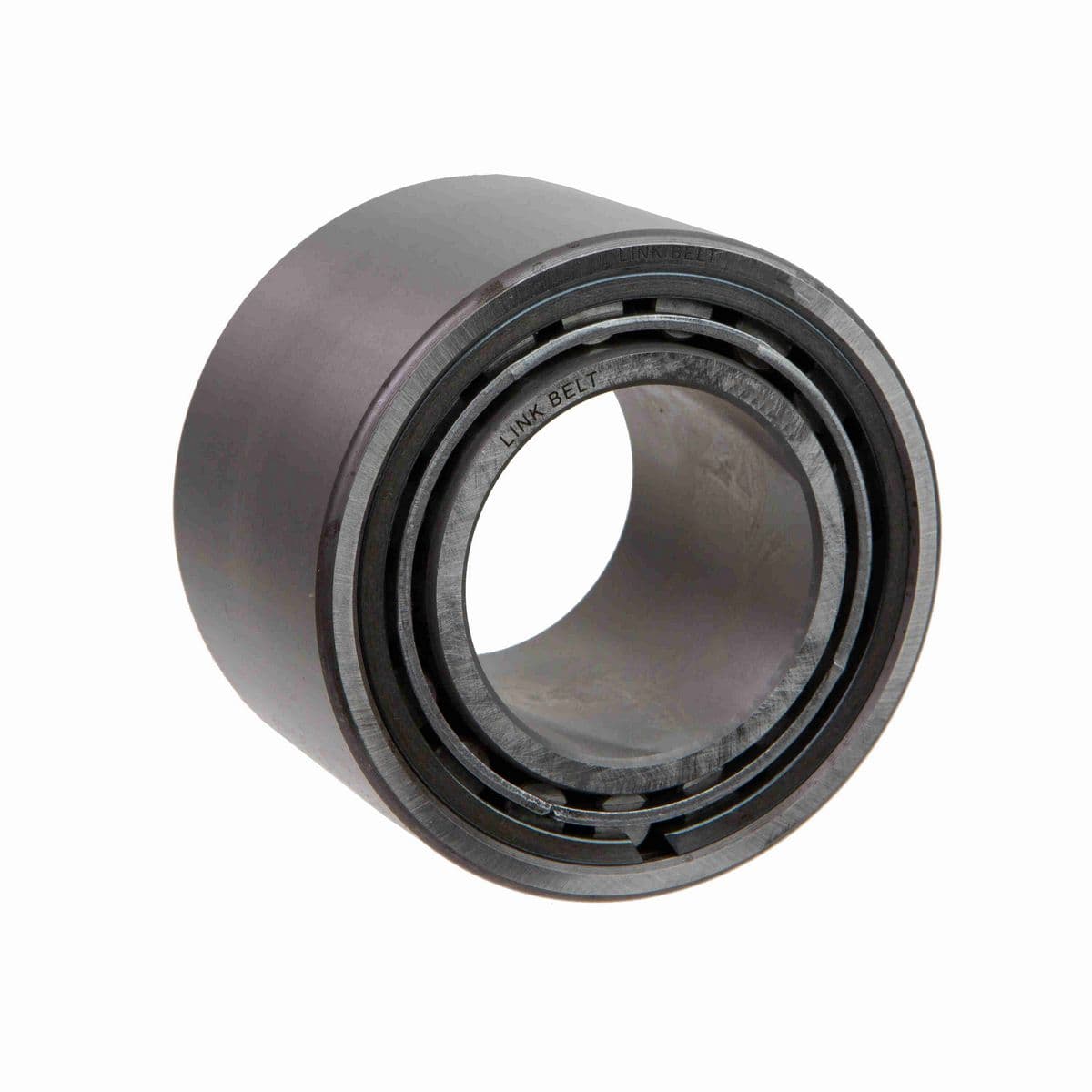

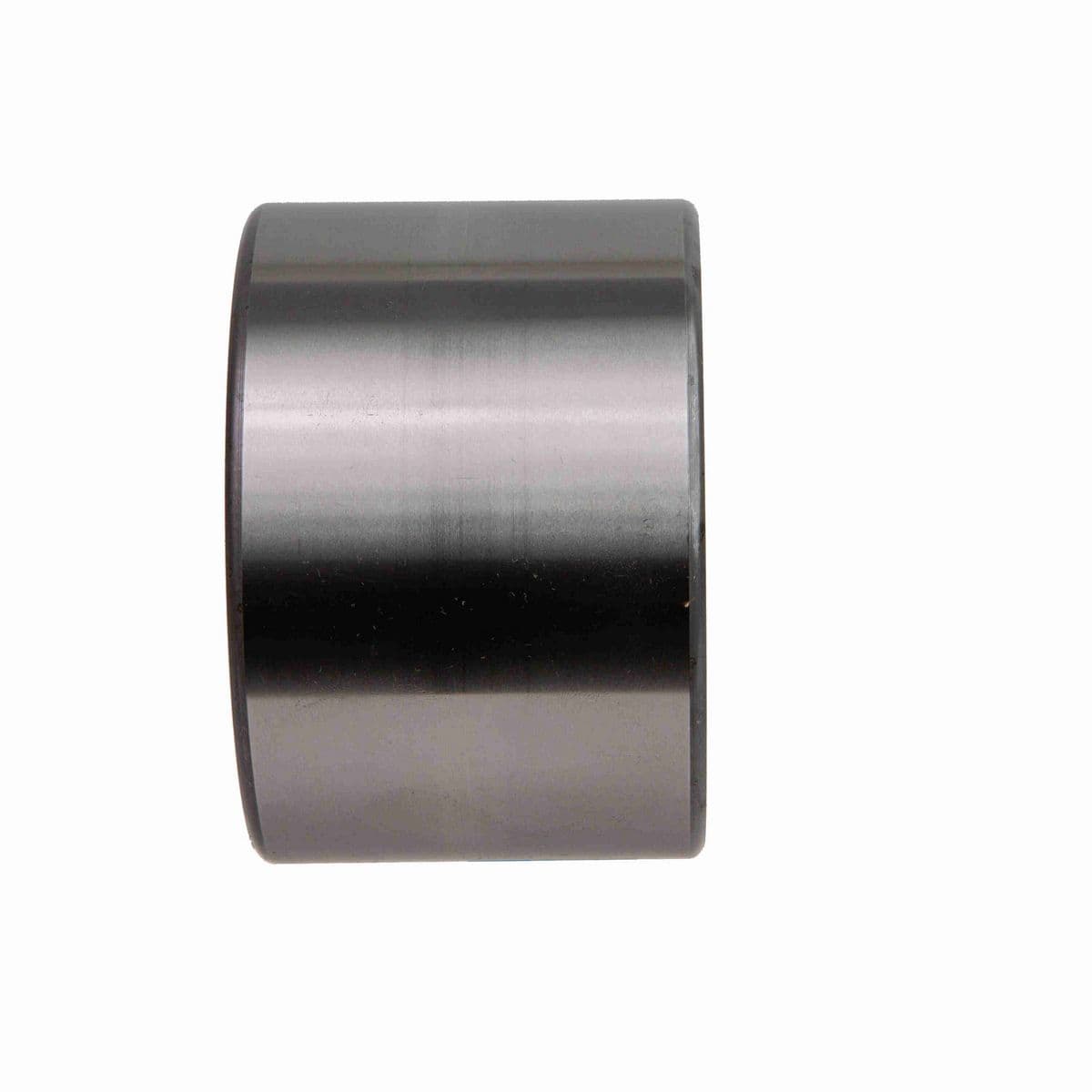

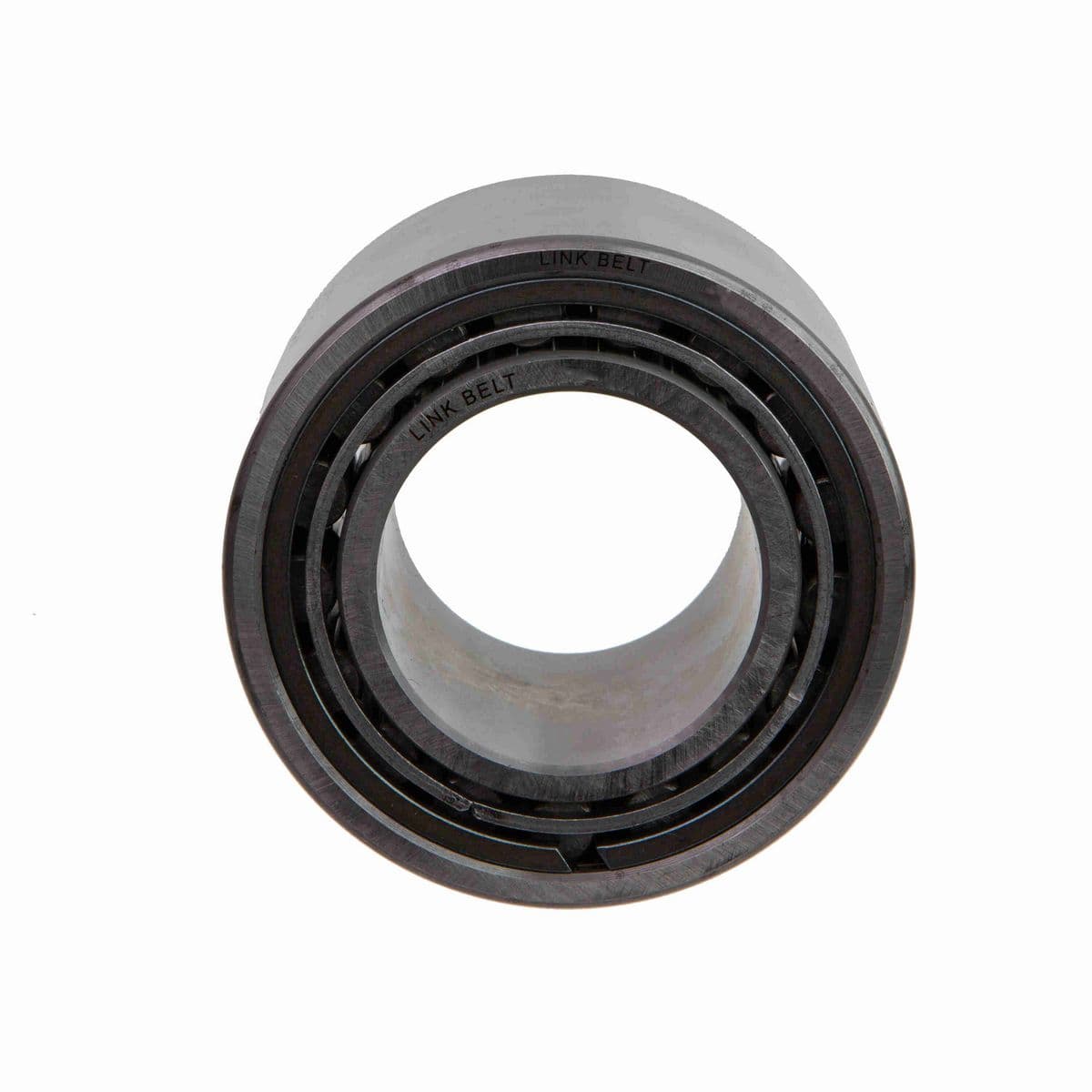

• 50 mm Cylindrical Roller Bearing with plain cylindrical inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	50 mm
Outside Diameter (mm)	90 mm

Technical Specifications

Outer Ring Raceway Inside Diameter (mm)	79.55 mm
Co Static Load Rating	CALL ENG lb
Ring Width Series	Double Row (6)
Basic Bearing Number	6210
Product	Series 6200 Unmounted Bearings High Capacity
Bearing Width (mm)	60.33 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Vibration Frequency Roller Spin	CALL ENG cps
Series Weight	Light (2)
Retainer Type	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	60.51 mm
Housing Shoulder Diameter [Min] (mm)	82.80 mm mm
C Dynamic Load Rating	CALL ENG lb
Inner Ring Type	Plain Cylindrical (A)
Bore Type	Straight
Rolling Element	Cylindrical
Inner Ring Raceway Outside Diameter (mm)	60.46 mm
Maximum Speed (RPM)	CALL ENG rpm
Shaft Locking	DIRECT SHAFT MOUNT
Mounted Clearance	SEE DESCRIPTION
Vibration Frequency Fundamental Train	CALL ENG cps
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Series	Unmounted Bearings
Inner Ring Bore Radius (mm)	1.02 mm
Shaft Shoulder Diameter [Min] (mm)	57.6 mm

General Specifications

UPC	662327054007
Weight	3.63 LB
HTC	8482500000
Country of Origin	Mexico
