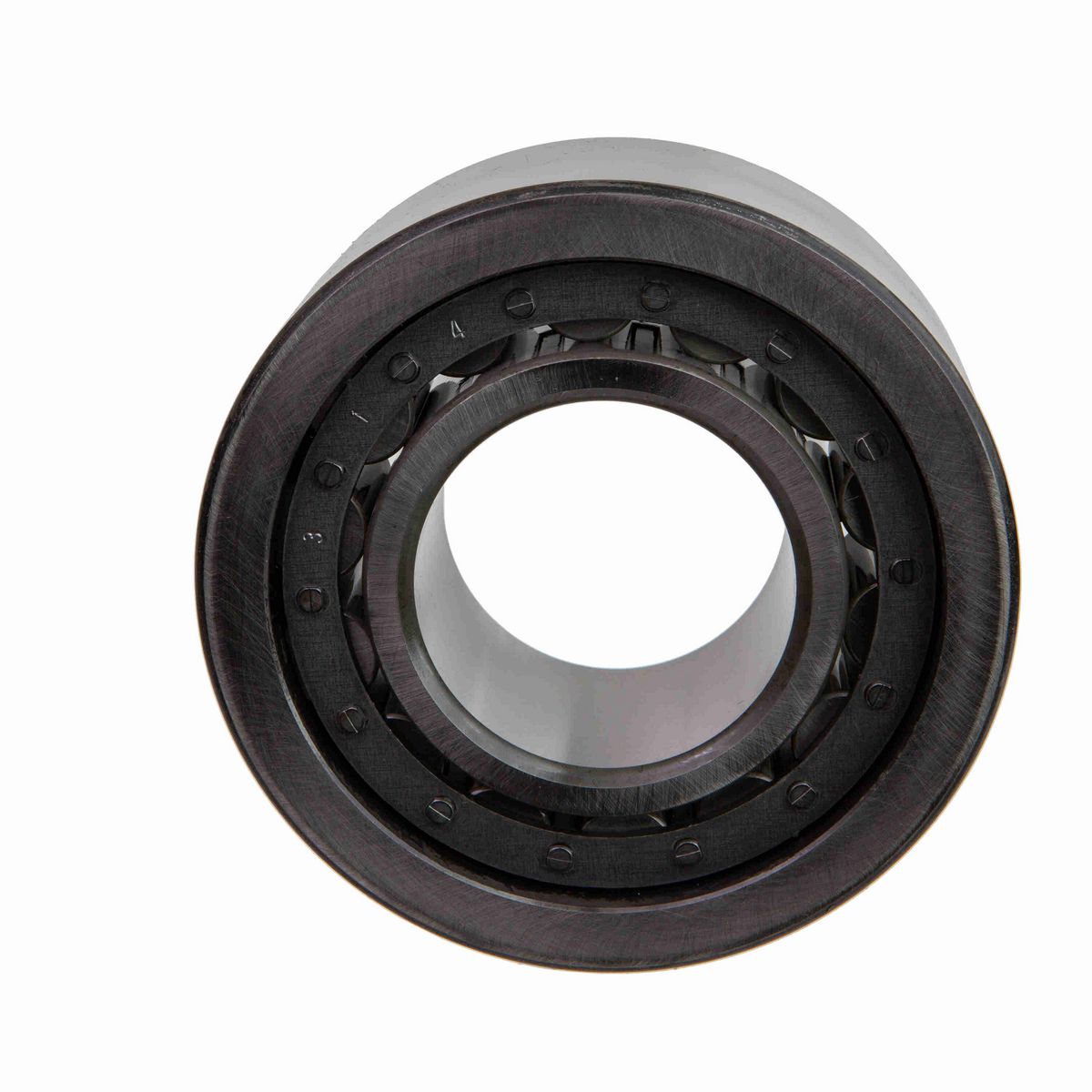

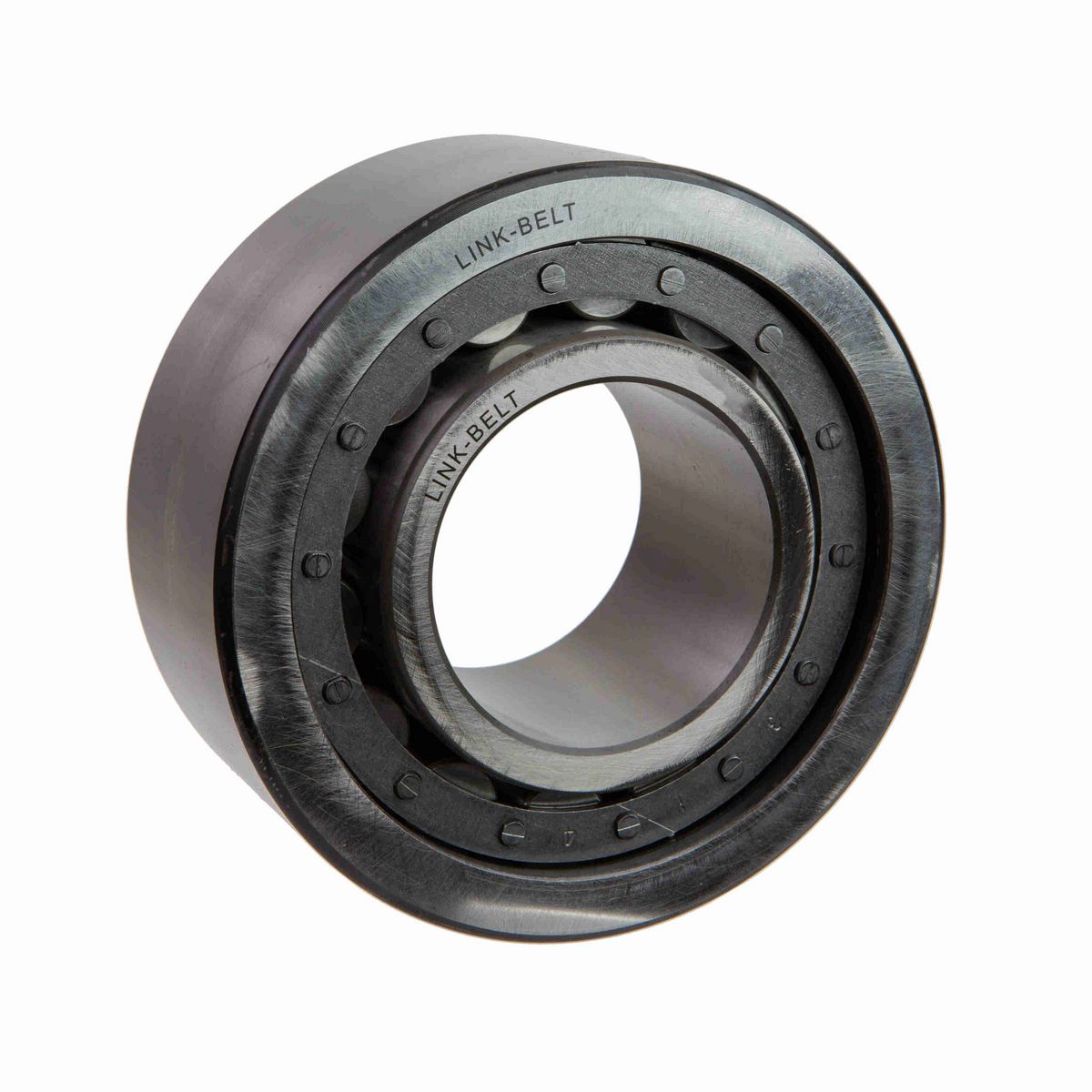

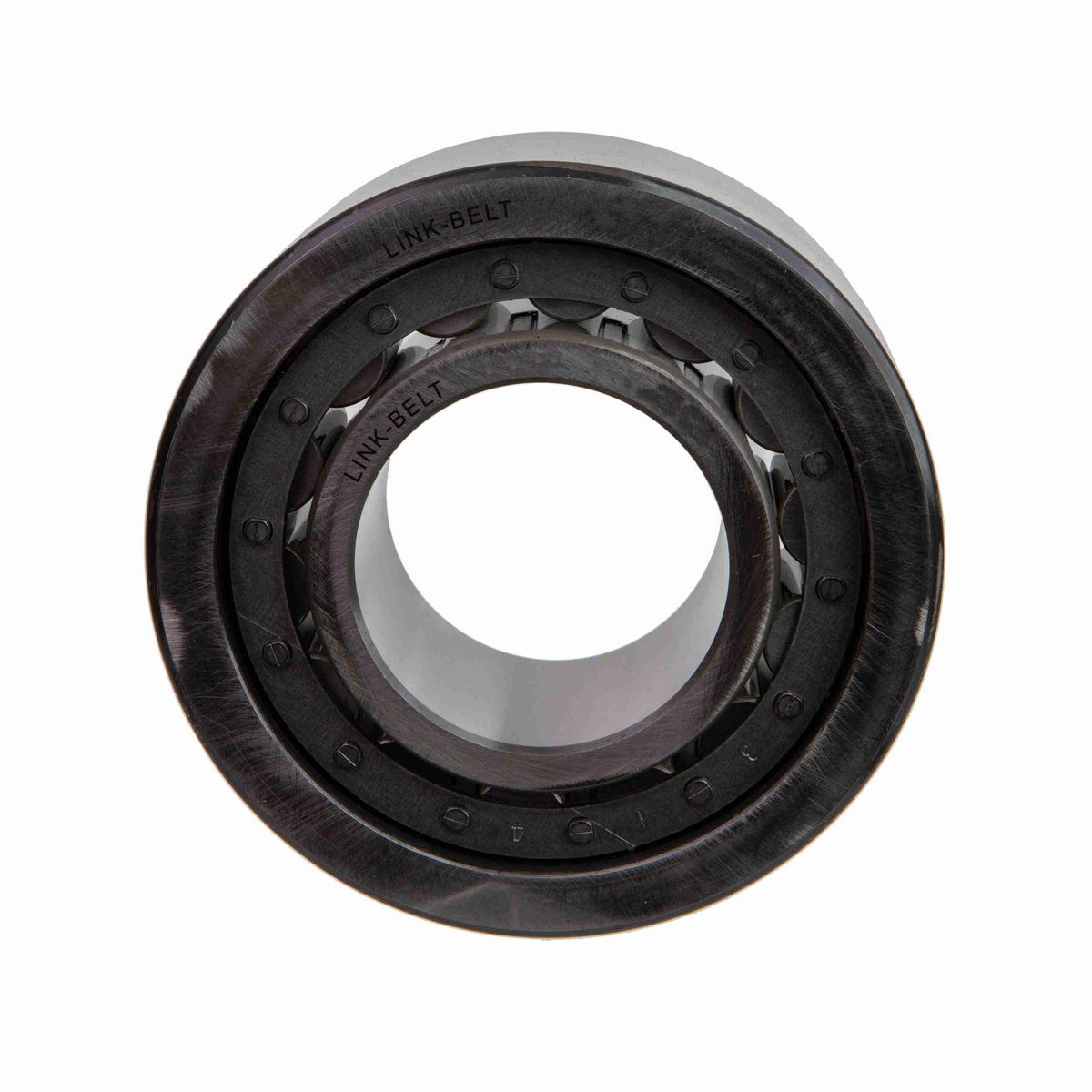

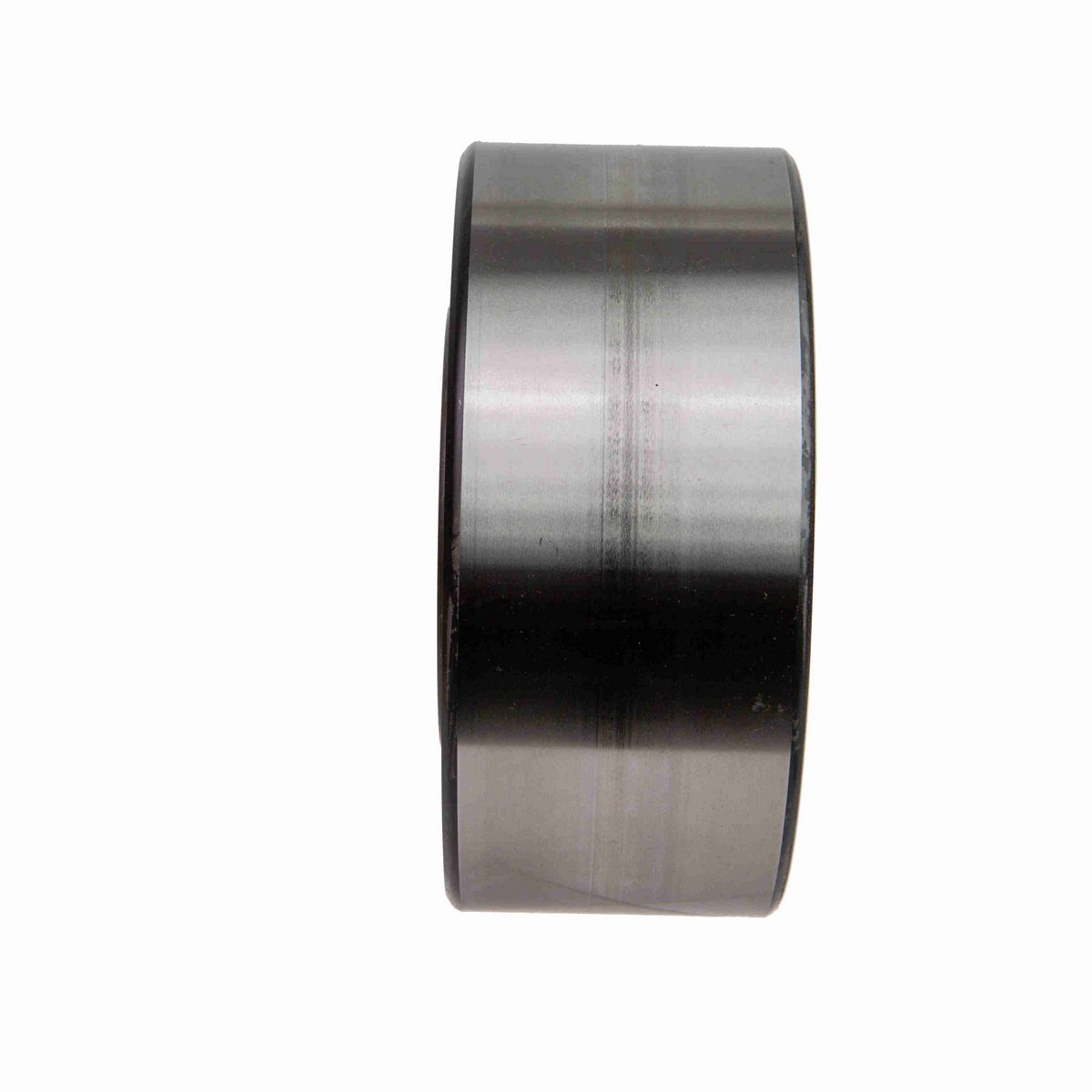

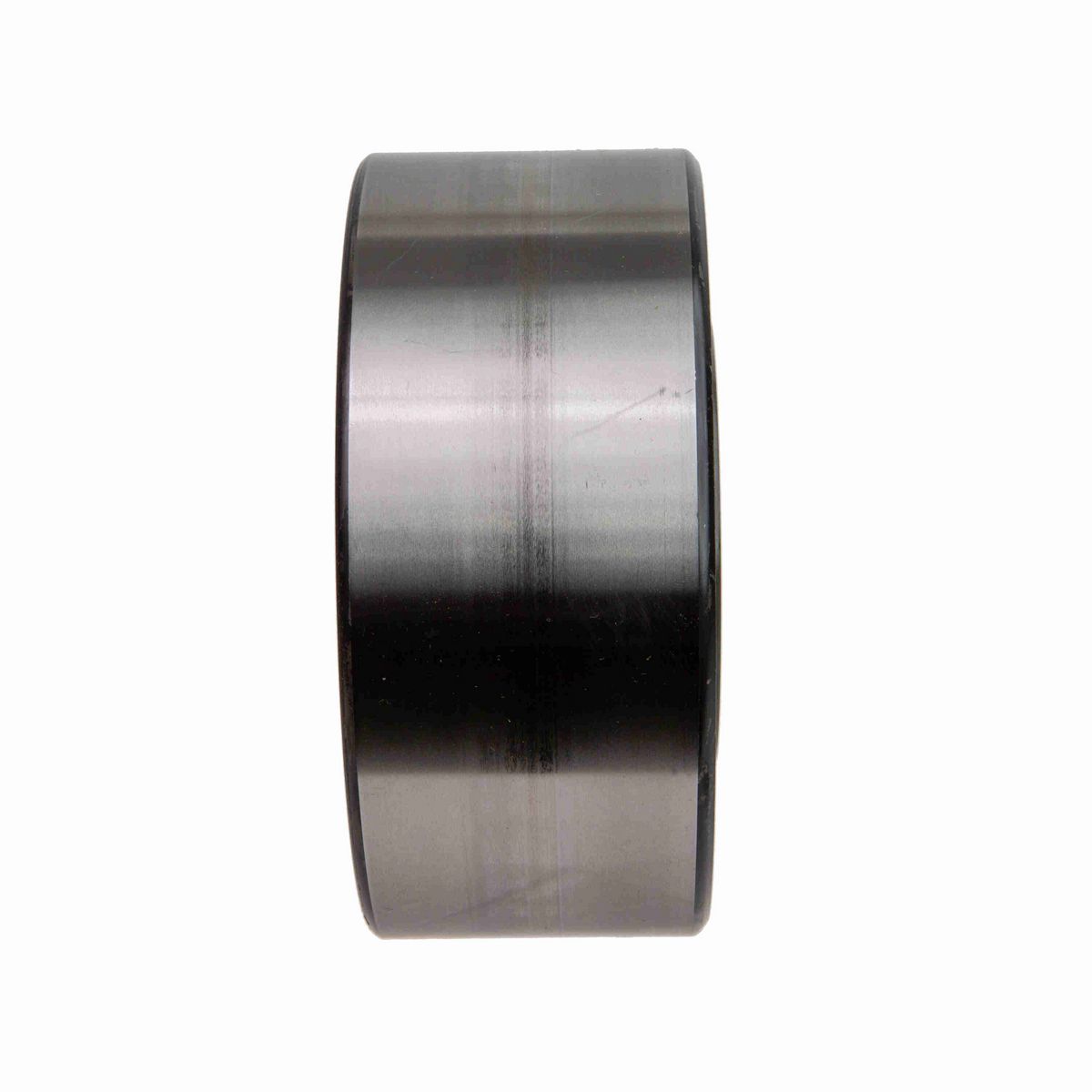

• 90 mm Cylindrical Roller Bearing with plain cylindrical inner ring, double rib outer ring and segmented retainer, Special internal clearance of .0032" to .0045"

Dimensions

Bore Size (mm)	90 mm
Outside Diameter (mm)	160 mm

Technical Specifications

Inner Ring Type	Plain Cylindrical (A)
Inner Ring Rib Outside Diameter (mm)	114.17 mm
Inner Ring Bore Radius (mm)	3.18 mm
C Dynamic Load Rating	CALL ENG lb
Inner Ring and Roller Assembly Over Roller Diameter (mm)	142.1 mm
Series	Unmounted Bearings
Product	Series 5200 Unmounted Bearings
Vibration Frequency Fundamental Train	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	135.89 mm
Co Static Load Rating	CALL ENG lb
Outer Ring Type	Double Rib Outer Ring (E)
Bore Type	Straight
Bearing Width (mm)	52.39 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	107.2 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	142.19 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	103.1 mm
Rolling Element	Cylindrical
Mounted Clearance	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Shaft Locking	DIRECT SHAFT MOUNT
Basic Bearing Number	5218
Ring Width Series	Wide (5)
Vibration Frequency Outer Ring Defect	CALL ENG cps
Inner Ring Raceway Outside Diameter (mm)	107.22 mm
Maximum Speed (RPM)	CALL ENG rpm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	147.6 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	142 mm
Series Weight	Light (2)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	107.31 mm
Retainer Type	SEE DESCRIPTION

General Specifications

UPC	662327684709
Weight	10.05 LB
HTC	8482500000
Country of Origin	Mexico
