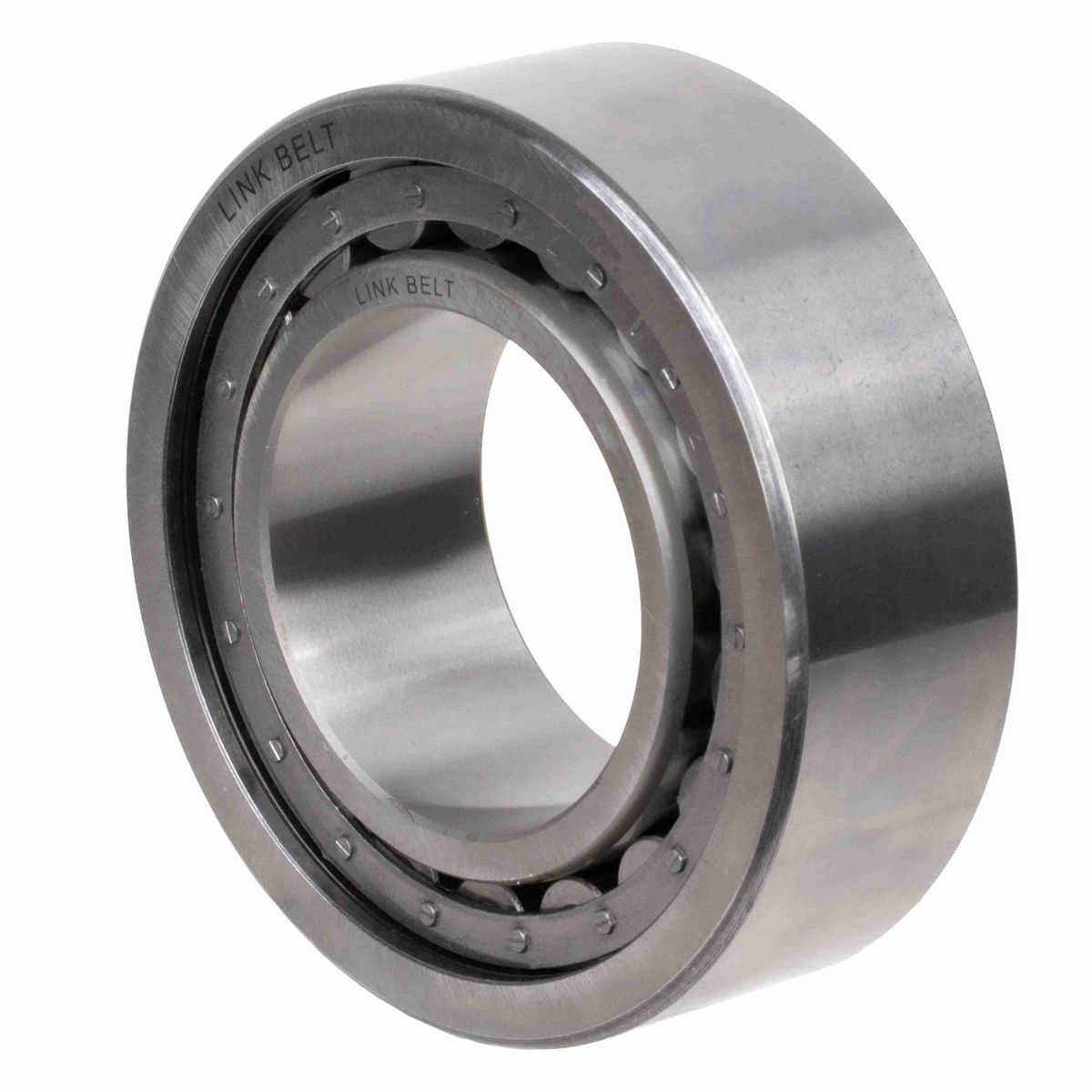

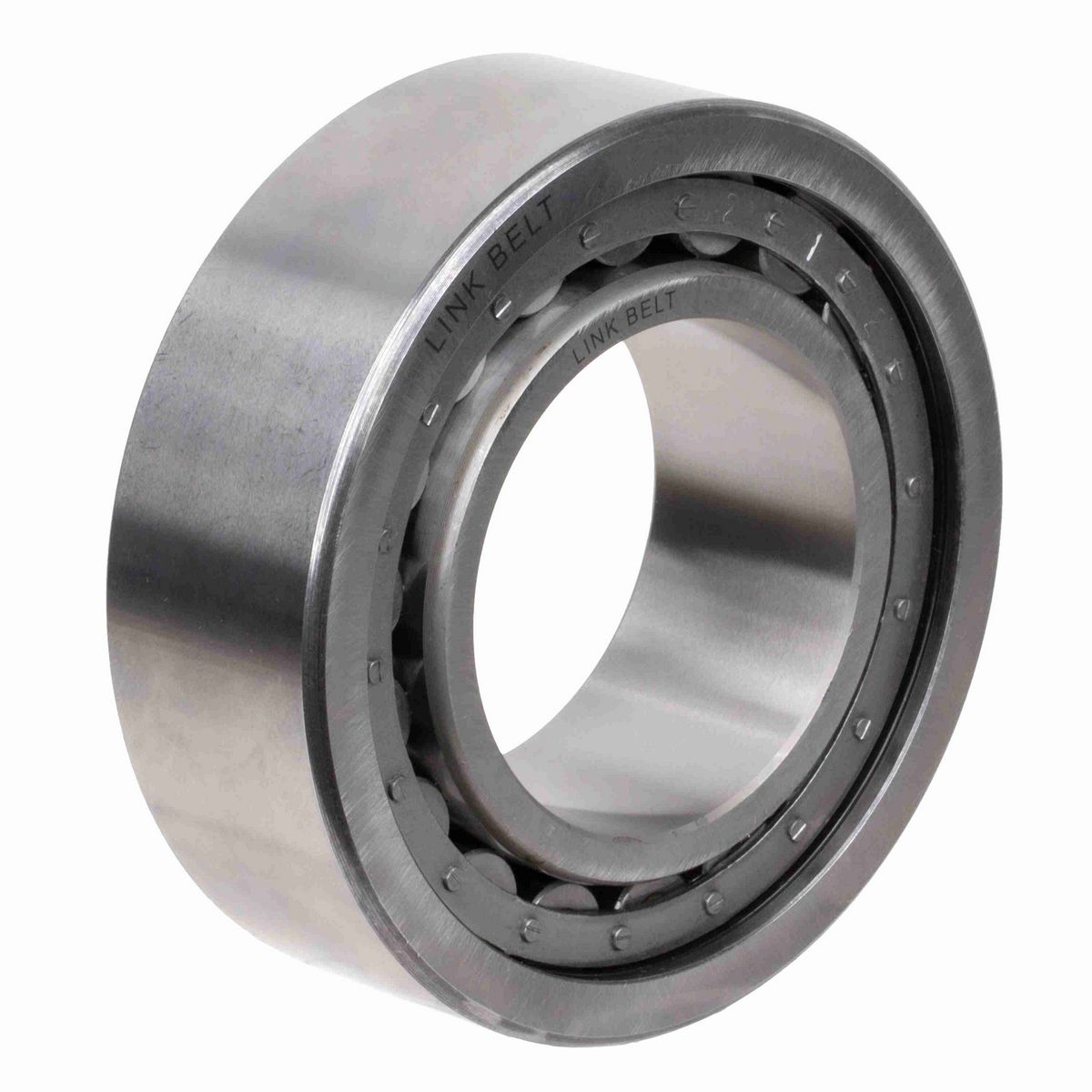

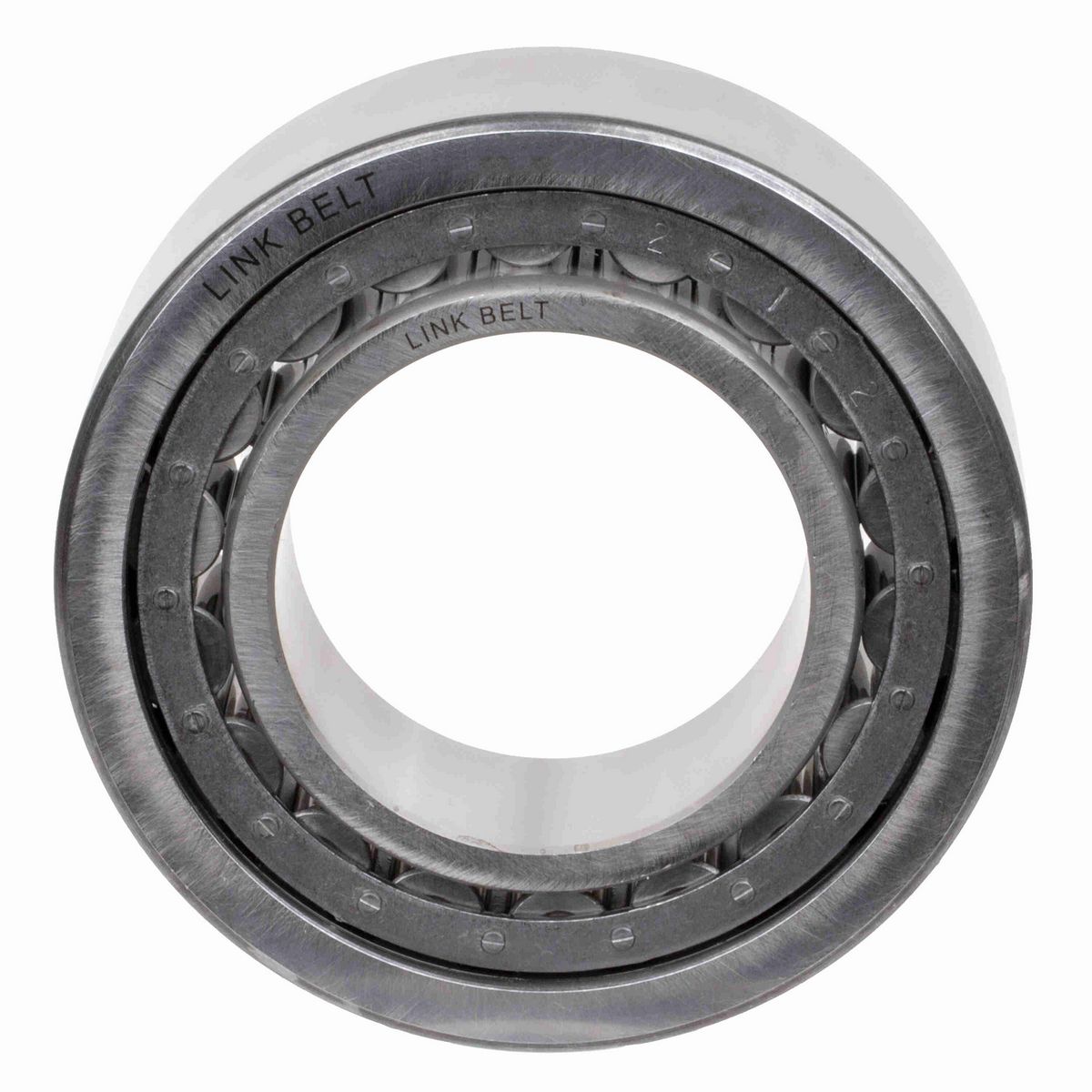

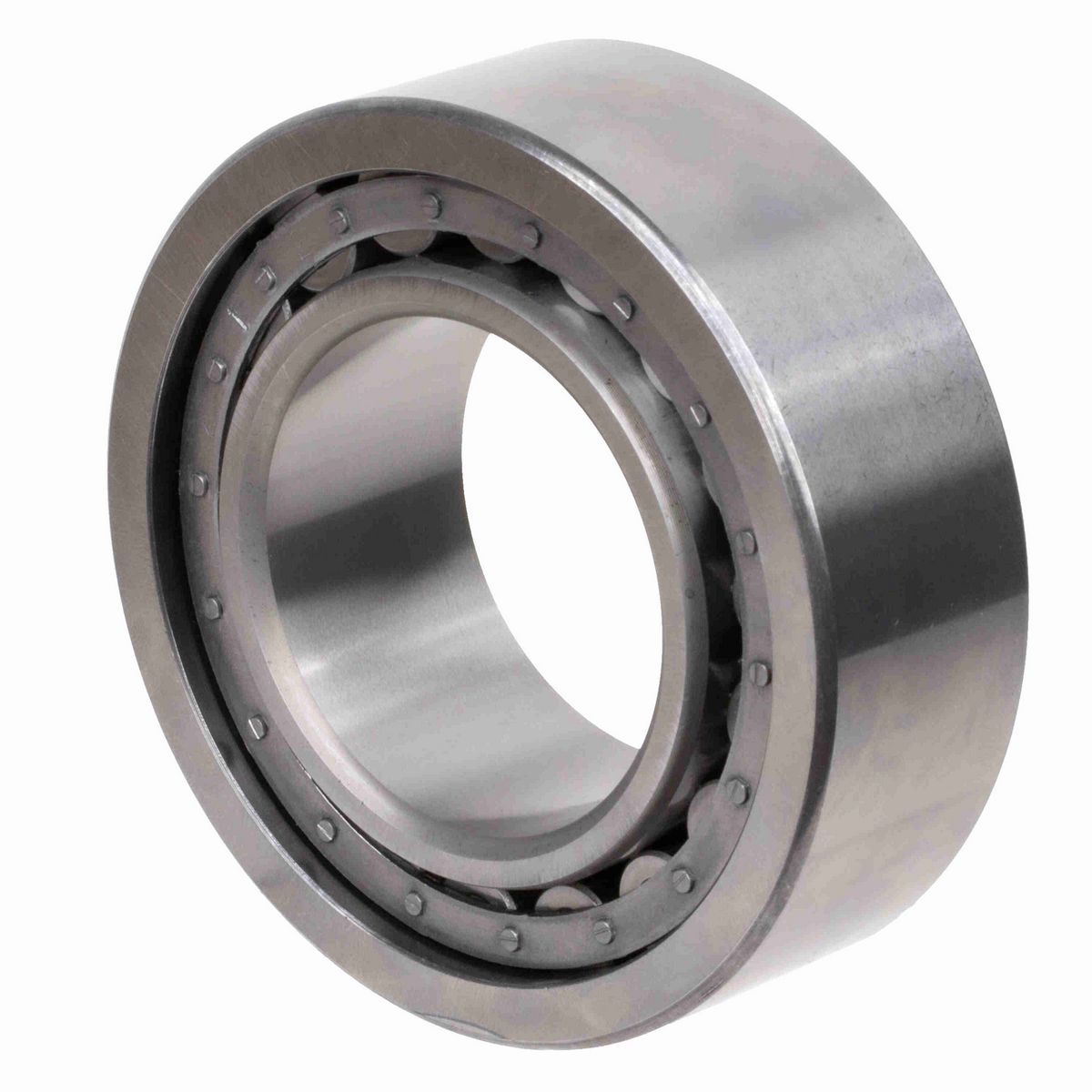

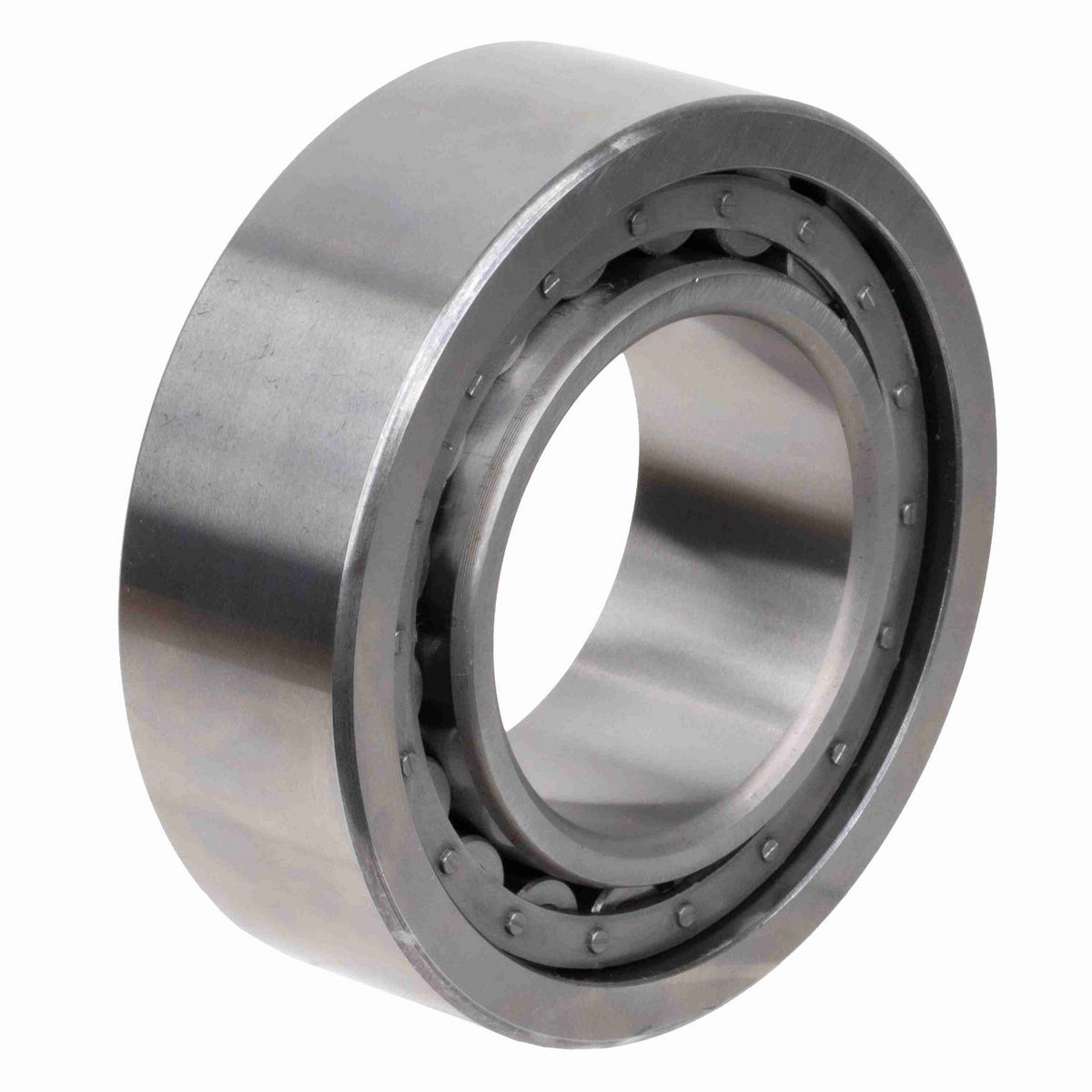

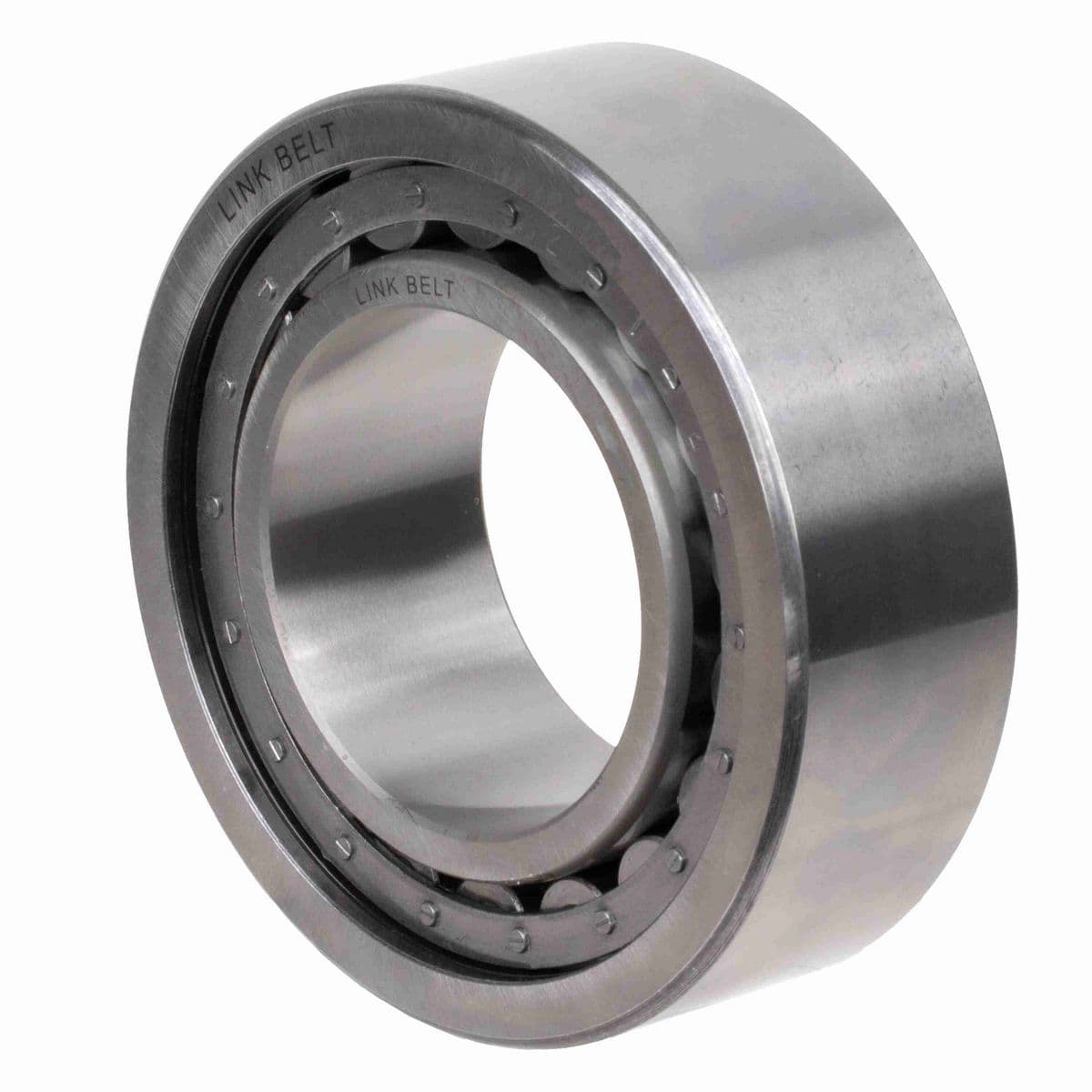

• 60 mm Cylindrical Roller Bearing with plain cylindrical inner ring, double rib outer ring and segmented retainer

Dimensions

Outside Diameter (mm)	110 mm
Bore Size (mm)	60 mm

Technical Specifications

Co Static Load Rating	CALL ENG lb
Ring Width Series	Wide (5)
Rolling Element	Cylindrical
Vibration Frequency Fundamental Train	CALL ENG cps
C Dynamic Load Rating	CALL ENG lb
Inner Ring Rib Outside Diameter (mm)	76.94 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	101.3 mm
Maximum Speed (RPM)	CALL ENG rpm
Inner Ring Type	Plain Cylindrical (A)
Series Weight	Light (2)
Vibration Frequency Roller Spin	CALL ENG cps
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	97.5 mm
Outer Ring Rib Inside Diameter (mm)	93.5 mm
Series	Unmounted Bearings
Bearing Width (mm)	36.51 mm
Bore Type	Straight
Inner Ring Bore Radius (mm)	1.52 mm
Outer Ring and Roller Assembly Under Roller Diameter (mm)	72.44 mm
Product	Series 5200 Unmounted Bearings
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	69.3 mm
Outer Ring Raceway Inside Diameter (mm)	97.76 mm
Retainer Type	SEE DESCRIPTION
Shaft Locking	DIRECT SHAFT MOUNT
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Basic Bearing Number	5212
Inner Ring Raceway Outside Diameter (mm)	72.38 mm
Mounted Clearance	SEE DESCRIPTION
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	72.1 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	97.7 mm
Outer Ring Type	Double Rib Outer Ring (E)

General Specifications

UPC	662327053000
Weight	3.33 LB
HTC	8482500000
Country of Origin	Mexico
