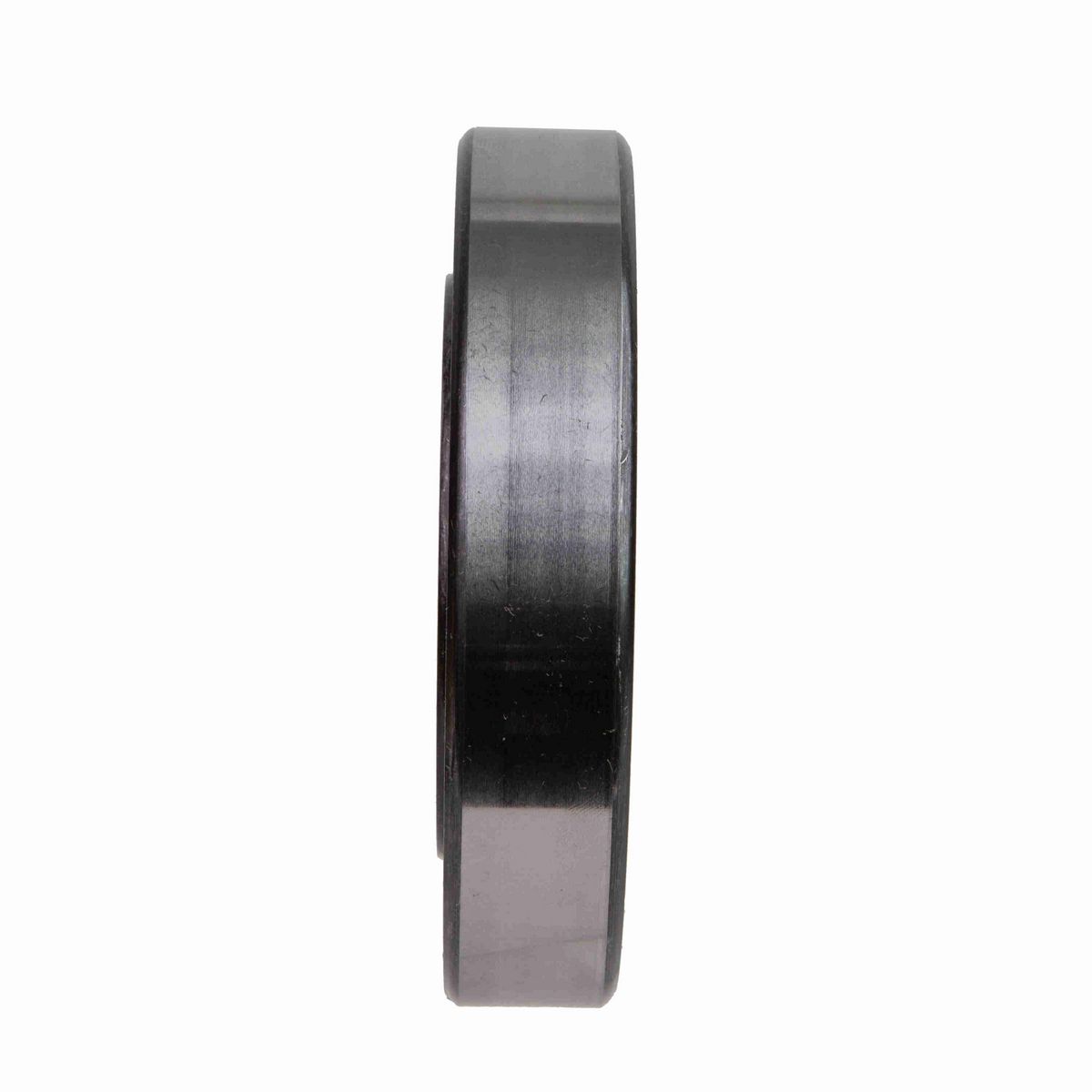

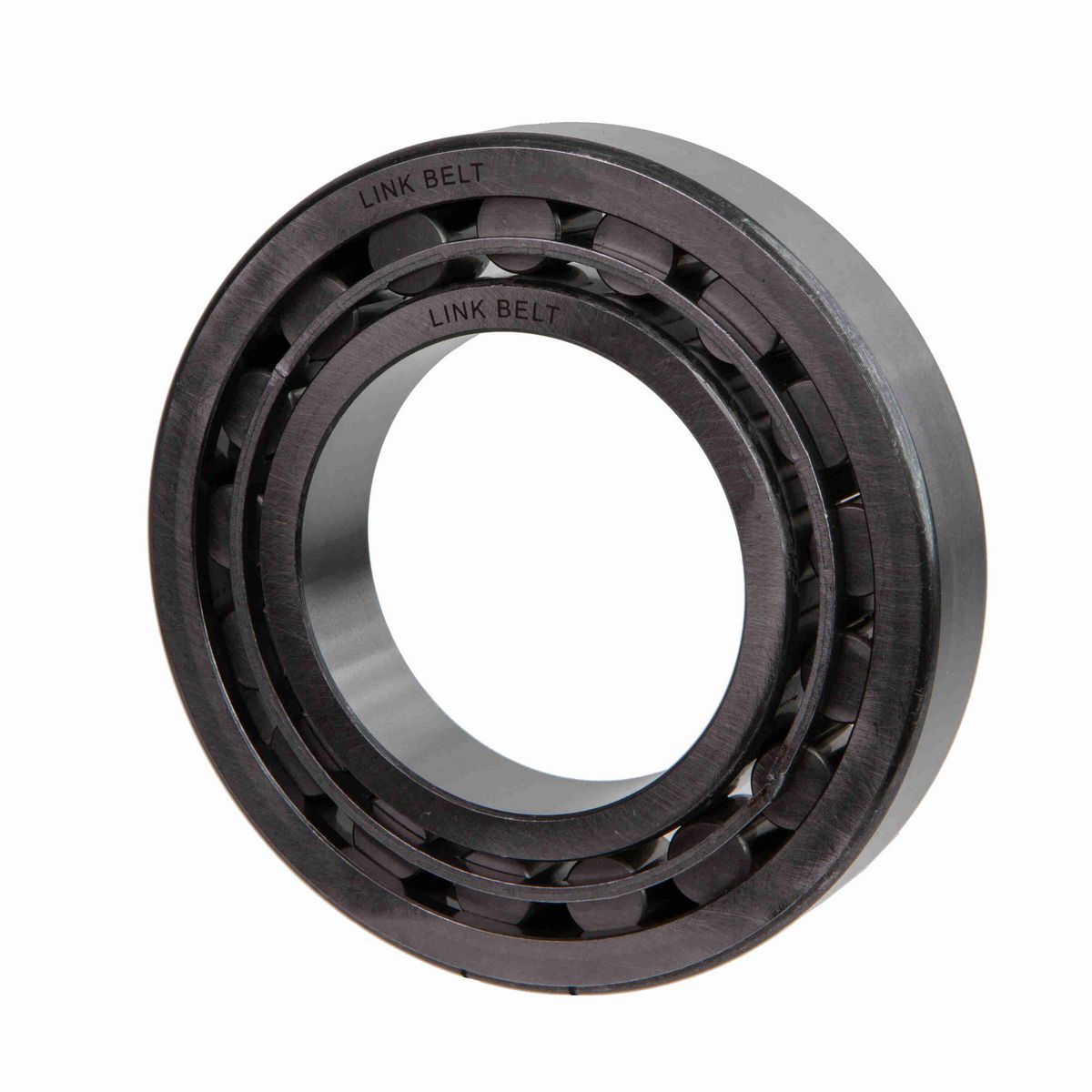

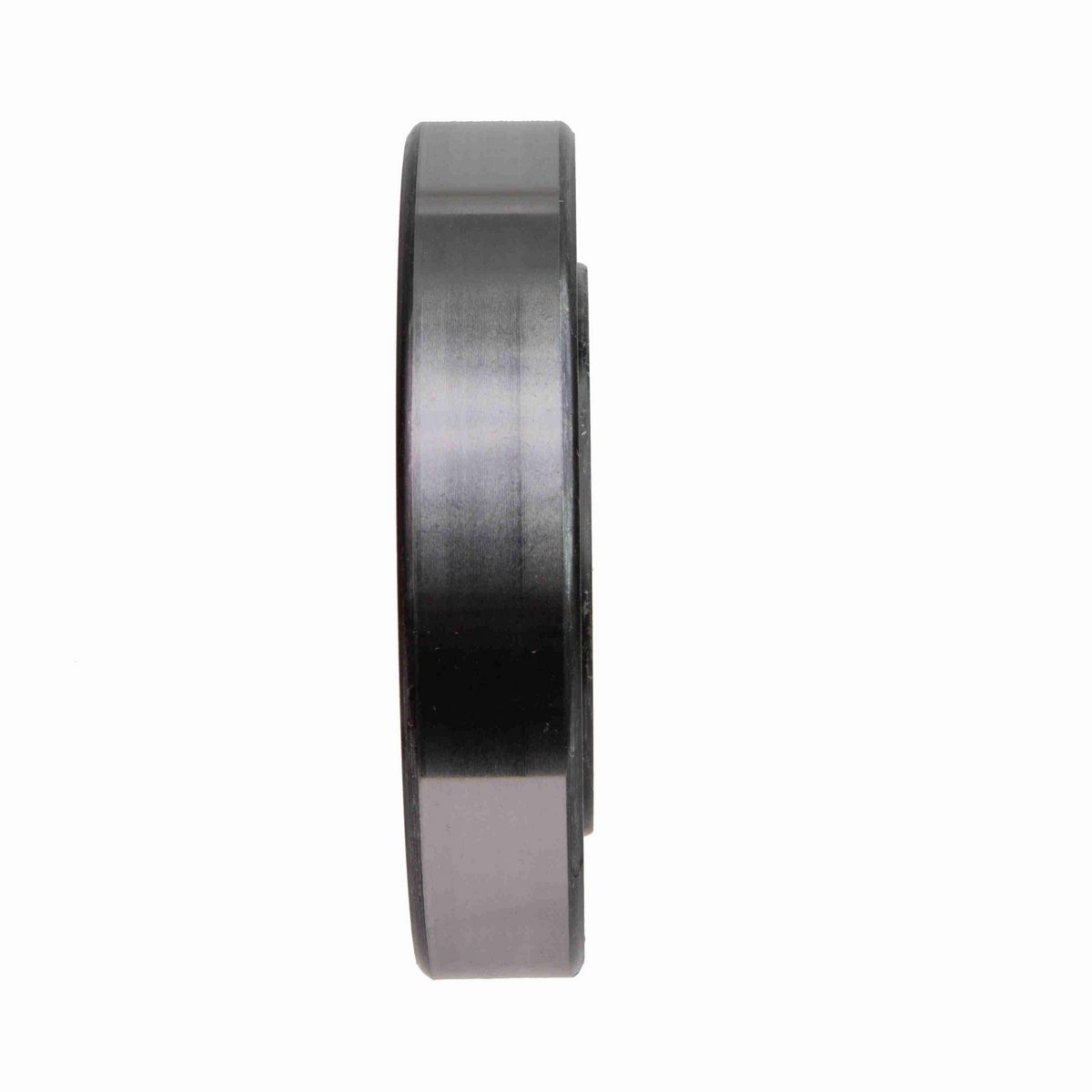

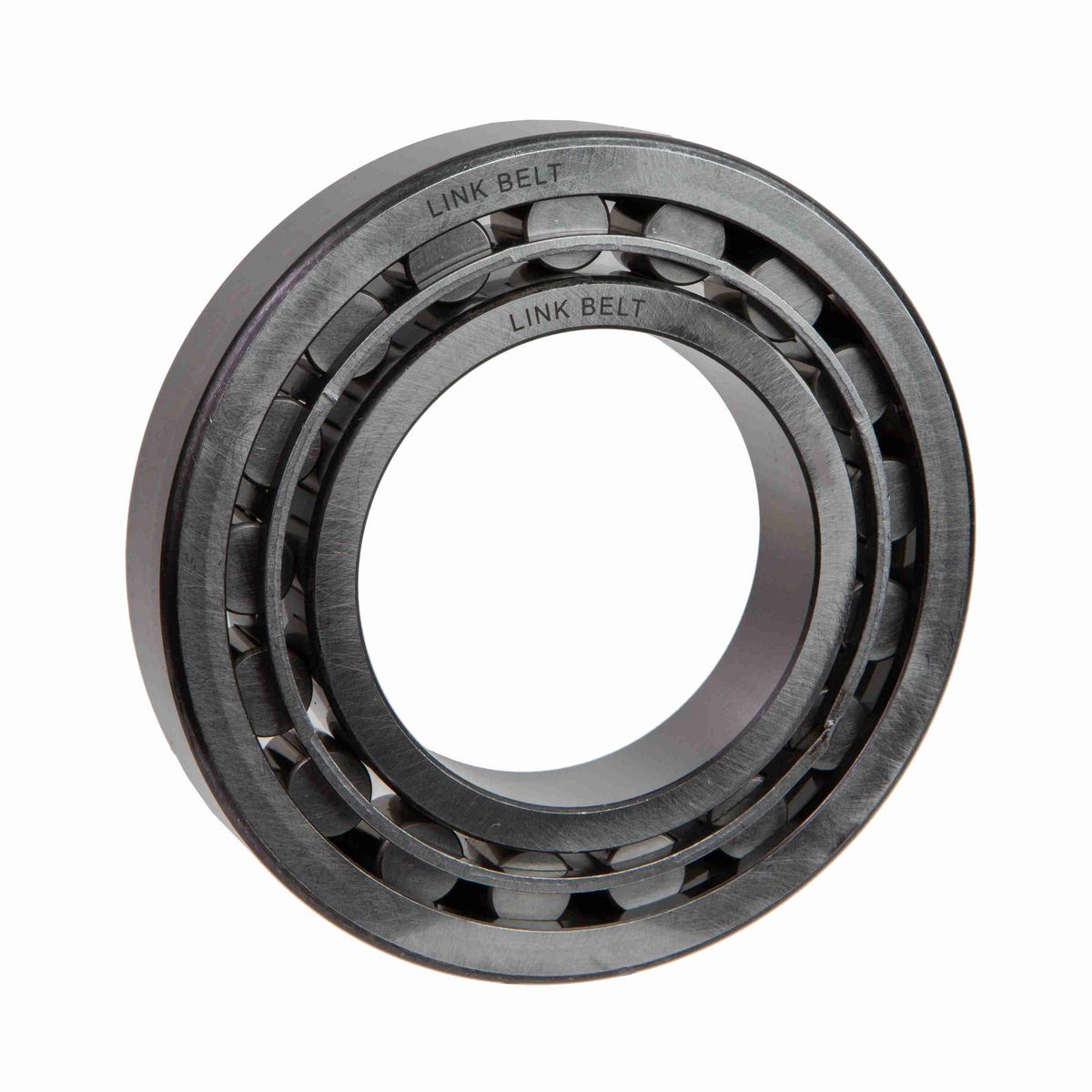

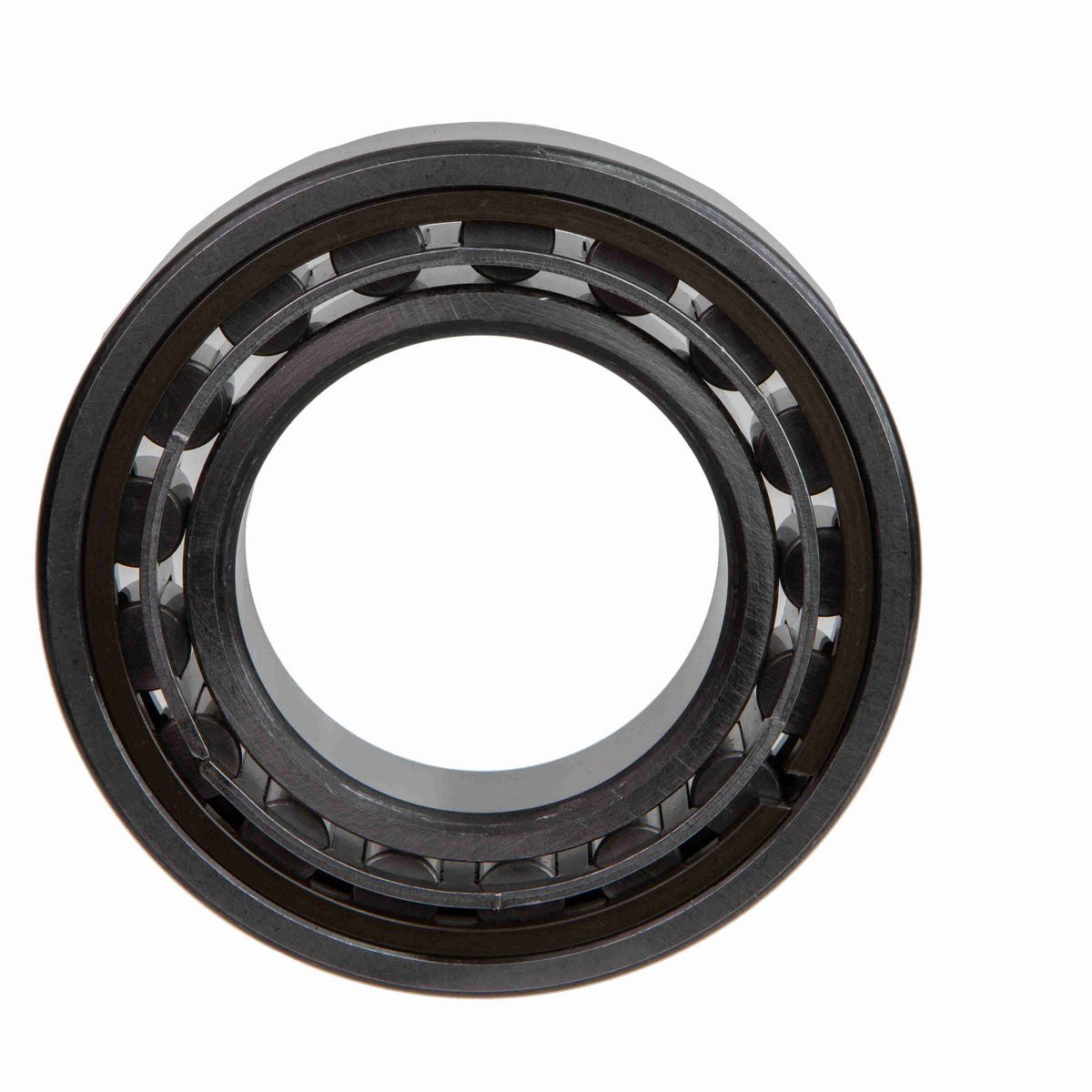

• 70 mm Cylindrical Roller Bearing with plain cylindrical inner ring, single rib and 1 retaining ring in outer ring and formed steel retainer

Dimensions

Bore Size (mm)	70 mm
Outside Diameter (mm)	125 mm

Technical Specifications

Ring Width Series	Narrow (1)
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	81.8 mm
Inner Ring Raceway Outside Diameter (mm)	84.77 mm
Maximum Speed (RPM)	CALL ENG rpm
C Dynamic Load Rating	CALL ENG lb
Outer Ring Rib Inside Diameter (mm)	107.01 mm
Product	Series 1200 Unmounted Bearings
Bearing Width (mm)	24 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	111.5 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	115.6 mm
Inner Ring Bore Radius (mm)	1.52 mm
Inner Ring Rib Outside Diameter (mm)	89.61 mm
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Vibration Frequency Inner Ring Defect	CALL ENG cps
Outer Ring and Roller Assembly Under Roller Diameter (mm)	84.84 mm
Vibration Frequency Roller Spin	CALL ENG cps
Vibration Frequency Outer Ring Defect	CALL ENG cps
Shaft Locking	DIRECT SHAFT MOUNT
Series	Unmounted Bearings
Bore Type	Straight
Outer Ring Raceway Inside Diameter (mm)	111.54 mm
Inner Ring Type	Plain Cylindrical (A)
Basic Bearing Number	1214
Retainer Type	SEE DESCRIPTION
Co Static Load Rating	CALL ENG lb
Vibration Frequency Fundamental Train	CALL ENG cps
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	84.6 mm
Mounted Clearance	SEE DESCRIPTION
Series Weight	Light (2)
Rolling Element	Cylindrical
Inner Ring and Roller Assembly Over Roller Diameter (mm)	111.47 mm

General Specifications

UPC	662327051860
Weight	2.62 LB
HTC	8482500000
Country of Origin	Mexico
