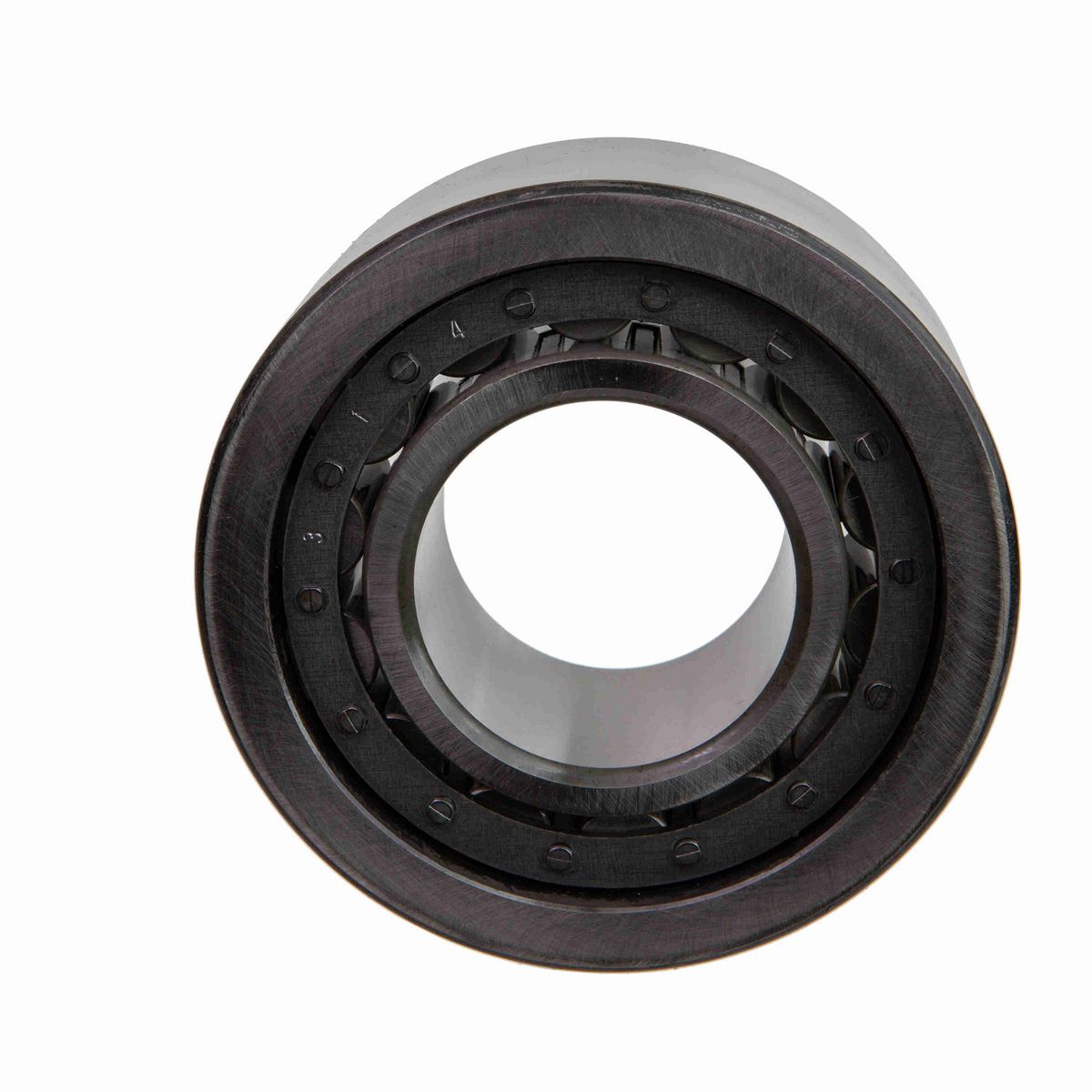

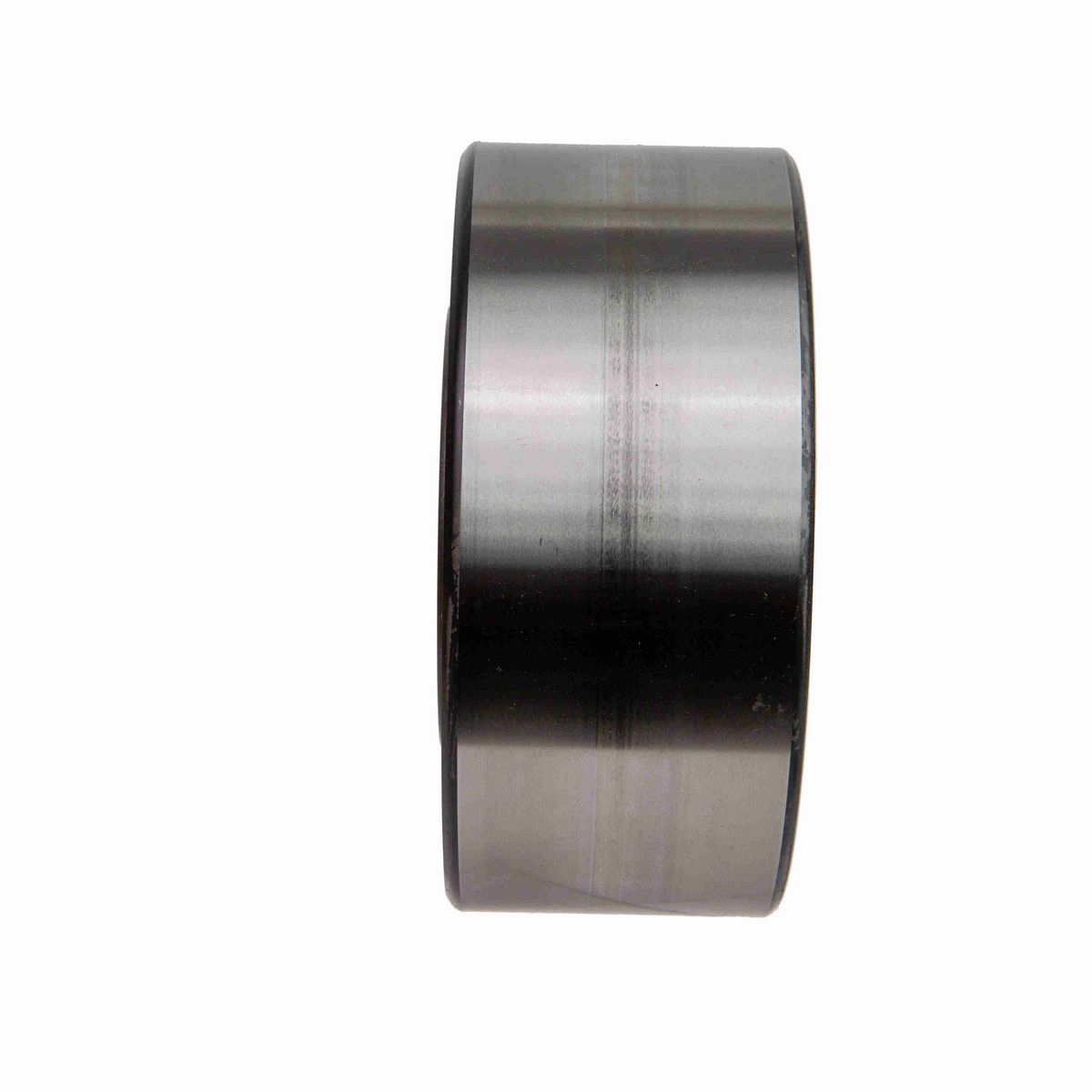

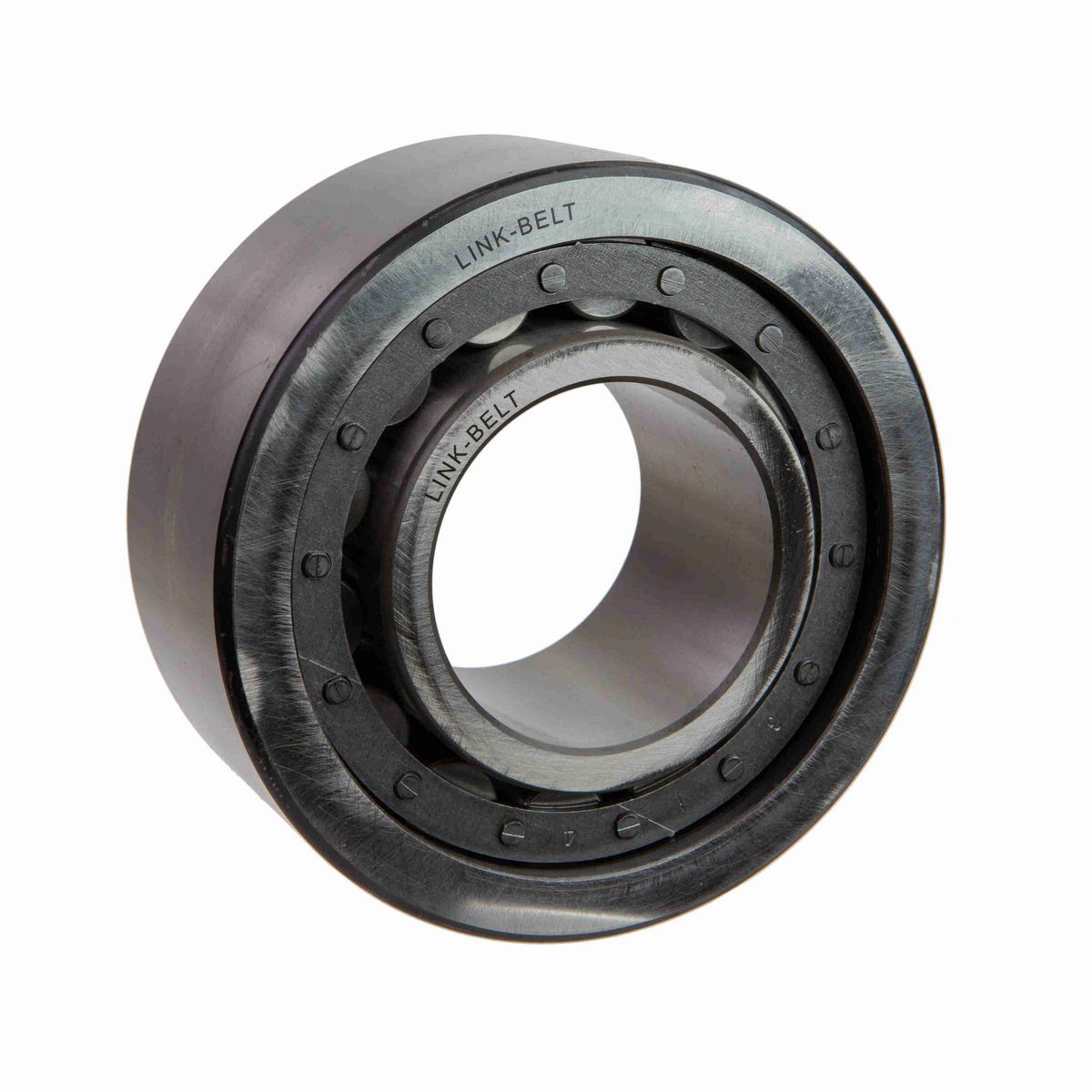

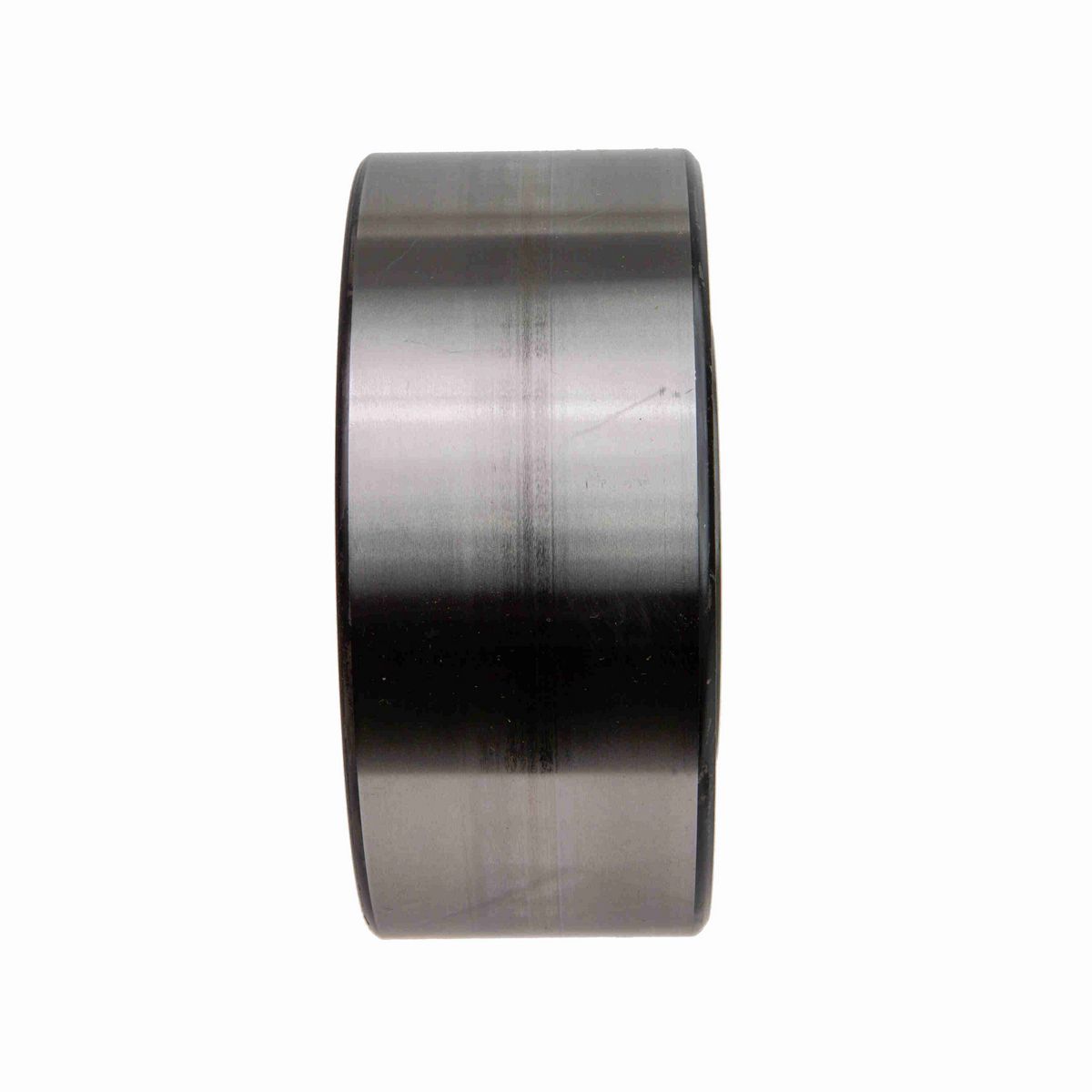

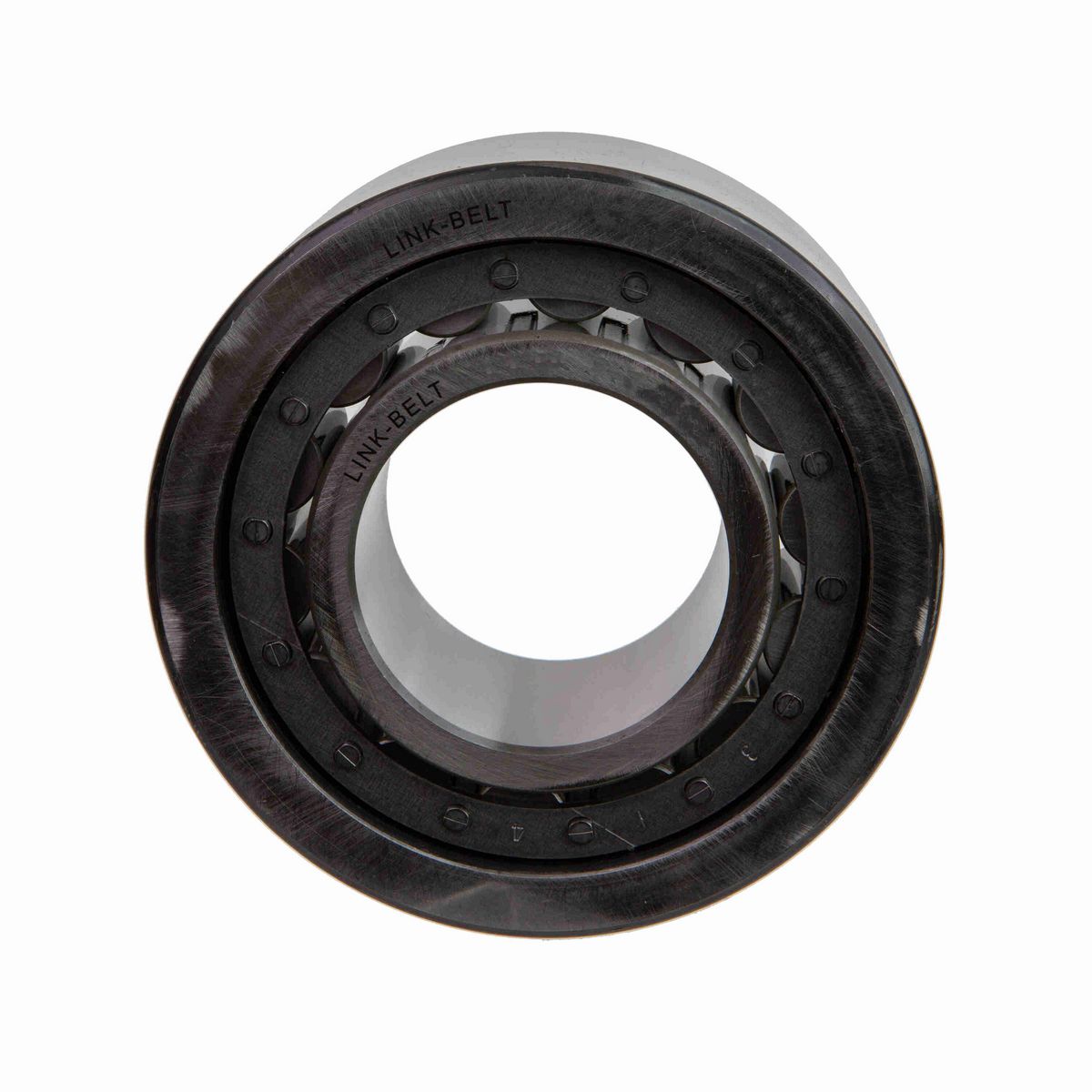

• 65 mm Cylindrical Roller Bearing with plain cylindrical inner ring, double rib outer ring and segmented retainer, Increased clearance to C3

Dimensions

Outside Diameter (mm)	120 mm
Bore Size (mm)	65 mm

Technical Specifications

Shaft Locking	DIRECT SHAFT MOUNT
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	105.7 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Inner Ring Rib Outside Diameter (mm)	85.34 mm
Bore Type	Straight
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	80.3 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Basic Bearing Number	1213
Ring Width Series	Narrow (1)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	80.48 mm
Rolling Element	Cylindrical
Inner Ring Raceway Outside Diameter (mm)	80.42 mm
Outer Ring Rib Inside Diameter (mm)	101.24 mm
Inner Ring Type	Plain Cylindrical (A)
Bearing Width (mm)	23 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	77 mm
Inner Ring Bore Radius (mm)	2.54 mm
Co Static Load Rating	CALL ENG lb
Vibration Frequency Roller Spin	CALL ENG cps
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	110 mm
Maximum Speed (RPM)	CALL ENG rpm
Outer Ring Type	Double Rib Outer Ring (E)
Series	Unmounted Bearings
C Dynamic Load Rating	CALL ENG lb
Mounted Clearance	SEE DESCRIPTION
Outer Ring Raceway Inside Diameter (mm)	105.8 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	105.75 mm
Series Weight	Light (2)
Product	Series 1200 Unmounted Bearings
Retainer Type	SEE DESCRIPTION
Vibration Frequency Fundamental Train	CALL ENG cps

General Specifications

UPC	662327746407
Weight	2.55 LB
HTC	8482500000
Country of Origin	Mexico
