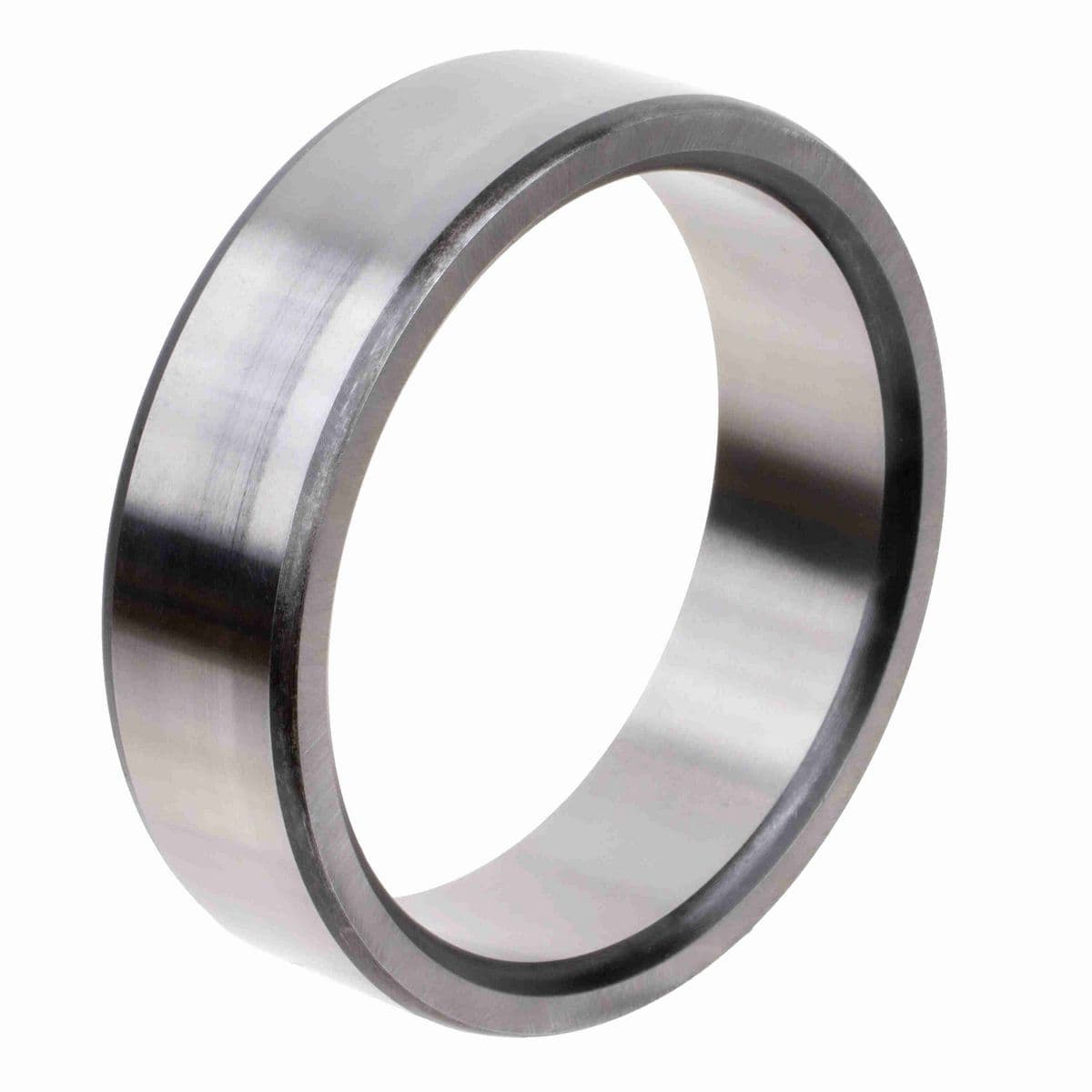

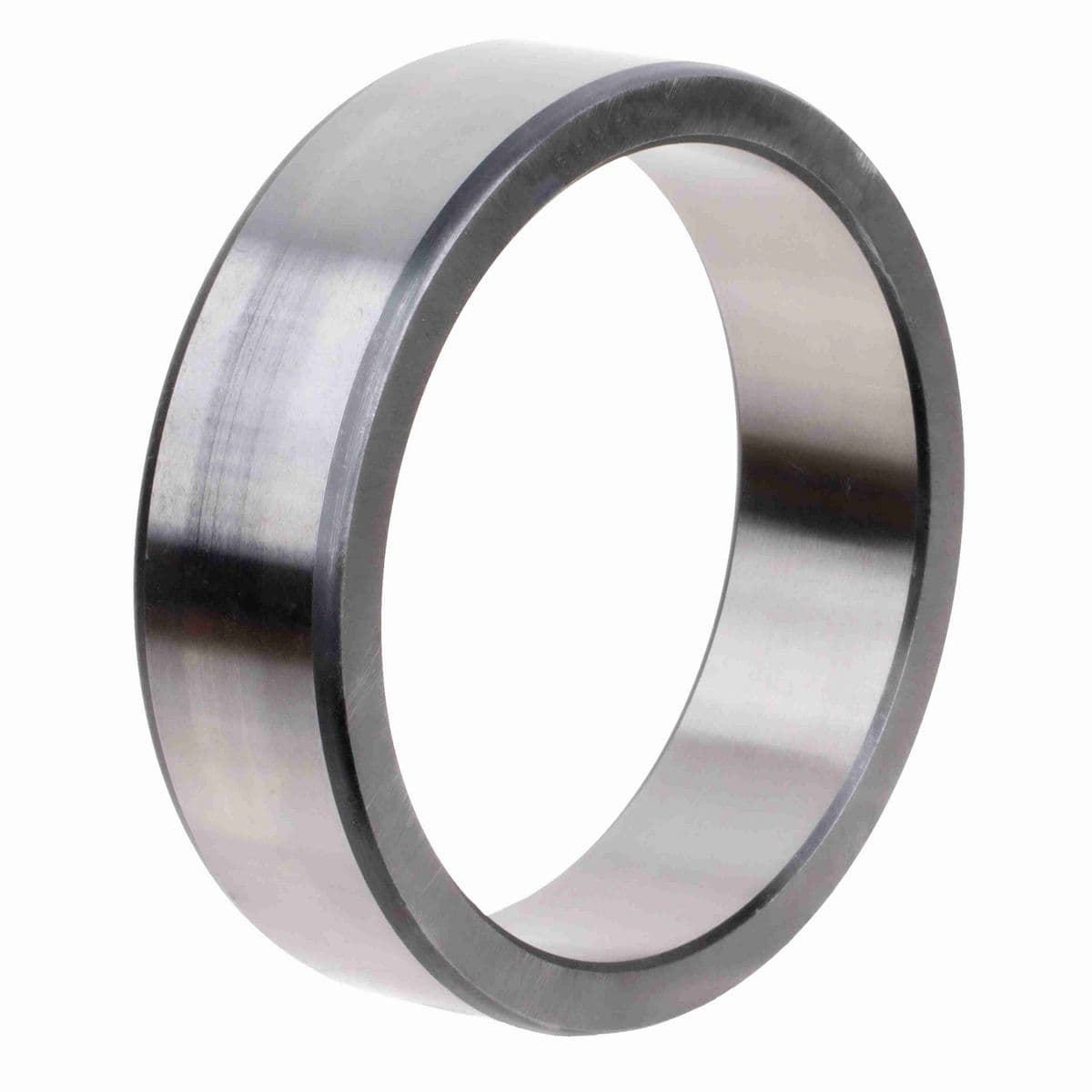

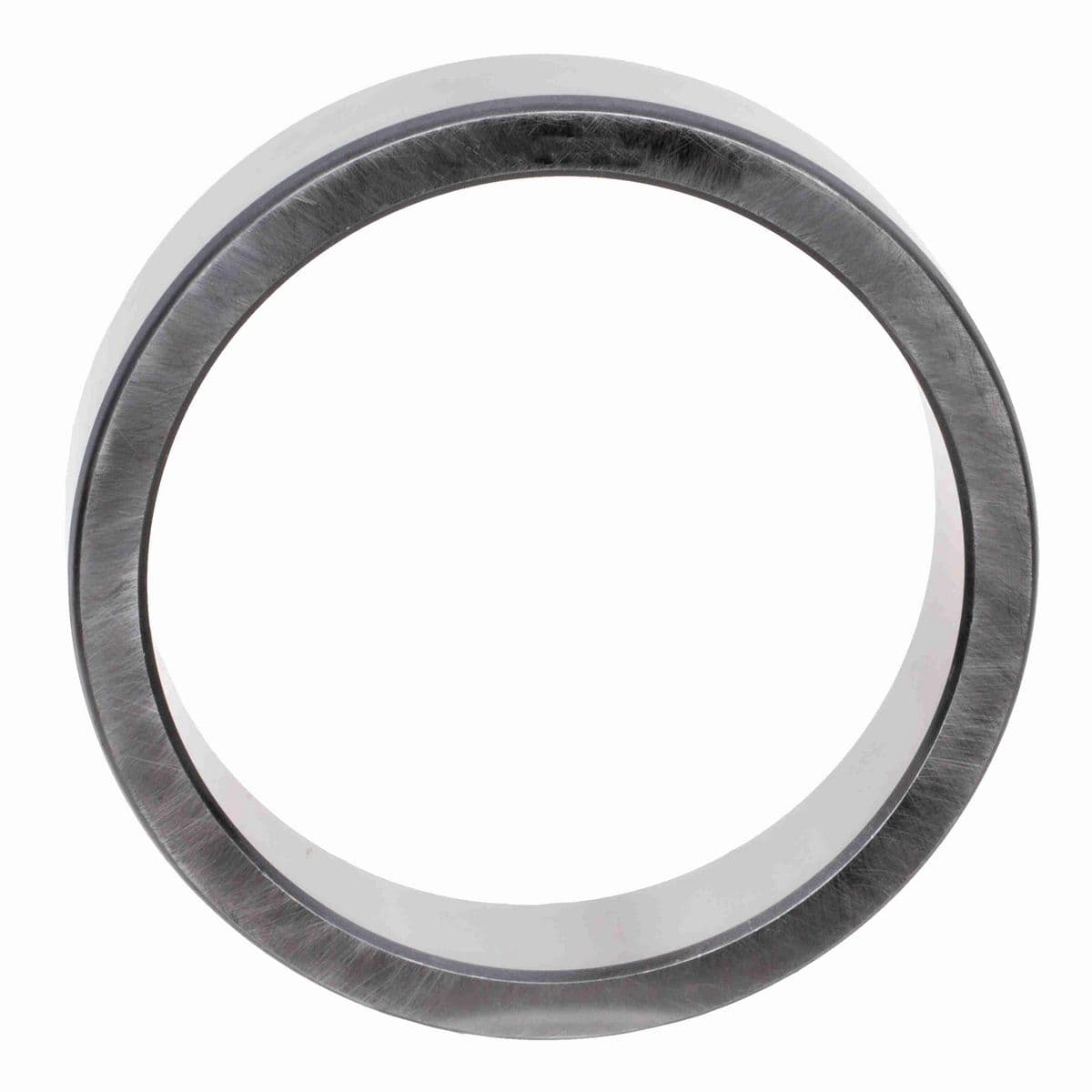

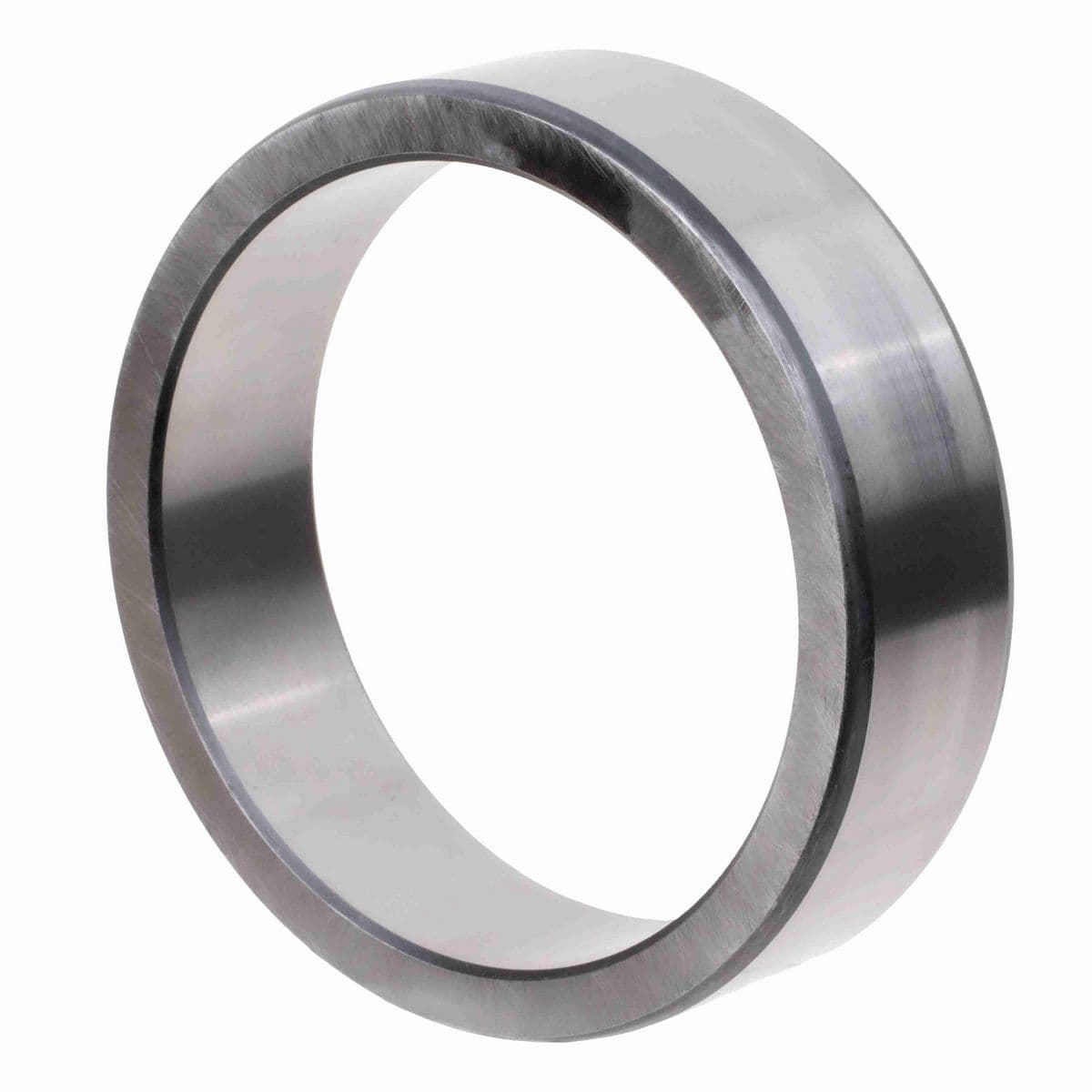

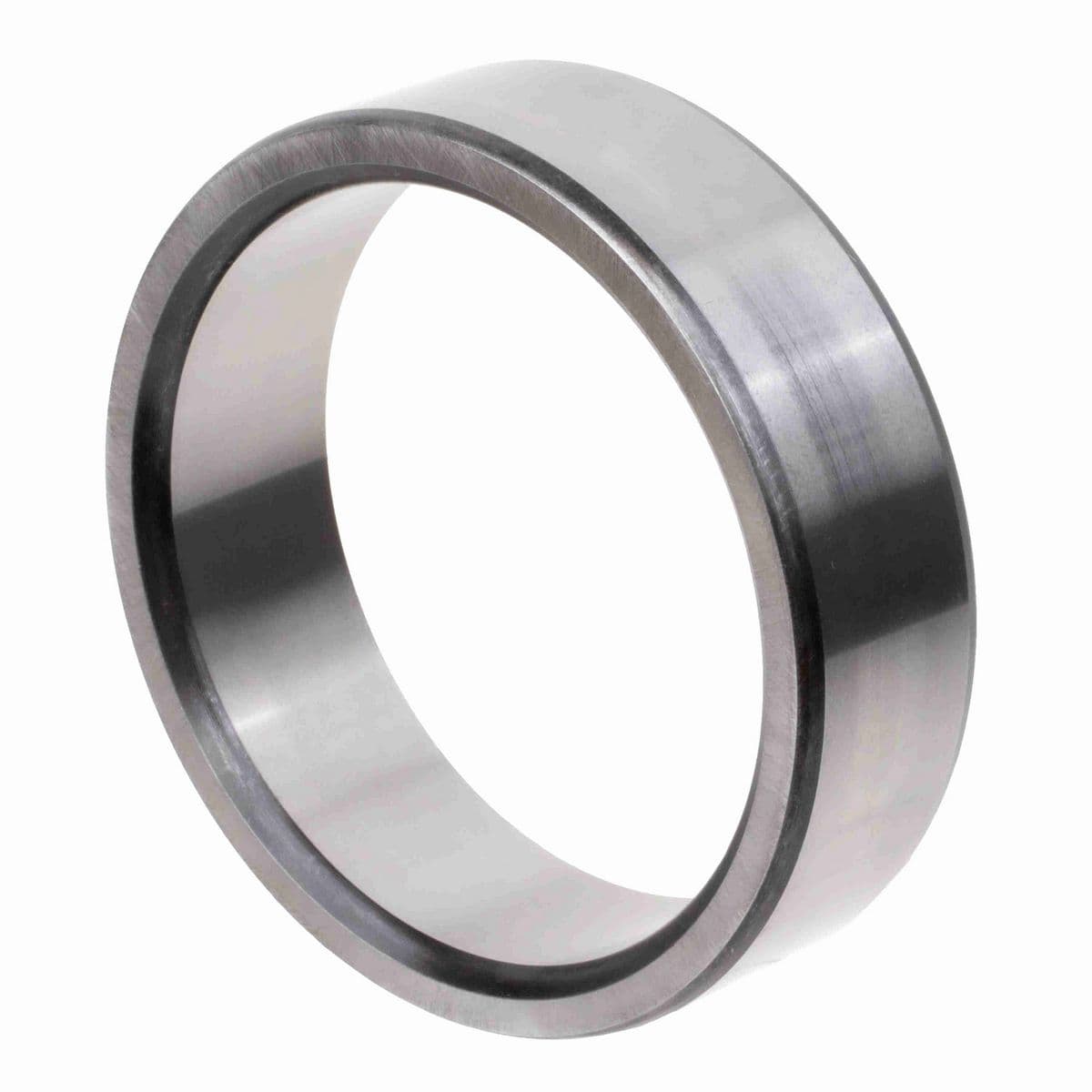

• Metric, Plain cylindrical inner ring, Standard capacity, Narrow width, Extra light series, 75mm bore diameter

Dimensions

Bore Size (mm)

75 mm

Technical Specifications

Product	Series 1000 Inner Rings
Service Instructions	BR3-013 LB CYLINDRICAL
C Dynamic Load Rating (lb)	CALL ENG lb
Bearing Series	1000
Series Weight	Extra Light (0)
Ring Width Series	Narrow (1)
Vibration Frequency Inner Ring Defect	CALL ENG cps
Series	Series 1000 Inner Rings
Bore Type	Straight
Co Static Load Rating (lb)	CALL ENG lb
Bearing Width (mm)	20 mm
Bearing Brand	LINK-BELT CYLINDRICAL
Vibration Frequency Outer Ring Defect	CALL ENG cps
Basic Bearing Number	1015
Inner Ring Bore Radius (mm)	2.03 mm
Bearing Type	CYLINDRICAL ROLLER BRG
Vibration Frequency Fundamental Train	CALL ENG cps
Inner Ring Raceway Outside Diameter (mm)	85.23 mm
Inner Ring Type	Plain Cylindrical (A)
Vibration Frequency Roller Spin	CALL ENG cps
Retainer Type	SEE DESCRIPTION
Shaft Locking	Direct Shaft Mount
Maximum Speed (RPM)	CALL ENG rpm
Mounted Clearance	SEE DESCRIPTION

General Specifications

UPC	662327051419
Weight	0.45 LB
HTC	8482992560
Country of Origin	Mexico
