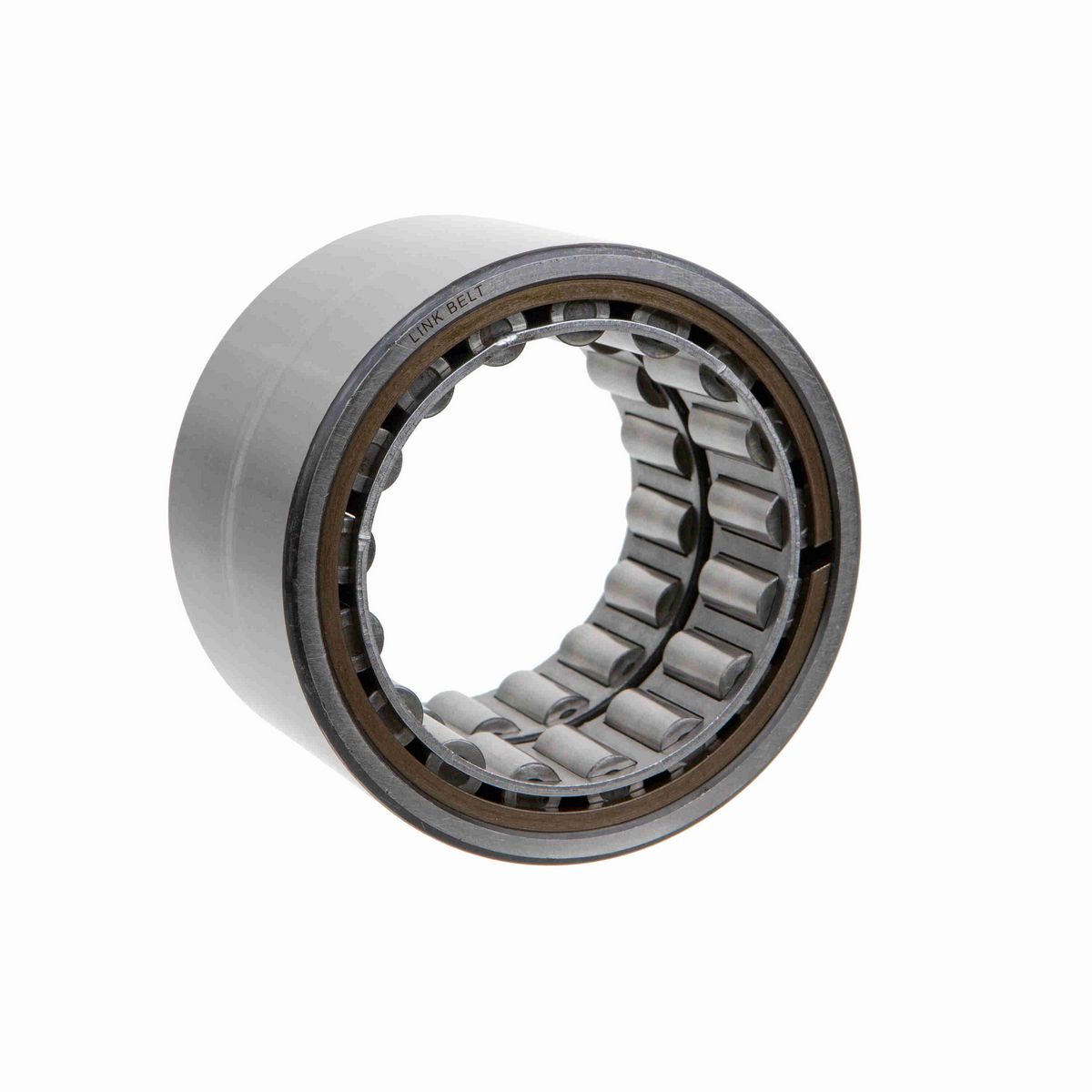

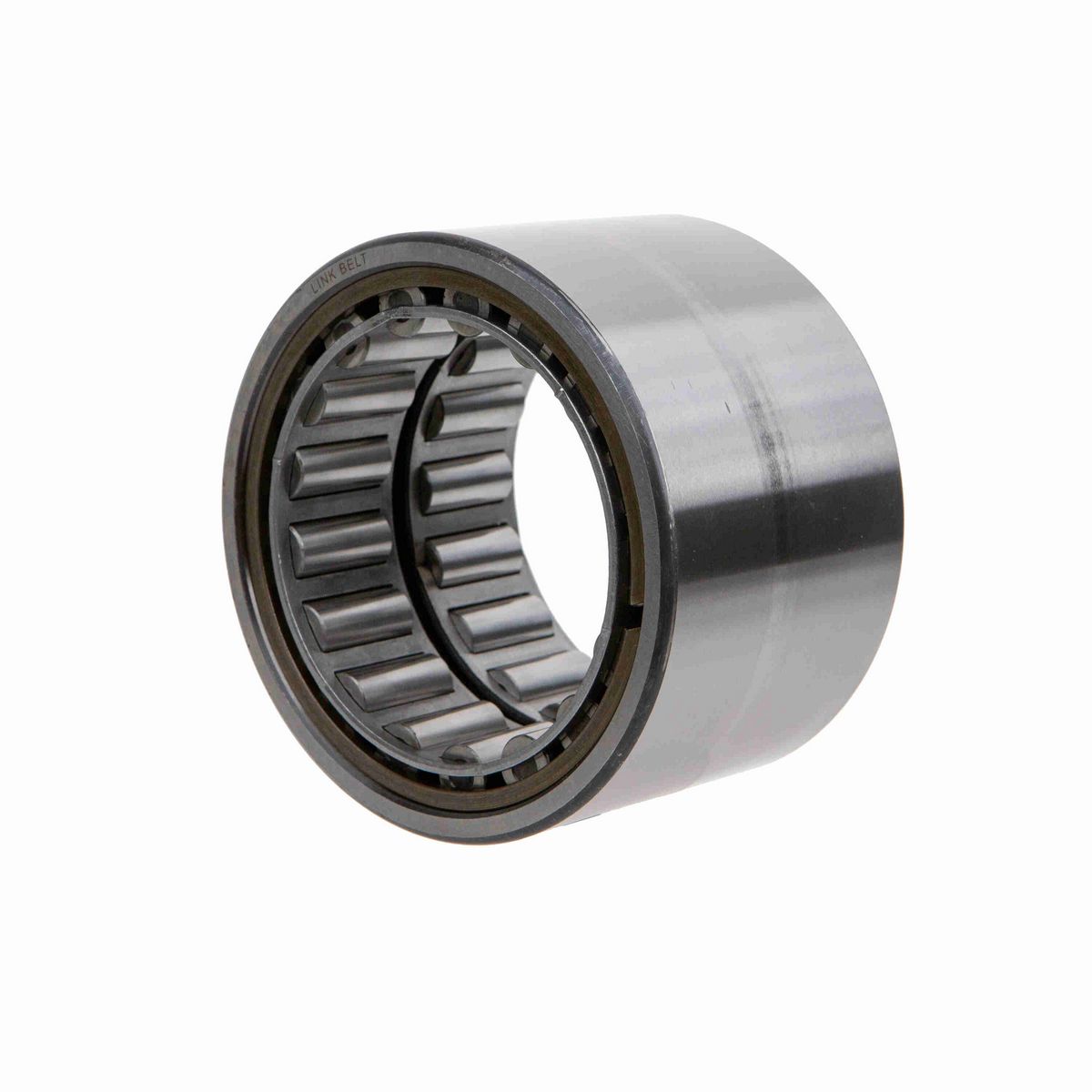

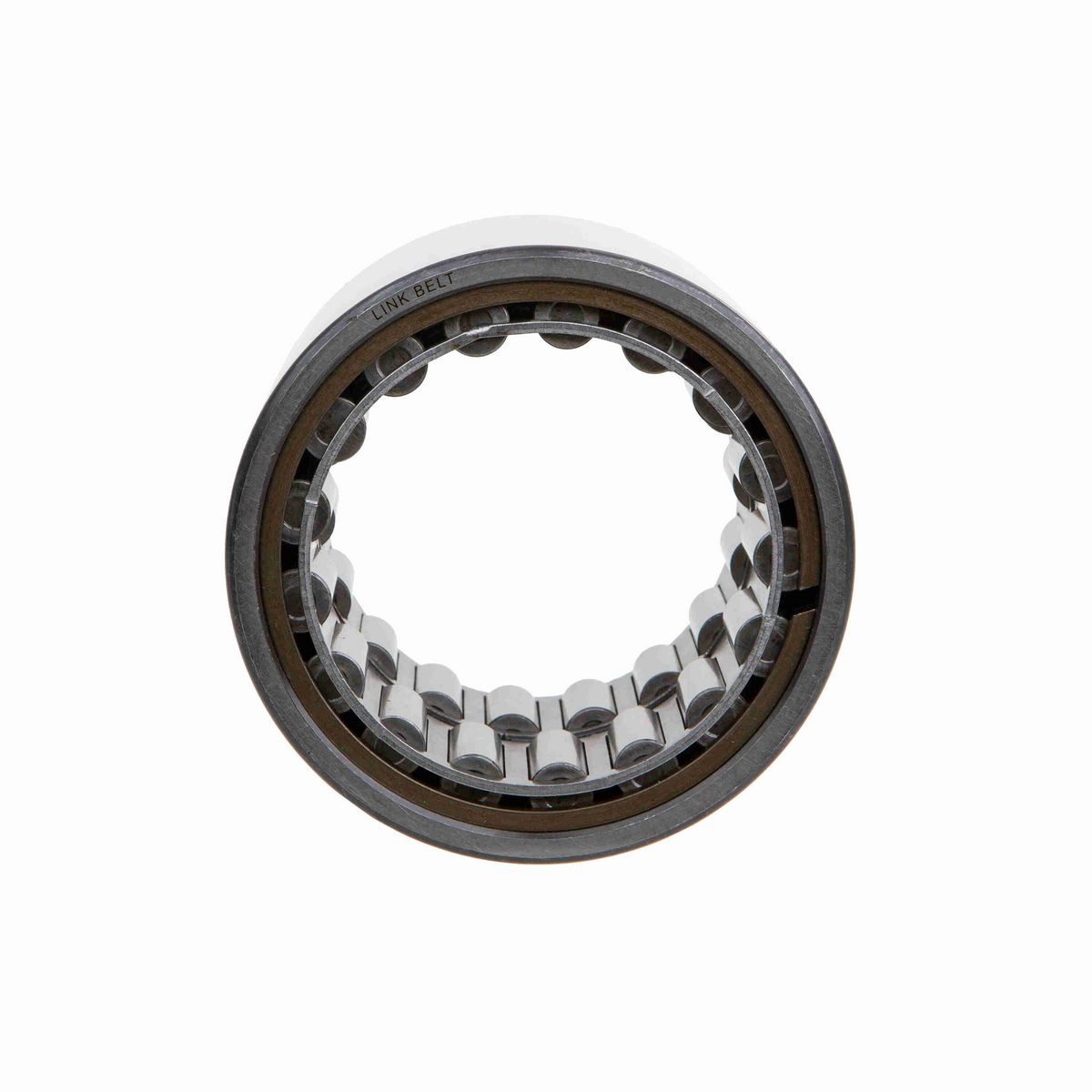

• Outer ring and roller assembly only - Cylindrical Roller Bearing with no inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Outside Diameter (mm)

52 mm

Technical Specifications

Vibration Frequency Inner Ring Defect	CALL ENG cps
Ring Width Series	Double Row (6)
Basic Bearing Number	6205
Outer Ring and Roller Assembly Under Roller Diameter (mm)	32.2 mm
C Dynamic Load Rating	CALL ENG lb
Bore Type	Straight
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	47 mm
Maximum Speed (RPM)	CALL ENG rpm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	47 mm
Product	Series 6200 Outer Ring & Roller Assemblies High Capacity
Outer Ring Raceway Inside Diameter (mm)	44.85 mm
Series	Outer Ring & Roller Assemblies
Retainer Type	SEE DESCRIPTION
Rolling Element	Cylindrical
Vibration Frequency Fundamental Train	CALL ENG cps
Vibration Frequency Roller Spin	CALL ENG cps
Vibration Frequency Outer Ring Defect	CALL ENG cps
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Mounted Clearance	SEE DESCRIPTION
Bearing Width (mm)	41.28 mm
Series Weight	Light (2)
Co Static Load Rating	CALL ENG lb

General Specifications

UPC	662327108717
Weight	0.70 LB
HTC	8482500000
Country of Origin	Mexico
