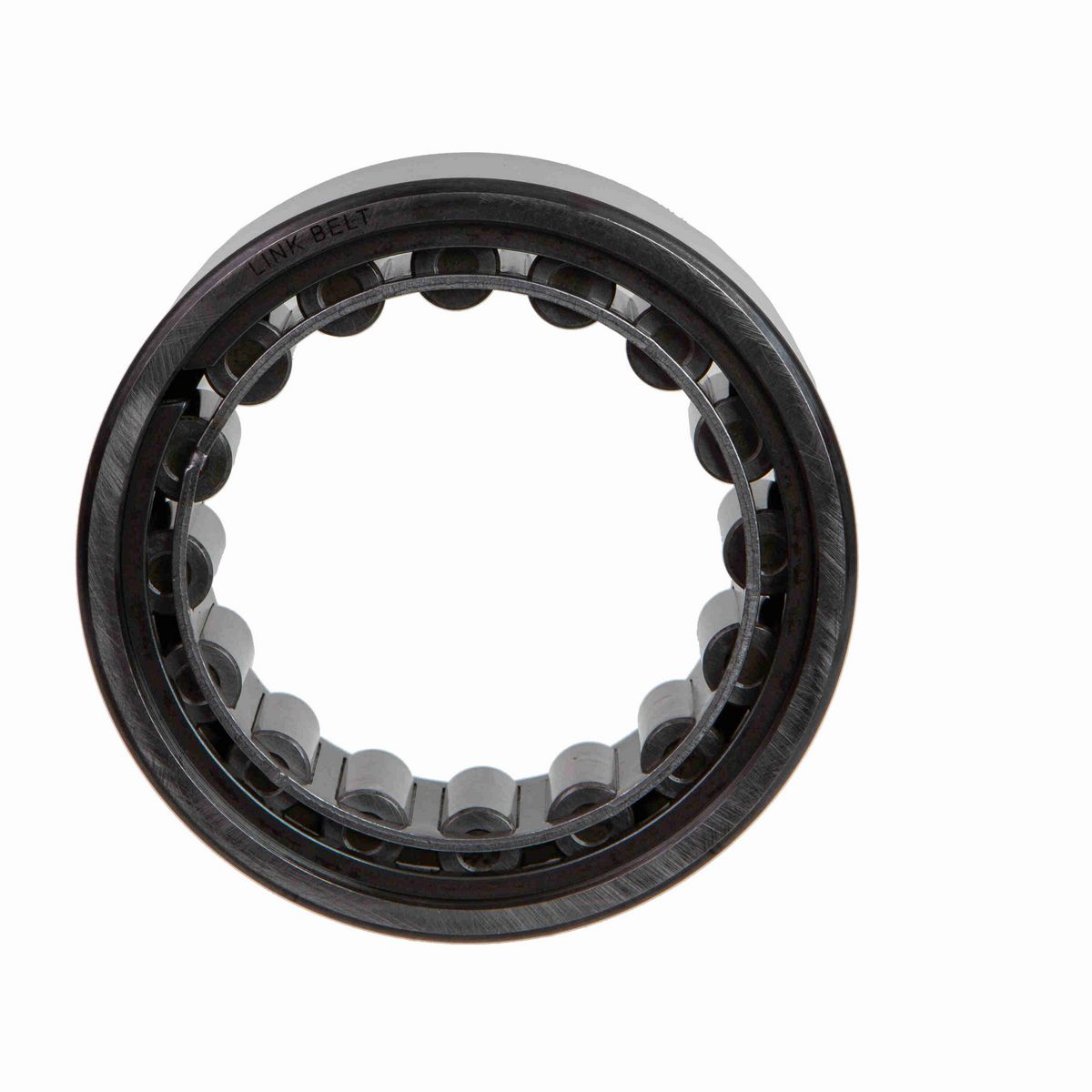

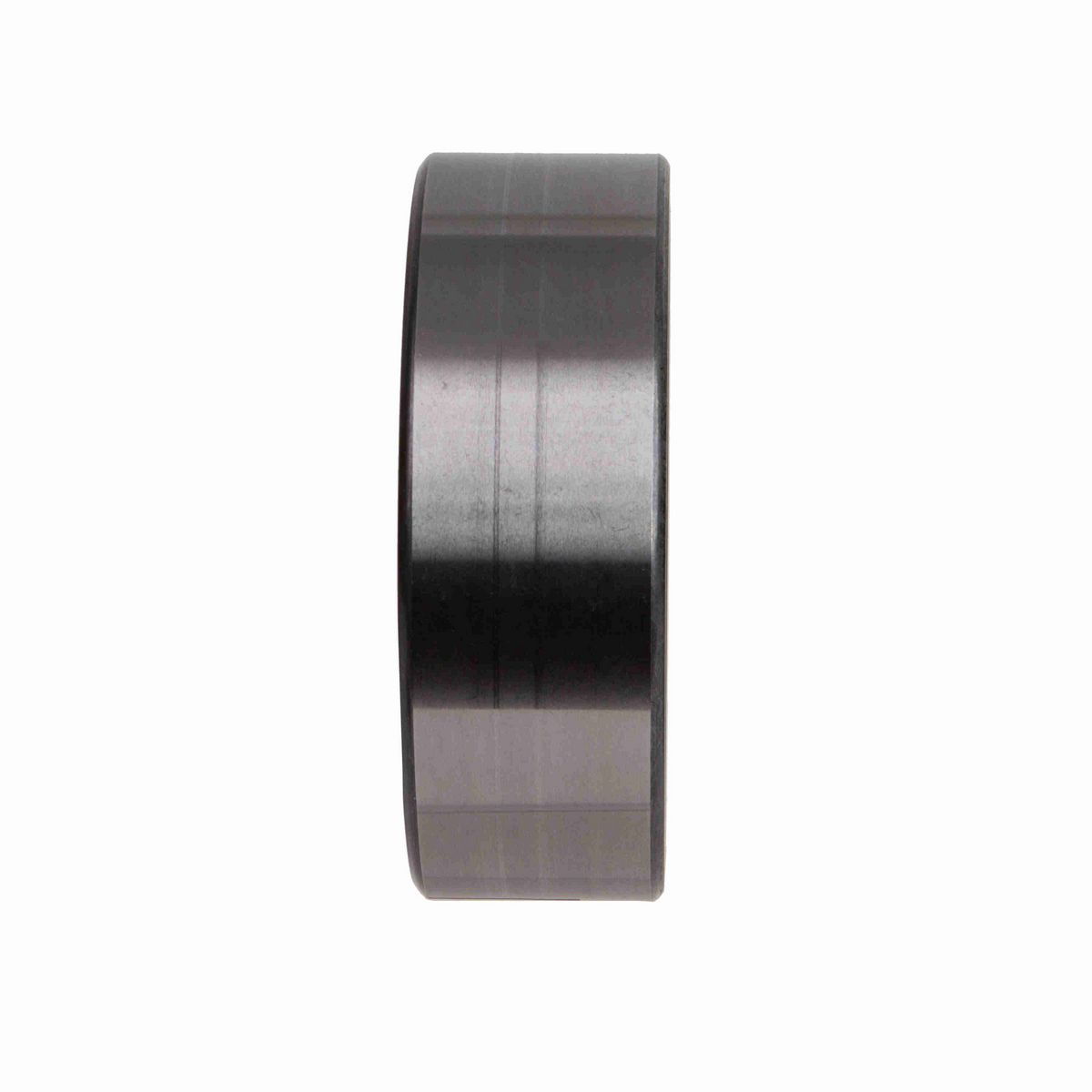

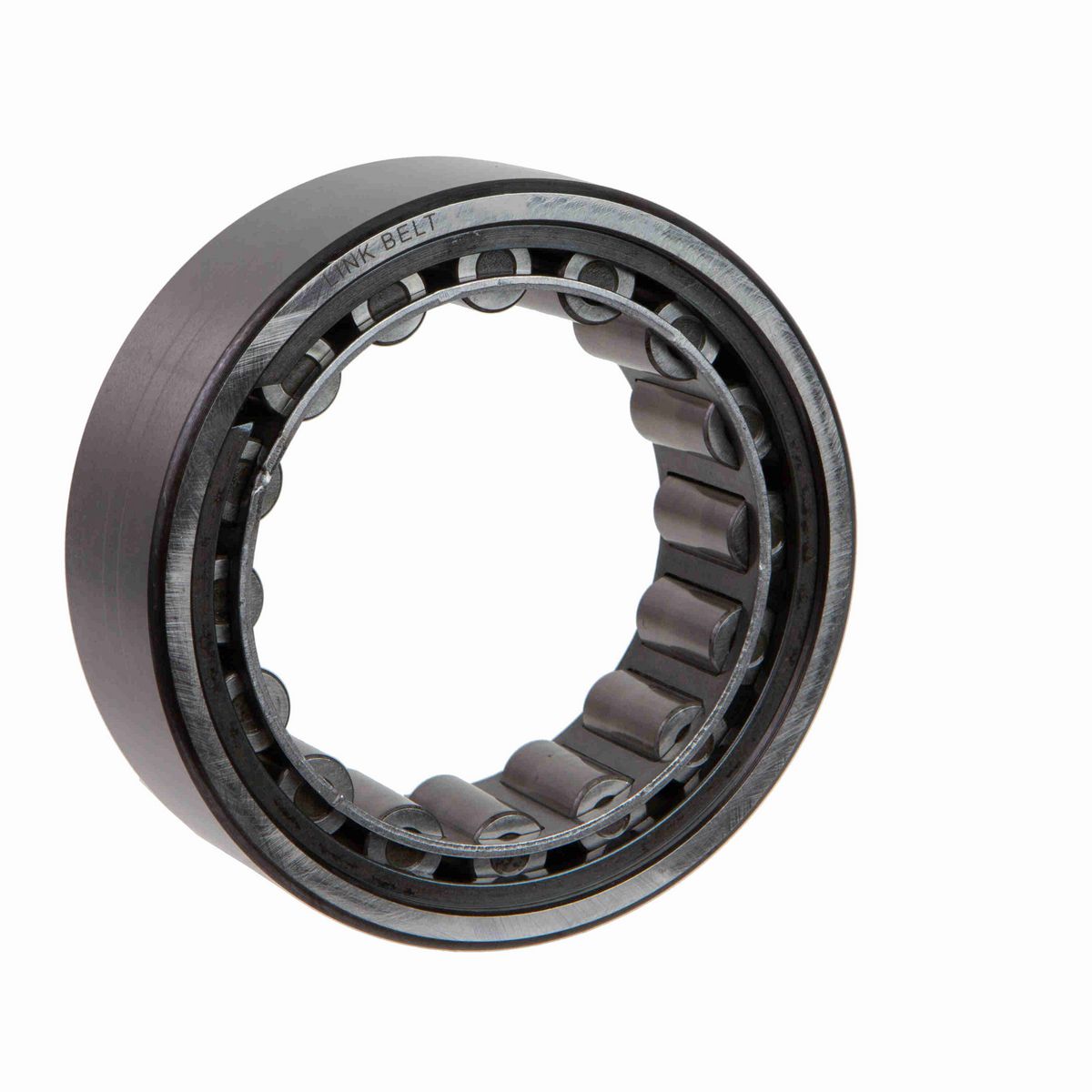

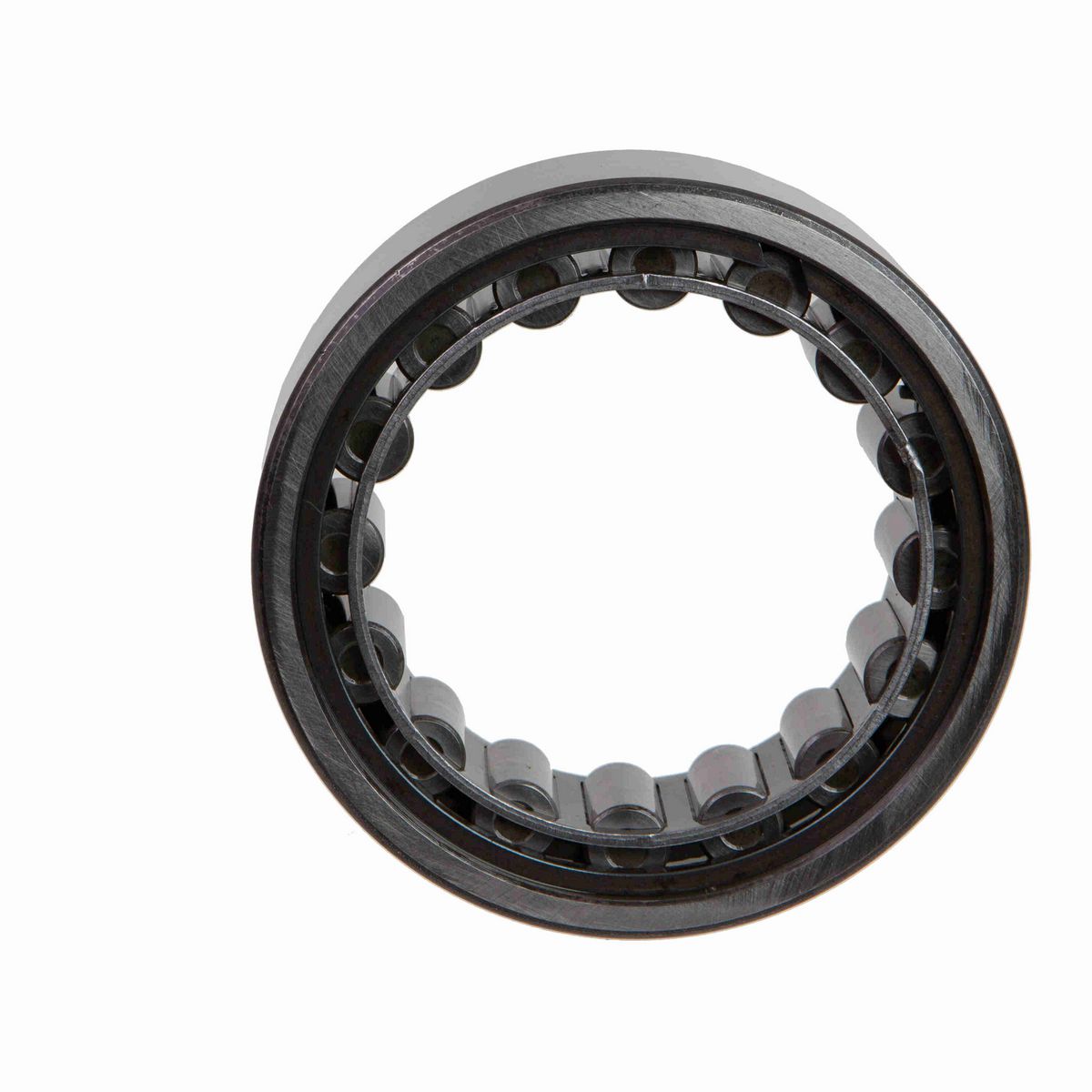

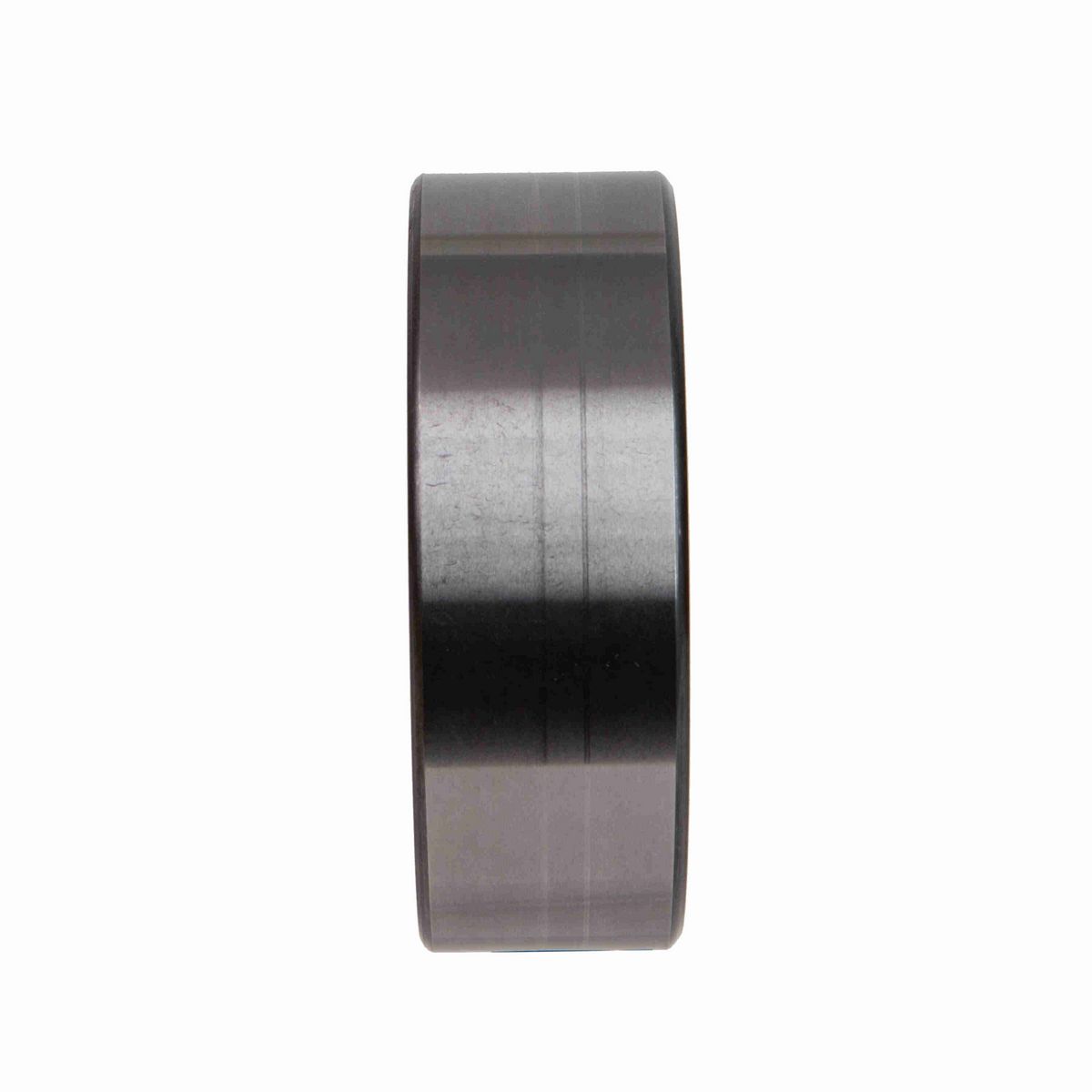

• Link-Belt M5212TV Cylindrical Roller Bearings Series 5200 Outer Ring and Roller Assembly. Contact Rexnord for more details.

Dimensions

Outside Diameter (mm)

110 mm

Technical Specifications

Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Vibration Frequency Fundamental Train	CALL ENG cps
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	97.5 mm
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	93.5 mm
Basic Bearing Number	5212
Series Weight	Light (2)
C Dynamic Load Rating	CALL ENG lb
Bearing Width (mm)	36.51 mm
Product	Series 5200 Outer Ring & Roller Assemblies
Maximum Speed (RPM)	CALL ENG rpm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	97.76 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	101.3 mm
Series	Outer Ring & Roller Assemblies
Bore Type	Straight
Outer Ring and Roller Assembly Under Roller Diameter (mm)	72.44 mm
Co Static Load Rating	CALL ENG lb
Mounted Clearance	SEE DESCRIPTION
Retainer Type	SEE DESCRIPTION
Ring Width Series	Wide (5)
Rolling Element	Cylindrical

General Specifications

UPC	662327107963
Weight	2.31 LB
HTC	8482500000
Country of Origin	Mexico
