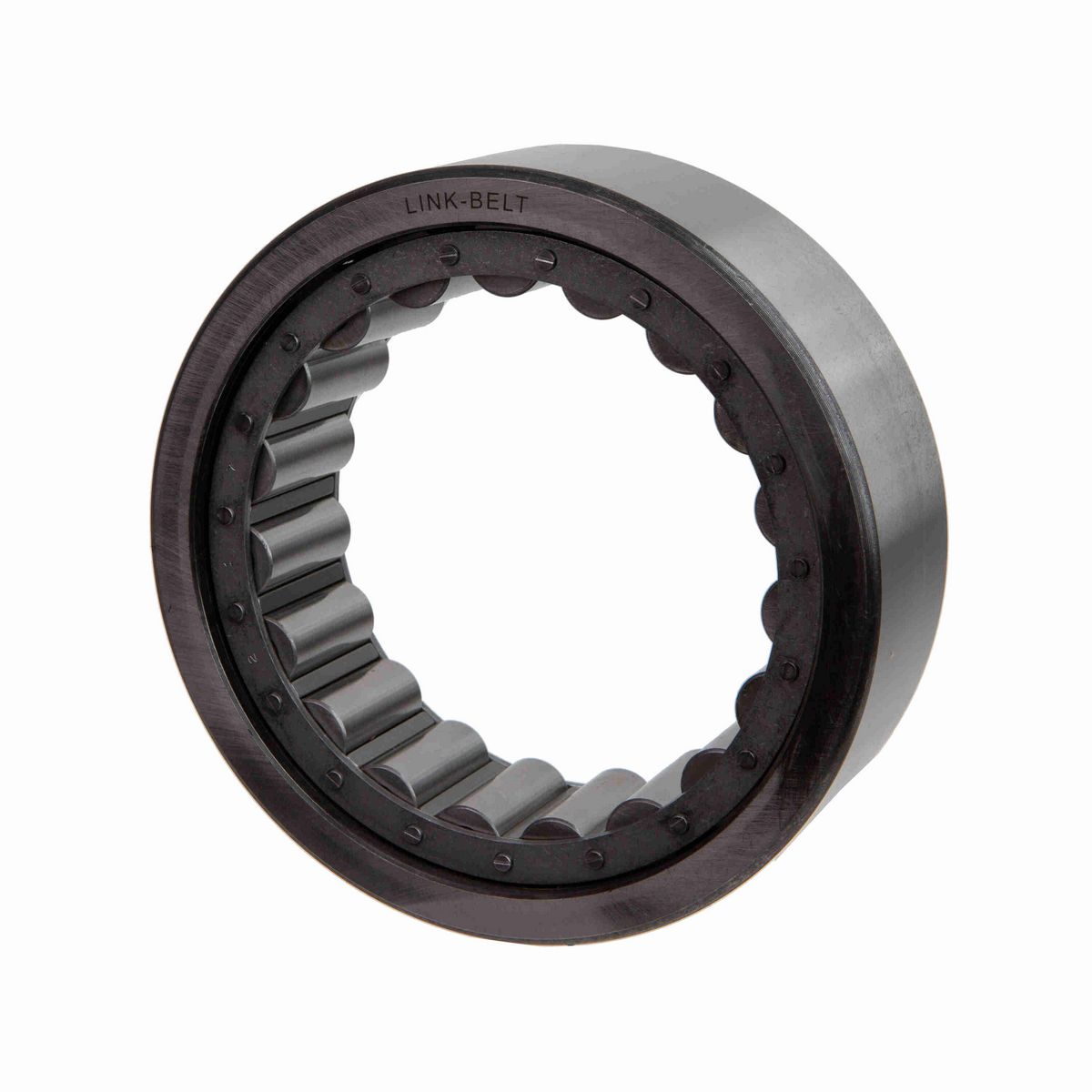

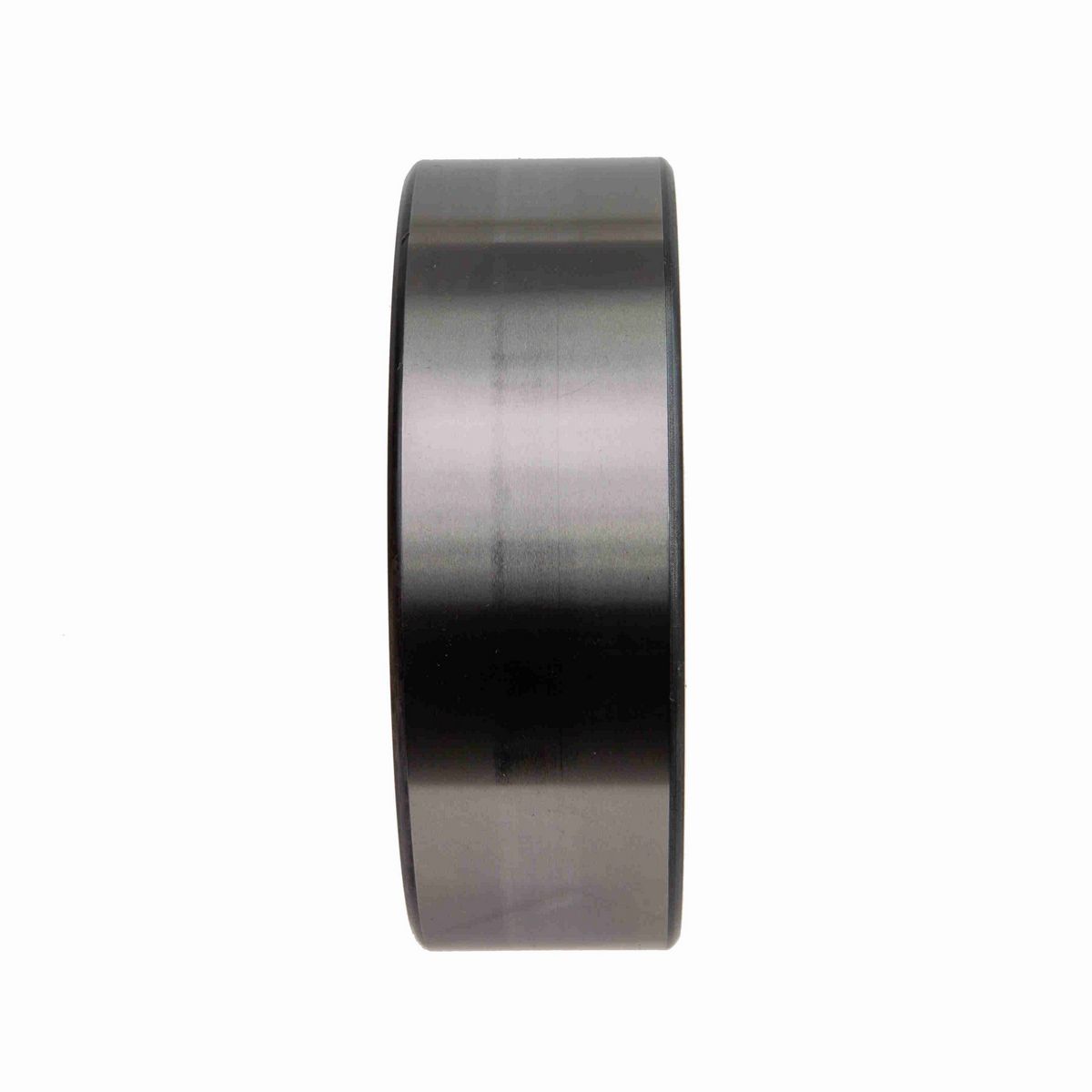

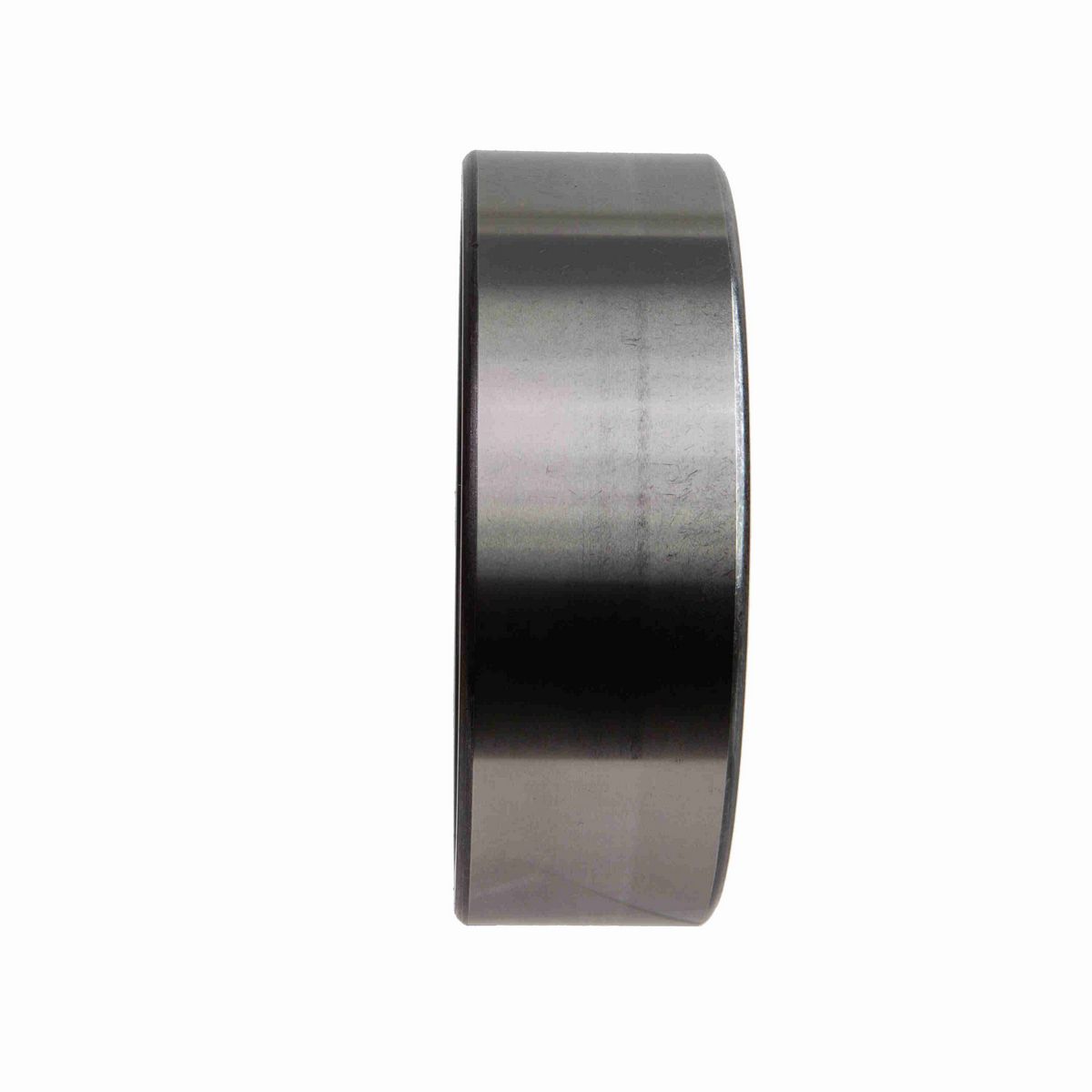

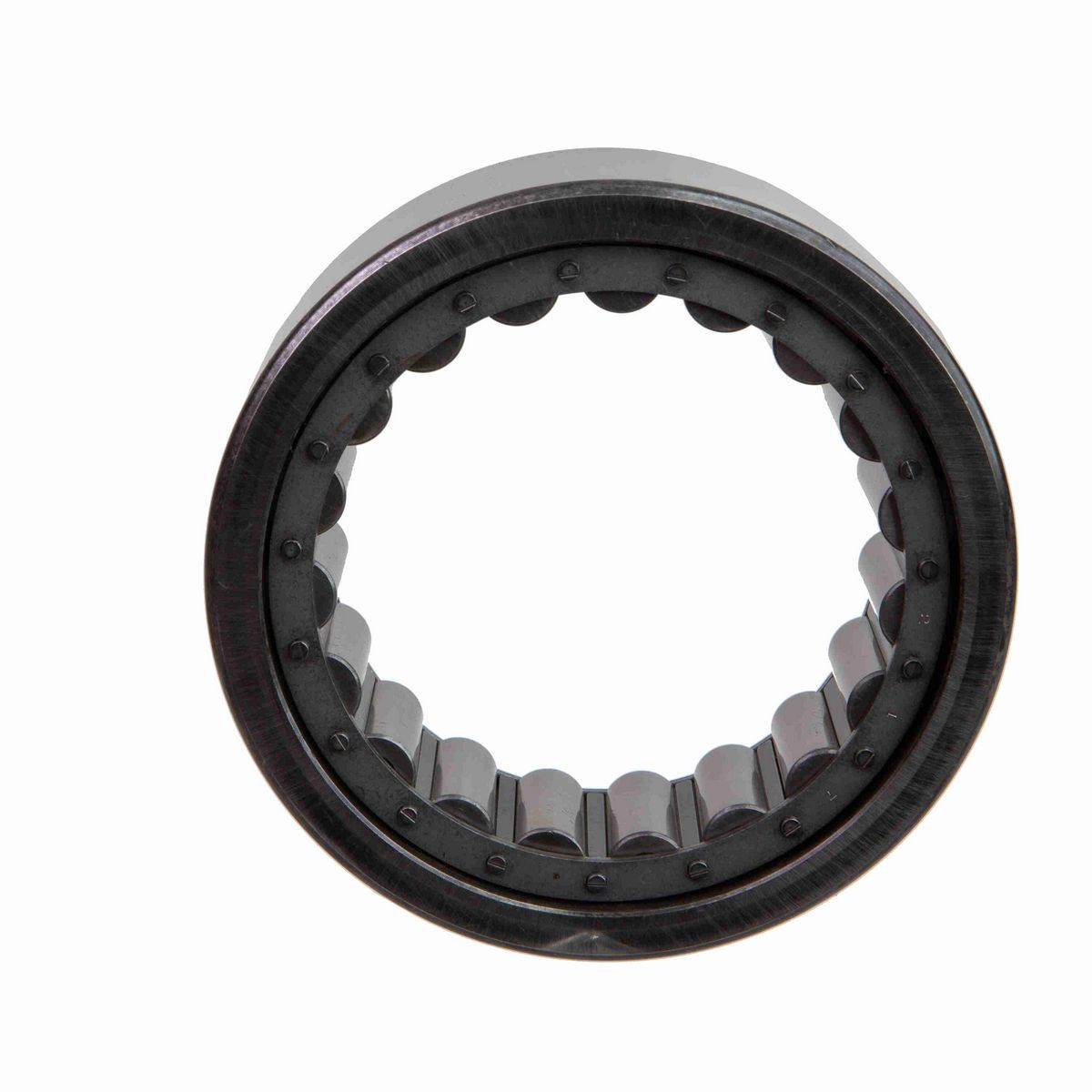

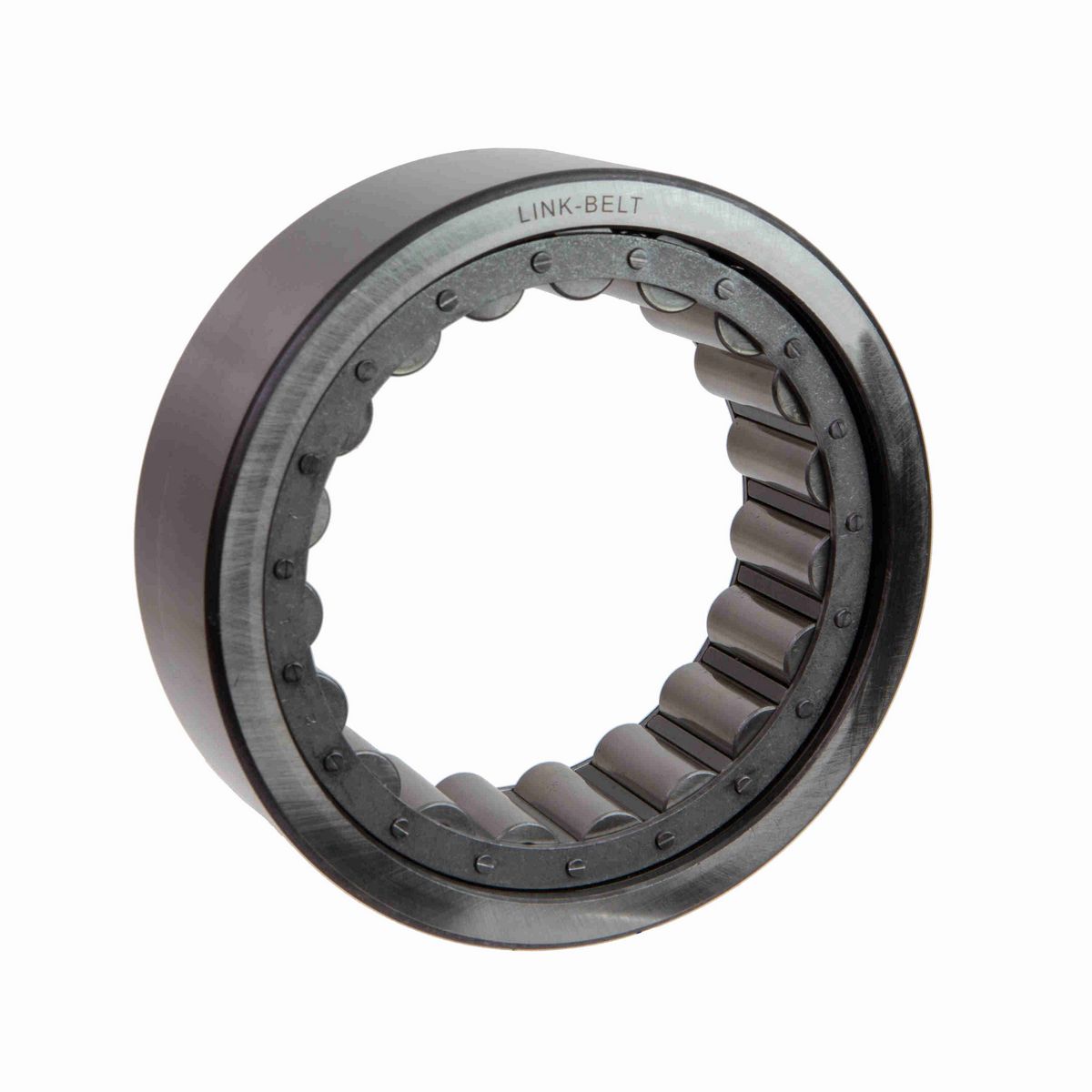

• Link-Belt M1312EX Cylindrical Roller Bearings Series 1300 Outer Ring and Roller Assembly. Contact Rexnord for more details.

Dimensions

Outside Diameter (mm)

130 mm

Technical Specifications

Outer Ring and Roller Assembly Under Roller Diameter (mm)	77.61 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	112.3 mm
Series	Outer Ring & Roller Assemblies
Outer Ring Type	Double Rib Outer Ring (E)
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	117.8 mm
Product	Series 1300 Outer Ring & Roller Assemblies
Vibration Frequency Roller Spin	CALL ENG cps
Ring Width Series	Narrow (1)
Co Static Load Rating	CALL ENG lb
Bore Type	Straight
Series Weight	Medium (3)
Rolling Element	Cylindrical
C Dynamic Load Rating	CALL ENG lb
Outer Ring Raceway Inside Diameter (mm)	112.49 mm
Retainer Type	SEE DESCRIPTION
Vibration Frequency Outer Ring Defect	CALL ENG cps
Bearing Width (mm)	31 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Maximum Speed (RPM)	CALL ENG rpm
Basic Bearing Number	1312
Vibration Frequency Inner Ring Defect	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	106.35 mm
Mounted Clearance	SEE DESCRIPTION

General Specifications

UPC	662327107246
Weight	4.80 LB
HTC	8482500000
Country of Origin	Mexico
