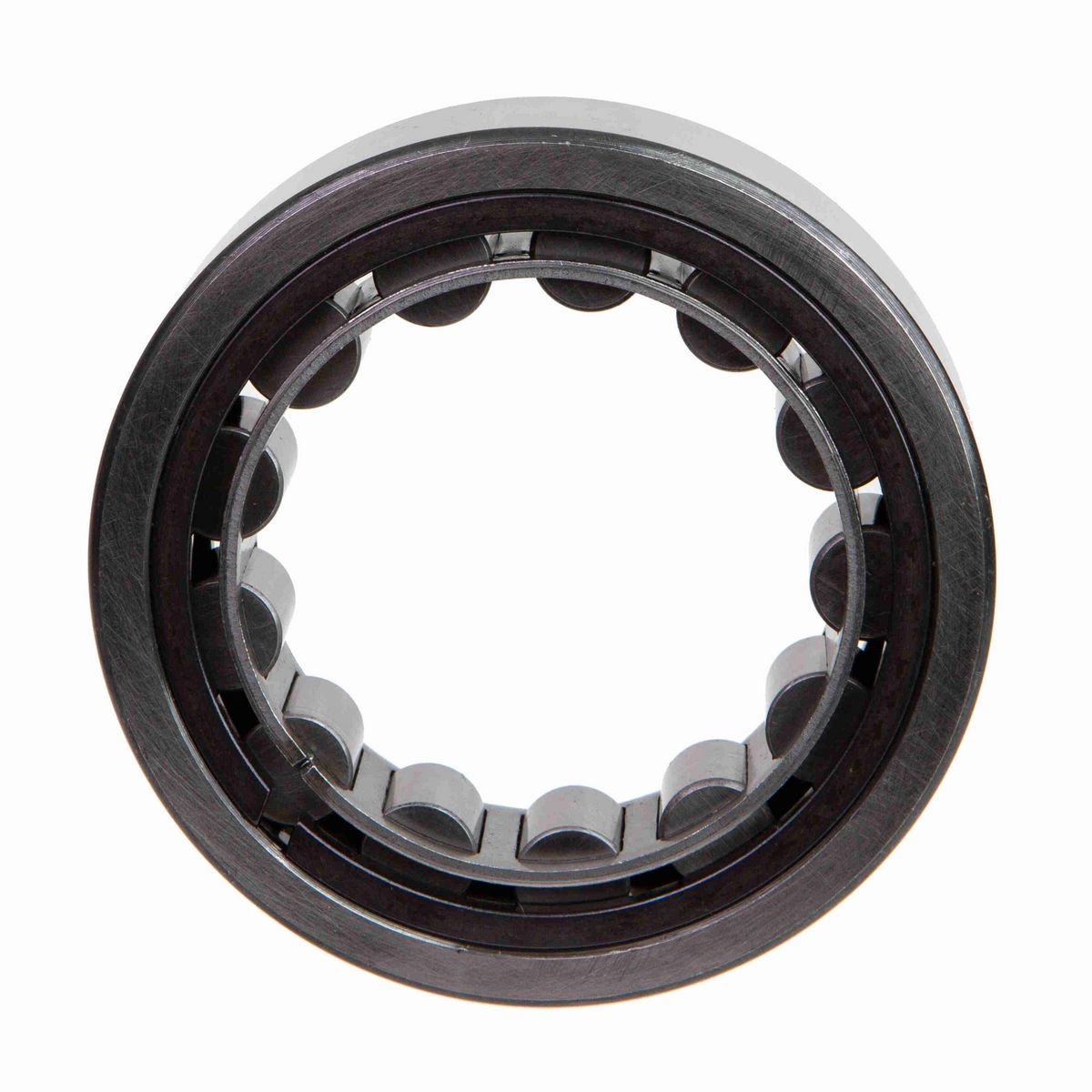

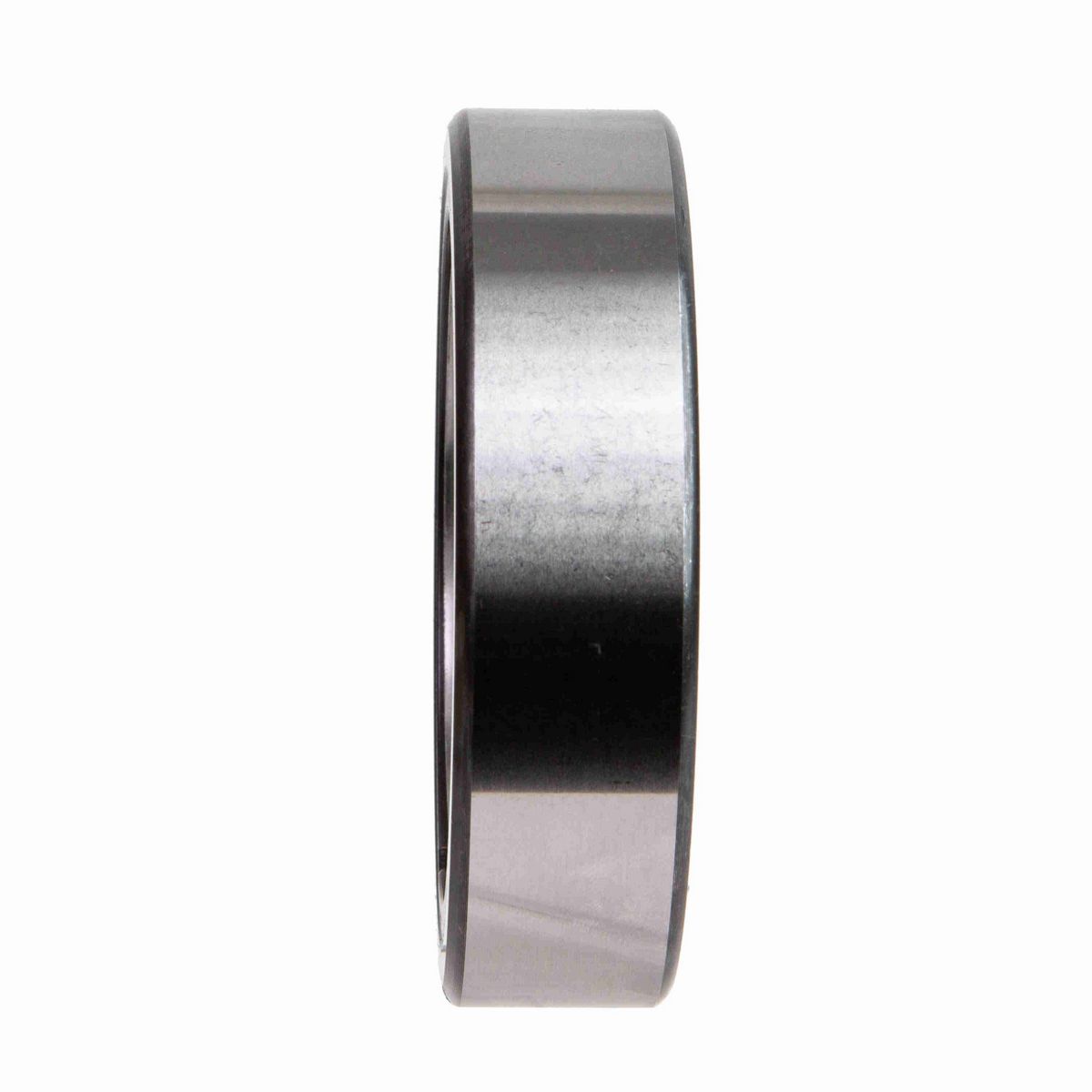

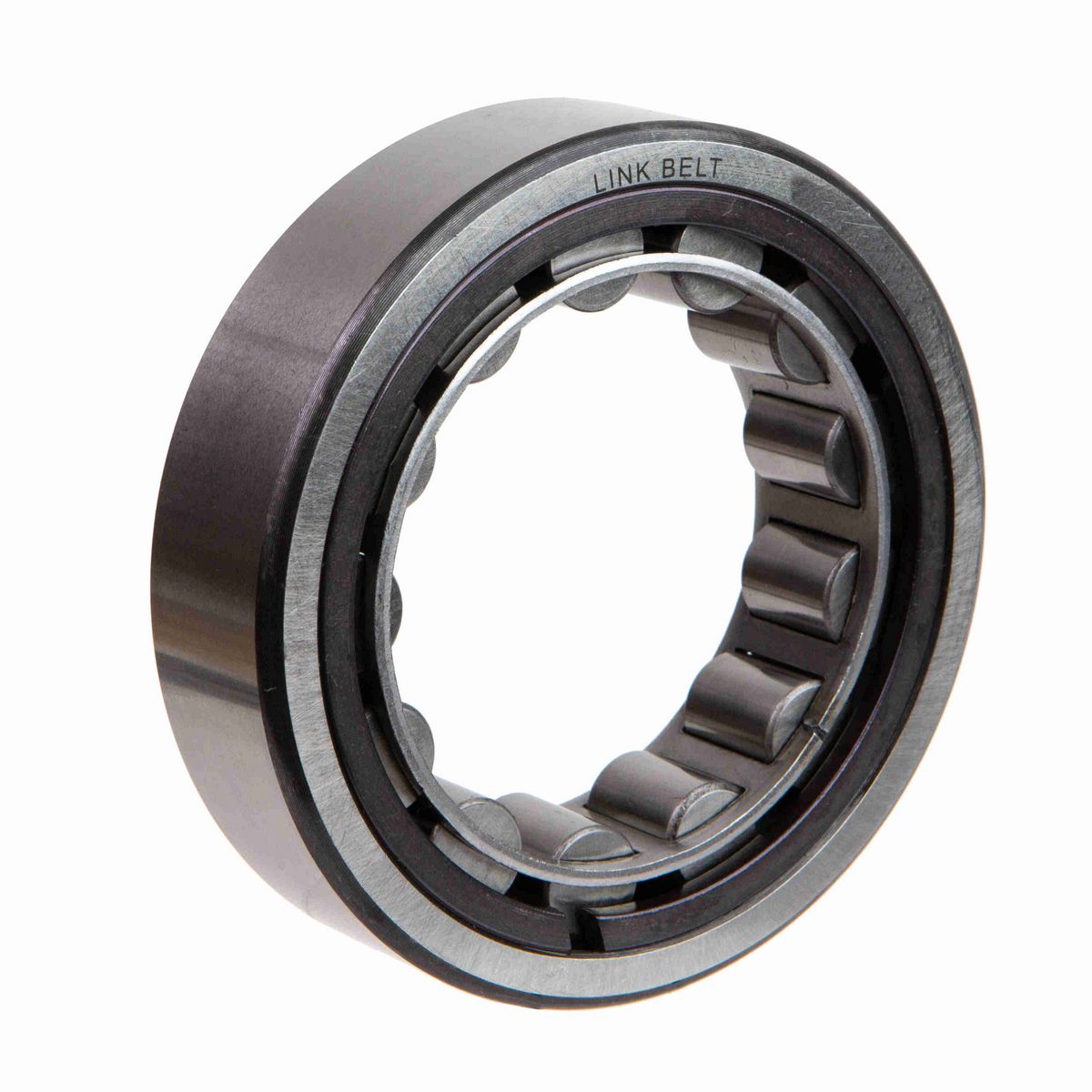

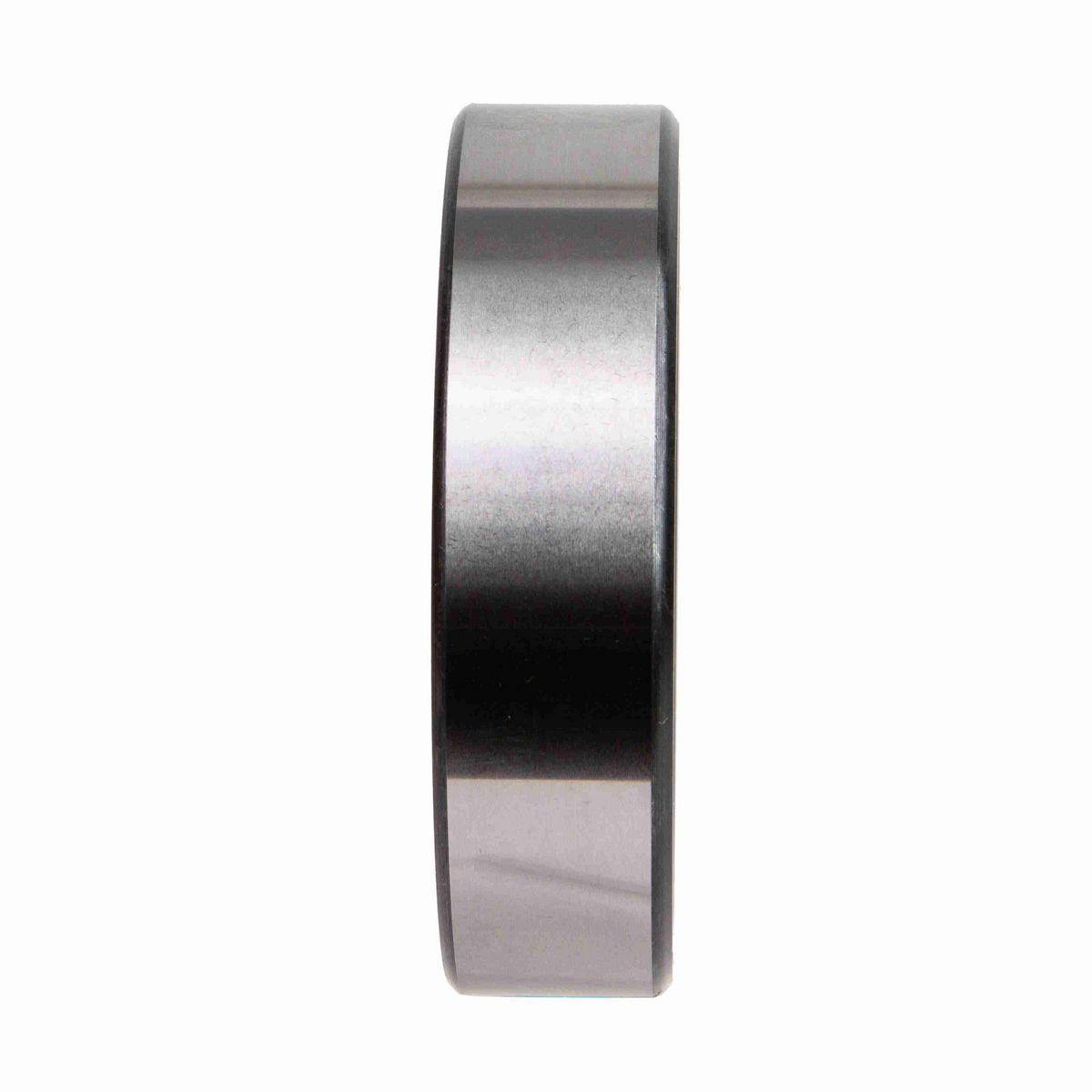

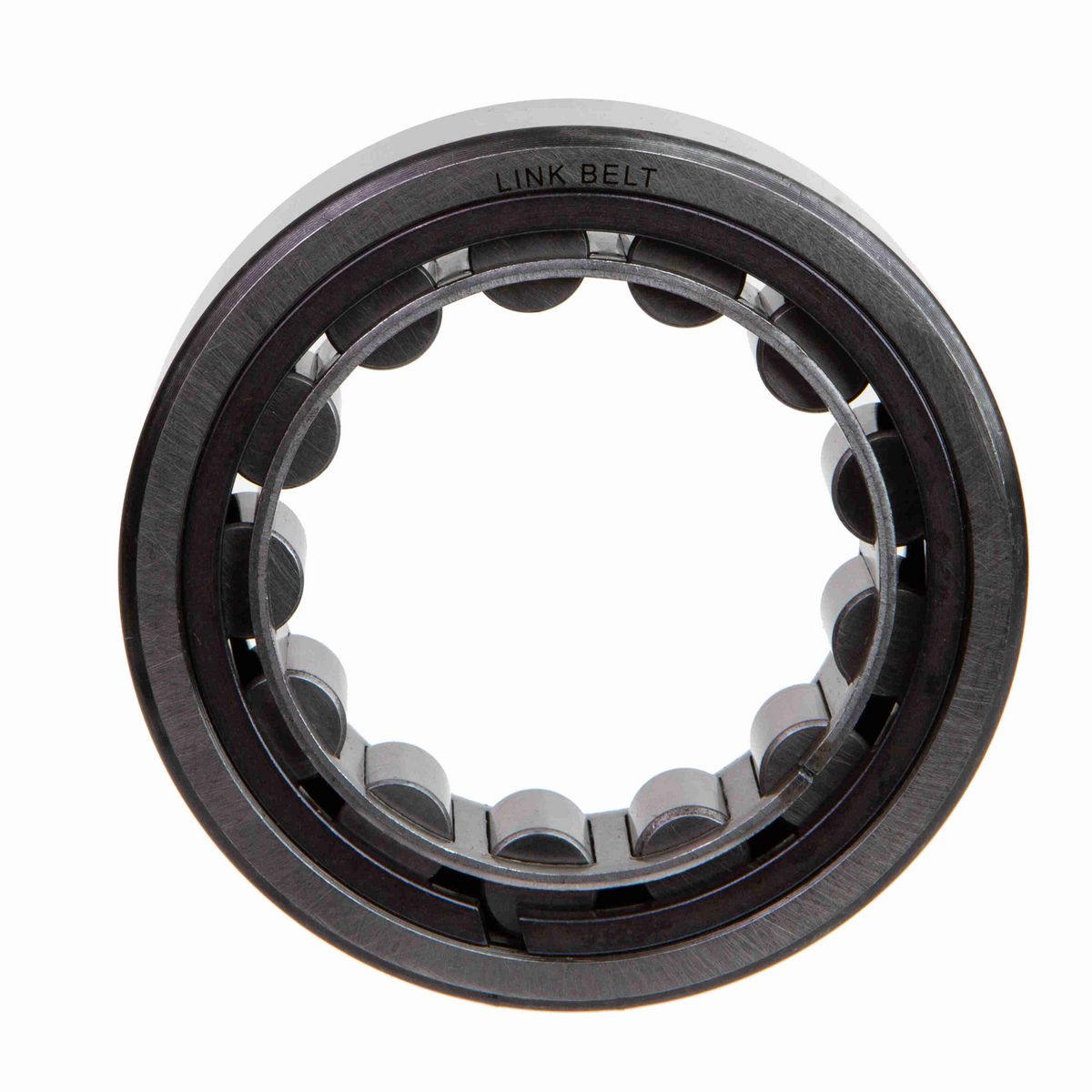

• Link-Belt M1215UV Cylindrical Roller Bearings Series 1200 Outer Ring and Roller Assembly. Contact Rexnord for more details.

Dimensions

Outside Diameter (mm)

130 mm

Technical Specifications

Bearing Width (mm)	25 mm
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	111.25 mm
Mounted Clearance	SEE DESCRIPTION
Outer Ring and Roller Assembly Under Roller Diameter (mm)	89.09 mm
Basic Bearing Number	1215
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	115.6 mm
Series	Outer Ring & Roller Assemblies
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	120.1 mm
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Outer Ring Defect	CALL ENG cps
Rolling Element	Cylindrical
Bore Type	Straight
Product	Series 1200 Outer Ring & Roller Assemblies
Maximum Speed (RPM)	CALL ENG rpm
Co Static Load Rating	CALL ENG lb
Ring Width Series	Narrow (1)
Outer Ring Raceway Inside Diameter (mm)	115.78 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Retainer Type	SEE DESCRIPTION
Series Weight	Light (2)

General Specifications

UPC	662327106324
Weight	2.11 LB
HTC	8482500000
Country of Origin	Mexico
