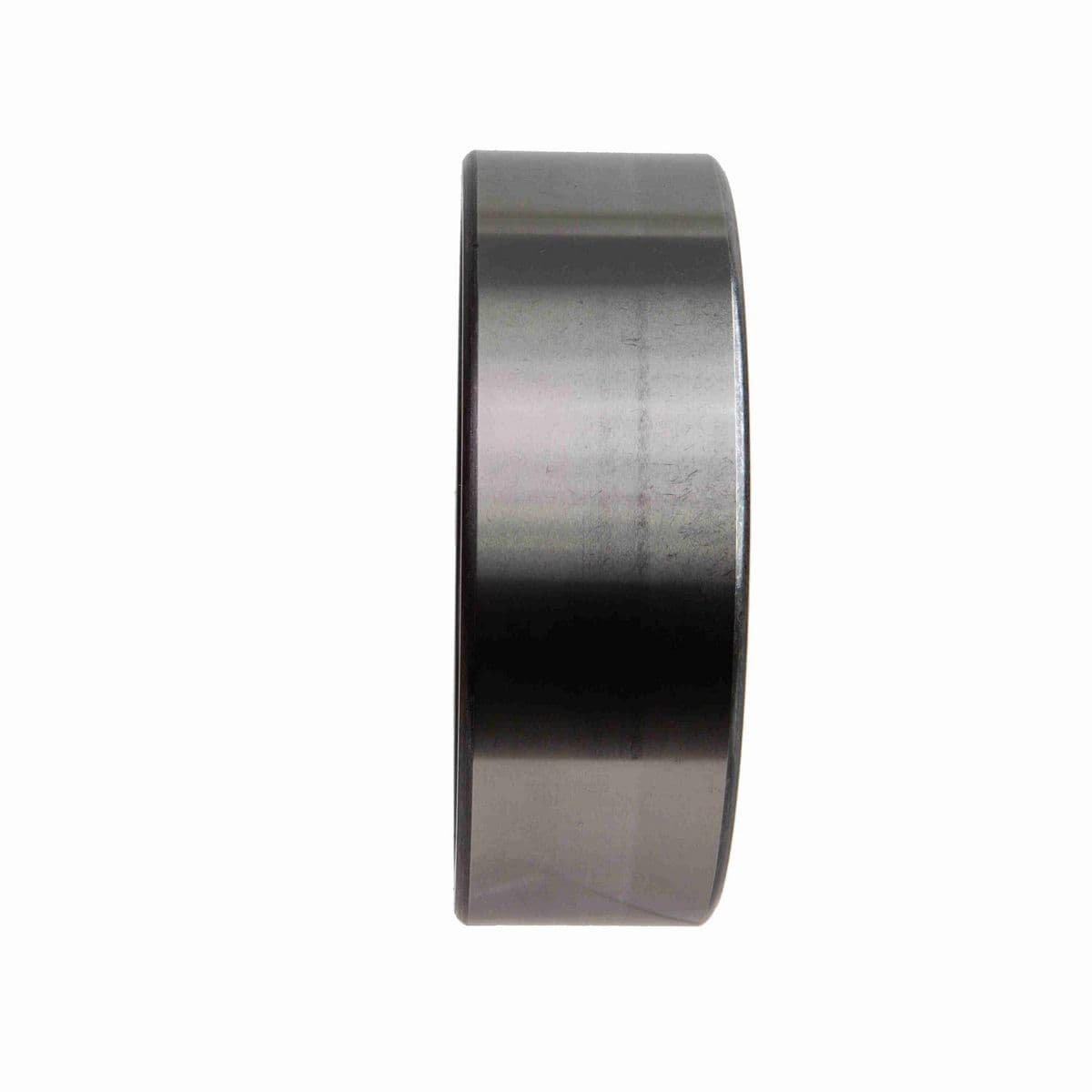

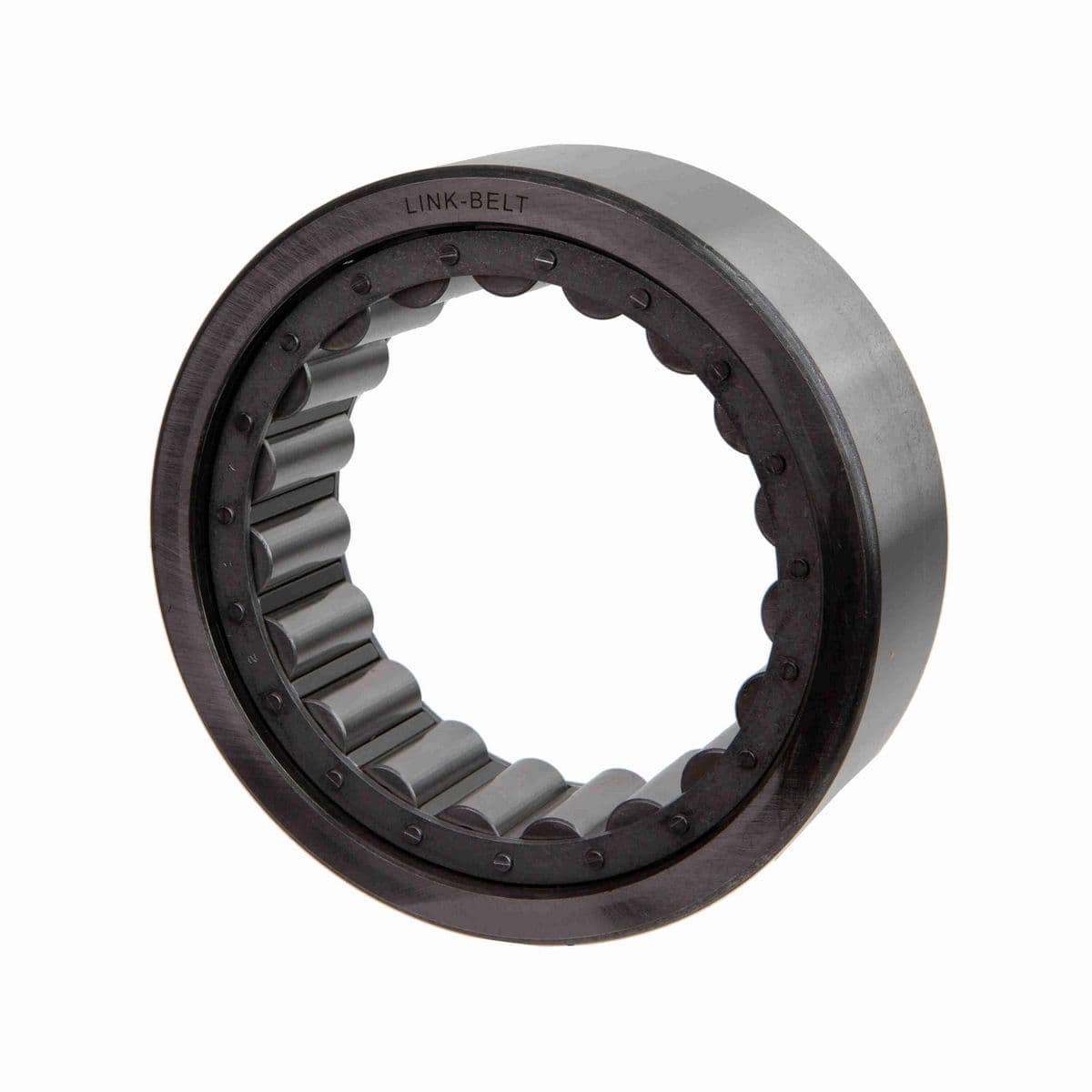

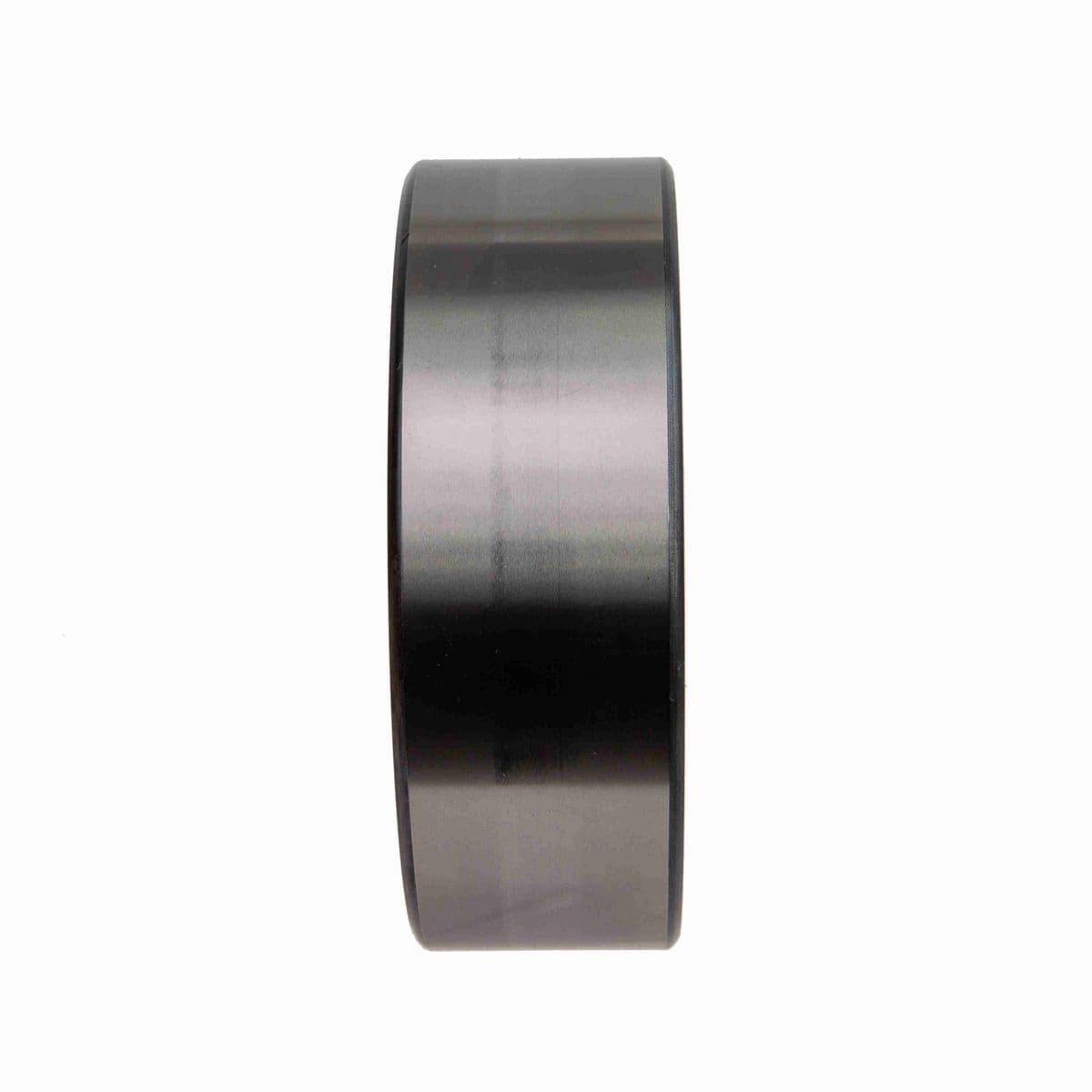

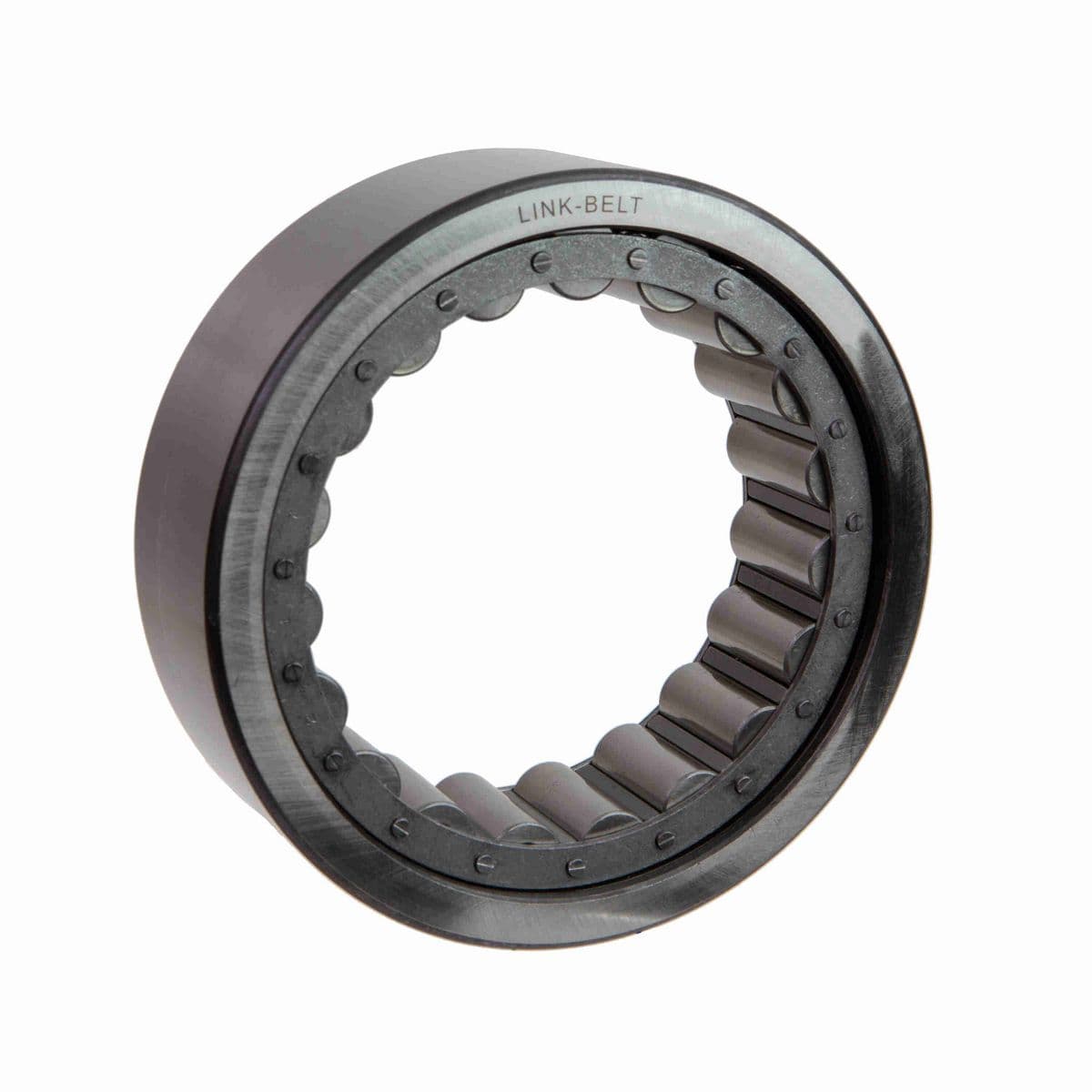

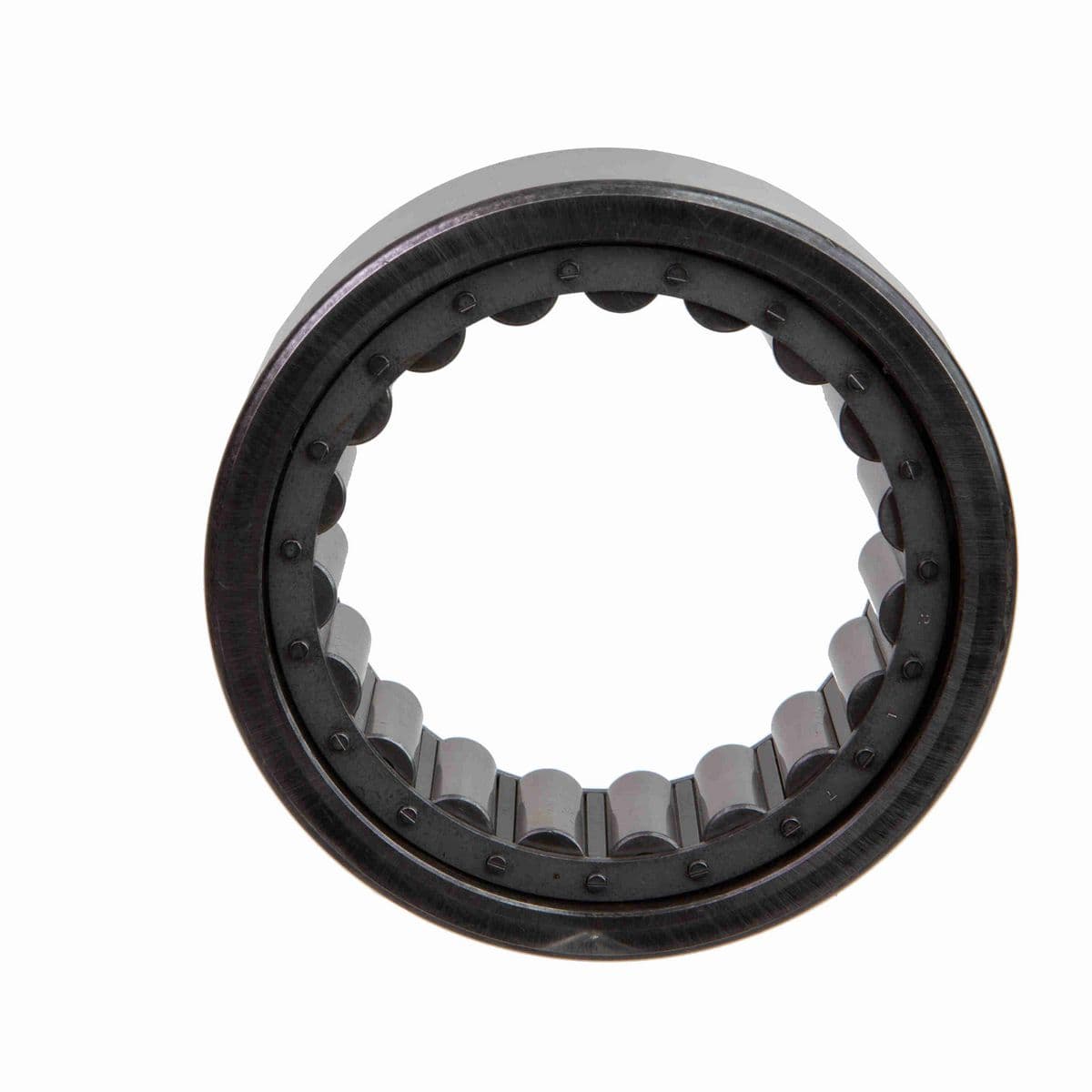

• Link-Belt M1209EAX Cylindrical Roller Bearings Series 1200 Outer Ring and Roller Assembly. Contact Rexnord for more details.

Dimensions

Outside Diameter (mm)

85 mm

Technical Specifications

Vibration Frequency Roller Spin	CALL ENG cps
Vibration Frequency Outer Ring Defect	CALL ENG cps
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	74.9 mm
Series Weight	Light (2)
Basic Bearing Number	1209
Bearing Width (mm)	19 mm
Maximum Speed (RPM)	CALL ENG rpm
Rolling Element	Cylindrical
Outer Ring Type	Double Rib Outer Ring (E)
Vibration Frequency Inner Ring Defect	CALL ENG cps
Mounted Clearance	SEE DESCRIPTION
Co Static Load Rating	CALL ENG lb
Product	Series 1200 Outer Ring & Roller Assemblies
Bore Type	Straight
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	78.2 mm
Outer Ring Rib Inside Diameter (mm)	71.8 mm
Retainer Type	SEE DESCRIPTION
Ring Width Series	Narrow (1)
Series	Outer Ring & Roller Assemblies
Outer Ring and Roller Assembly Under Roller Diameter (mm)	55.57 mm
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Fundamental Train	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	74.99 mm

General Specifications

UPC	662327105891
Weight	0.79 LB
HTC	8482500000
Country of Origin	Mexico
