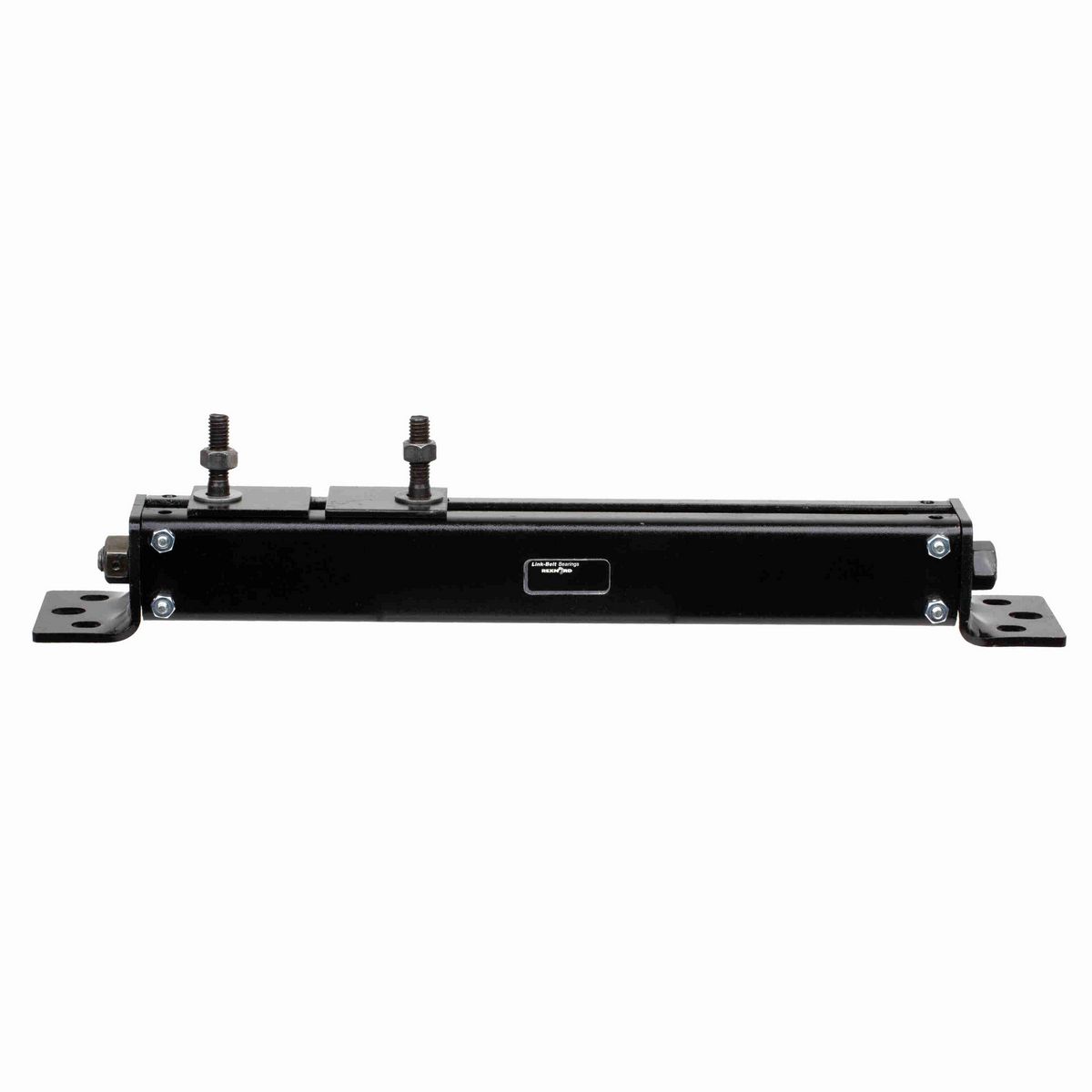

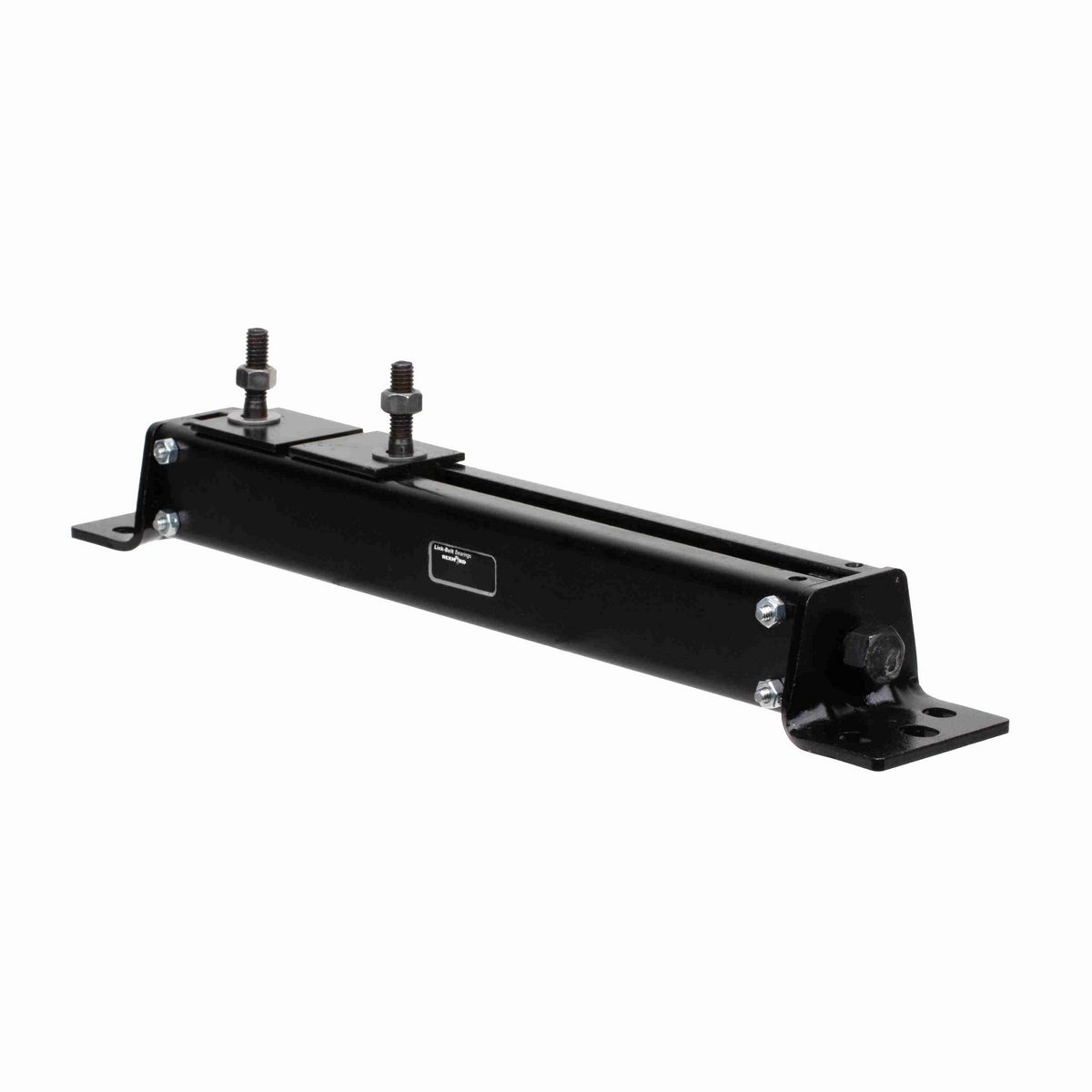

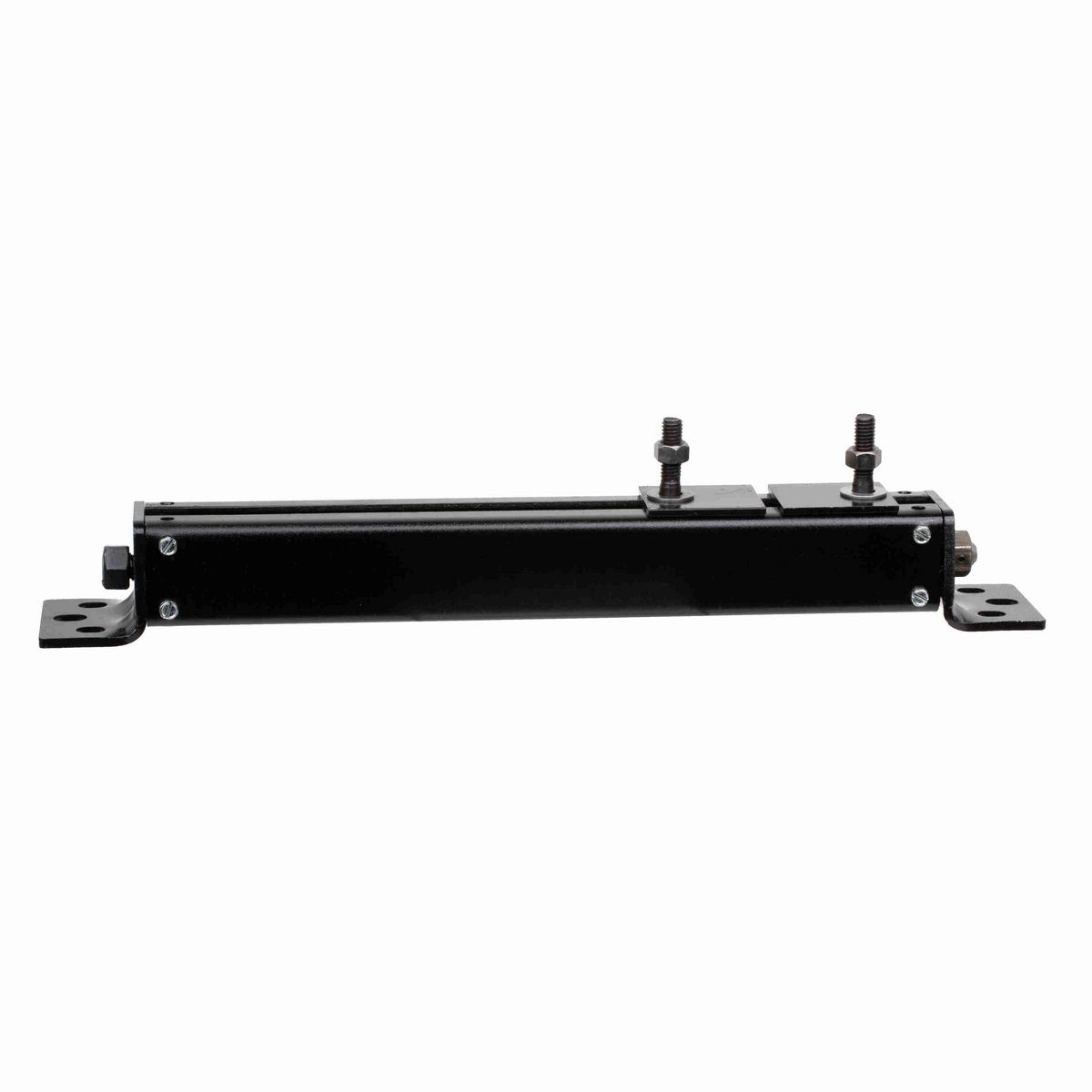

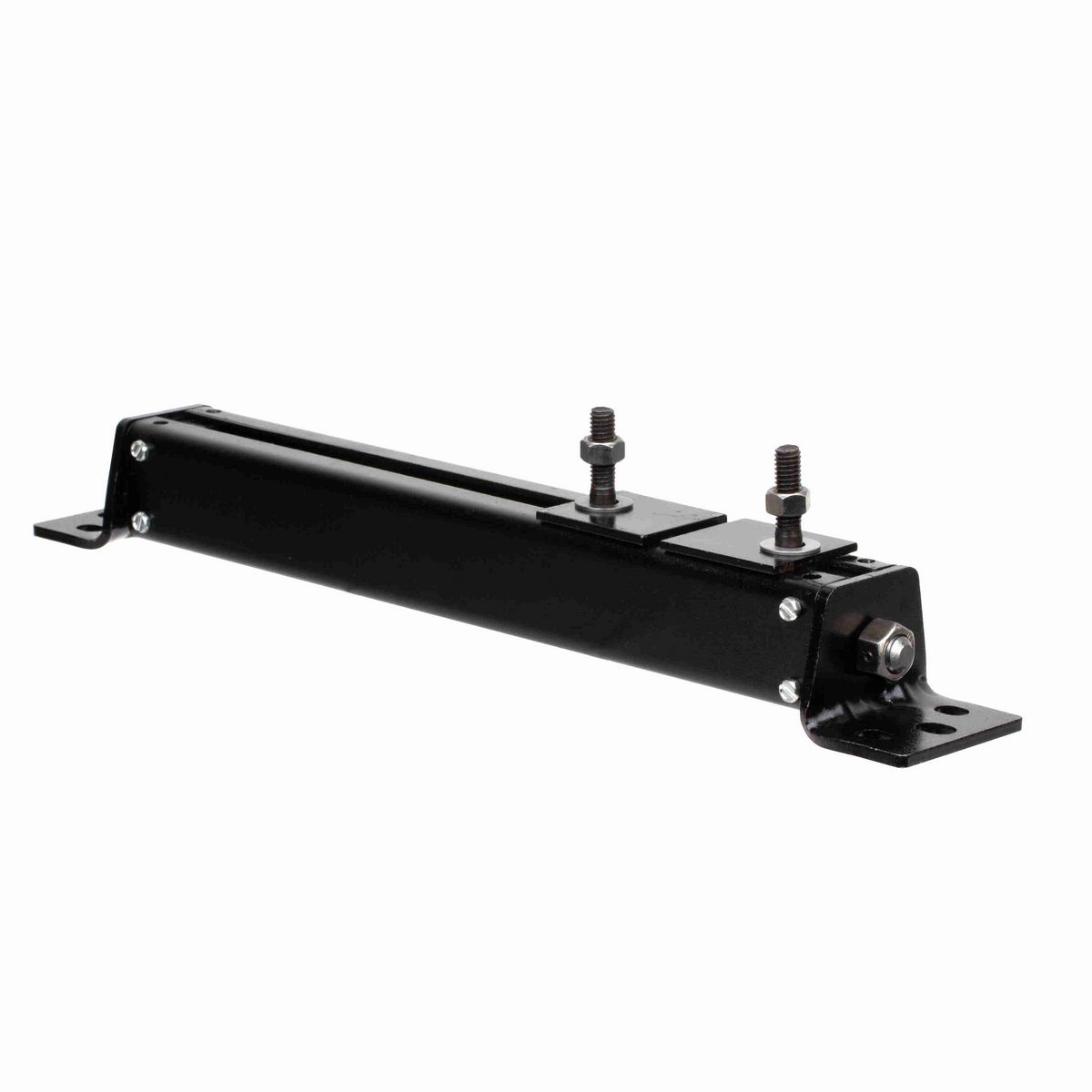

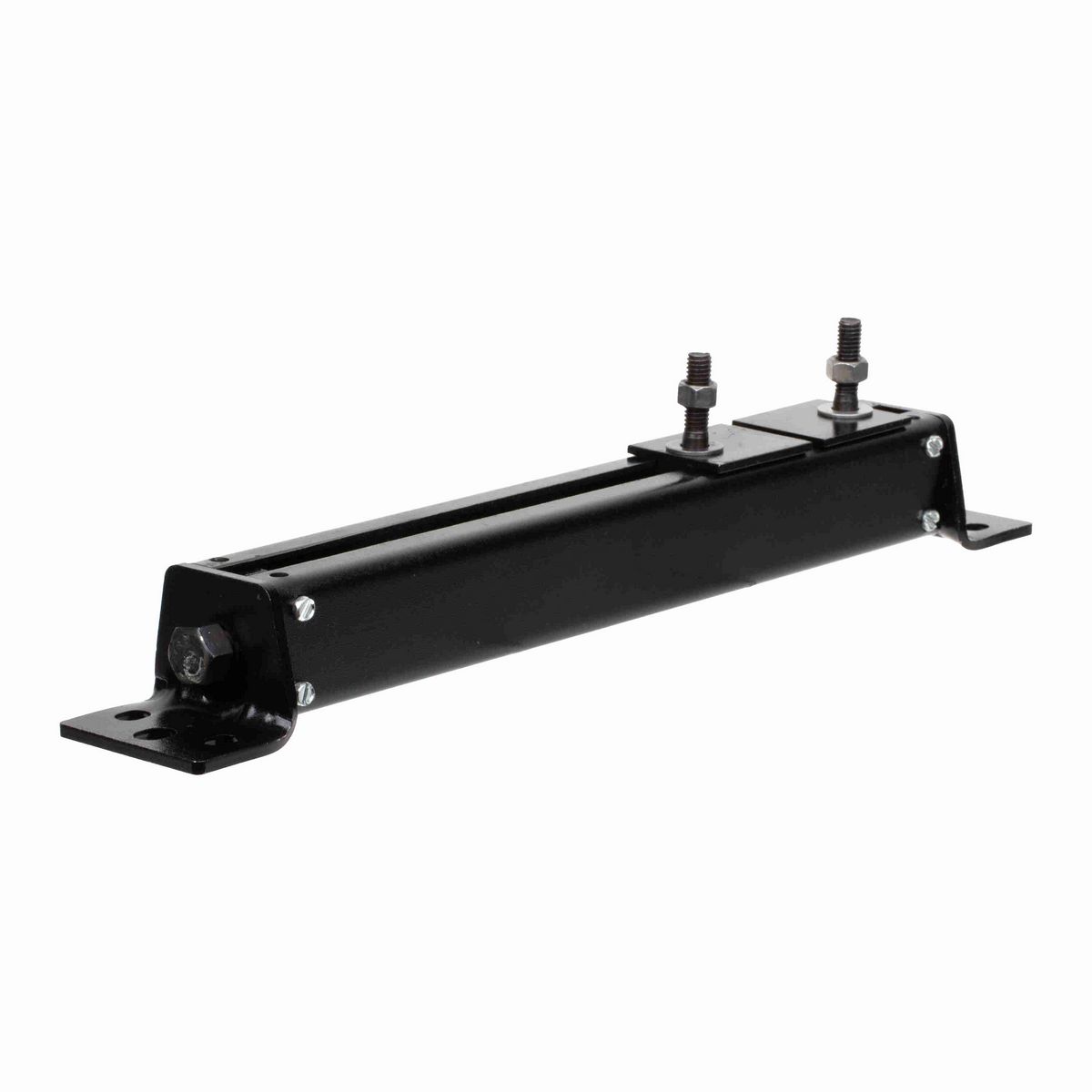

• Light Duty Conveyor Take-up Frame

Technical Specifications

Frame Bolt Hole Spacing Between Paired Mounting Bolts (in)	15 1/4 in
Take-up Frame Assembly Type	Conveyor Take-Up Light Duty
Distance from Mounting Surface to Top of Frame (in)	2 1/8 in
Size Code	205
Frame Bolt Hole Spacing in Width Direction (in)	1 5/8 in
Maximum Mounting Plate Bolt Hole Spacing (in)	5 15/16 in
Frame Length (in)	17 in
Frame Bolt Hole Spacing (in)	16 in
Frame Mounting Pad Length (in)	1 3/4 in
Mounting Pad Height (in)	3/16 in
Frame Type	Top Mount Protected Screw
Mounting Bolt Size (in)	5/16 in
Travel Length (in)	6 in
Minimum Mounting Plate Bolt Hole Spacing (in)	3 in
Bearing Type	NO BEARING
Mounting Pad Width (in)	1 3/4 in
Distance from Frame Bolt Hole Center to Bearing Centerline (in)	5 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Product	LC Take-up Frames
Series	LC Take-up Frames
Distance From Frame Mounting Surface to Rod Centerline (in)	1 1/16 in
Frame Material	Welded Steel
Frame Pad Width (in)	2 5/8 in

General Specifications

UPC	662327050917
Weight	5.25 LB
