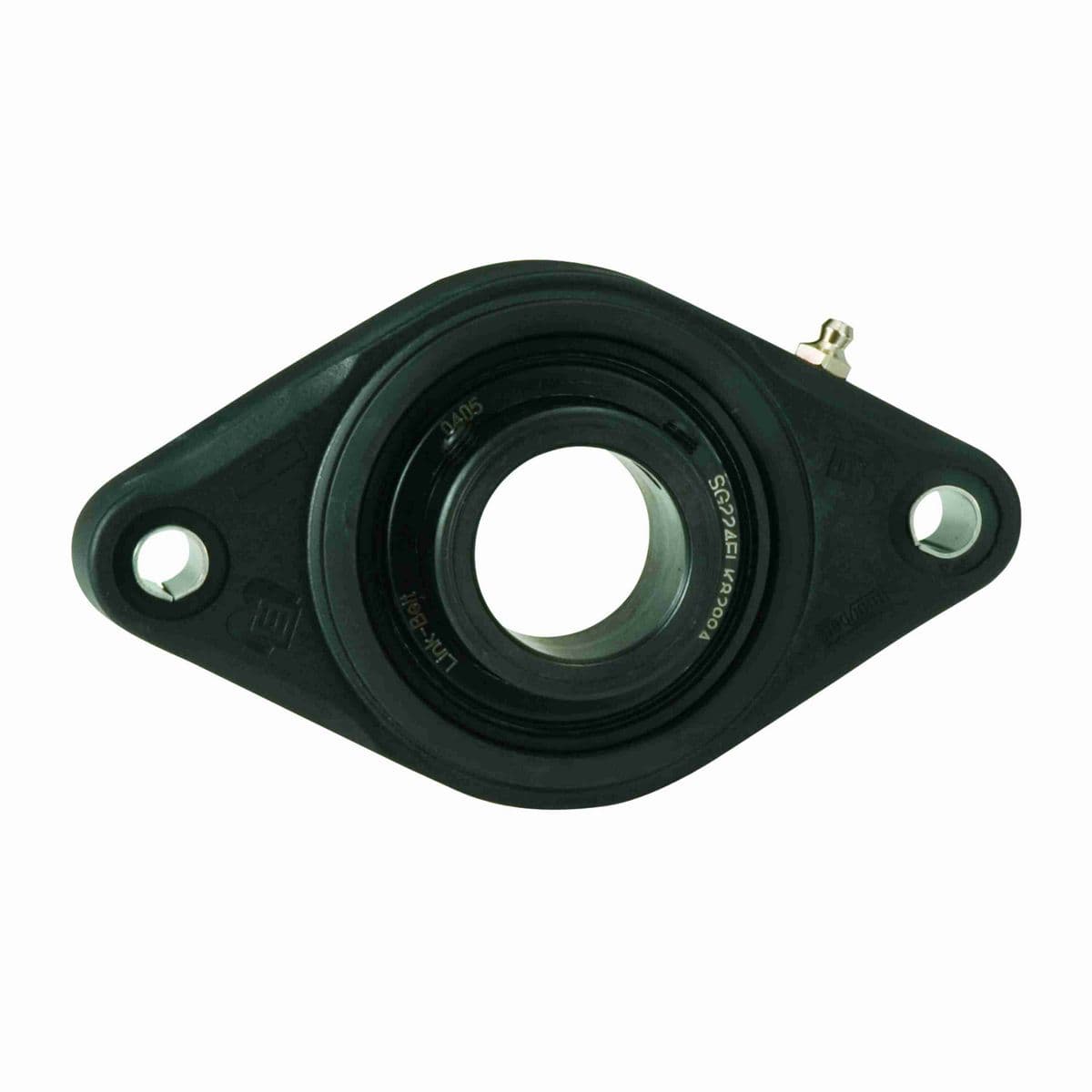

• 1 1/4" Mounted Ball Bearing, Intermediate Duty, Beverage Unit with Water Drainage Features Polyamide 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Open end cap and rear auxilary dual lip seal

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	3.34 in
Overall Length (in)	5.83 in
Overall Height to End Cap (in)	2.17 in
Length Through Bore (in)	1.344 in
Foot Height (in)	1.02 in
Bore Diameter (in)	1.25 in
Overall Height (in)	1.75 in
Bolt Spacing (in)	4.606 in

Technical Specifications

Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Style	Flange Block
Misalignment Type	Static Only
Housing Construction	One Piece
Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Setscrew Torque (in-lbs)	165 in/lbs
Ability to Relubricate	Yes
Shaft Locking Type	Set Screw
Max Operating Temperature (C)	70 °C
Lube Fitting Type	HOUSING PLUGGED
Vibration Frequency Roller Spin	0.0385 cps
Dynamic Load Rating (lb)	4,390 lb
Grease Fitting Thread Size	RP 1/8 PAR
Vibration Frequency Inner Ring Defect	0.0905 cps
End Cap	SEE AUX CAP KIT
Fixed vs. Expansion	Fixed
Size Code	206
Bearing Brand	LINK-BELT KLEAN-GARD
Housing Material	Polyamide
Bearing Insert Finish	BLACK OXIDE
Vibration Frequency Fundamental Train	0.0067 cps
Insert	SG2E20ELK8299A
Static Load Rating (lb)	2,530 lb
Max Operating Temperature (F)	158 °F
Bearing Type	Intermediate Duty
Bearing Insert Material	52100 Bearing Steel
End Cap Available	Yes
Cage Type	Ball Riding Retainer
Lubricant	MOBIL FM222 FOOD GRADE H1
Maximum Speed (RPM)	5600 rpm
Radial Clearance	C3 STANDARD
Lube Fill Percent	100% GREASE FILL
Vibration Frequency Outer Ring Defect	0.0595 cps
Misalignment Capability	±1.5° Misalignment - Static Only

General Specifications

UPC	793699538151
Weight	1.30 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	84833080
