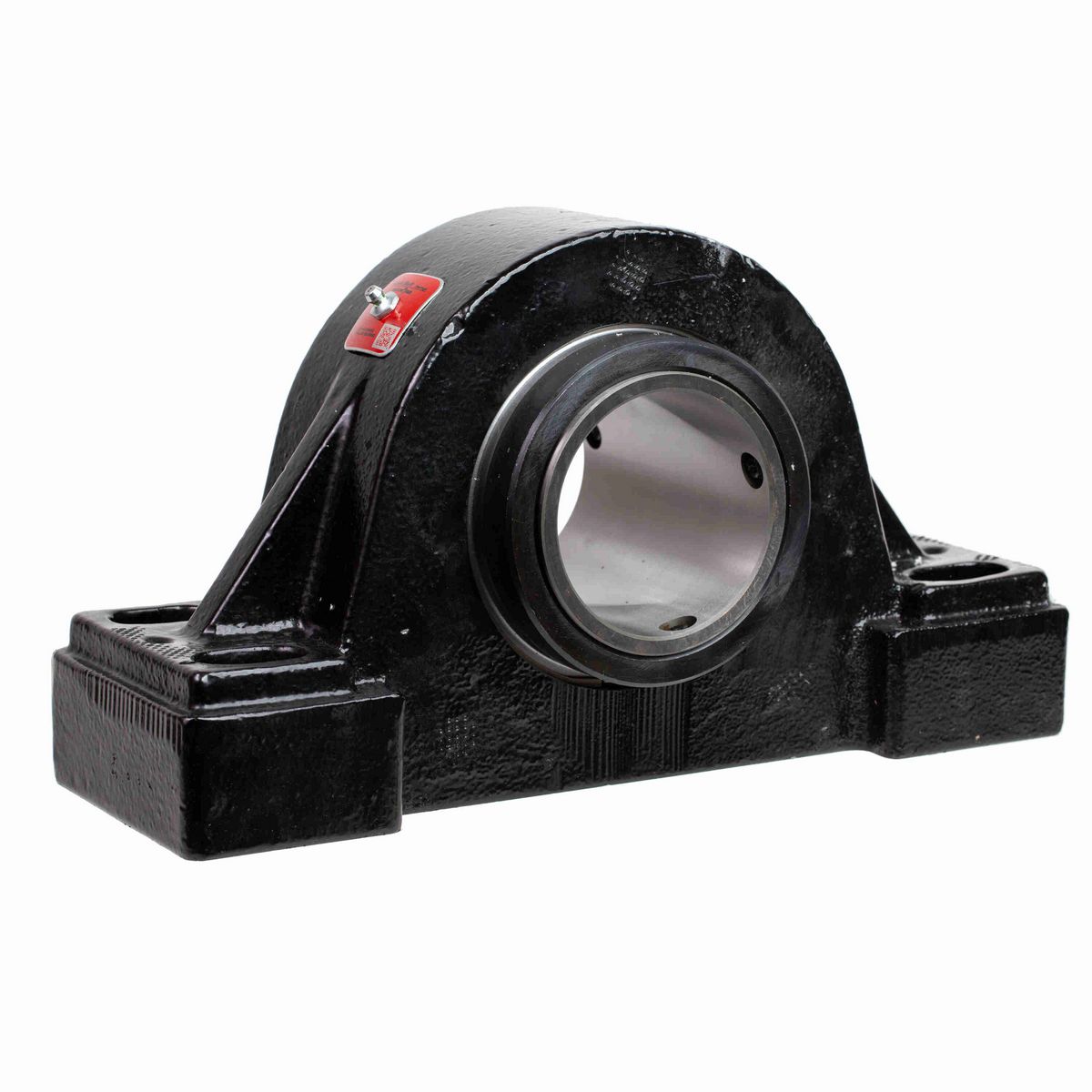

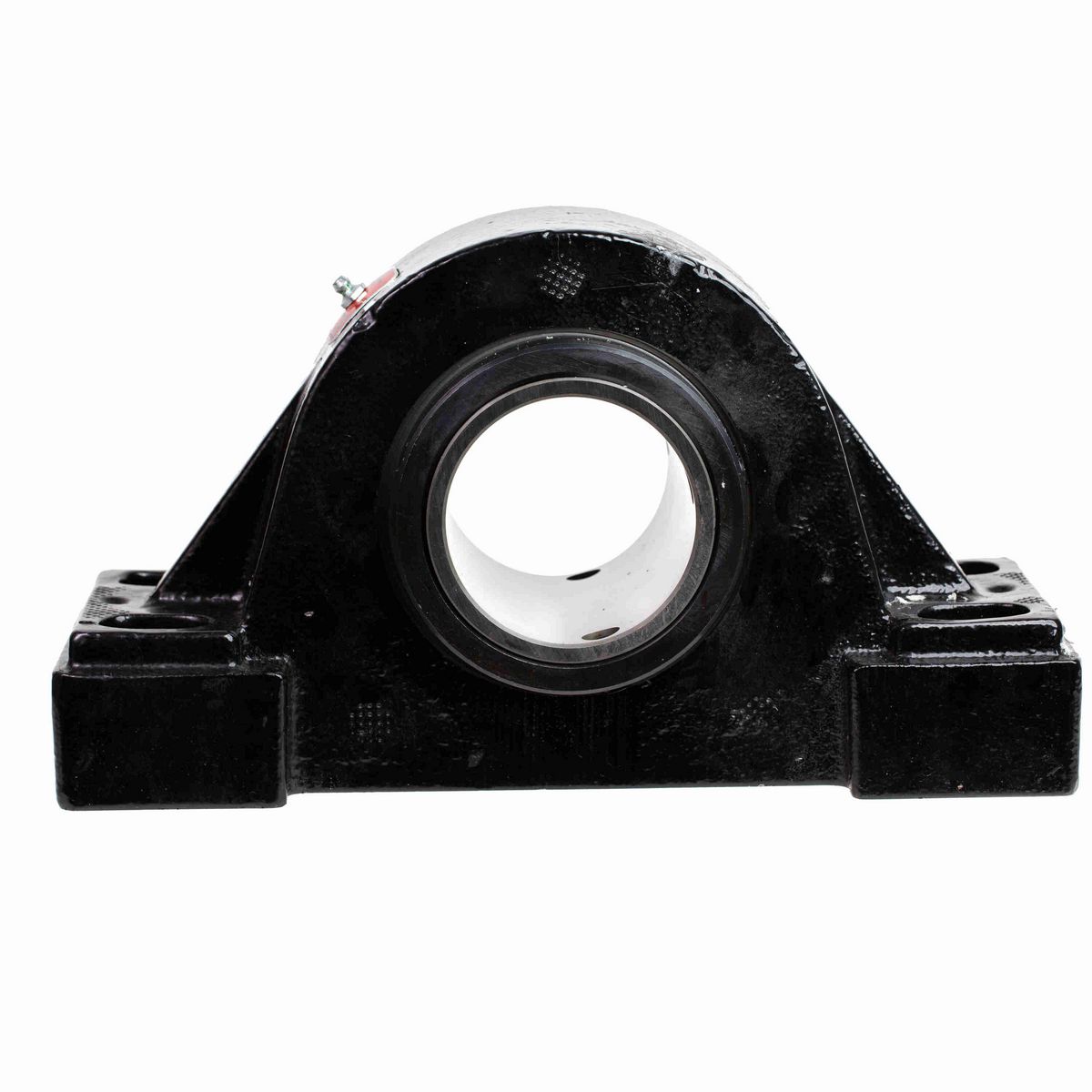

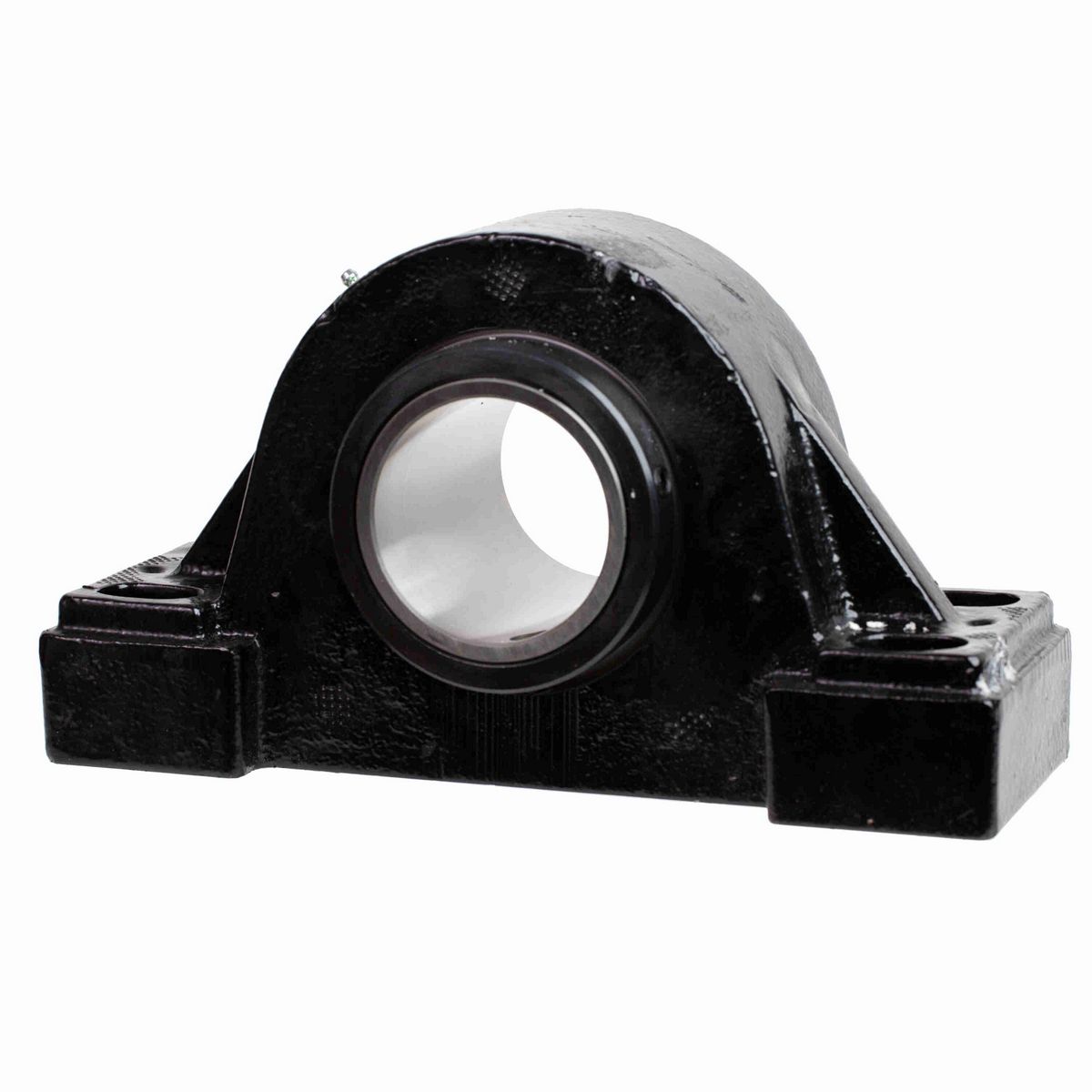

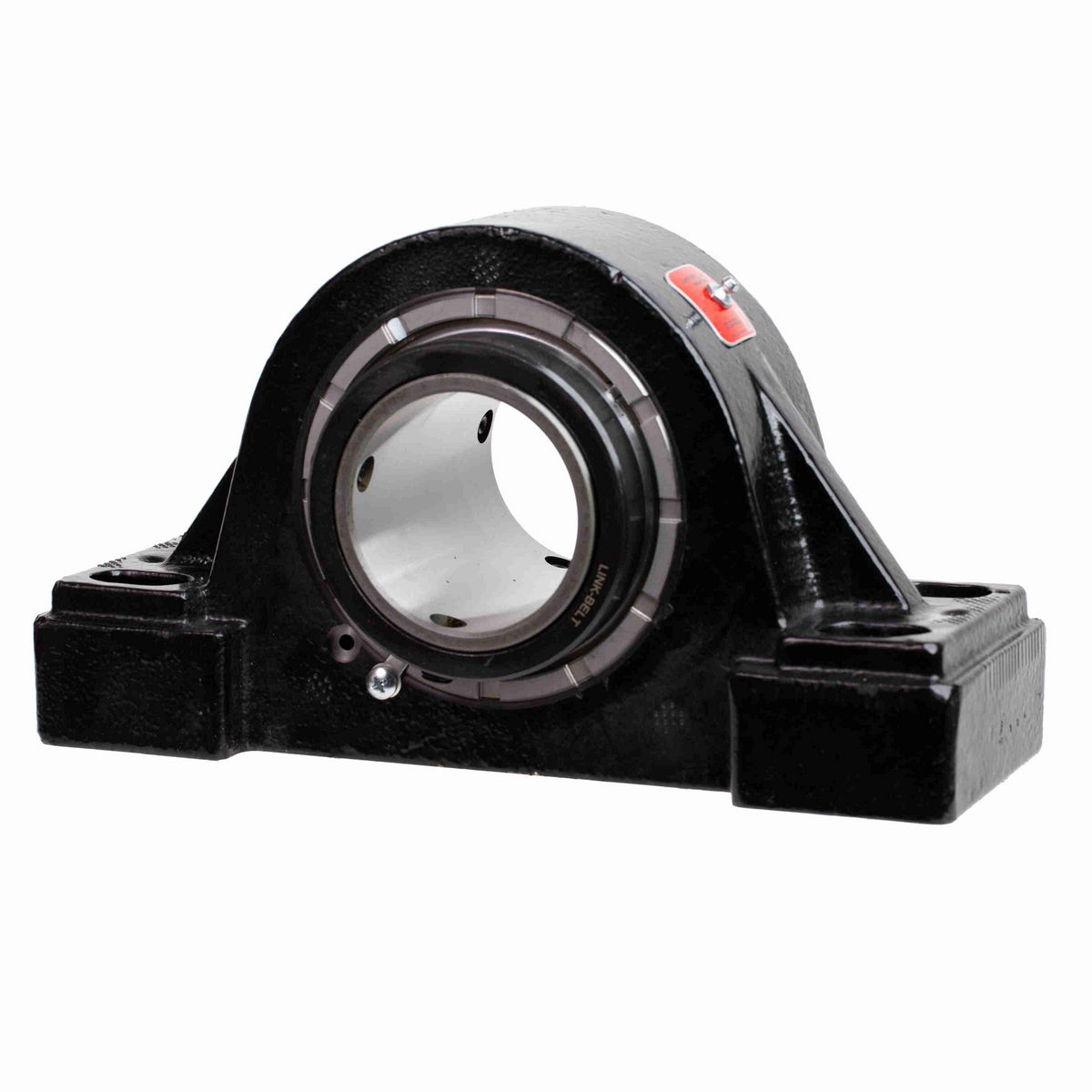

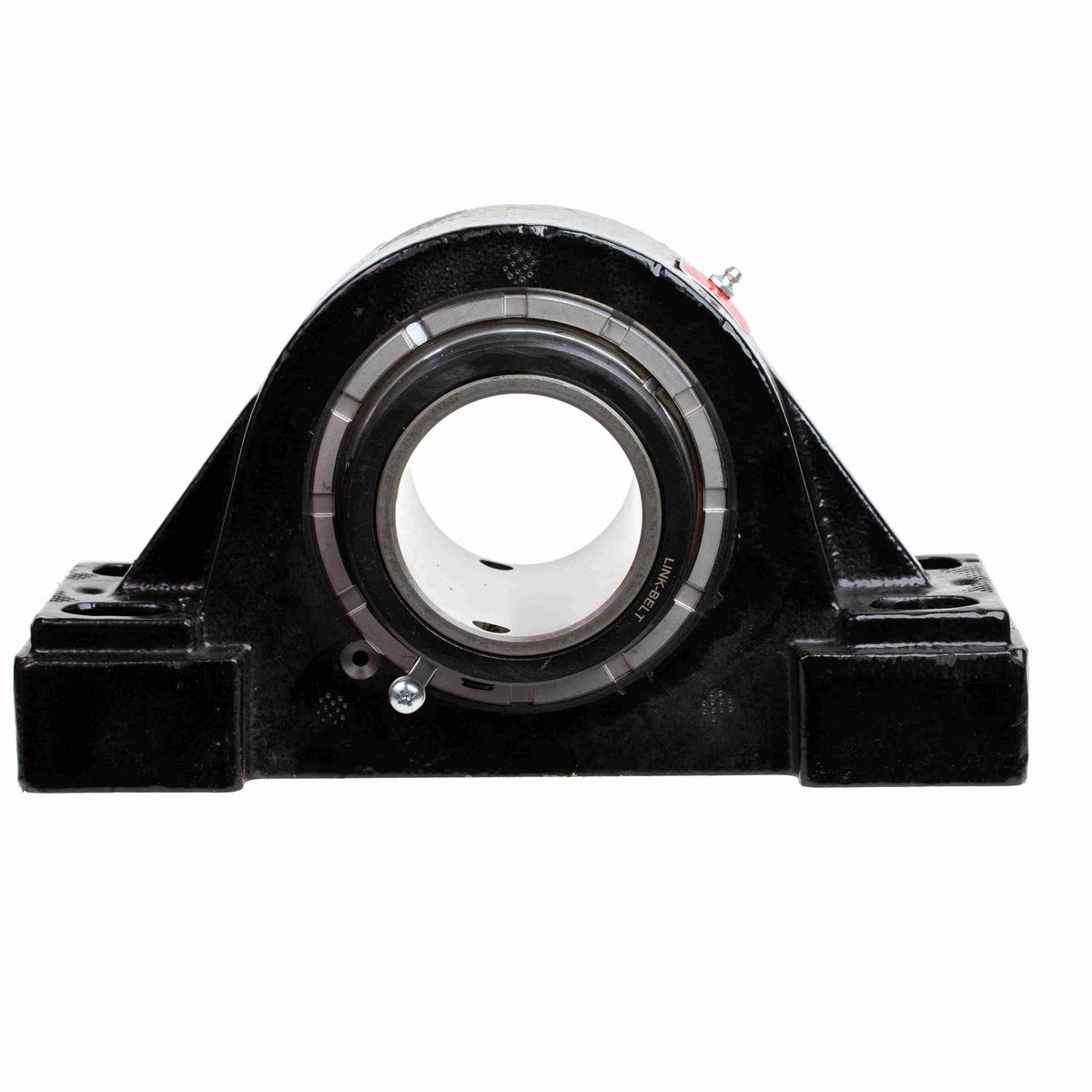

• 3 7/16" Mounted Spherical Roller Bearing, Cast Iron Fixed 4-Bolt Pillow Block, Double Setscrew Locking Collar, Single Lip Light Contact Seal

Dimensions

Bore Diameter (in)	3.4375 in
Base to Center Height (in)	4 in
Foot Height (in)	1.5 in
Bolt Size (in)	3/4 in
Overall Width (in)	5.31 in
Overall Height (in)	8.13 in
Base Width (in)	5 in
Overall Length (in)	15 in
Slot Length (in)	1.5 in
Locking Collar Outside Diameter (in)	4.91 in
Length Through Bore (in)	5.31 in
Bolt Spacing (in)	11.5 in
Base Length (in)	15 in
Inner Ring Outside Diameter (in)	3.975 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in
Bolt Spacing Width (in)	3 in

Technical Specifications

Shaft Locking Type	Double Set Collar
Housing Style	Pillow Block
Seal Type	Single Lip Contact Seal
Misalignment Type	Dynamic
Radial Dynamic Load Capacity (lb)	84,330 lb
End Cap	DTC10
Radial Clearance	C3 STANDARD
Housing Material	Cast Iron
Product	ZP5000F
Housing Construction	Solid
Series	Solid-housed Pillow Blocks
Fixed/Expansion	Fixed
Rolling Element	Spherical Roller
Housing Type	Pillow Block, Four Bolt
Cage Material	Engineered Polymer
Housing Color	Black
Static Load Rating (lb)	90,700 lb
Microlock Kit	ML4
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	680 in/lbs
Maximum Speed (RPM)	1700 rpm
Seal Kit	KS10
Available Seal Type	K Light Contact Lip Seal; M Spring Loaded Heavy Contact Lip Seal (Buna and Viton); Z Clearance Seal; G Triple Lip
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.1784 cps
Vibration Frequency Fundamental Train	0.0073 cps
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±2.0° Misalignment - Dynamic
Size Code	10
Primary Seal	BUNA SGL LIP LIGHT CONTACT
Insert	5307U
Housing Coating	POWDER COATED
Vibration Frequency Outer Ring Defect	0.1383 cps
Locking Device Kit	SC10 QTY 2
Vibration Frequency Roller Spin	0.0628 cps
Max Operating Temperature (C)	107 °C

General Specifications

UPC	698210639815
Weight	51.00 LB
Packaged Length	15.50 IN
Packaged Width	5.38 IN
Packaged Height	8.50 IN
HTC	8483208080
Country of Origin	Mexico
