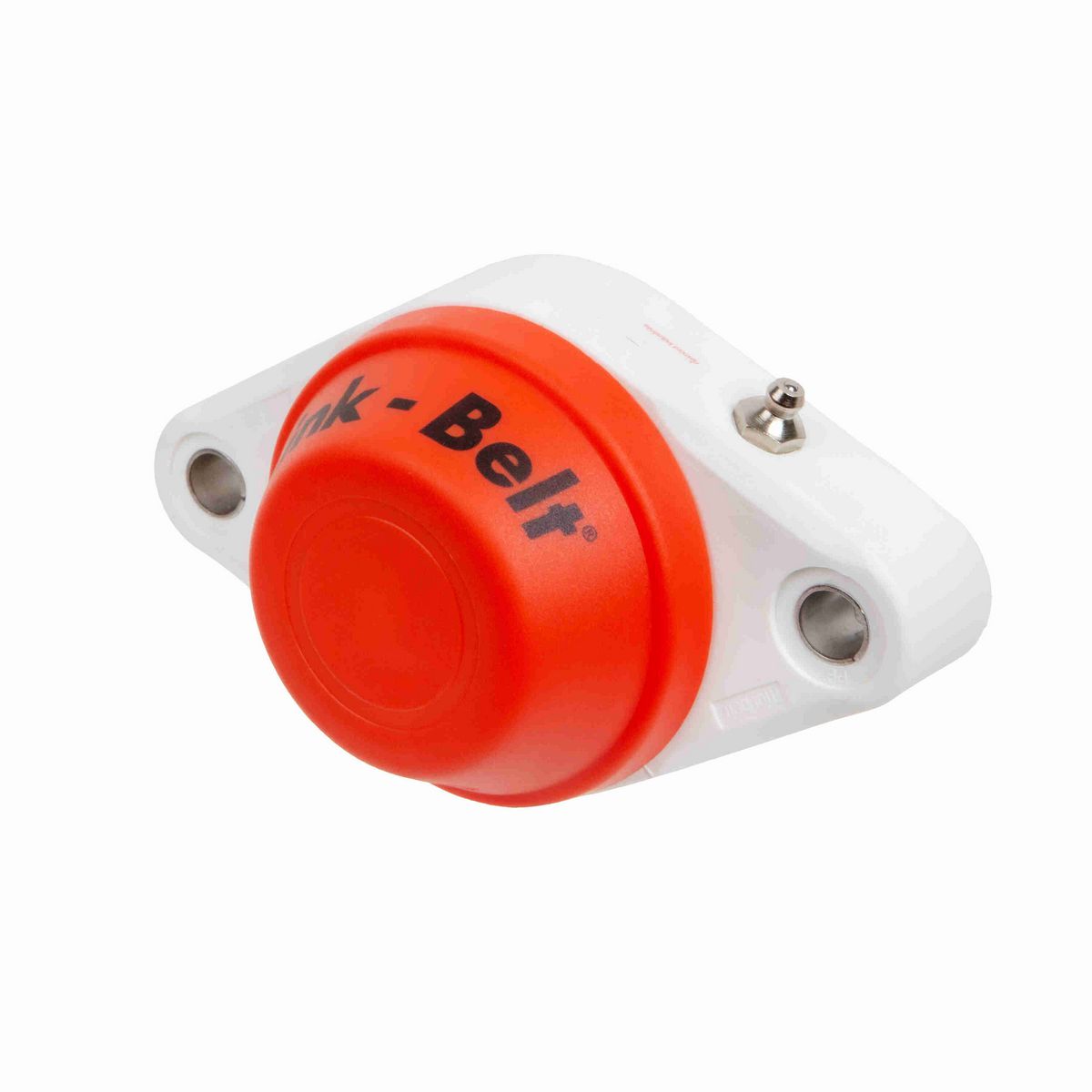

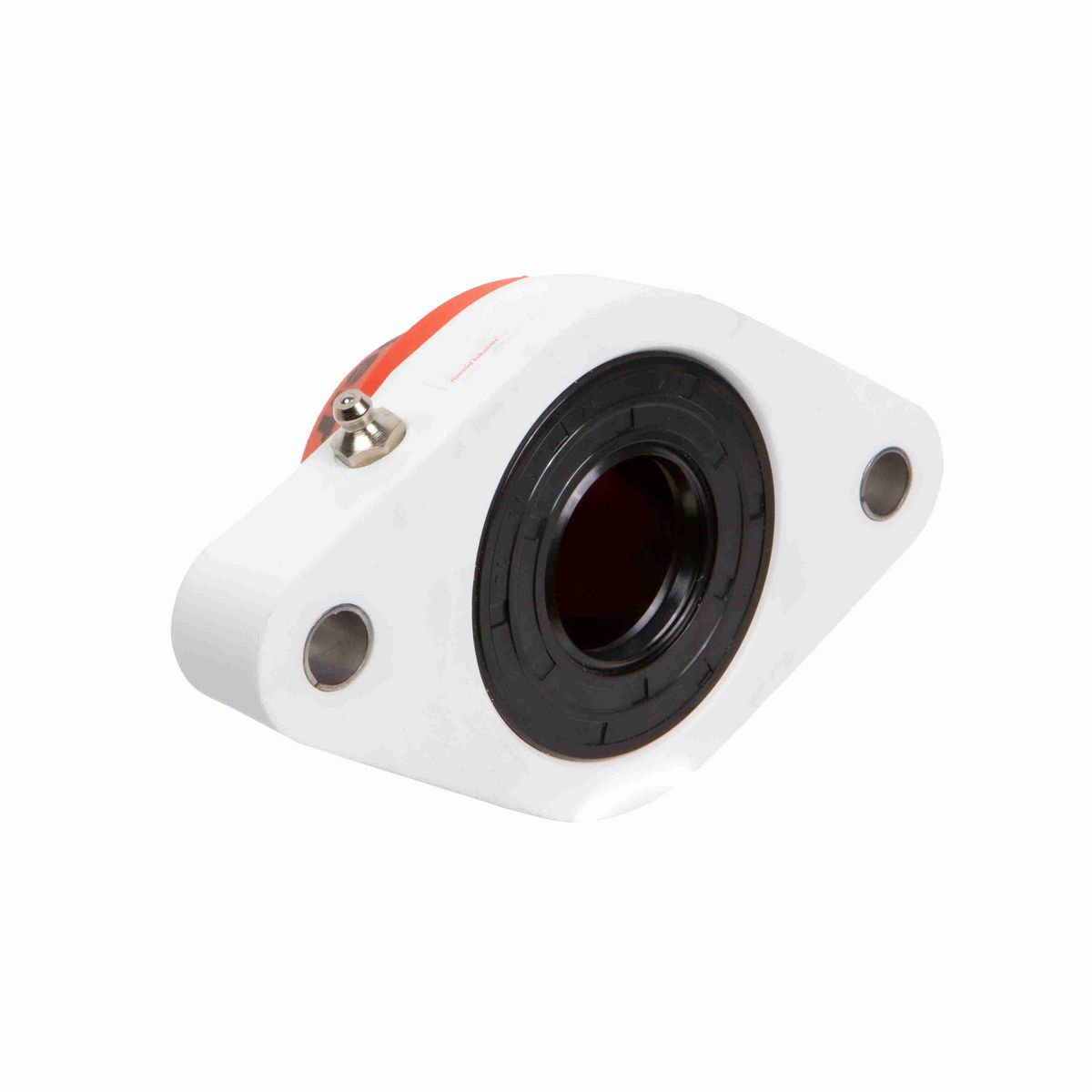

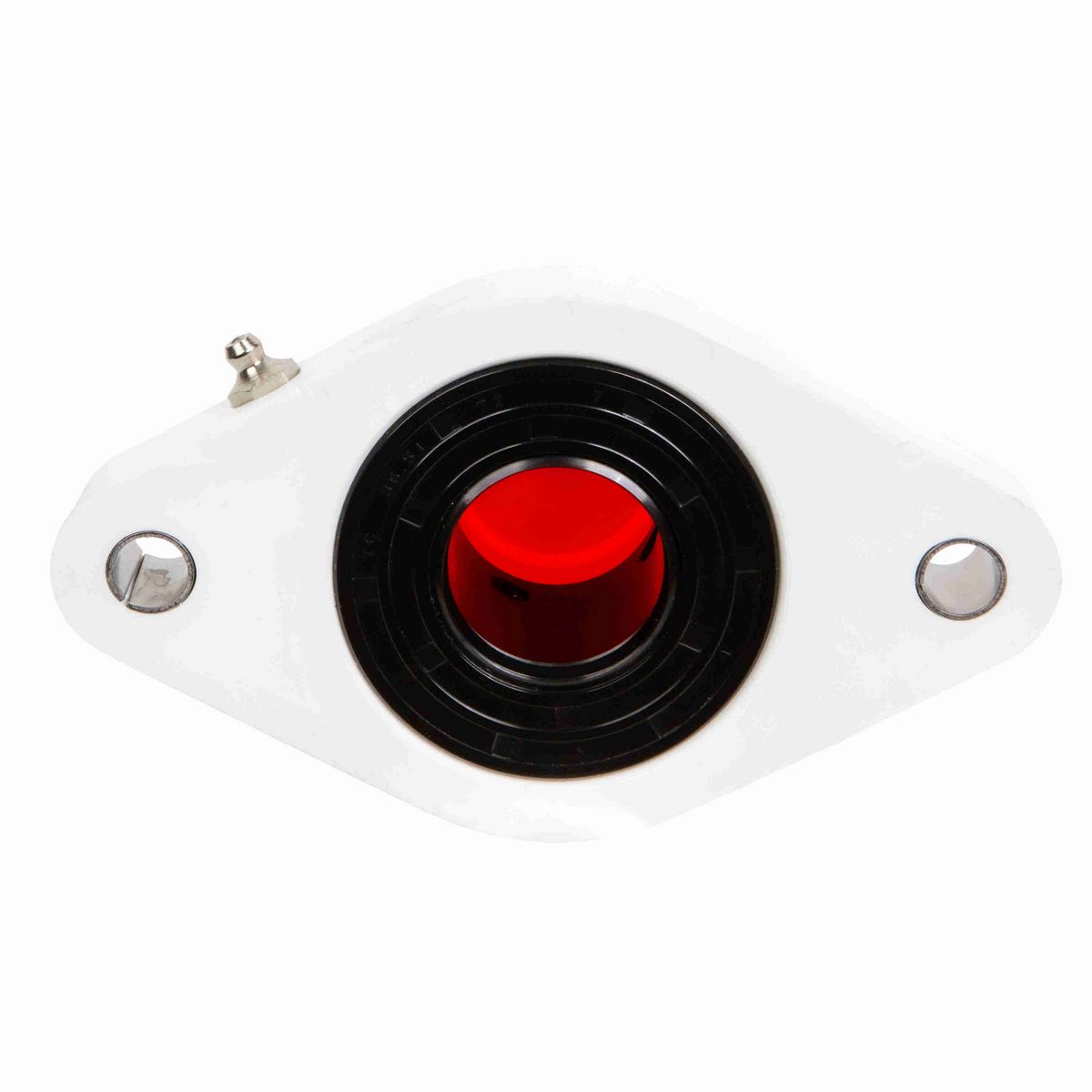

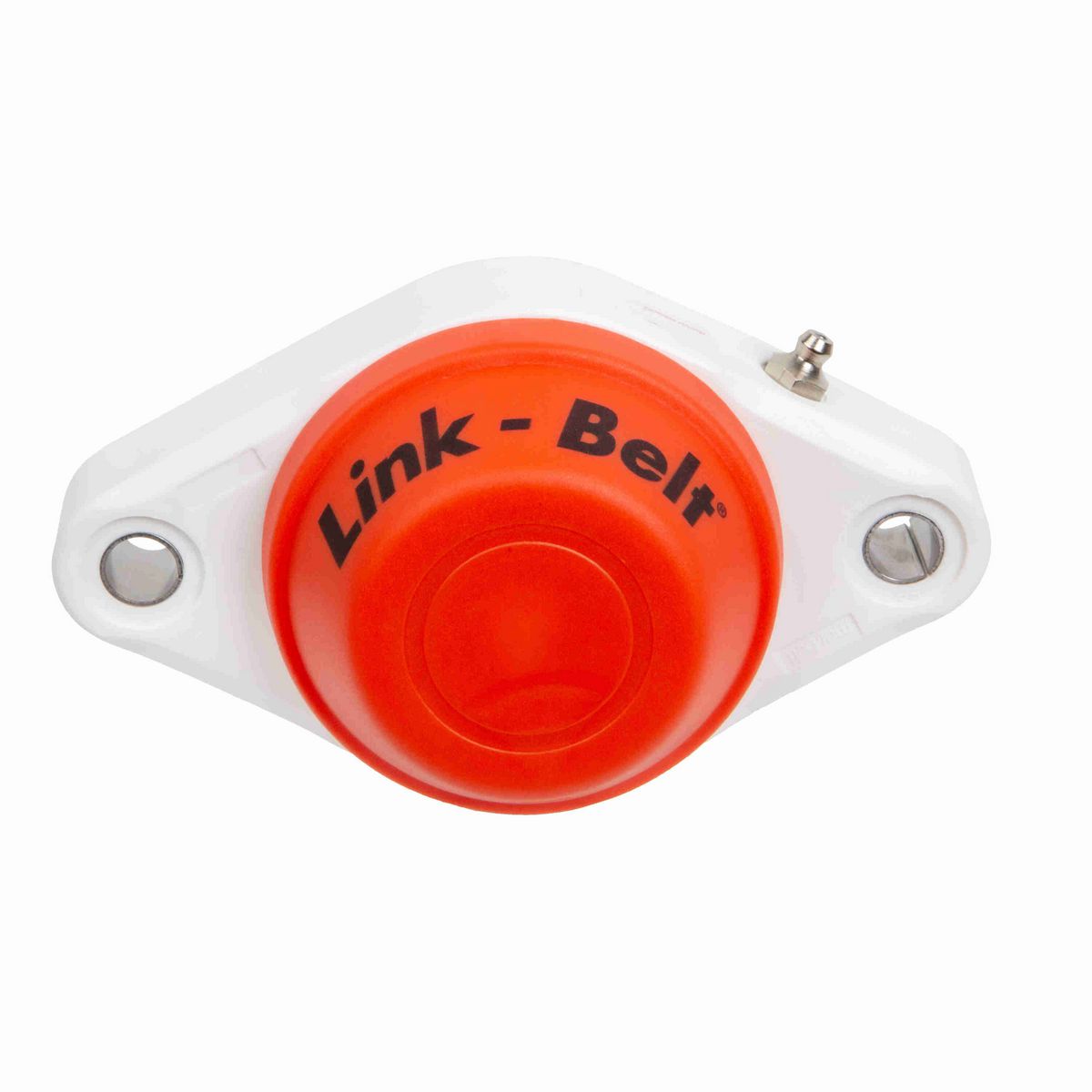

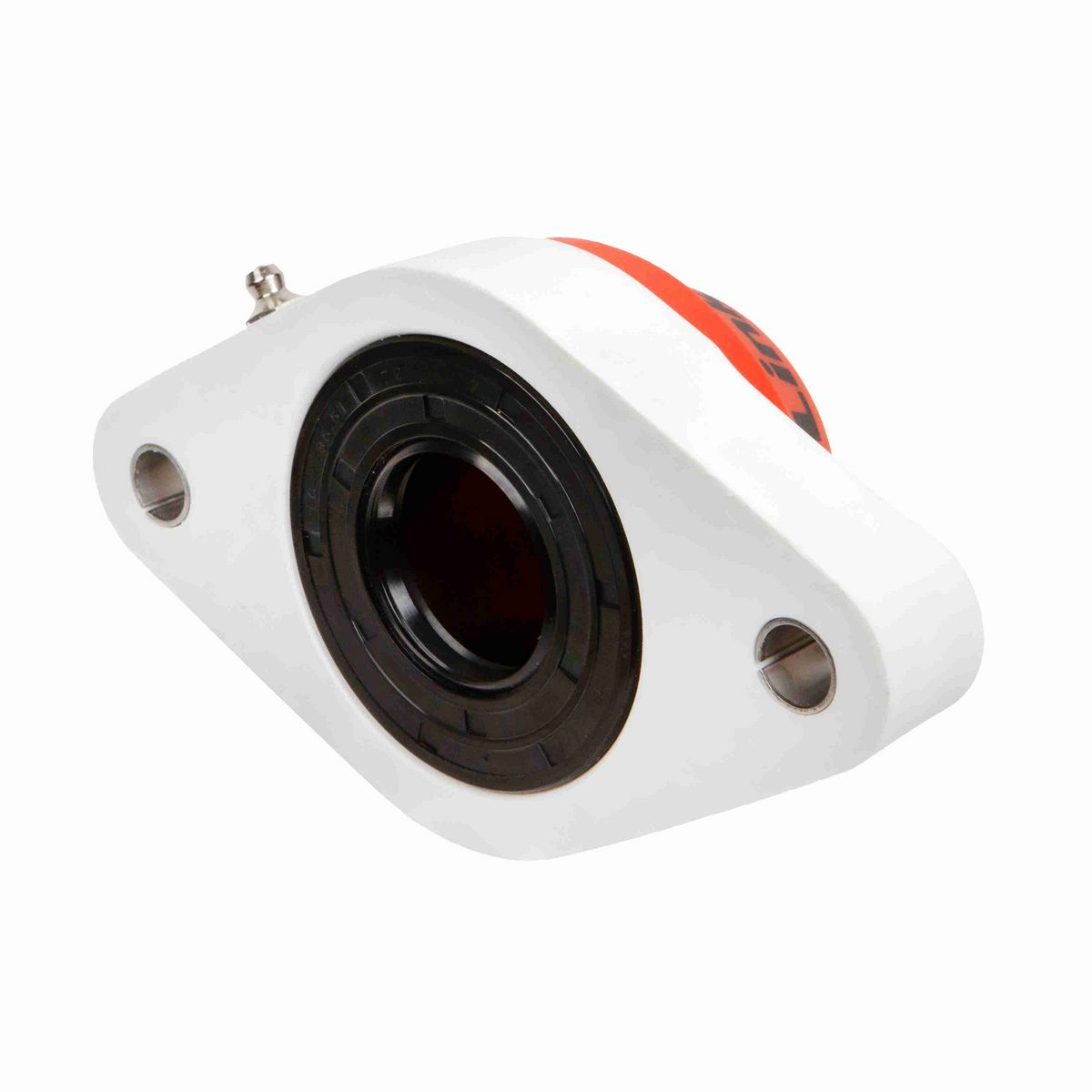

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Polypropylene 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Closed end cap and rear auxilary dual lip seal

Dimensions

Overall Height to End Cap (in)	2.33 in
Bolt Size (in)	7/16 in
Overall Length (in)	6.38 in
Length Through Bore (in)	1.563 in
Foot Height (in)	1.02 in
Bore Diameter (in)	1.4375 in
Overall Height (in)	1.875 in
Overall Width (in)	3.66 in
Bolt Spacing (in)	5.12 in

Technical Specifications

Misalignment Type	Static Only
Housing Type	Flange, Two Bolt
Cage Material	Molded fiber glass reinforced nylon
Seal Type	Single Lip Contact Seal
Housing Construction	One Piece
Pilot Configuration	No Pilot
Rolling Element	Ball Bearing
Housing Color	White
Housing Style	Flange Block
Outer Ring Land Profile	Standard
Bore Shape	Straight
Seal Kit	KL223E (back auxiliary seal)
Setscrew Torque (in-lbs)	165-185 in/lbs
Ability to Relubricate	Yes
Auxiliary Cap Kit	K2236 (Closed); KL2236D (Open)
Max Operating Temperature (F)	158 °F
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	3,440 lb
Grease Fitting Thread Size	RP 1/8 PAR
End Cap Available	Yes
Fixed vs. Expansion	Fixed
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0595 cps
Max Operating Temperature (C)	70 °C
Bearing Type	Intermediate Duty
Maximum Speed (RPM)	4800 rpm
Cage Type	Ball Riding Retainer
Inner Ring Outside Diameter (in)	1.847 in
Lubricant	MOBIL FM222 FOOD GRADE H1
Radial Clearance	C3 STANDARD
Bearing Insert Finish	BLACK OXIDE
Lube Fitting Type	STD FITTING PLUS PLASTIC PLUG
Bearing Brand	LINK-BELT KLEAN-GARD
Insert	SG223ELK8299A
Dynamic Load Rating (lb)	5,810 lb
Vibration Frequency Fundamental Train	0.0067 cps
Housing Material	Polypropylene
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0383 cps
Size Code	207

General Specifications

UPC	793699031980
Weight	1.38 LB
Packaged Length	7.94 IN
Packaged Width	4.69 IN
Packaged Height	2.44 IN
HTC	8483204040
Country of Origin	Mexico
