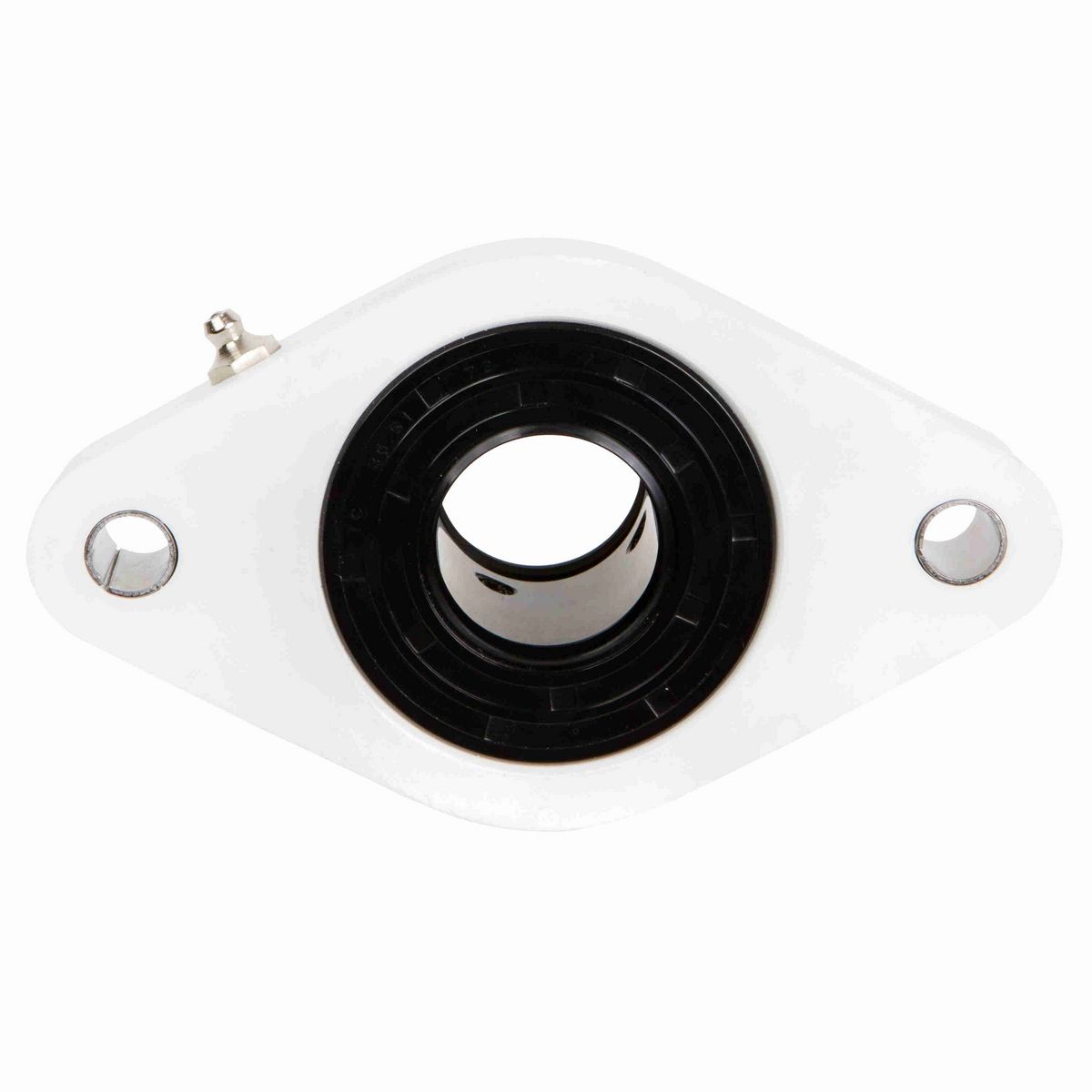

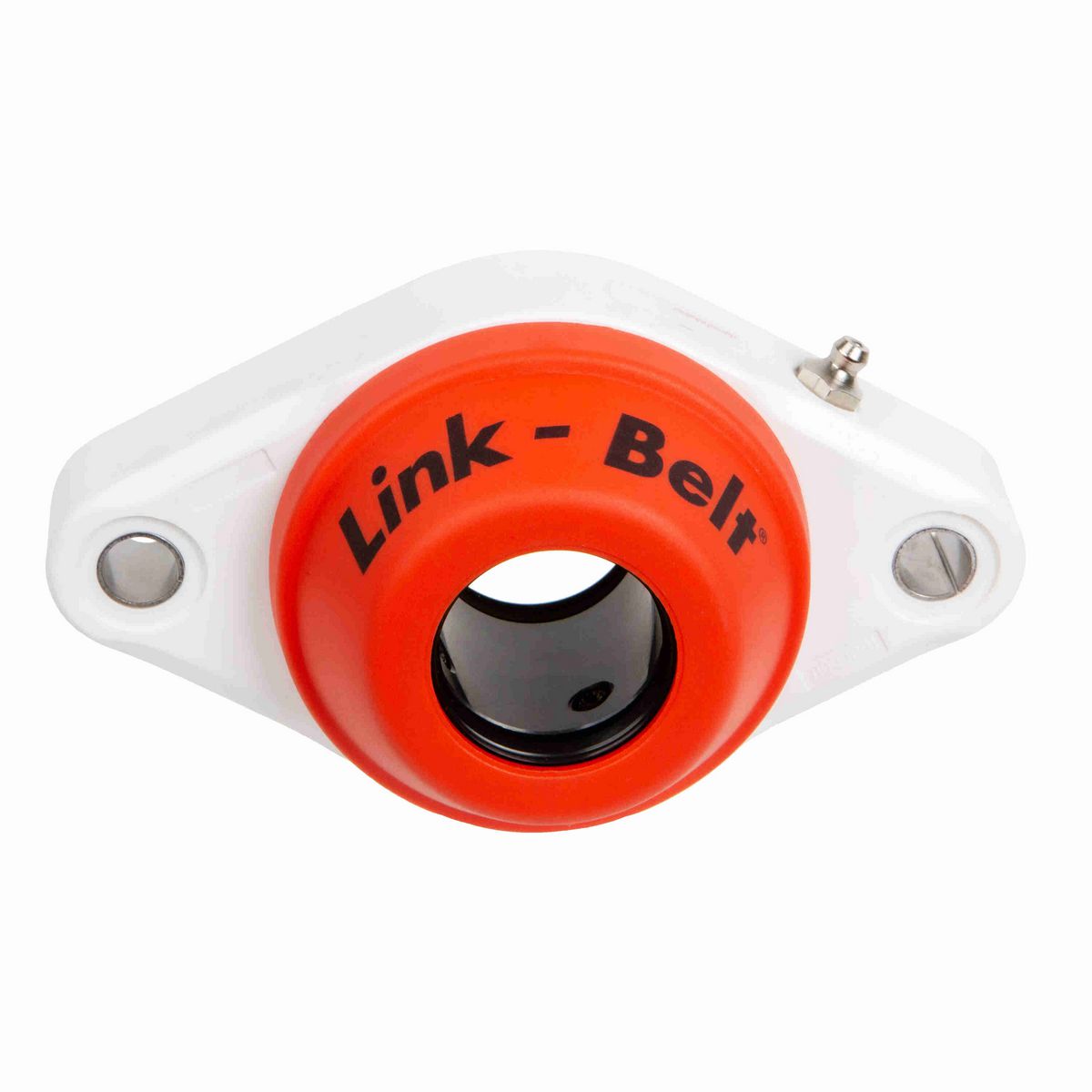

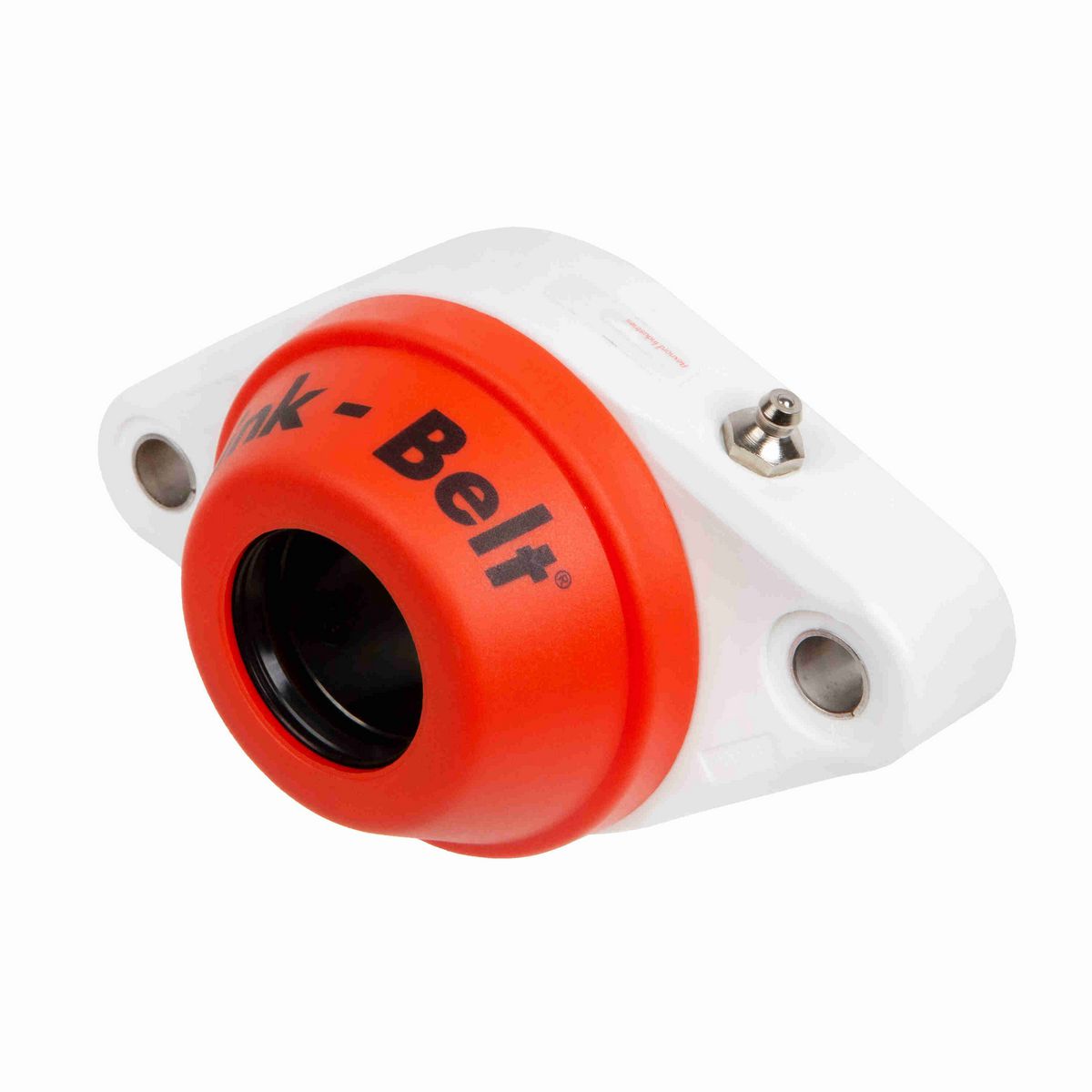

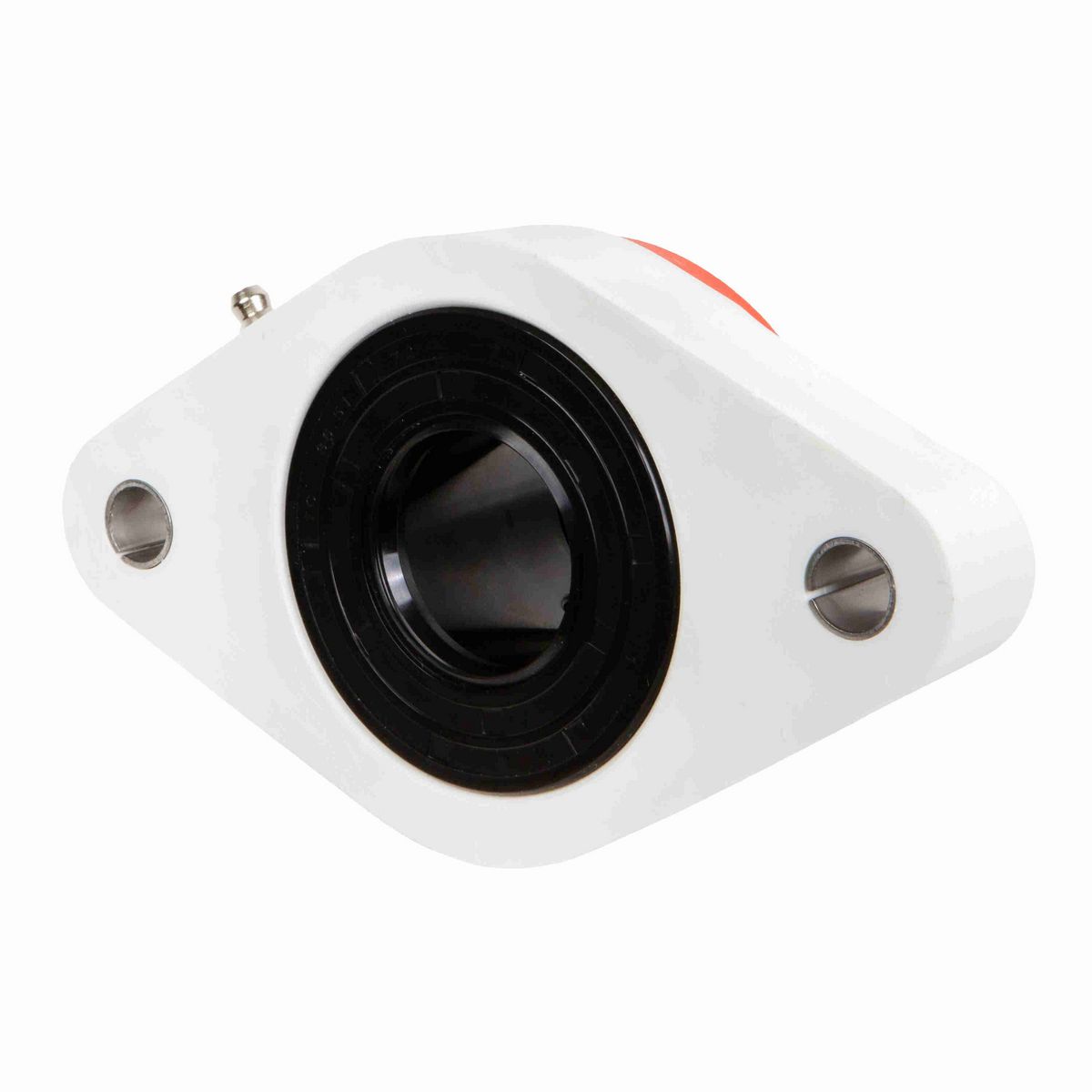

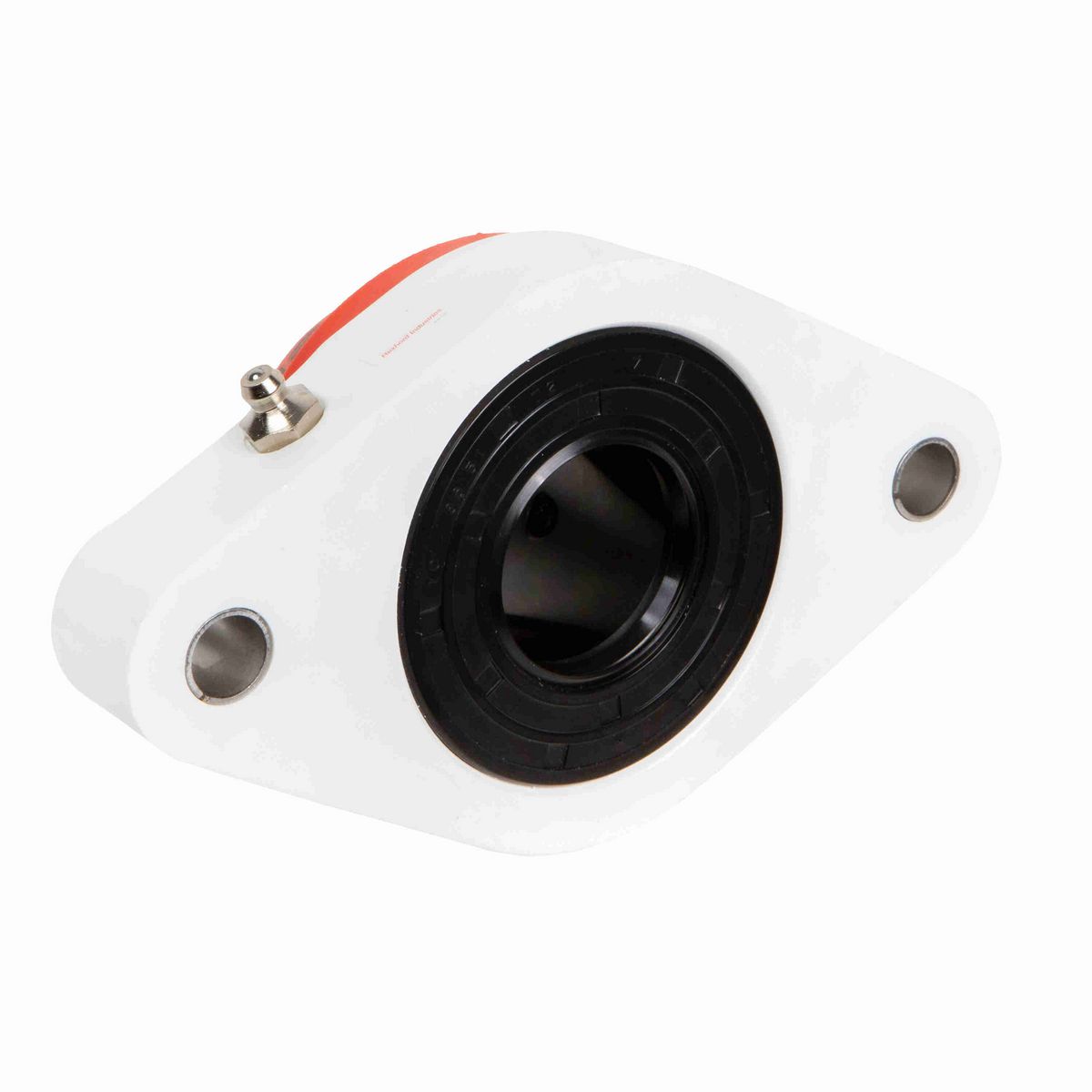

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Polypropylene 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Open end cap with seal and rear auxilary dual lip seal

Dimensions

Overall Height (in)	1.875 in
Overall Length (in)	6.38 in
Overall Height to End Cap (in)	2.33 in
Bore Diameter (in)	1.4375 in
Bolt Size (in)	7/16 in
Length Through Bore (in)	1.563 in
Foot Height (in)	1.02 in
Overall Width (in)	3.66 in
Bolt Spacing (in)	5.12 in

Technical Specifications

Housing Type	Flange, Two Bolt
Cage Material	Molded fiber glass reinforced nylon
Housing Style	Flange Block
Housing Color	White
Seal Type	Single Lip Contact Seal
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Housing Construction	One Piece
Bore Shape	Straight
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Auxiliary Cap Kit	K2236 (Closed); KL2236D (Open)
Setscrew Torque (in-lbs)	165-185 in/lbs
Ability to Relubricate	Yes
Seal Kit	KL223E (back auxiliary seal)
Vibration Frequency Roller Spin	0.0383 cps
Housing Material	Polypropylene
Max Operating Temperature (F)	158 °F
Vibration Frequency Fundamental Train	0.0067 cps
Max Operating Temperature (C)	70 °C
Lube Fitting Type	STD FITTING PLUS PLASTIC PLUG
Bearing Insert Finish	BLACK OXIDE
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	3,440 lb
Bearing Type	Intermediate Duty
Shaft Locking Type	Set Screw
Cage Type	Ball Riding Retainer
Radial Clearance	C3 STANDARD
Lubricant	MOBIL FM222 FOOD GRADE H1
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Speed (RPM)	4800 rpm
Grease Fitting Thread Size	RP 1/8 PAR
Dynamic Load Rating (lb)	5,810 lb
Bearing Brand	LINK-BELT KLEAN-GARD
Inner Ring Outside Diameter (in)	1.847 in
Size Code	207
Vibration Frequency Outer Ring Defect	0.0595 cps
Insert	SG223ELK8299A
Fixed vs. Expansion	Fixed
End Cap Available	Yes

General Specifications

UPC	793699031973
Weight	1.38 LB
Packaged Length	7.94 IN
Packaged Width	4.69 IN
Packaged Height	2.44 IN
HTC	8483204040
Country of Origin	Mexico
