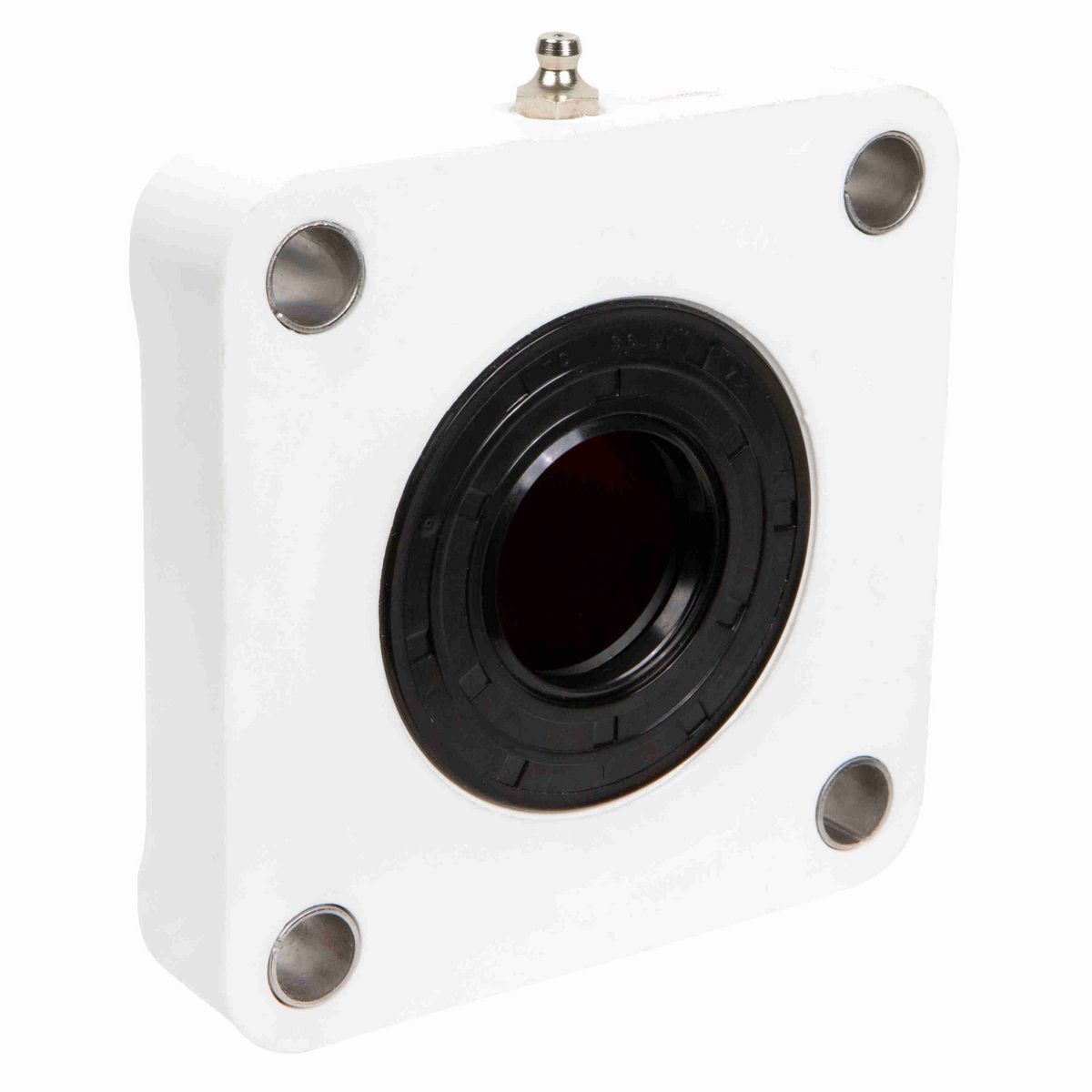

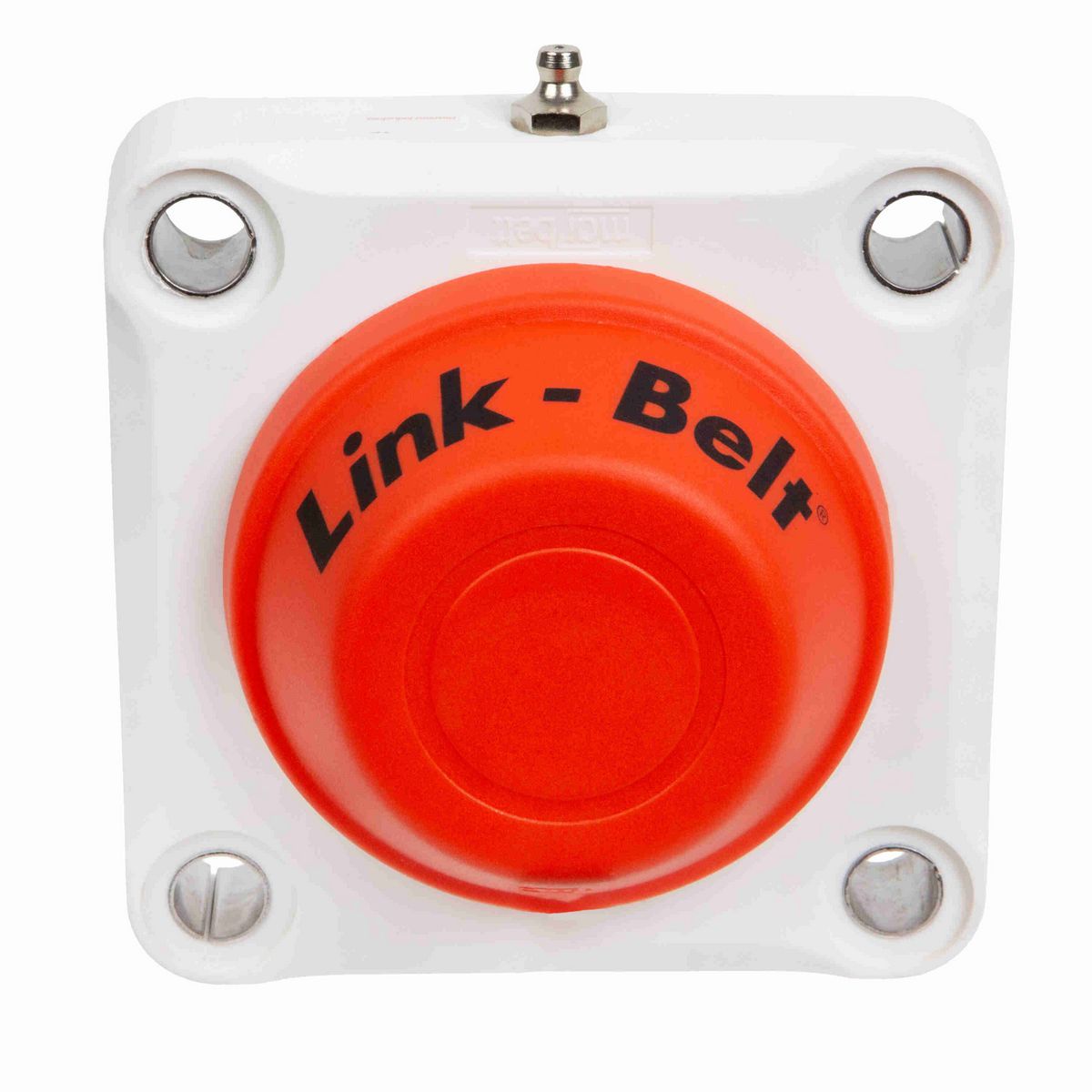

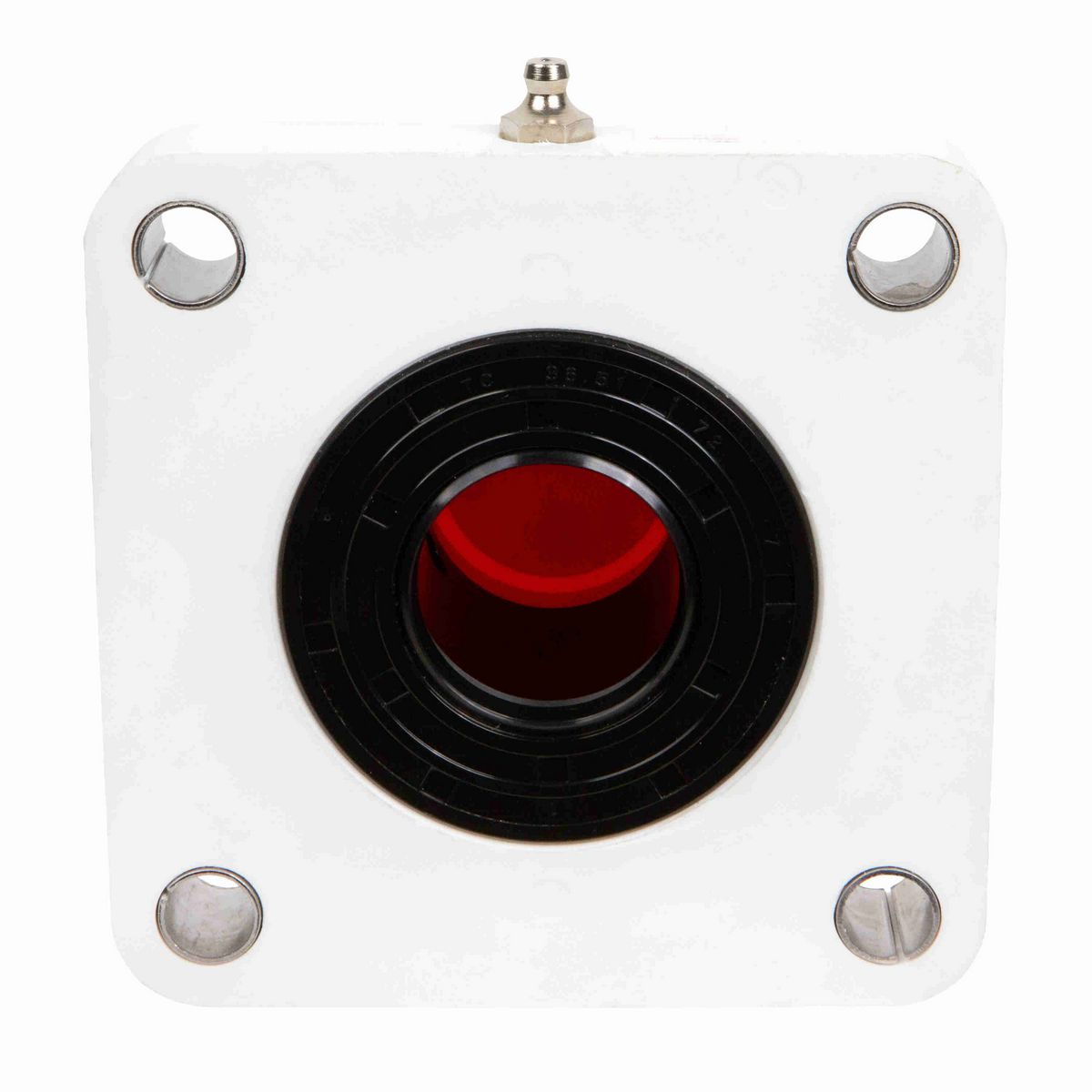

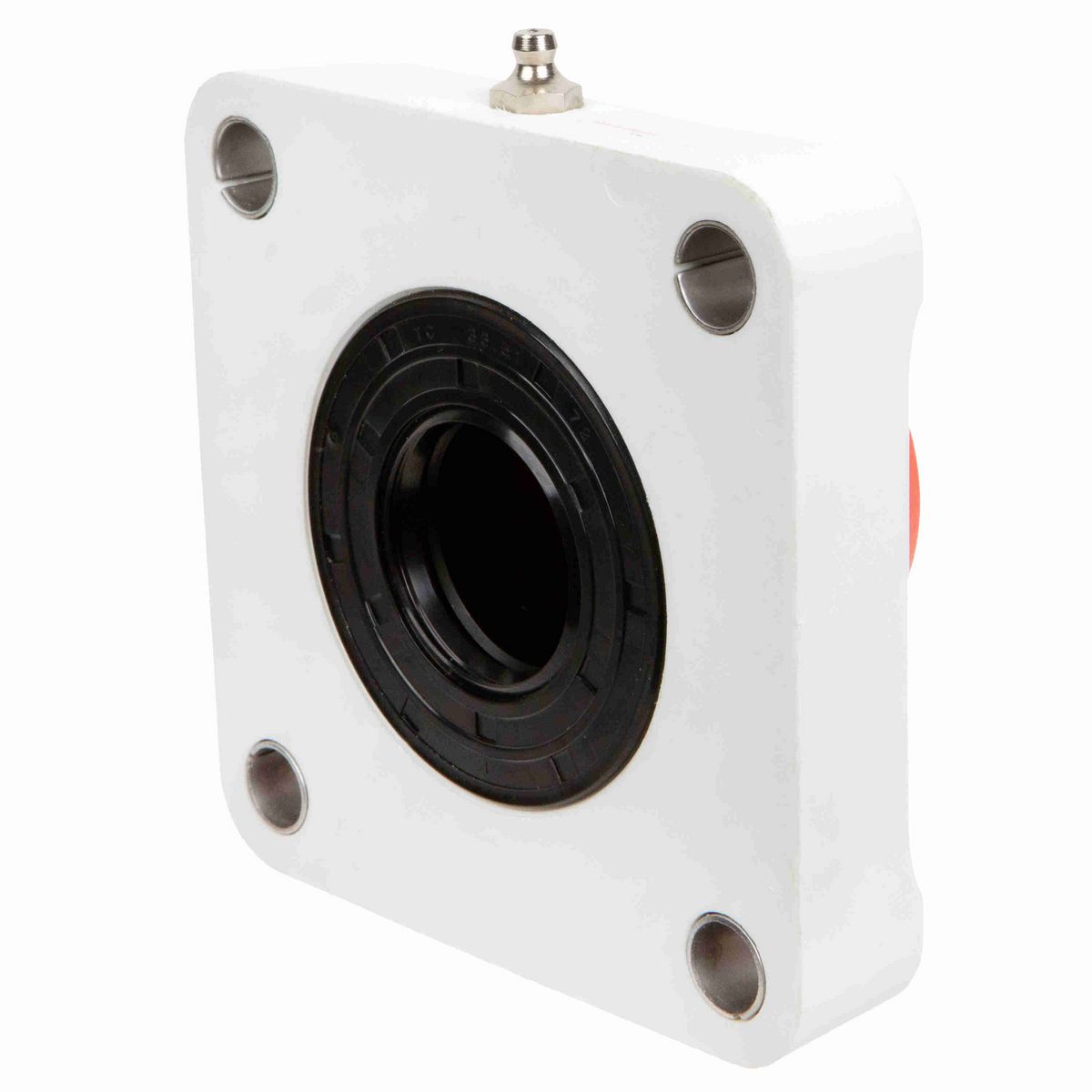

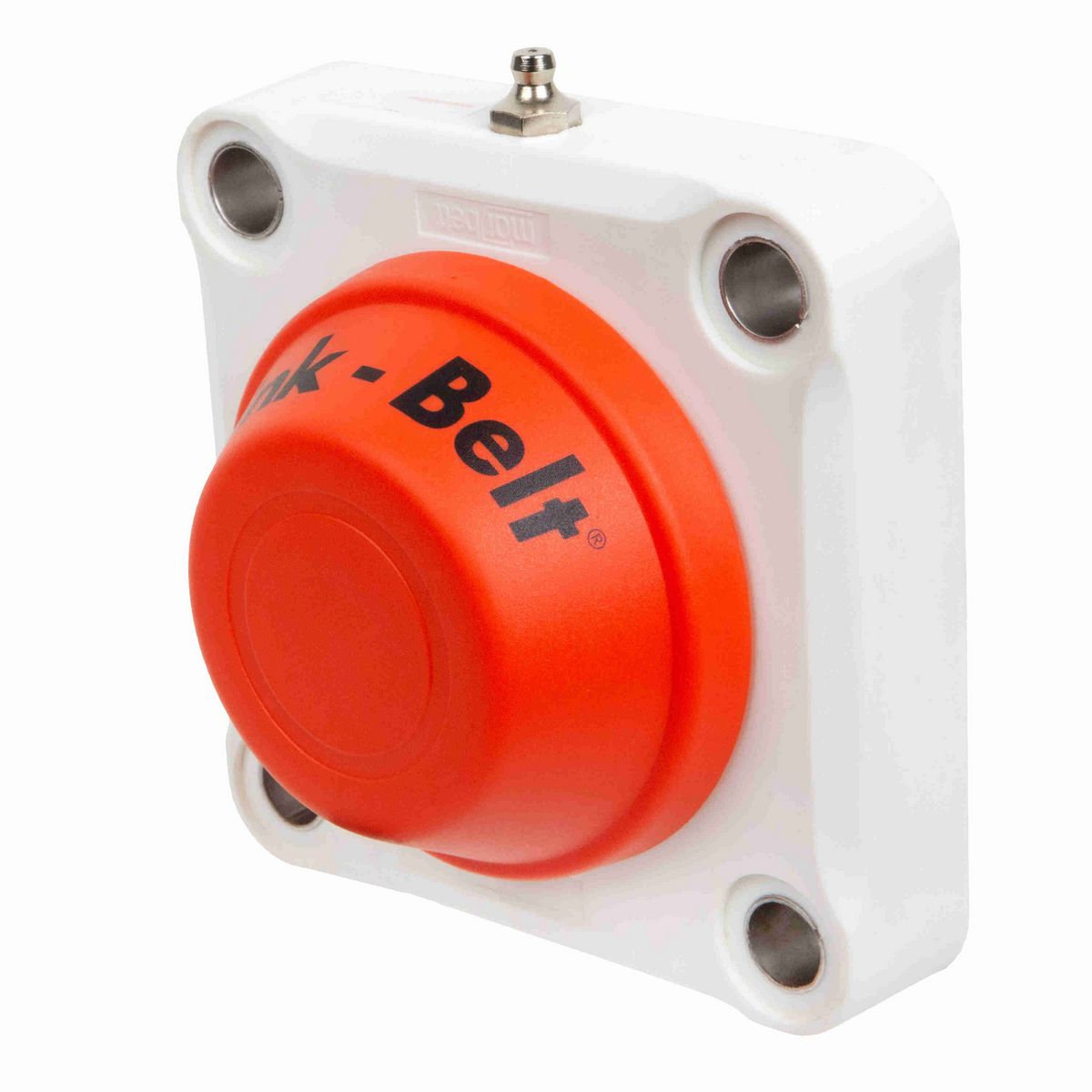

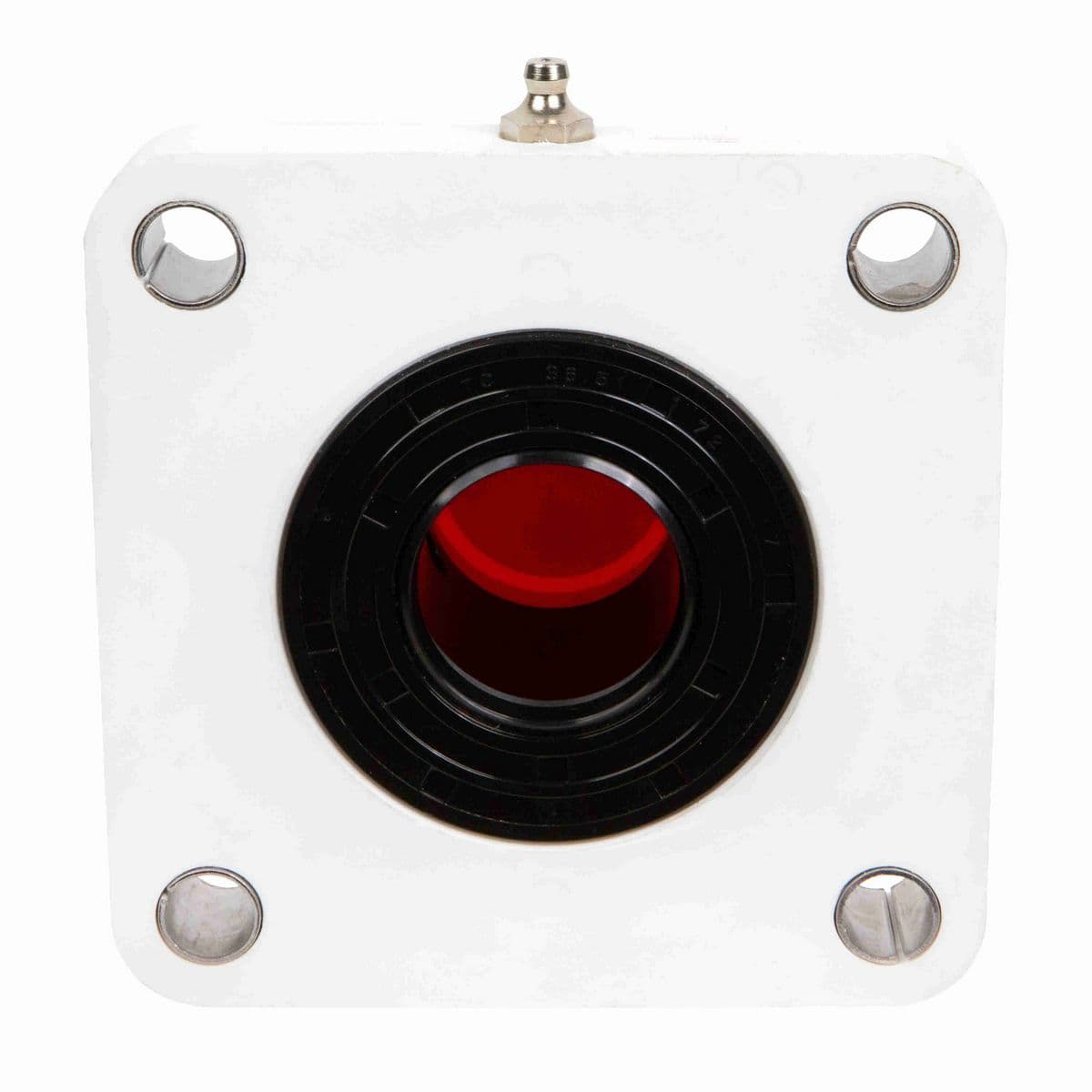

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Polypropylene 4-Bolt Square Flange Block, Setscrew Locking, Single Lip Contact Seal, Closed end cap and rear auxilary dual lip seal

Dimensions

Foot Height (in)	1 1/64 in
Bore Diameter (in)	1.4375 in
Overall Height (in)	1.875 in
Base Width (in)	4 23/32 in
Overall Height to End Cap (in)	2 21/64 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	3.62 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Setscrew Torque (in-lbs)	165 in/lbs
Seal Kit	KL223E (back auxiliary seal)
Auxiliary Cap Kit	K2236 (Closed); KL2236D (Open)
Bearing Insert Material	52100 Bearing Steel, Black Oxided
Bearing Type	Intermediate Duty
Cage Type	NYLON
Max Operating Temperature (F)	158 °F
Fixed vs. Expansion	Fixed
Lube Fitting Type	STD FITTING PLUS PLASTIC PLUG
Grease Fitting Thread Size	RP 1/8 PAR
Lubricant	MOBIL FM222 FOOD GRADE H1
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Insert Finish	BLACK OXIDE
Maximum Speed (RPM)	4800 rpm
End Cap	SEE AUX CAP KIT
Max Operating Temperature (C)	70 °C
Bearing Brand	LINK-BELT KLEAN-GARD
Radial Clearance	C3 STANDARD
Static Load Rating (lb)	3,440 lb
Dynamic Load Rating (lb)	5,810 lb
Overall Height to Inside of End Cap (in)	2 1/4 in
Size Code	207
Insert	SG223ELK8299A
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Outer Ring Defect	0.0595 cps

General Specifications

UPC	662327973865
Weight	1.78 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	3.00 IN
HTC	8483204040
Country of Origin	Mexico
