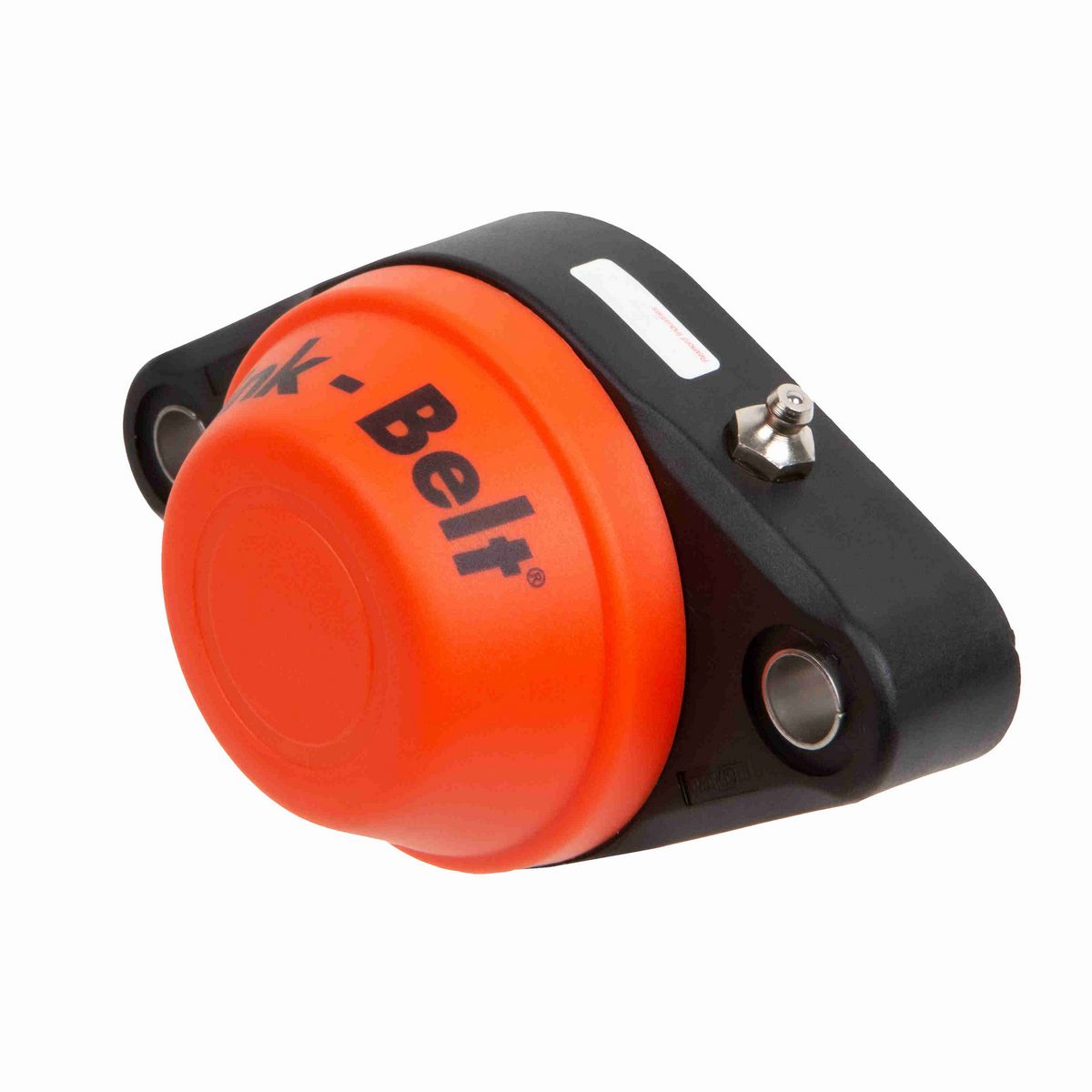

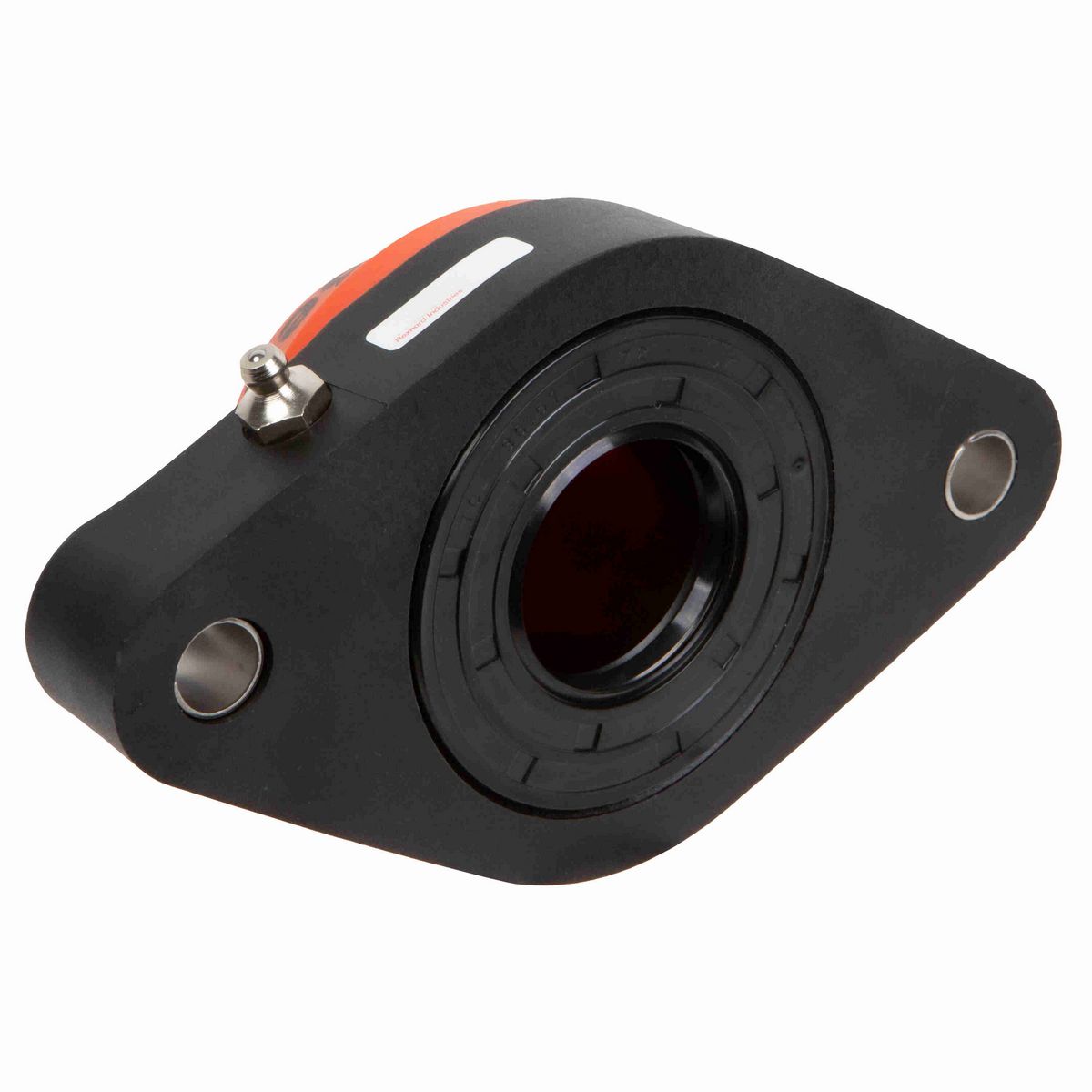

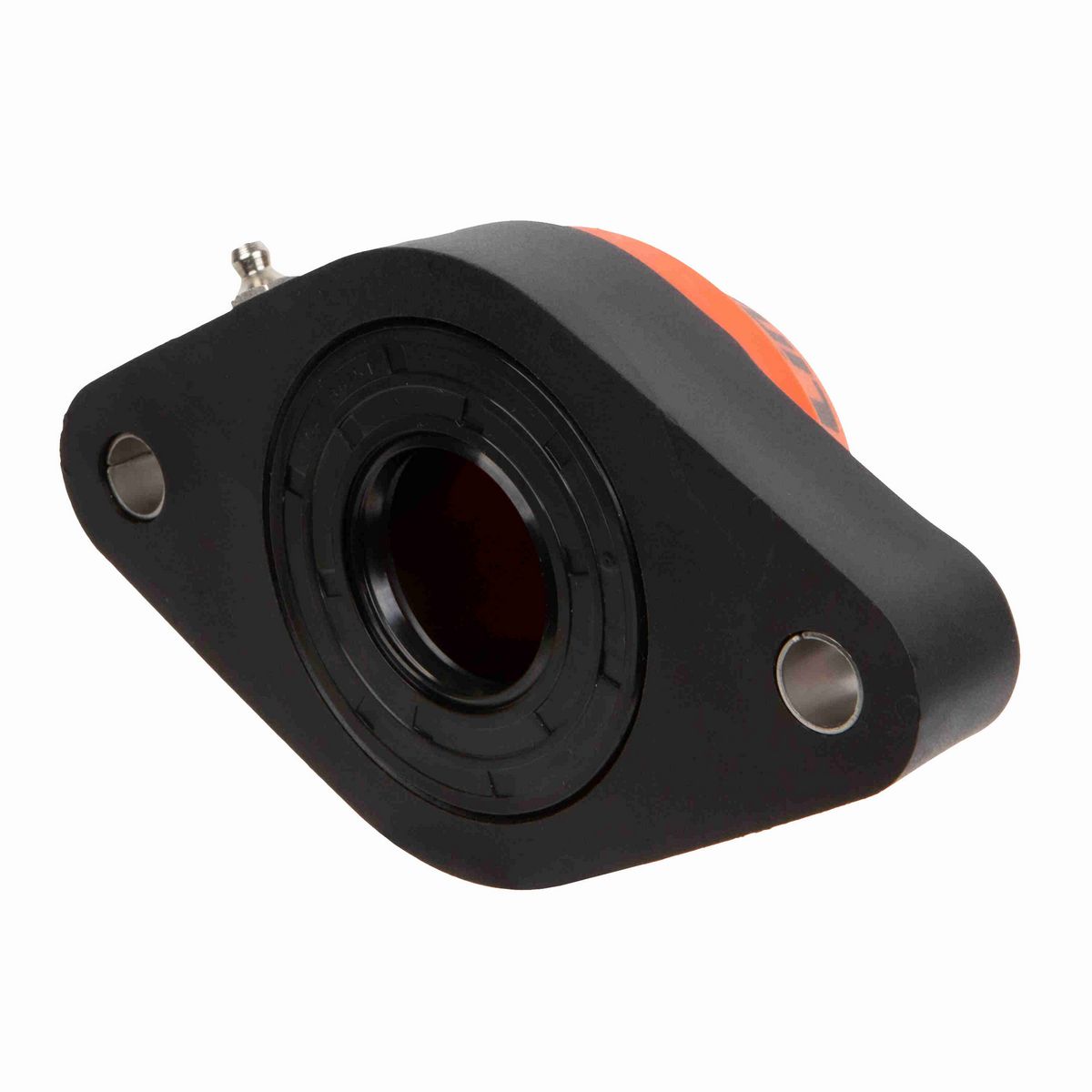

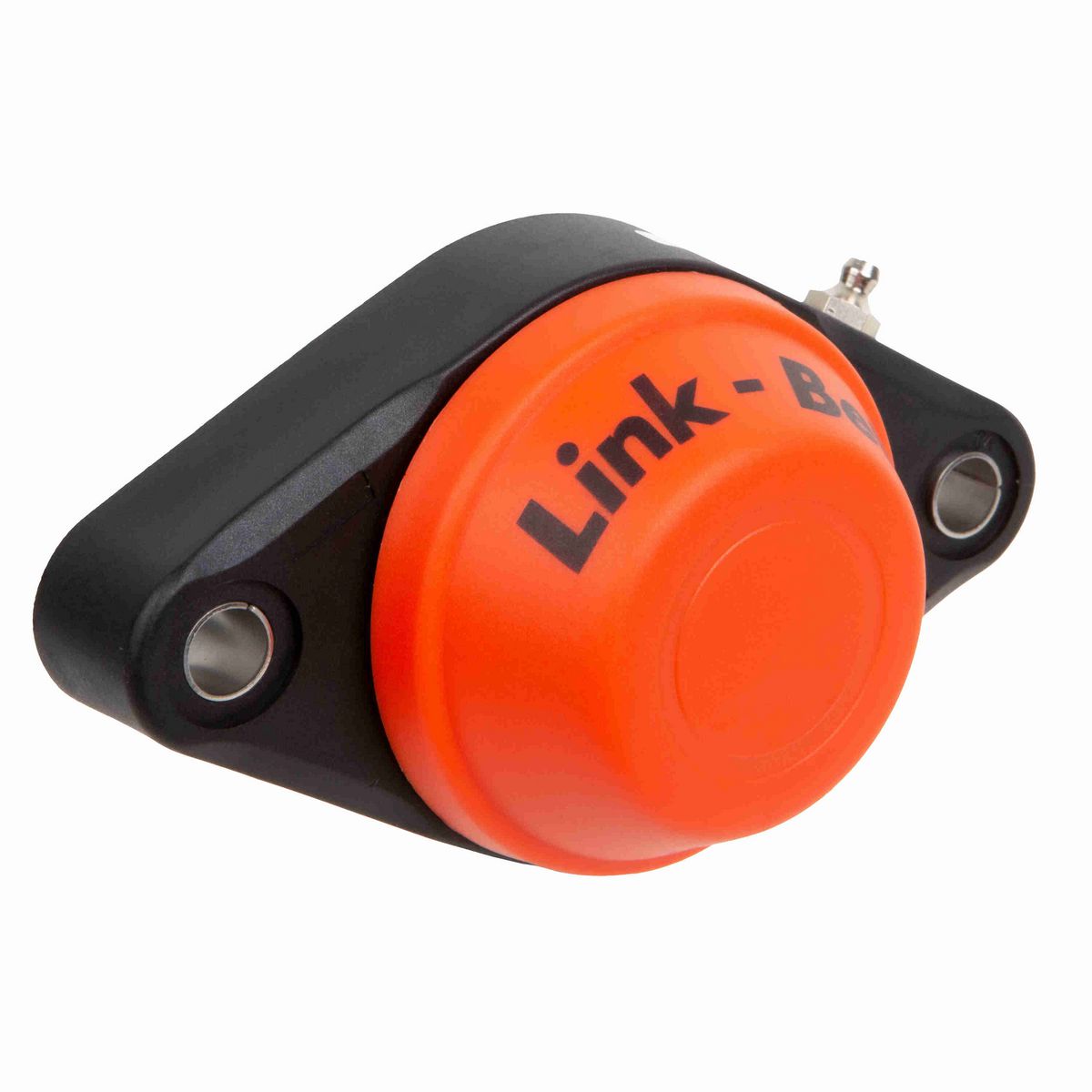

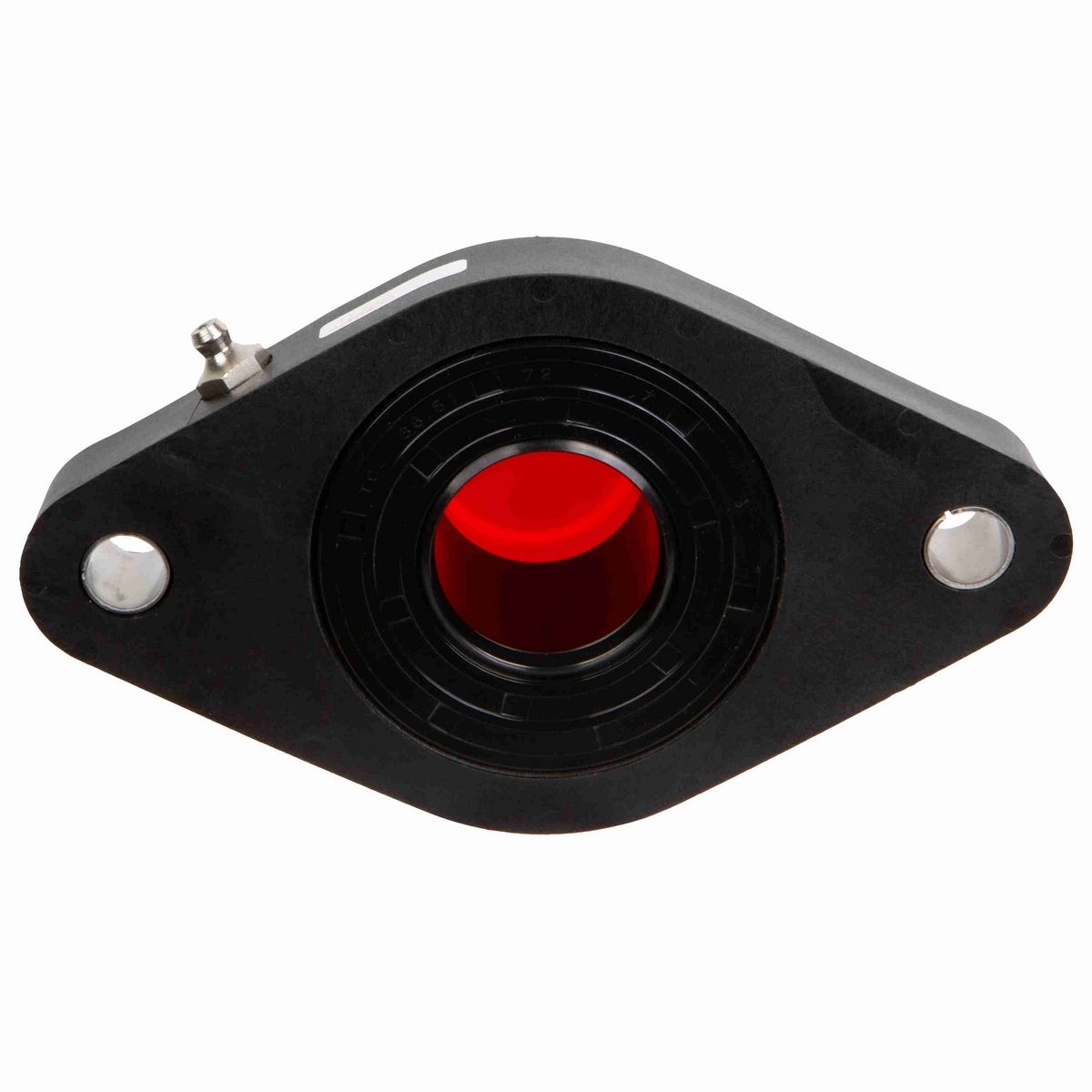

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Polyamide 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Closed end cap and rear auxilary dual lip seal

Dimensions

Overall Length (in)	6.38 in
Length Through Bore (in)	1.563 in
Overall Height (in)	1.875 in
Overall Width (in)	3.66 in
Bolt Size (in)	7/16 in
Overall Height to End Cap (in)	2.33 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	1.02 in
Bolt Spacing (in)	5.12 in

Technical Specifications

Bore Shape	Straight
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Housing Construction	One Piece
Housing Style	Flange Block
Cage Material	Molded fiber glass reinforced nylon
Seal Type	Single Lip Contact Seal
Housing Color	Black
Auxiliary Cap Kit	K2236 (Closed); K2236D (Open)
Setscrew Torque (in-lbs)	165-185 in/lbs
Ability to Relubricate	Yes
Seal Kit	K223E (back auxiliary seal)
Dynamic Load Rating (lb)	5,810 lb
Static Load Rating (lb)	3,440 lb
Max Operating Temperature (F)	194 °F
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Type	Intermediate Duty
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Brand	LINK-BELT KLEAN-GARD
Lube Fitting Type	STD FITTING PLUS PLASTIC PLUG
Insert	SG223ELK8299A
Cage Type	Ball Riding Retainer
Max Operating Temperature (C)	90 °C
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	BLACK OXIDE
Inner Ring Outside Diameter (in)	1.847 in
Shaft Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0383 cps
Lubricant	MOBIL FM222 FOOD GRADE H1
Maximum Speed (RPM)	4800 rpm
Size Code	207
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Material	Polyamide
Grease Fitting Thread Size	RP 1/8 PAR
Vibration Frequency Fundamental Train	0.0067 cps
Fixed vs. Expansion	Fixed
Radial Clearance	C3 STANDARD
End Cap Available	Yes

General Specifications

UPC	793699029949
Weight	1.45 LB
Packaged Length	7.94 IN
Packaged Width	4.69 IN
Packaged Height	2.44 IN
HTC	8483204040
Country of Origin	Mexico
