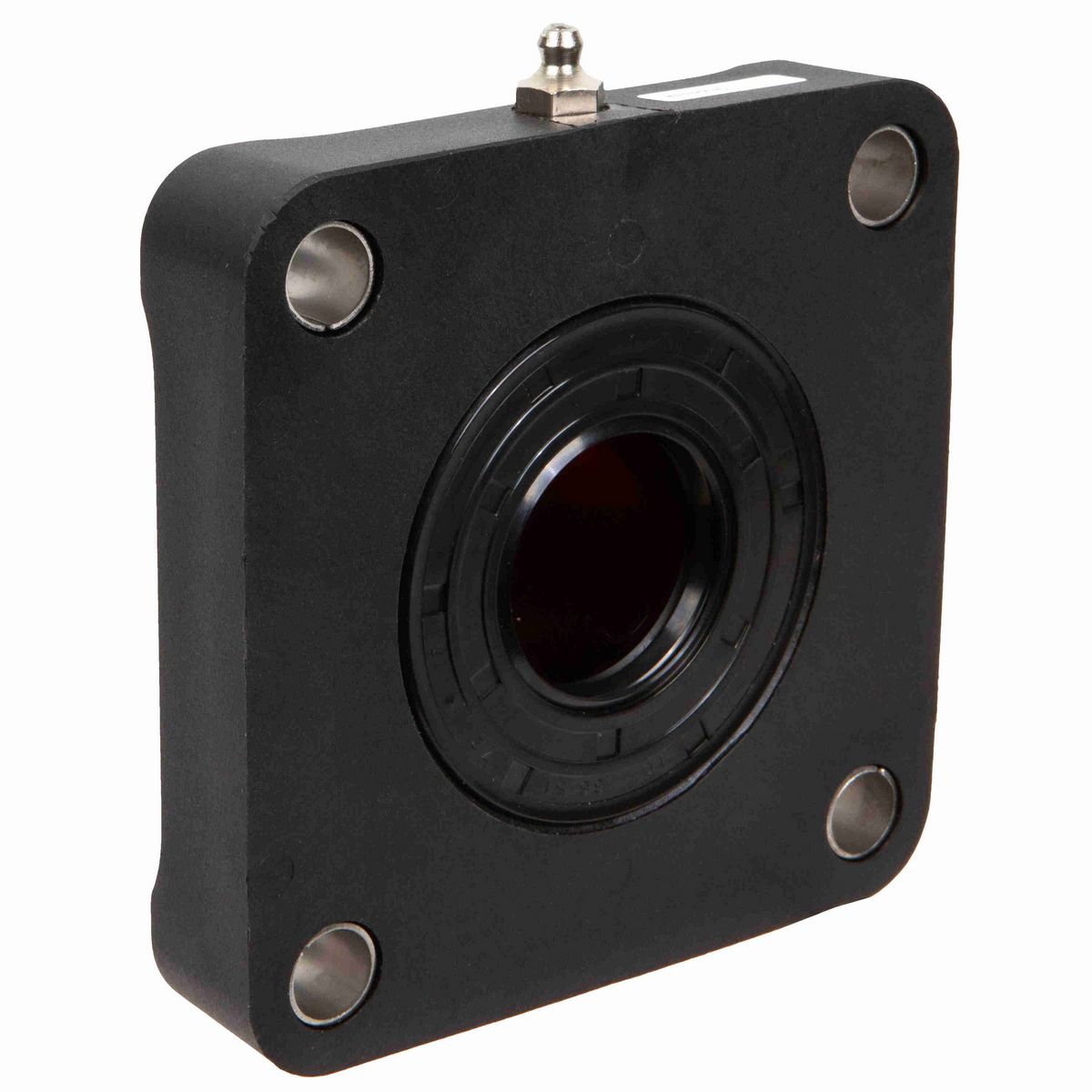

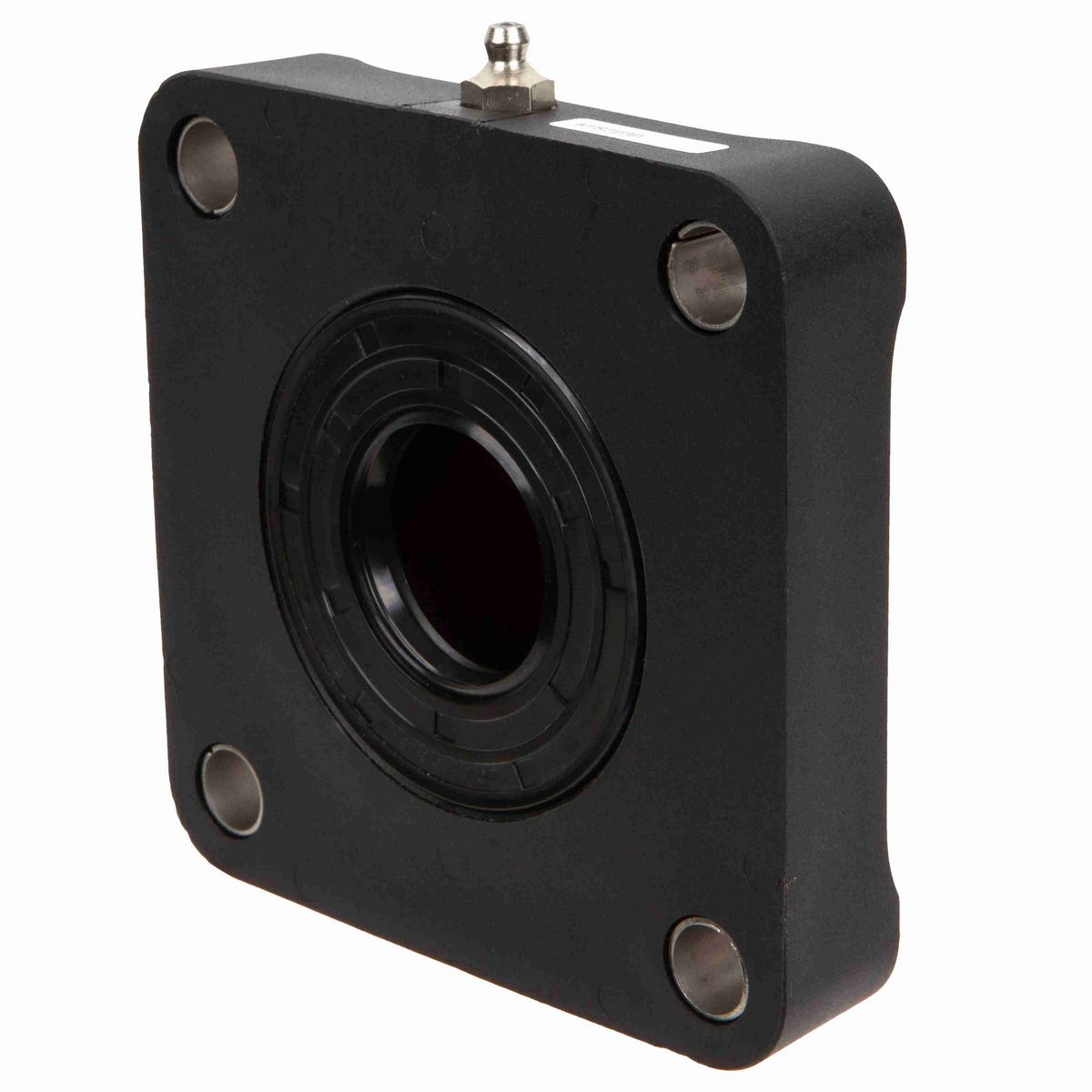

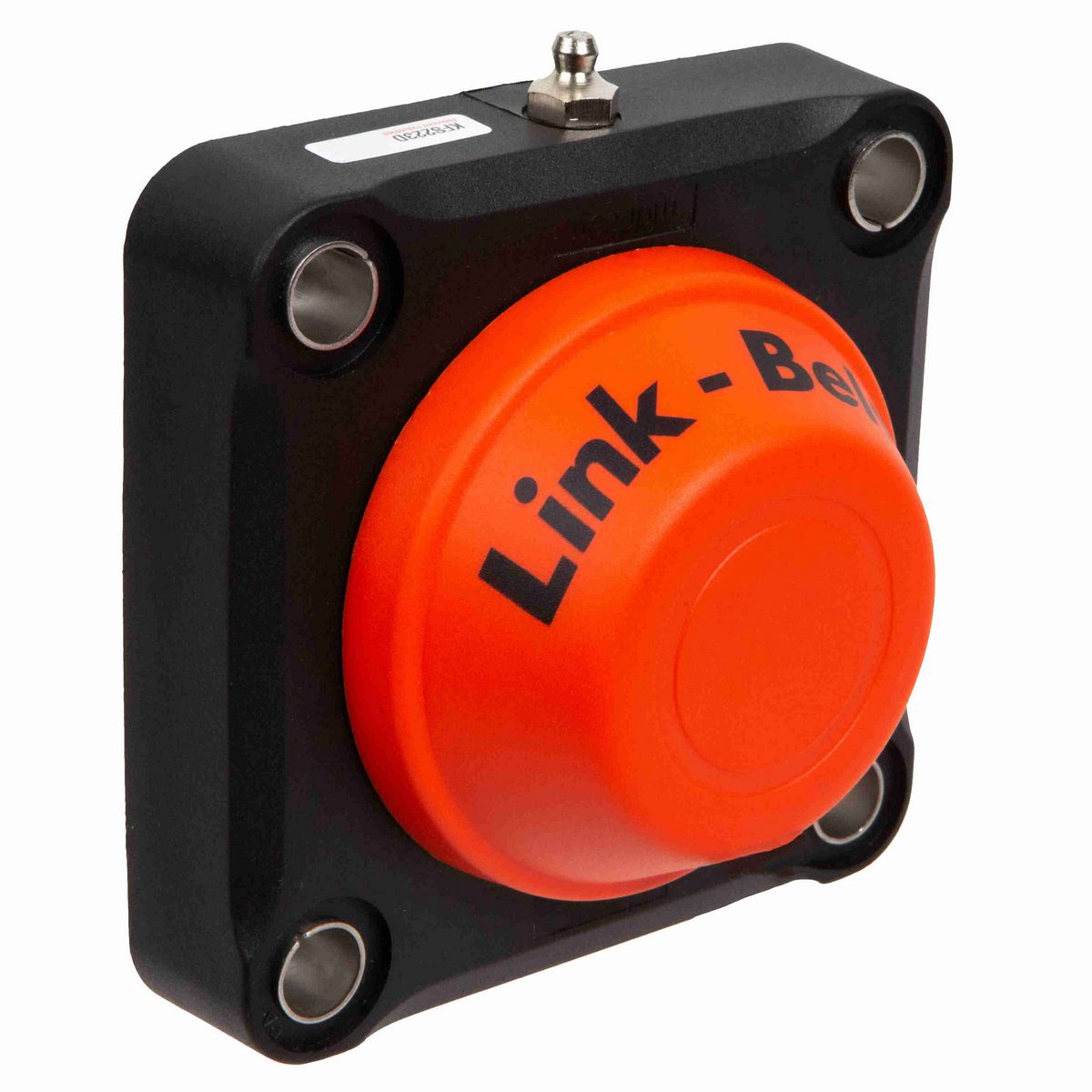

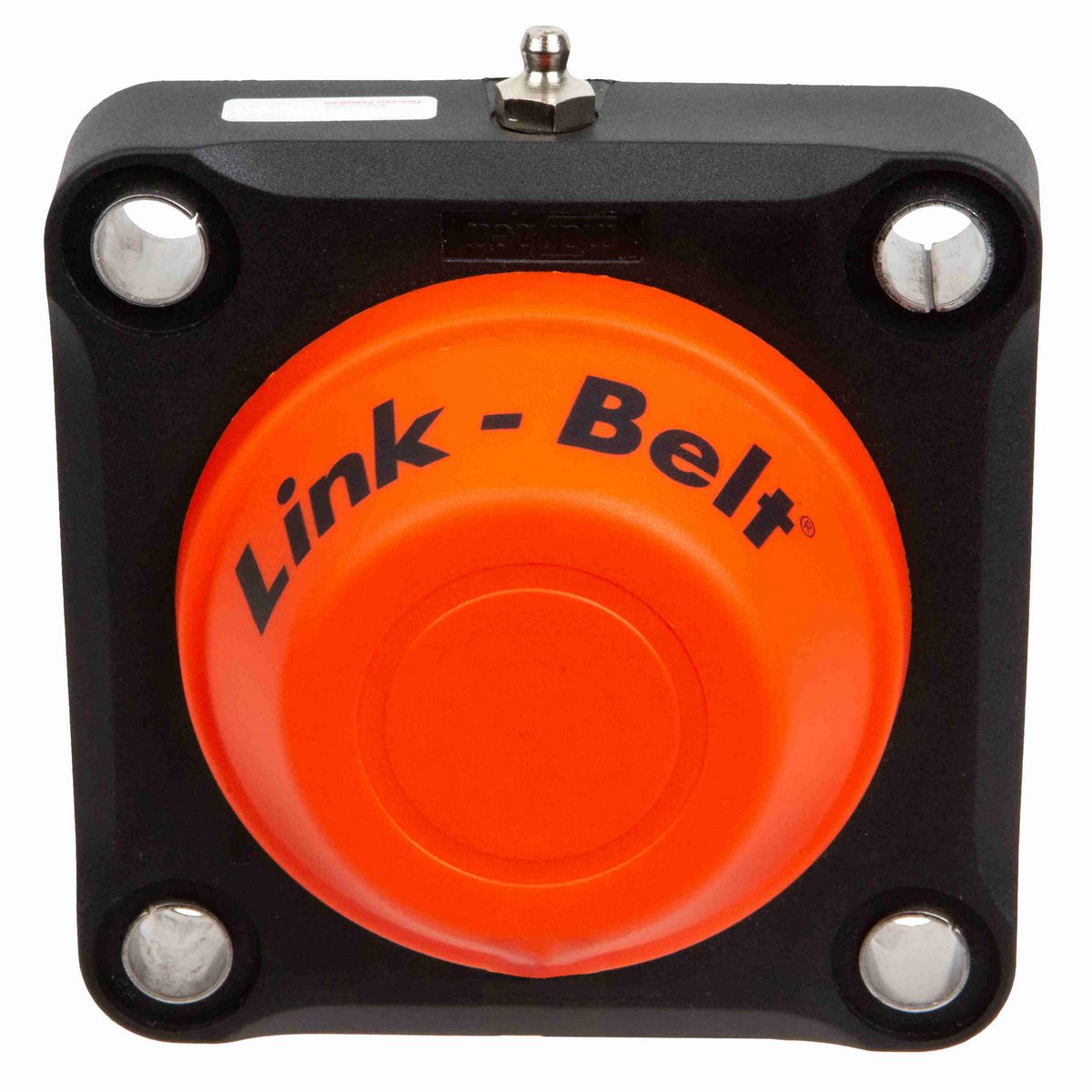

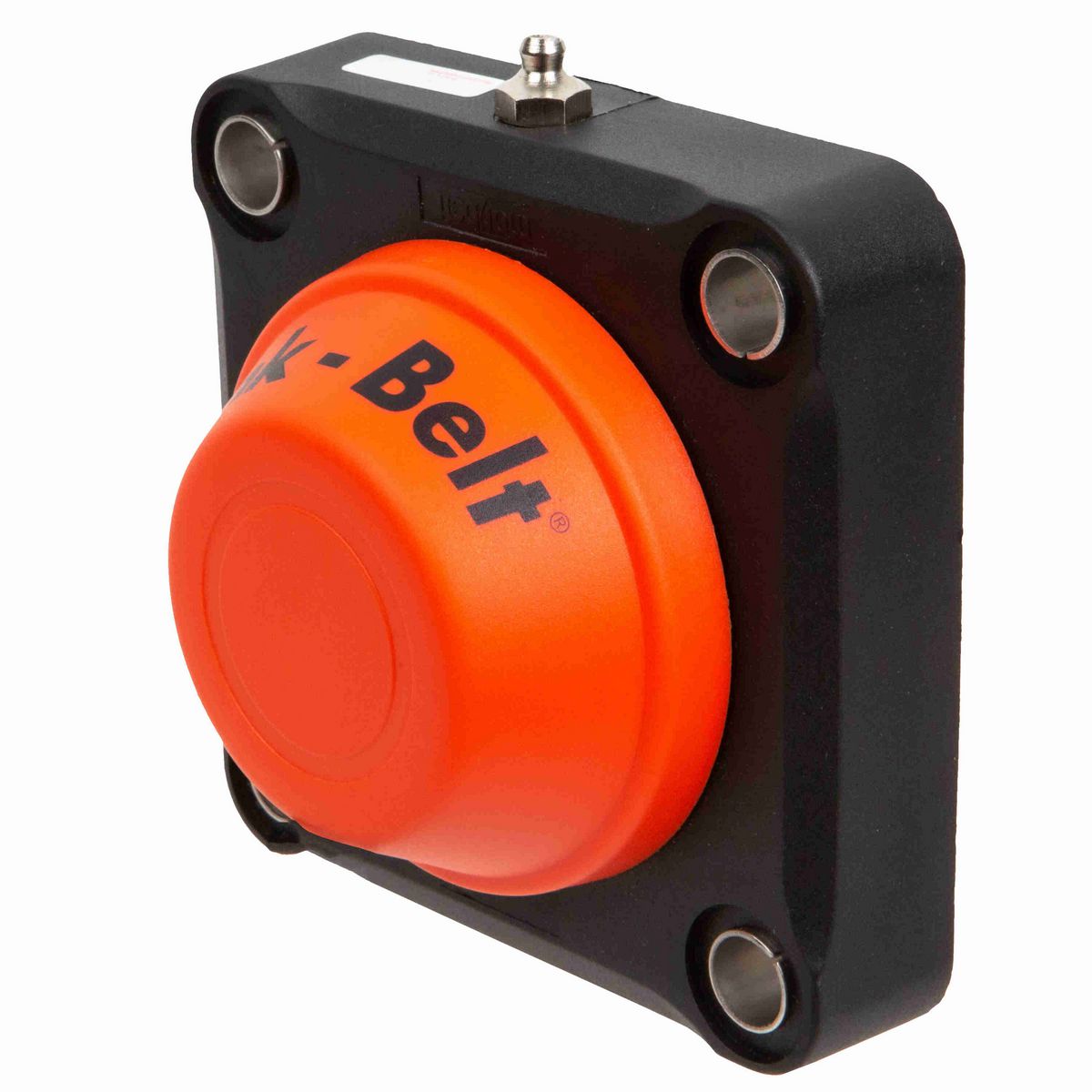

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Polyamide 4-Bolt Square Flange Block, Setscrew Locking, Single Lip Contact Seal, Closed end cap and rear auxilary dual lip seal

Dimensions

Foot Height (in)	1 1/64 in
Overall Height (in)	1.875 in
Bore Diameter (in)	1.4375 in
Base Width (in)	4 23/32 in
Overall Height to End Cap (in)	2 21/64 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	3.62 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Seal Kit	K223E (back auxiliary seal)
Setscrew Torque (in-lbs)	165-185 in/lbs
Auxiliary Cap Kit	K2236 (Closed); K2236D (Open)
Grease Fitting Thread Size	RP 1/8 PAR
Bearing Insert Finish	BLACK OXIDE
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel, Black Oxided
Size Code	207
Static Load Rating (lb)	3,440 lb
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Brand	LINK-BELT KLEAN-GARD
Lube Fitting Type	STD FITTING PLUS PLASTIC PLUG
Insert	SG223ELK8299A
Radial Clearance	C3 STANDARD
End Cap	SEE AUX CAP KIT
Lubricant	MOBIL FM222 FOOD GRADE H1
Max Operating Temperature (F)	194 °F
Bearing Type	Intermediate Duty
Overall Height to Inside of End Cap (in)	2 1/4 in
Max Operating Temperature (C)	90 °C
Maximum Speed (RPM)	4800 rpm
Vibration Frequency Inner Ring Defect	0.0905 cps
Dynamic Load Rating (lb)	5,810 lb
Cage Type	NYLON

General Specifications

UPC	662327973667
Weight	1.81 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	3.00 IN
HTC	84833080
