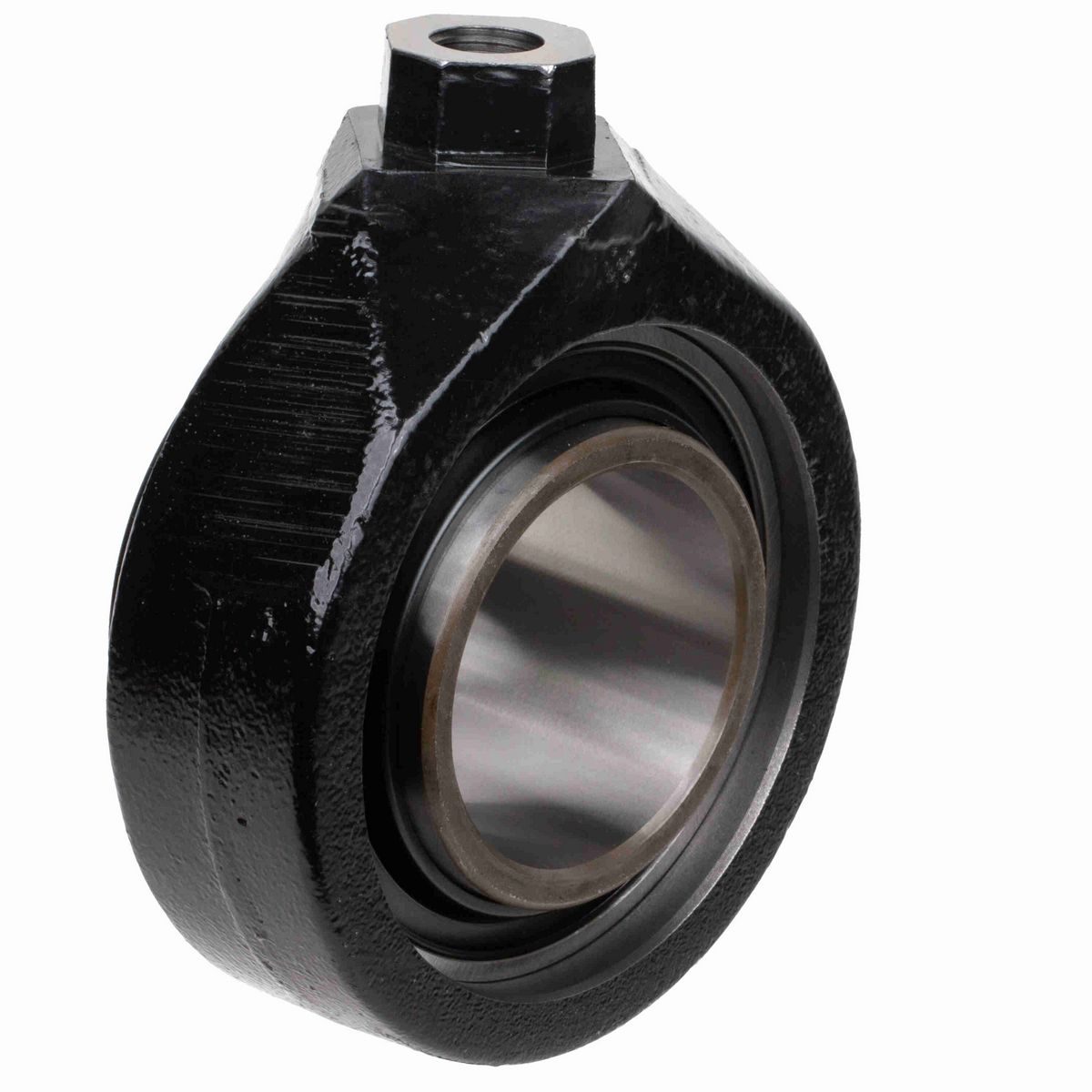

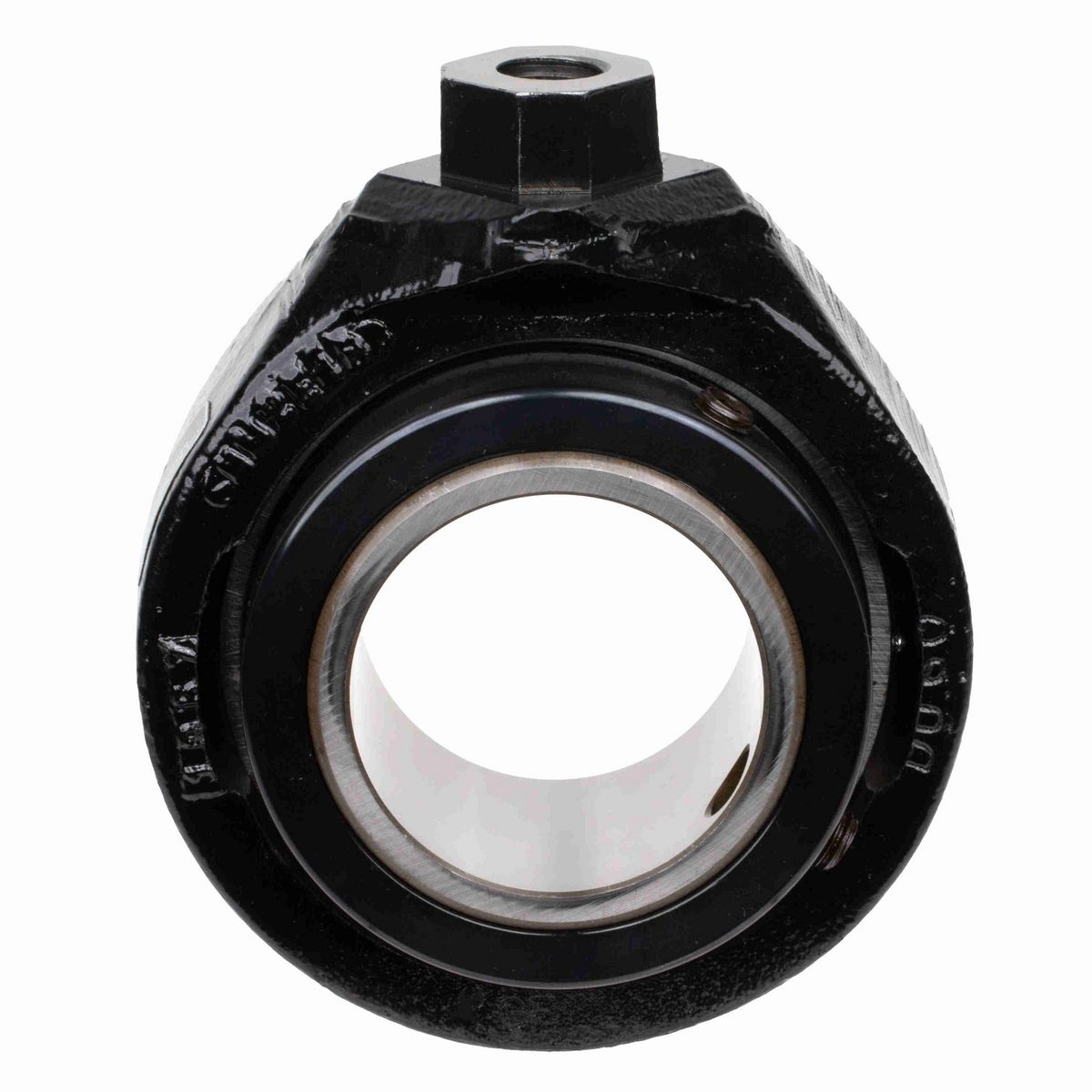

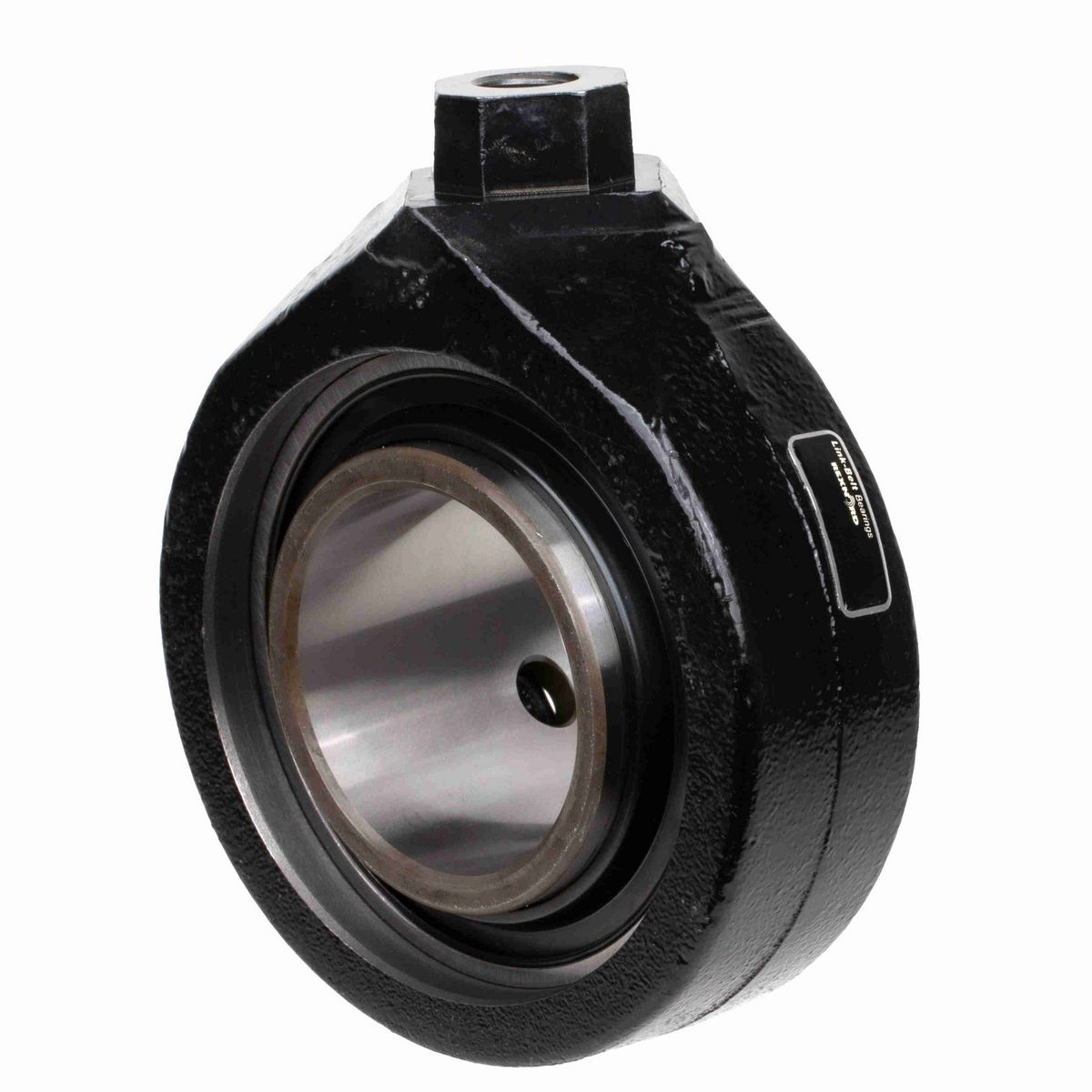

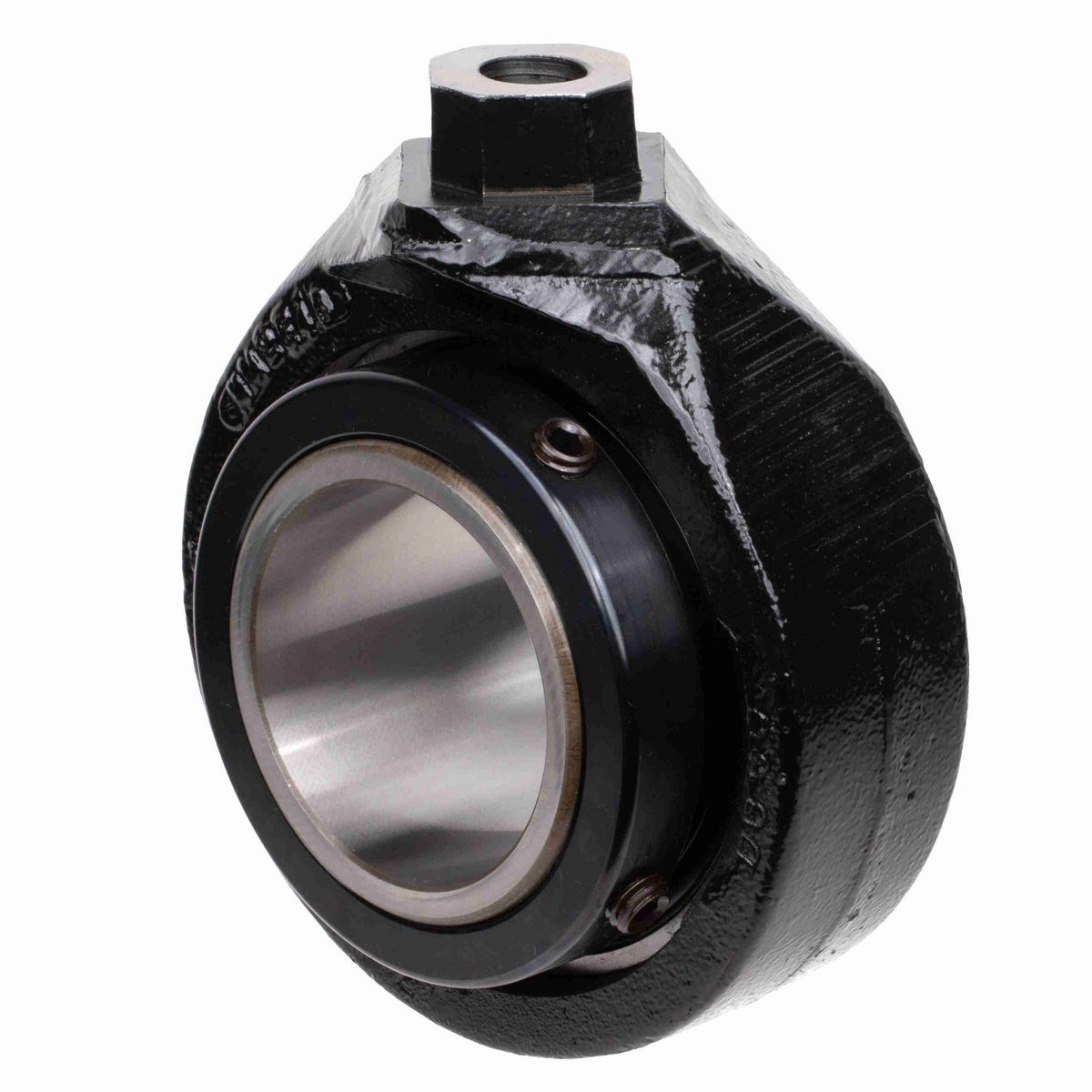

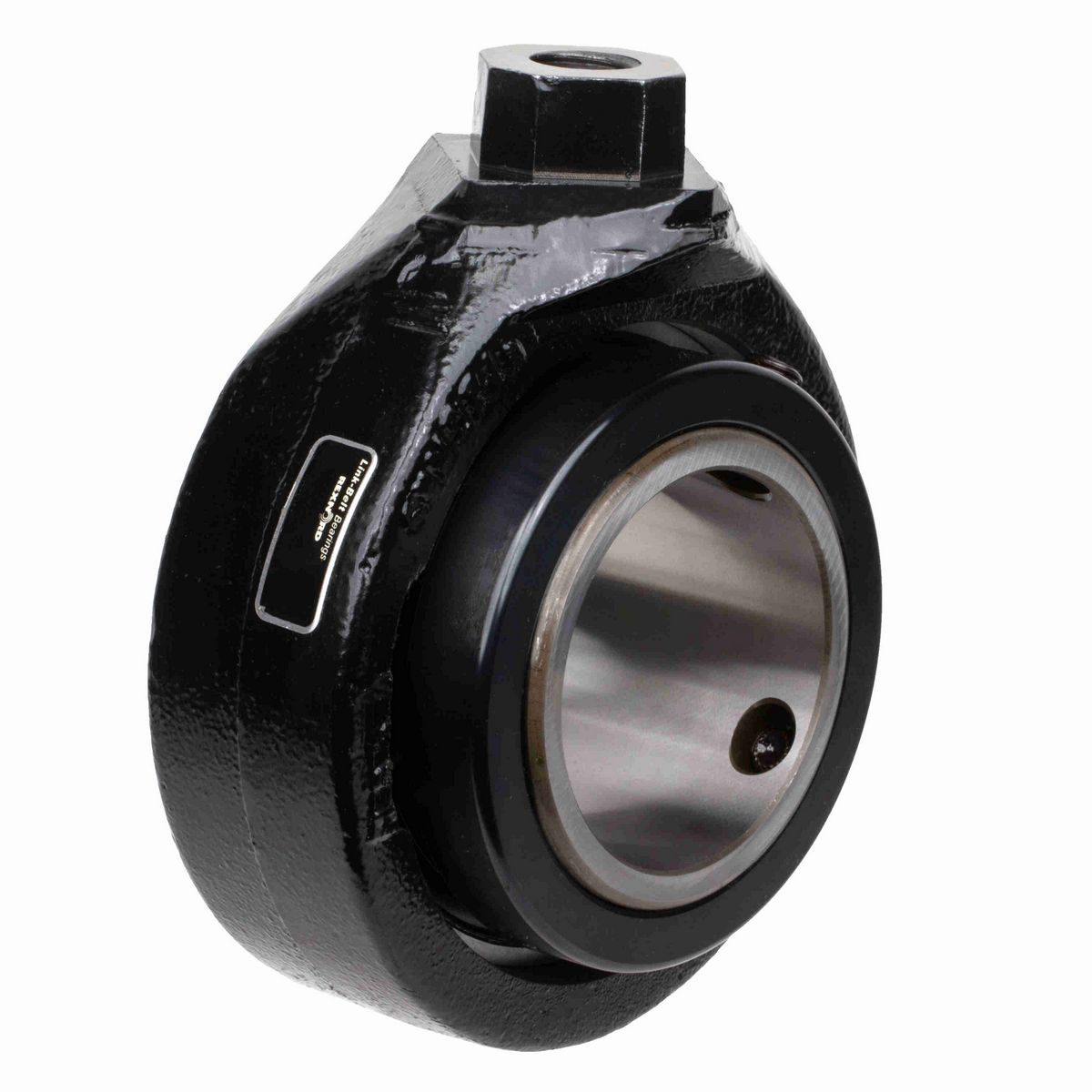

• 3" Mounted Ball Bearing, Standard Duty, High-Test Iron Hanger Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Width (in)	2.88 in
Base Width (in)	2.5 in
Overall Length (in)	6.13 in
Thread Size	7/8-9 NC
Thread Depth (in)	1.06 in
Length Through Bore (in)	2.876 in
Overall Height (in)	7.44 in
Bore Diameter (in)	3 in
Base to Center Height (in)	3.625 in
Centerline to Outermost Bearing Face (in)	1.81 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Type	Hanger Unit
Rolling Element	Ball Bearing
Misalignment Type	Static Only
Housing Color	Black
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Style	Hanger Block
Ability to Relubricate	Yes
Short Hub Length (in)	1.0620 in
Setscrew Torque (in-lbs)	620-680 in/lbs
Vibration Frequency Outer Ring Defect	0.0760 cps
Radial Clearance	C3 STANDARD
Lubricant	EXXON RONEX MP STD
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	U2475S
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.1073 cps
Housing Coating	Powder Coated
Vibration Frequency Fundamental Train	0.0068 cps
Static Load Rating (lb)	11,100 lb
Insert	UG2E48NL
Vibration Frequency Roller Spin	0.0475 cps
End Cap Available	No
Maximum Speed (RPM)	3300 rpm
Size Code	215
Inner Ring Outside Diameter (in)	3.624 in
Max Operating Temperature (C)	107 °C
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Ductile Iron
Bearing Type	Standard Duty
Bearing Brand	LINK-BELT 200 SERIES BALL
Dynamic Load Rating (lb)	15,080 lb
Max Operating Temperature (F)	225 °F
Cage Type	Ball Riding Retainer
Shaft Locking Type	Set Screw
Housing Width (in)	2 in

General Specifications

UPC	793699130508
Weight	12.90 LB
Packaged Length	7.25 IN
Packaged Width	3.50 IN
Packaged Height	7.25 IN
HTC	8483204040
Country of Origin	Mexico
