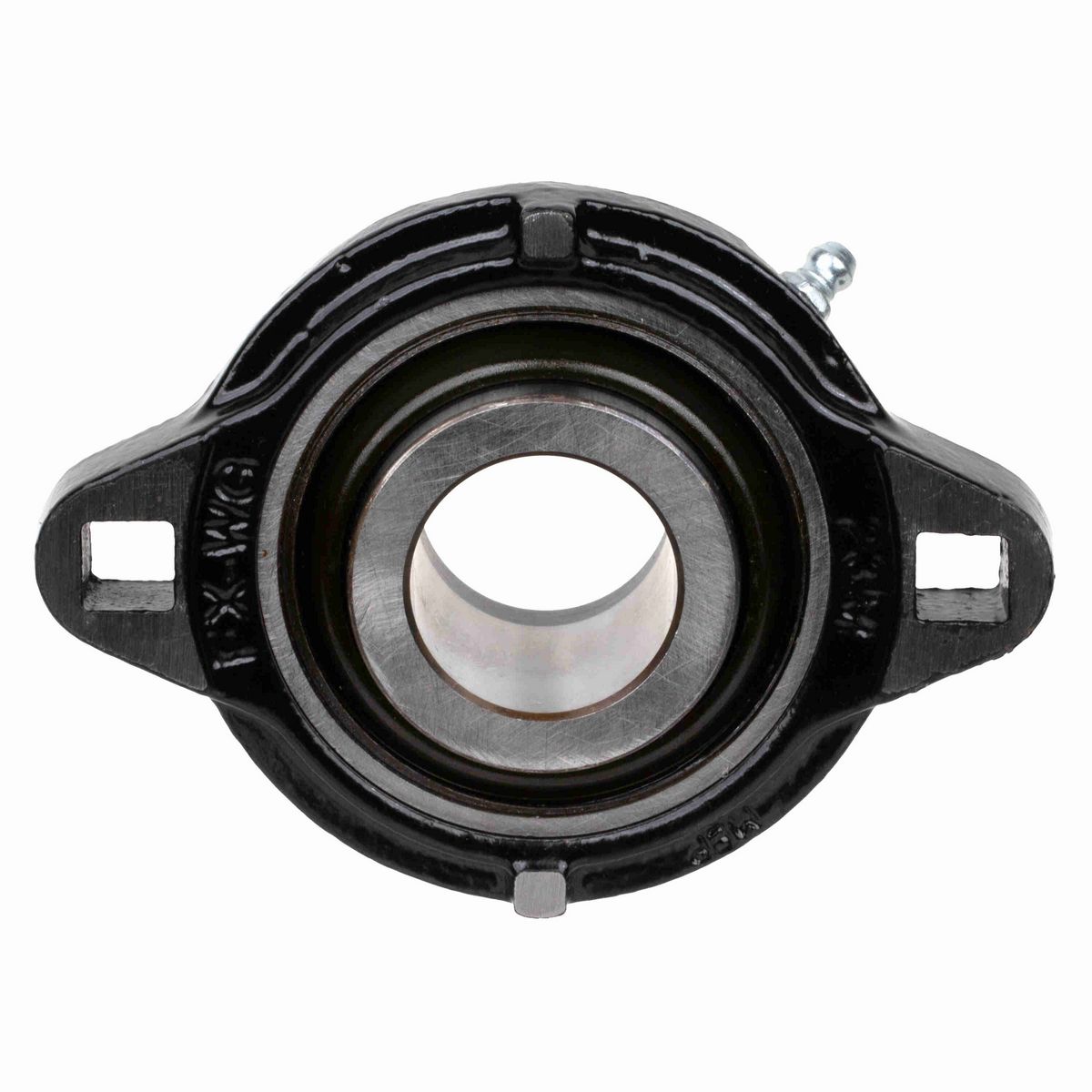

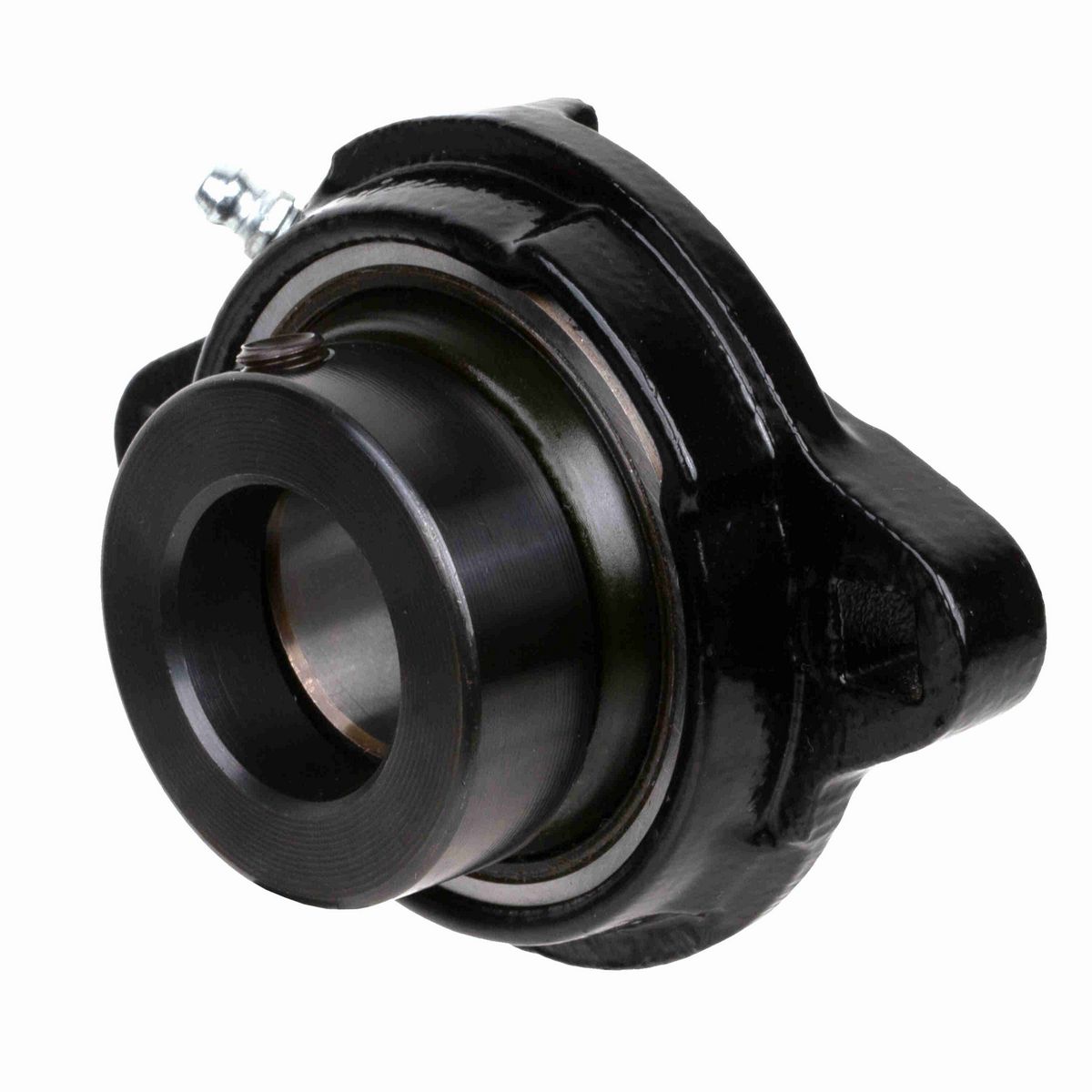

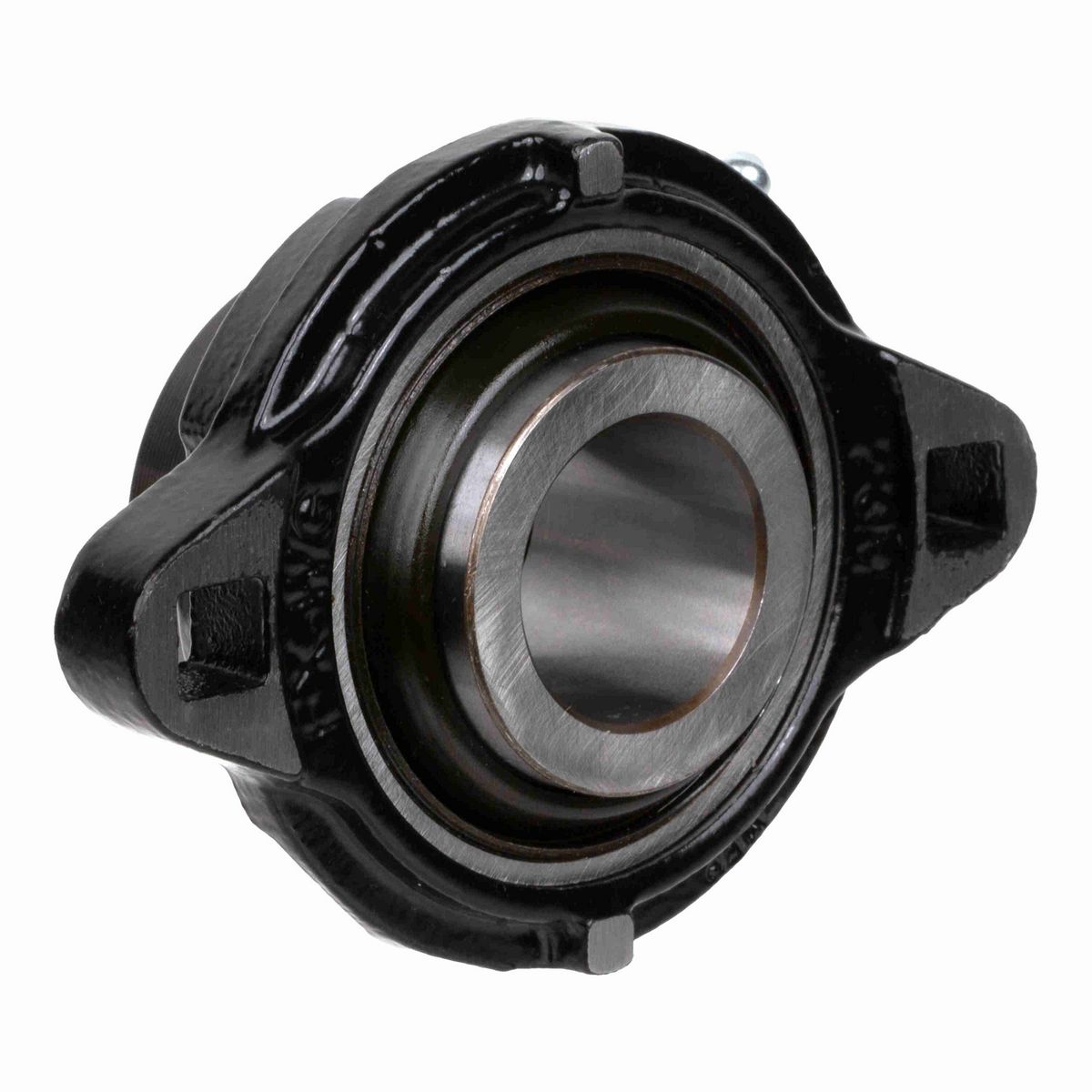

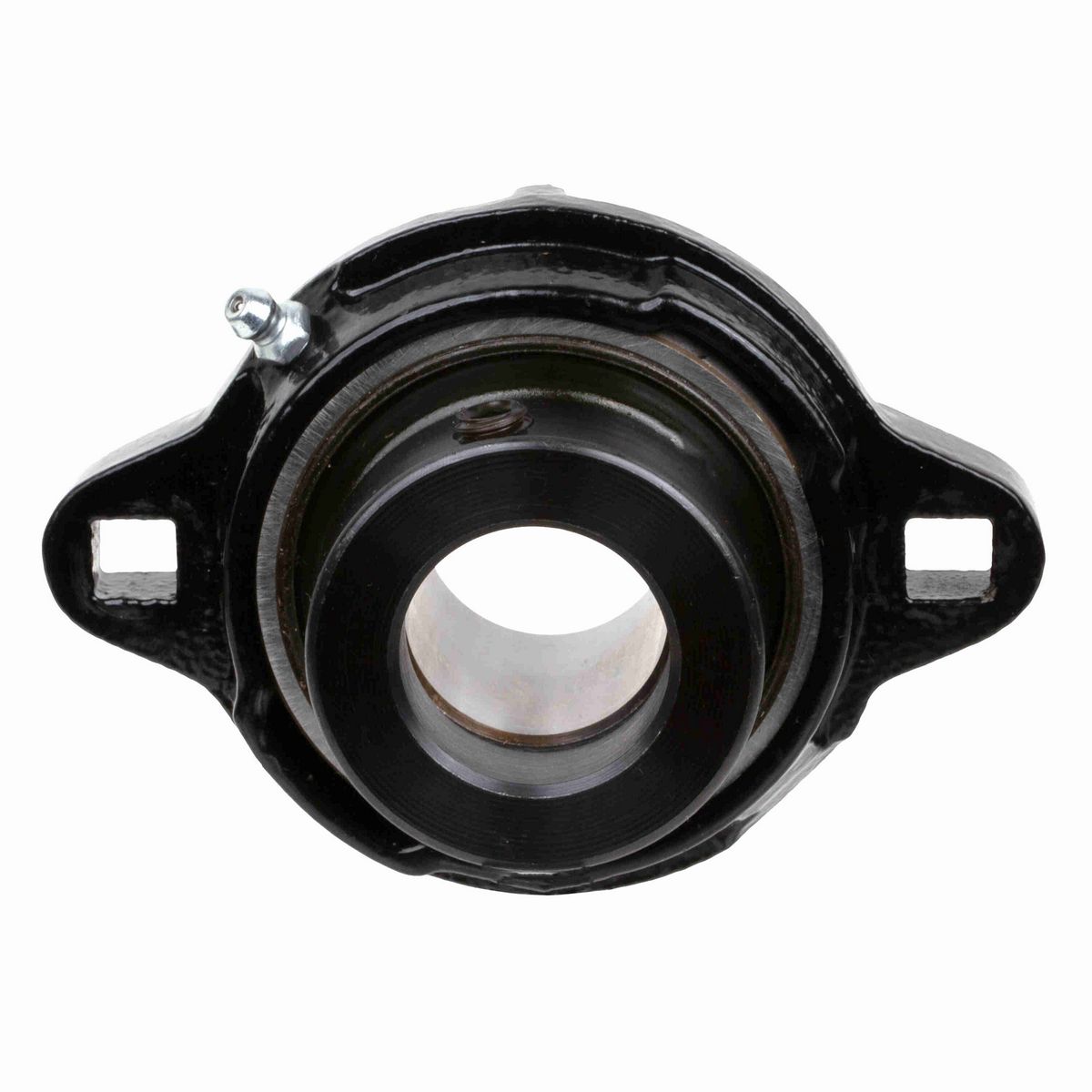

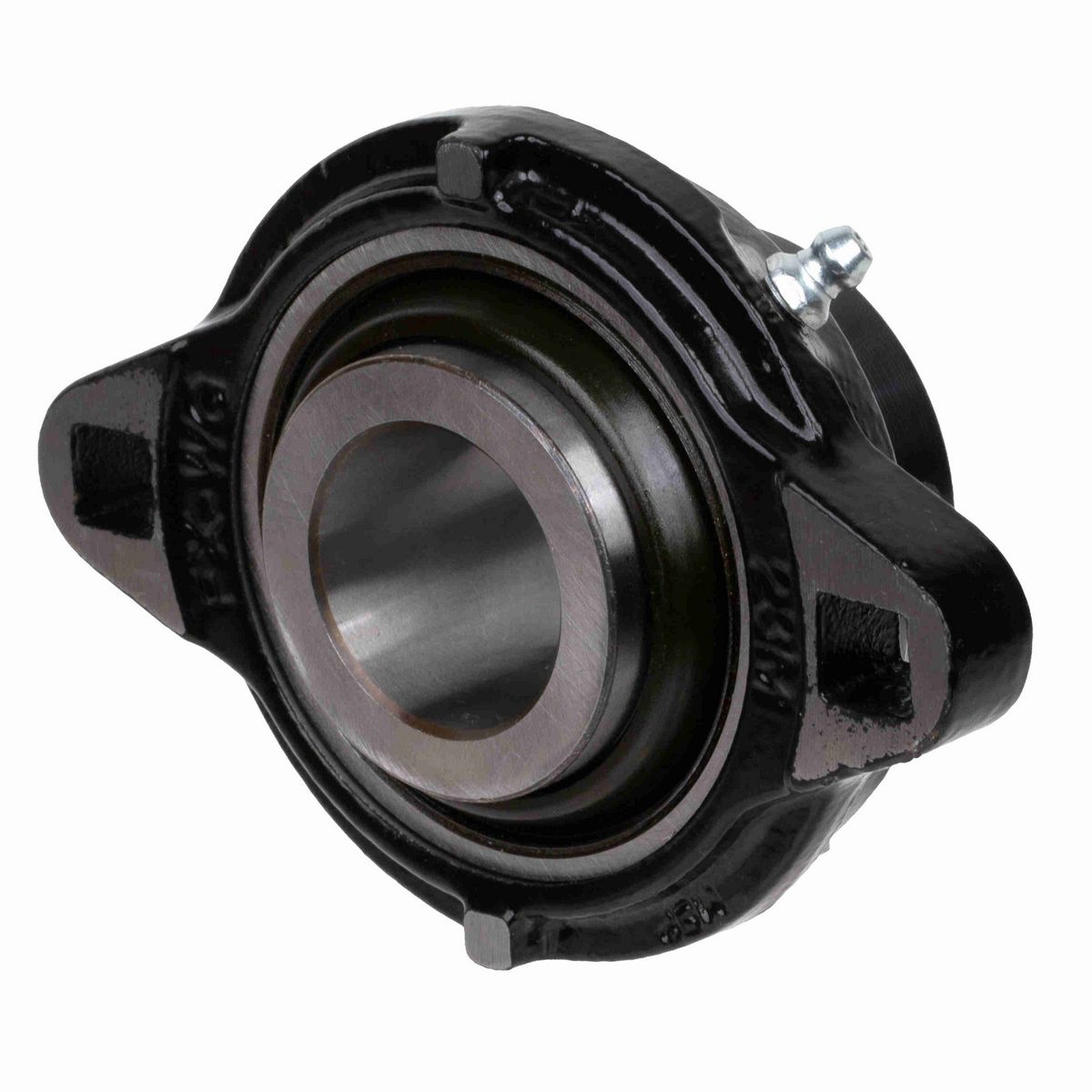

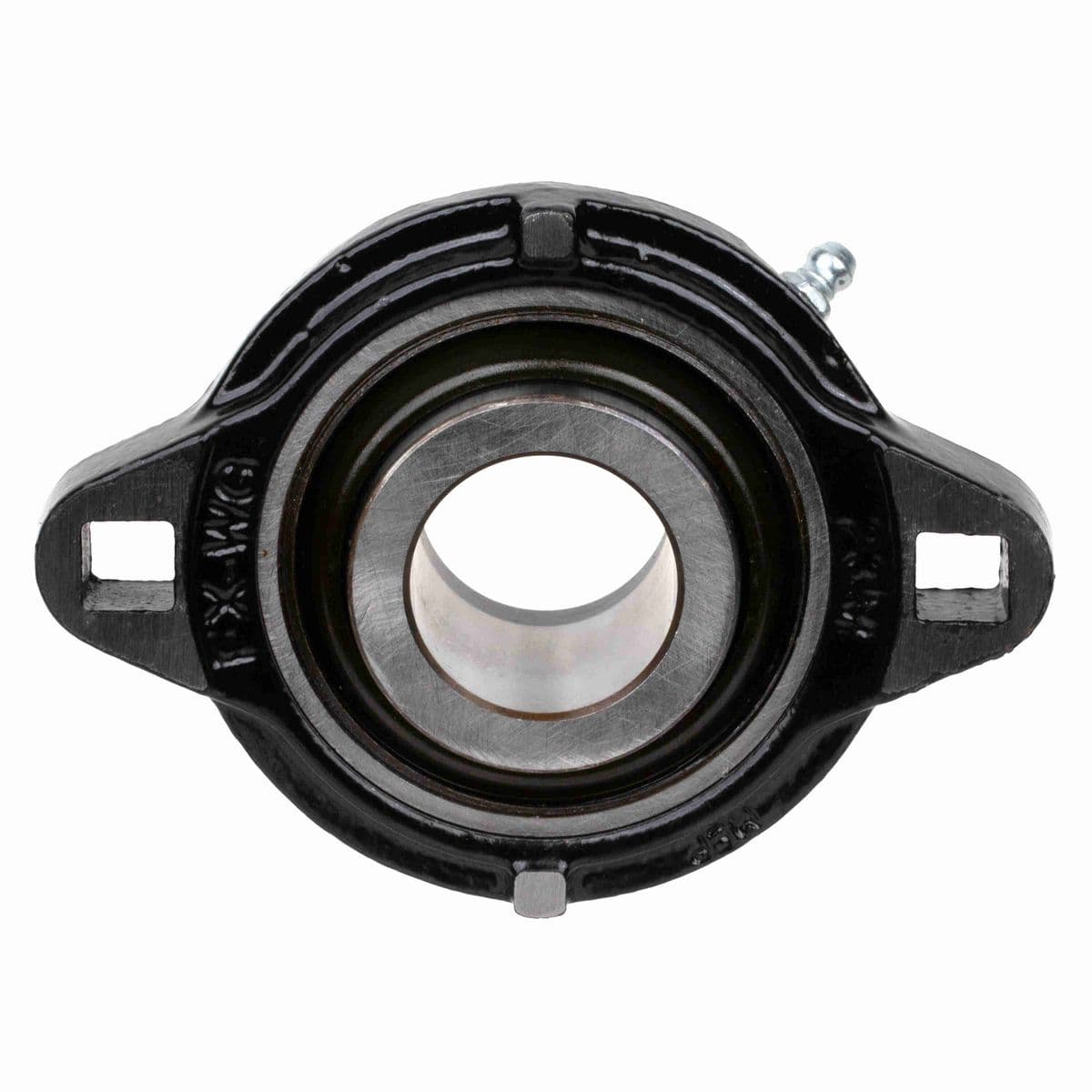

• 1 1/4" Mounted Ball Bearing, Standard Duty, High-Test Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Triple Lip Contact Seal, Relubricatable

Dimensions

Bore Diameter (in)	1.25 in
Foot Height (in)	0.50 in
Length Through Bore (in)	2.02 in
Overall Height (in)	1.781 in
Overall Width (in)	3.50 in
Overall Length (in)	4.81 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	3.9375 in

Technical Specifications

Pilot Configuration	No Pilot
Housing Color	Black
Bore Shape	Straight
Seal Type	Multi-Lip Contact Seal
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Style	Flange Block
Housing Type	Flange, Two Bolt
Housing Construction	One Piece
Cage Material	Molded fiber glass reinforced nylon
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.19 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	700 rpm
Lubricant	EXXON RONEX MP STD
End Cap Available	No
Inner Ring Outside Diameter (in)	1.847 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0067 cps
Dynamic Load Rating (lb)	5,810 lb
Size Code	207
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0595 cps
Radial Clearance	C3 STANDARD
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Housing Material	Ductile Iron
Max Operating Temperature (C)	107 °C
Vibration Frequency Roller Spin	0.0383 cps
Max Operating Temperature (F)	225 °F
Insert	YG220E3L
Locking Device Kit	W2205S
Housing Coating	Powder Coated
Cage Type	Ball Riding Retainer
Shaft Locking Type	Eccentric
Bearing Brand	LINK-BELT 200 SERIES BALL
Static Load Rating (lb)	3,440 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Housing Height (in)	0.94 in

General Specifications

UPC	662327653057
Weight	2.10 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	3.00 IN
HTC	8483204040
Country of Origin	Mexico
