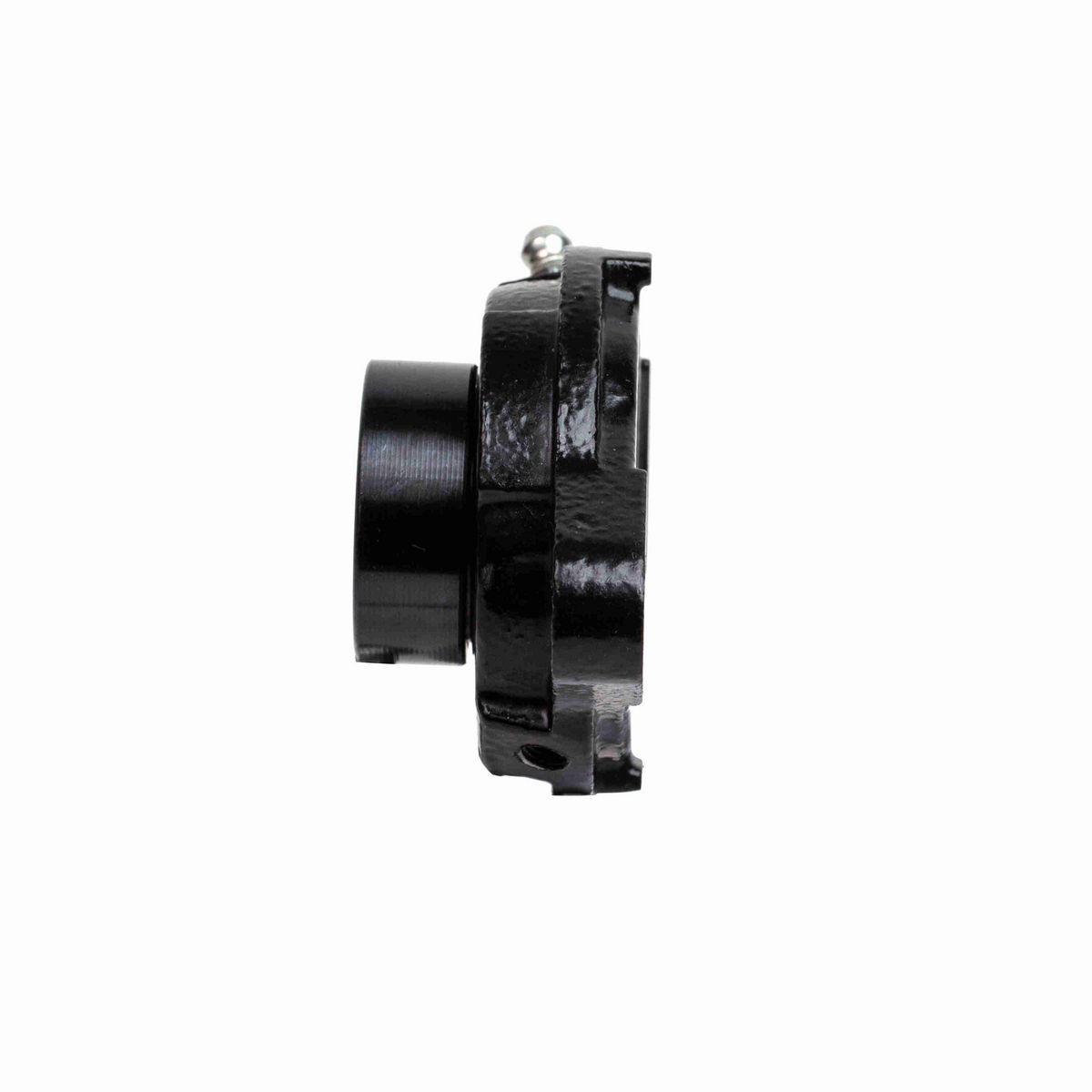

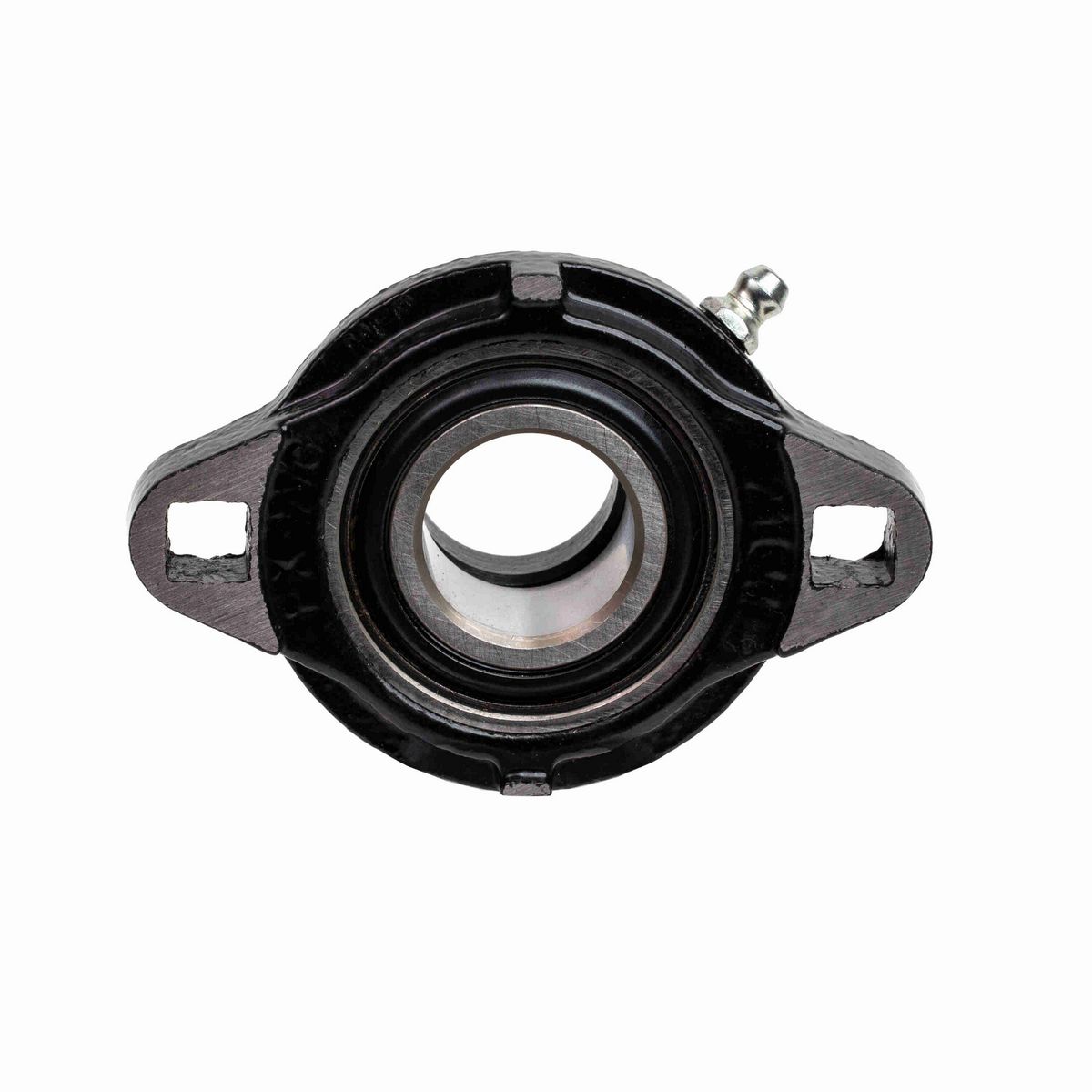

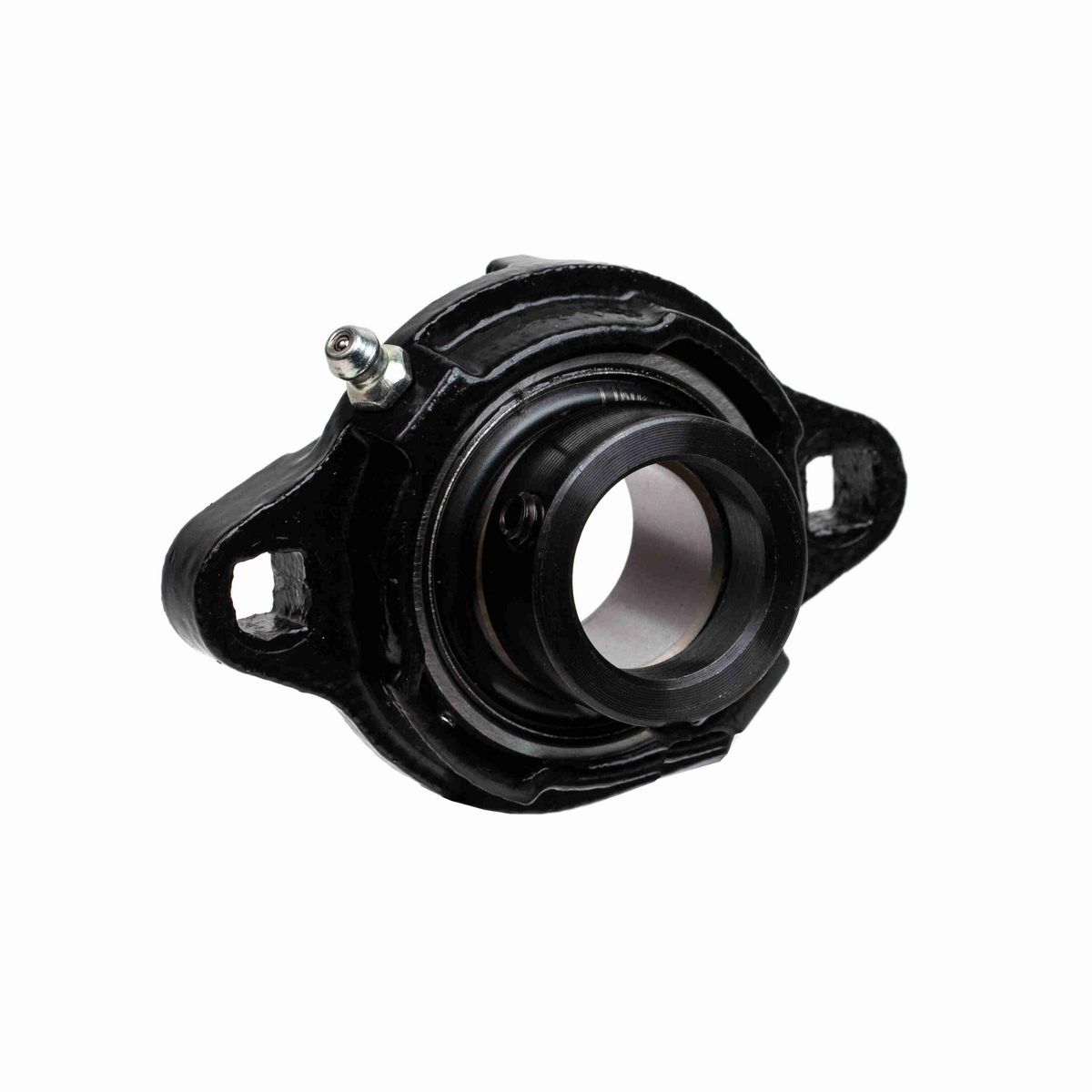

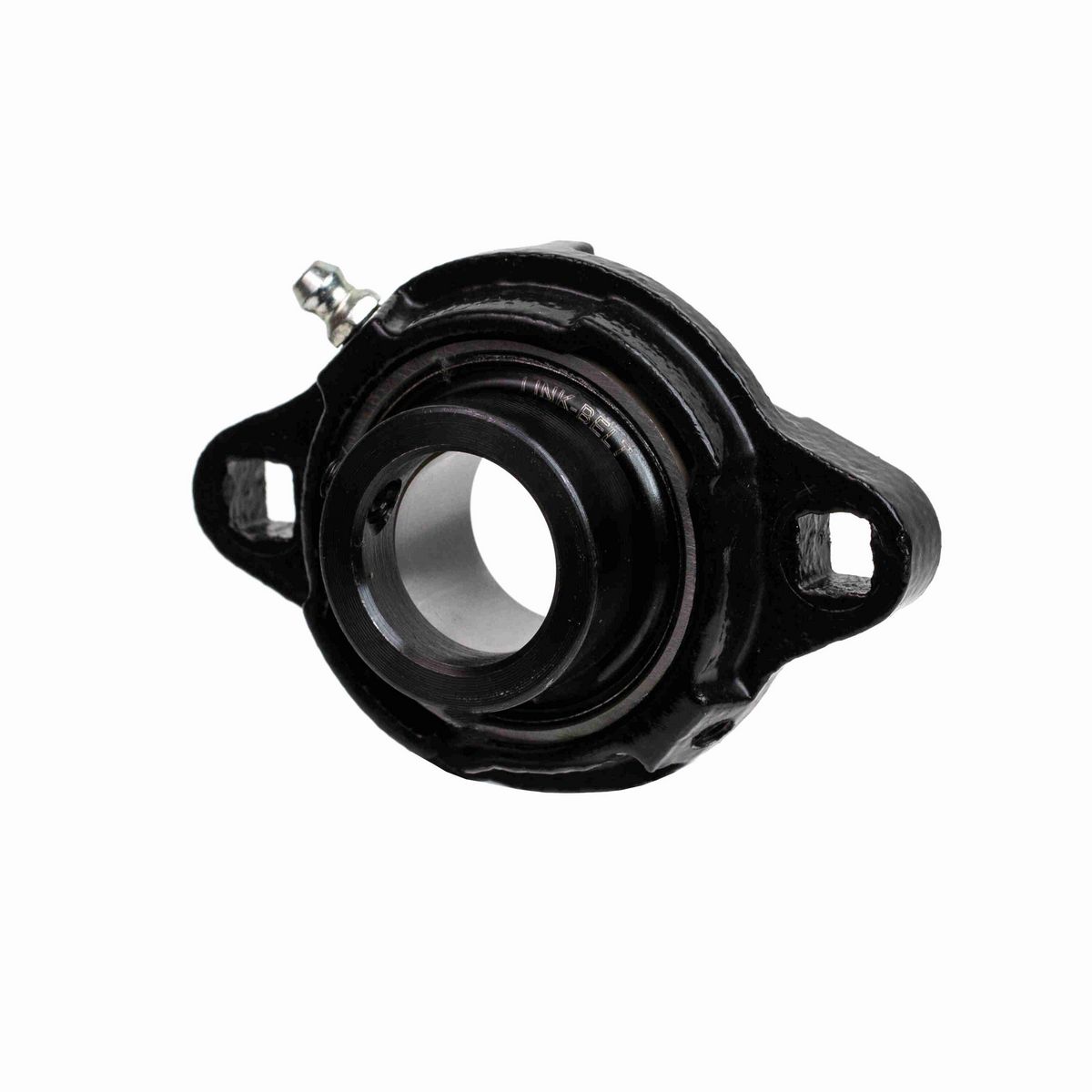

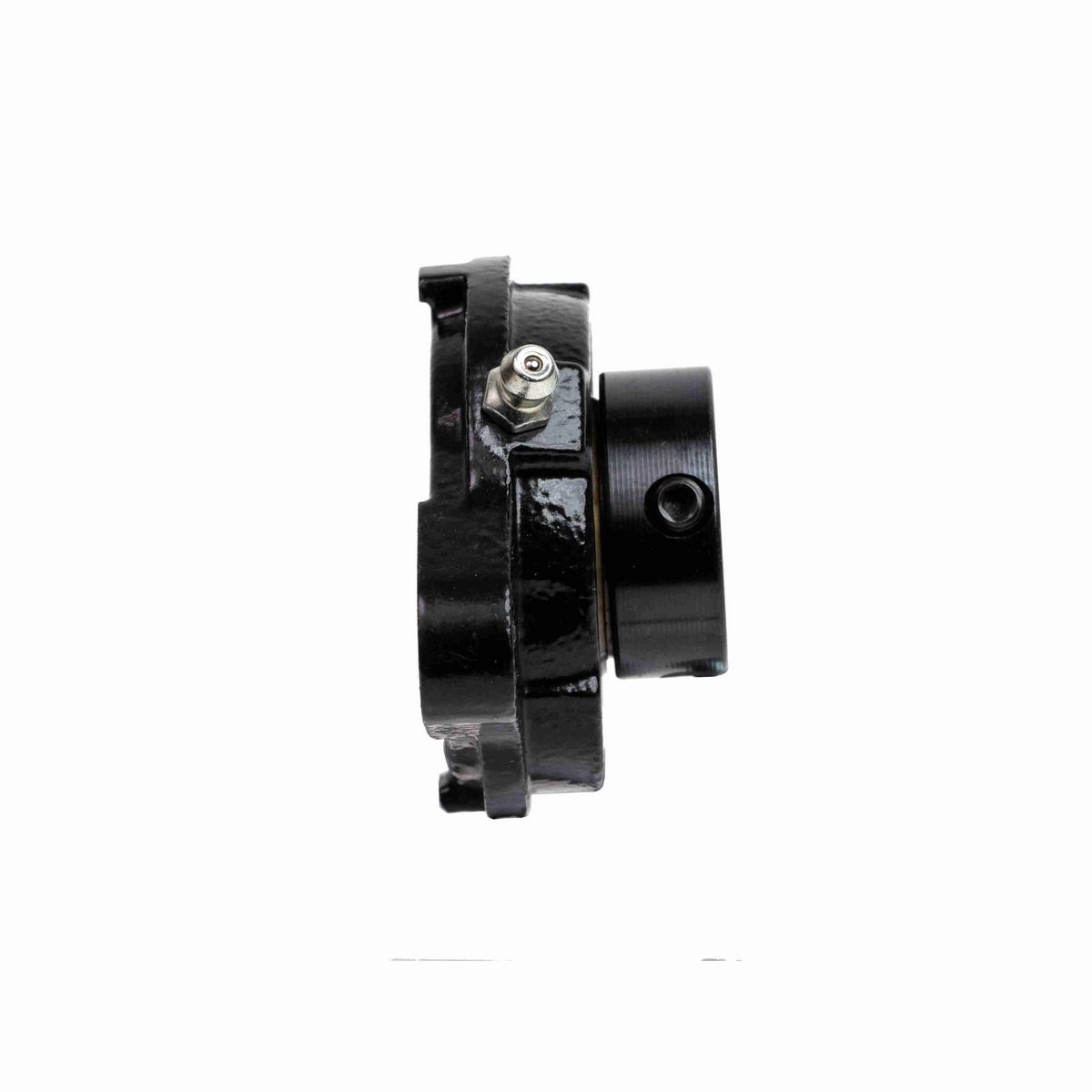

• 1 1/4" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Relubricatable

Dimensions

Length Through Bore (in)	1.41 in
Overall Length (in)	4.44 in
Bore Diameter (in)	1.25 in
Overall Height (in)	1.53 in
Foot Height (in)	0.47 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	3.5625 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Bore Shape	Straight
Outer Ring Land Profile	Standard
Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Housing Construction	One Piece
Housing Color	Black
Locking Collar Outside Diameter (in)	1.75 in
Setscrew Torque (in-lbs)	165 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	5600 rpm
Cage Type	Ball Riding Retainer
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Intermediate Duty
Max Operating Temperature (F)	225 °F
Housing Material	Ductile Iron
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0067 cps
Max Operating Temperature (C)	107 °C
Locking Device Kit	W2E205S
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Outside Diameter (in)	1.586 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Shaft Locking Type	Eccentric
Size Code	206
Bearing Brand	LINK-BELT 200 SERIES BALL
Misalignment Capability	±1.5° Misalignment - Static Only
Dynamic Load Rating (lb)	4,390 lb
Static Load Rating (lb)	2,530 lb
Insert	WG2E20EL
Radial Clearance	C3 STANDARD
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4-28
Housing Height (in)	0.89 in

General Specifications

UPC	662327033293
Weight	1.21 LB
Packaged Length	3.69 IN
Packaged Width	3.69 IN
Packaged Height	2.13 IN
HTC	8483204040
Country of Origin	Mexico
