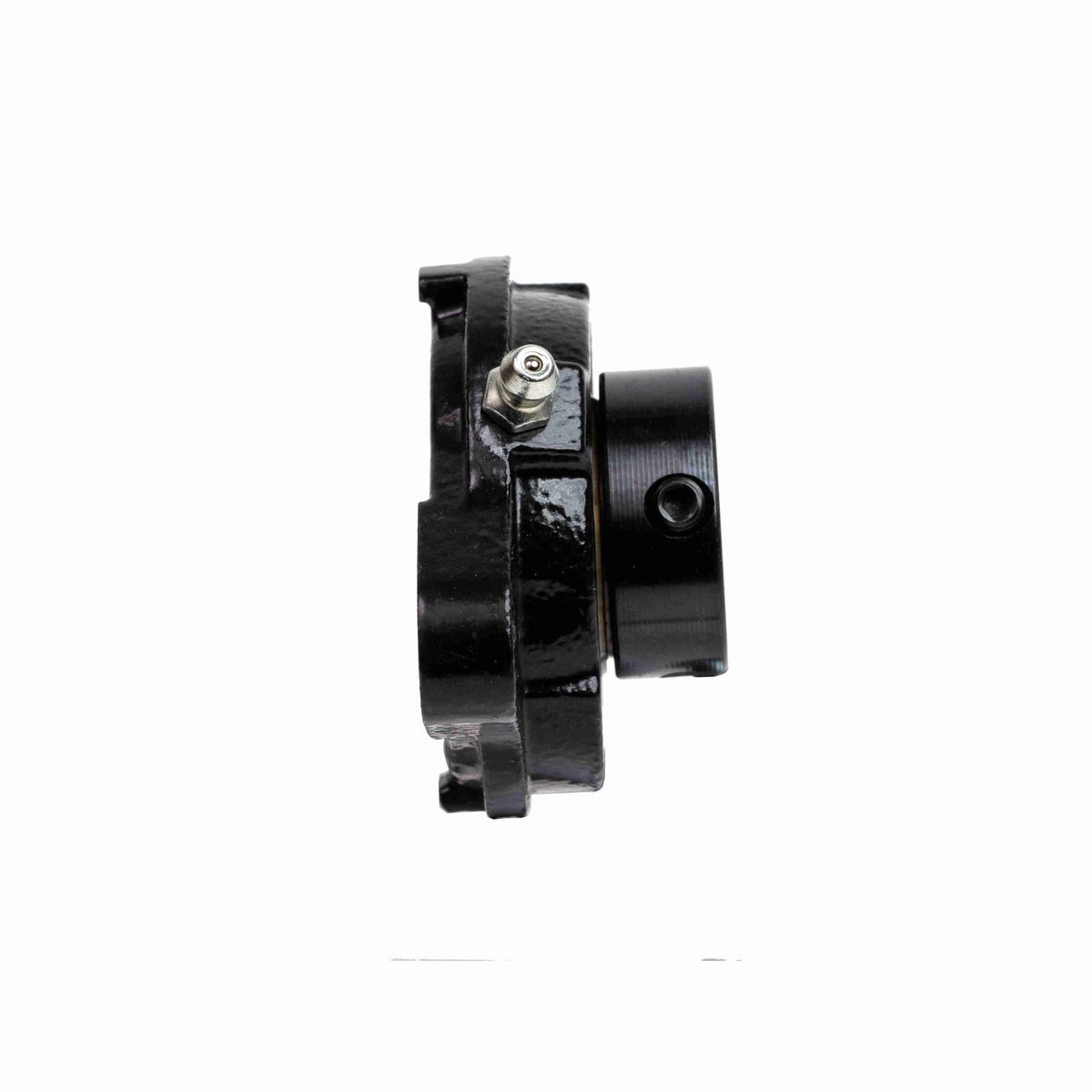

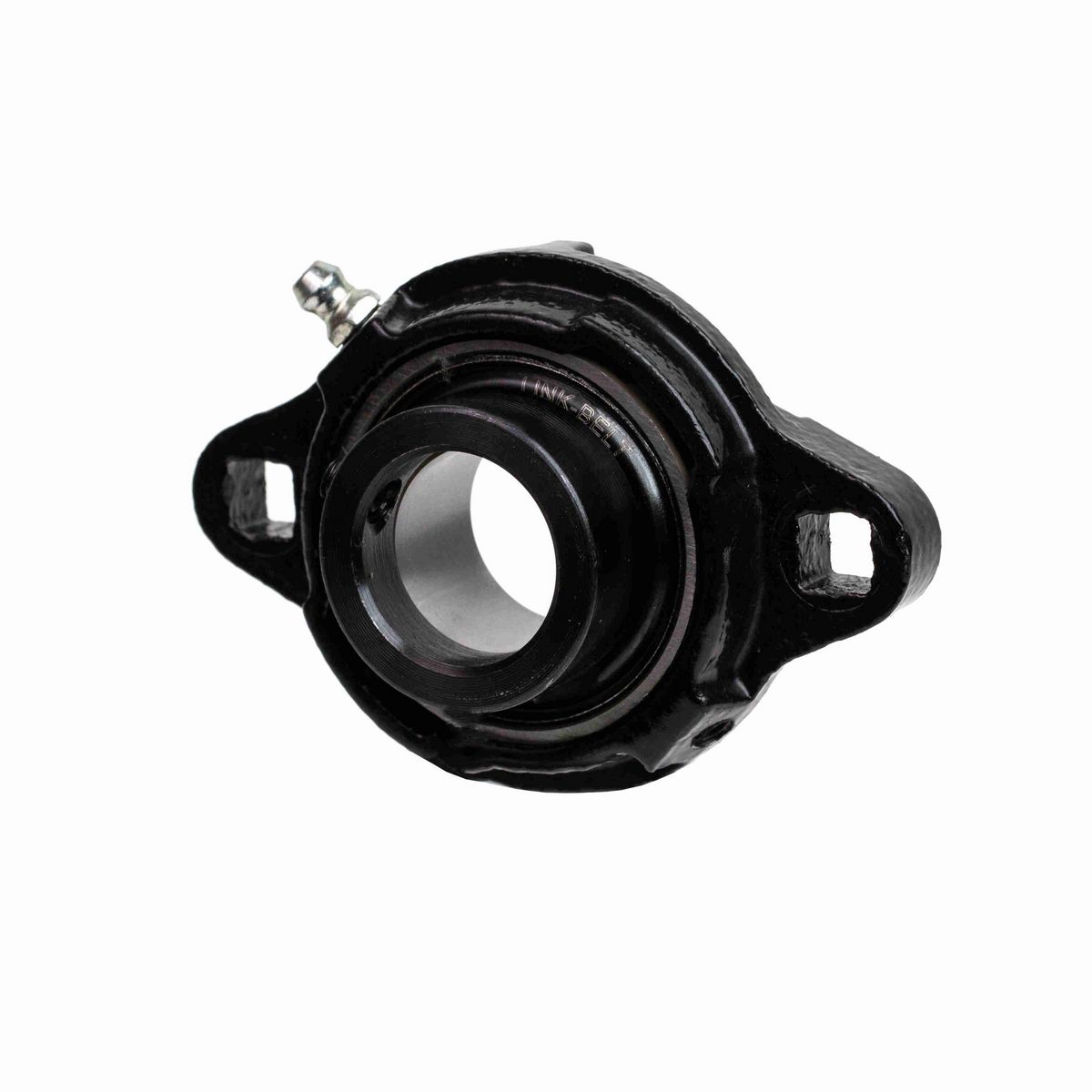

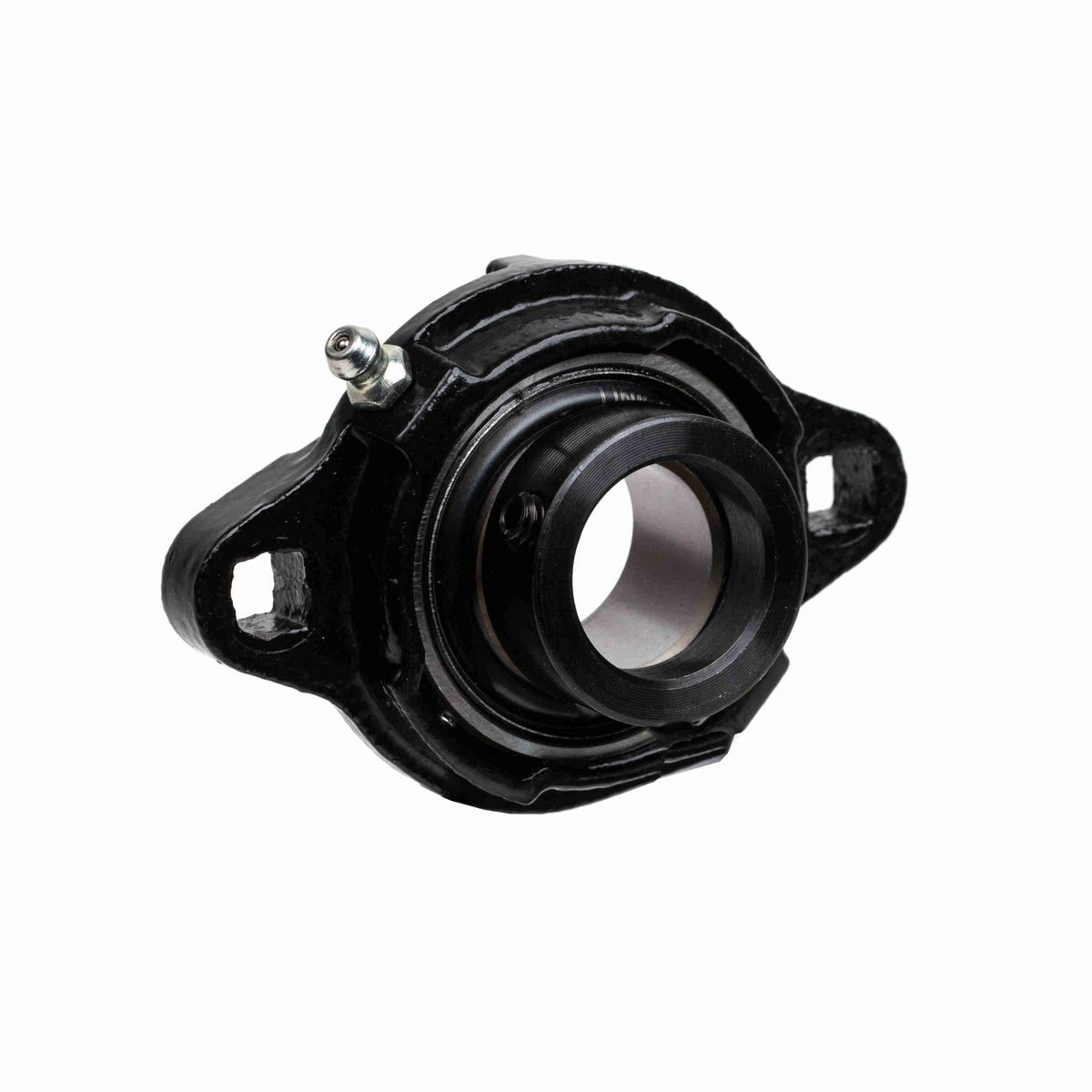

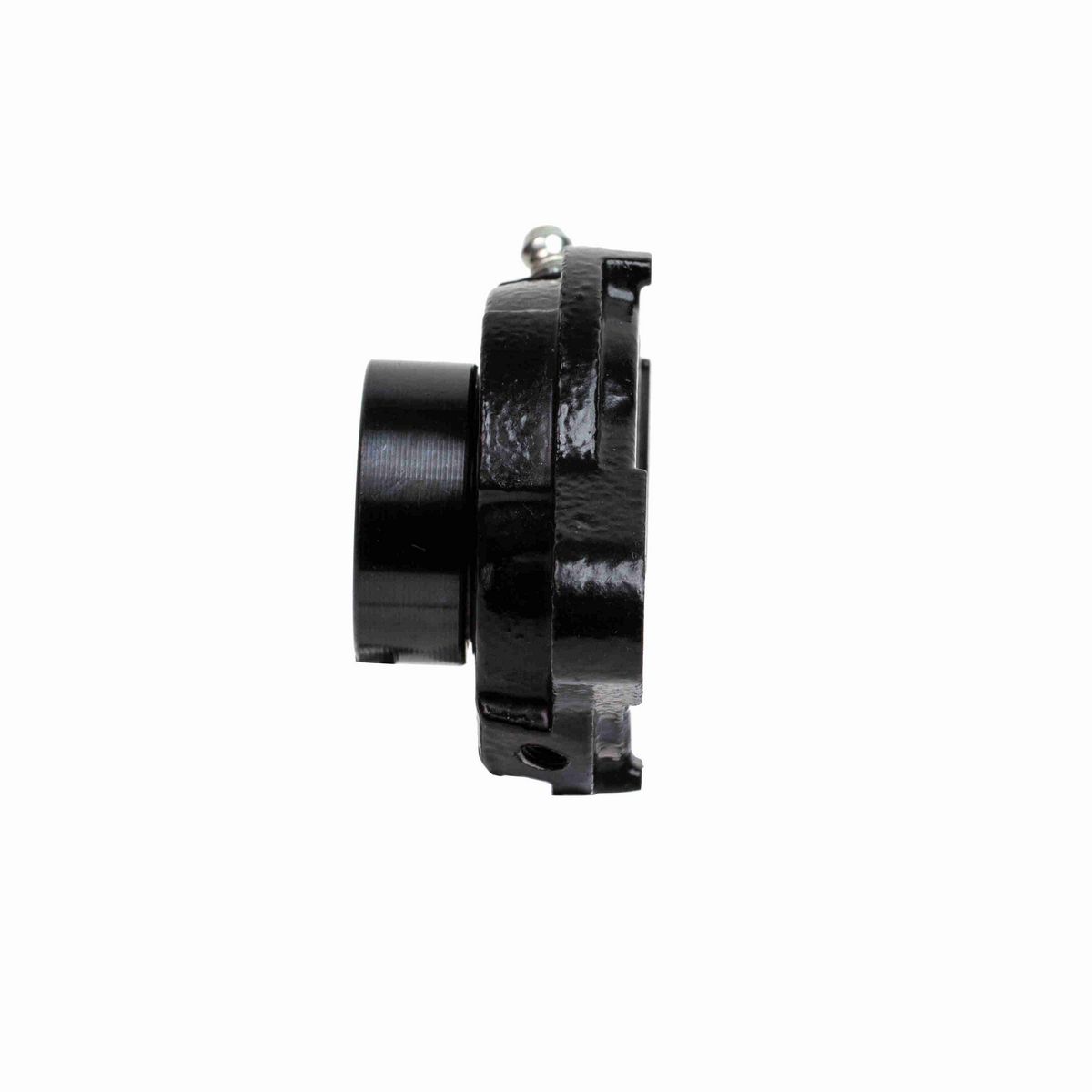

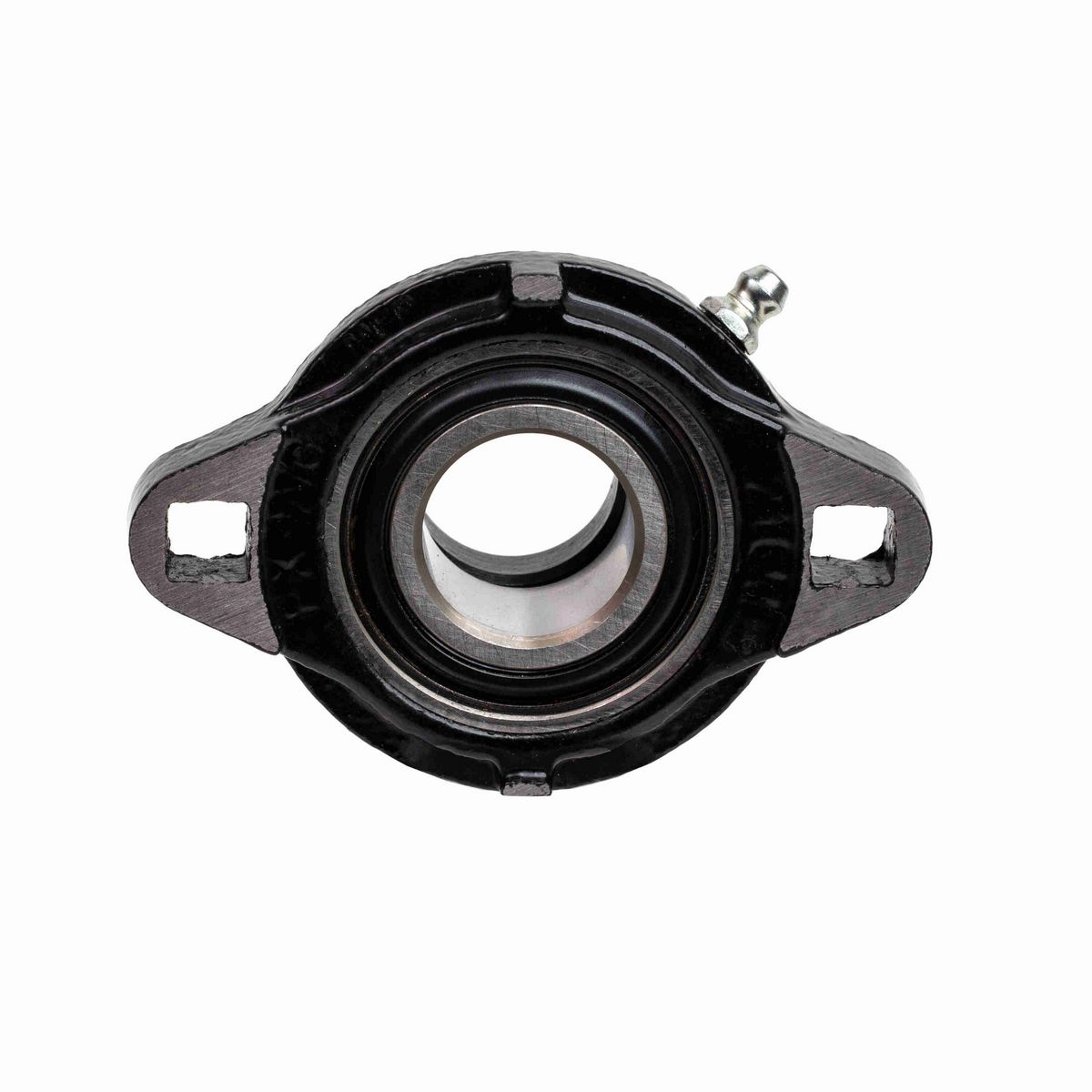

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Relubricatable

Dimensions

Length Through Bore (in)	1.53 in
Overall Height (in)	1.656 in
Overall Length (in)	4.81 in
Foot Height (in)	0.50 in
Bore Diameter (in)	1.4375 in
Overall Width (in)	3.50 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	3.9375 in

Technical Specifications

Housing Style	Flange Block
Housing Color	Black
Housing Construction	One Piece
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Outer Ring Land Profile	Standard
Locking Collar Outside Diameter (in)	2.19 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Ability to Relubricate	Yes
Max Operating Temperature (F)	225 °F
Fixed vs. Expansion	Fixed
Radial Clearance	C3 STANDARD
Shaft Locking Type	Eccentric
Misalignment Capability	±1.5° Misalignment - Static Only
Size Code	207
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (C)	107 °C
Inner Ring Outside Diameter (in)	1.847 in
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0383 cps
Static Load Rating (lb)	3,440 lb
Cage Type	Ball Riding Retainer
Housing Coating	Powder Coated
Locking Device Kit	W2235S
Maximum Speed (RPM)	4800 rpm
Housing Material	Ductile Iron
Insert	WG223EL
Vibration Frequency Outer Ring Defect	0.0595 cps
Dynamic Load Rating (lb)	5,810 lb
Bearing Brand	LINK-BELT 200 SERIES BALL
Bearing Type	Intermediate Duty
Vibration Frequency Inner Ring Defect	0.0905 cps
End Cap Available	No
Housing Height (in)	0.94 in

General Specifications

UPC	662327033507
Weight	1.77 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	2.00 IN
HTC	8483204040
Country of Origin	Mexico
