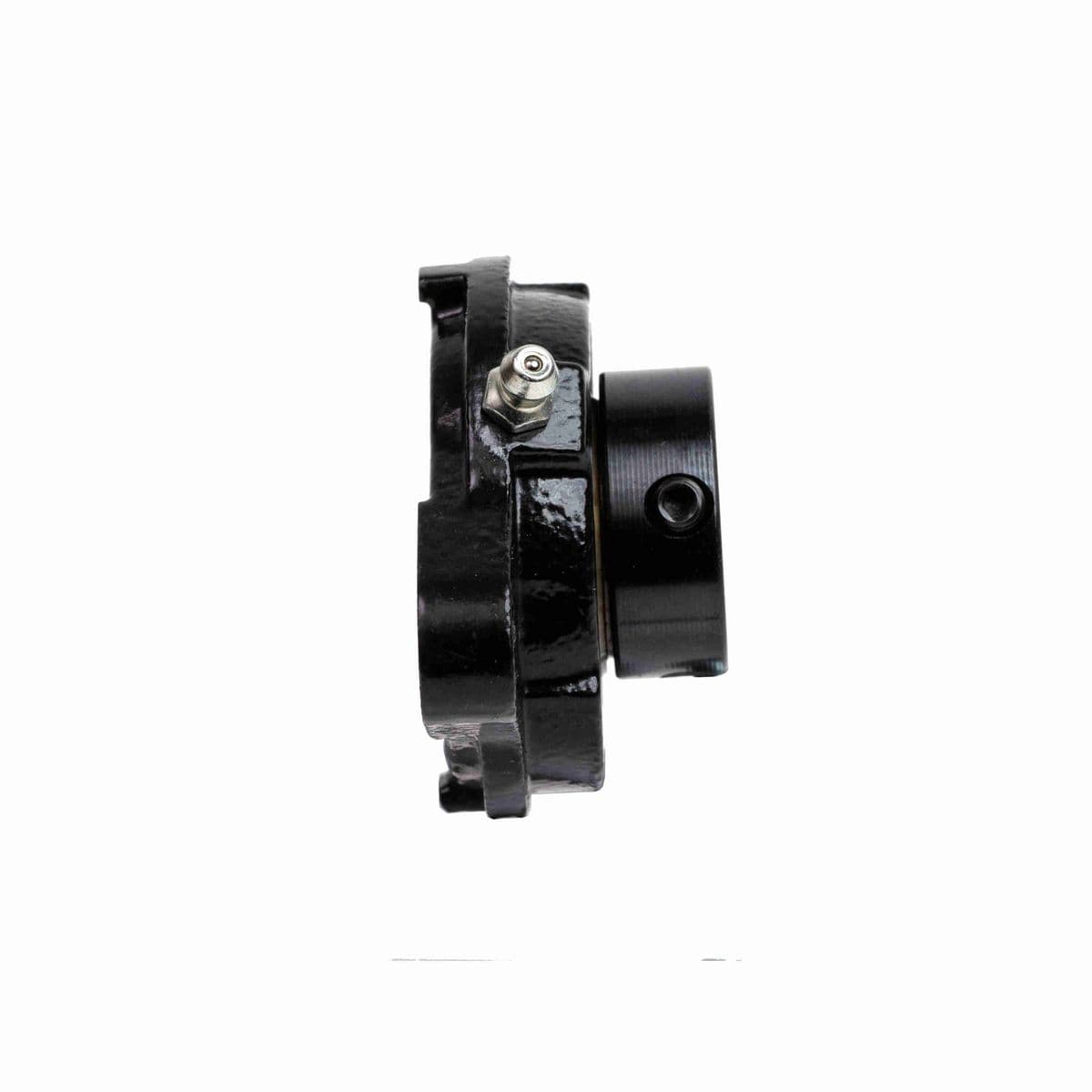

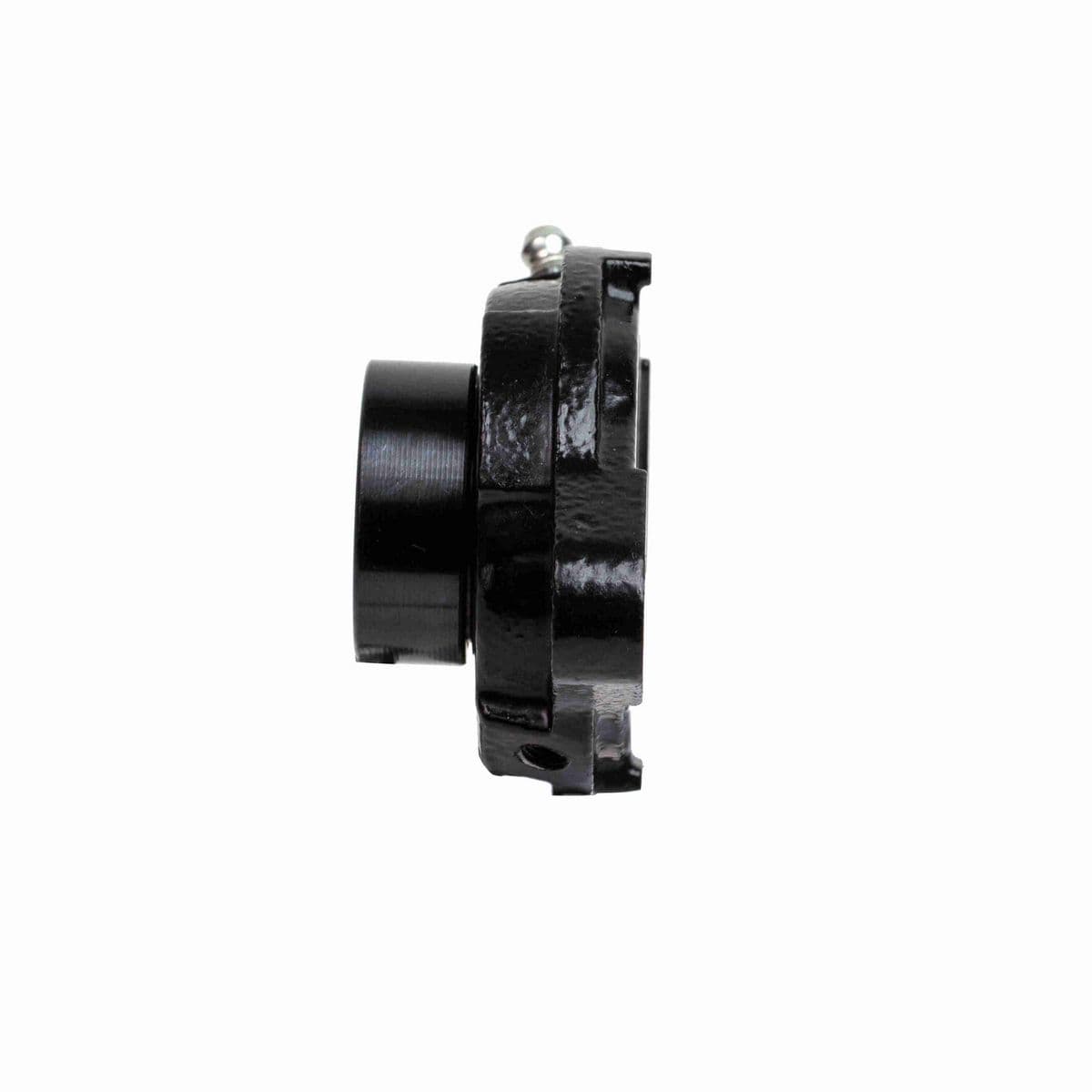

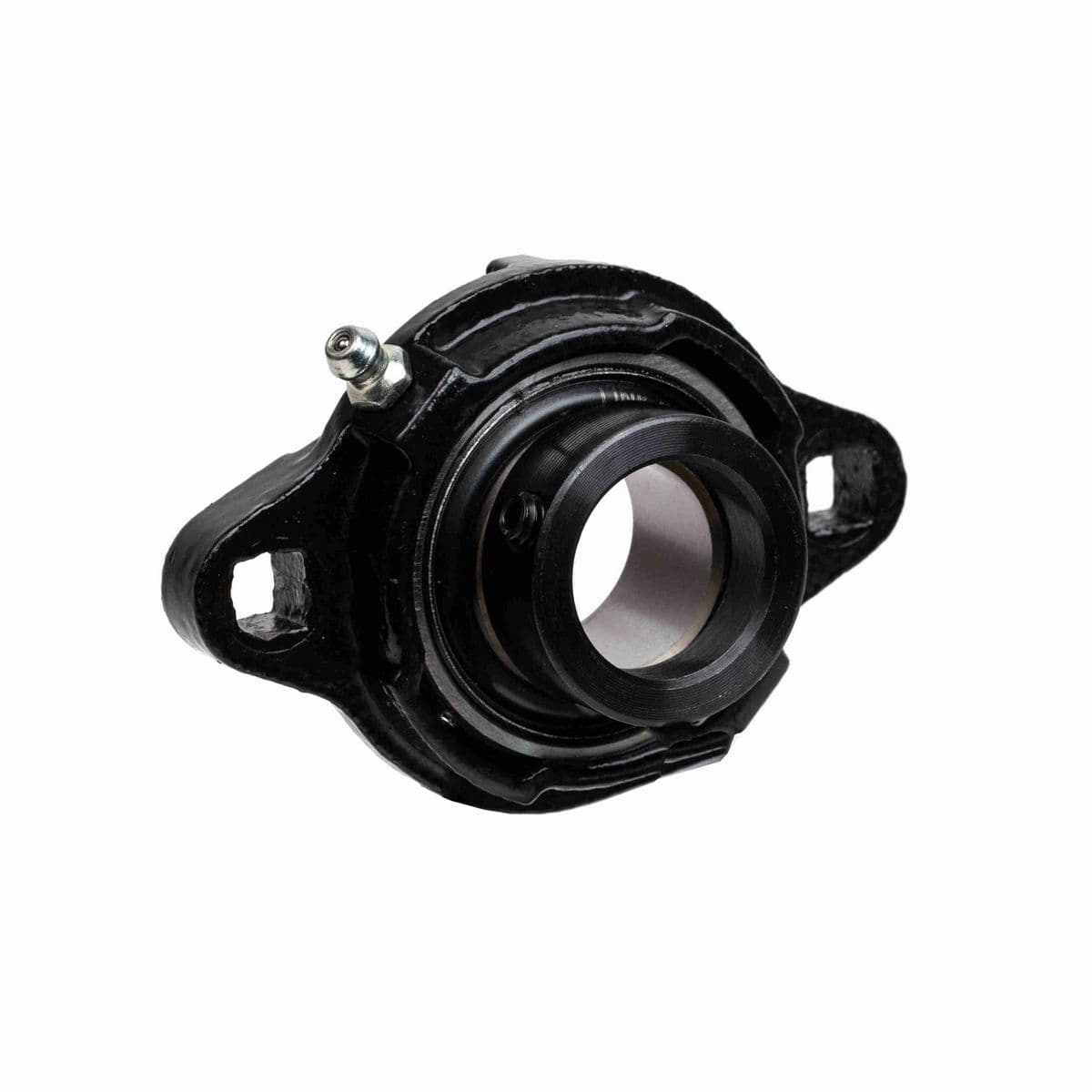

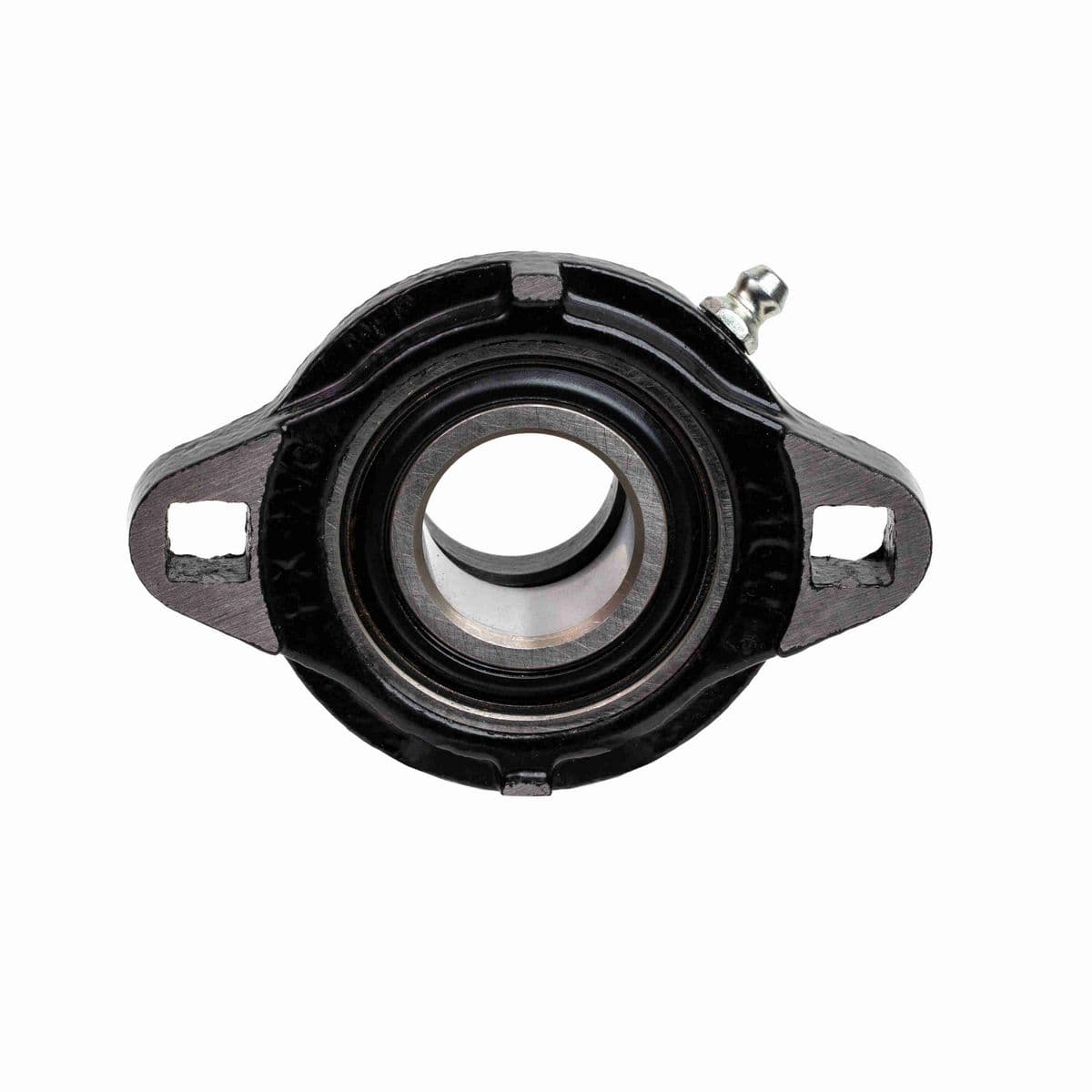

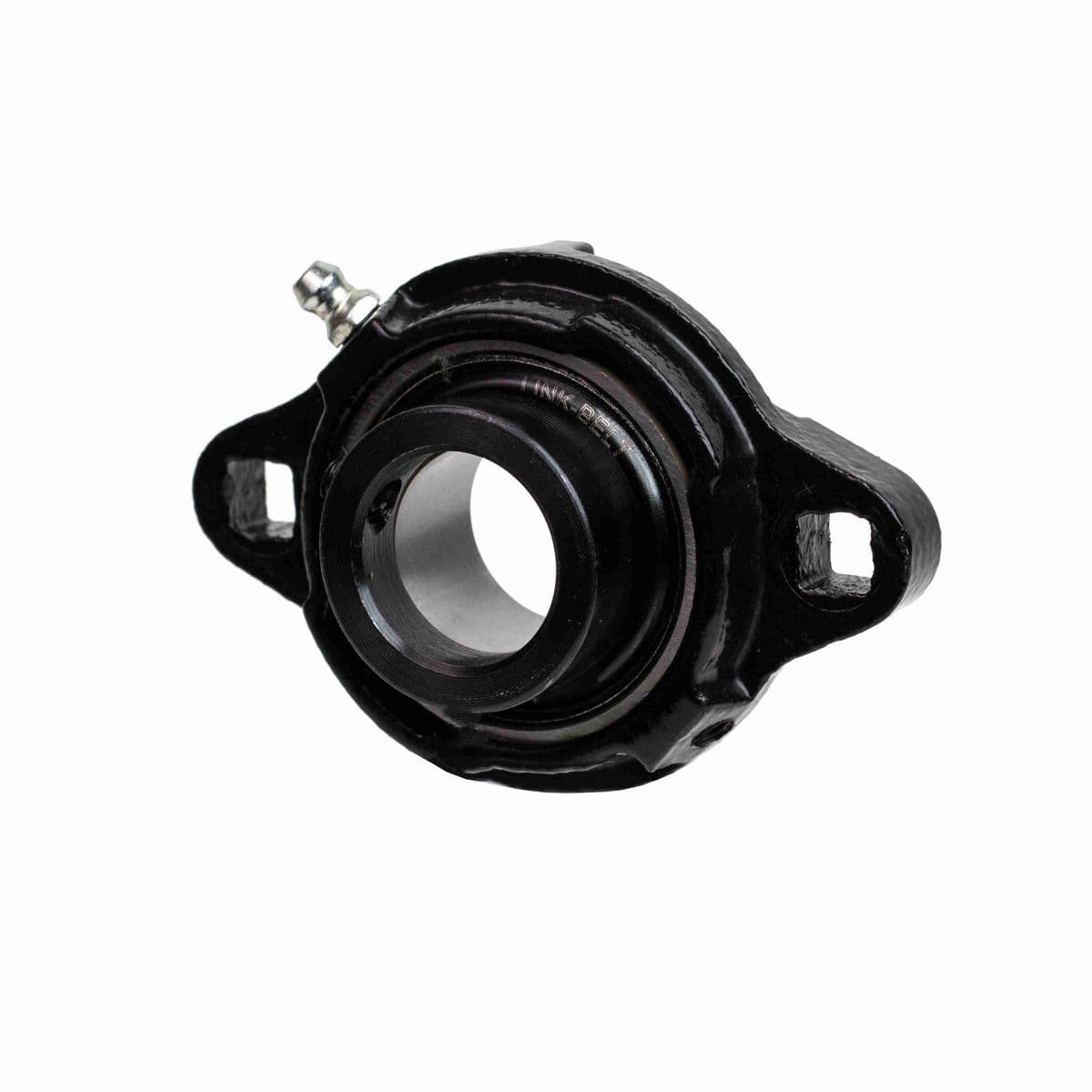

• 1" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Relubricatable

Dimensions

Overall Height (in)	1.34 in
Length Through Bore (in)	1.22 in
Bore Diameter (in)	1 in
Overall Length (in)	3.75 in
Foot Height (in)	0.42 in
Overall Width (in)	2.72 in
Bolt Size (in)	5/16 in
Bolt Spacing (in)	3 in

Technical Specifications

Pilot Configuration	No Pilot
Housing Color	Black
Housing Style	Flange Block
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Construction	One Piece
Housing Type	Flange, Two Bolt
Seal Type	Single Lip Contact Seal
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	87-92 in/lbs
Locking Collar Outside Diameter (in)	1.44 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Housing Material	Ductile Iron
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0387 cps
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Type	Intermediate Duty
Vibration Frequency Fundamental Train	0.0067 cps
Housing Coating	Powder Coated
Lubricant	EXXON RONEX MP STD
Insert	WG216EL
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (C)	107 °C
Cage Type	Ball Riding Retainer
Maximum Speed (RPM)	6800 rpm
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	3,150 lb
Shaft Locking Type	Eccentric
Size Code	205
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Static Load Rating (lb)	1,760 lb
Radial Clearance	C3 STANDARD
Inner Ring Outside Diameter (in)	1.313 in
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	W2165S
Housing Height (in)	0.78 in

General Specifications

UPC	793699283464
Weight	0.79 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8483204040
Country of Origin	Mexico
