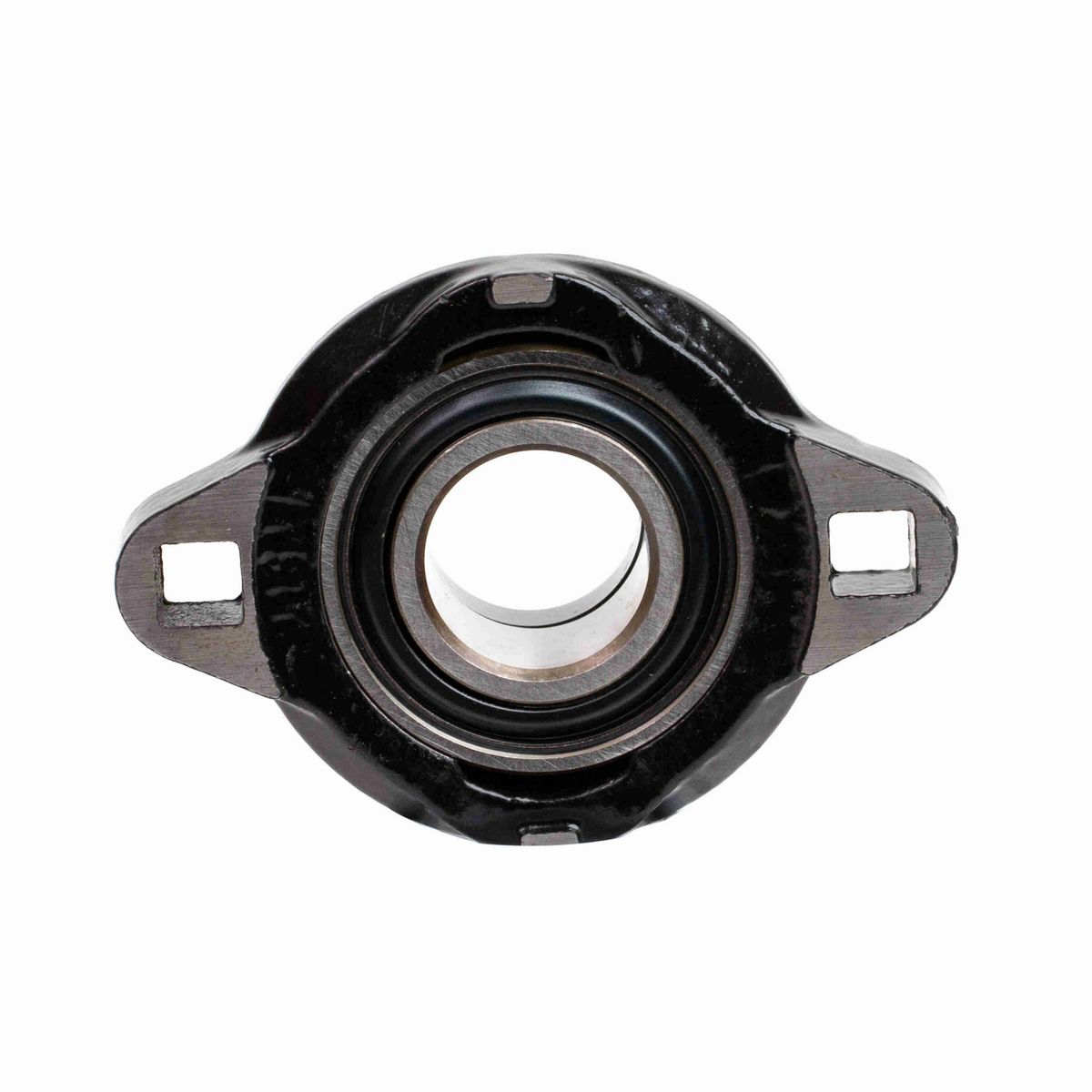

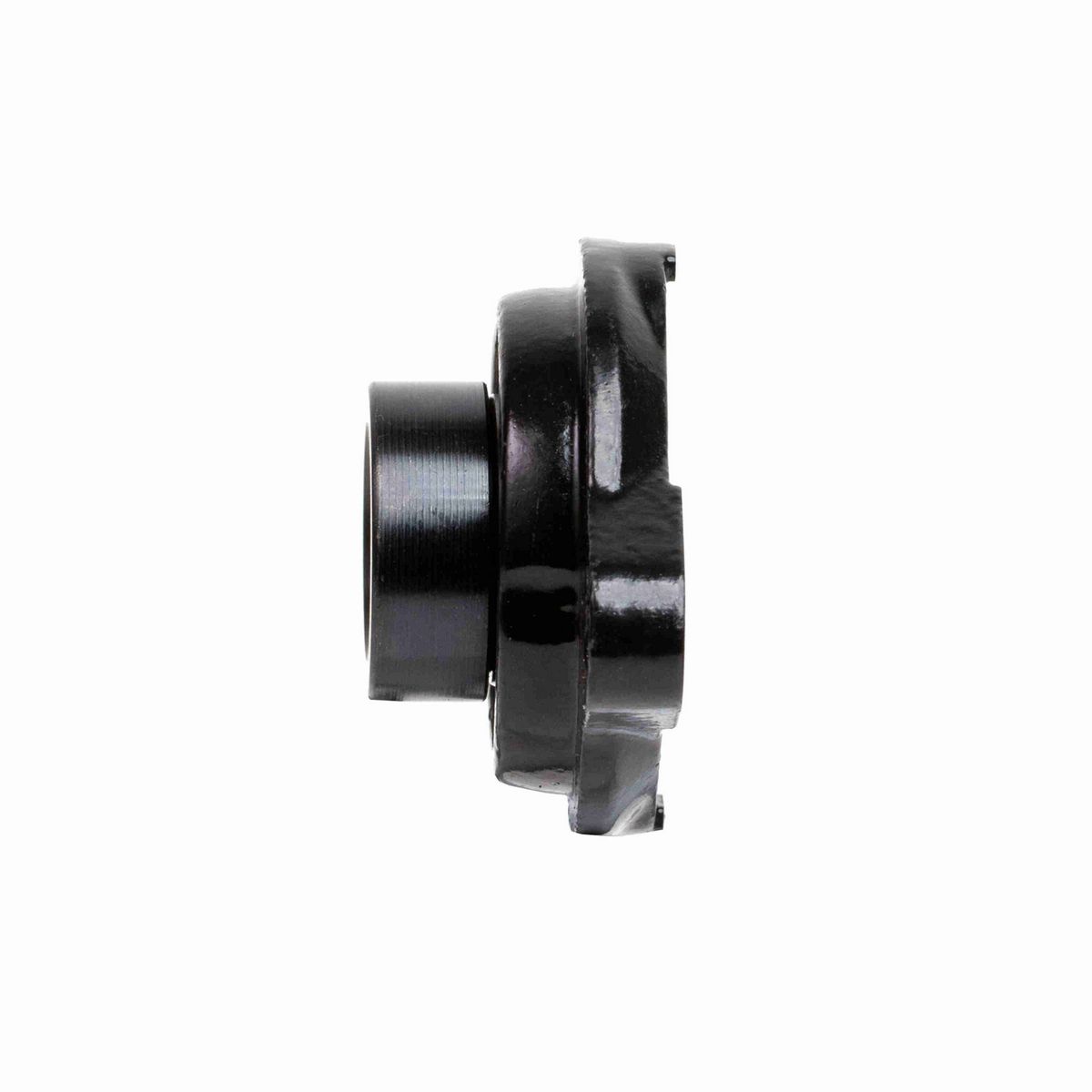

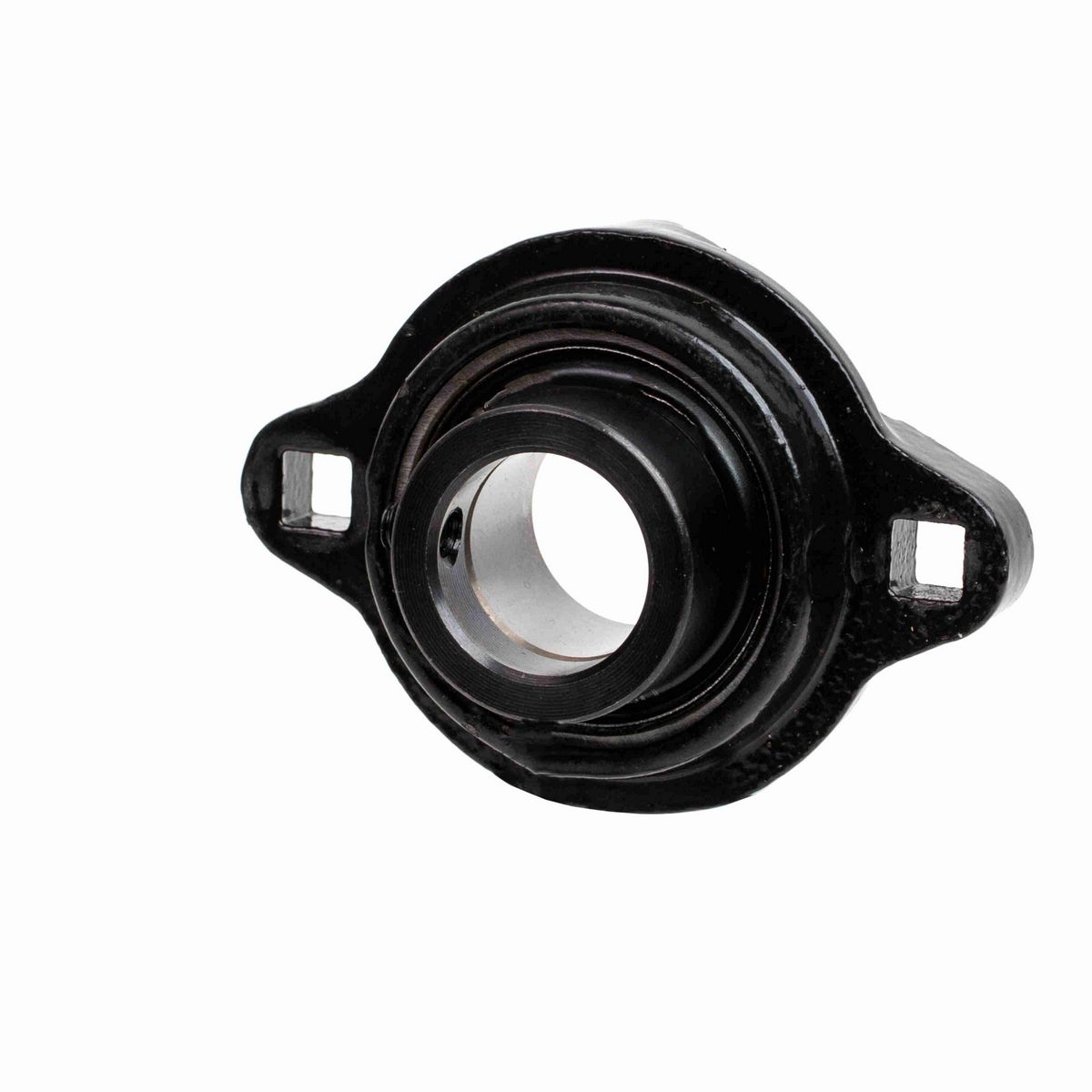

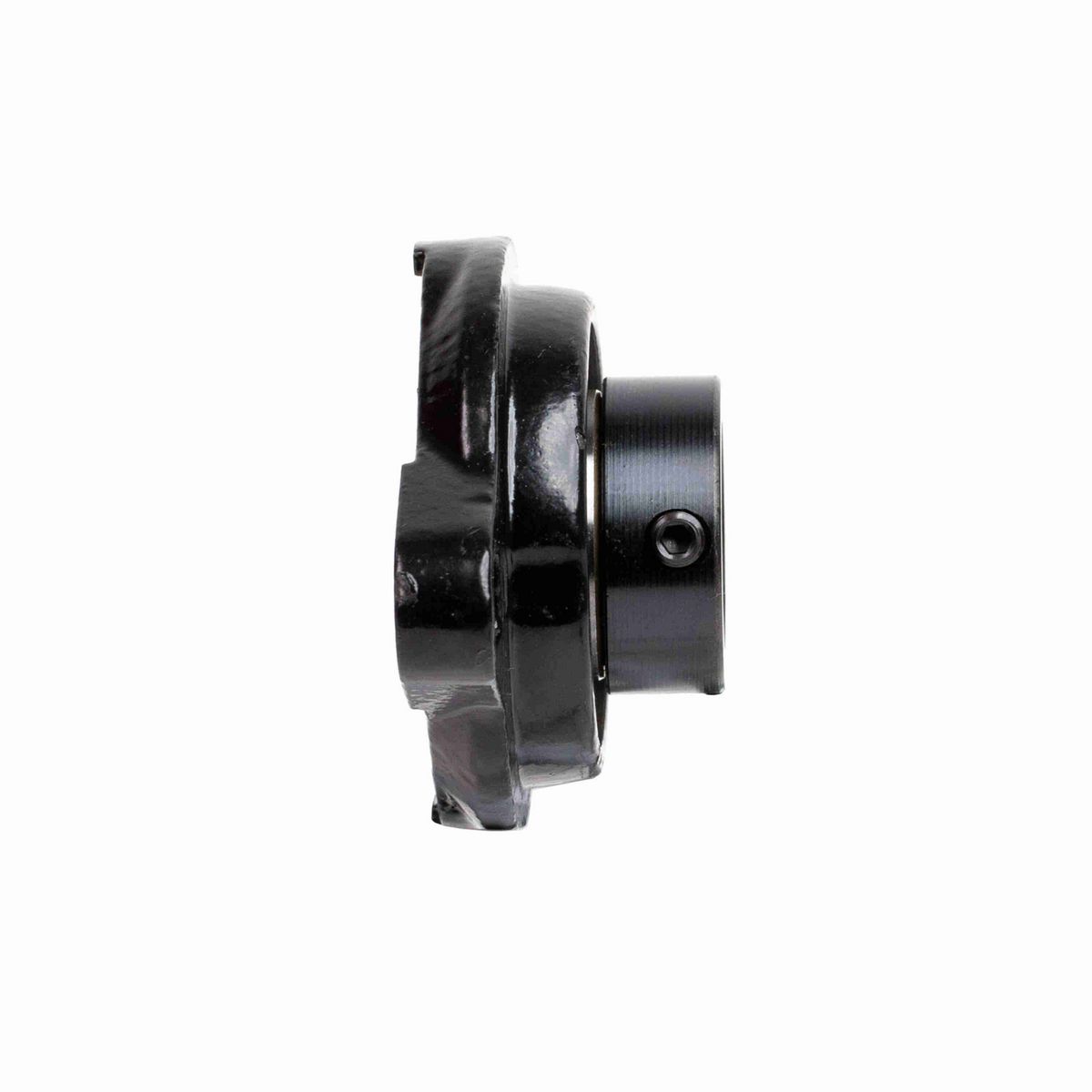

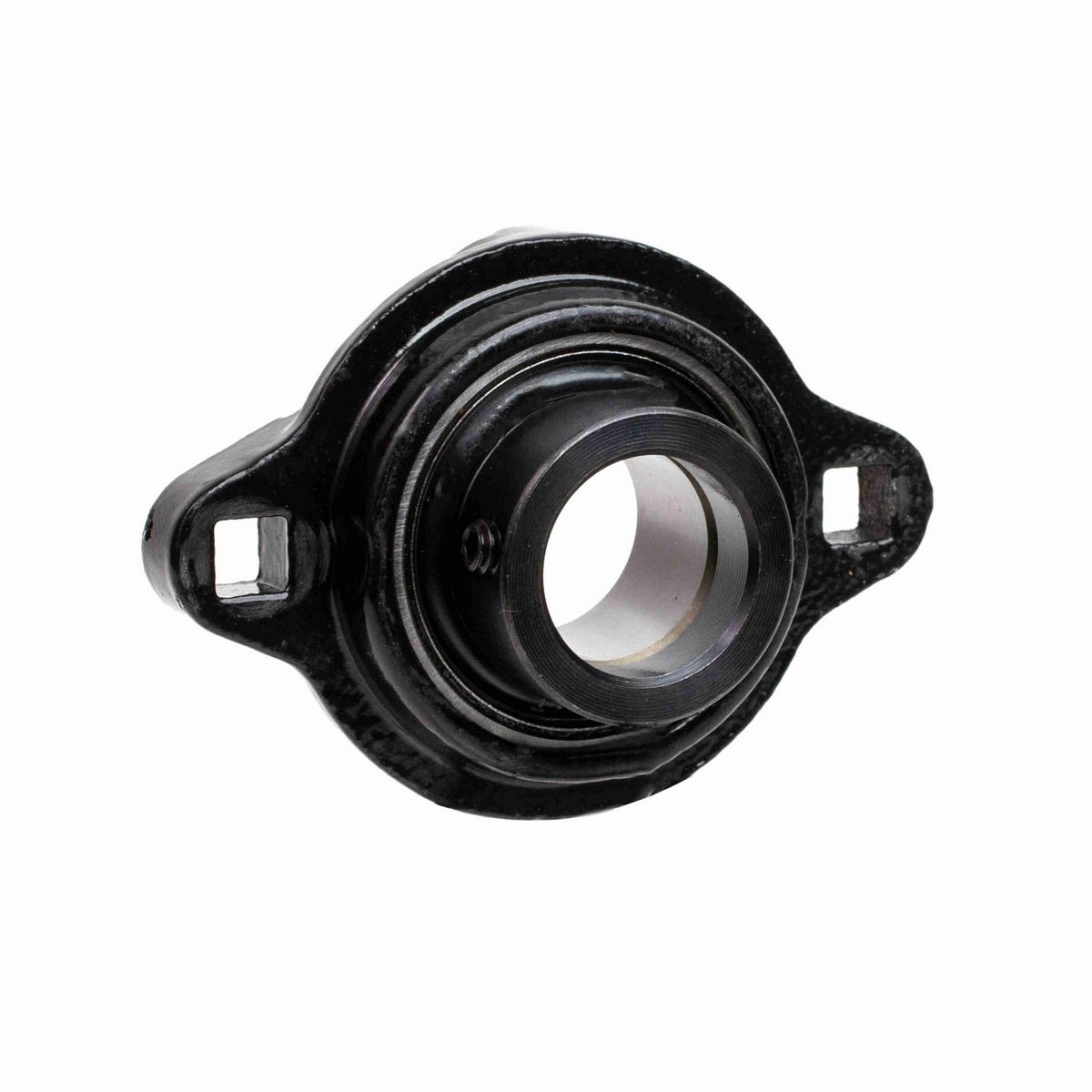

• 1" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Non Relubricatable

Dimensions

Bore Diameter (in)	1 in
Overall Height (in)	1.34 in
Bolt Size (in)	5/16 in
Overall Width (in)	2.72 in
Overall Length (in)	3.75 in
Foot Height (in)	0.42 in
Length Through Bore (in)	1.22 in
Bolt Spacing (in)	3 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Bore Shape	Straight
Misalignment Type	Static Only
Housing Construction	One Piece
Housing Color	Black
Housing Style	Flange Block
Housing Type	Flange, Two Bolt
Cage Material	Molded fiber glass reinforced nylon
Outer Ring Land Profile	Standard
Pilot Configuration	No Pilot
Setscrew Torque (in-lbs)	87-92 in/lbs
Ability to Relubricate	No
Locking Collar Outside Diameter (in)	1.44 in
Locking Device Kit	W2165S
Bearing Brand	LINK-BELT 200 SERIES BALL
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	6800 rpm
Size Code	205
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Fundamental Train	0.0067 cps
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Static Load Rating (lb)	1,760 lb
Max Operating Temperature (C)	107 °C
End Cap Available	No
Inner Ring Outside Diameter (in)	1.313 in
Cage Type	Ball Riding Retainer
Insert	W216EL
Vibration Frequency Roller Spin	0.0387 cps
Shaft Locking Type	Eccentric
Misalignment Capability	±1.5° Misalignment - Static Only
Dynamic Load Rating (lb)	3,150 lb
Bearing Insert Material	52100 Bearing Steel
Housing Material	Ductile Iron
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Bearing Type	Intermediate Duty
Housing Height (in)	0.78 in

General Specifications

UPC	793699283457
Weight	0.82 LB
Packaged Length	3.69 IN
Packaged Width	3.69 IN
Packaged Height	2.13 IN
HTC	8483204040
Country of Origin	Mexico
