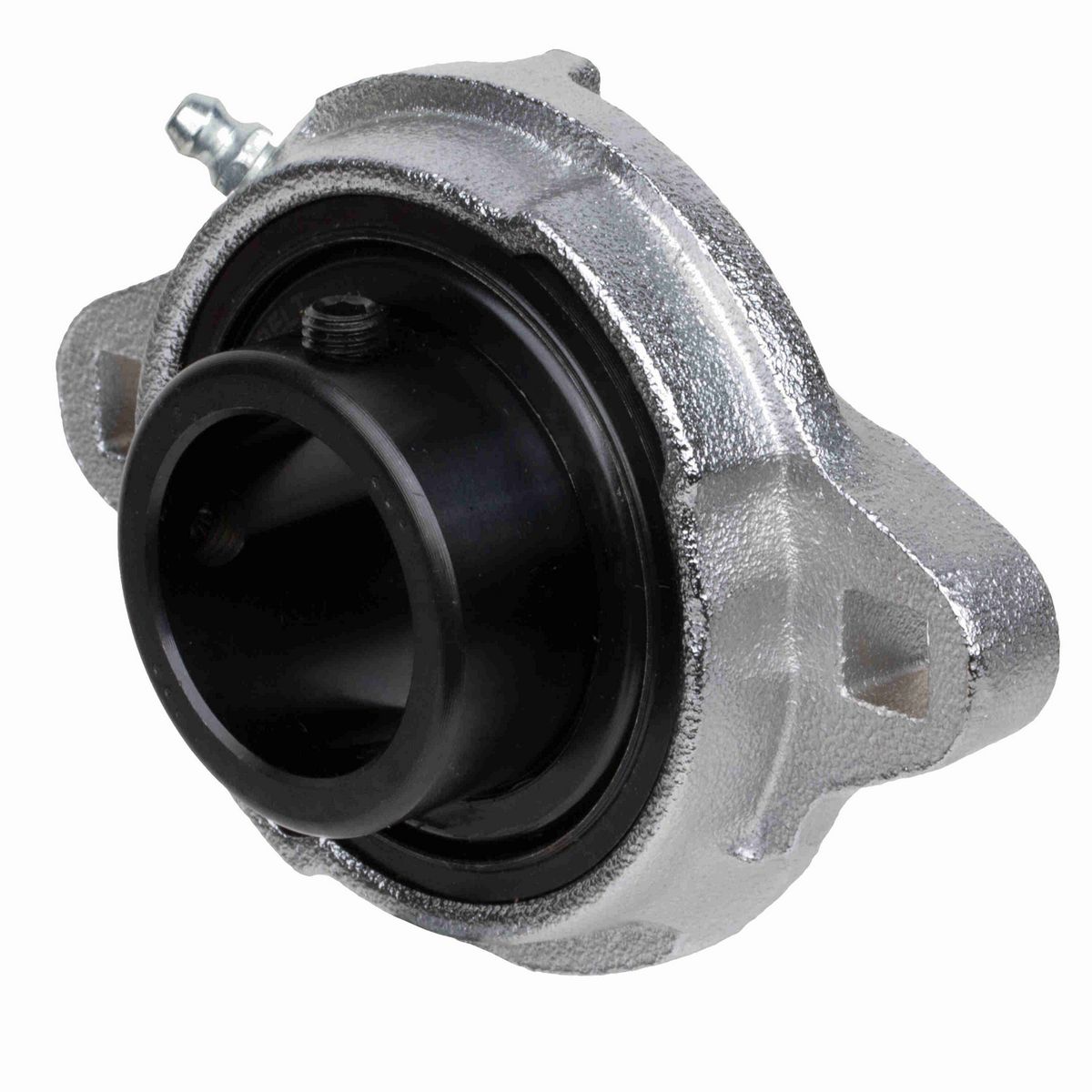

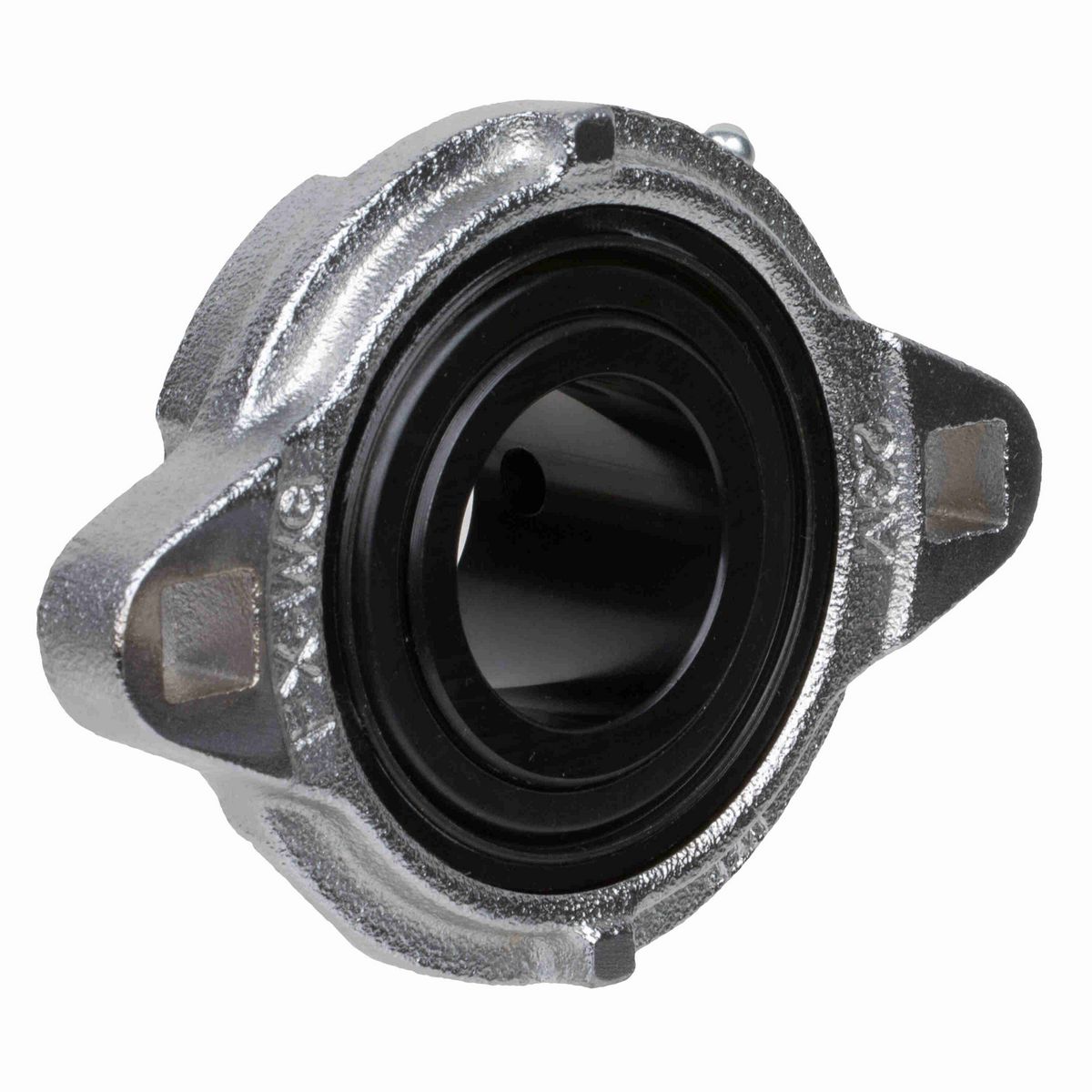

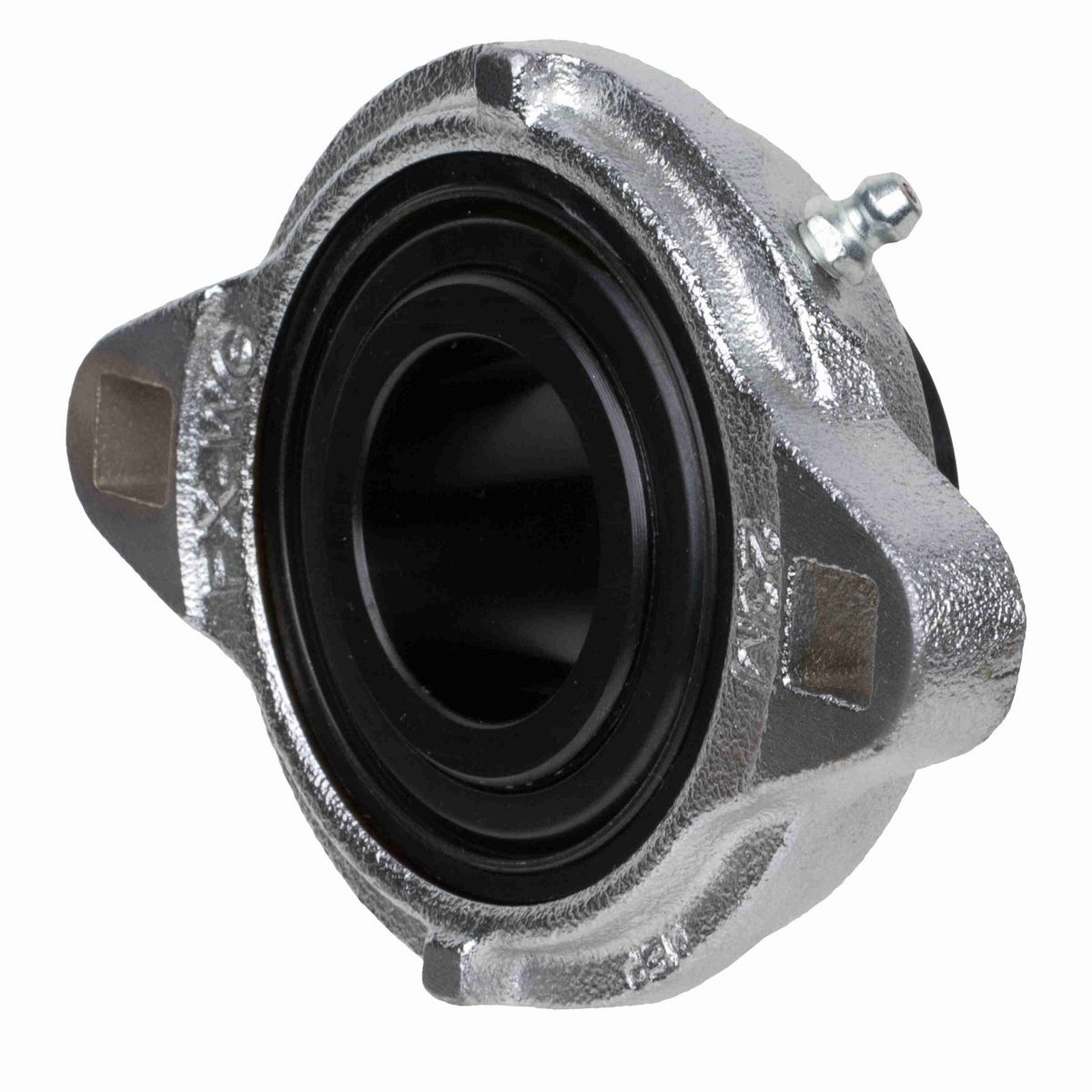

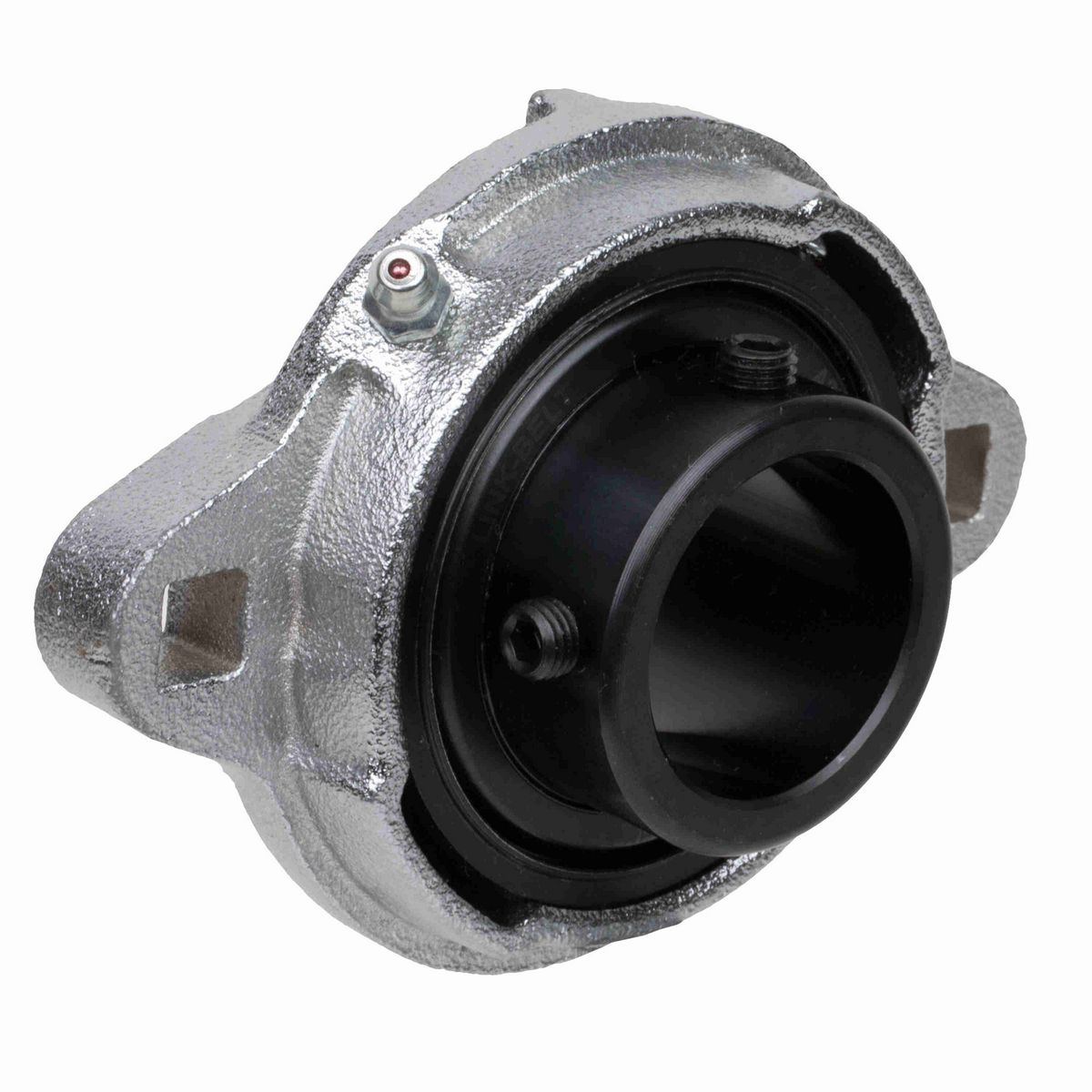

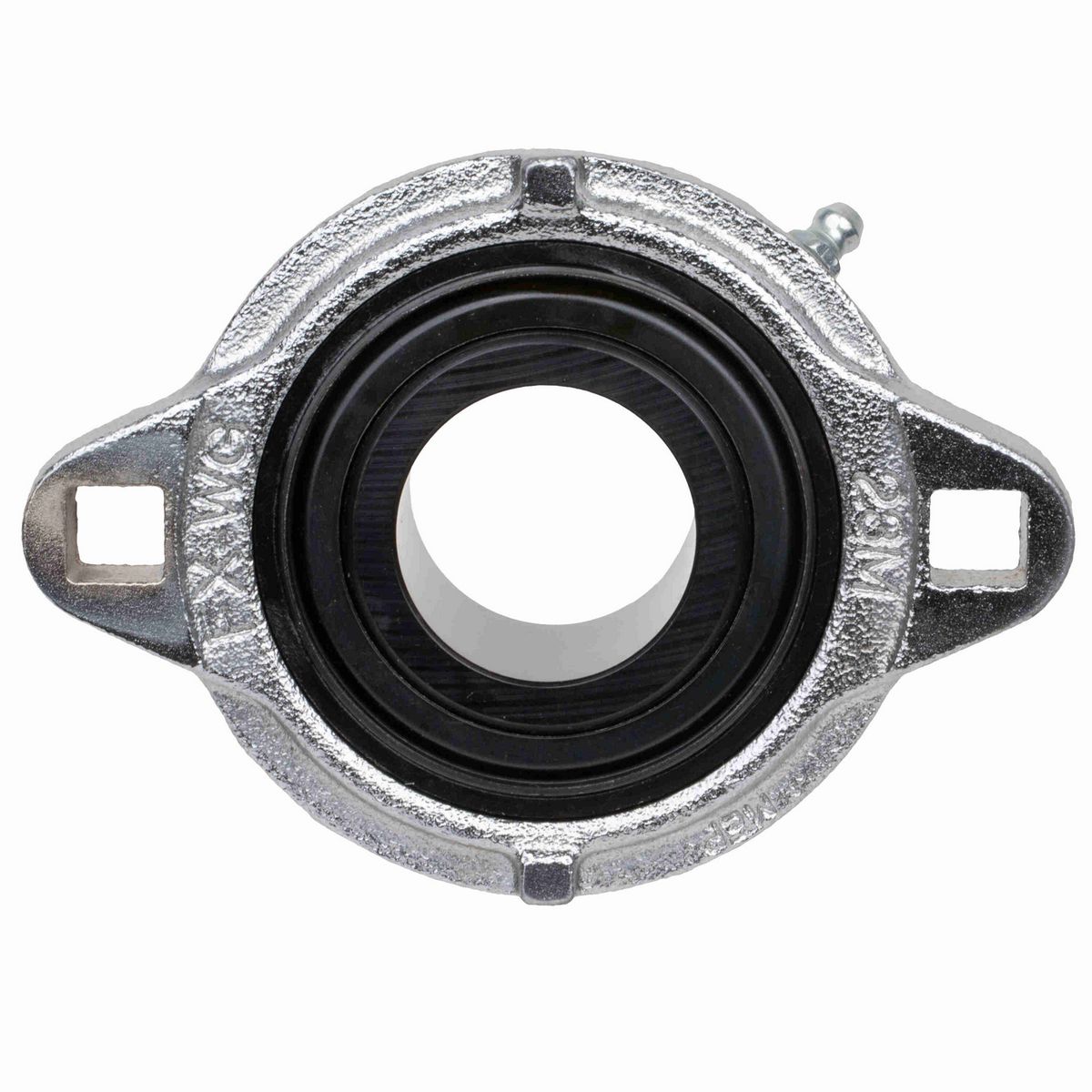

• 1 3/8" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing, Relubricatable

Dimensions

Length Through Bore (in)	1.563 in
Overall Width (in)	3.50 in
Bore Diameter (in)	1.375 in
Foot Height (in)	0.50 in
Bolt Size (in)	3/8 in
Overall Length (in)	4.81 in
Overall Height (in)	1.61 in
Bolt Spacing (in)	3.9375 in

Technical Specifications

Outer Ring Land Profile	Standard
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Misalignment Type	Static Only
Housing Style	Flange Block
Bore Shape	Straight
Housing Construction	One Piece
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Silver
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165-185 in/lbs
Max Operating Temperature (F)	225 °F
Housing Material	Ductile Iron
Bearing Insert Finish	BLACK OXIDE
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	4800 rpm
Lubricant	MOBIL FM222 FOOD GRADE H1
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4-28
End Cap Available	No
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0383 cps
Max Operating Temperature (C)	107 °C
Static Load Rating (lb)	3,440 lb
Cage Type	Ball Riding Retainer
Size Code	207
Inner Ring Outside Diameter (in)	1.847 in
Dynamic Load Rating (lb)	5,810 lb
Vibration Frequency Fundamental Train	0.0067 cps
Radial Clearance	C3 STANDARD
Housing Coating	Nickel Plated
Bearing Brand	LINK-BELT 200 SERIES BALL
Misalignment Capability	±1.5° Misalignment - Static Only
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Type	Intermediate Duty

General Specifications

UPC	662327901035
Weight	1.66 LB
HTC	8483204040
Country of Origin	Mexico
