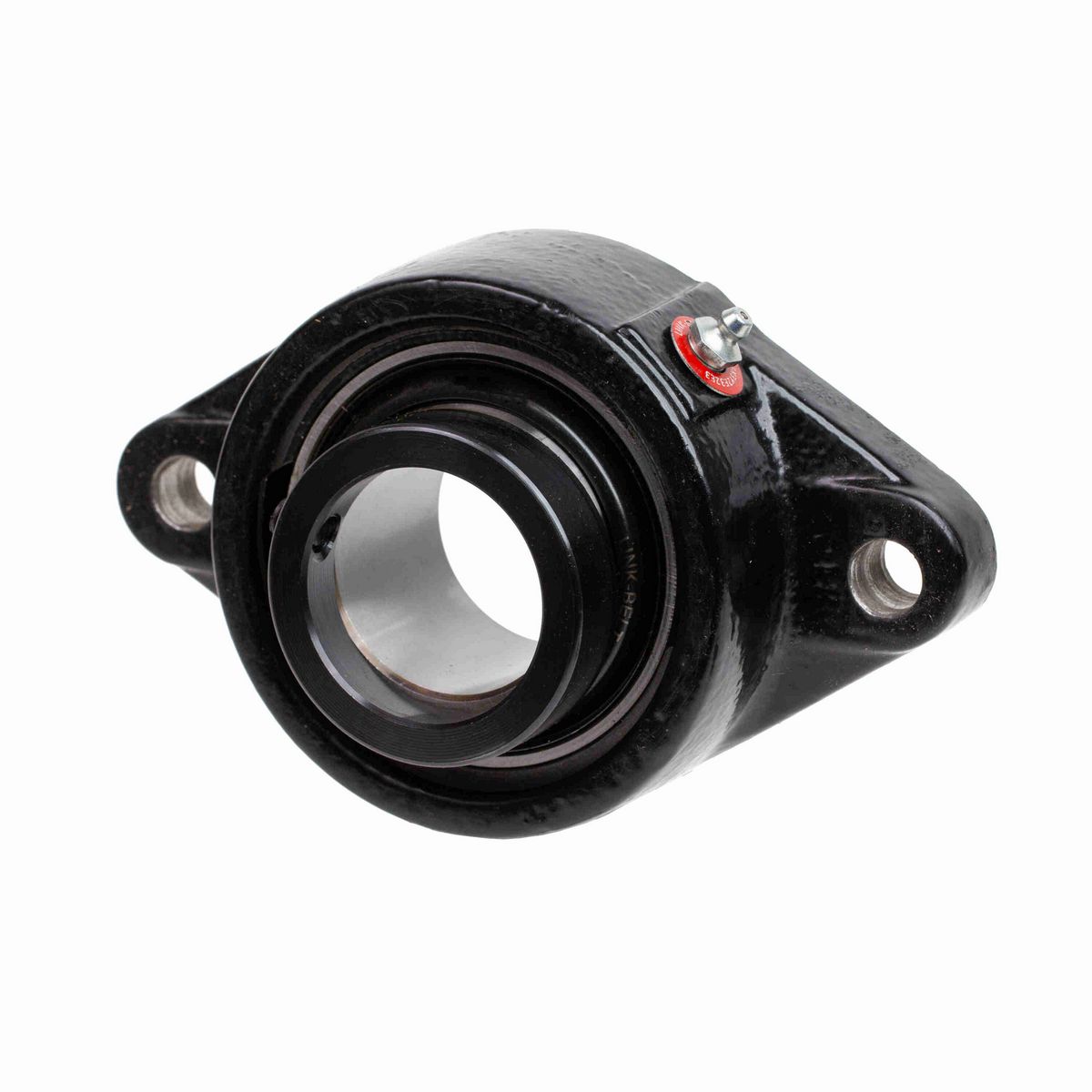

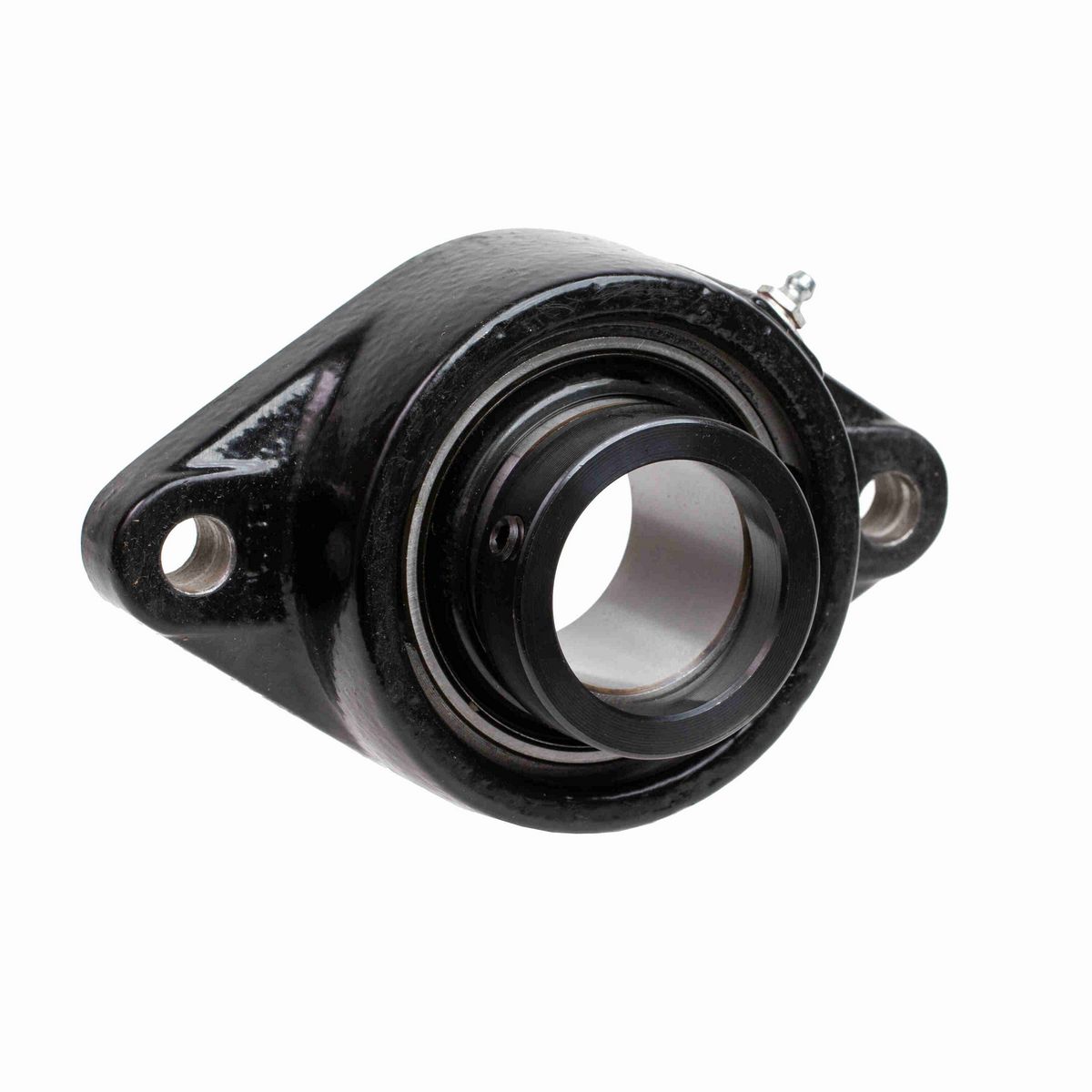

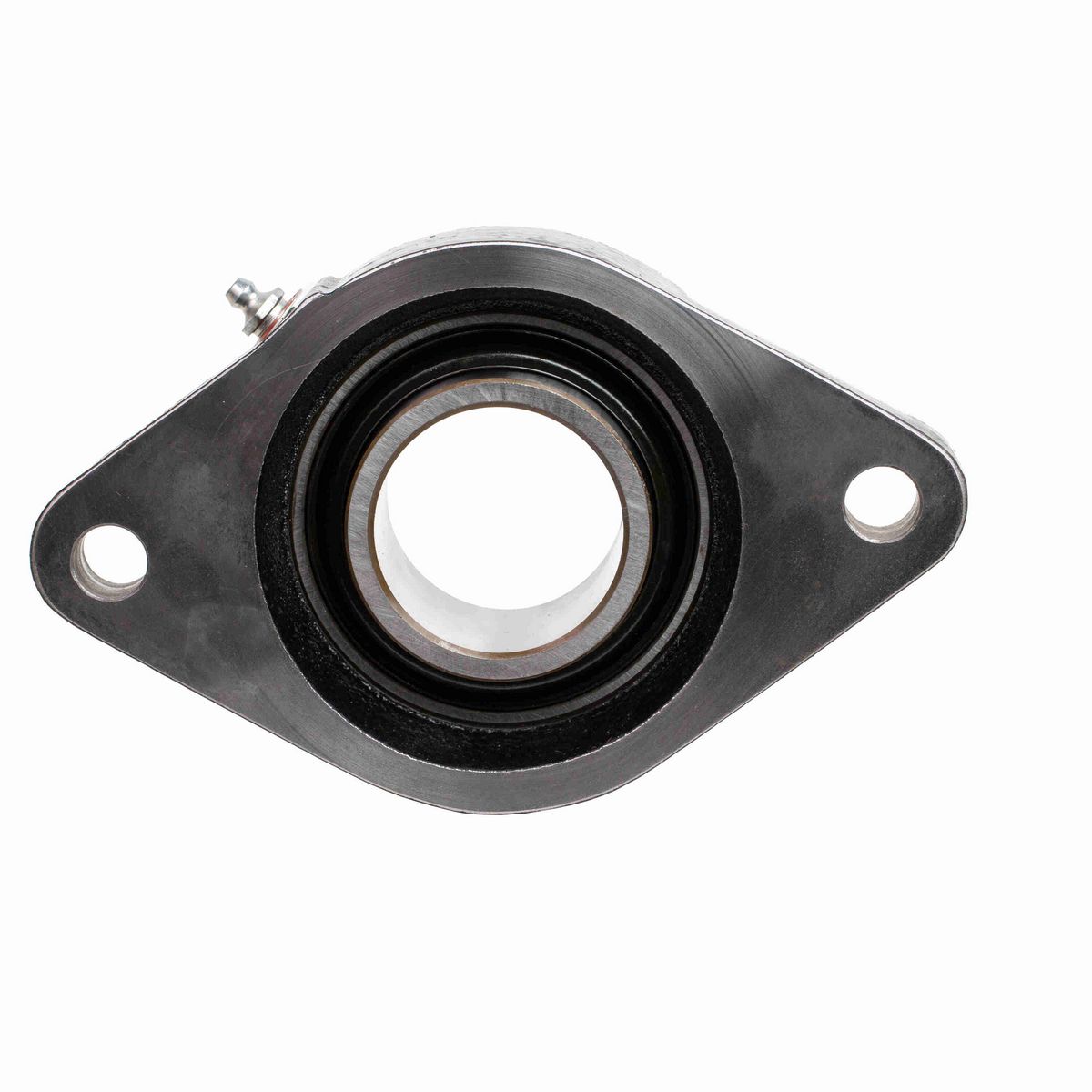

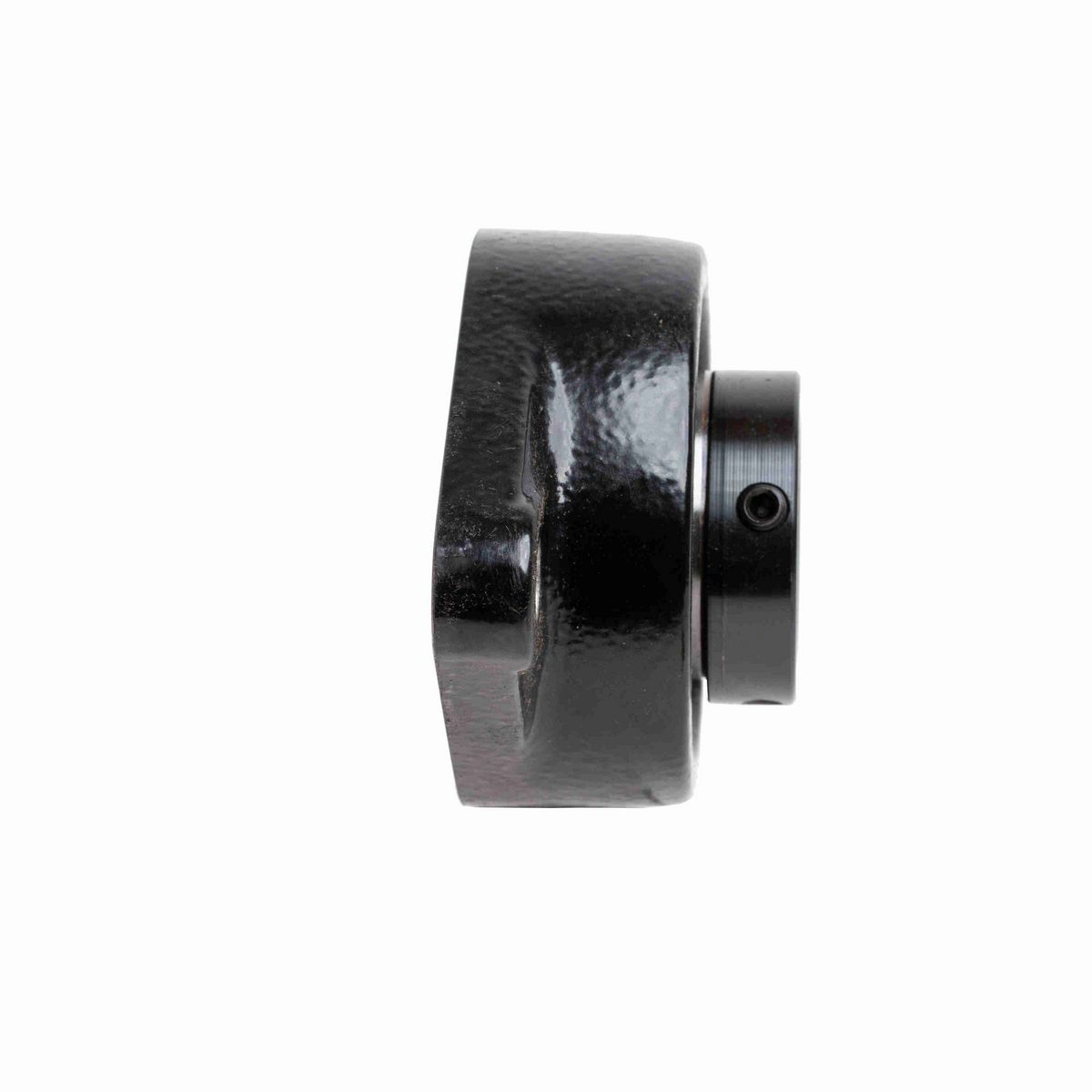

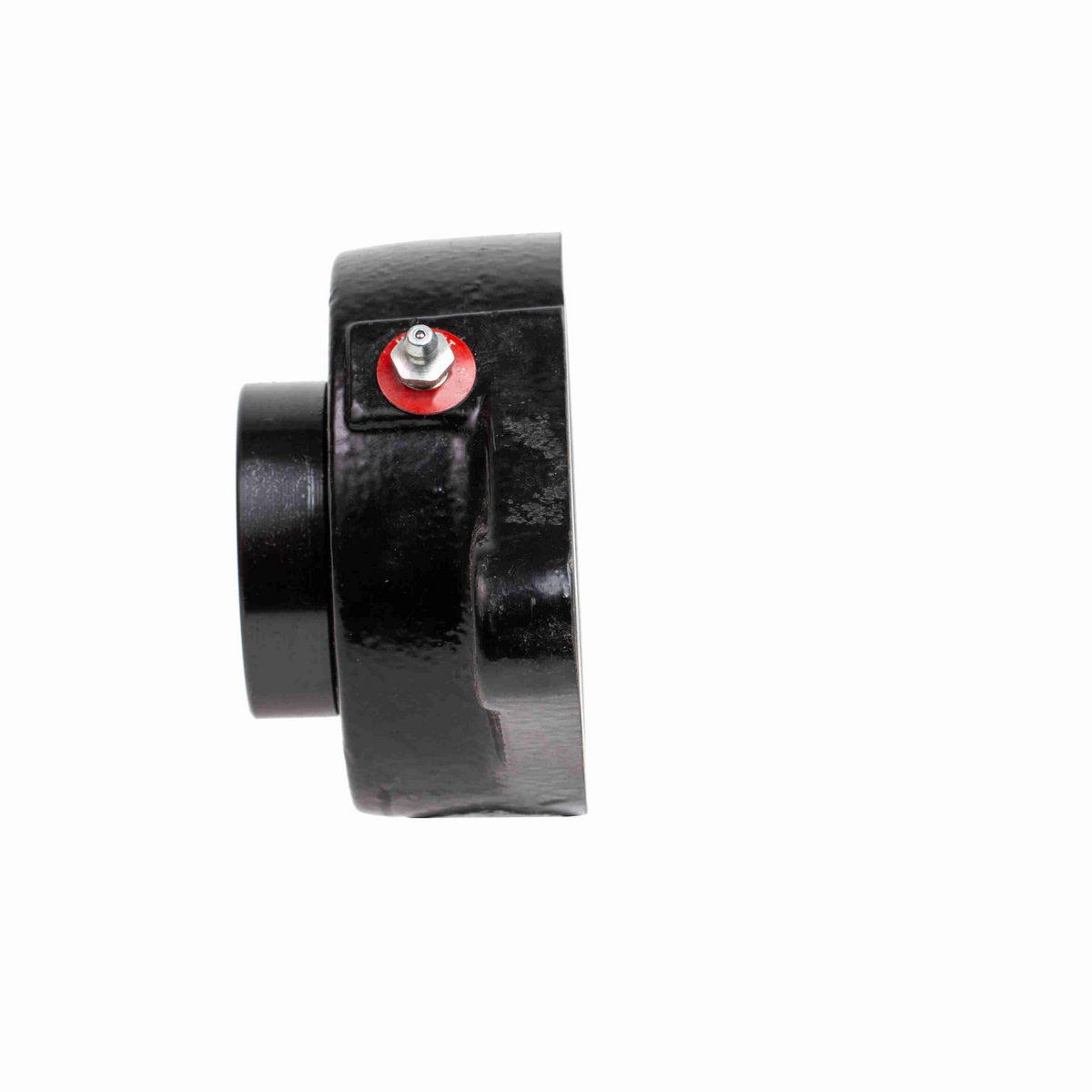

• 2" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Triple Lip Contact Seal

Dimensions

Overall Height (in)	2.63 in
Bolt Size (in)	9/16 in
Overall Length (in)	7.44 in
Bore Diameter (in)	2 in
Foot Height (in)	0.75 in
Overall Height to End Cap (in)	2.89 in
Overall Width (in)	4.56 in
Length Through Bore (in)	2.47 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Misalignment Type	Static Only
Housing Style	Flange Block
Seal Type	Multi-Lip Contact Seal
Housing Construction	One Piece
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Color	Black
Housing Type	Flange, Two Bolt
Locking Collar Outside Diameter (in)	2.75 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0985 cps
Cage Type	Ball Riding Retainer
Vibration Frequency Outer Ring Defect	0.0682 cps
Max Operating Temperature (F)	225 °F
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	550 rpm
Shaft Locking Type	Eccentric
End Cap Available	Yes
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Brand	LINK-BELT 200 SERIES BALL
Max Operating Temperature (C)	107 °C
Static Load Rating (lb)	5,220 lb
End Cap	Y2316N
Radial Clearance	C3 STANDARD
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	2.475 in
Insert	YG2E32E3L
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,920 lb
Lubricant	EXXON RONEX MP STD
Locking Device Kit	W2E325S
Vibration Frequency Roller Spin	0.0445 cps
Size Code	210
Vibration Frequency Fundamental Train	0.0068 cps
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated

General Specifications

UPC	662327890445
Weight	6.00 LB
Packaged Length	5.88 IN
Packaged Width	5.88 IN
Packaged Height	2.56 IN
HTC	8483204040
Country of Origin	Mexico
